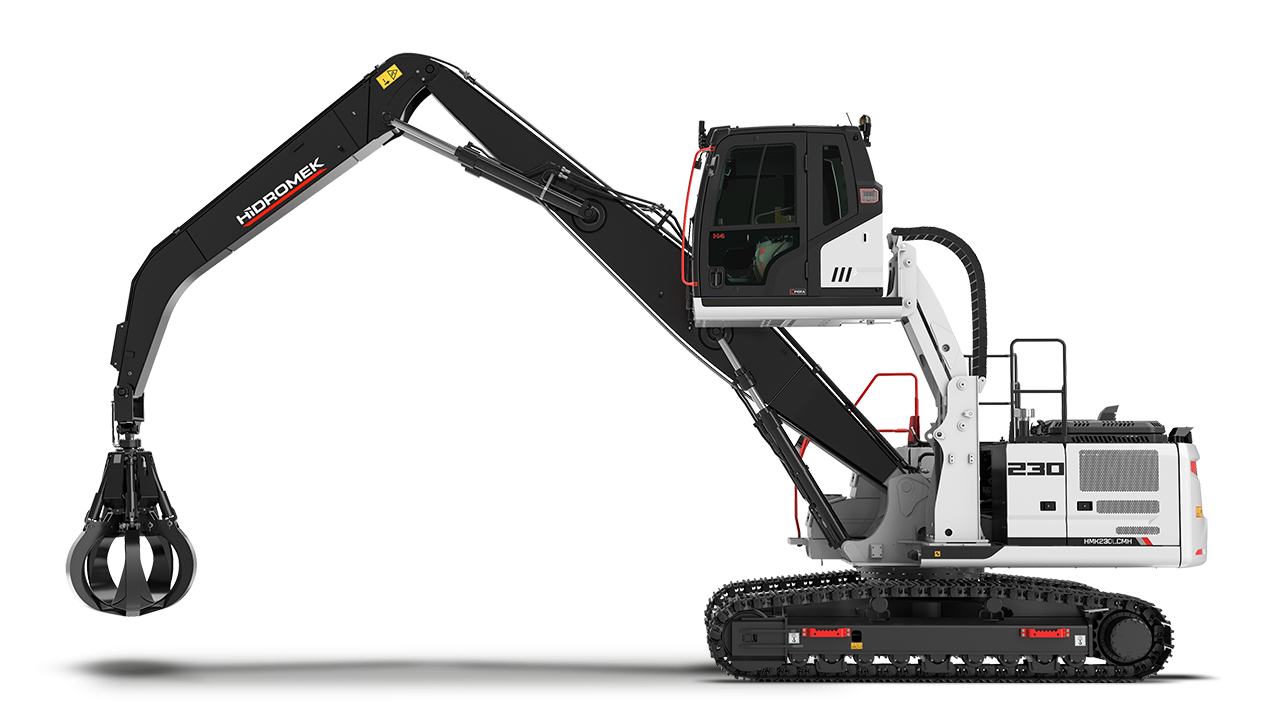

HMK 230 LC MH

Maximum Power

172 HP (128 kW) @2000 rpm

Maximum Torque

670 Nm @1600 rpm

Grapple

2.350 mm

  • View Specs & Dimensions Brochure
HİDROMEK HMK 230 LC MH is designed specifically for material handling, recycling, and industrial applications. It provides efficient performance and reliable operation while meeting customer expectations in demanding working environments.

This model is developed for specialized material handling tasks with strong reach, high stability, and efficient hydraulic performance. It is suitable for recycling plants, industrial facilities, and loading/unloading operations where precision and productivity are required.

Features

Material Handling Focus

  • Designed for recycling and industrial applications
  • High reach capability for loading operations
  • Optimized for continuous material handling work

Strong Performance

  • Powerful hydraulic system for smooth operation
  • Stable and efficient working performance
  • High lifting and digging capability

Versatile Usage

  • Suitable for industrial and recycling facilities
  • Multiple attachment compatibility
  • Flexible working configurations

Specifications

Engine

  • Power: 172 HP (128 kW) @ 2000 rpm
  • Torque: 670 Nm @ 1600 rpm
  • Model: ISUZU 4HK1X
  • 4-cylinder turbocharged diesel engine
  • Displacement: 5193 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 221 L/min
  • Pilot Pump: 20 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 370 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 306 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 11.9 rpm

Travel

  • Maximum Drawbar Pull: 18,310 kgf
  • High Speed: 5.8 km/h
  • Low Speed: 3.8 km/h

Working Dimensions

  • Grapple: 2,350 mm
  • Minimum Swing Radius: 3,910 mm
  • Maximum Vertical Digging Depth: 5,210 mm
  • Maximum Digging Depth: 6,340 mm
  • Maximum Reach at Ground Level: 9,780 mm
  • Boom: 5,700 mm
  • Arm: 2,920 mm
  • Maximum Dumping Clearance: 6,500 mm
  • Minimum Dumping Clearance: 2,320 mm
  • Maximum Dumping Height: 6,500 mm

Operating Weight

  • 25,050 kg
  • View Specs & Dimensions Brochure
