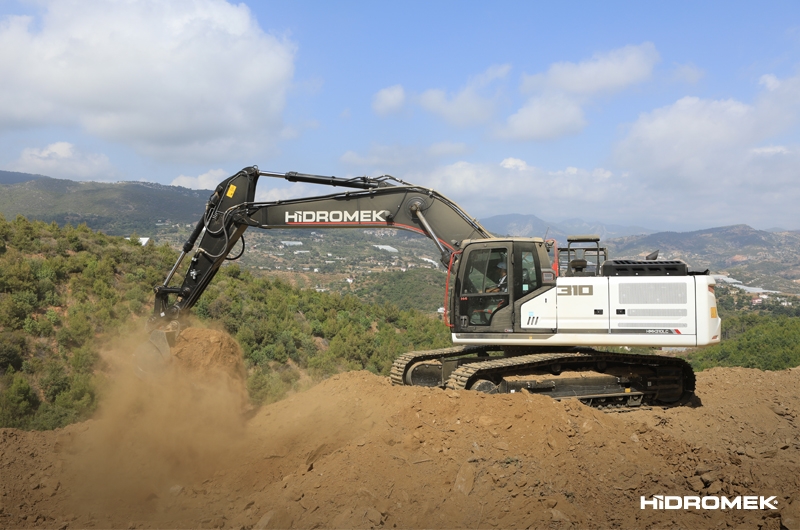

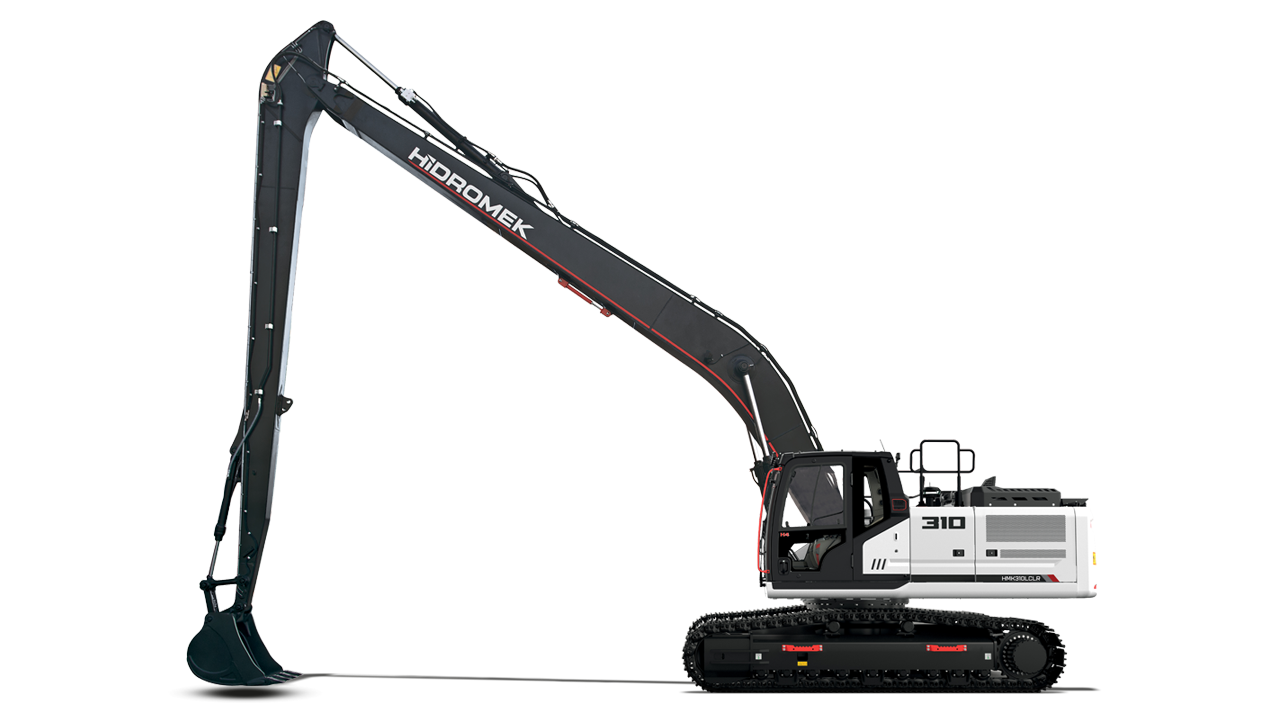

HMK 310 LC LR

Engine

• Power: 264 HP (197 kW) @ 1800 rpm
• Torque: 1050 Nm @ 1500 rpm
• Model: ISUZU 6HK1X
• 6-cylinder turbocharged diesel engine
• Displacement: 7790 cc
• Emission Class: Stage V EU

Hydraulic System

• Pump Type: Double variable displacement axial piston pumps
• Max Flow: 2 × 266 L/min
• Pilot Pump: 30.5 L/min
• Pressure (Attachment): 350 kgf/cm²
• Power Boost: 380 kgf/cm²
• Travel: 350 kgf/cm²
• Swing: 285 kgf/cm²
• Pilot: 40 kgf/cm²

Swing System

• Swing Speed: 10.4 rpm

Travel

• Maximum Drawbar Pull: 25,460 kgf
• High Speed: 5.1 km/h
• Low Speed: 3.0 km/h

Working Dimensions

• Maximum Digging Depth (2440 mm level): 14,140 mm
• Minimum Swing Radius: 5,930 mm
• Maximum Vertical Digging Depth: 12,570 mm
• Maximum Dumping Clearance: 12,550 mm
• Minimum Dumping Clearance: 2,500 mm
• Maximum Digging Reach: 18,360 mm
• Maximum Reach at Ground Level: 18,240 mm
• Boom: 10,300 mm
• Arm: 7,800 mm
• Maximum Digging Depth: 14,250 mm

Operating Weight

• 35,000 kg
