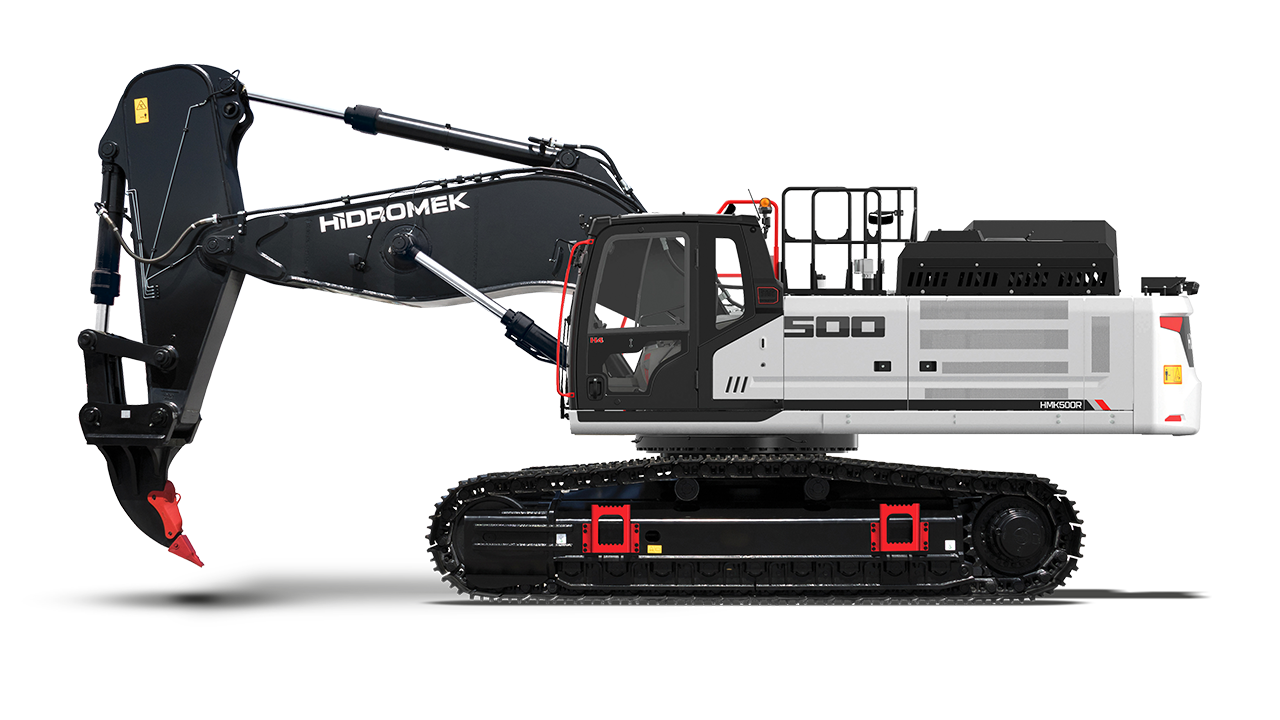

HMK 500 R

Maximum Power

362 HP (270 kW) @2000 rpm

Maximum Torque

1650 Nm @1300 rpm

Ripper Digging Force (ISO)

48.300 (52.700) kgf

  • View Specs & Dimensions Brochure
HİDROMEK HMK 500 R is a heavy-duty excavator designed for demanding applications such as marble quarries, mines, and large construction sites. Built with reinforced arm, boom, undercarriage, and attachment structures, it delivers high durability, long service life, and strong performance in tough working conditions.

This model is part of the H4 Series and is engineered for heavy industrial use where strength and reliability are essential. It focuses on durability, powerful digging capability, and stable operation under extreme workloads.

Features

Heavy-Duty Construction

  • Reinforced structure for mining and quarry operations
  • Durable arm, boom, and undercarriage design
  • Built for long-term industrial usage

High Performance

  • Strong engine output for demanding tasks
  • High hydraulic efficiency and force
  • Excellent digging and ripping capability

Industrial Applications

  • Suitable for marble quarries and mining sites
  • Designed for large construction projects
  • Reliable operation in harsh environments

Specifications

Engine

  • Power: 362 HP (270 kW) @ 2000 rpm
  • Torque: 1650 Nm @ 1300 rpm
  • Model: ISUZU 6UZ1X
  • 6-cylinder, turbocharged diesel engine
  • Displacement: 9839 cc
  • Emission Class: Stage V EU

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 346 L/min
  • Pilot Pump: 28.5 L/min
  • Attachment Pressure: 330 kgf/cm²
  • Power Boost: 355 kgf/cm²
  • Travel Pressure: 330 kgf/cm²
  • Swing Pressure: 300 kgf/cm²
  • Pilot Pressure: 40 kgf/cm²

Swing System

  • Swing Speed: 8.3 rpm

Travel

  • Maximum Drawbar Pull: 35,250 kgf
  • High Speed: 4.70 km/h
  • Low Speed: 2.85 km/h

Working Dimensions

  • Minimum Swing Radius: 3,640 mm
  • Maximum Digging Reach: 7,940 mm
  • Maximum Reach at Ground Level: 7,560 mm
  • Boom: 5,100 mm
  • Arm: 1,800 mm
  • Maximum Digging Depth: 3,280 mm

Operating Weight

  • 55,100 kg
  • View Specs & Dimensions Brochure
