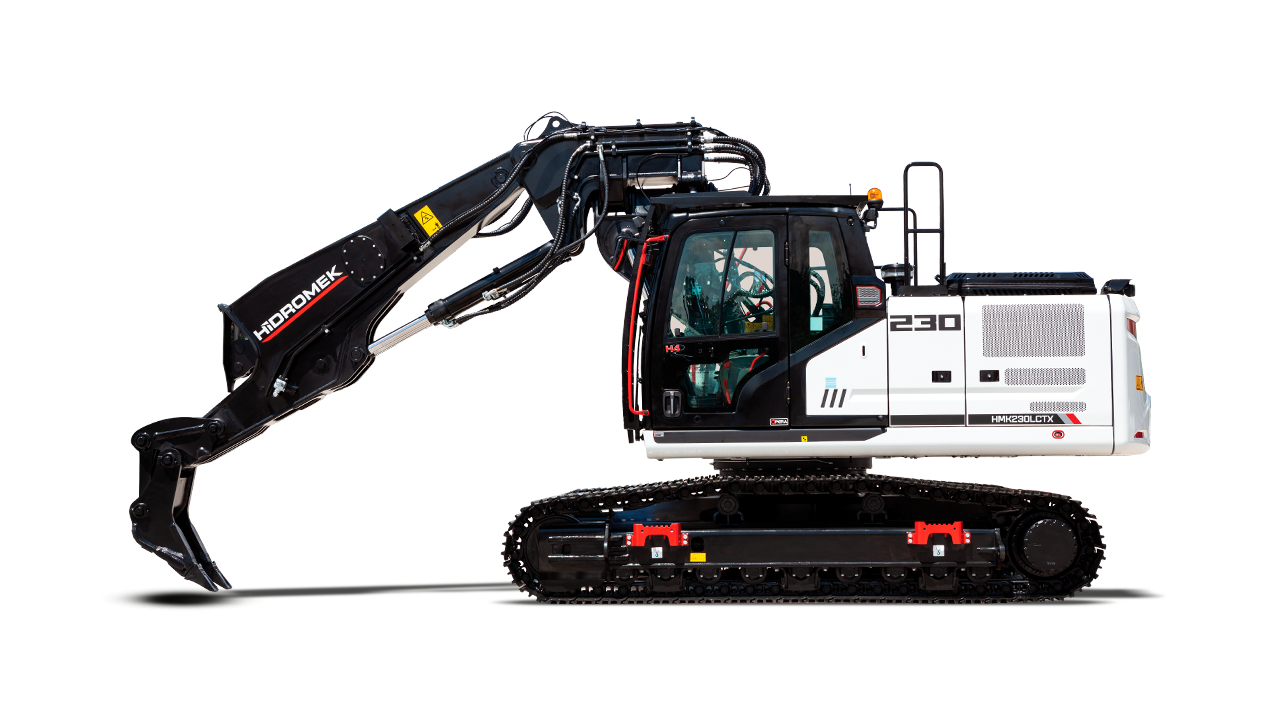

cover_header (6)

HMK 230 LC TX

Maximum Power

172 HP (128 kW) @2000 rpm

Maximum Torque

670 Nm @1600 rpm

Ripper Digging Force (ISO)

21500 kgf

  • View Specs & Dimensions Brochure
HİDROMEK HMK 230 LC TX is specially developed for tunnel operations. It is designed to deliver reliable performance in confined underground working conditions while maintaining strong digging power and operational efficiency.

This model is optimized for tunnel construction and underground excavation tasks. It provides strong breakout force, compact working capability, and stable hydraulic performance. It is engineered to operate efficiently in restricted spaces where precision and power are both required.

Features

Tunnel-Specific Design

  • Developed for underground and tunnel applications
  • Compact and stable structure for confined spaces
  • Optimized working geometry for restricted environments

Strong Performance

  • High digging and breakout forces
  • Powerful hydraulic system for tough conditions
  • Reliable operation under heavy load

Efficient Operation

  • Suitable for excavation in narrow tunnels
  • Stable machine control in tight spaces
  • High productivity in underground works

Specifications

Engine

  • Power: 172 HP (128 kW) @ 2000 rpm
  • Torque: 670 Nm @ 1600 rpm
  • Model: ISUZU 4HK1X
  • 4-cylinder diesel engine
  • Displacement: 5193 cc
  • Emission Class: Stage V EU

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 221 L/min
  • Pilot Pump: 20 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 370 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 306 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 11.9 rpm

Travel

  • Maximum Drawbar Pull: 18,365 kgf
  • High Speed: 5.8 km/h
  • Low Speed: 3.8 km/h

Working Dimensions

  • Maximum Working Width: 7,040 mm
  • Boom: 2,700 mm
  • Arm: 3,890 mm

Operating Weight

  • 23,350 kg
  • View Specs & Dimensions Brochure
