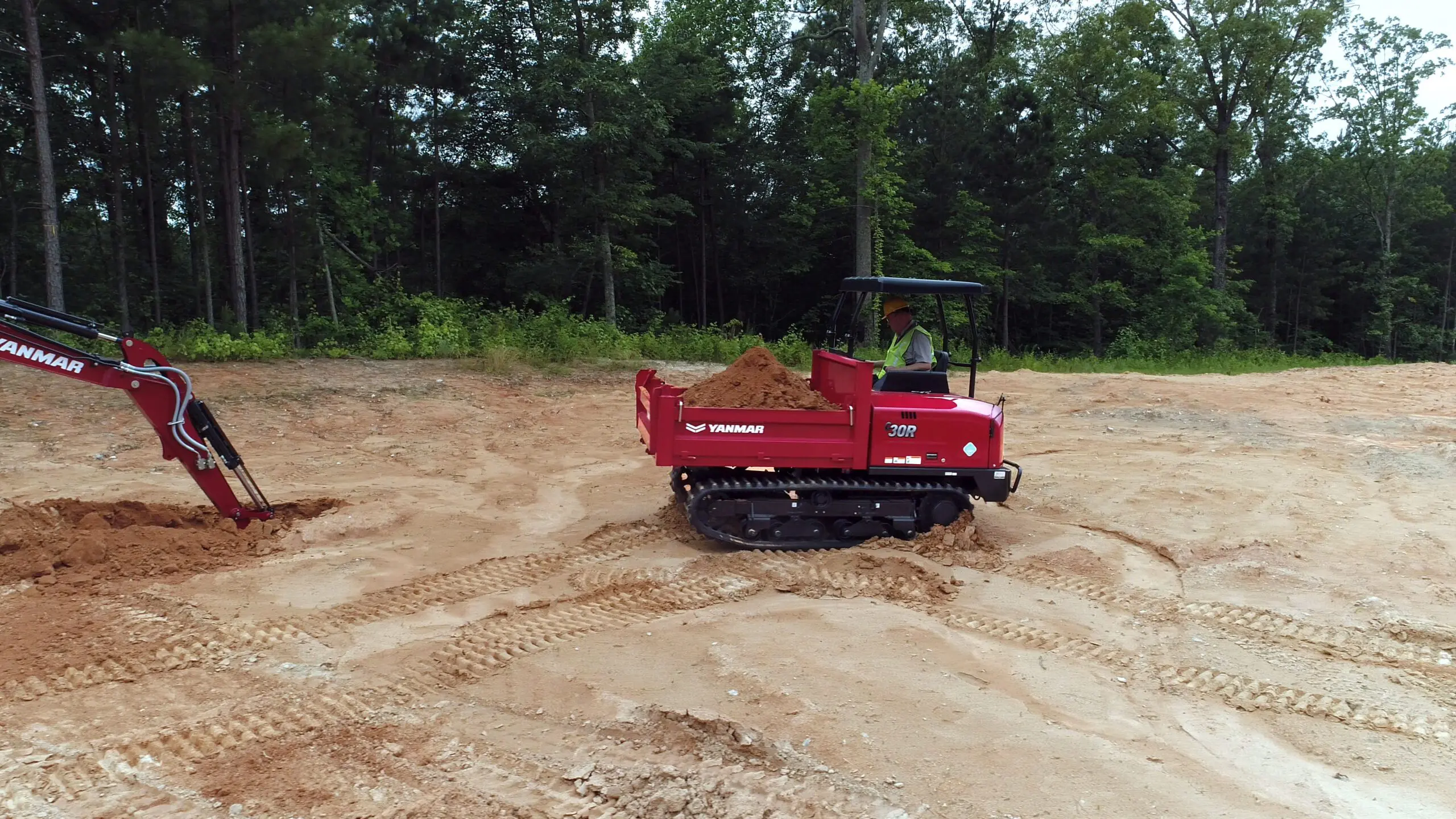

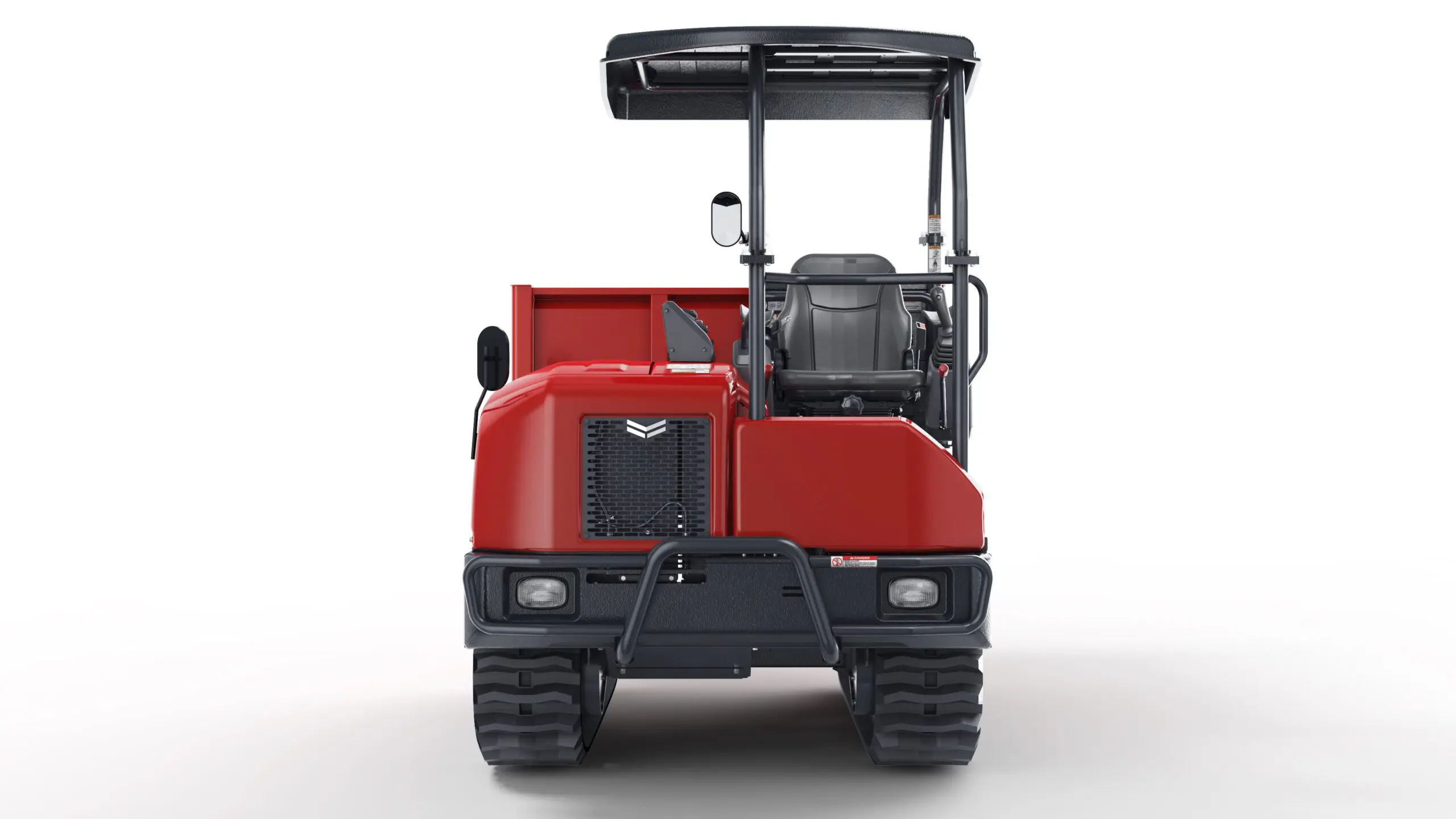

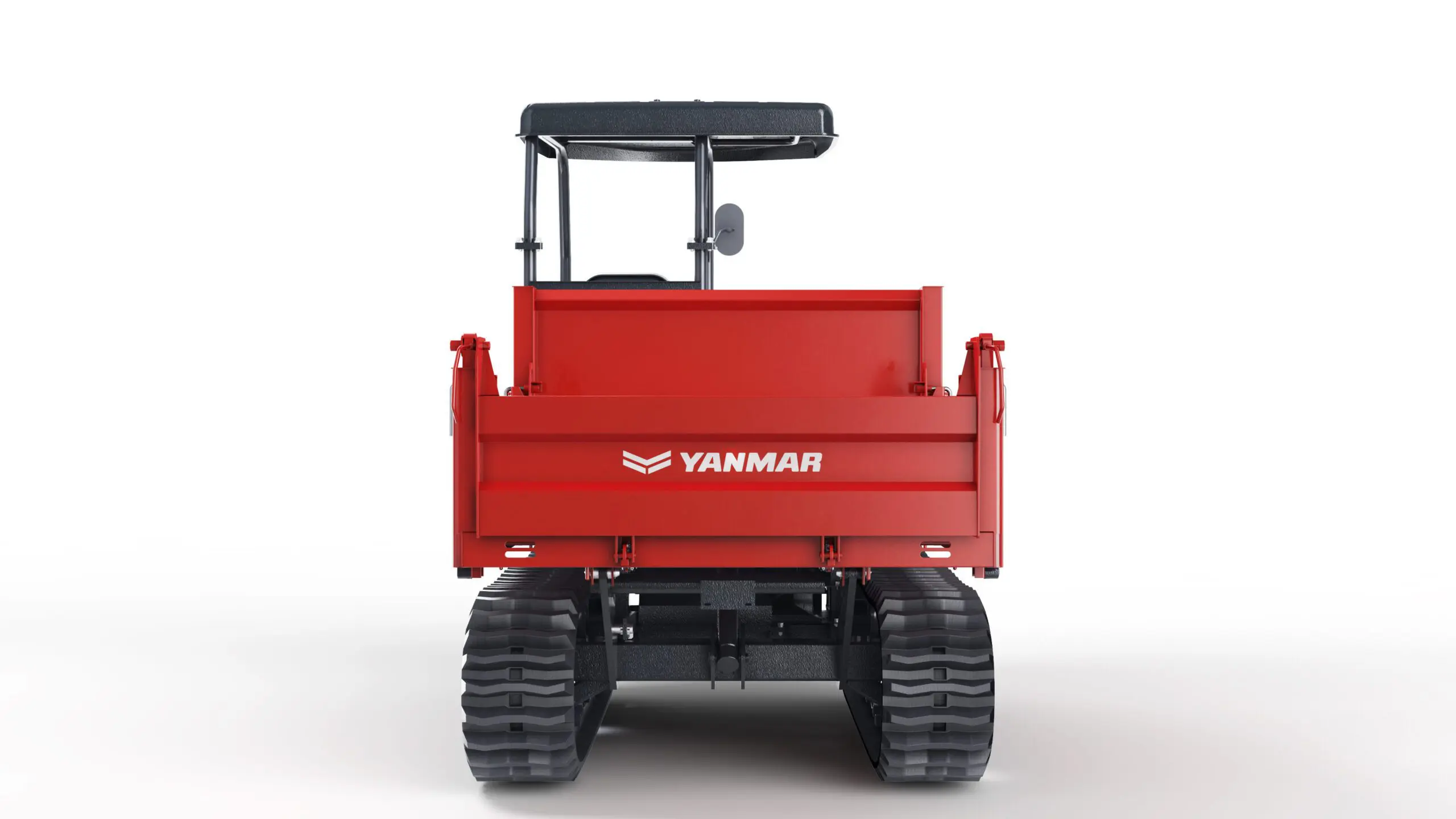

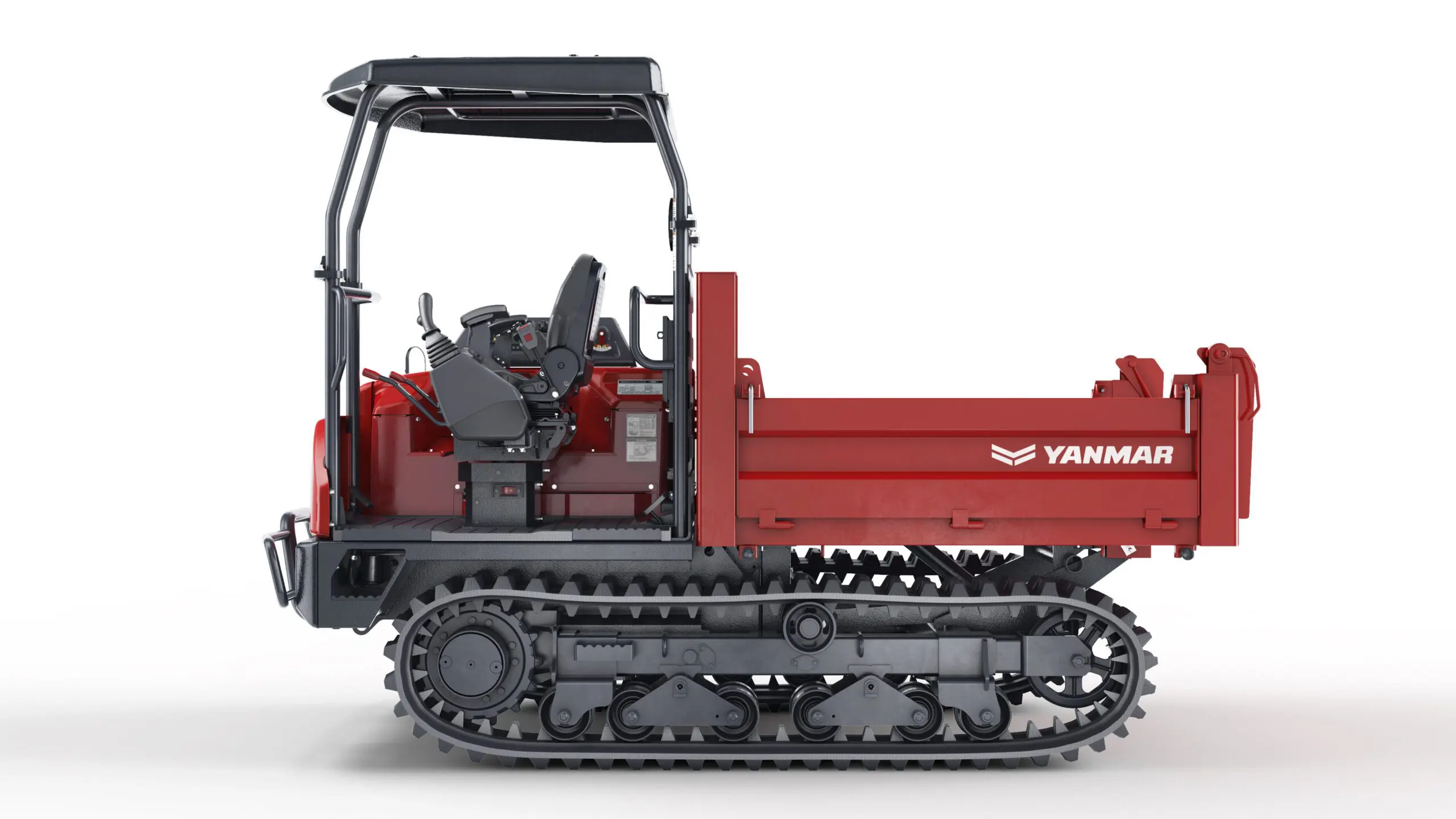

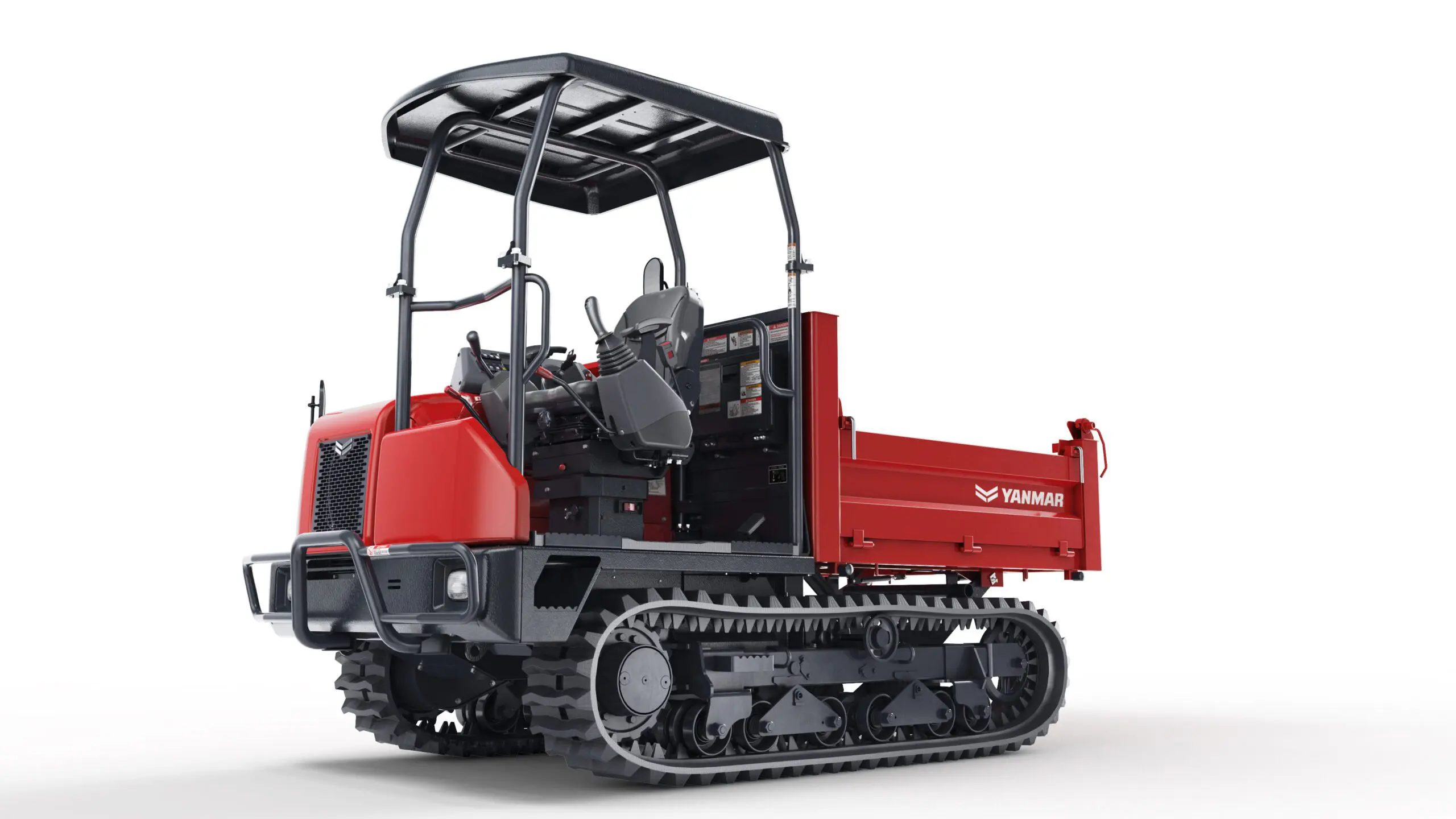

Don’t let bad weather or wet, muddy, snow covered, sandy or steep slopes slow down your next project or jobsite. When a pickup or dump truck can’t get the job done, rest assured our compact and powerful C30R-3 all-terrain tracked carrier can. With an all-rubber track, you’ll enjoy minimal impact, incredible traction, and amazing stability and capability, even traversing the most challenging terrain. Whether you’re looking to bring material in, excavated material out, or you simply need to transport tools across terrain where wheeled vehicles dare not tread, the C30R-3 all-terrain tracked carrier keeps things moving.
Legendary Yanmar engines have an industry wide reputation for reliability and efficiency. The overachieving power of the C30R-3 is only matched by its fuel efficiency.
Enjoy smooth and predictable engagement and travel, even when loaded, with our automatic 2-speed hydrostatic transmission (HST) and auto-speed shift travel system.
Keep workers safe and the jobsite rolling with the added protection of 4-pillar ROPS and accompanying FOPS canopy.

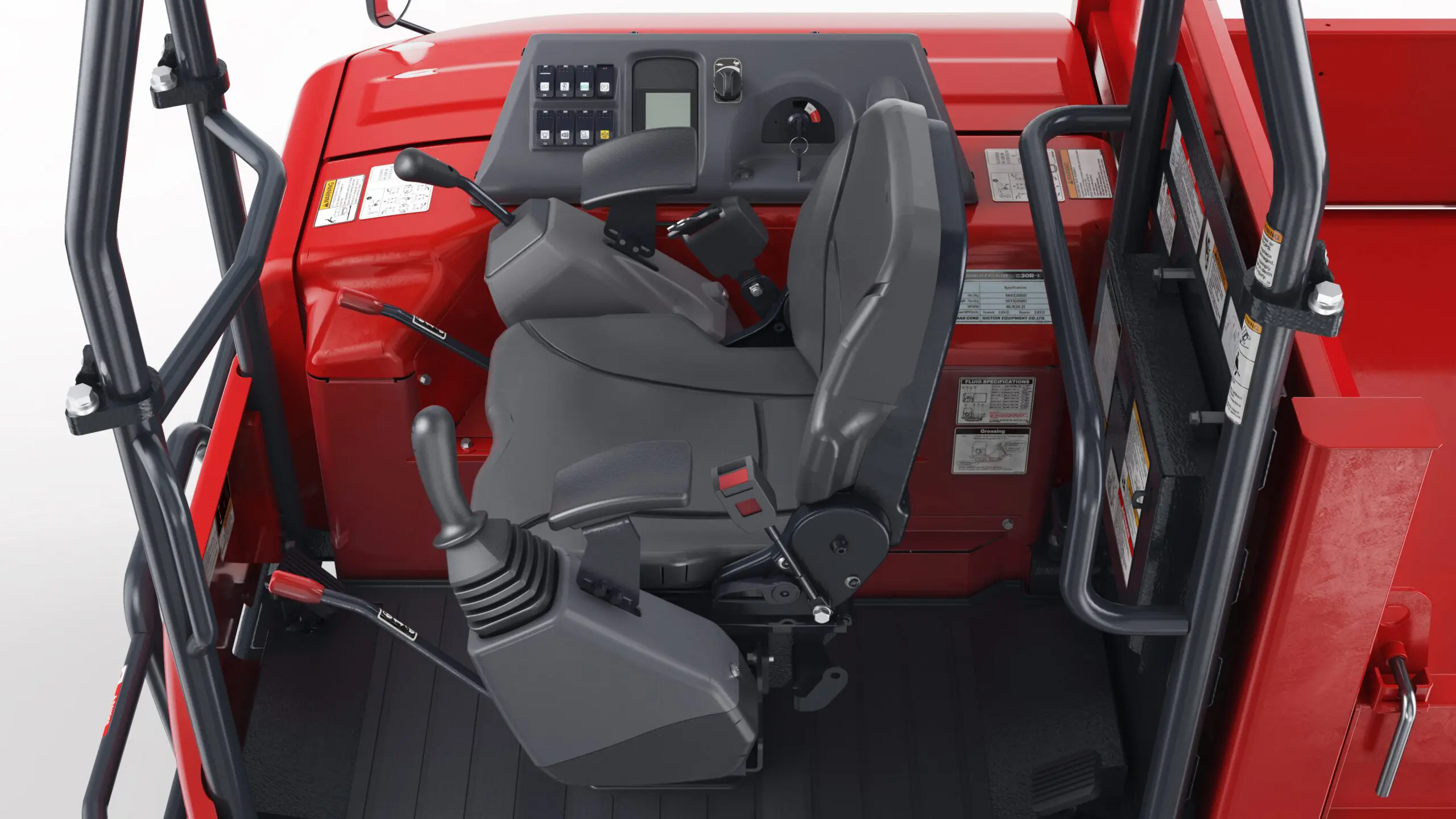

Greater safety and vision come standard with 180-degree reversible operator’s seat and travel levers, so you’re always seated in the direction of travel.
Easy-to-work-on is a hallmark of Yanmar and a full-opening hood puts the most important maintenance items at your fingertips for less down time.
The undercarriage of our tracked carriers is over-built to over deliver. The robust design is constructed from premium materials to withstand the harshest terrain.
| Operating Weight | |
|---|---|
| Net, unloaded – Box Shape | 5,843 lbs |
| Net, unloaded – V Shape | 6,317 lbs |
| Transmission | |
| Type | Variable Speed 2 Pump, 2 Motor Hydrostatic (HST) |
| Undercarriage | |
| Track Type | Steel-Reinforced Rubber Track |
| Track Width | 1’1″ |
| Min. Ground Clearance – Bow Shape | 10″ |
| Min. Ground Clearance – V Shape | 11″ |
| Ground Contact Pressure – Bow Shape w/o load | 4.0 PSI |
| Ground Contact Pressure – Bow Shape w/ load | 4.3 PSI |
| Ground Contact Pressure – V Shape w/o Load | 7.8 PSI |
| Ground Contact Pressure – V Shape w/load | 8.1 PSI |
| Performance | |
| Max. Payload – One-way Dump Type | 5,512 lbs |
| Max. Dumping Angle – One-way Dump Type | 58° |
| Max. Dumping Angle – Swivel-dump Type | 85° |
| Dump Clearance – One-way Dump Type | 1’6″ |
| Dump Clearance – Swivel-dump Type | 2’5″ |
| Dump Body Capacity Struck – One-way Dump Type | 1.15 yd³ |
| Dump Body Capacity Heaped – Swivel-dump Type | 1.47 yd³ |
| Dump Body Capacity Struck – One-way Dump Type | 1.62 yd³ |
| Dump Body Capacity Heaped – Swivel-dump Style | 1.96 yd³ |
| Travel Speed – Forward | Low Speed 0-3.5 mph / High Speed 0-6.8 mph |
| Travel Speed – Reverse | Low Speed 0-3.5 mph / High Speed 0-6.8 mph |
