C50R-5

Weight

12,633 lbs.

HorsePower

111.5 HP

Max Payload

8,379 lbs.

Haul in the toughest conditions

You could call our tracked carriers the champion of the jobsite. They float like a butterfly yet pack a heavy-weight punch when it comes to hauling capacity. When the jobsite features mud, deep snow, soft ground, steep slopes or is simply too cramped for a traditional dump truck, nothing gets the job done quicker and with less impact than a Yanmar tracked carrier. The C50R-5 touts impressive power and payload with unmatched navigational and dumping versatility thanks to the added safety of 180-degree rotation of the seat and controls, and available 180-degree dumping capabilities.

Dump where you want, not where you can

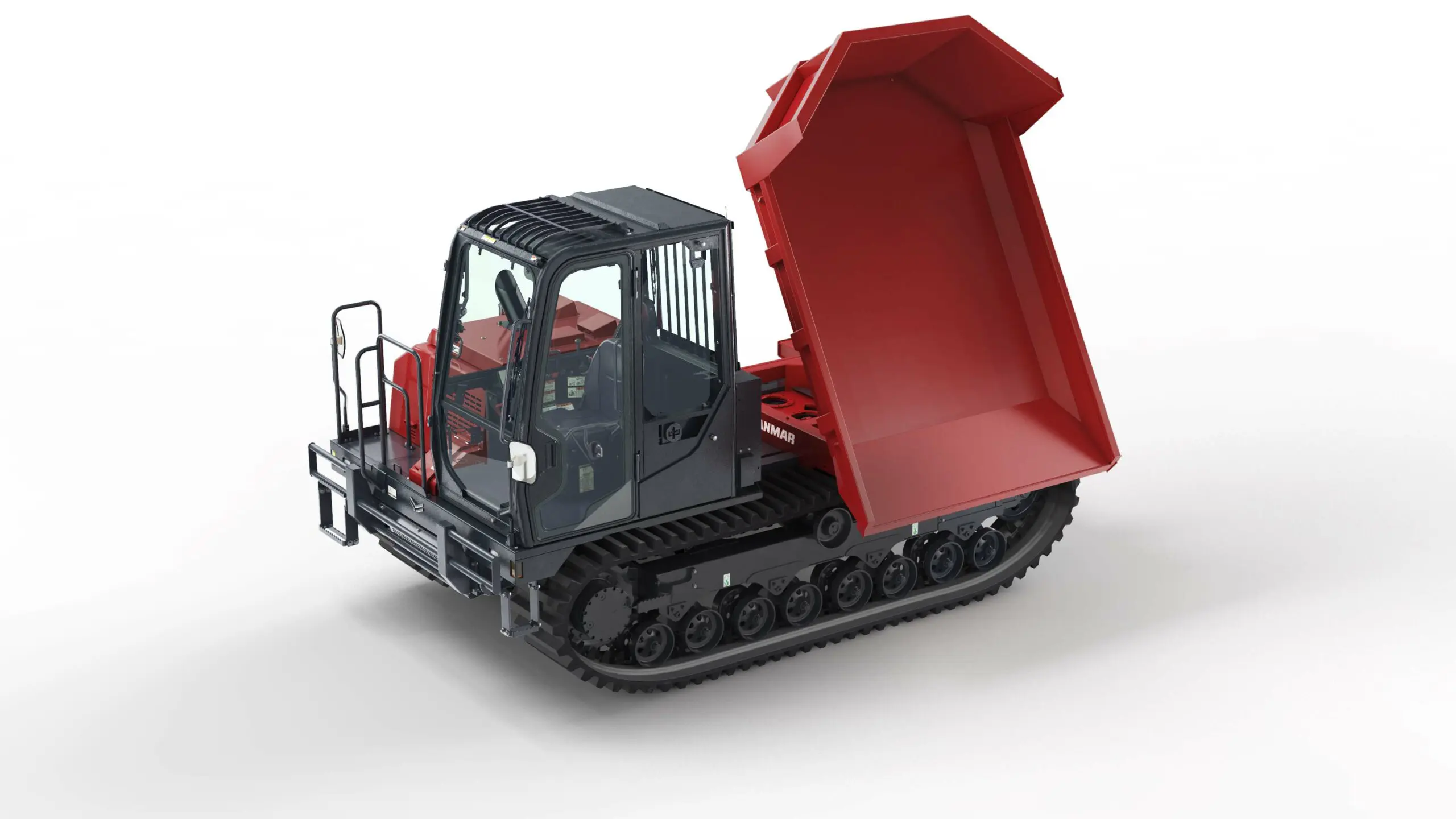

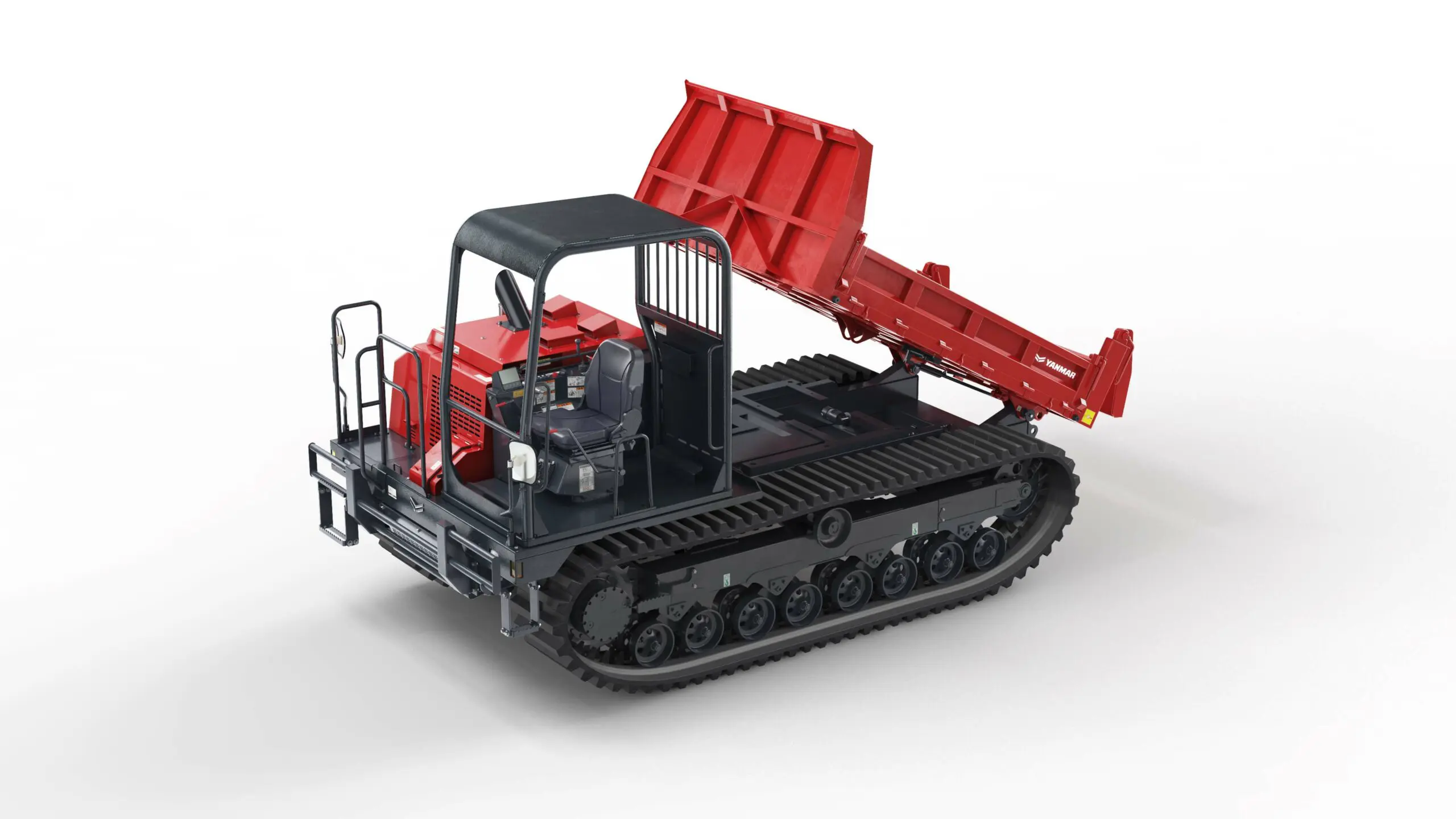

Beyond the nearly unstoppable rubber track system that can take you nearly anywhere on the jobsite, the versatility of our dump box adds even more control. A 65-degree dump angle and 26-inch extended dumping platform, and available 180-degree swivel dump platform, you’ll always discharge the load exactly where it needs to go.

Features

Power over anything

Packing more than 111-horsepower, put the legendary Yanmar diesel to work and enjoy unprecedented reliability and fuel efficiency.
Smooth operator

Enjoy smooth and predictable engagement and travel, even when loaded, with our automatic 2-speed hydrostatic transmission (HST) and auto-speed shift travel system.
Always looking ahead

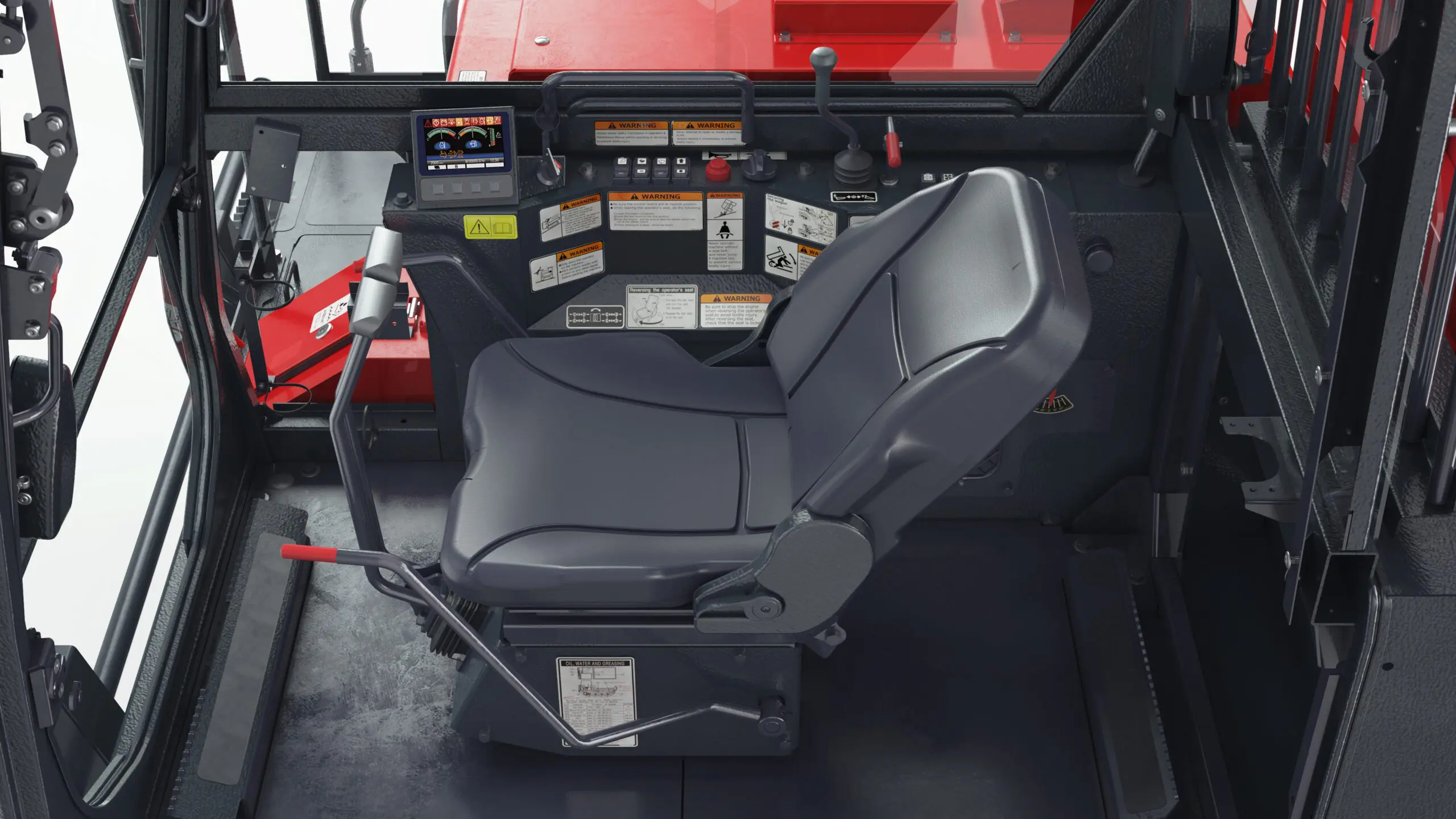

Greater safety and vision come standard with 180-degree reversible operator’s seat and travel levers, so you’re always seated in the direction of travel.
Maximum operator safety

A spacious command center with intuitive controls and panoramic views in multiple directions allows for safer operation, while an optional cab adds all-season comfort.
Built for extremes

The undercarriage of our tracked carriers is over-built to over deliver. The robust design is constructed from premium materials to withstand the harshest terrain.
Take on the terrain

With the go anywhere traction and flotation of rubber tracks, the C50R-5 is ideal for hauling on steep slopes, silt sand, snow, or swampy conditions.

Specifications

Operating Weight
Net, unloaded – Box Shape	12,633 lbs
Net, unloaded – V Shape	13,360 lbs
Transmission
Type	Variable Speed 2 Pump, 2 Motor Hydrostatic (HST)
Undercarriage
Track Type	Steel-Reinforced Rubber Track
Track Width	1’6″
Min. Ground Clearance	1’5″
Ground Contact Pressure – Bow Shape w/o load	3.4 PSI
Ground Contact Pressure – Bow Shape w/ load	5.7 PSI
Ground Contact Pressure – V Shape w/o Load	3.6 PSI
Ground Contact Pressure – V Shape w/Load	5.7 PSI
Performance
Max. Payload – Bow Shape	8,379 lbs
Max. Payload – V Shape	7,718 lbs
Max. Dumping Angle – Bow Shape	65°
Max. Dumping Angle – V Shape	65°
Dump Clearance – Bow Shape	2’2″
Dump Clearance – V Shape	2’11”
Dump Body Capacity Struck – Bow Shape	1.8 yd³
Dump Body Capacity Struck – V Shape	1.6 yd³
Max. Travel Speed – Bow Shape	5.9 mph
Max. Travel Speed – V Shape	5.9 mph
