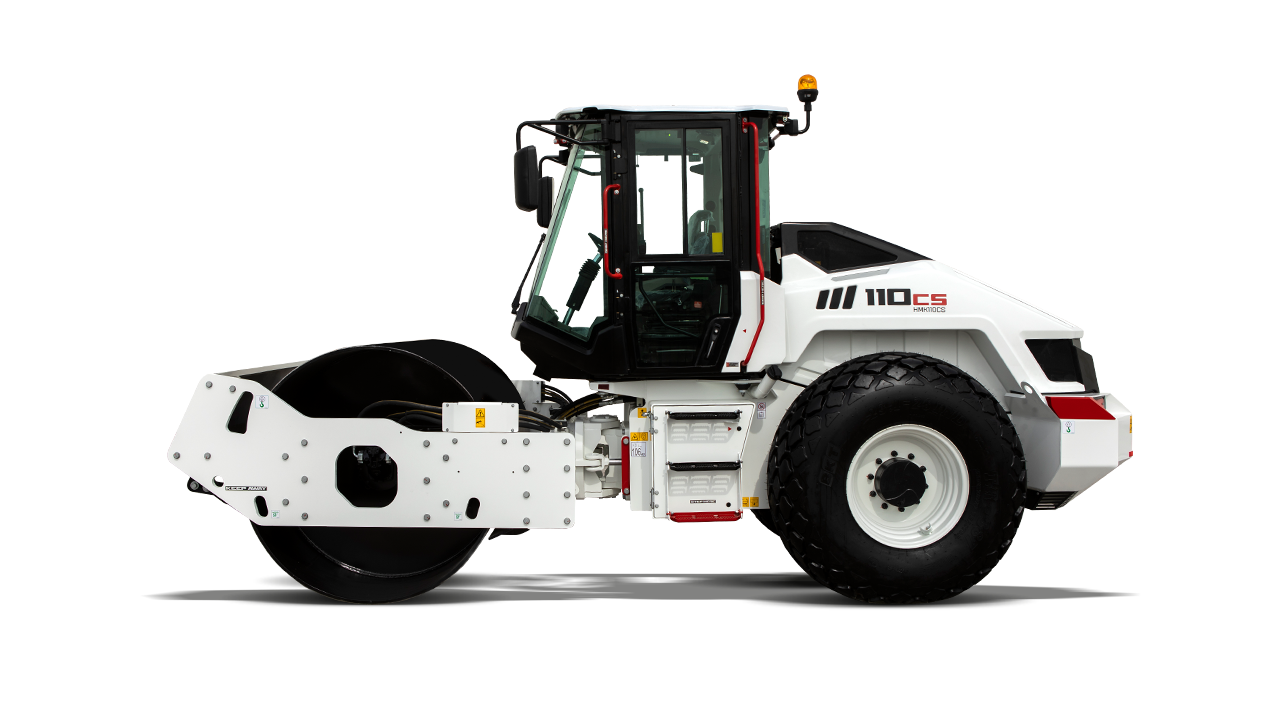

HMK 110 CS

Maximum Power

154 HP (115 kW) @2200 rpm

Maximum Torque

609 Nm @1600 rpm

Drum (front axle load)

6.200 kg

  • View Specs & Dimensions Brochure
HİDROMEK soil compactors are designed to deliver high performance and efficient compaction. They achieve the required soil density with a minimum number of passes, saving both time and fuel. These machines provide reliable and effective compaction for a wide range of soil types and working conditions.

HİDROMEK soil compactors feature dual working ranges: high eccentric moment and low eccentric moment. The high eccentric moment delivers strong vibration energy for compacting thick soil layers, while the low eccentric moment is ideal for surface sealing and final compaction of thinner layers. Additionally, their superior climbing ability ensures strong performance even on slopes.

Features

  • High compaction efficiency with fewer passes
  • Dual working modes (high & low eccentric moment)
  • Powerful vibration system for different soil types
  • Excellent slope climbing capability
  • Fuel-efficient and time-saving operation
  • Durable and heavy-duty construction
  • Suitable for various compaction applications

Specifications

Engine

  • Brand / Model: DEUTZ
  • Type: TCD 4.1 L4
  • Maximum Power: 154 HP (115 kW) @2200 rpm
  • Maximum Torque: 609 Nm @1600 rpm
  • Displacement: 4,038 cc
  • Number of Cylinders: 4 (inline)
  • Bore x Stroke: 101 mm x 126 mm
  • Emission Class: Stage V

Steering System

  • Oscillation Angle: ±12°
  • Articulation Angle: ±35°

Tires

  • Rear Tires: 23.1–26 12 PR

Vibration

  • Frequency (high/low): 27.5 / 30 Hz
  • Amplitude (high/low): 1.9 / 0.9 mm
  • Centrifugal Force (high/low): 206 / 114 kN

Driving Speed

  • 1st Gear: 5 km/h
  • 2nd Gear: 6 km/h
  • 3rd Gear: 7 km/h
  • 4th Gear: 12 km/h
  • Max Slope: 51% (with vibration) / 54% (without vibration)

Weight

  • Drum (Front Axle Load): 6,200 kg
  • Wheels (Rear Axle Load): 5,150 kg
  • Operating Weight: 11,350 kg
  • View Specs & Dimensions Brochure
