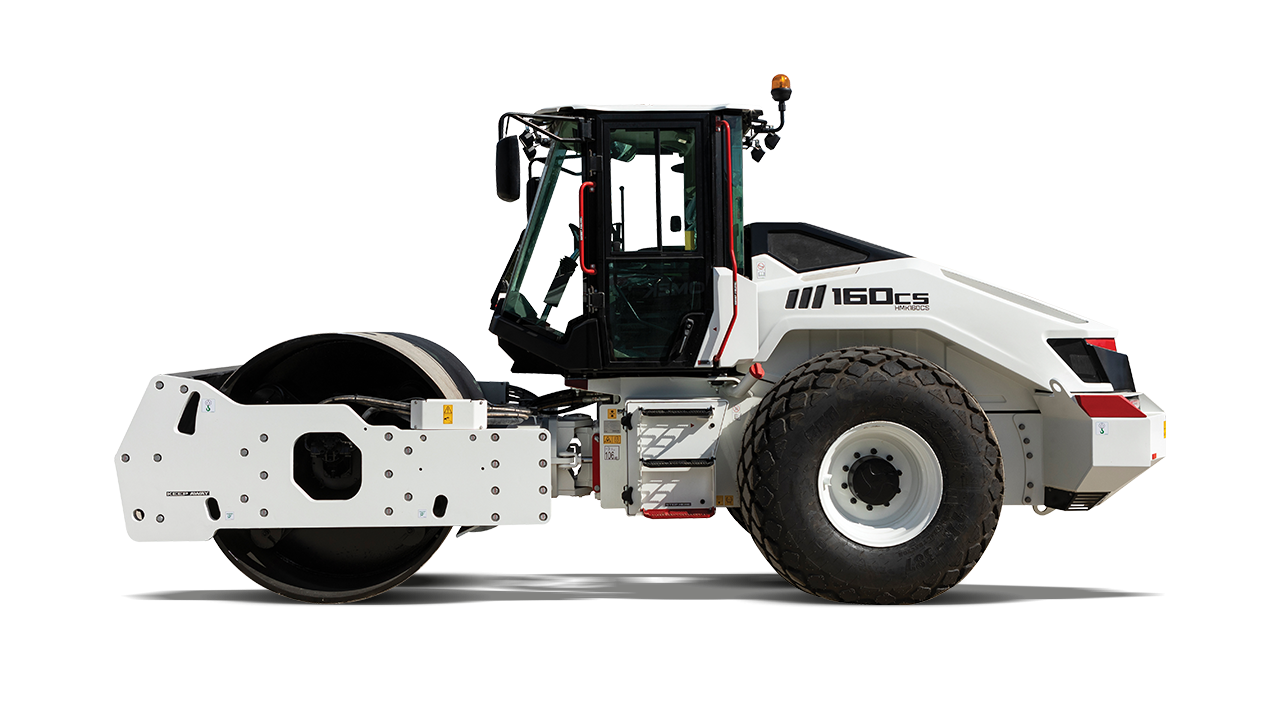

HMK 160 CS

Maximum Power

154 HP (115 kW) @2200 rpm

Maximum Torque

609 Nm @1600 rpm

Drum (front axle load)

10.700 kg

  • View Specs & Dimensions Brochure

HİDROMEK soil compactors are designed for superior compression efficiency and high-performance operation. They achieve optimal soil compaction with a minimum number of passes, adapting to different soil structures. These machines are suitable for various compaction tasks and deliver reliable performance in demanding working conditions.

This soil compactor operates using two vibration ranges: high eccentric moment and low eccentric moment. The high eccentric moment provides strong vibration energy for compacting thick soil layers, while the low eccentric moment ensures smooth surface sealing during final compaction. With excellent slope climbing ability, the machine maintains strong performance across all terrain types.

Features

  • High compaction efficiency with fewer passes
  • Dual vibration system (high and low eccentric moment)
  • Strong vibration force for deep and surface compaction
  • Excellent performance on slopes
  • Durable construction for heavy-duty applications
  • Efficient operation in various soil conditions
  • Smooth final surface finishing capability

Specifications

Engine

  • Brand / Model: DEUTZ
  • Type: Diesel Engine
  • Maximum Power: 154 HP (115 kW) @2200 rpm
  • Maximum Torque: 609 Nm @1600 rpm
  • Displacement: 4038 cc
  • Cylinders: 4 (inline)
  • Bore x Stroke: 101 mm x 126 mm
  • Emission Class: Stage V

Steering System

  • Oscillation Angle: ±12°
  • Articulation Angle: ±35°

Tires

  • Rear Tires: 23.1–26 12 PR

Vibration System

  • Vibration Frequency (high/low): 26.5 / 28.5 Hz
  • Amplitude (high/low): 2.20 / 0.9 mm
  • Centrifugal Force (high/low): 334 / 154 kN

Driving Speed

  • 1st Gear: 4 km/h
  • 2nd Gear: 6 km/h
  • 3rd Gear: 7 km/h
  • 4th Gear: 12 km/h
  • Maximum Slope: 45% (with vibration) / 48% (without vibration)

Weight

  • Drum (Front Axle Load): 10,700 kg
  • Operating Weight: 16,200 kg
  • Wheels (Rear Axle Load): 5,500 kg
  • View Specs & Dimensions Brochure
