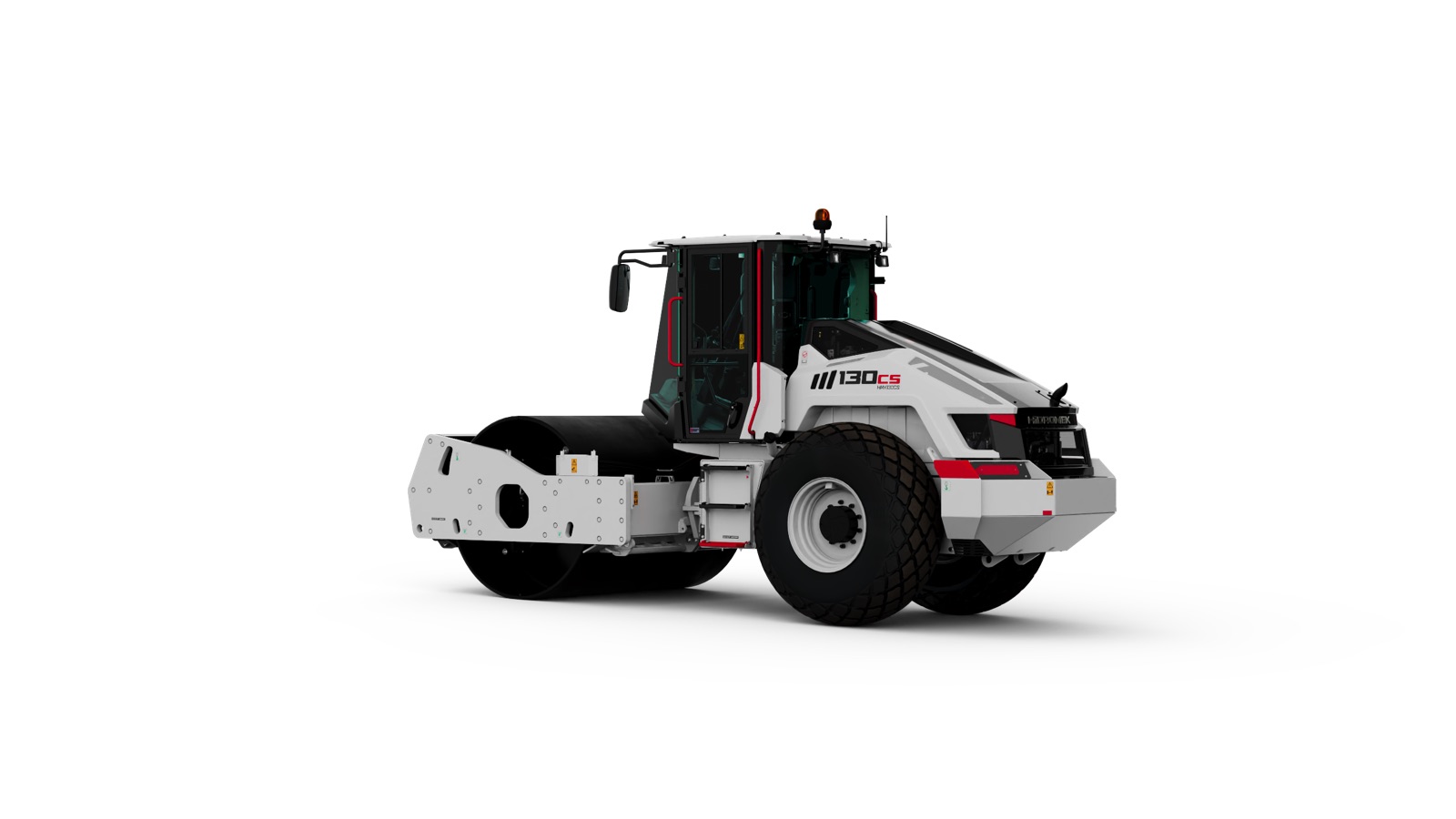

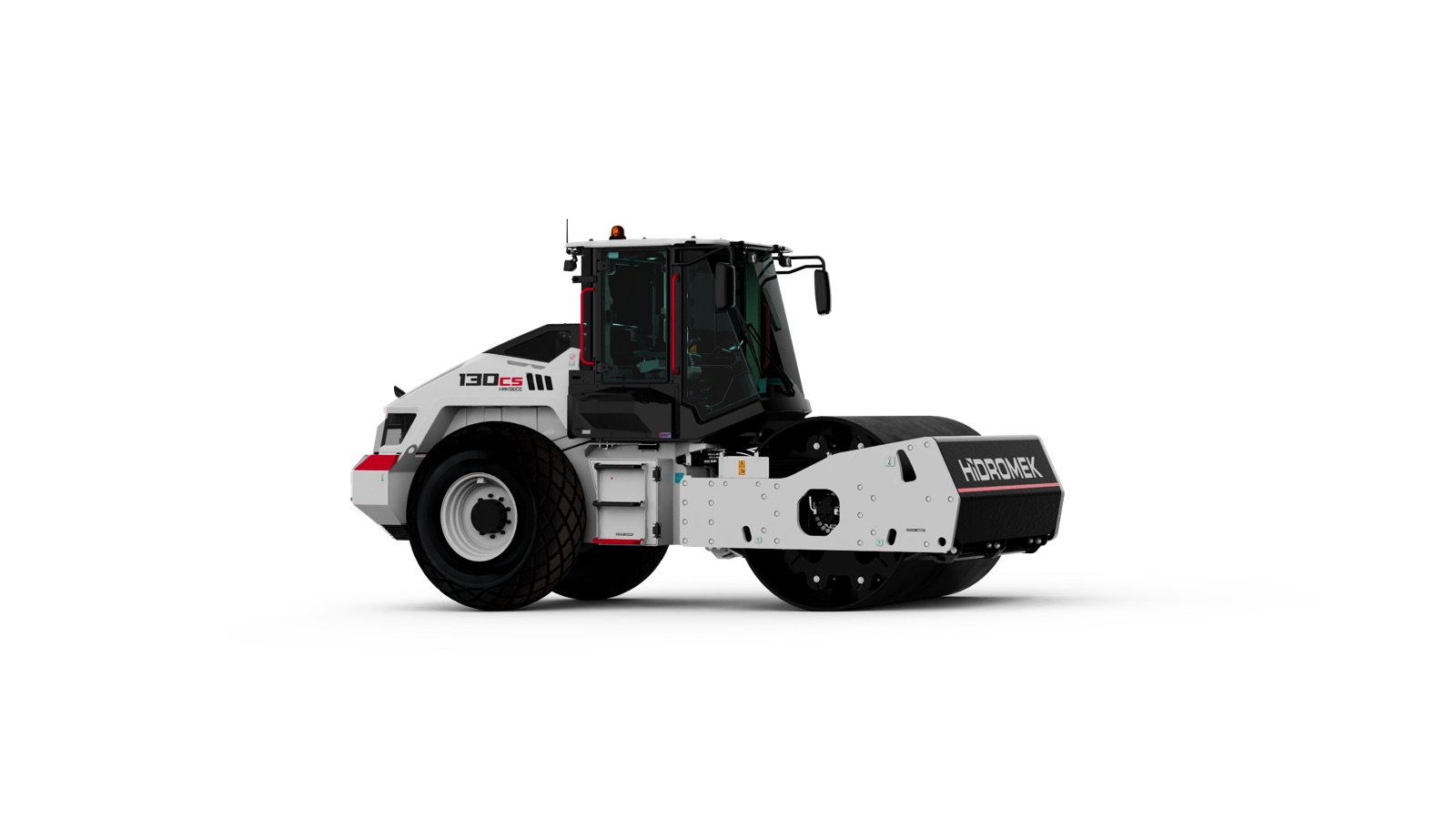

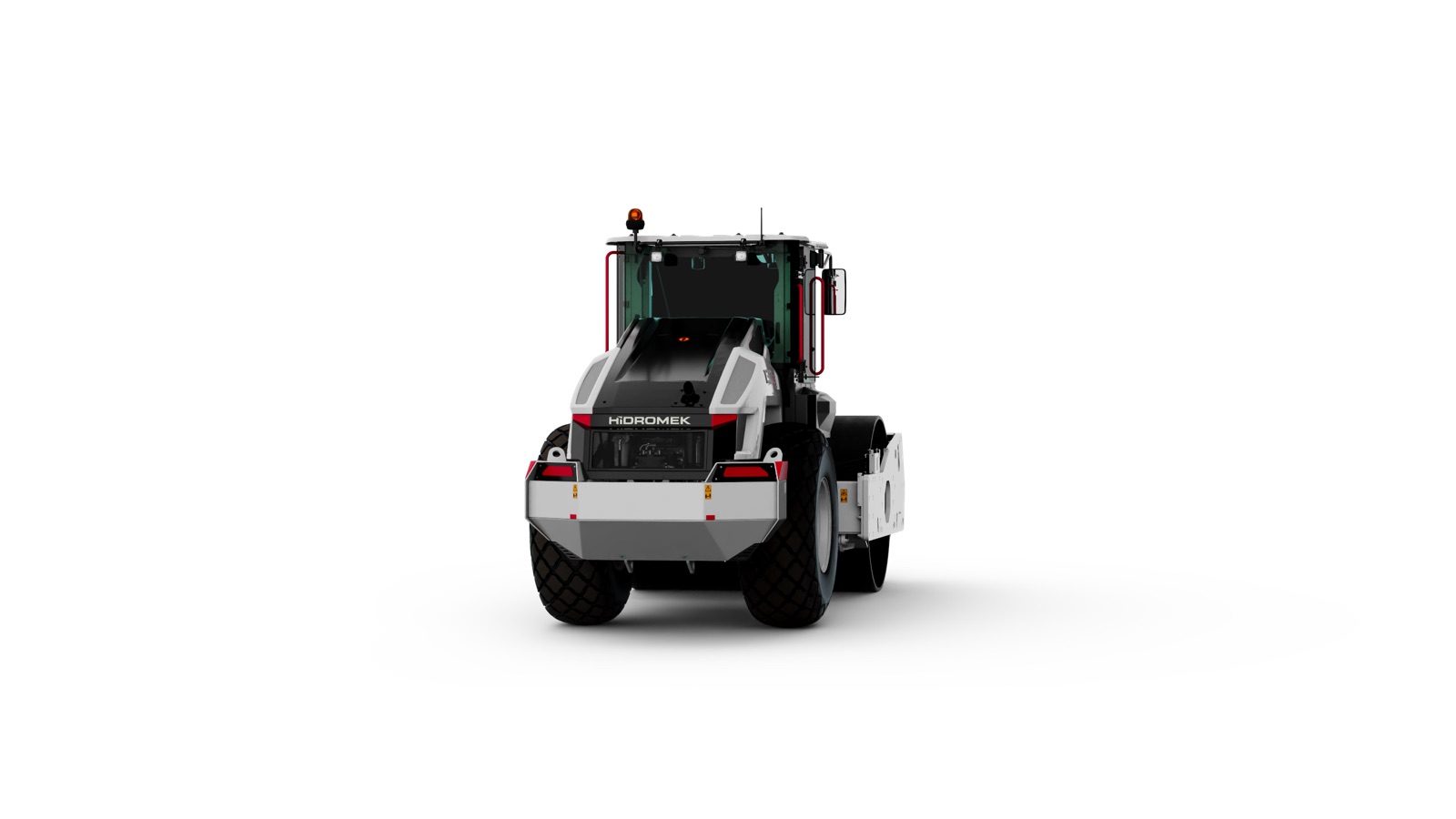

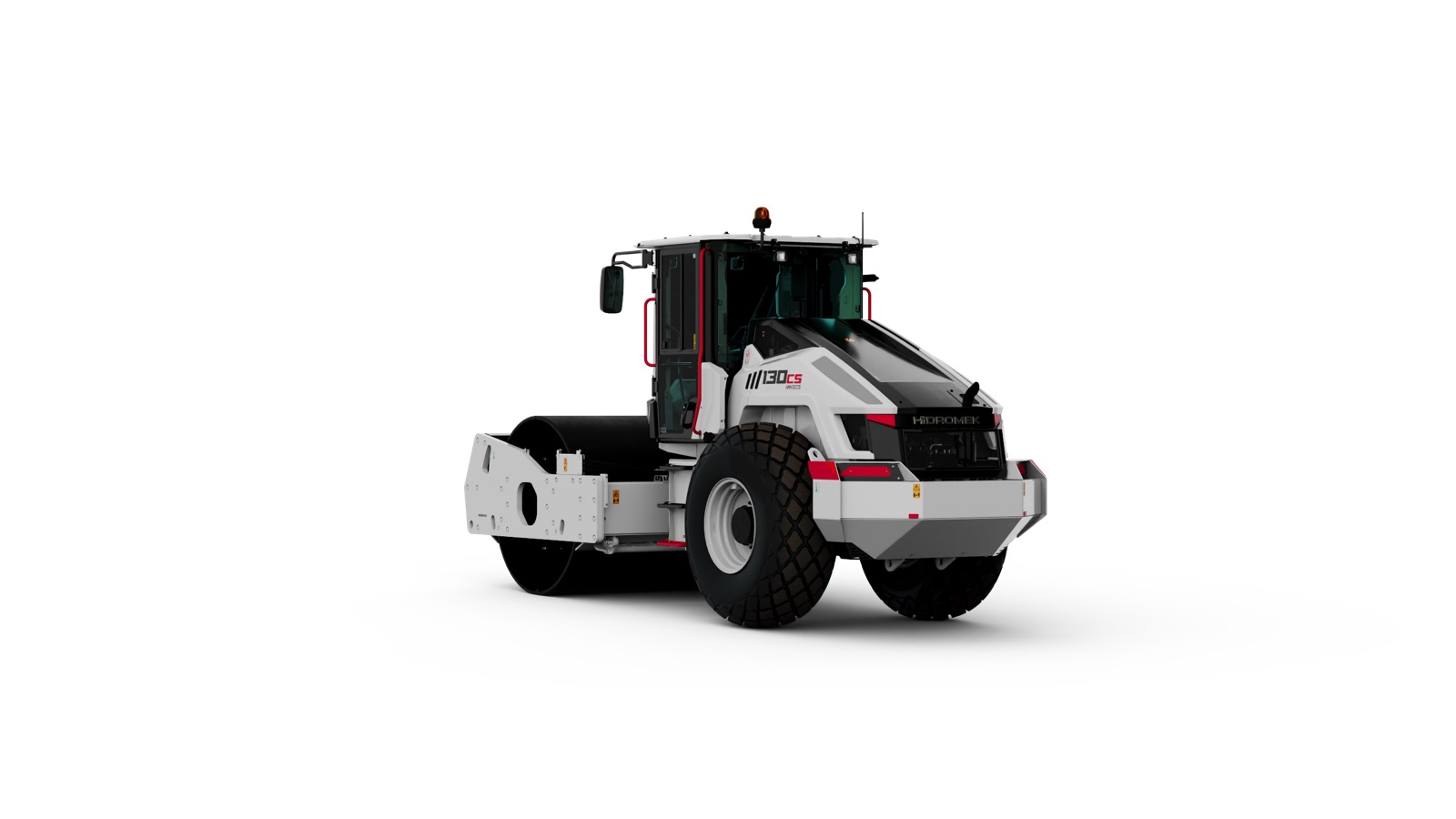

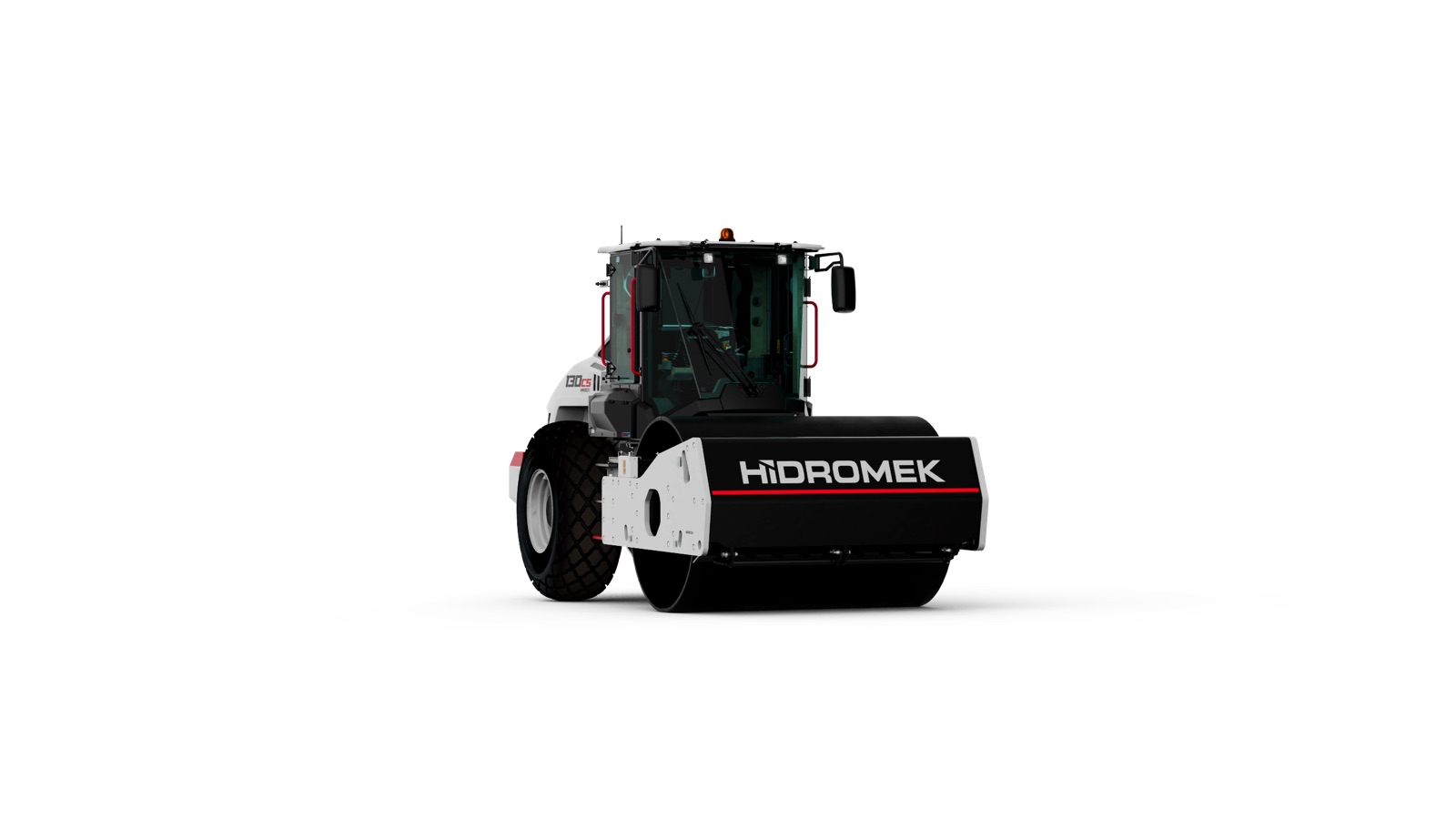

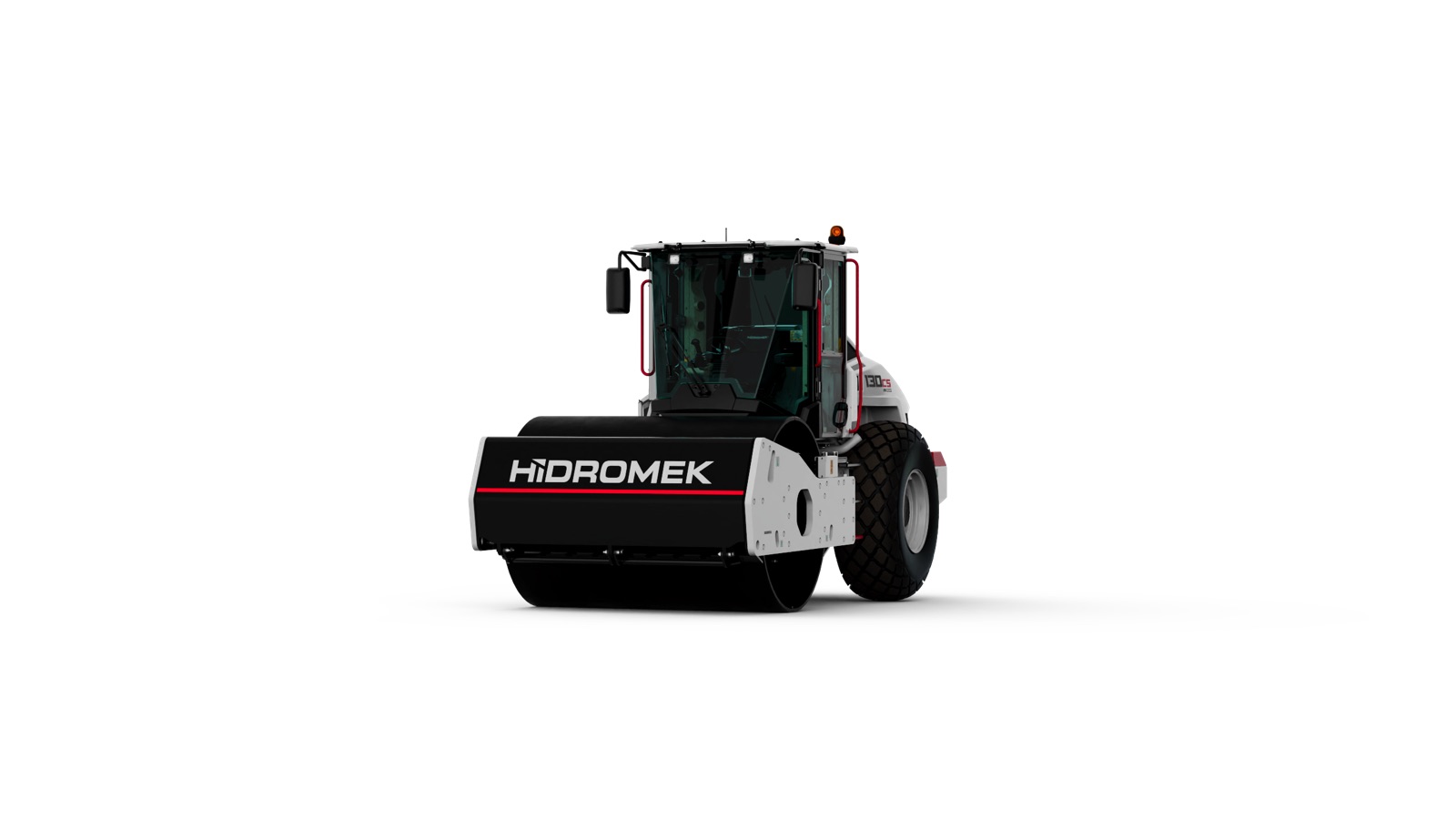

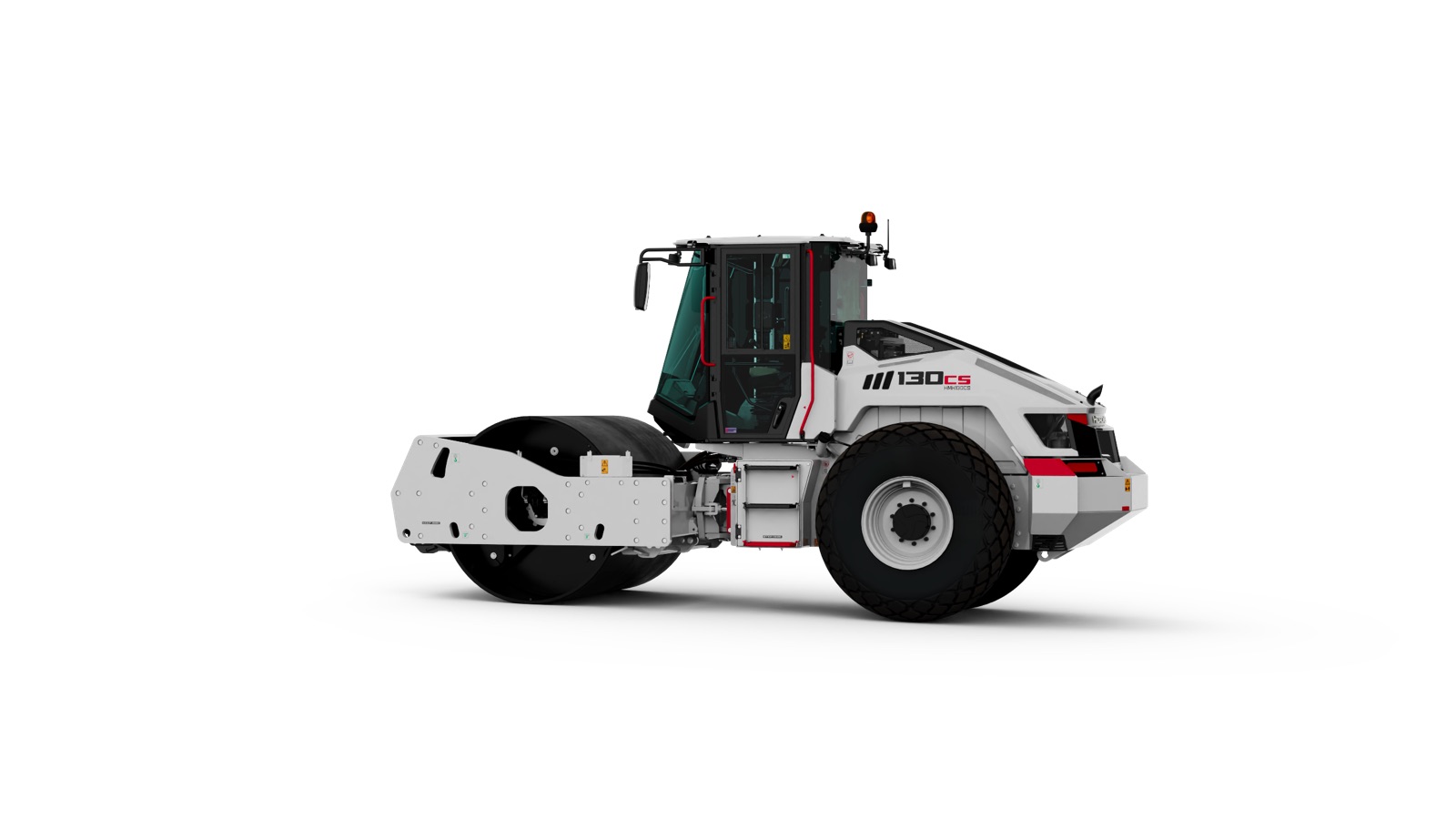

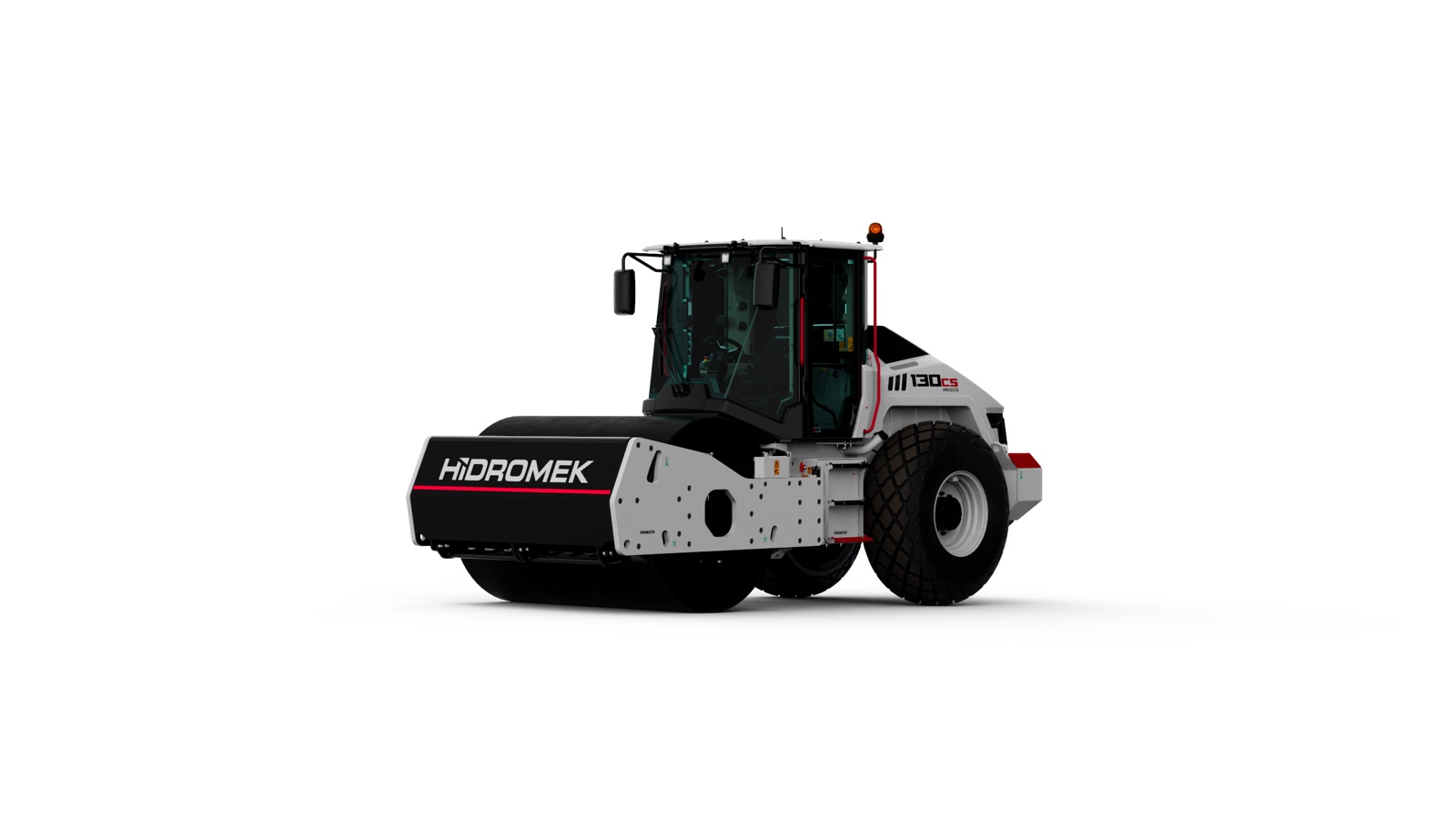

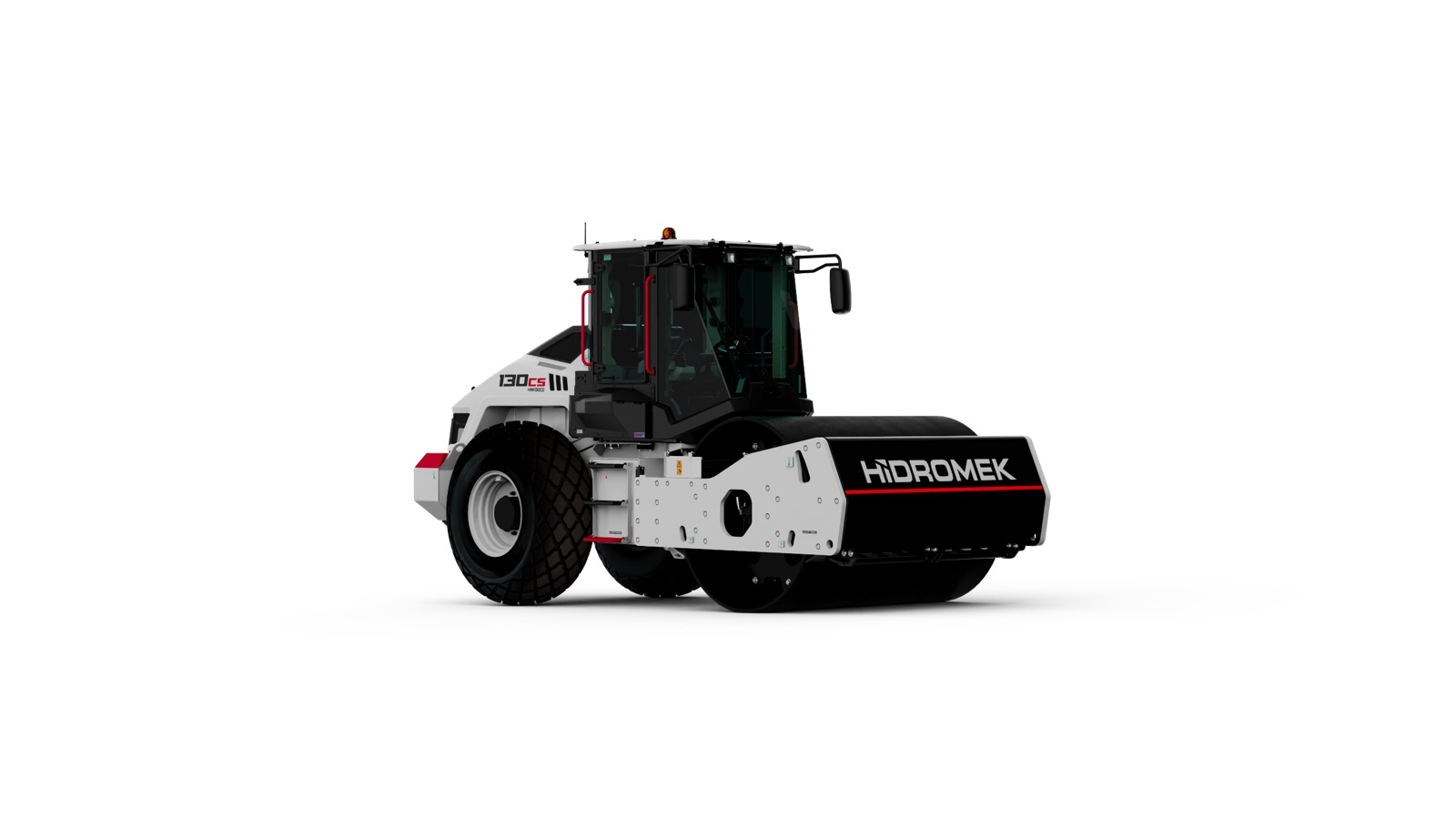

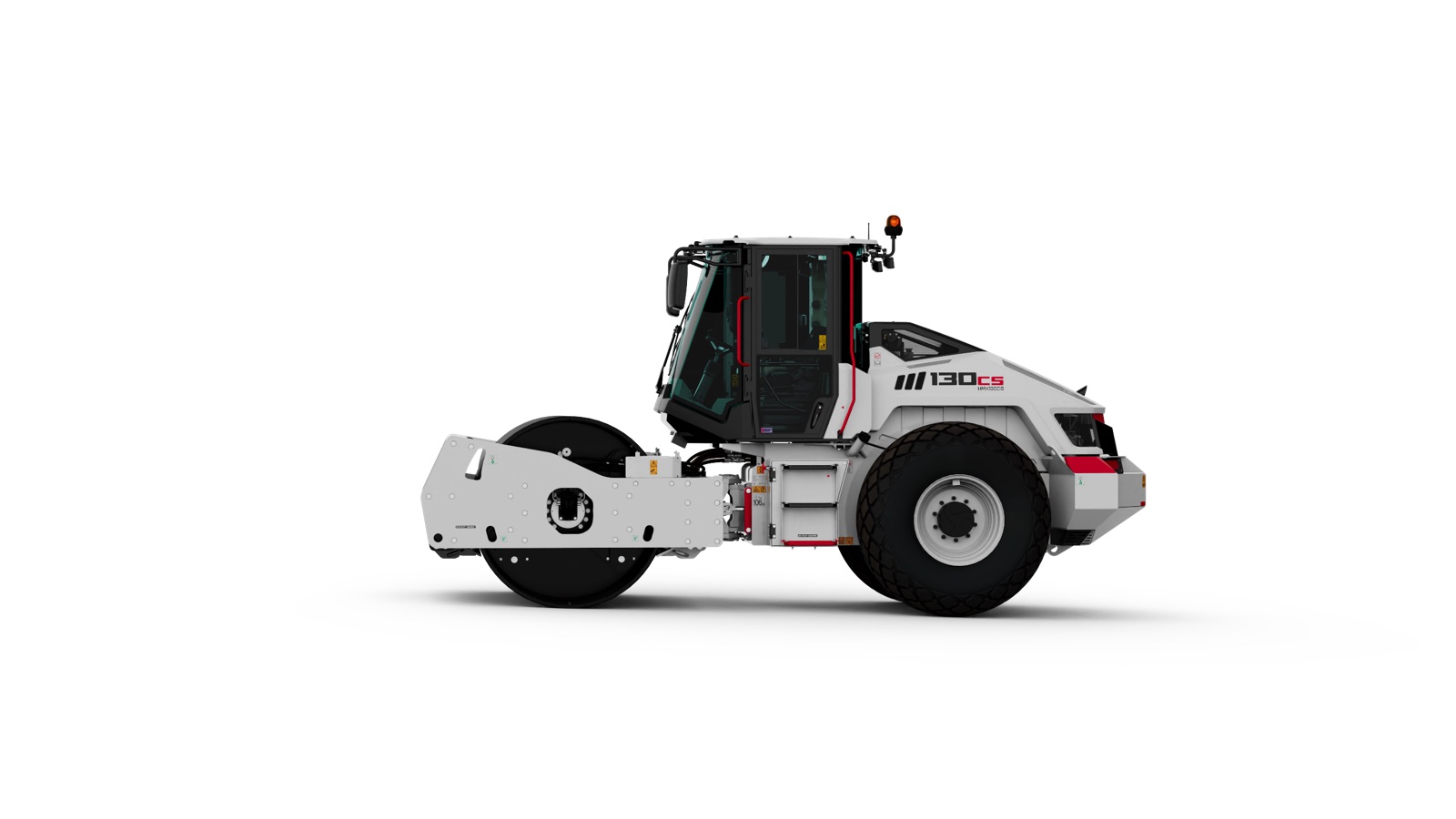

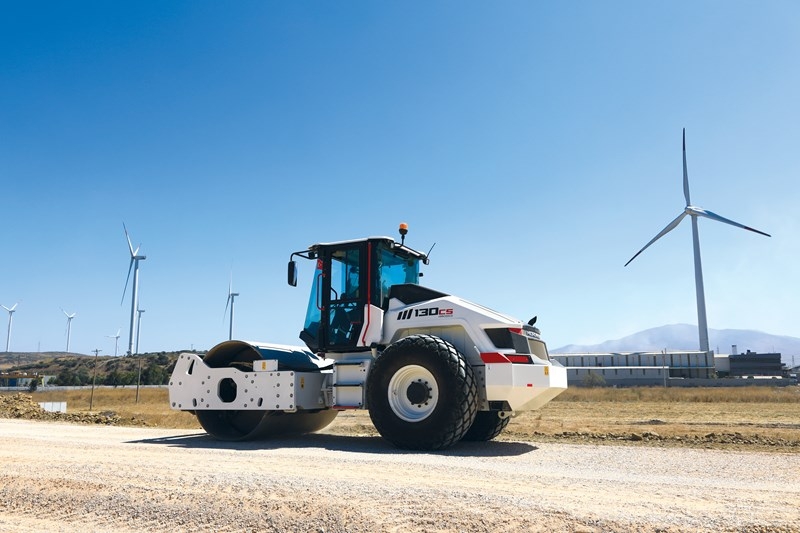

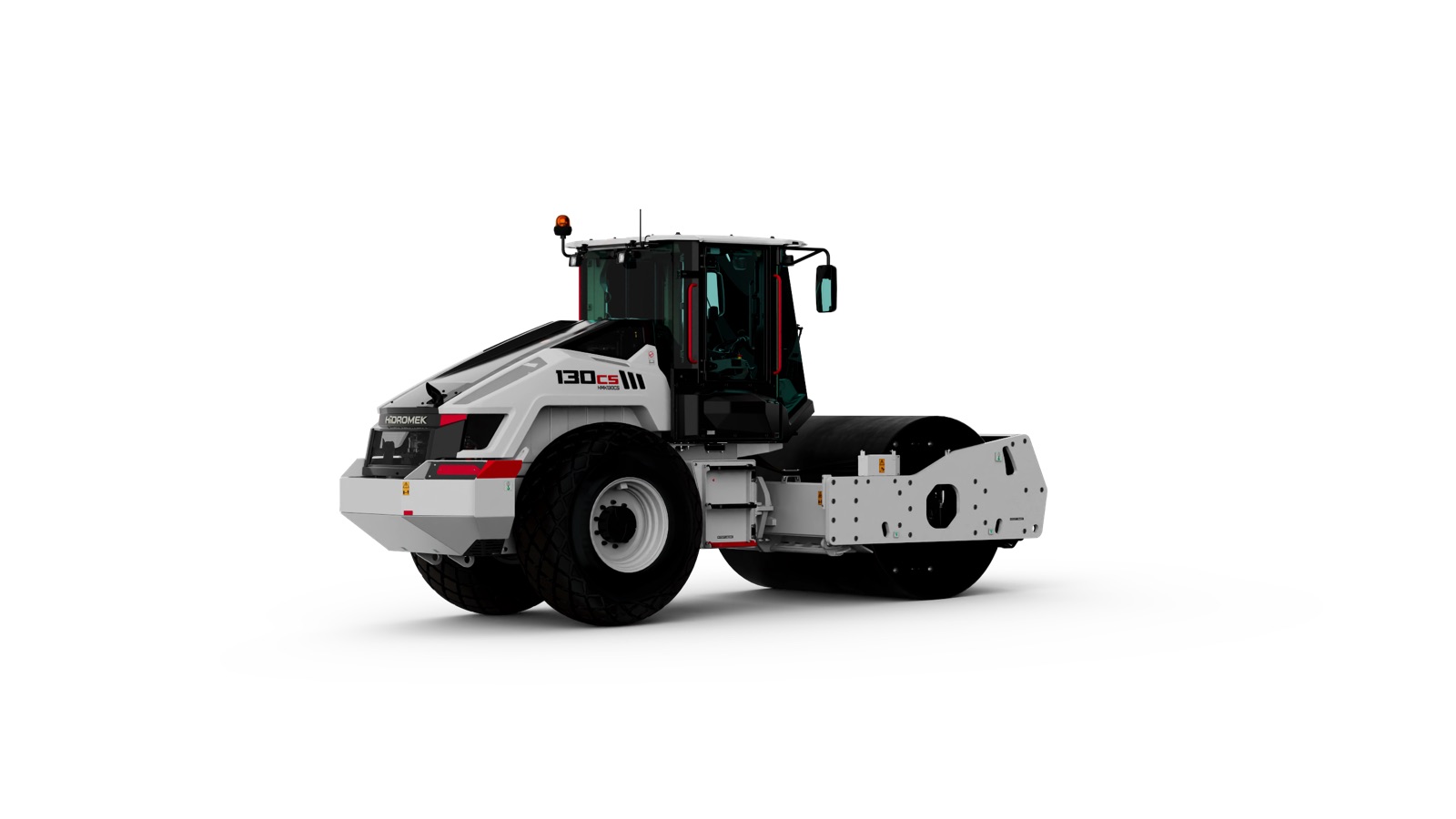

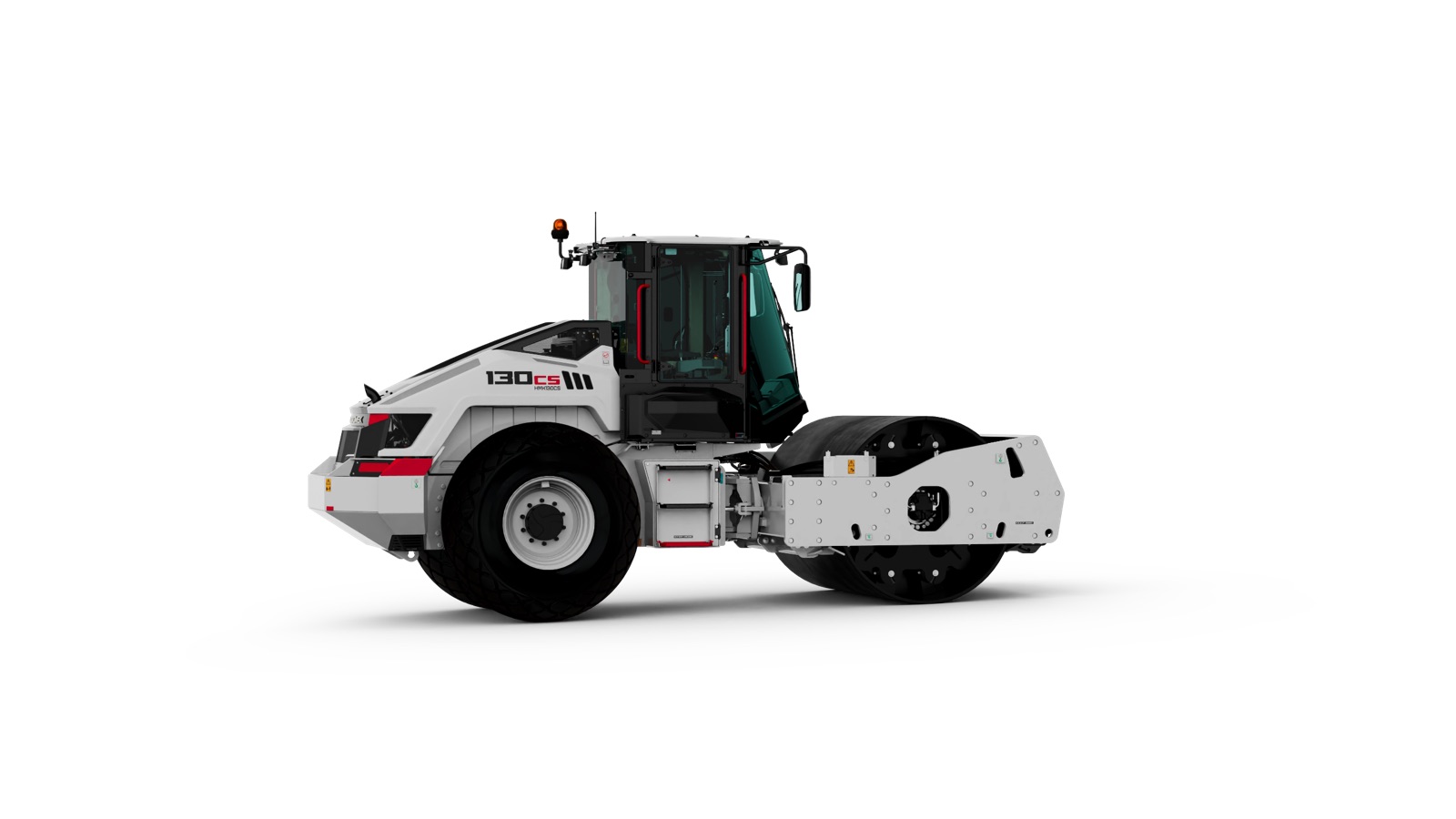

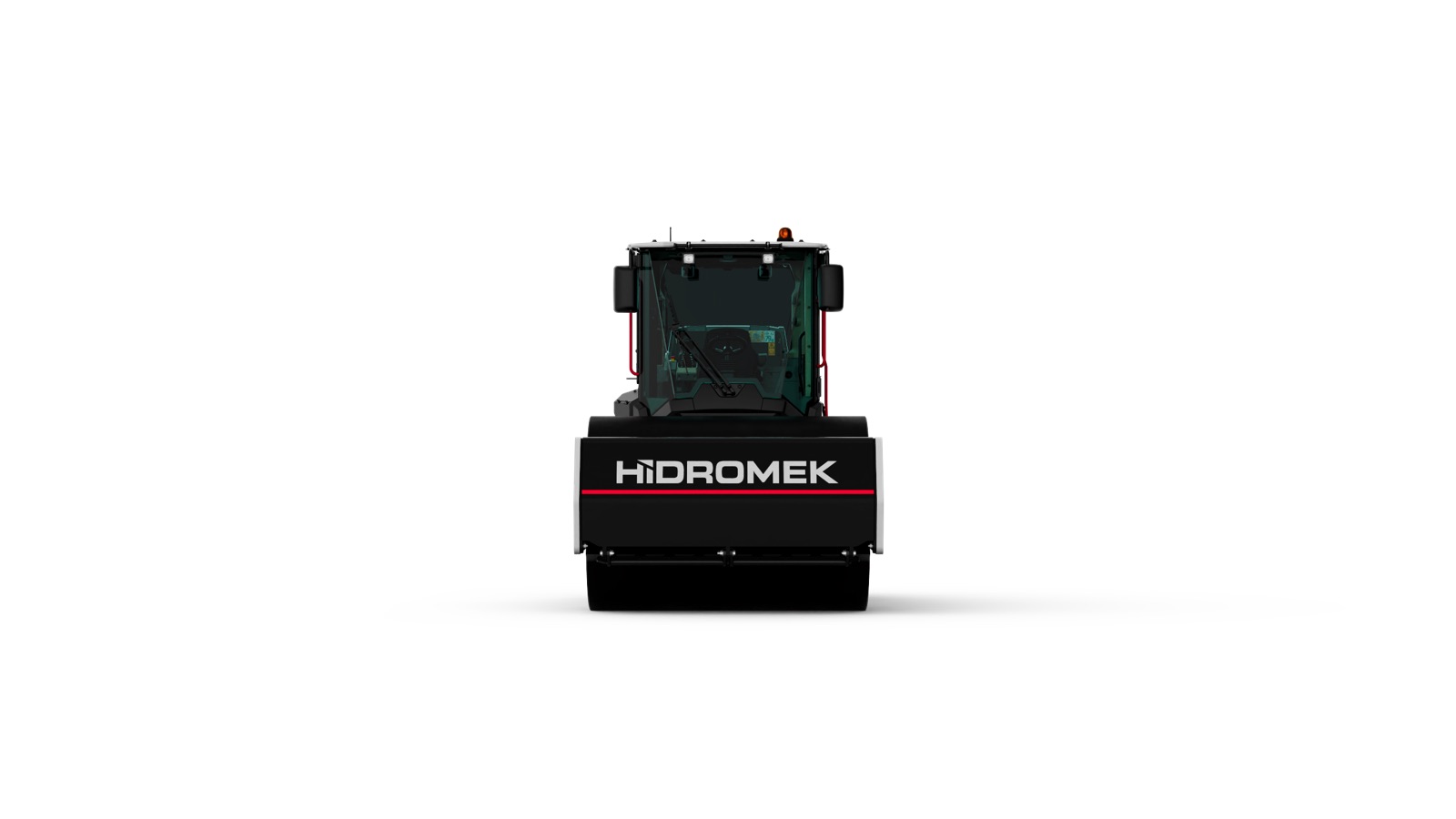

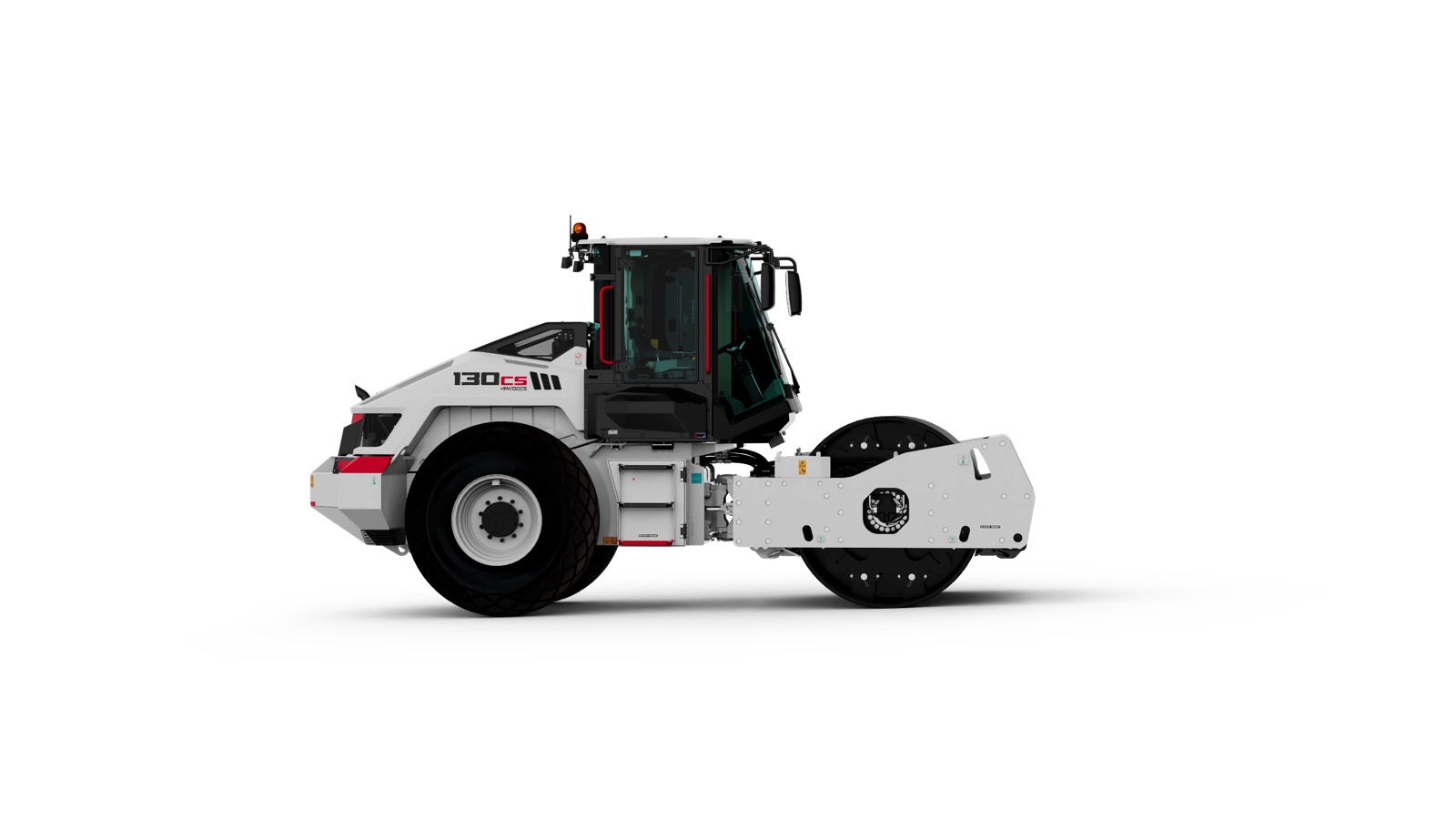

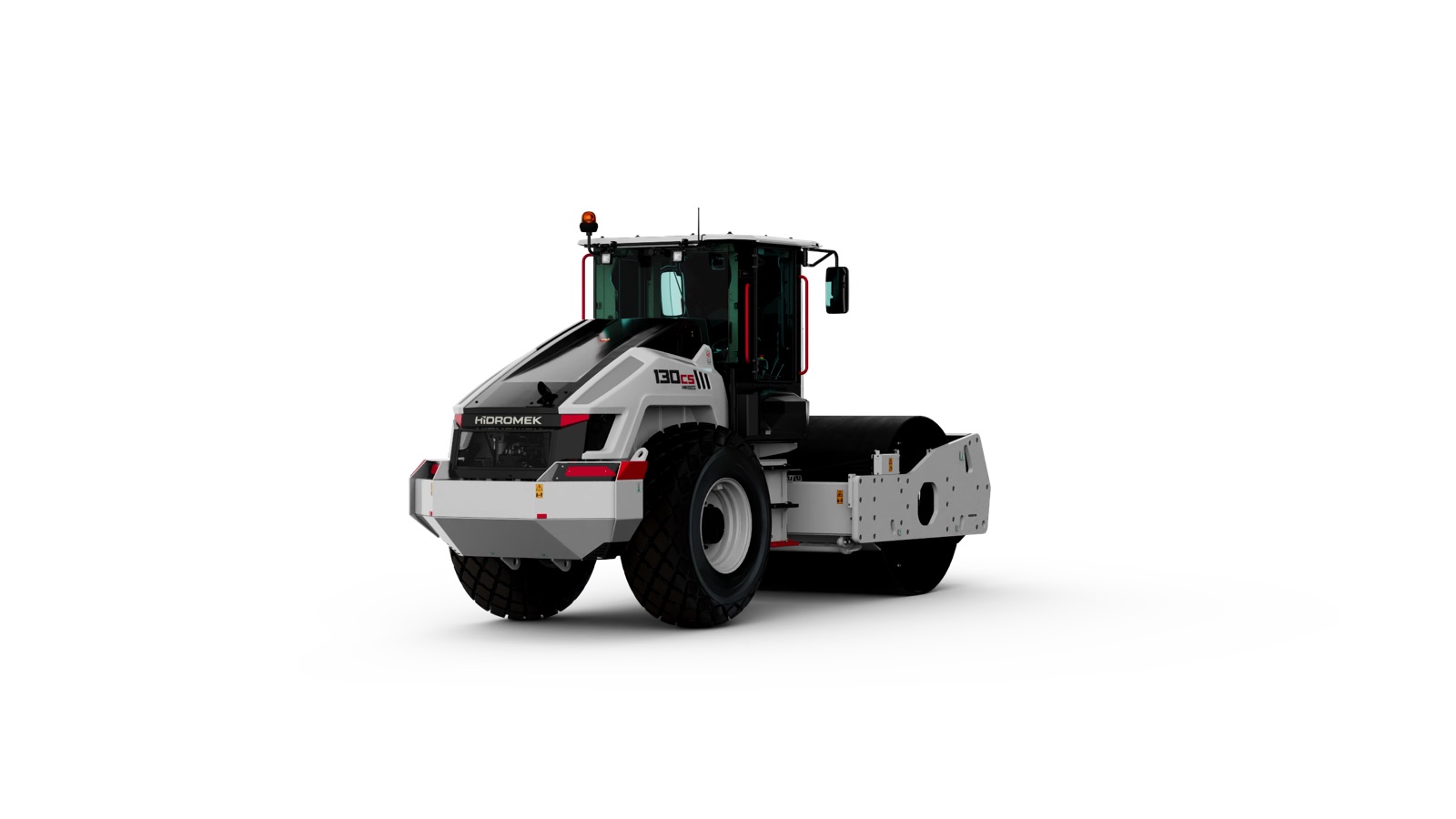

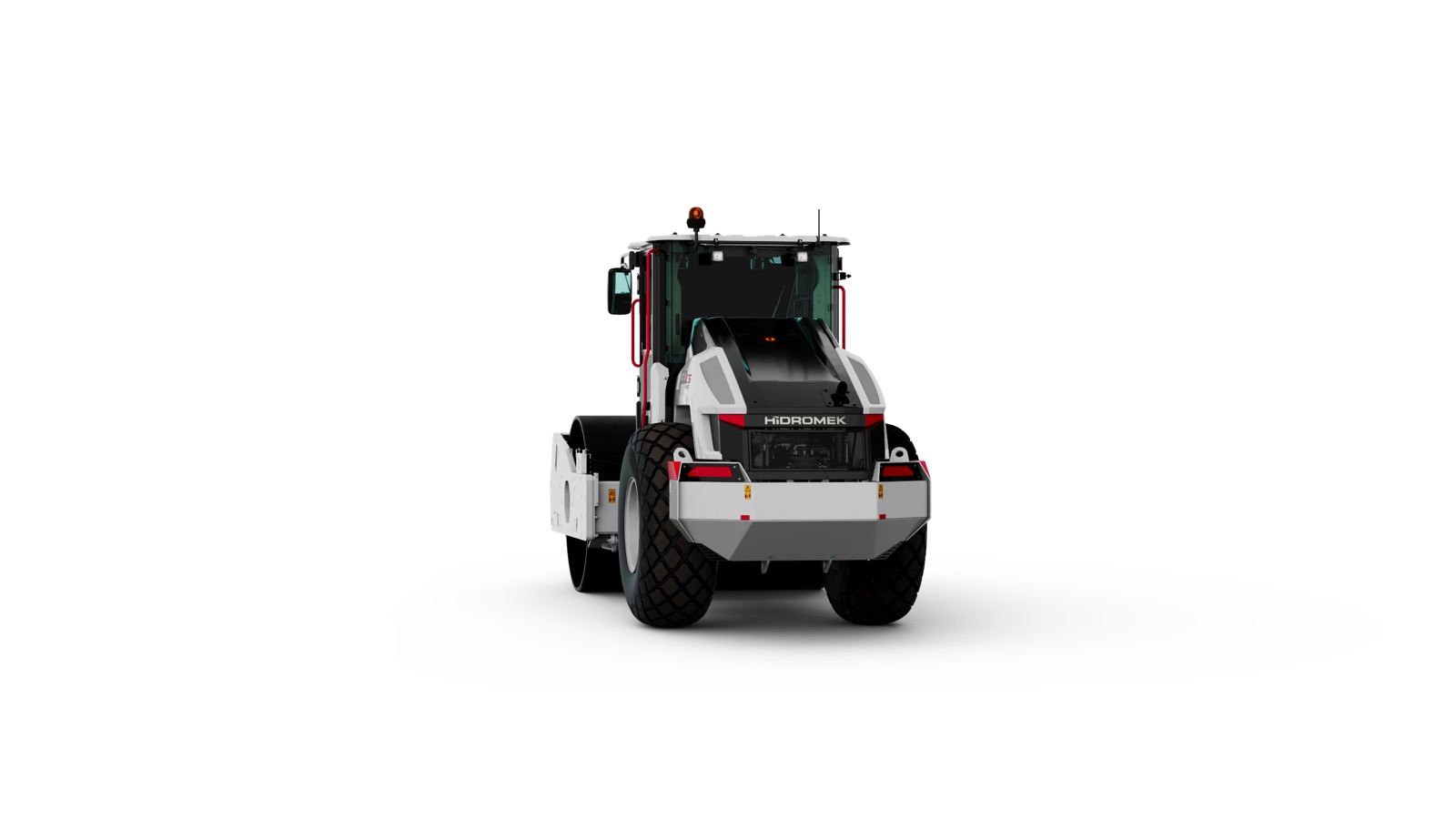

HMK 130 CS

Maximum Power

609 Nm @1600 rpm

Drum (front axle load)

7.850 kg

Operating Weight

13.250 kg

  • View Specs & Dimensions Brochure

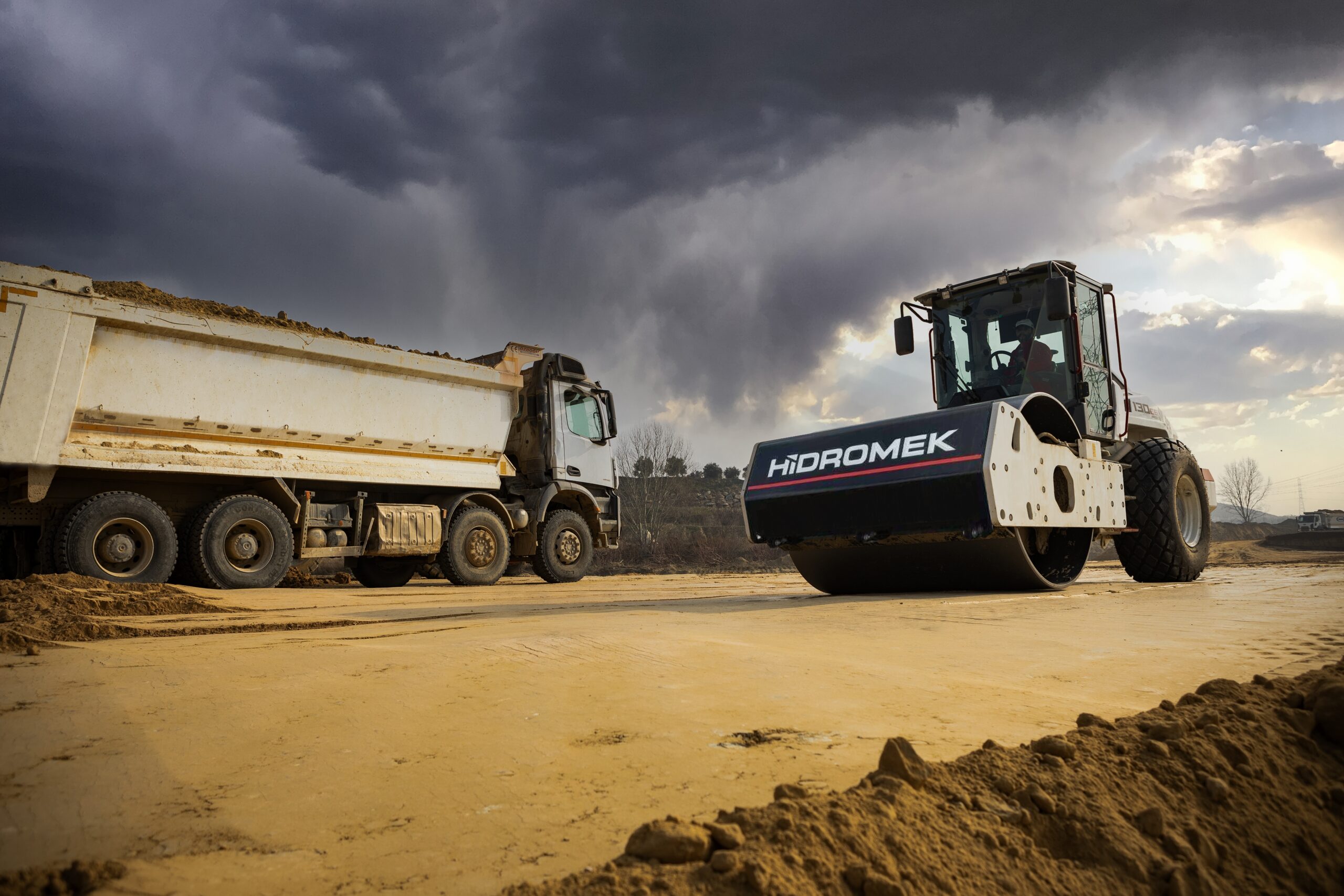

HİDROMEK soil compactors are designed for superior compression and efficiency. They deliver high-performance compaction with a minimum number of passes, ensuring optimal soil density according to ground conditions. These machines are built to handle various soil types effectively, offering reliable performance in demanding working environments.

This soil compactor operates with two working ranges: high eccentric moment and low eccentric moment. The high eccentric moment provides strong vibration energy for compacting thick soil layers, while the low eccentric moment ensures smooth surface sealing during final compaction stages. With excellent climbing ability, the machine maintains high performance even on slopes and uneven terrain.

Features

  • High compaction efficiency with fewer passes
  • Dual vibration modes (high and low eccentric moment)
  • Strong vibration force for different soil layers
  • Excellent slope climbing performance
  • Durable construction for heavy-duty operations
  • Suitable for various soil compaction applications
  • Smooth and efficient final surface finishing

Specifications

Engine

  • Brand / Model: DEUTZ
  • Type: TCD 4.1 L4 Diesel Engine
  • Maximum Power: 154 HP (115 kW) @2200 rpm
  • Maximum Torque: 609 Nm @1600 rpm
  • Displacement: 4,038 cc
  • Cylinders: 4 (inline)
  • Bore x Stroke: 101 mm x 126 mm
  • Emission Class: Stage V

Steering System

  • Oscillation Angle: ±12°
  • Articulation Angle: ±35°

Tires

  • Rear Tires: 23.1–26 12 PR

Vibration System

  • Vibration Frequency (high/low): 28 / 30 Hz
  • Amplitude (high/low): 1.95 / 0.85 mm
  • Centrifugal Force (high/low): 248 / 123 kN

Driving Speed

  • 1st Gear: 5 km/h
  • 2nd Gear: 6 km/h
  • 3rd Gear: 7 km/h
  • 4th Gear: 12 km/h
  • Maximum Slope: 44% (with vibration) / 47% (without vibration)

Weight

  • Drum (Front Axle Load): 7,850 kg
  • Operating Weight: 13,250 kg
  • Wheels (Rear Axle Load): 5,400 kg
  • View Specs & Dimensions Brochure
