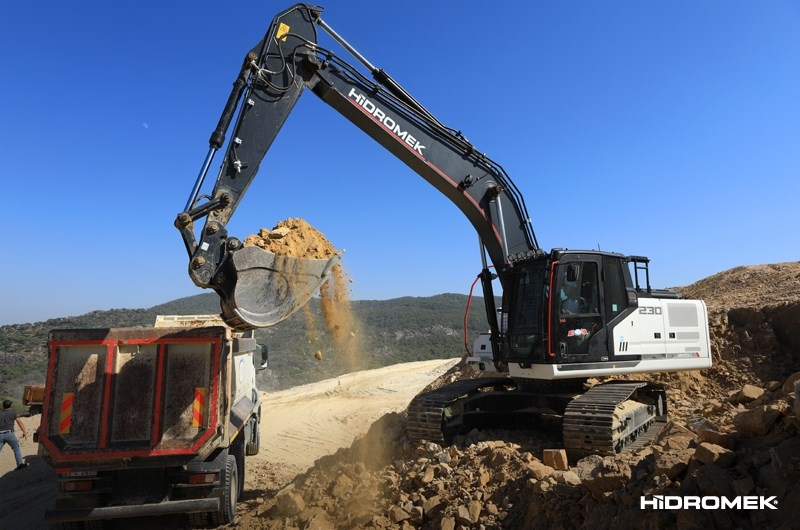

93

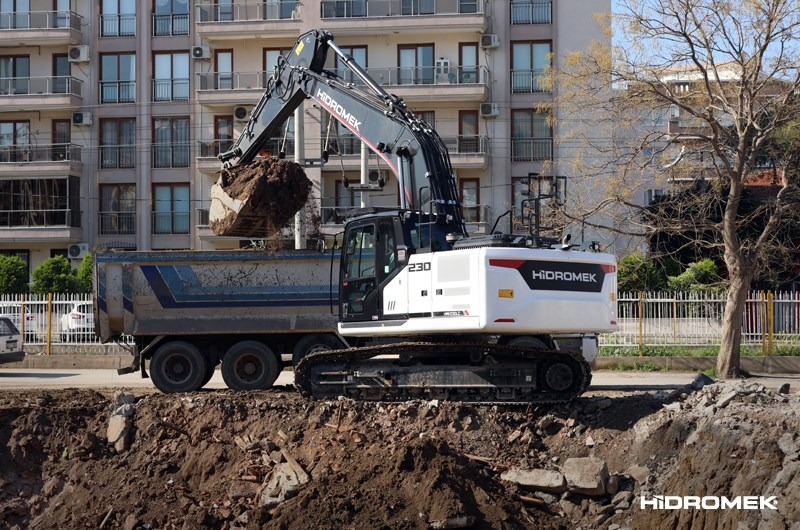

94
1 (2)
2 (3)
3 (2)
4 (2)
5 (2)
6 (2)
7 (2)
8 (2)
9 (2)
10 (2)
11 (2)
12 (2)
13 (2)
14 (2)
15 (2)
16 (2)
17 (2)

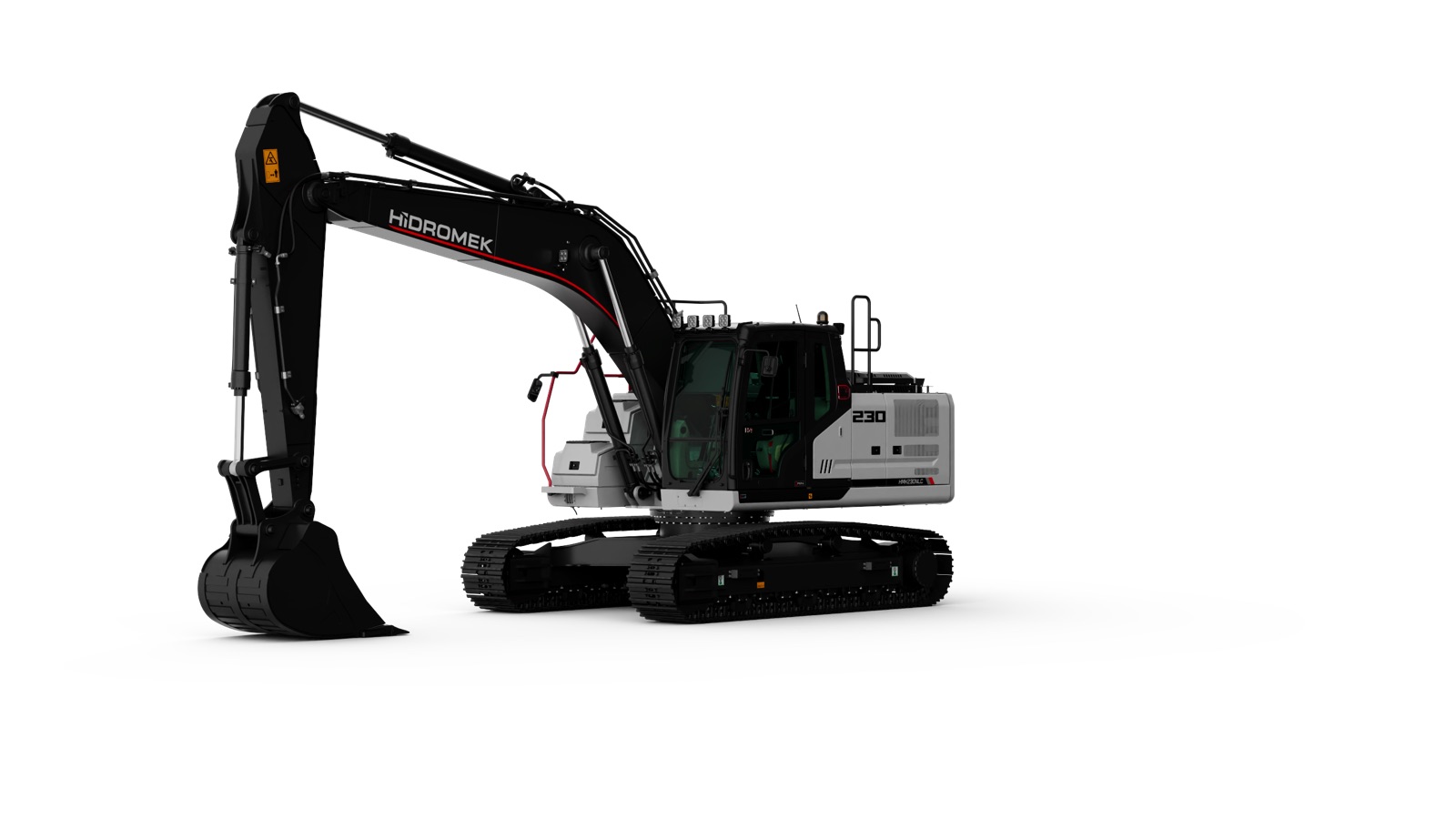

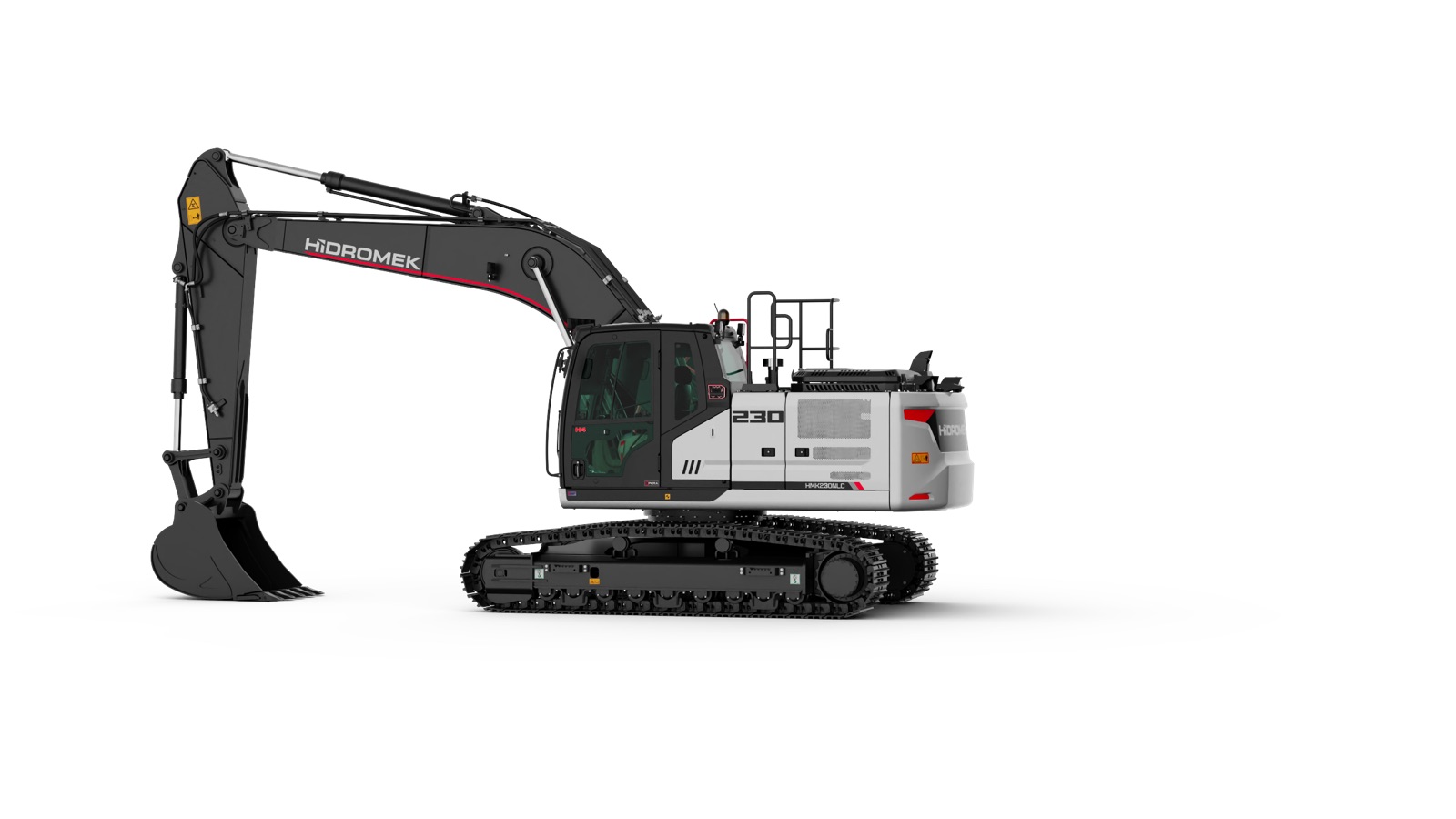

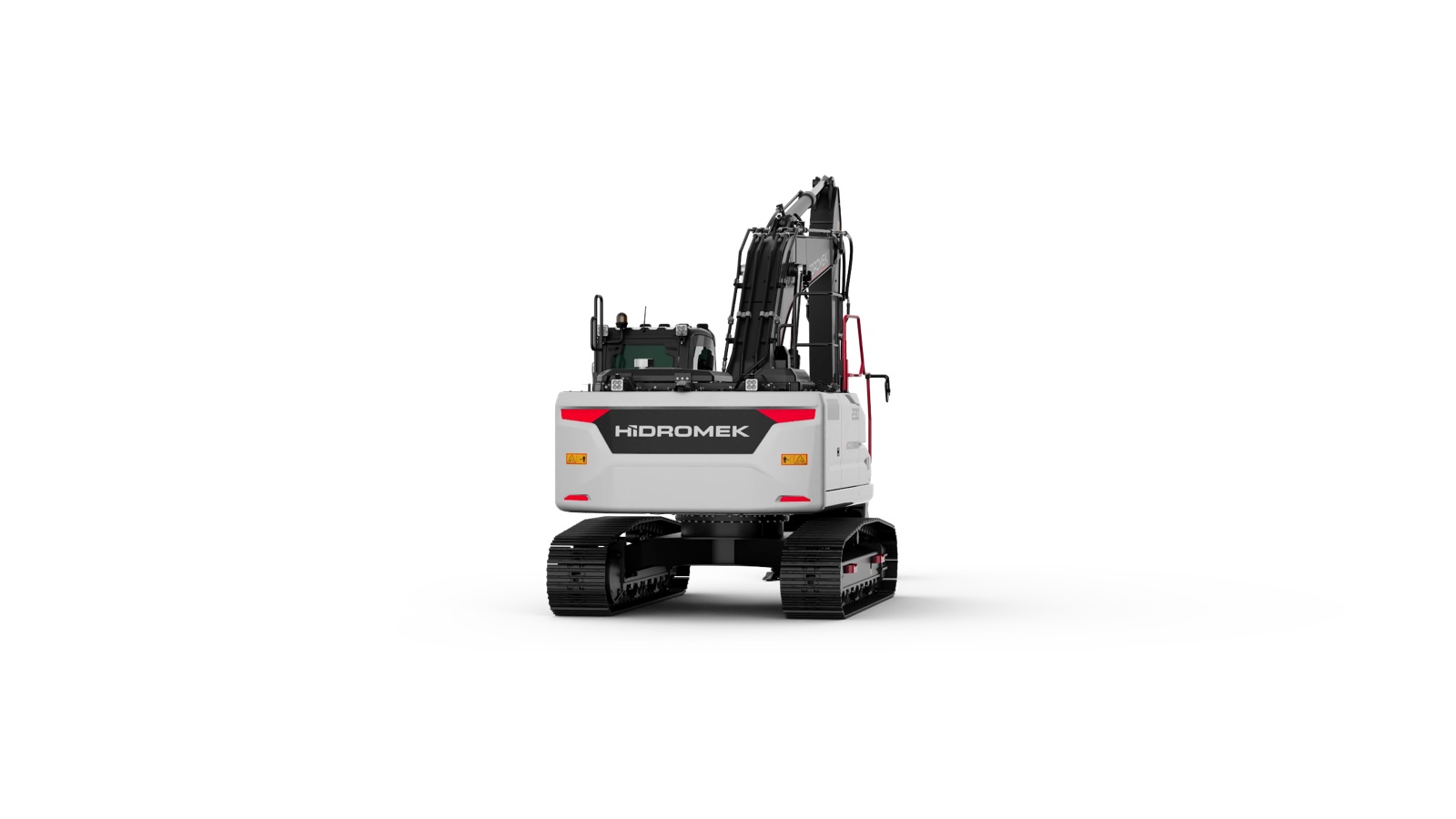

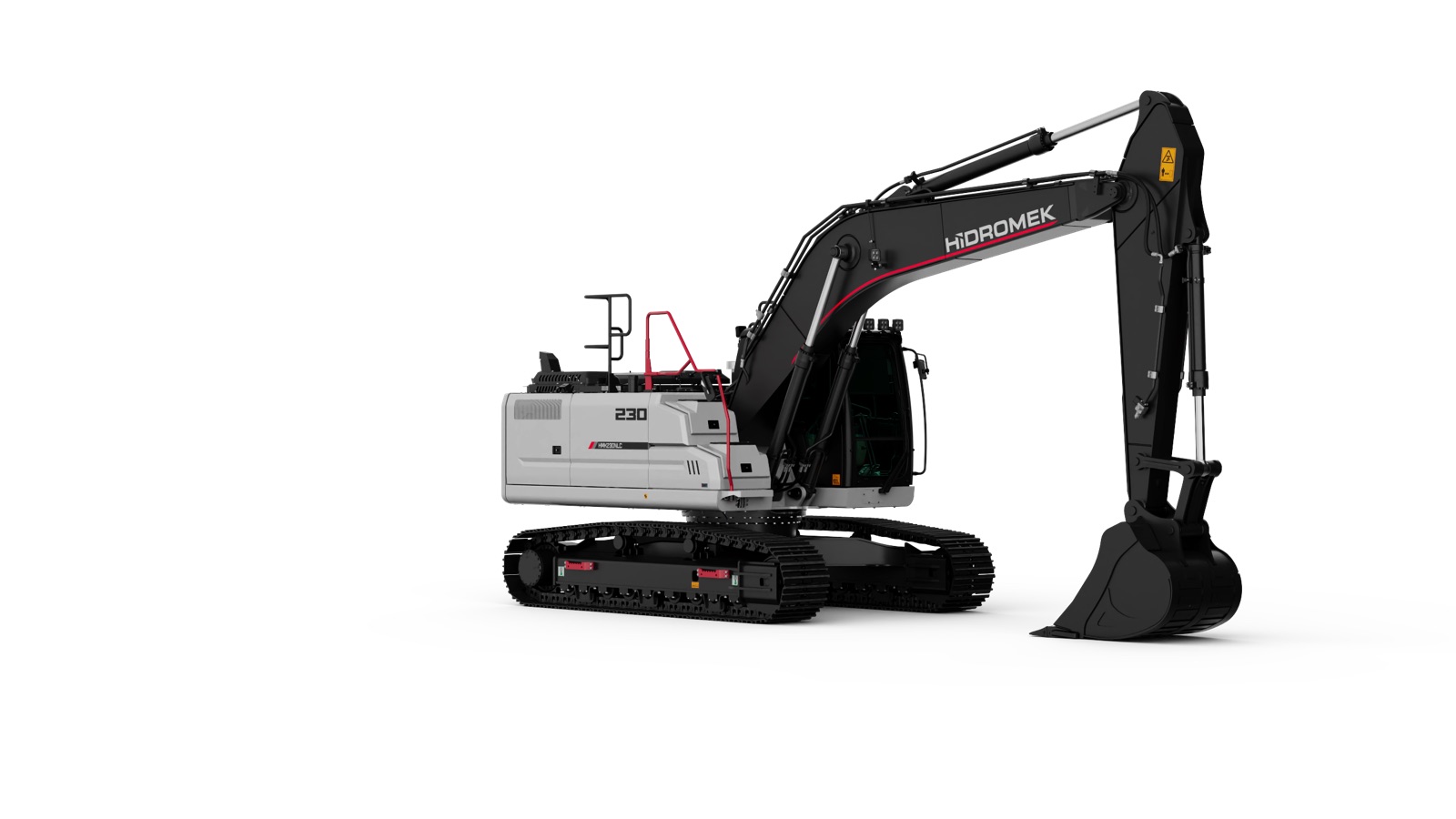

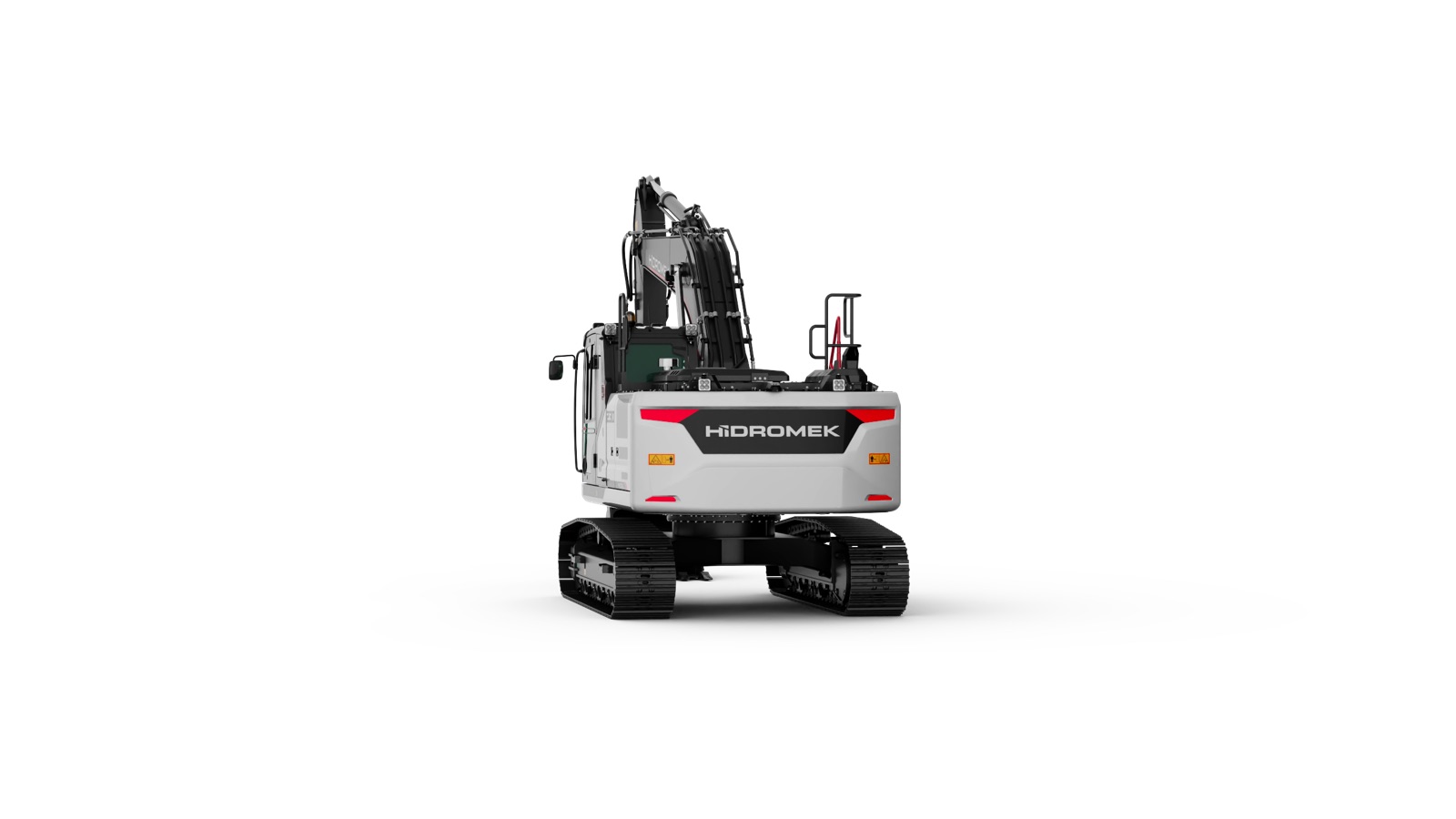

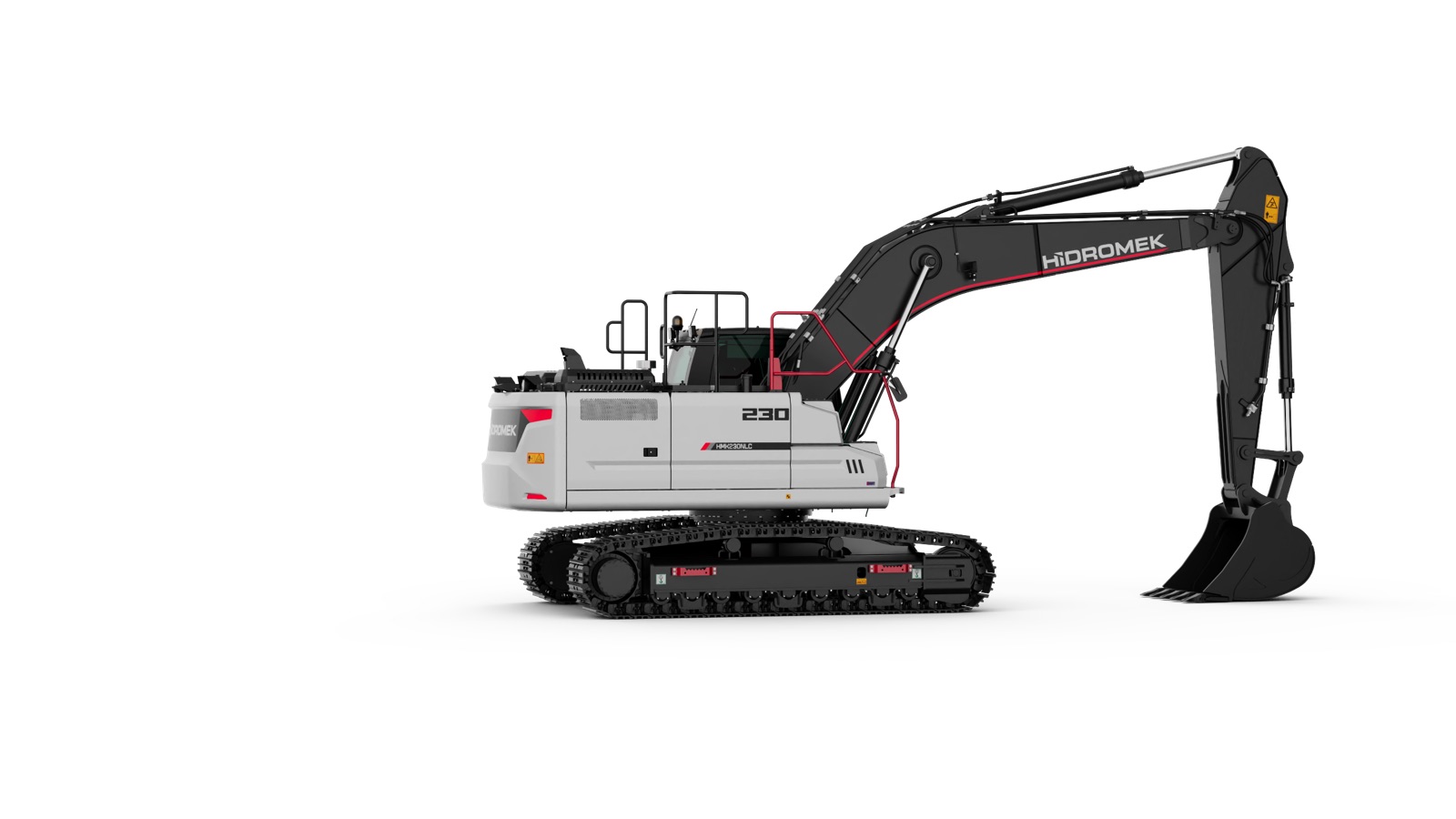

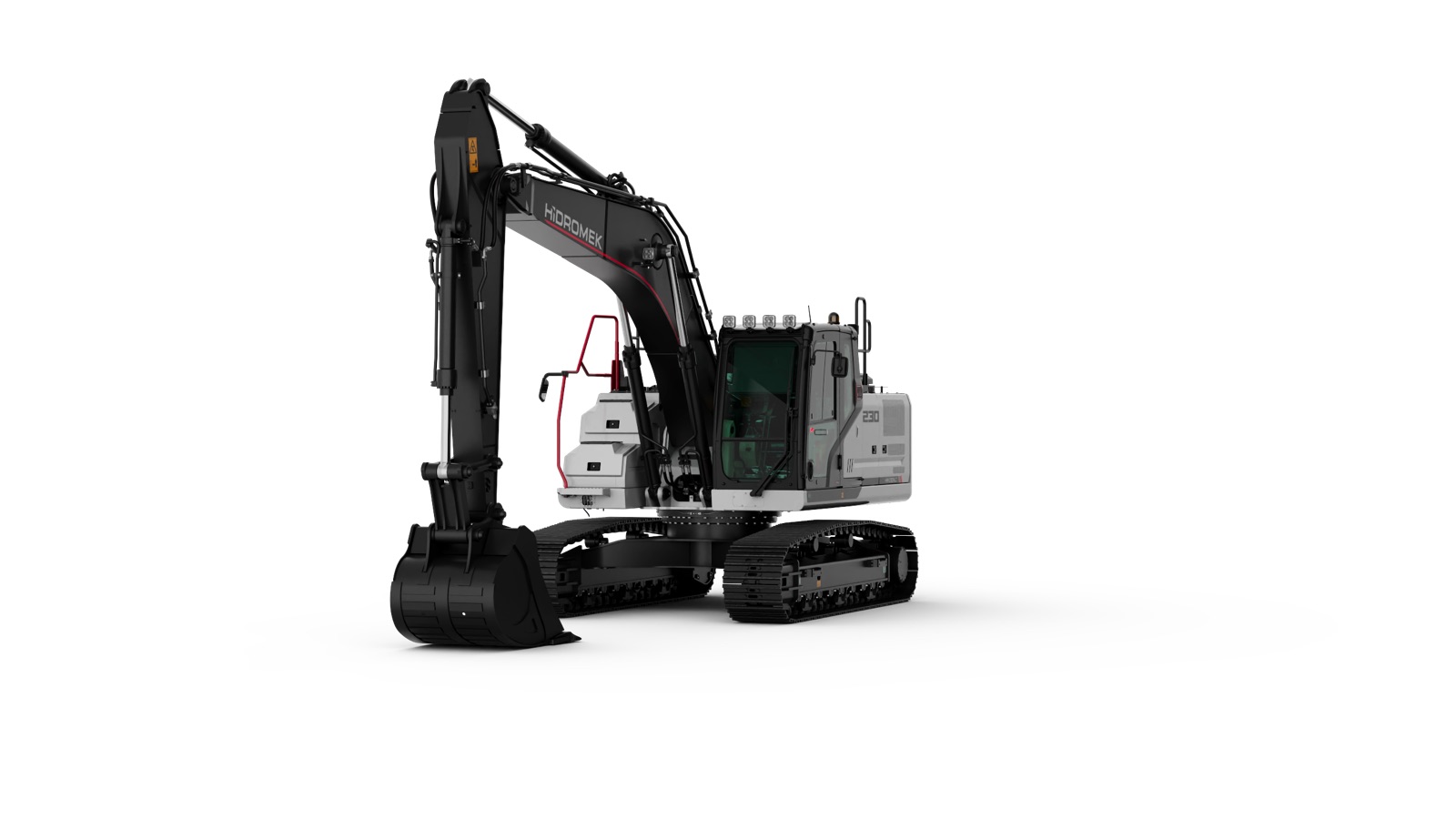

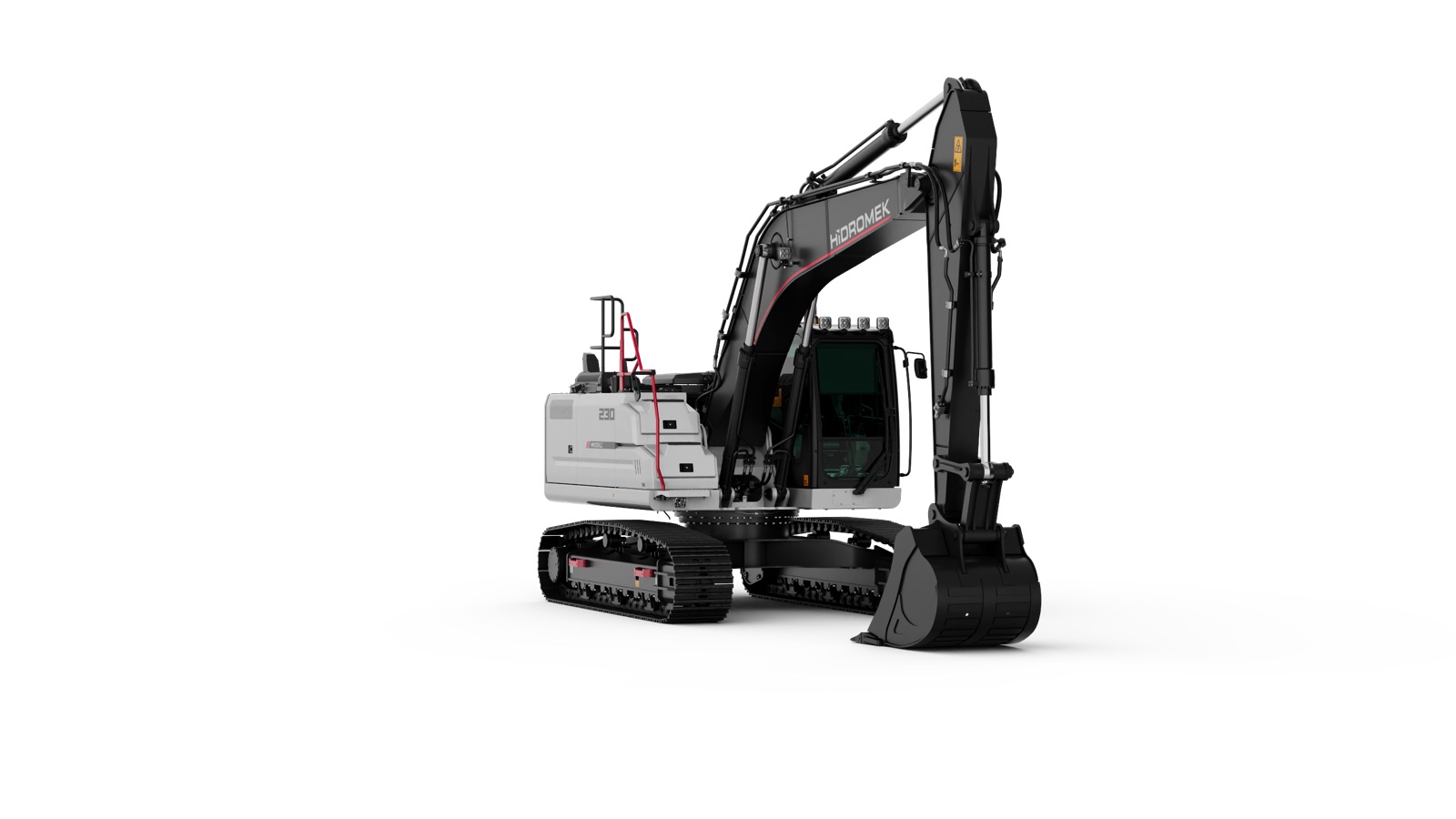

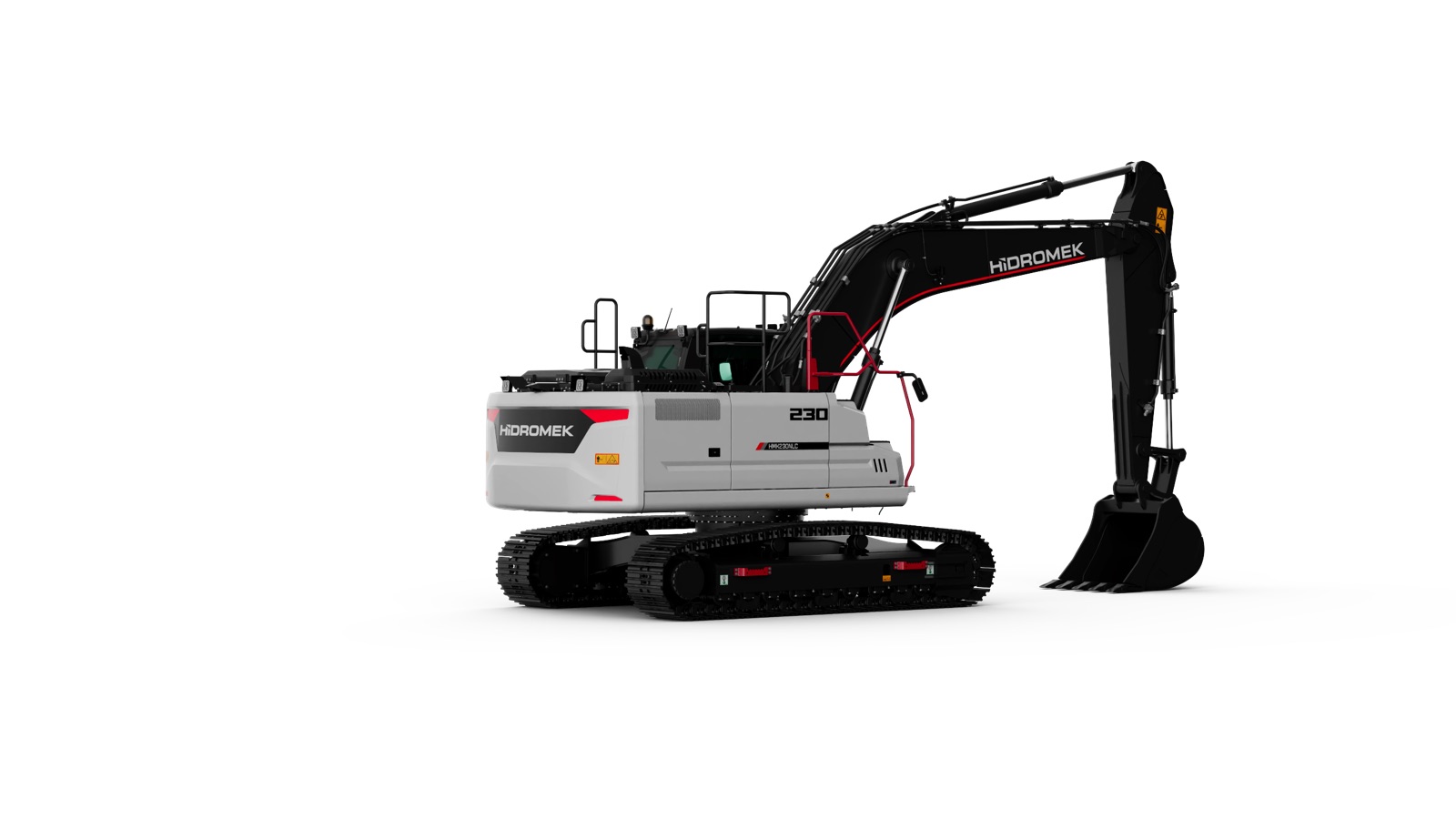

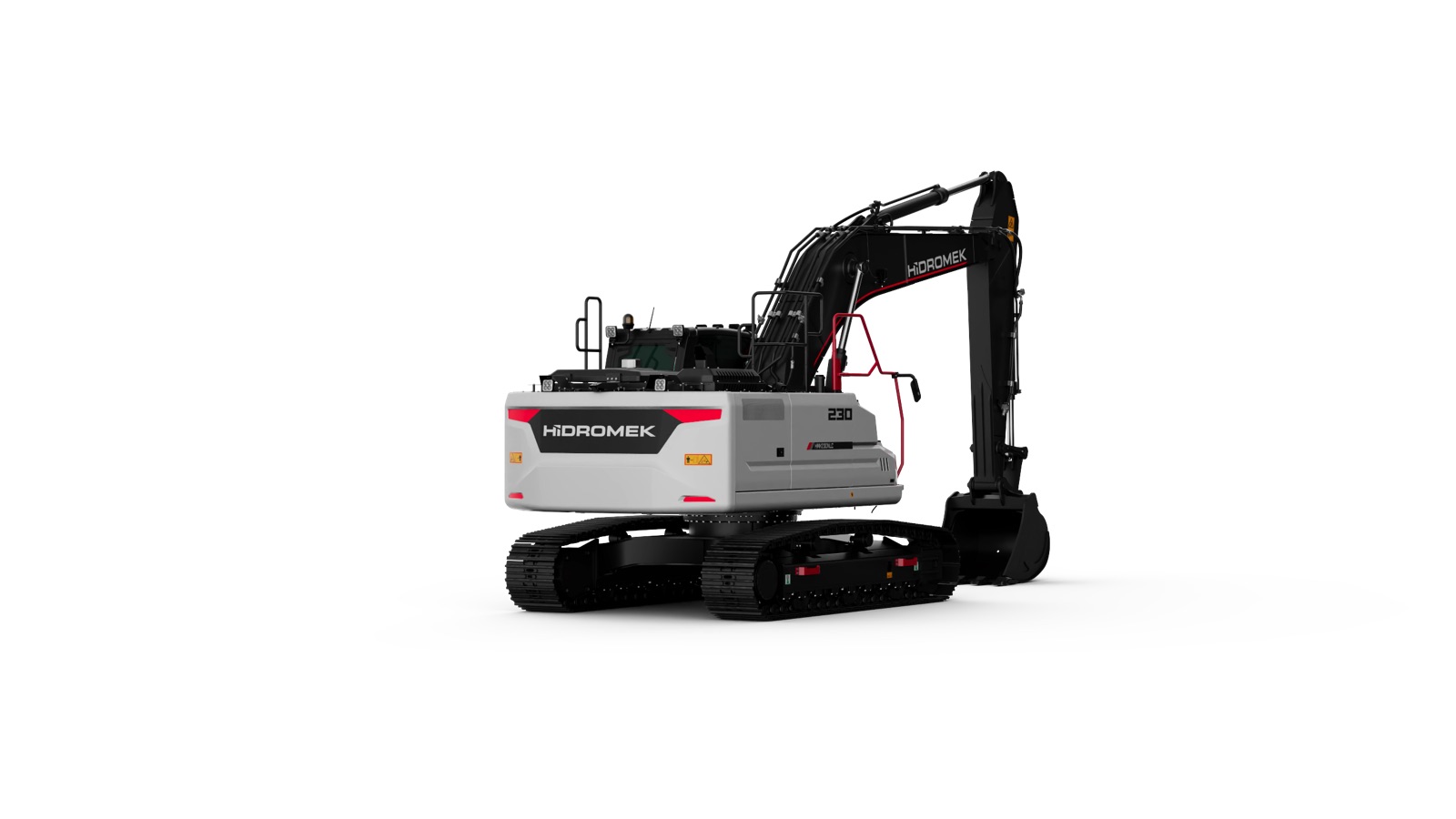

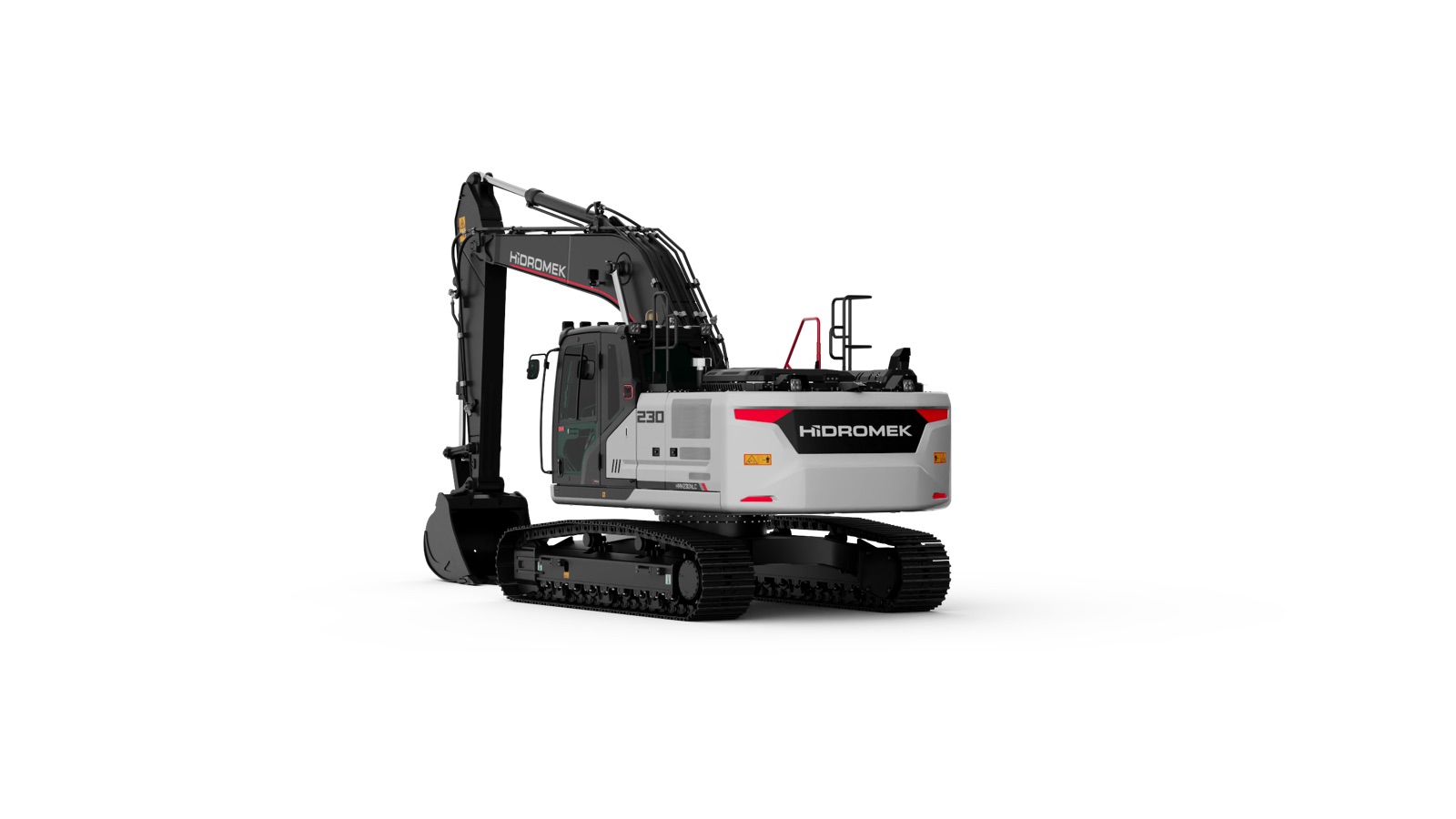

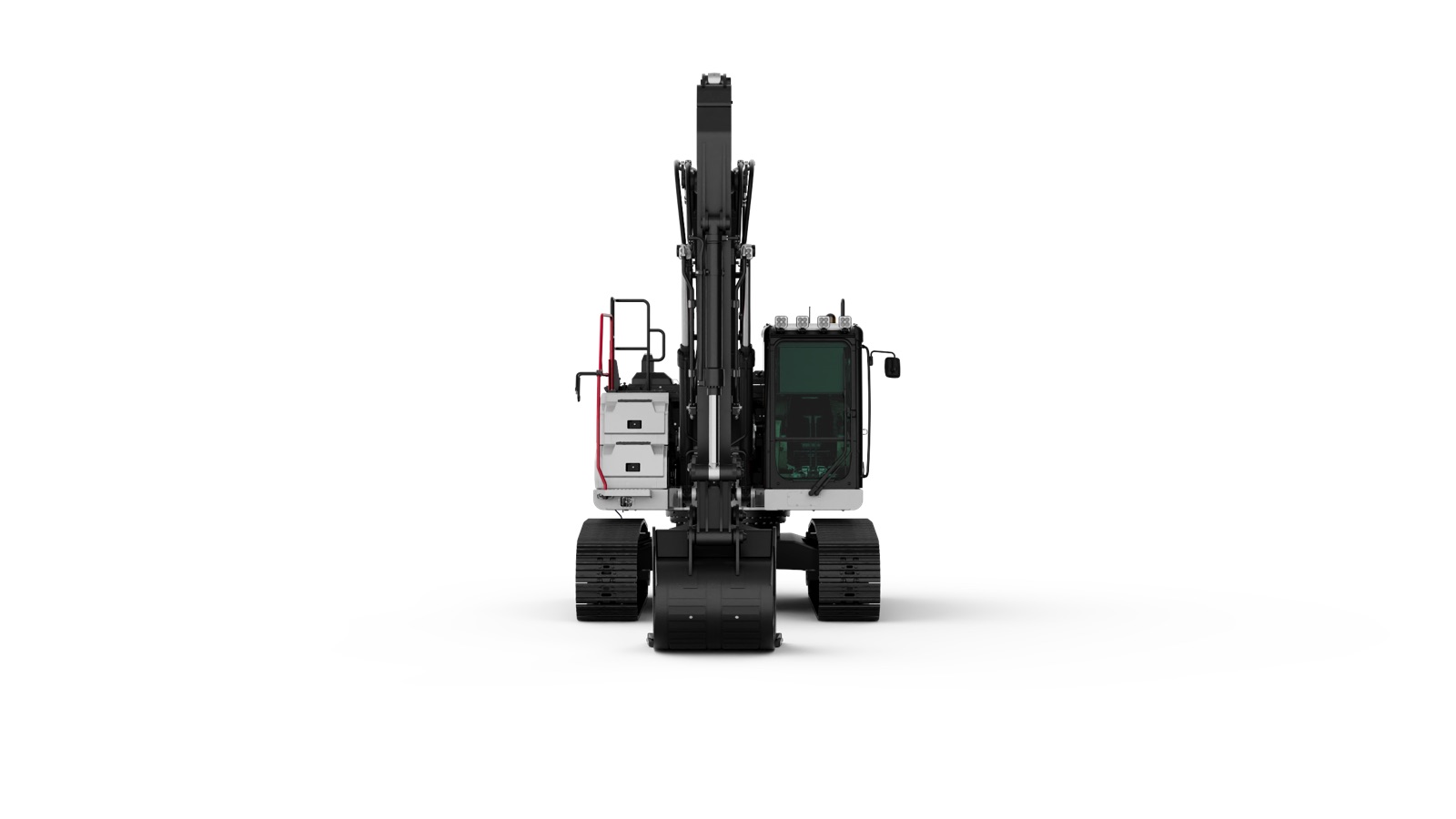

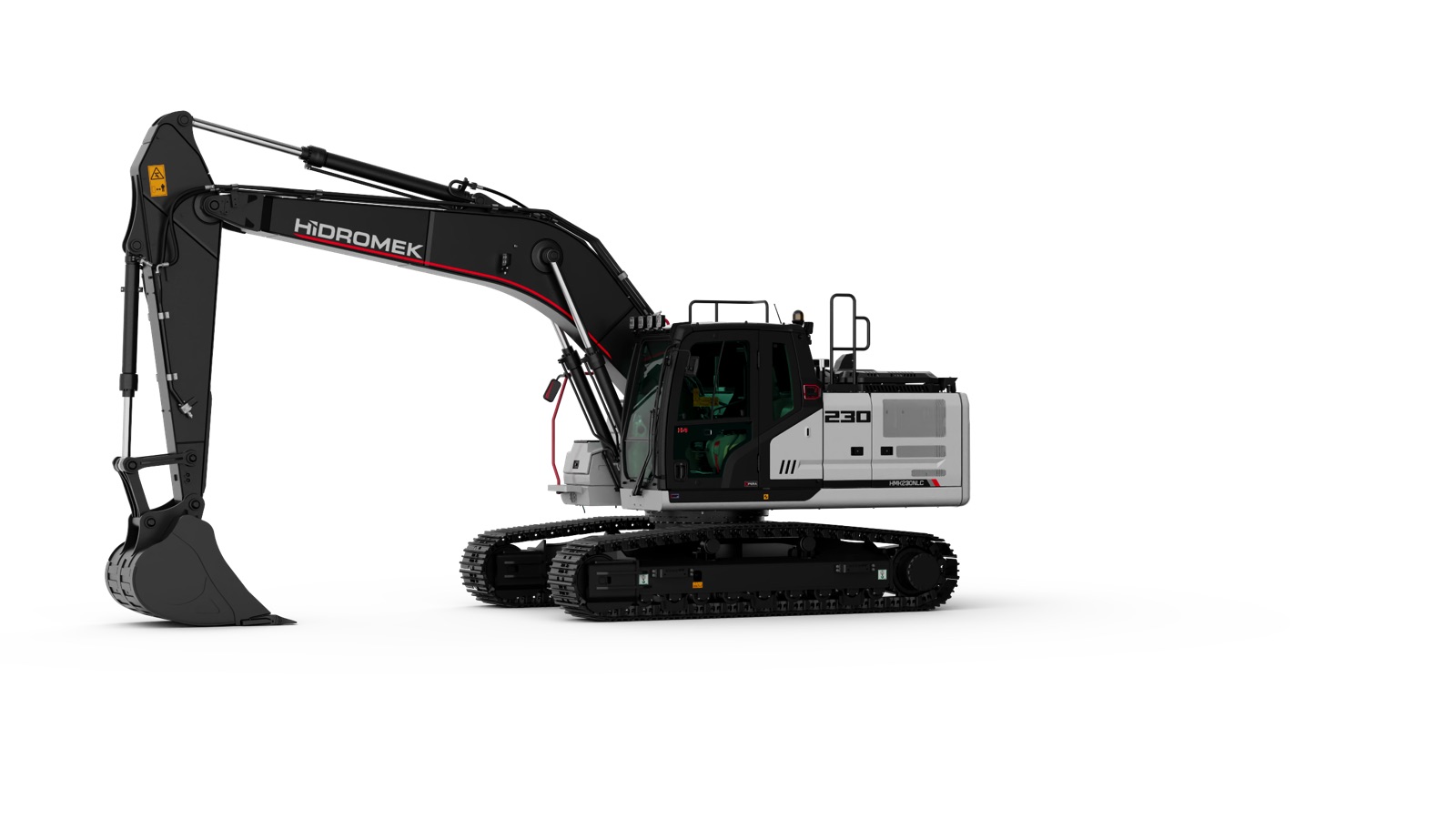

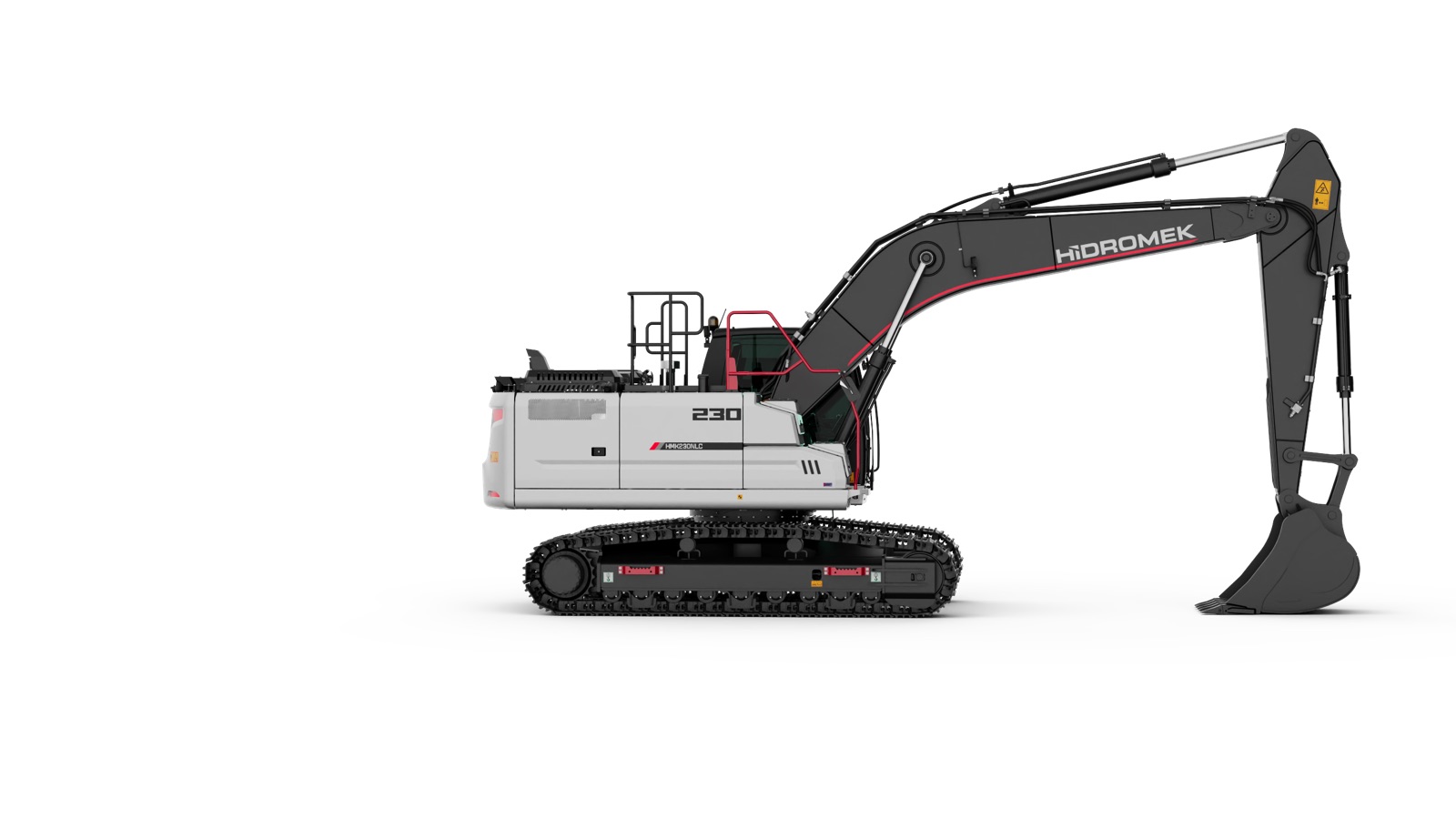

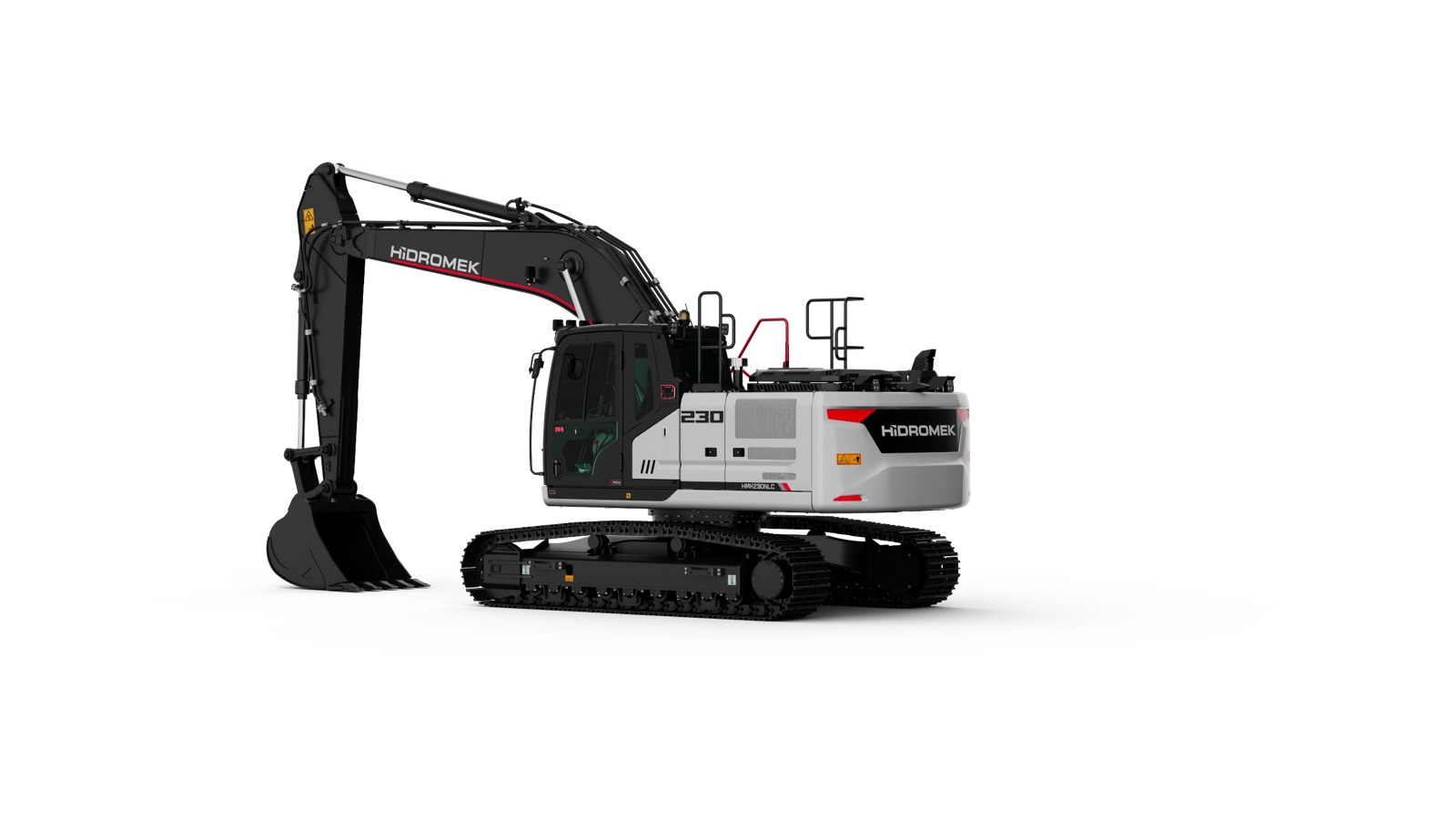

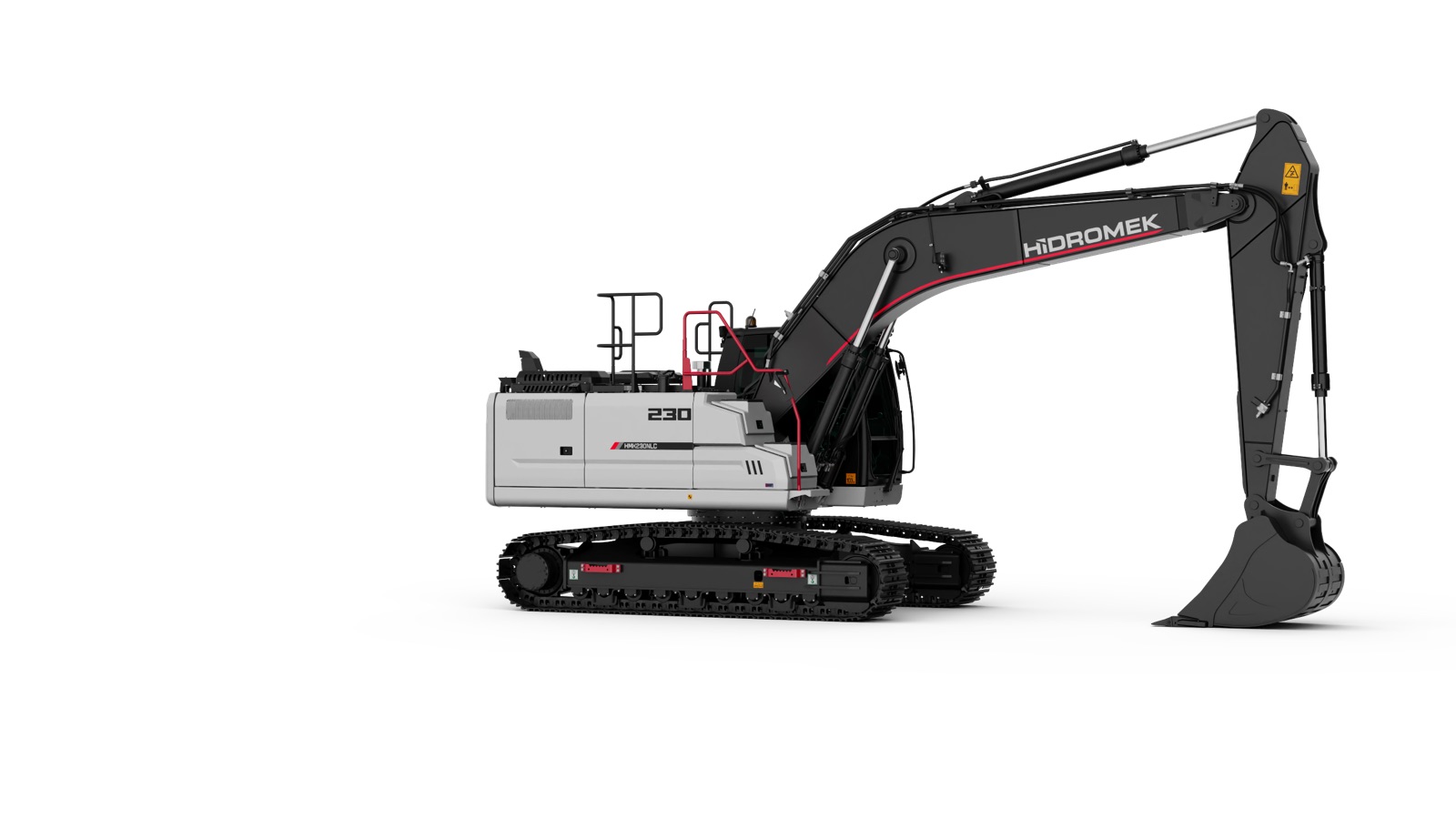

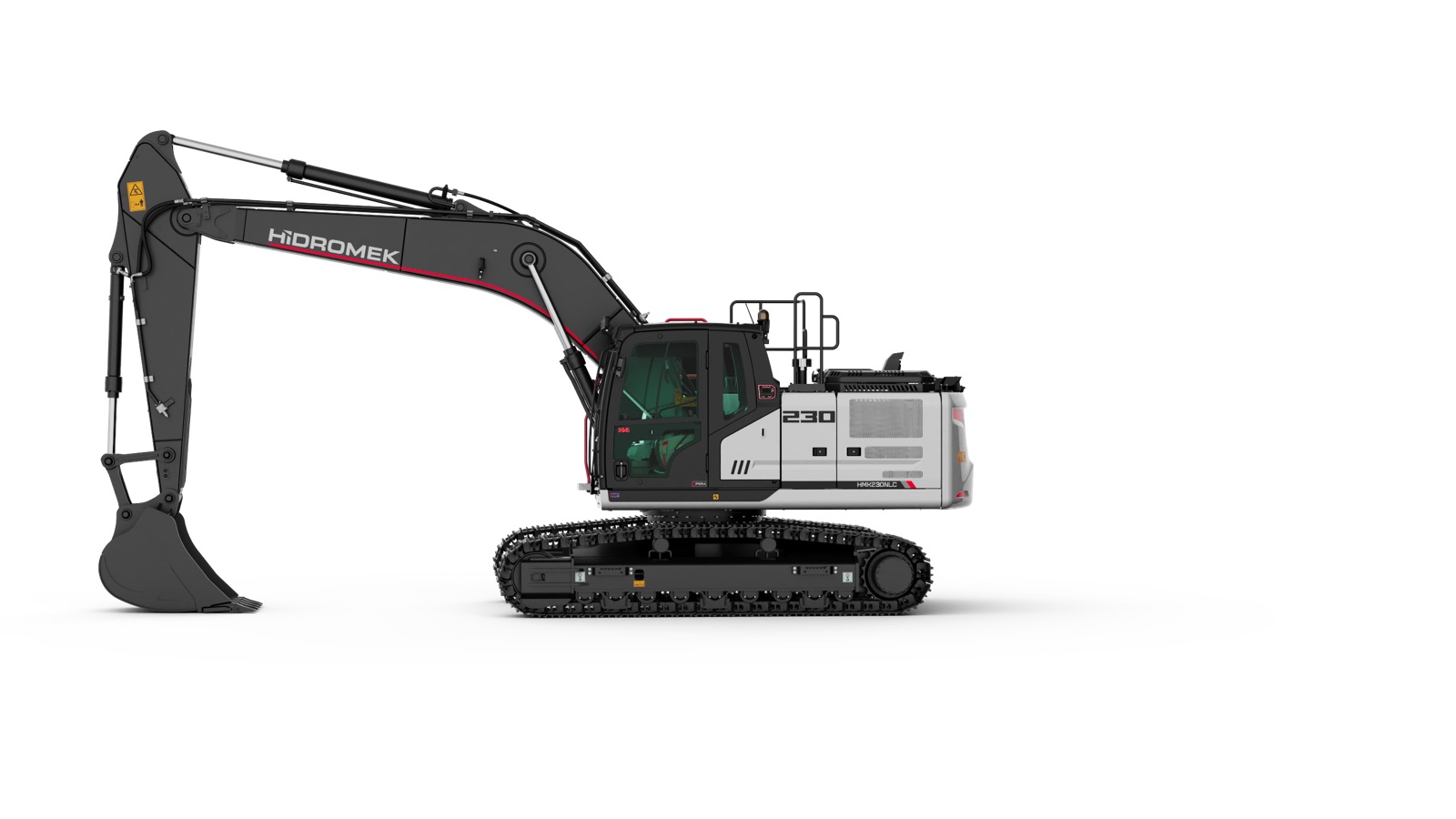

HMK 230 LC

Maximum Power

172 HP (128 kW) @2000 rpm

Bucket Digging Force (ISO)

15.800 kgf

Bucket capacity

1,10 m³

  • View Specs & Dimensions Brochure

HİDROMEK H4 Series HMK 230 LC is designed to deliver more work in less time. It offers higher productivity, better efficiency, and faster operation through advanced hydraulic and machine technology. It is built for heavy-duty performance with improved cycle times and strong digging capability.

This model focuses on productivity, efficiency, and speed improvements compared to previous series. It increases work output with a larger bucket capacity, faster hydraulic movements, and optimized system design. The machine also prioritizes operator safety with ROPS & FOPS certified cabin, improved visibility, and advanced warning systems.

Features

 Higher Productivity

  • 17% more productive operation
  • 21% improved efficiency
  • 7% faster hydraulic performance
  • Larger bucket capacity for reduced cycle time

 Safe Working Environment

  • ROPS & FOPS certified cabin
  • Strong operator protection structure
  • Red safety handles and warning labels

 Improved Visibility

  • Reduced blind spots with cameras
  • Increased LED lighting for night work
  • Enhanced operator safety in all conditions

 Warning Systems

  • Automatic starting horn
  • Swing warning system
  • Travel warning system

Specifications

Engine

  • Power: 172 HP (128 kW) @ 2000 rpm
  • Torque: 670 Nm @ 1600 rpm
  • Model: ISUZU 4HK1X
  • 4-cylinder turbocharged diesel engine
  • Displacement: 5193 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 221 L/min
  • Pilot Pump: 20 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 370 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 306 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 11.9 rpm

Travel

  • Maximum Drawbar Pull: 21,877 kgf
  • High Speed: 5.8 km/h
  • Low Speed: 3.8 km/h

Digging Performance

  • Bucket Digging Force (ISO): 15,800 kgf
  • Bucket Capacity: 1.10 m³
  • Arm Breakout Force (ISO): 10,900 kgf

Working Dimensions

  • Boom: 5,700 mm
  • Arm: 2,920 mm
  • Maximum Digging Depth: 6,730 mm
  • Maximum Reach at Ground Level: 9,810 mm

Operating Weight

  • 23,700 kg
  • View Specs & Dimensions Brochure
