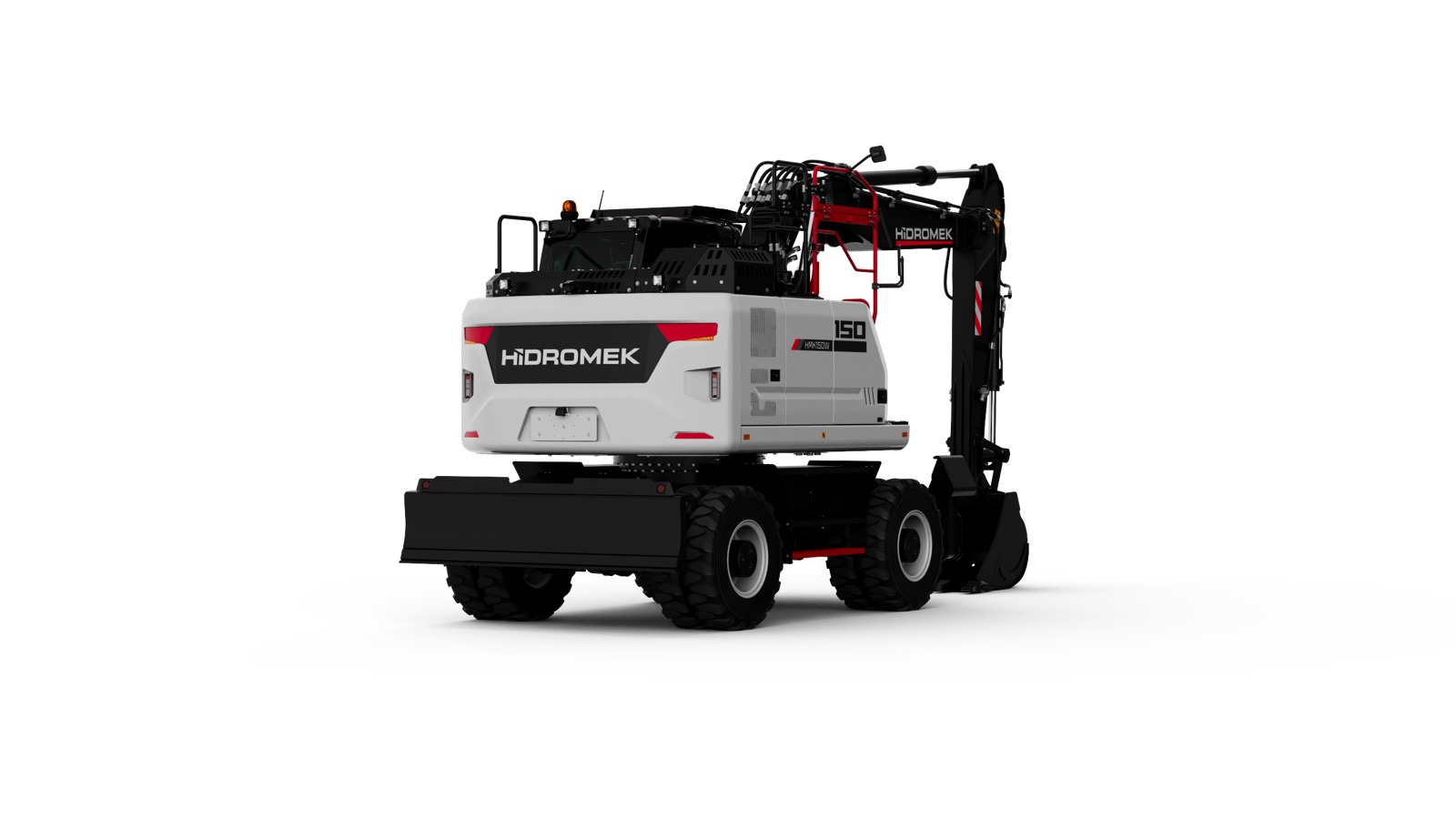

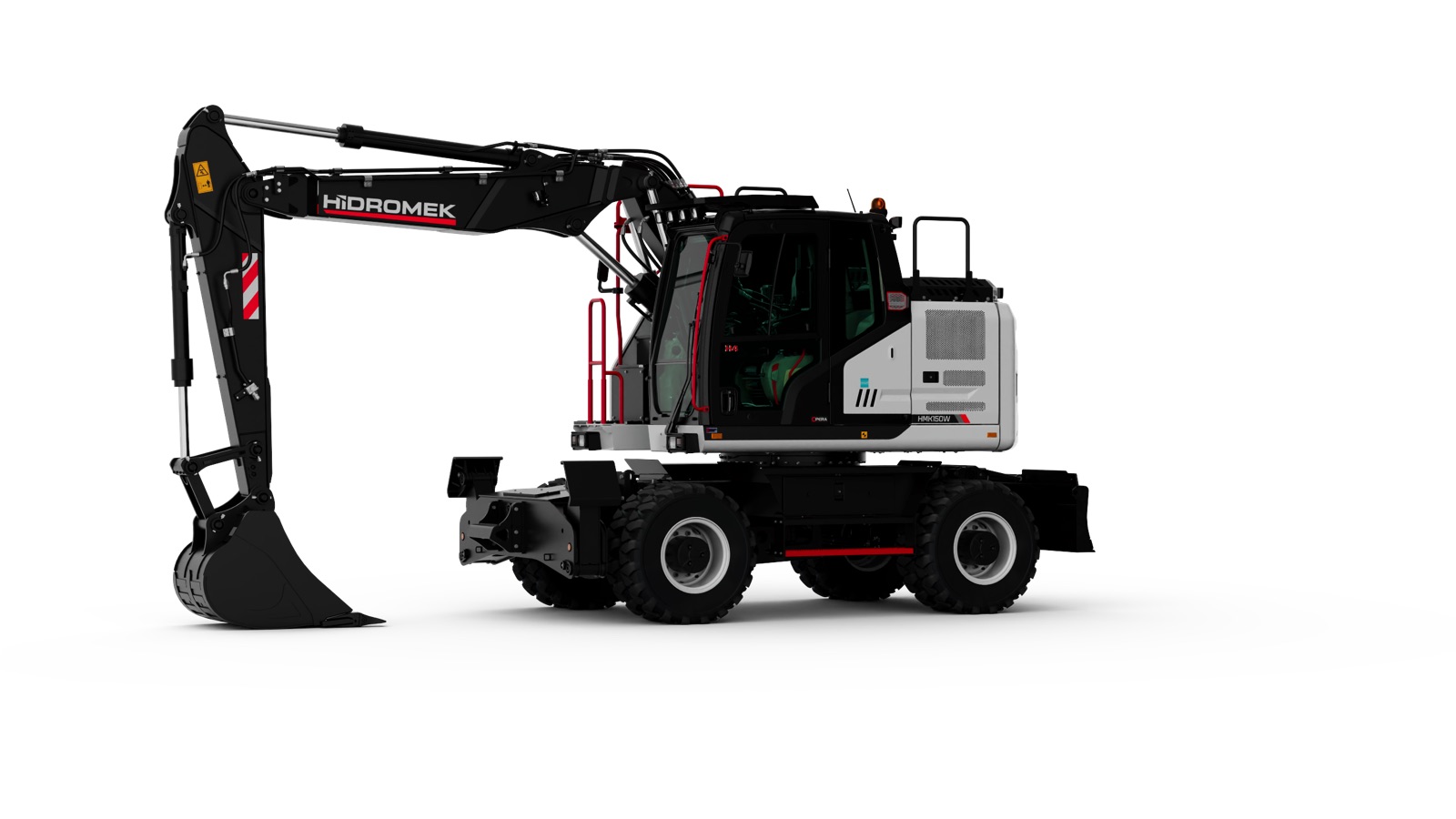

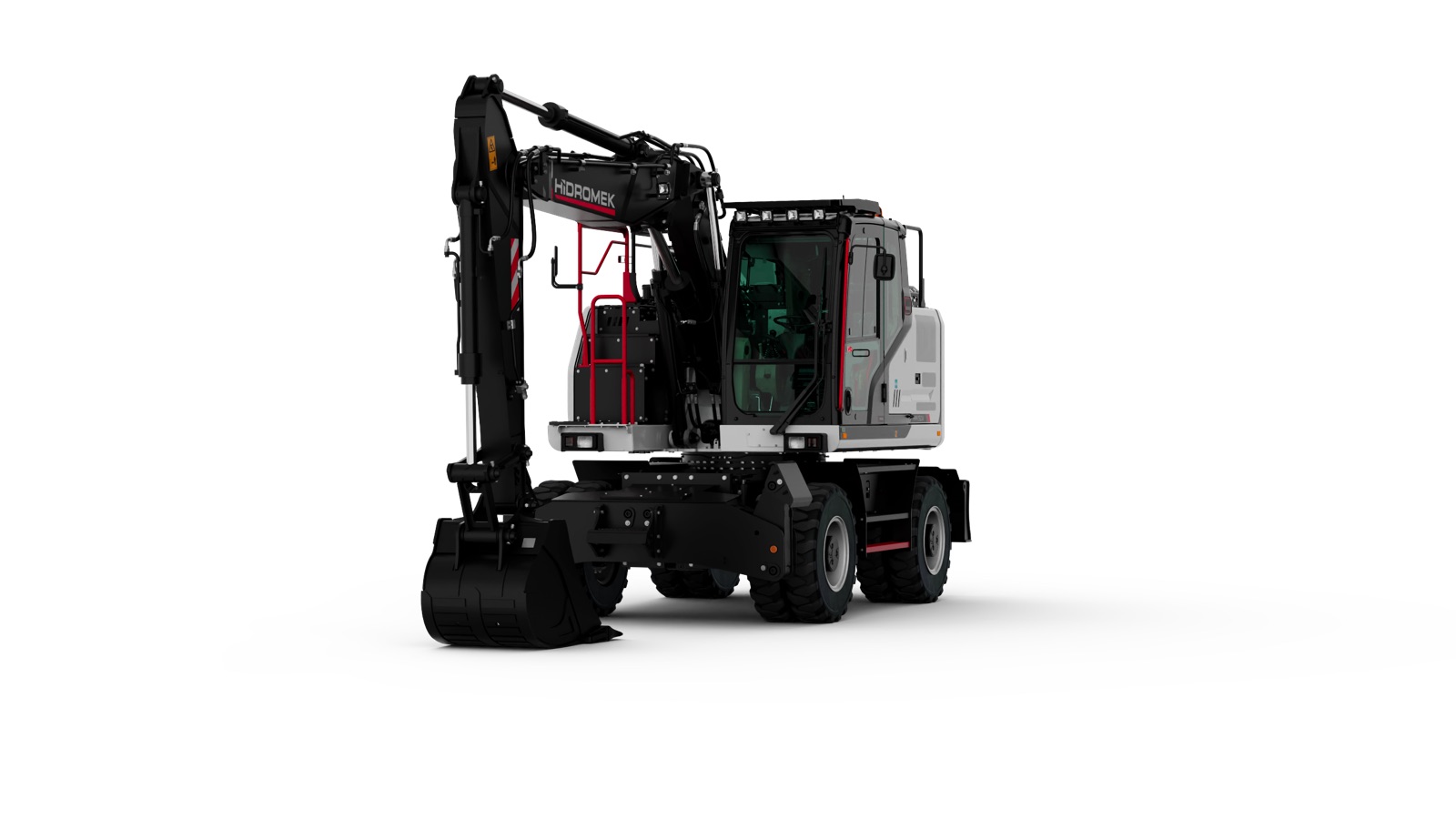

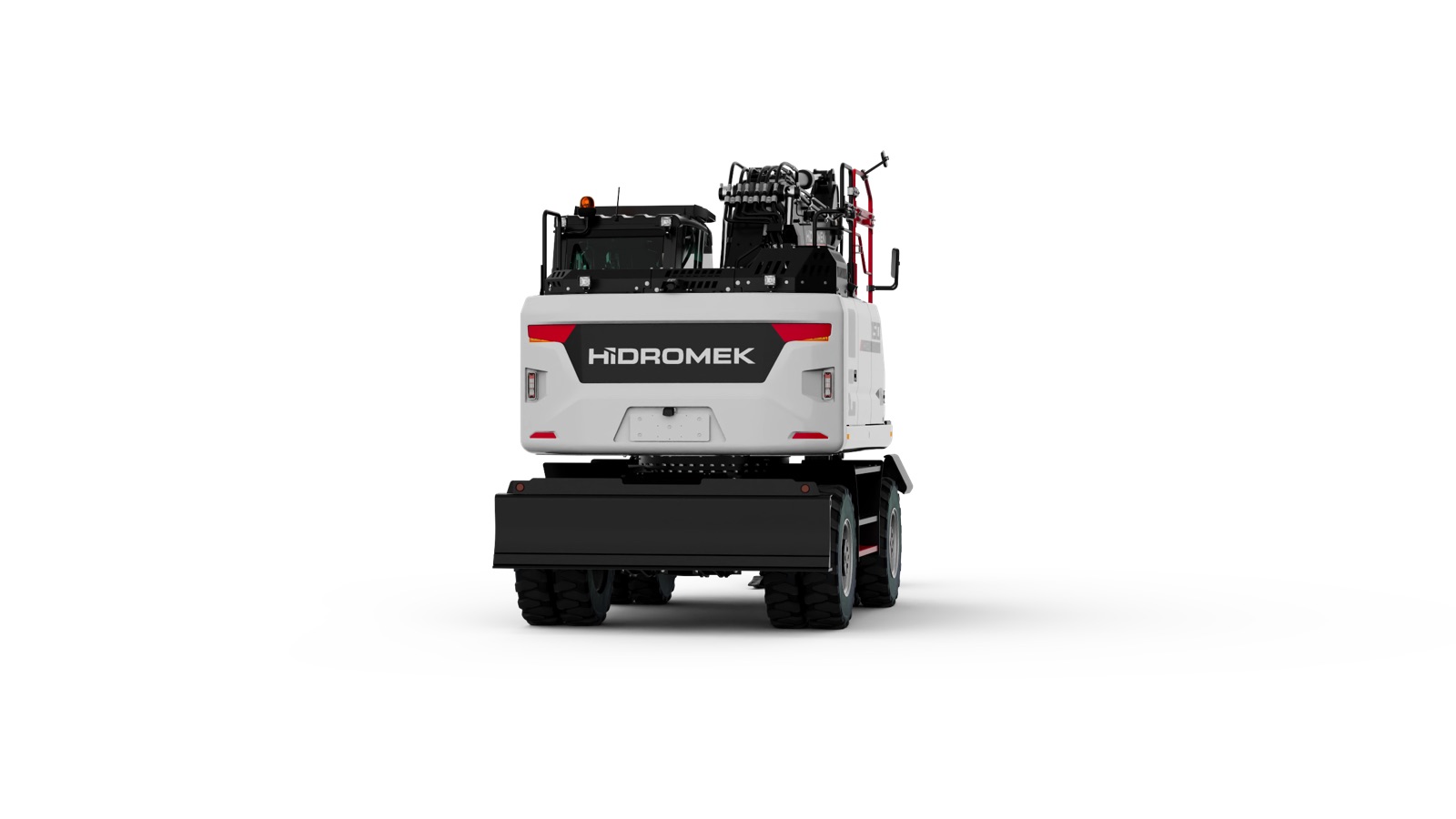

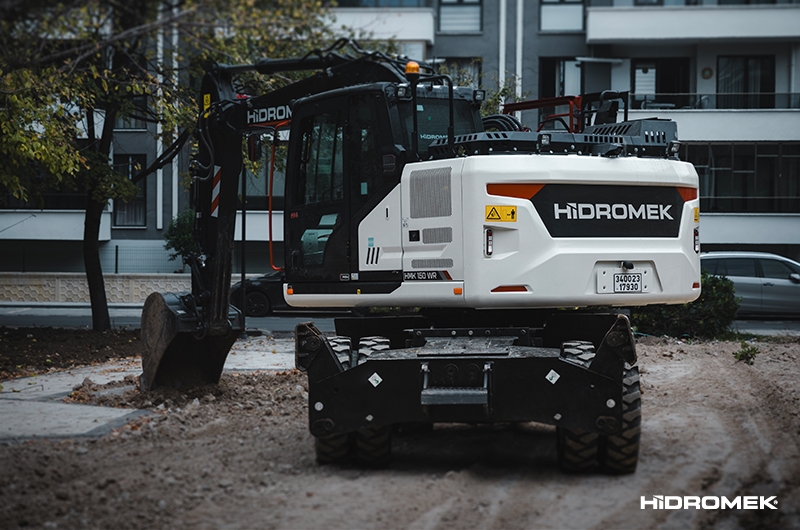

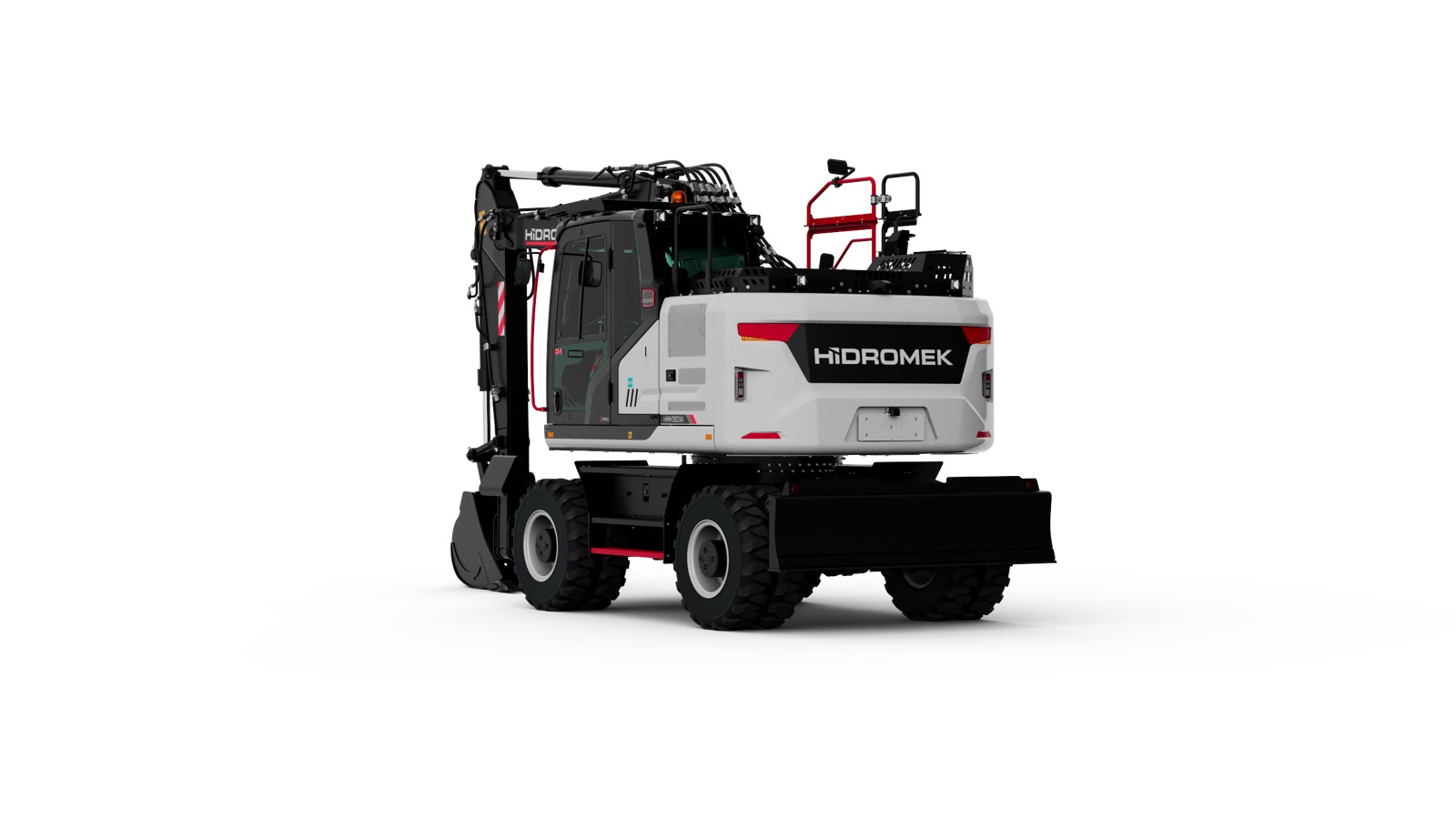

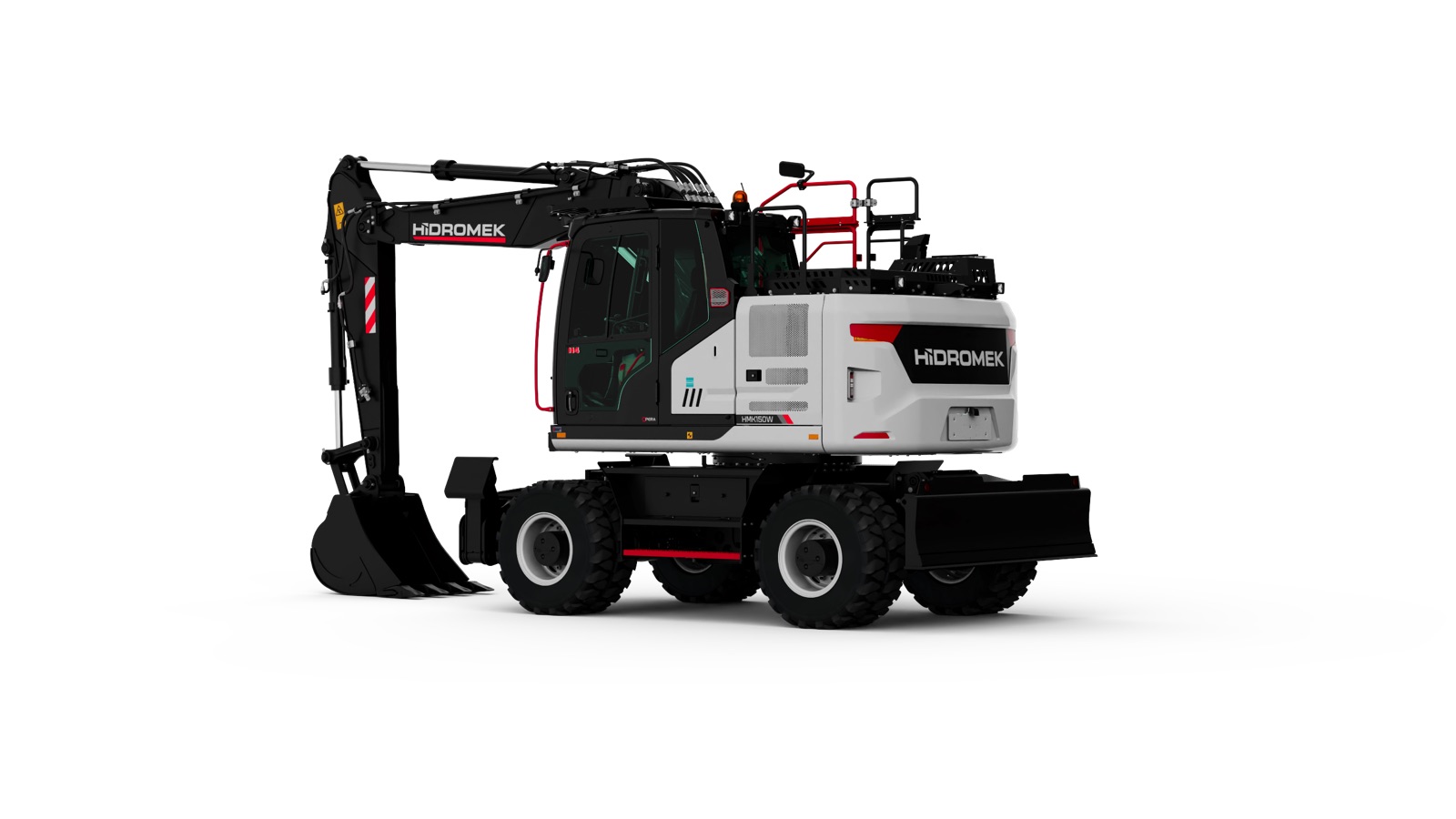

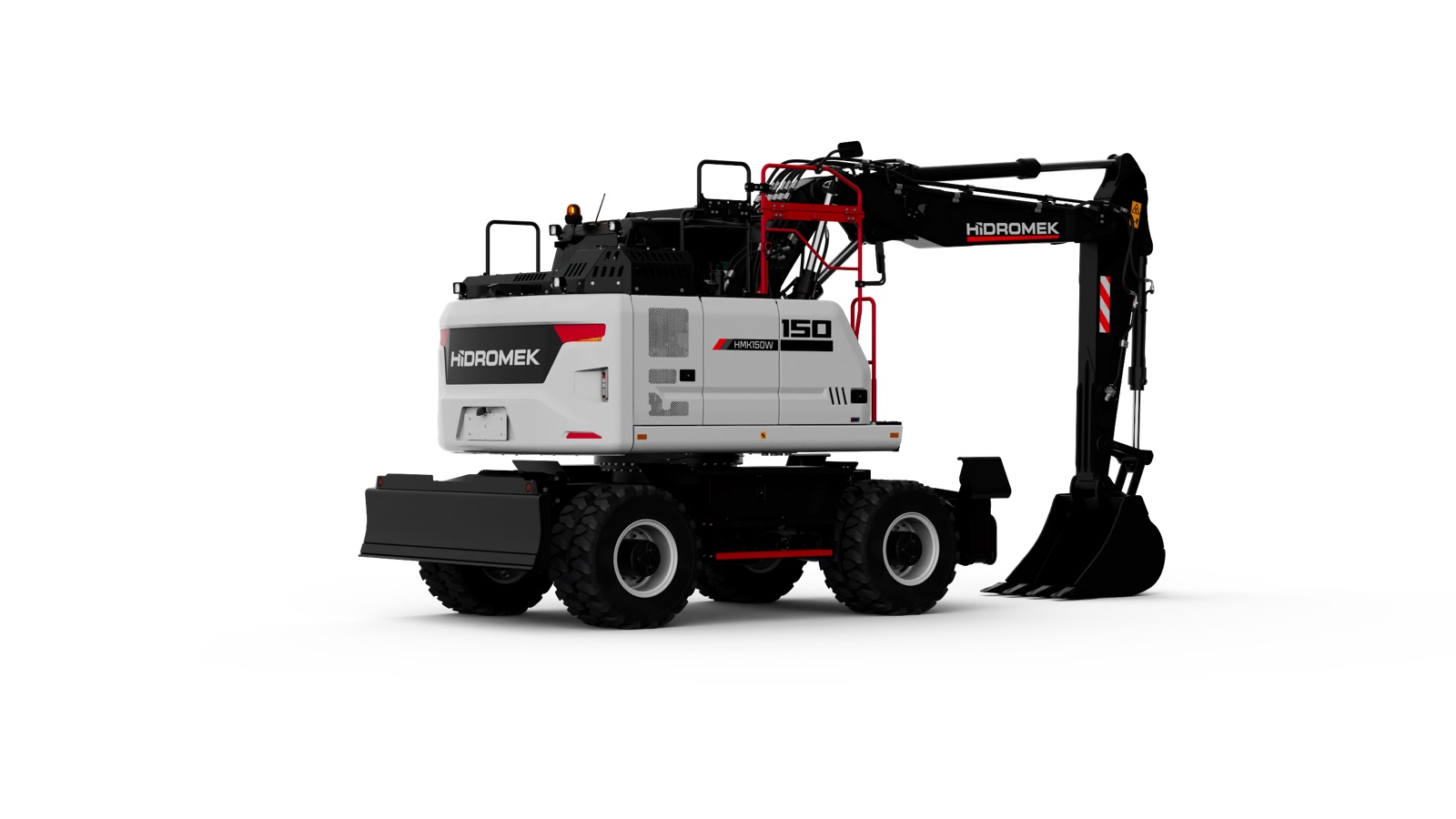

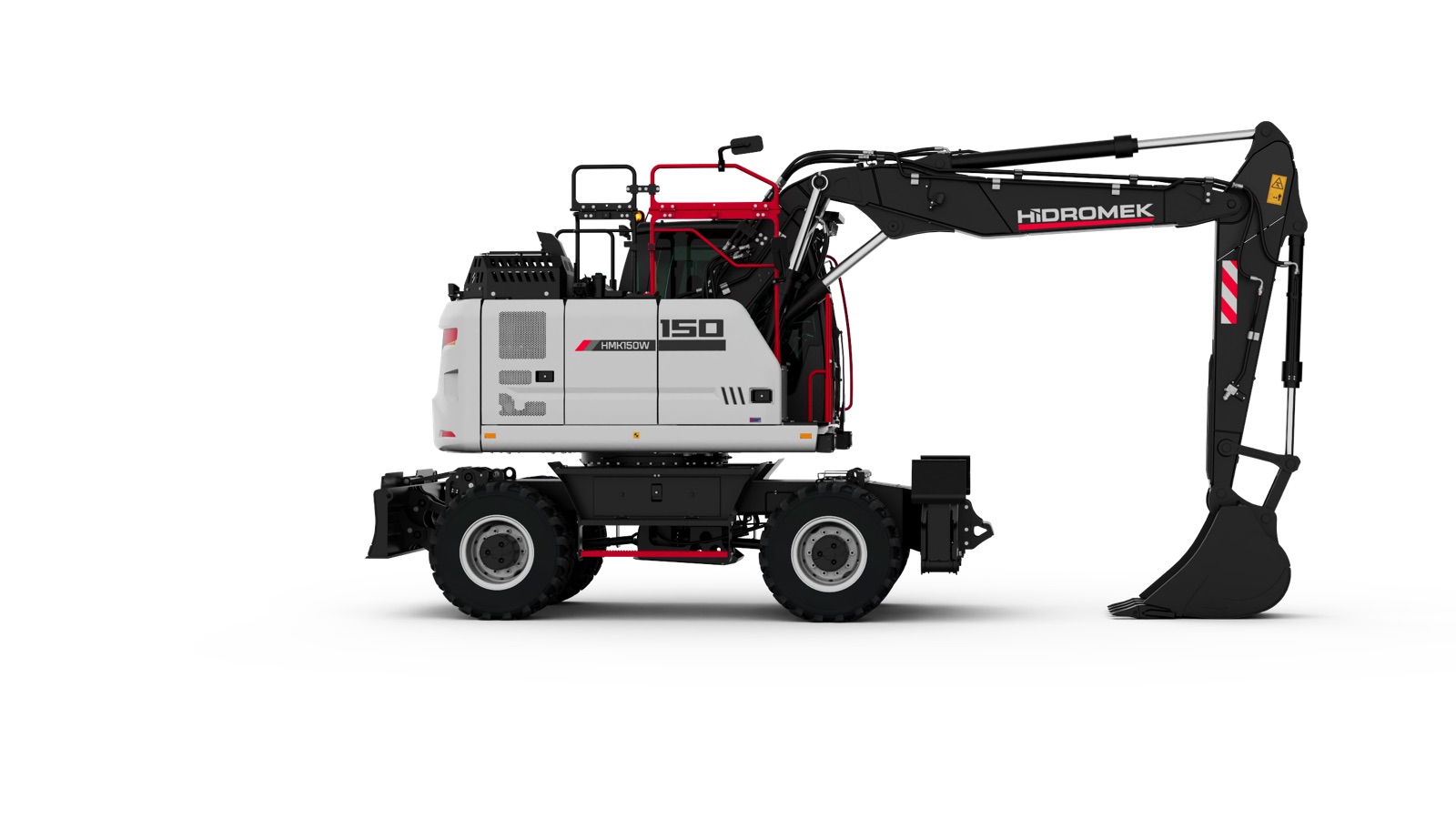

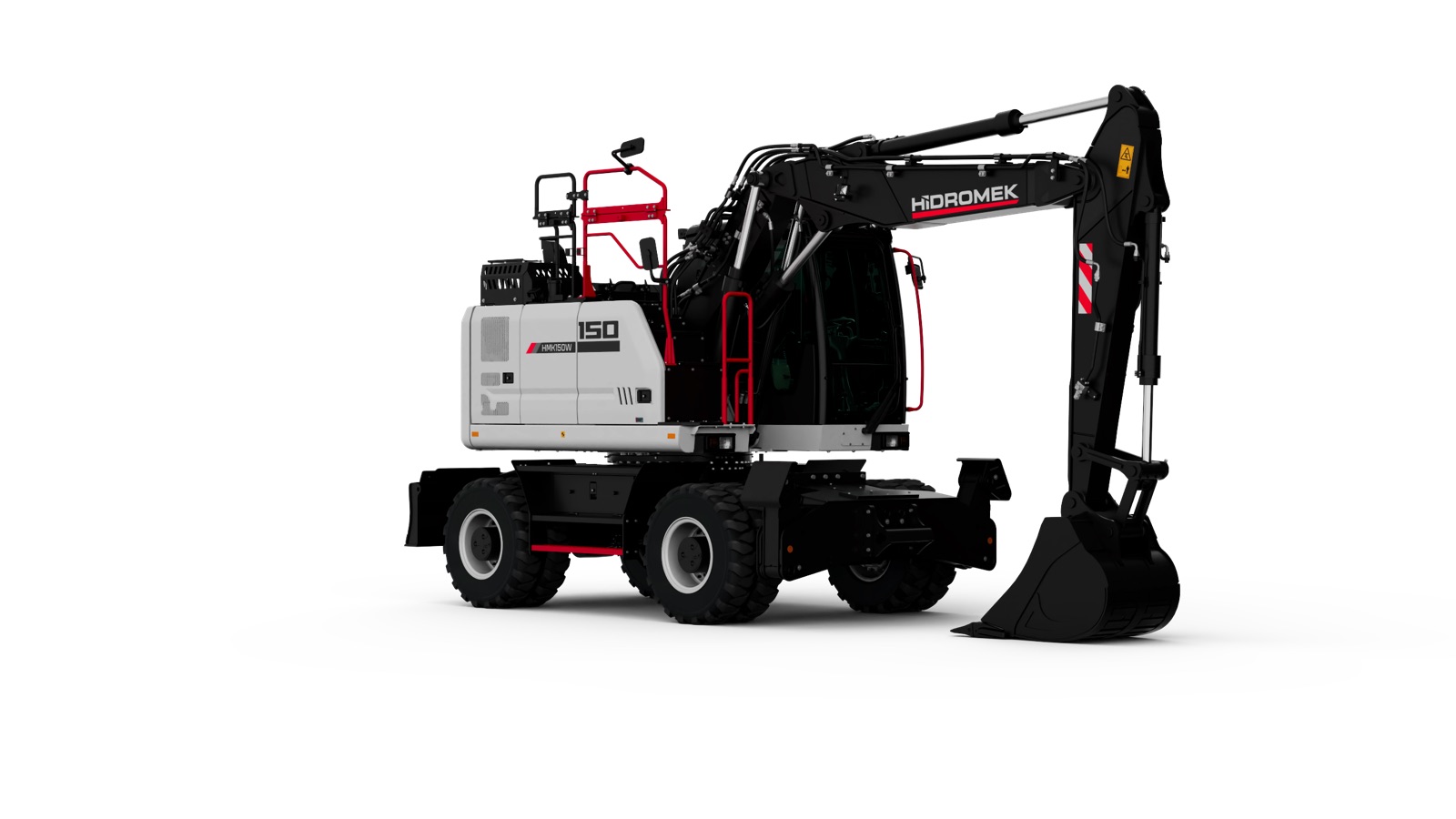

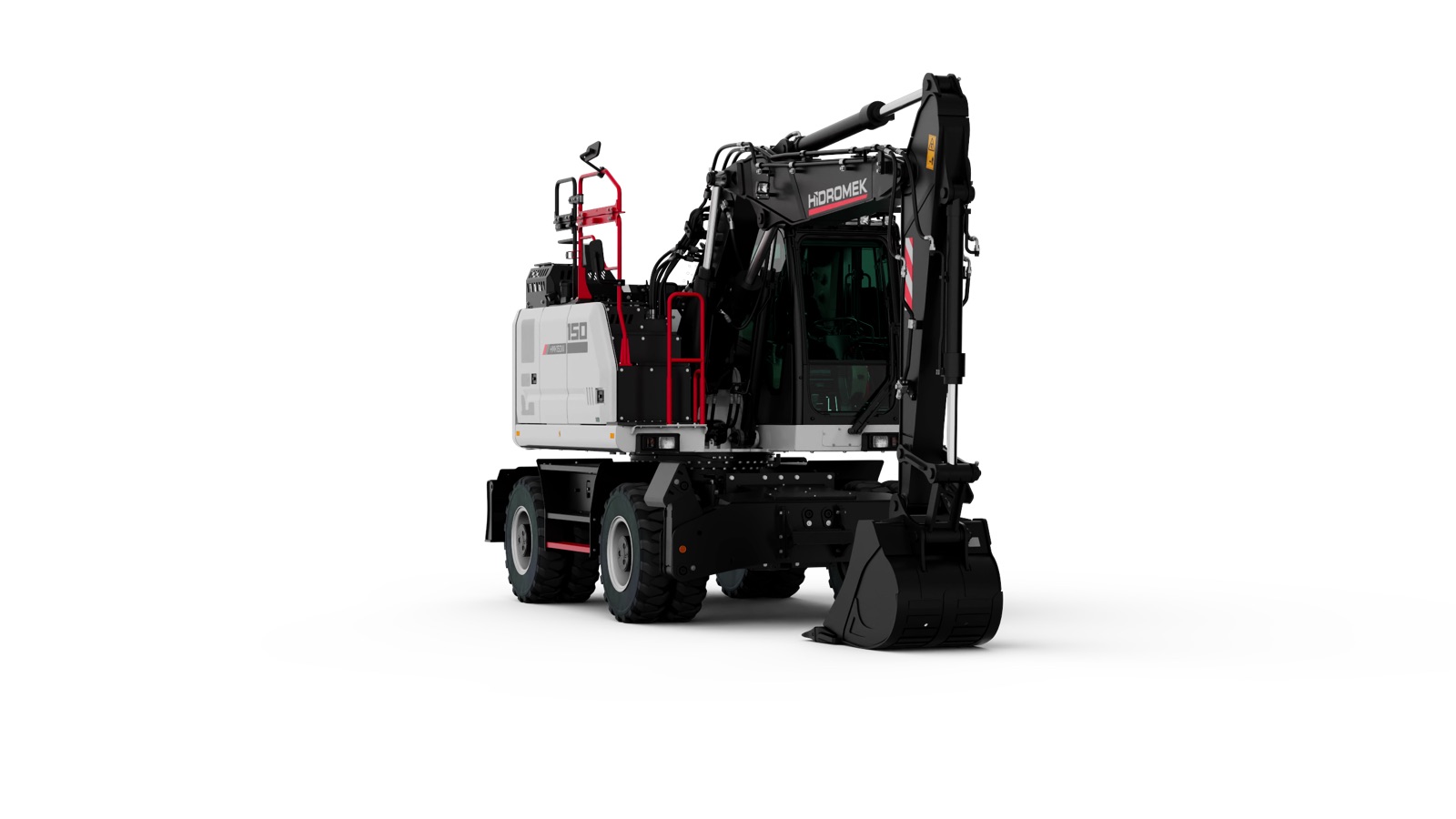

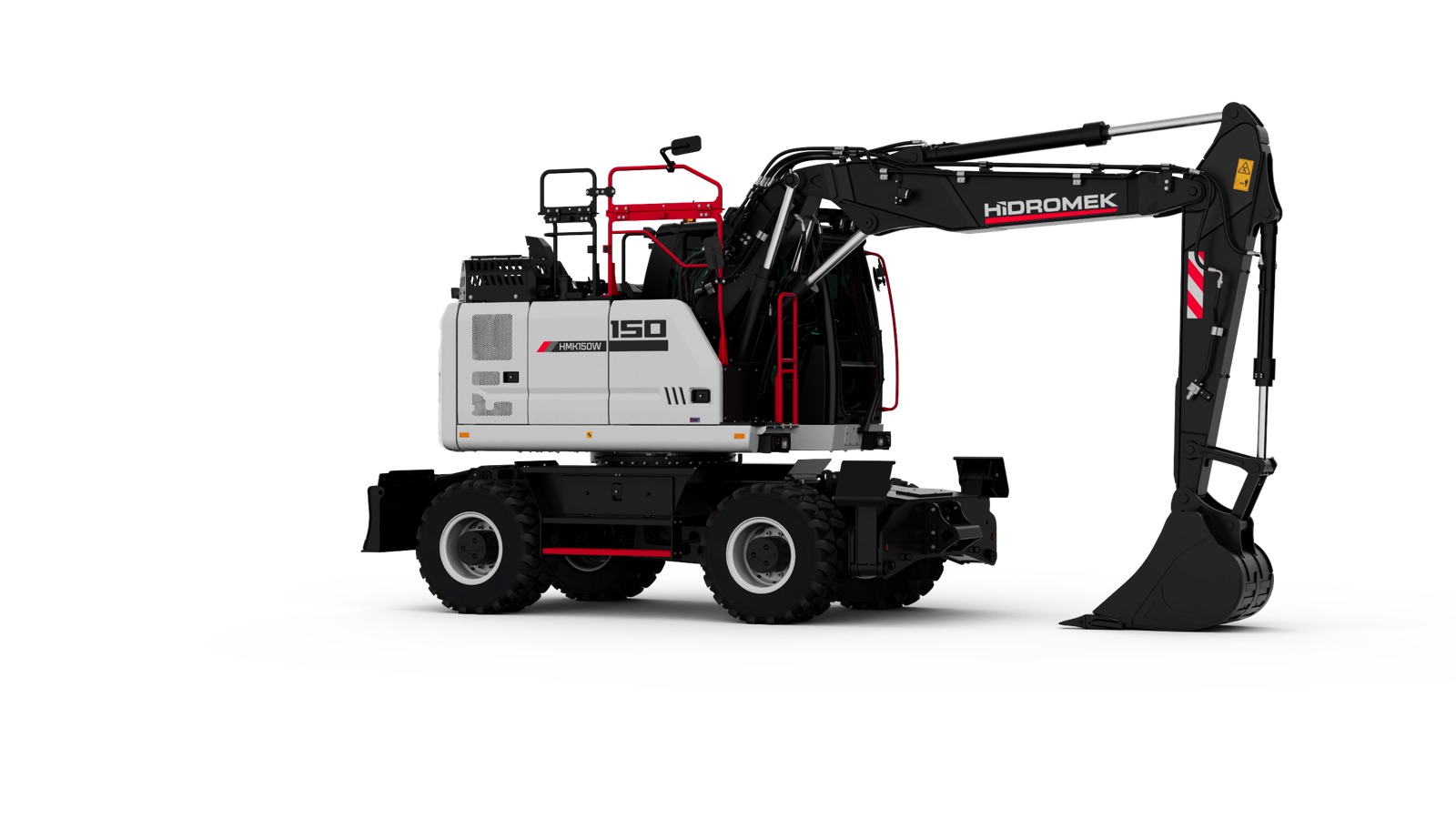

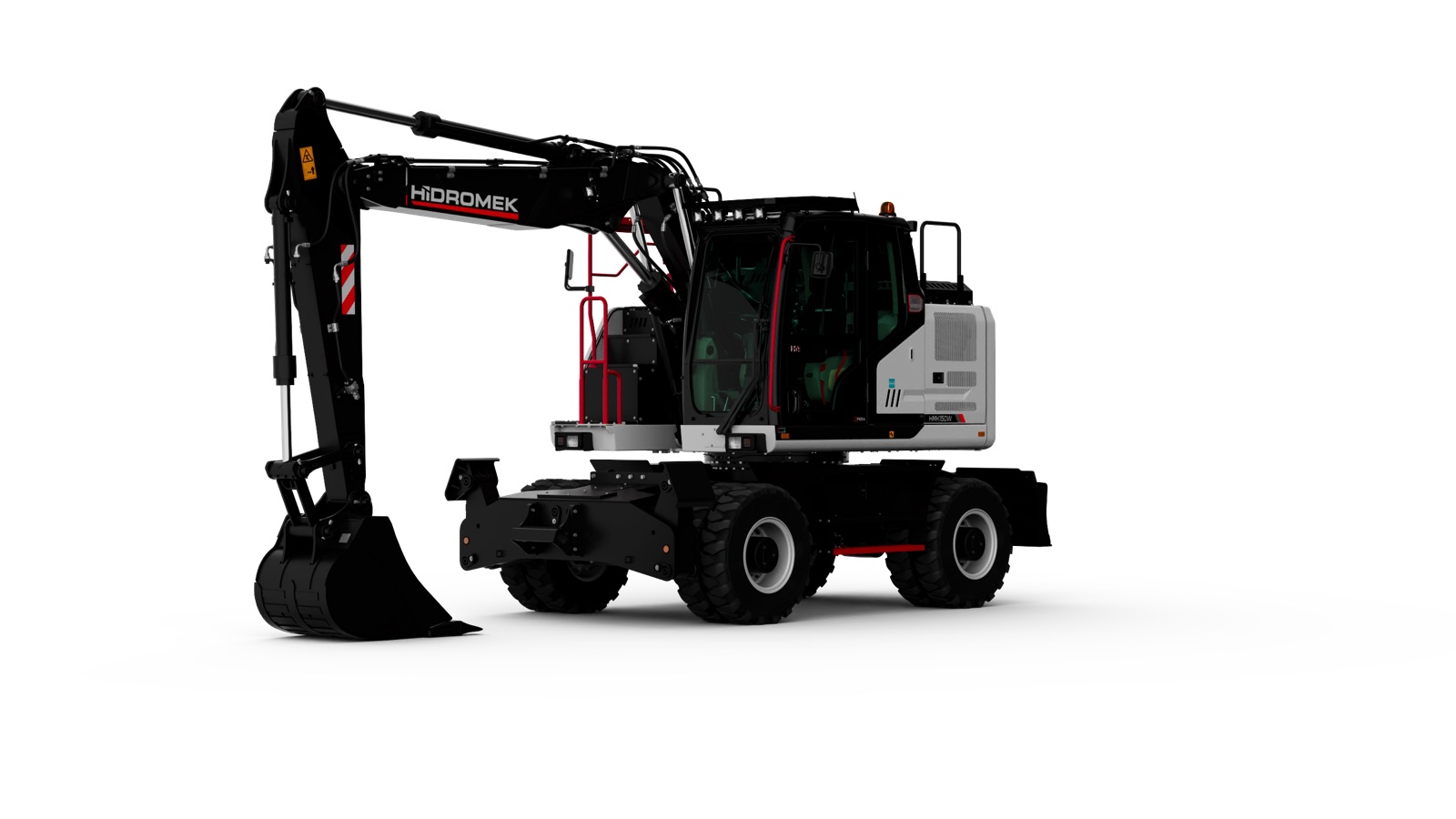

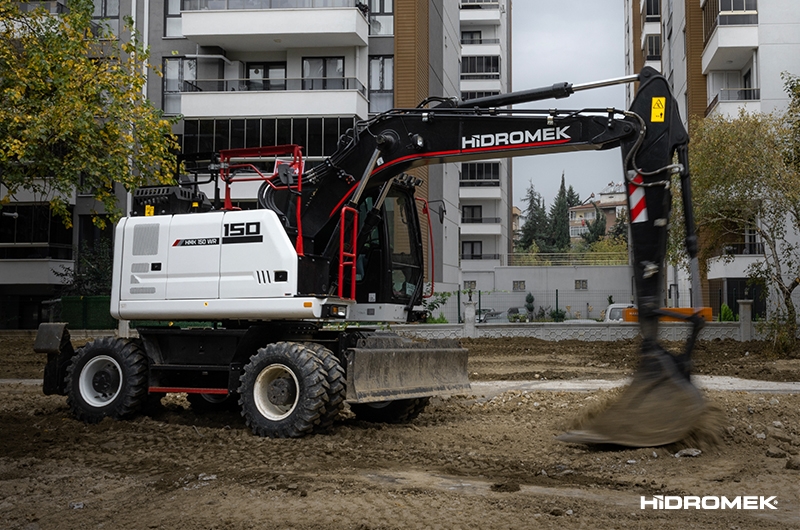

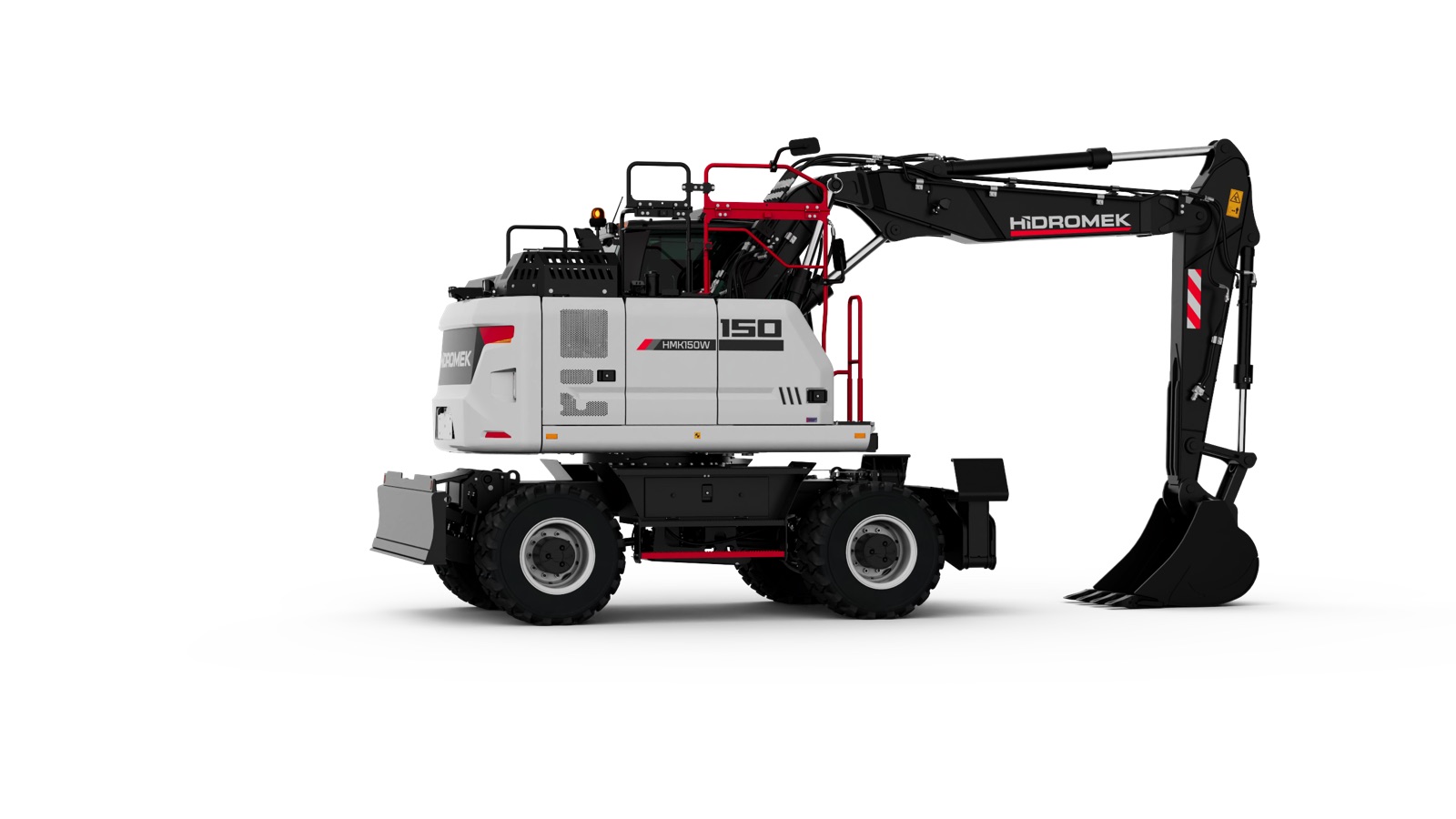

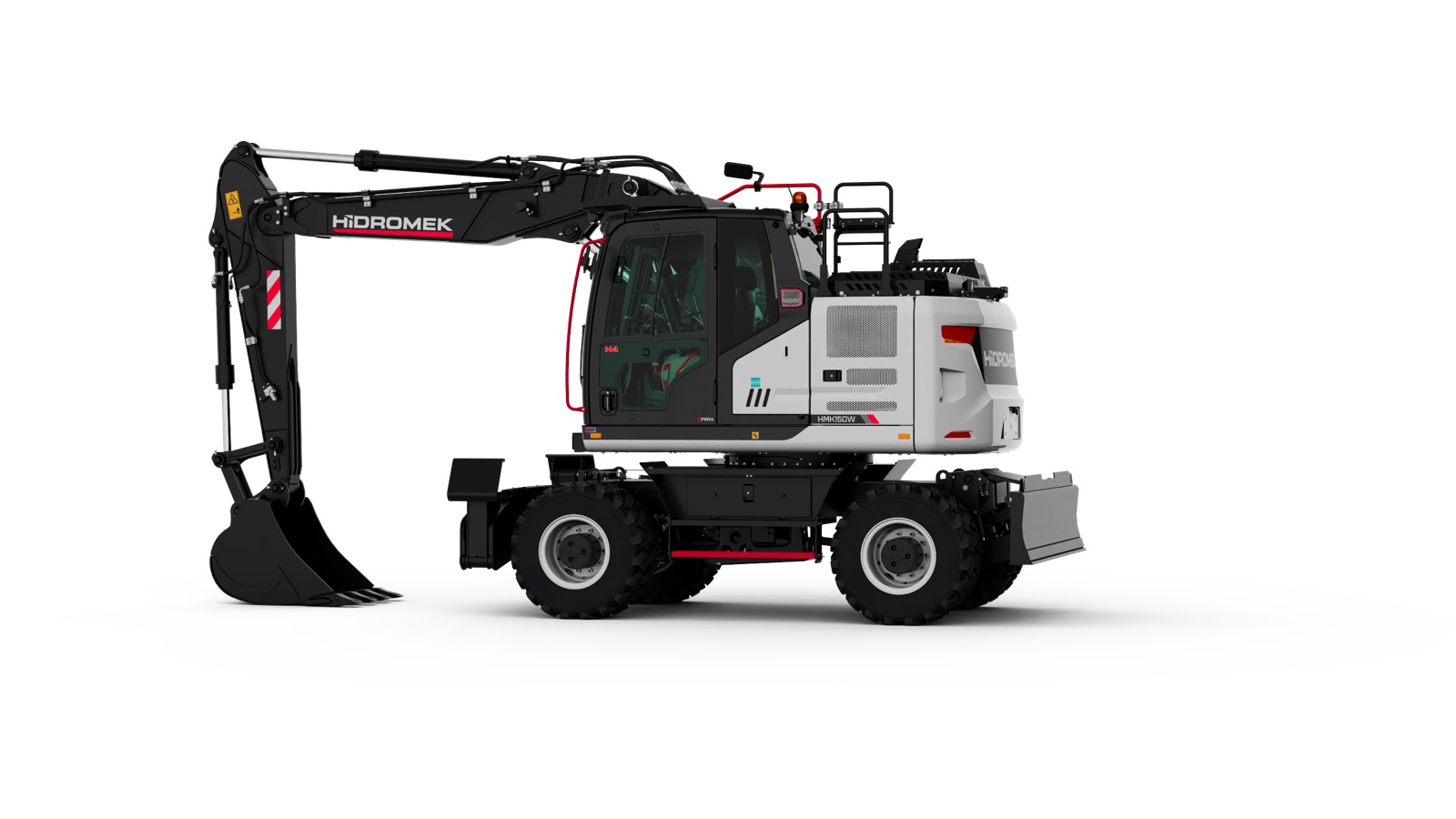

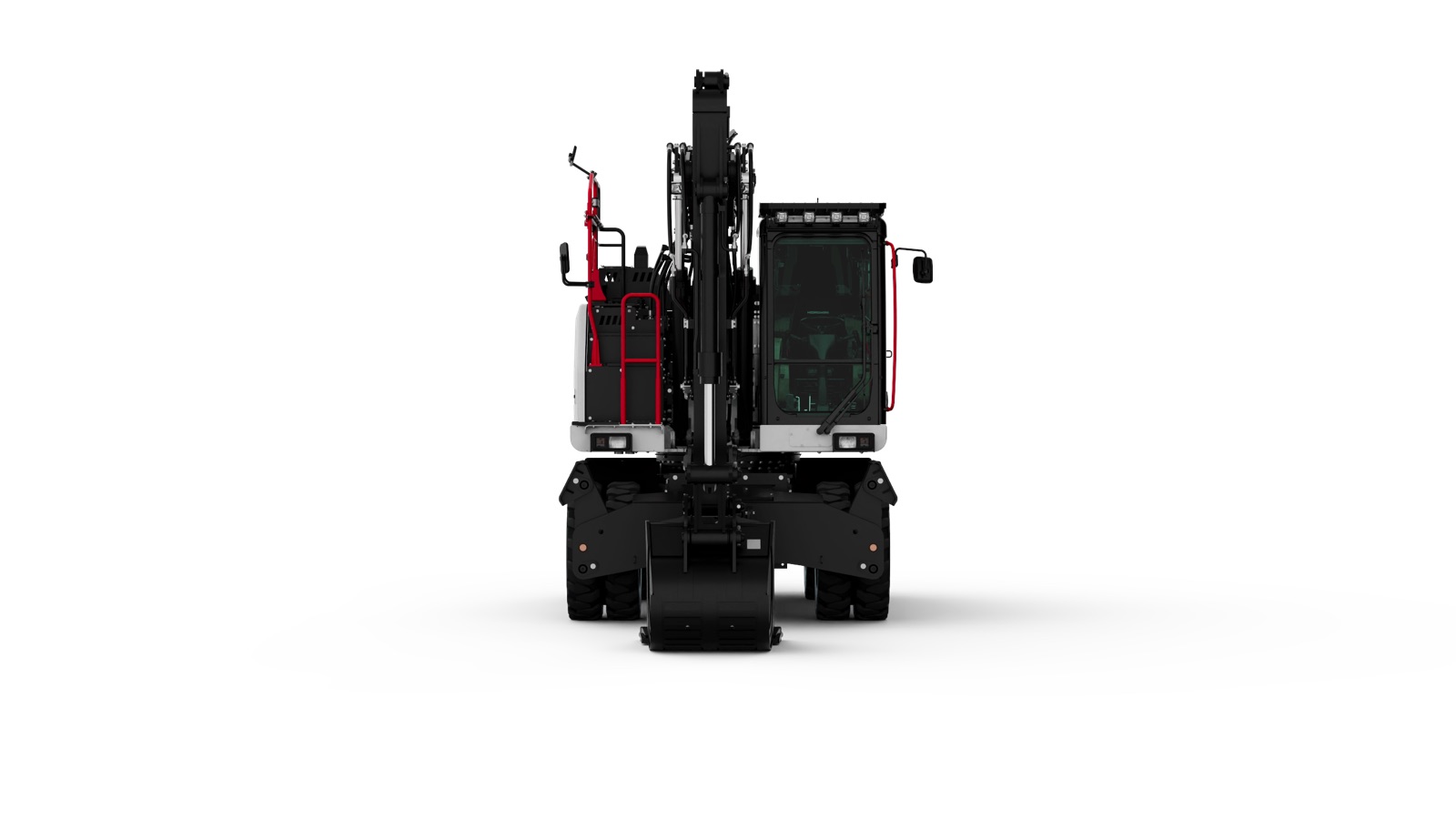

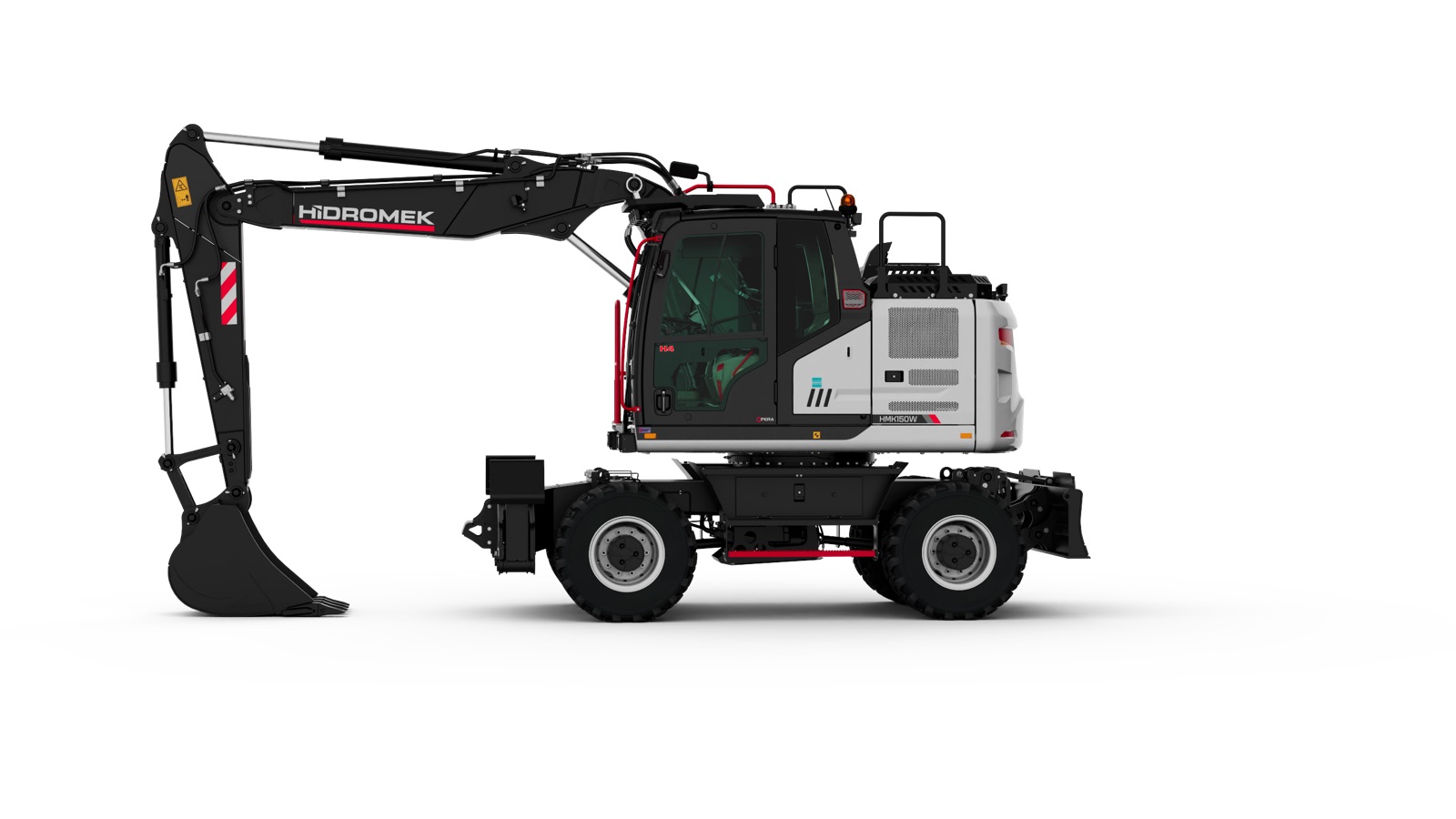

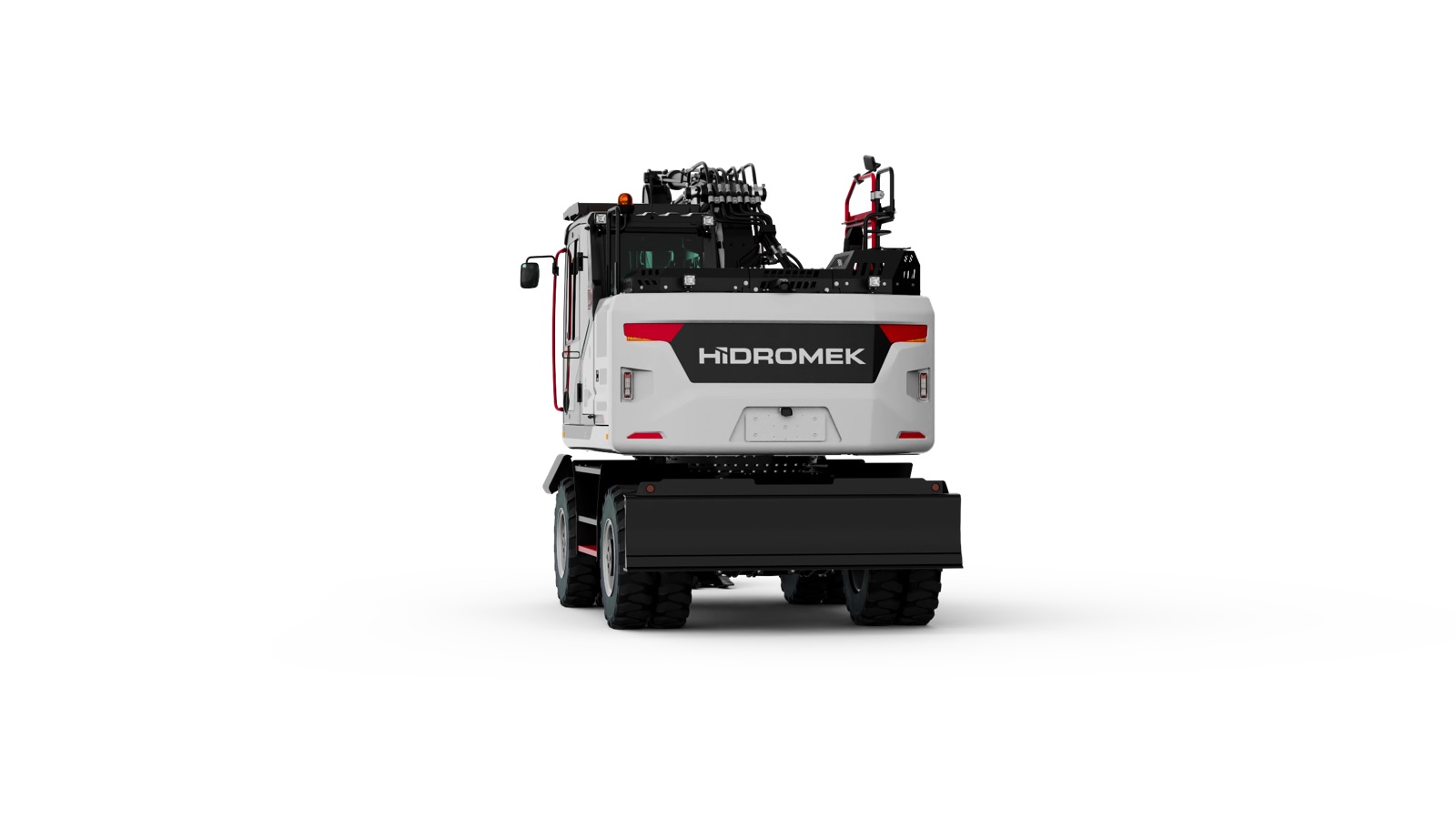

HMK 150 WR

Maximum Power

141 HP (105 kW) @2000 rpm

Bucket Digging Force (ISO)

10.800 kgf

Standard Bucket Capacity

0,6 m3

  • View Specs & Dimensions Brochure
The HMK 150 WR wheel excavator is designed with a shorter tail structure compared to standard machines, allowing for greater flexibility and ease of operation in confined areas. It delivers high performance, operator comfort, and easy usage thanks to its advanced technology and durable build. The machine supports a wide range of attachments, making it highly versatile for different working conditions.

The HMK 150 WR is built to provide efficient and cost-effective operations across various job sites. Its advanced hydraulic system ensures fast working cycles, while its compact swing radius and optimized working dimensions help complete tasks quickly. It is designed to improve productivity while reducing operational costs.

Features

  • Short tail structure for improved maneuverability
  • Compatible with multiple attachments for versatile applications
  • High operator comfort with ergonomic design
  • Advanced hydraulic system for faster cycle times
  • Short swing radius for efficient operation in tight spaces
  • Durable and high-tech structure for heavy-duty use
  • Designed for low operating cost and high productivity
  • Smooth and safe operation with innovative control systems

Specifications

Engine

  • Brand / Model: DEUTZ TCD 4.1
  • Maximum Power: 141 HP (105 kW) @ 2000 rpm
  • Type: Water-cooled, 4-cycle engine
  • Maximum Torque: 550 Nm @ 1600 rpm
  • Displacement: 4038 cc
  • Cylinders: 4
  • Bore x Stroke: 101 mm x 126 mm
  • Emission Class: Stage V / Tier 4 Final (EU/EPA)

Hydraulic System

  • Type: Double variable displacement axial piston pumps
  • Maximum Flow: 2 × 160 L/min
  • Pilot Pump Flow: 20 L/min
  • Attachment Pressure: 330 kgf/cm²
  • Power Boost Pressure: 360 kgf/cm²
  • Travel Pressure: 370 kgf/cm²
  • Swing Pressure: 260 kgf/cm²
  • Pilot Pressure: 40 kgf/cm²

Swing System

  • Swing Speed: 13 rpm

Working Dimensions

  • Maximum Digging Depth: 5,040 mm
  • Maximum Reach at Ground Level: 8,000 mm

Travel Performance

  • Maximum Drawbar Pull: 10,150 kgf
  • High Speed: 33 km/h
  • Low Speed: 8.5 km/h

Digging Performance

  • Bucket Digging Force (ISO): 10,800 kgf
  • Arm Breakout Force (ISO): 7,800 kgf
  • Standard Bucket Capacity: 0.6 m³

Operating Weight

  • 16,300 kg
  • View Specs & Dimensions Brochure
