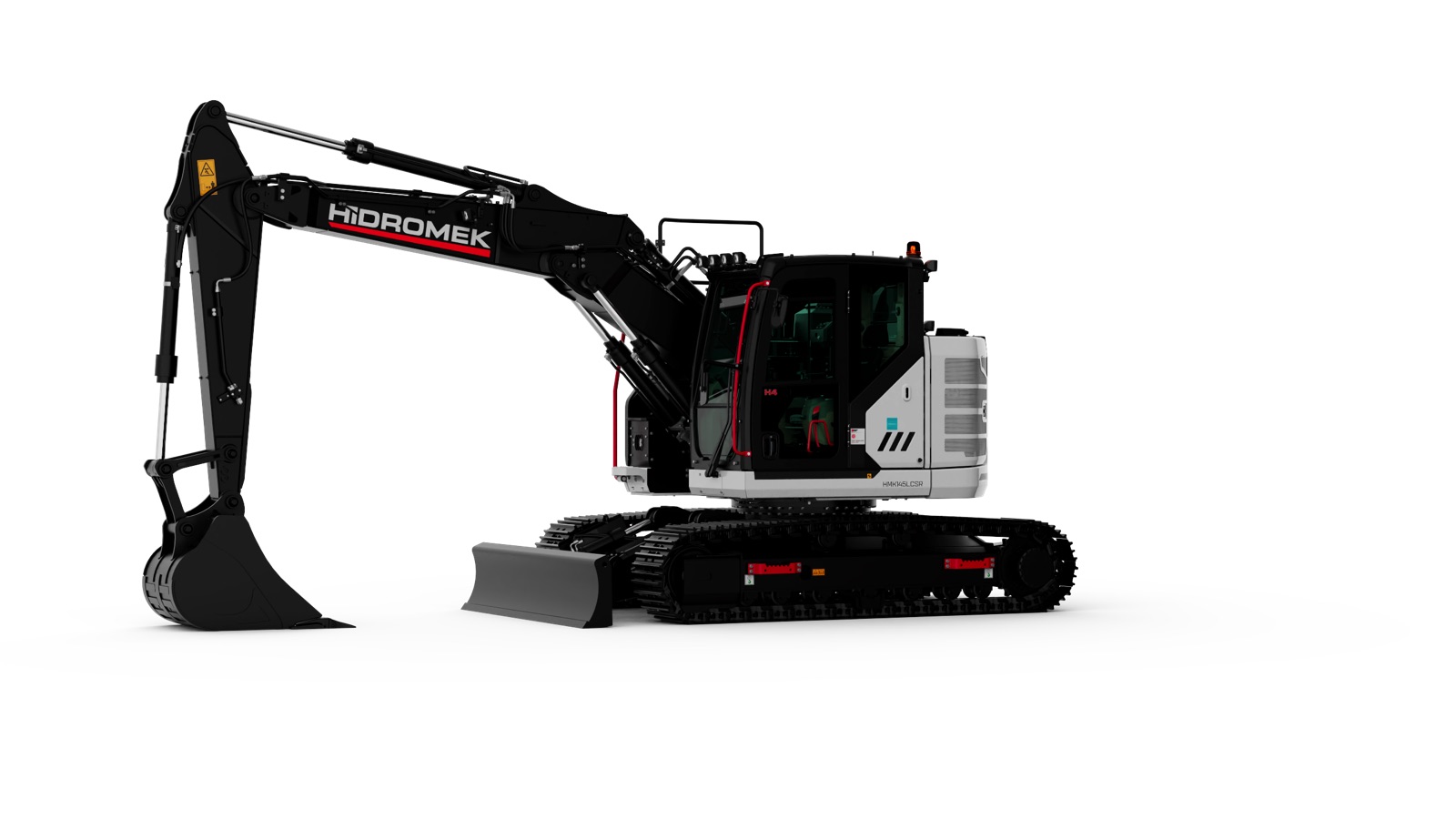

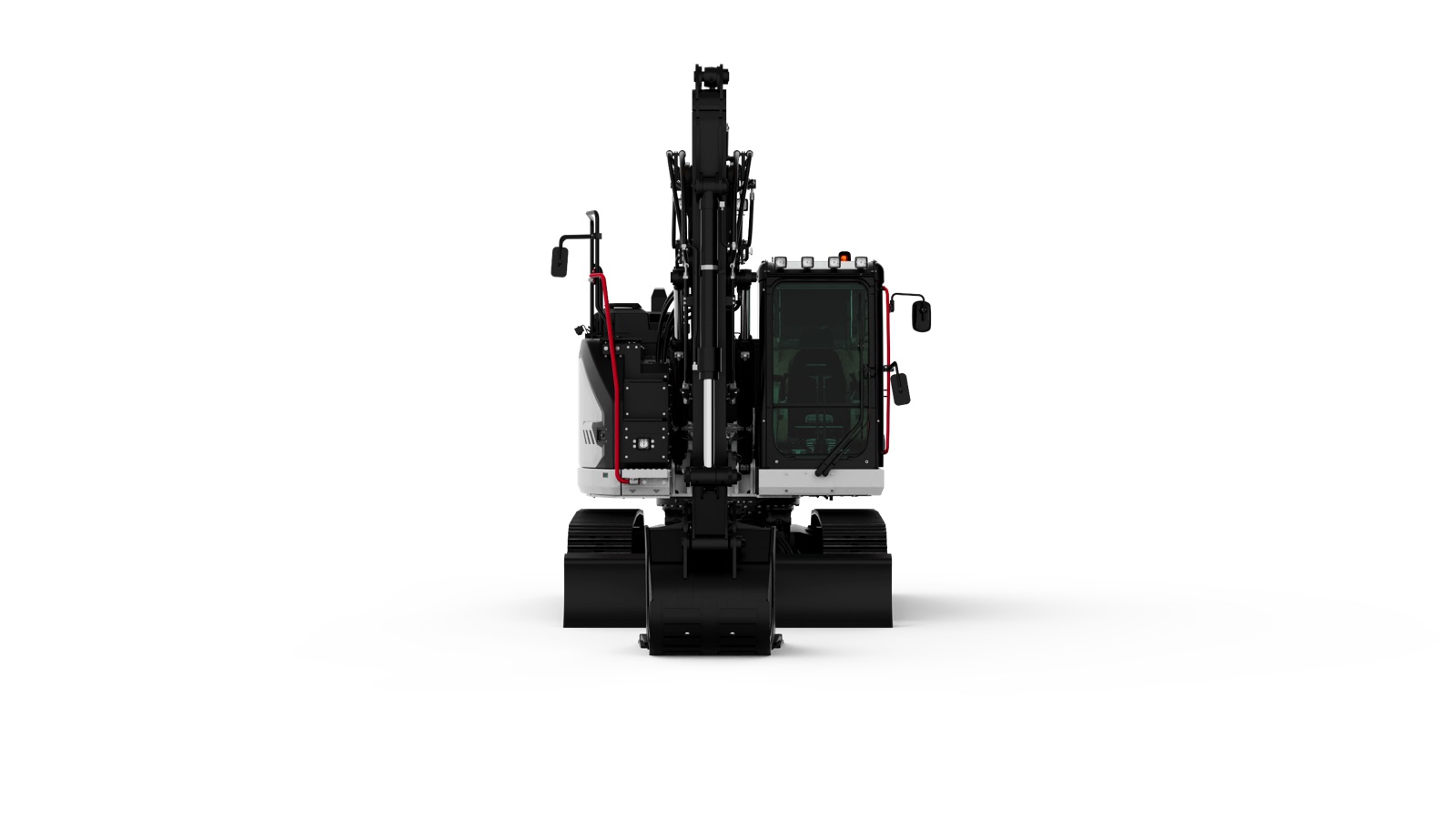

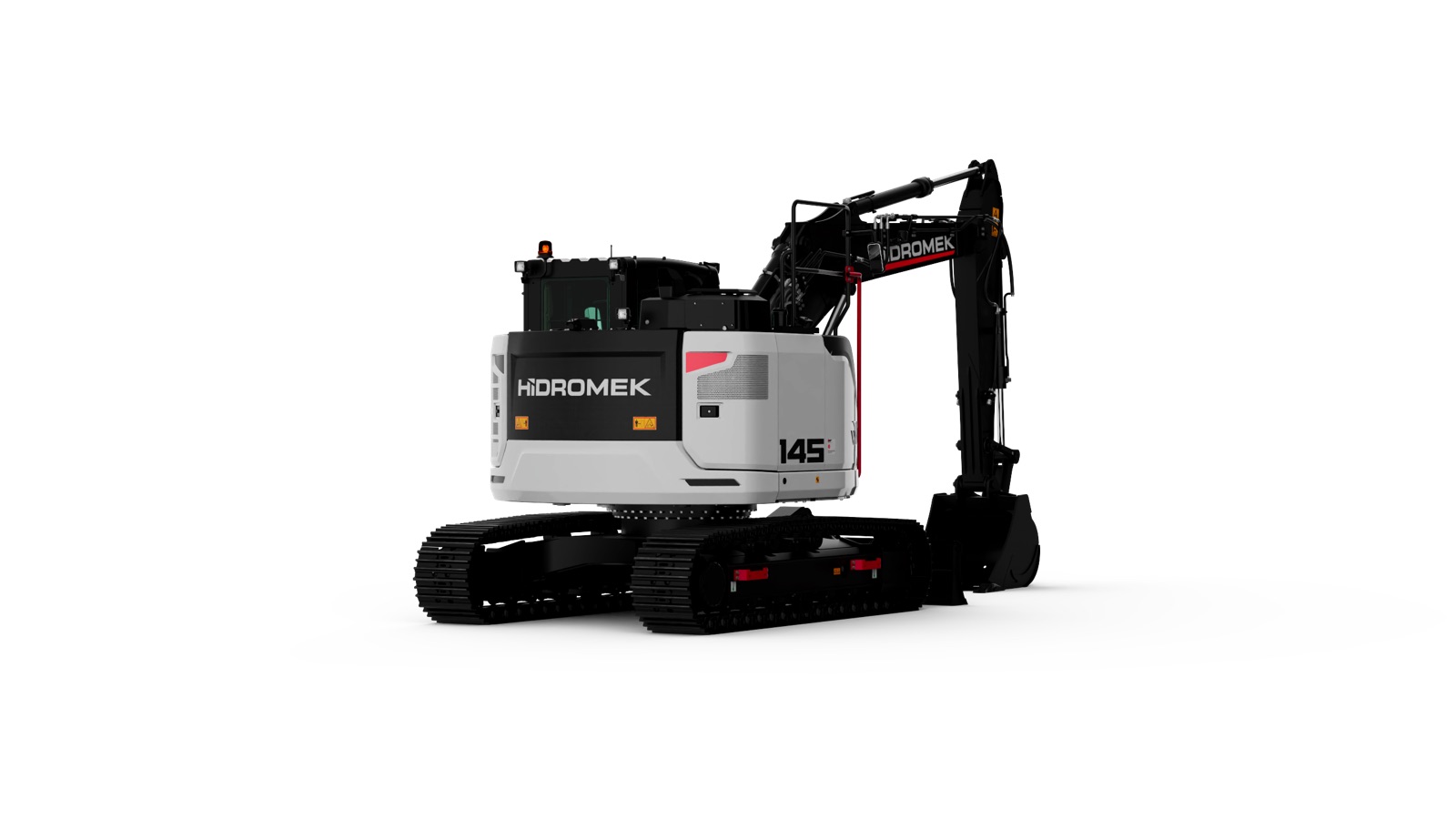

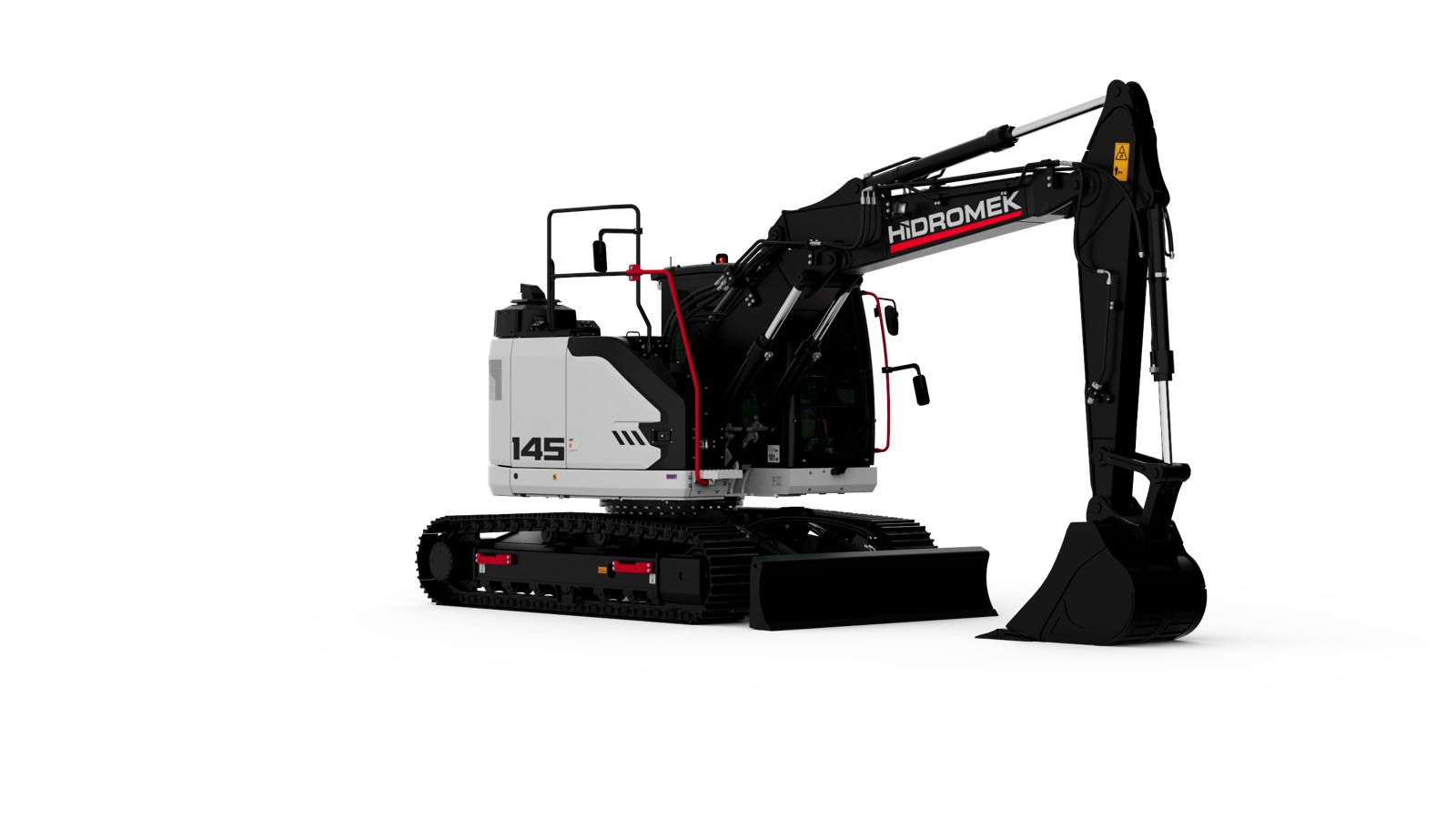

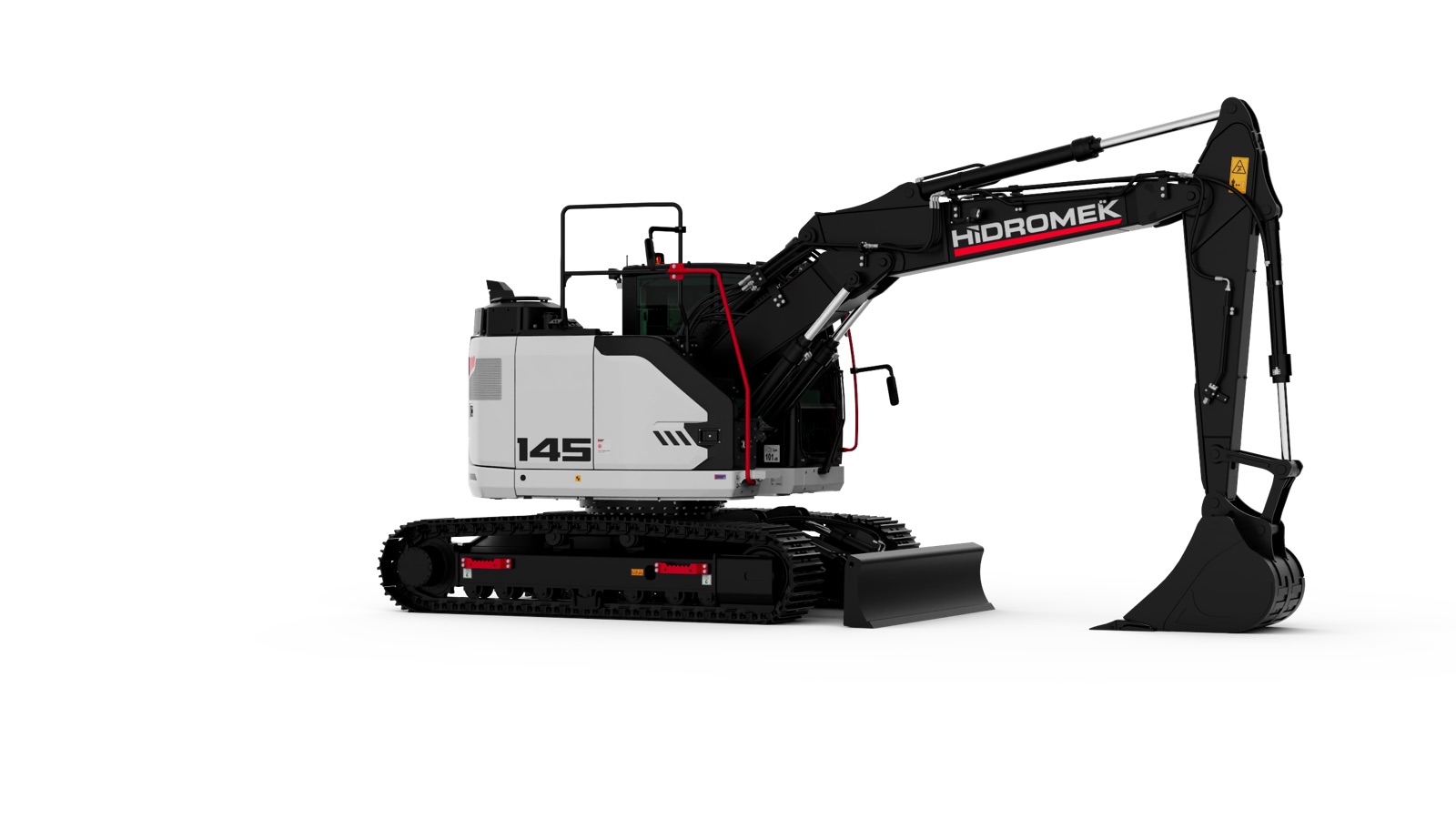

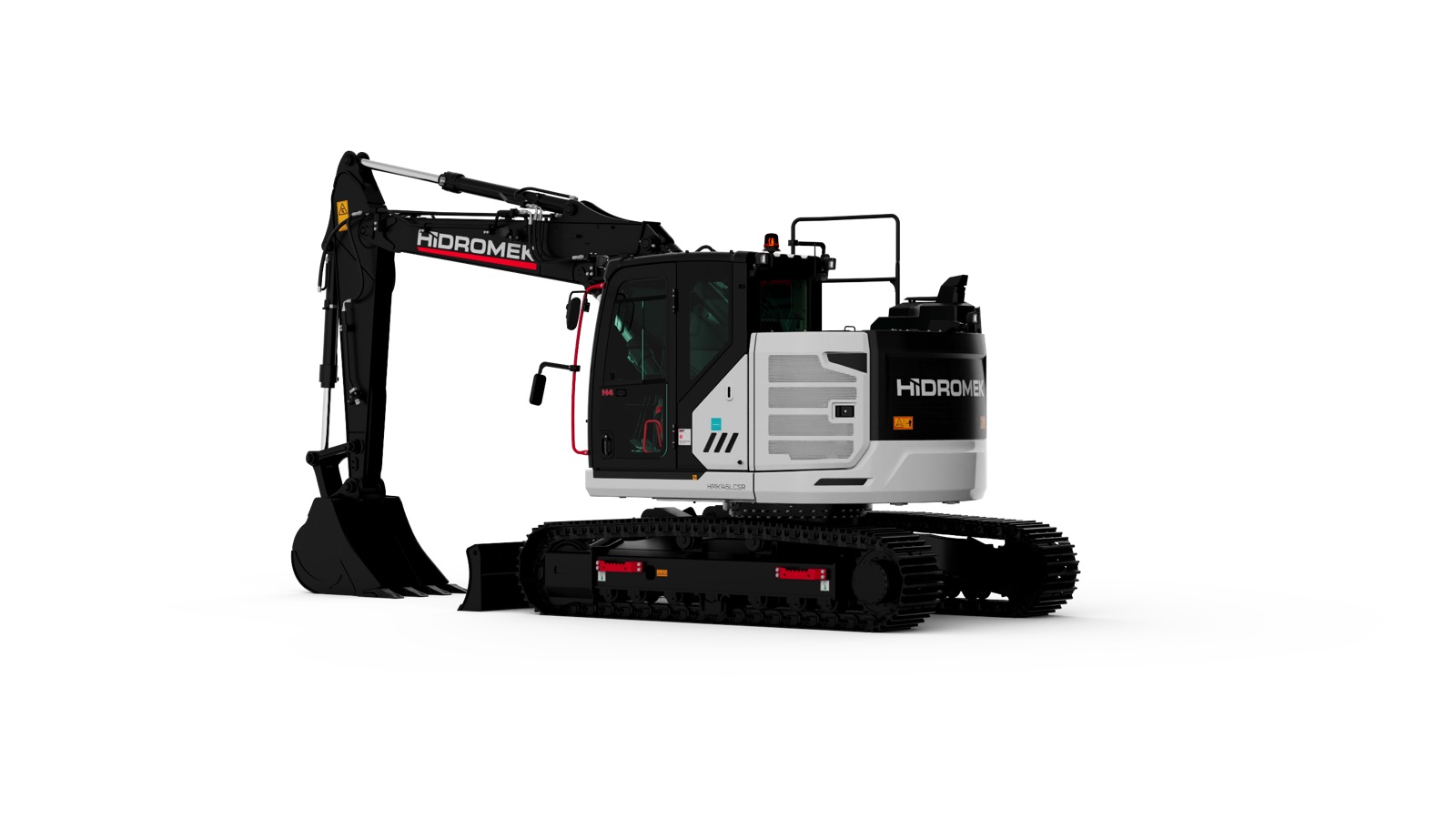

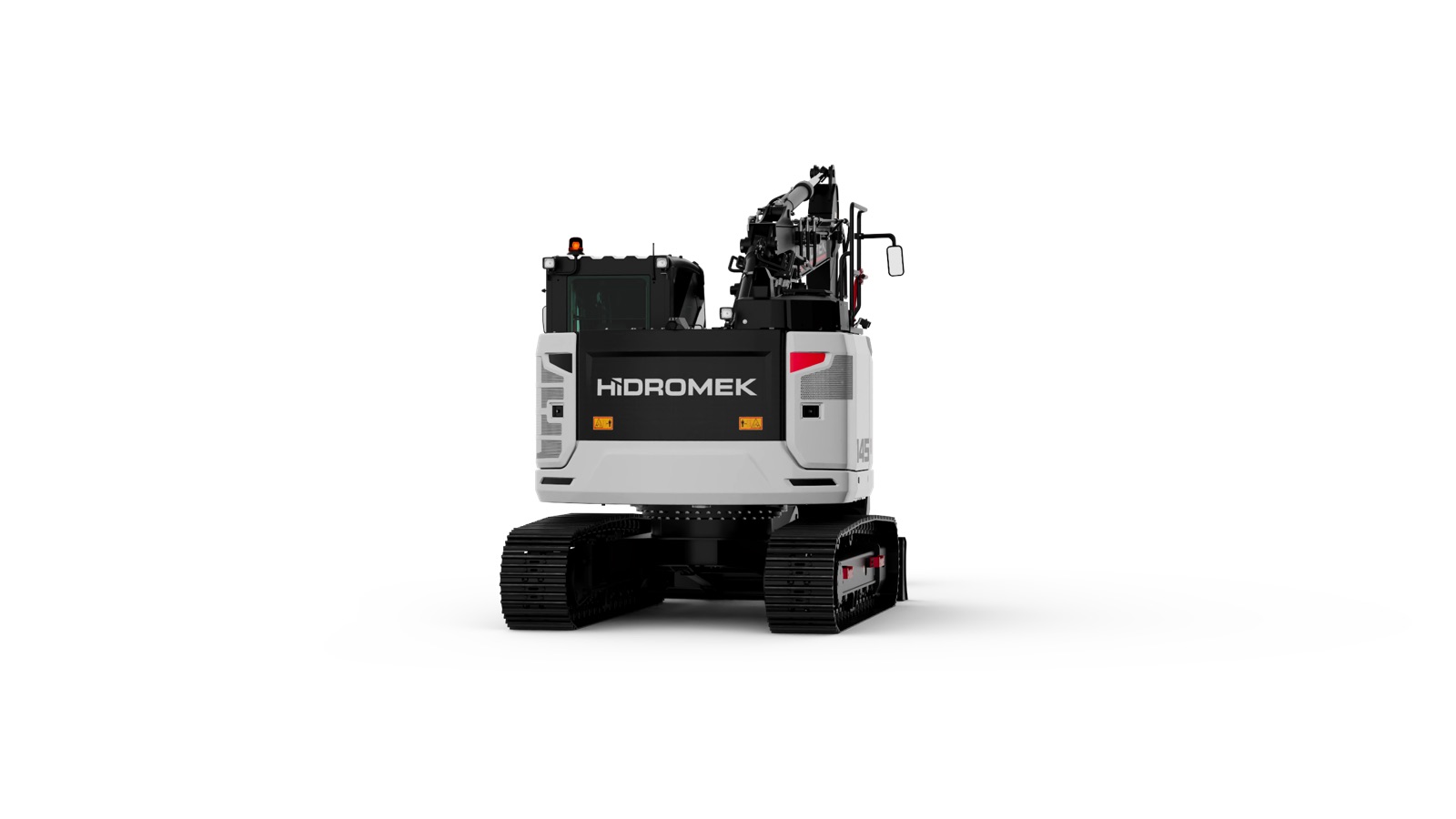

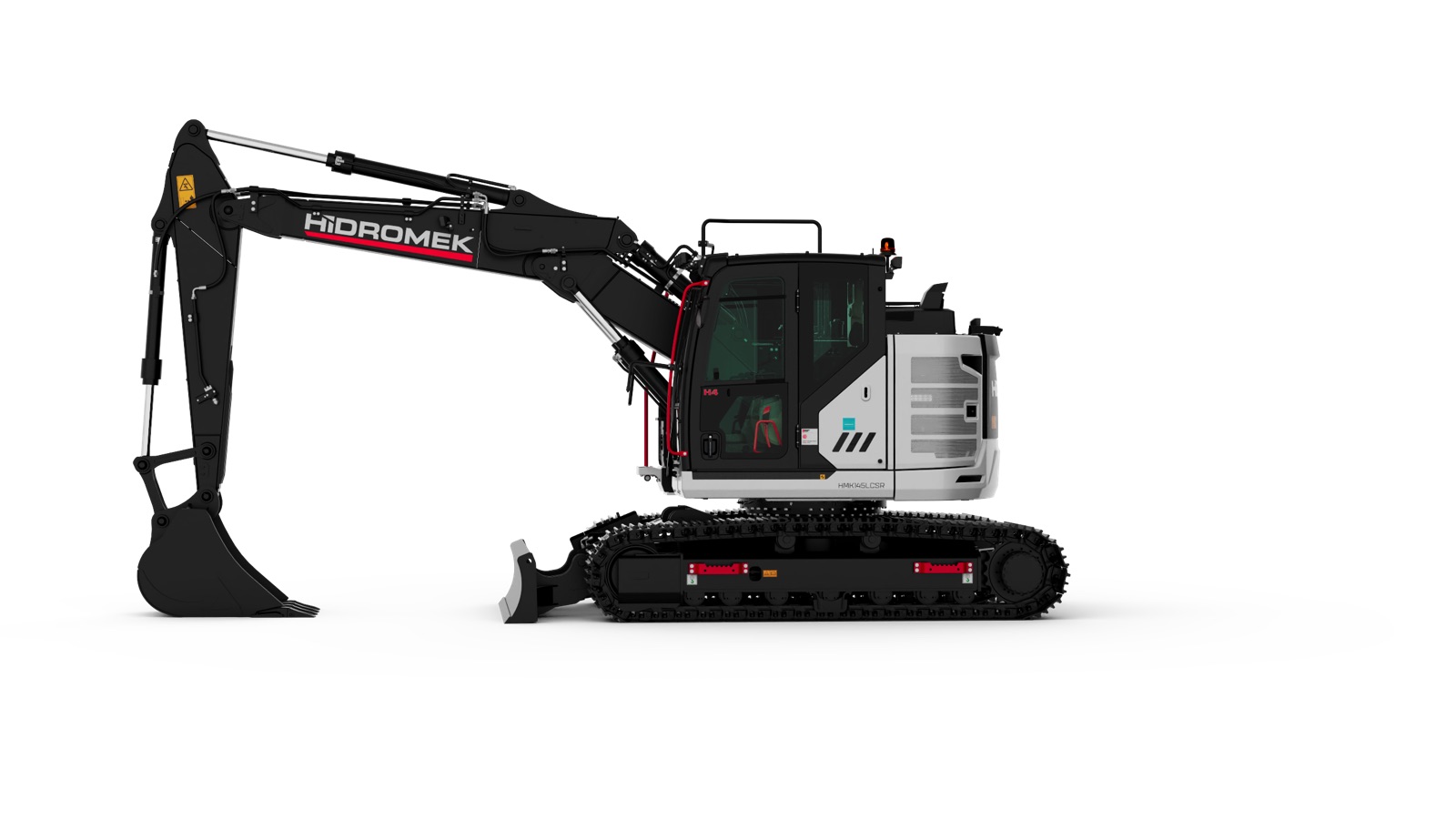

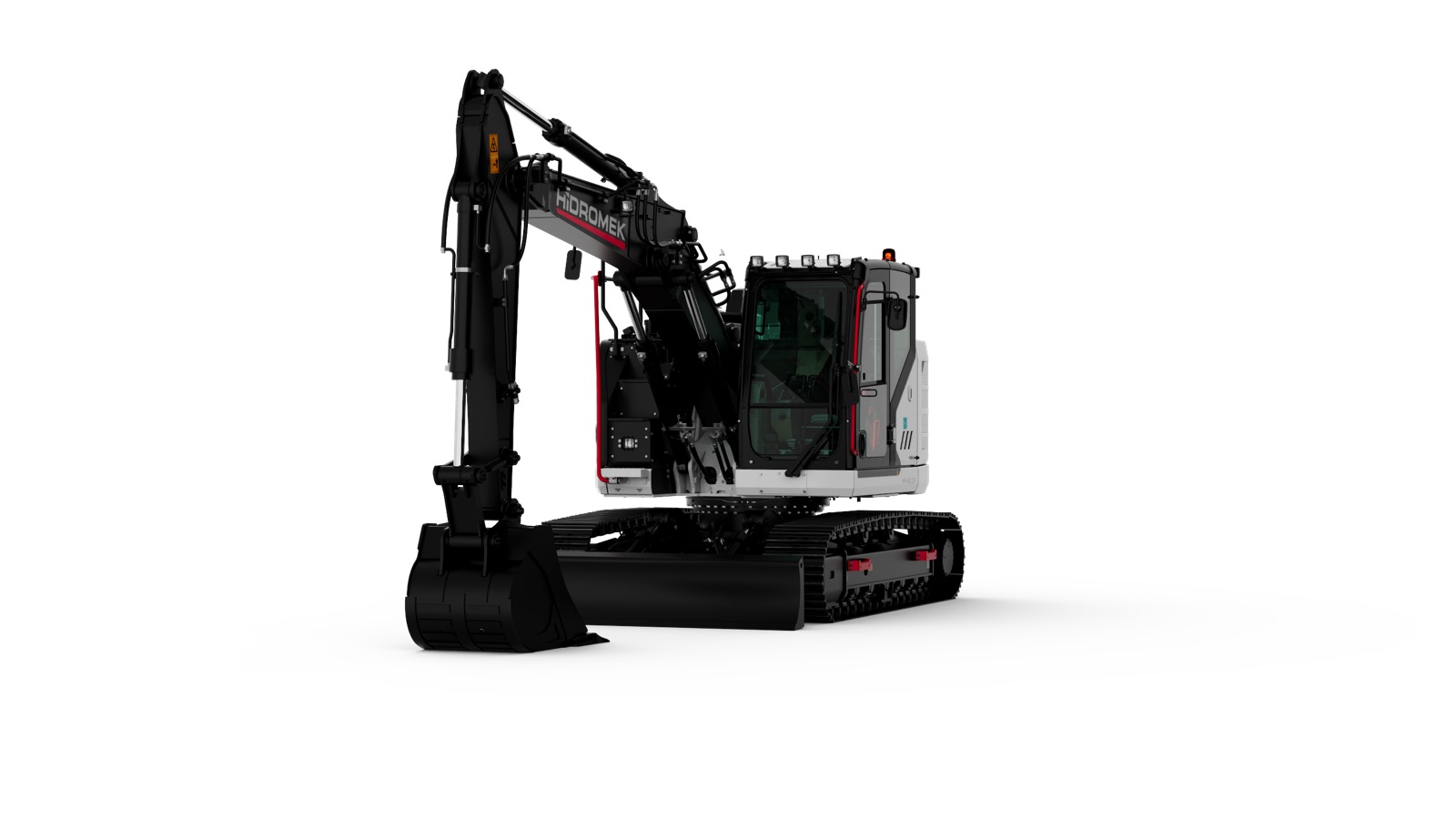

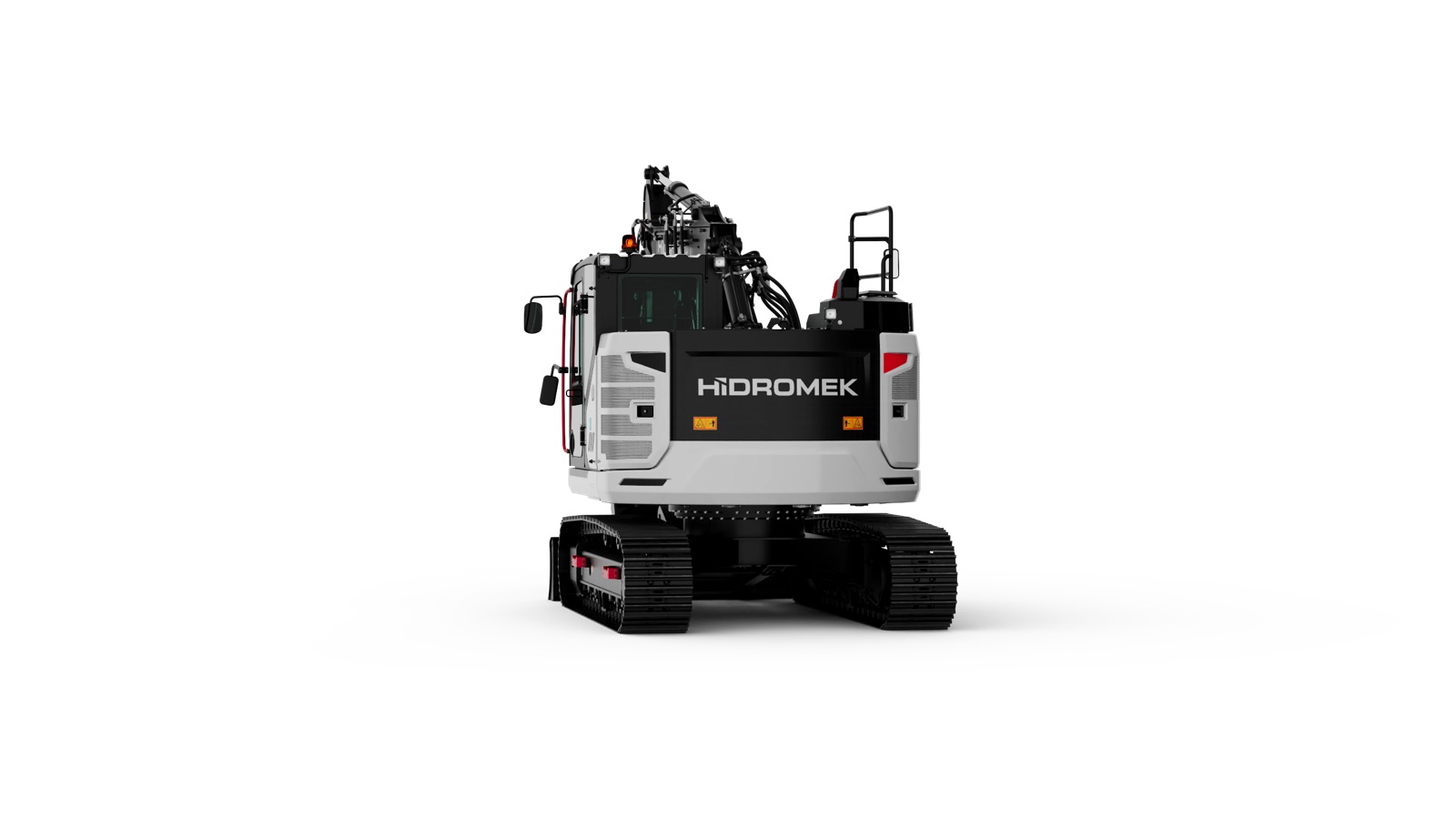

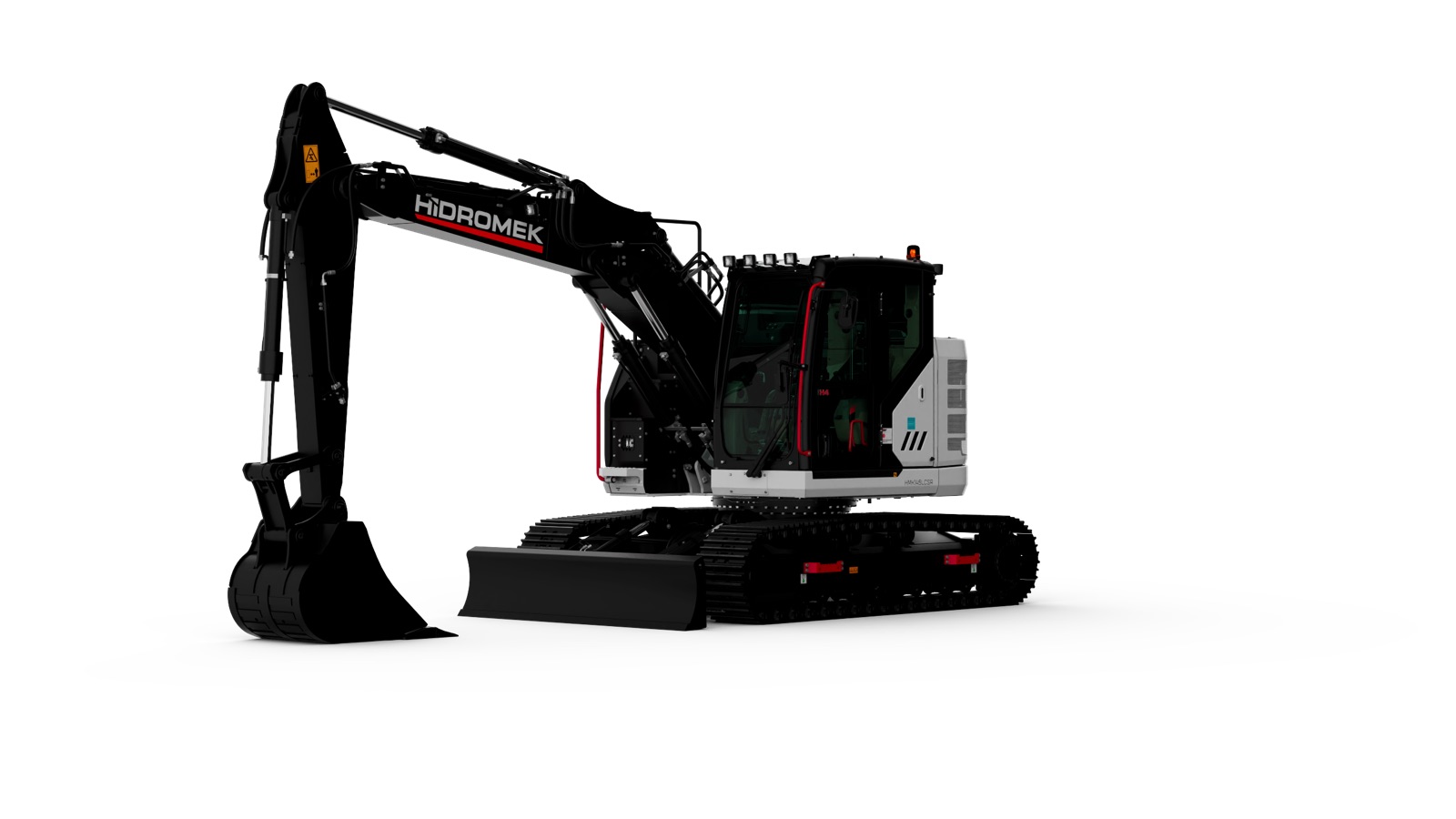

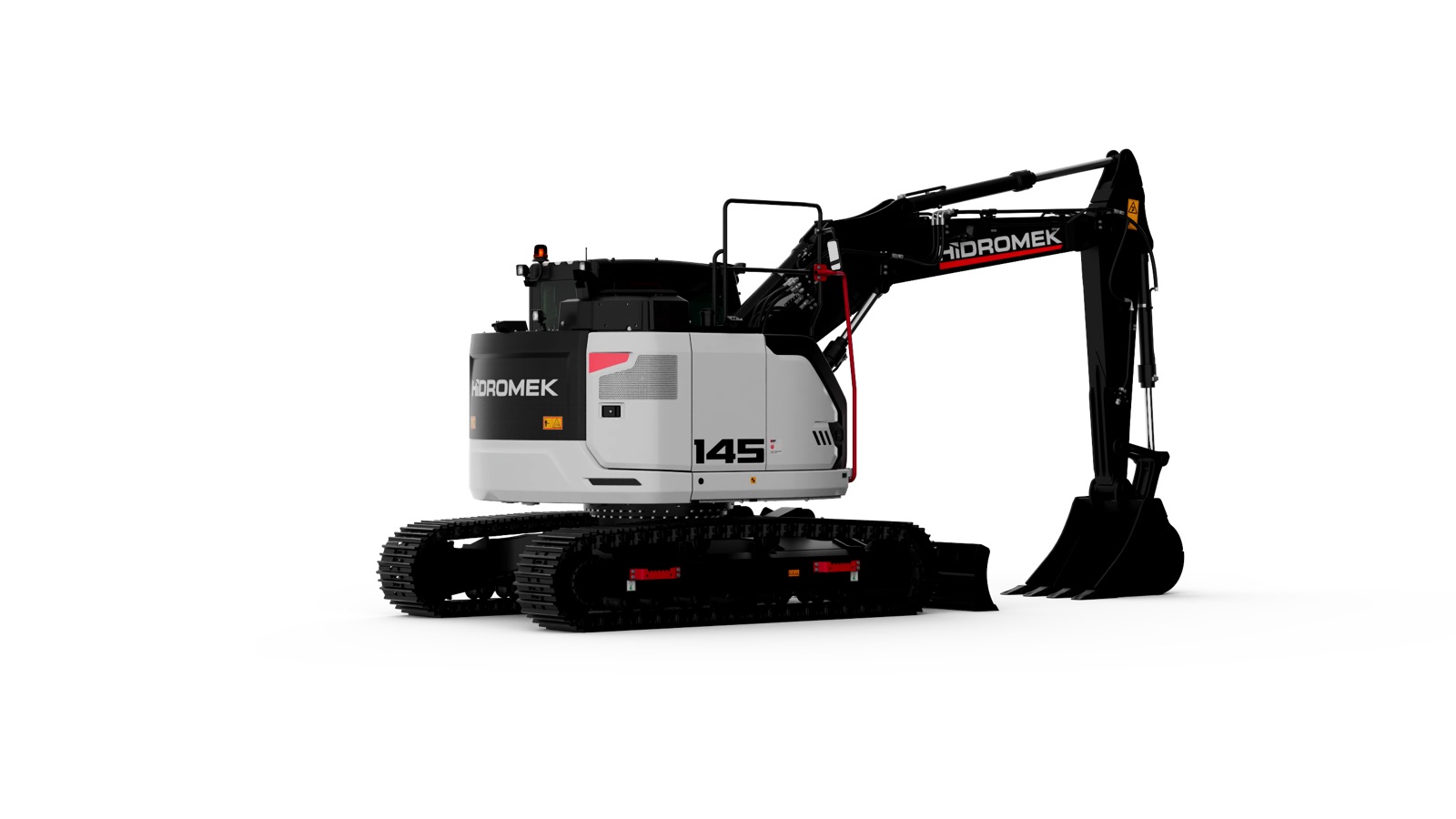

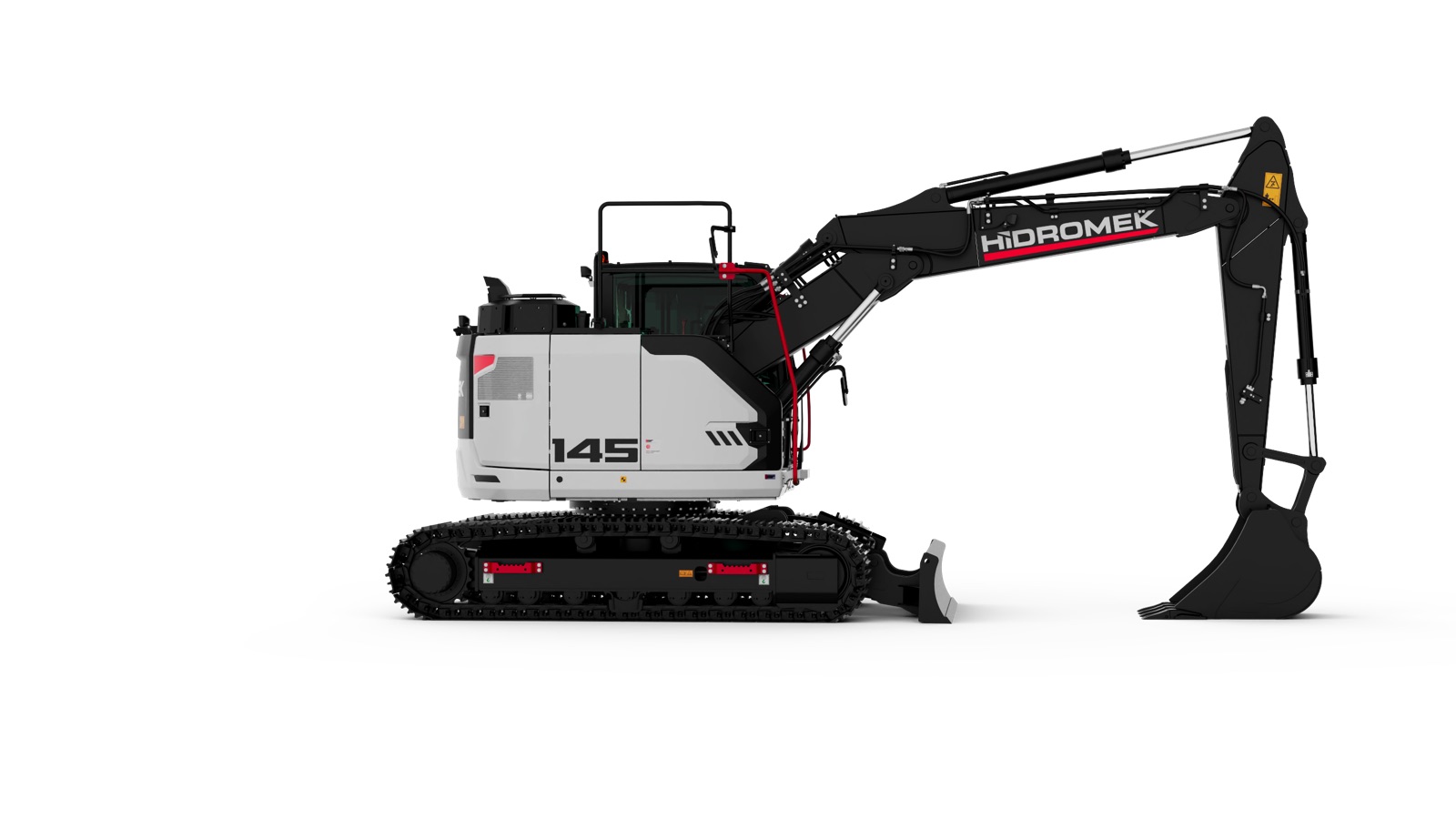

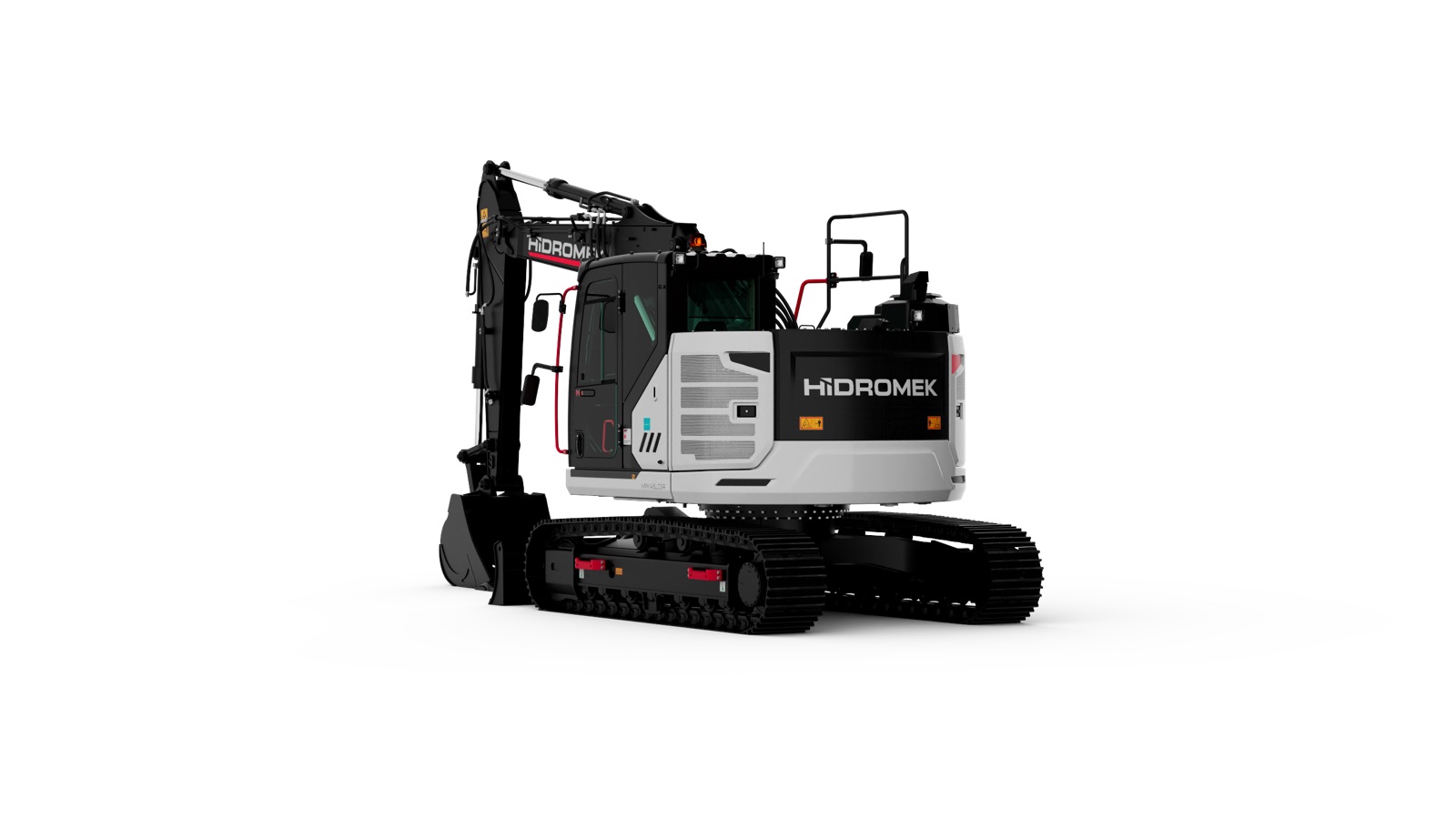

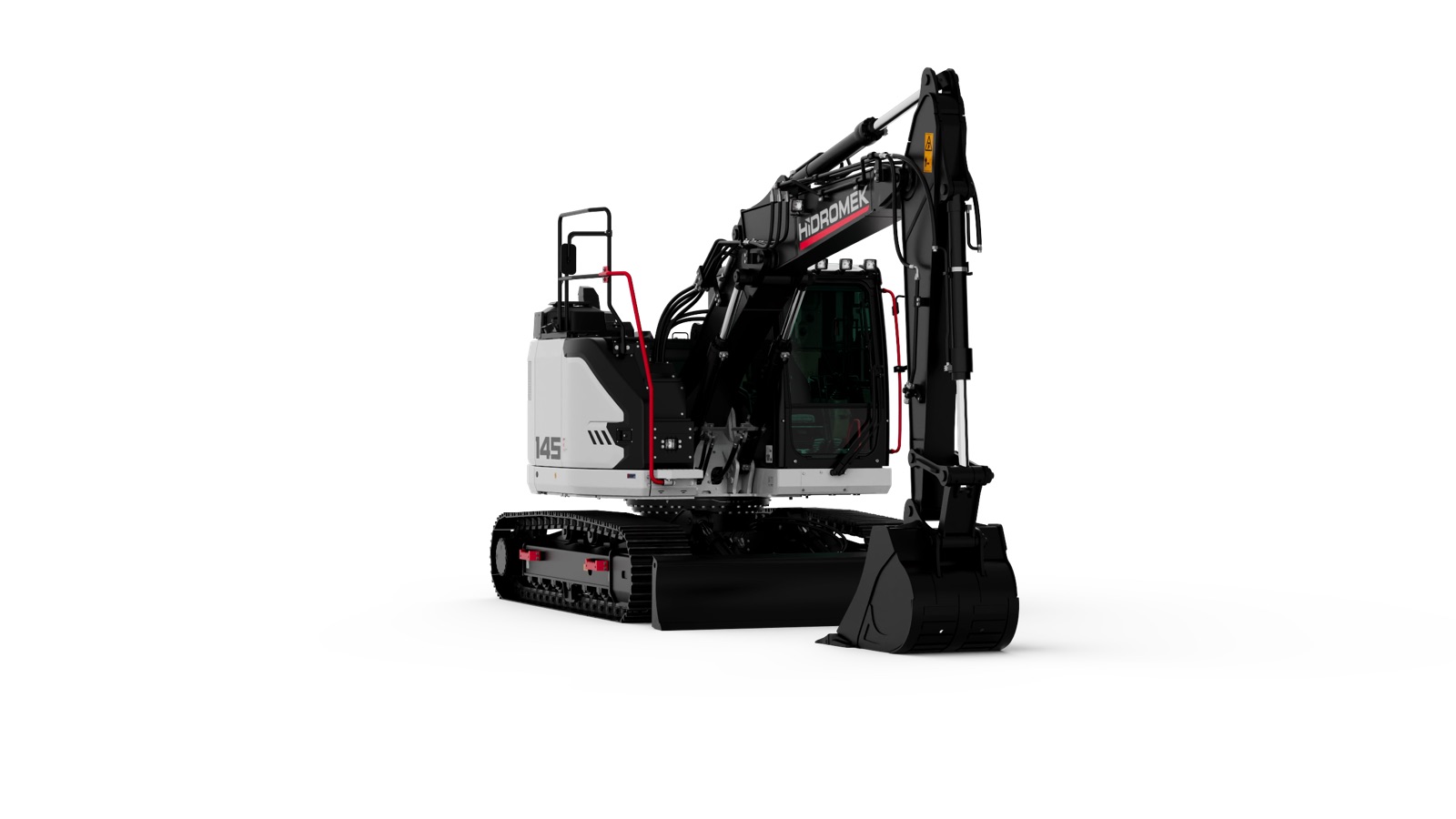

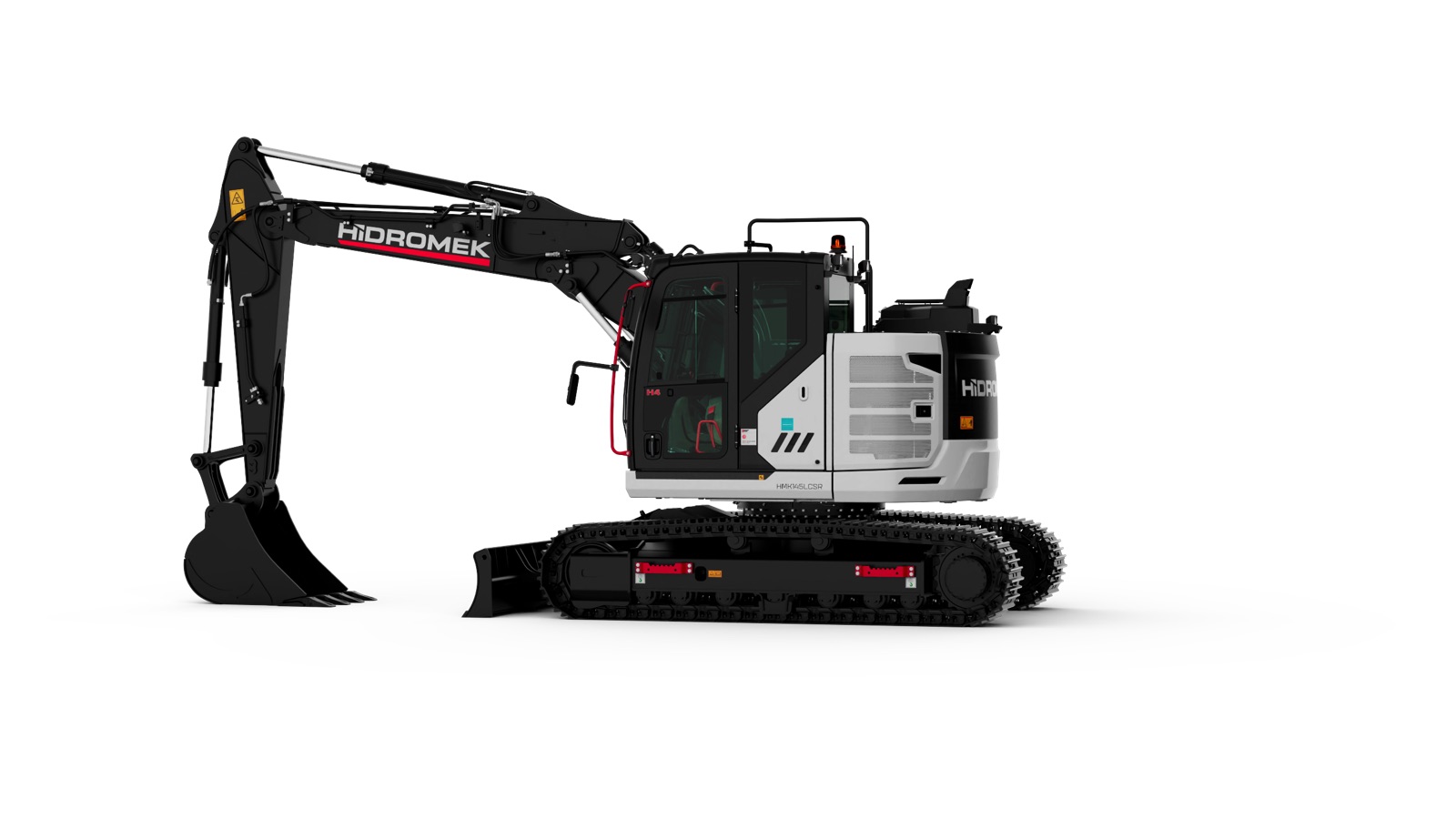

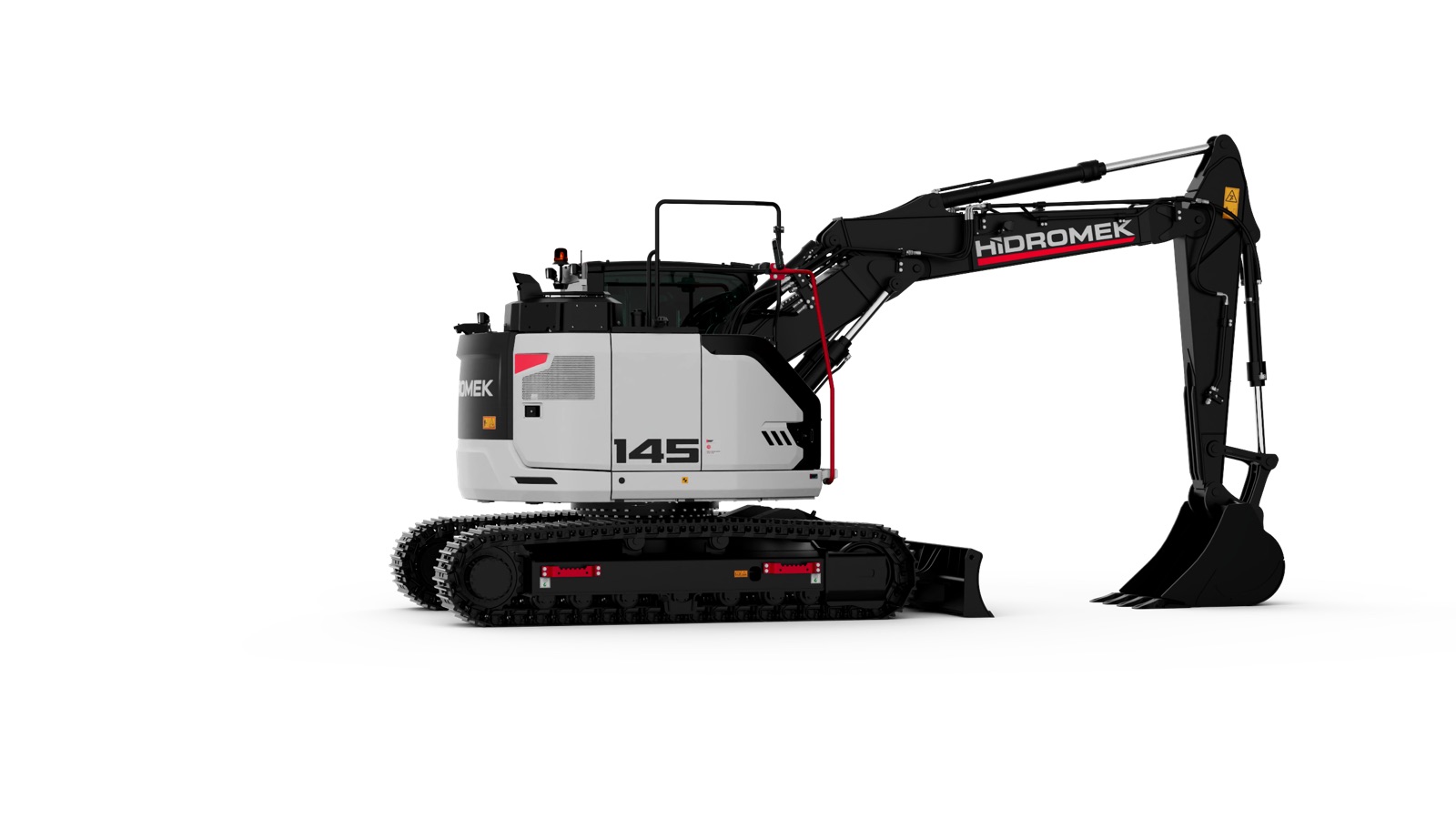

HMK 145 LC SR

Maximum Power

106,7 HP (78,5 kW) @2000 rpm

Bucket Digging Force (ISO)

10.000 kgf

Bucket capacity

0,6 m3

  • View Specs & Dimensions Brochure

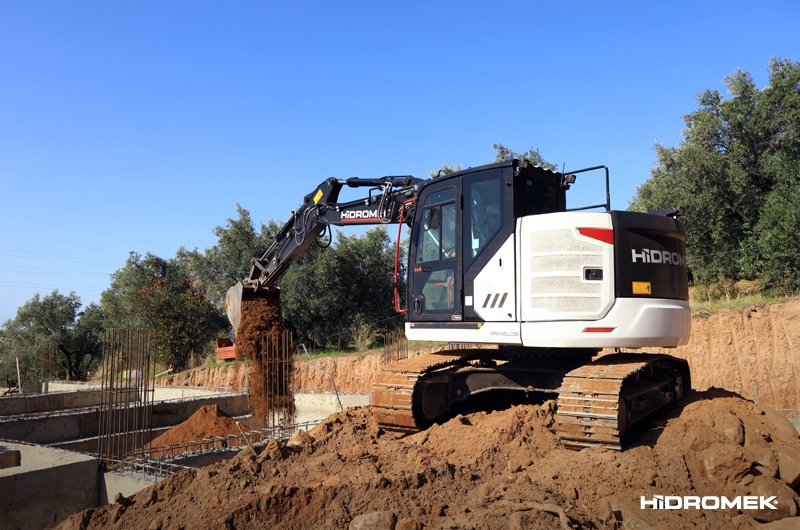

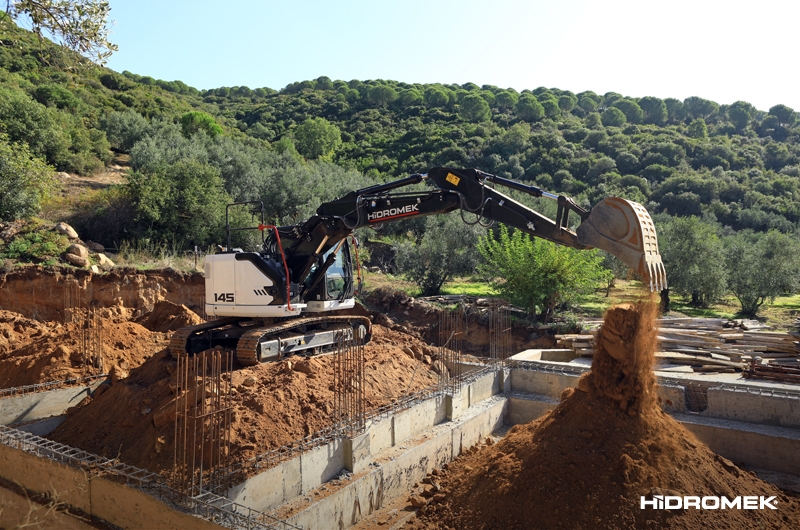

HİDROMEK HMK 145 LCSR is designed for dynamic and efficient performance in all working conditions. It delivers strong maneuverability, fast operation, and easy control thanks to its powerful engine and short swing radius.

This model combines innovation, safety, and compact design. It provides advanced electronic systems for operator comfort and protection, while its compact structure allows efficient work in urban areas, narrow spaces, and construction environments. Its short tail design improves flexibility and lifting capacity.

Features

  • Dynamic performance with fast and smooth operation
  • Compact design for urban and narrow working areas
  • Short swing radius for better maneuverability
  • High lifting capacity due to counterweight design
  • Advanced electronic systems for operator safety
  • Comfortable and easy machine control
  • Suitable for construction, landscaping, and leveling work

Specifications

Engine

  • Power: 106.7 HP (78.5 kW) @ 2000 rpm
  • Torque: 375 Nm @ 1800 rpm
  • Model: ISUZU 4JJ1X
  • 4-cylinder turbocharged diesel engine
  • Displacement: 2999 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 129 L/min
  • Pilot Pump: 20 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 372 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 300 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 11.3 rpm

Travel

  • Maximum Drawbar Pull: 11,230 kgf
  • High Speed: 5.7 km/h
  • Low Speed: 3.4 km/h

Digging Performance

  • Bucket Digging Force (ISO): 10,000 kgf
  • Bucket Capacity: 0.6 m³
  • Arm Breakout Force (ISO): 7,300 kgf

Working Dimensions

  • Boom: 4,600 mm
  • Arm: 2,300 mm
  • Maximum Digging Depth: 5,360 mm
  • Maximum Reach at Ground Level: 8,040 mm

Operating Weight

  • 17,050 kg
  • View Specs & Dimensions Brochure
