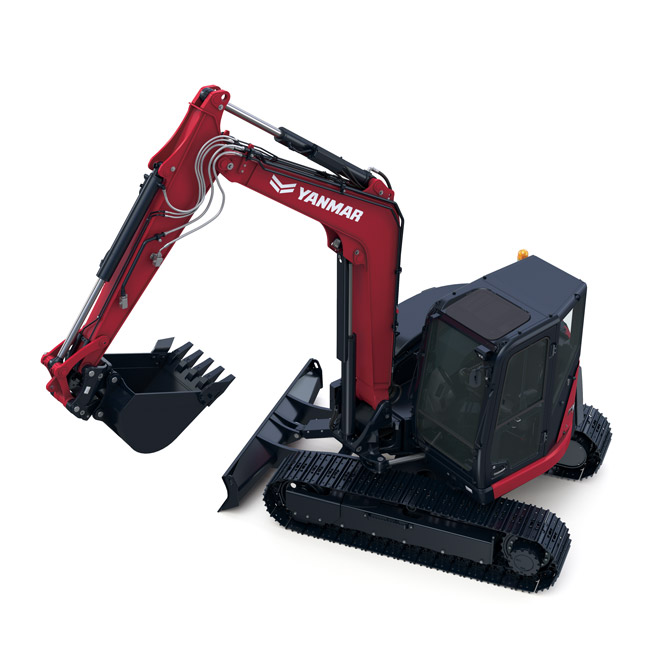

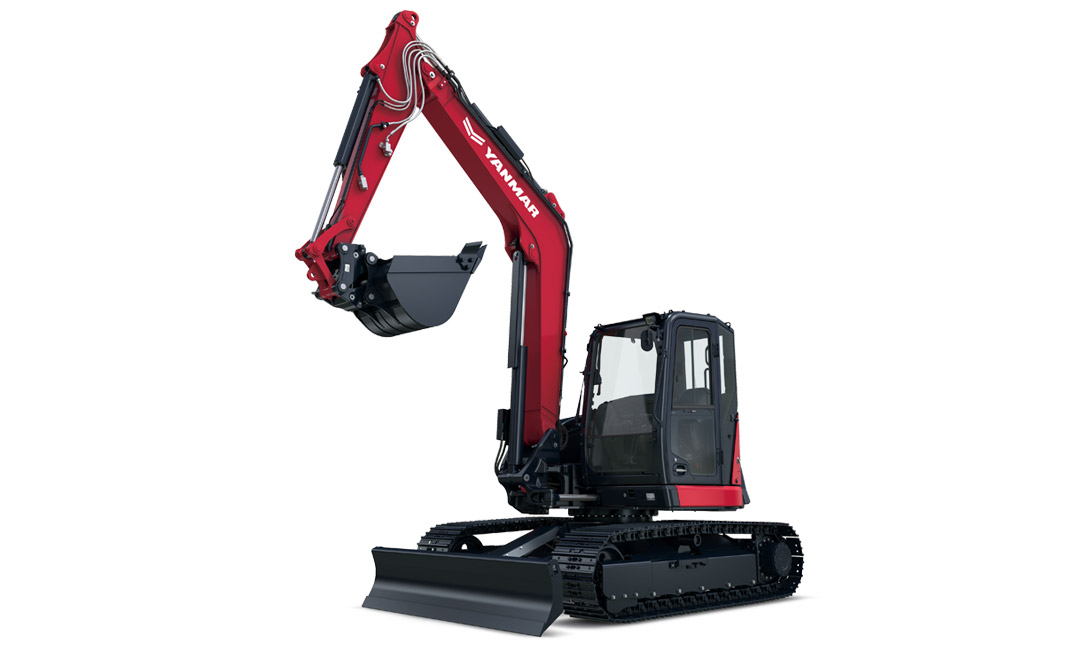

The SV100-7 will impress you. Yes, you know its 72-horsepower Tier 4 Final Yanmar diesel engine provides the power, digging force and lifting capacity you need to take on the tough jobs. But Yanmar also builds the SV100-7 to be different from larger excavators in its ability to boast impressive digging power while navigating tight, confined jobsites using its ultra-tight turning radius. It doesn’t stop there. The improved SV100-7 uses its included 2-Pump Load Sensing (2PLS) hydraulics to direct hydraulic flow where it’s needed most. This allows for higher speeds, productivity, performance, and maximum fuel efficiency. Plus, you can work in more comfort with the spacious operator area, 7-inch color display, improved visibility and more.

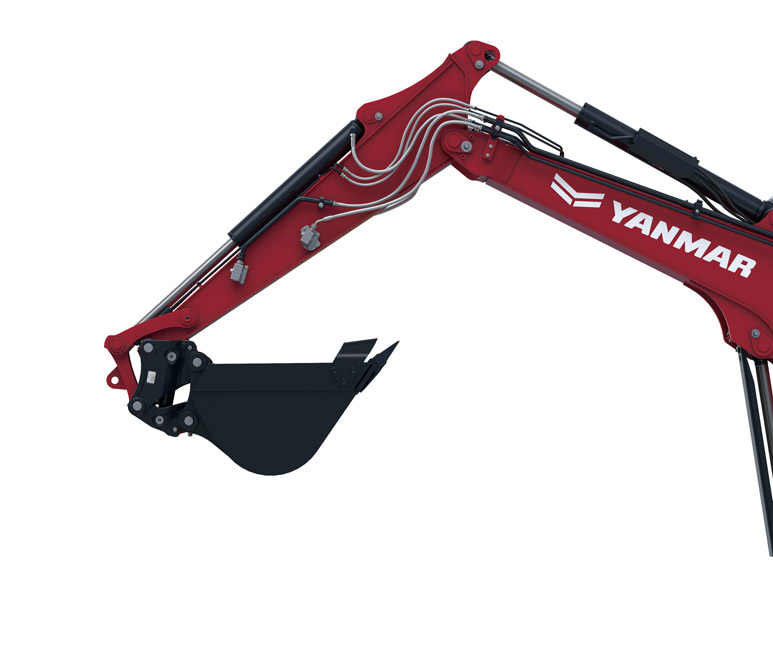

With a robust 72-horsepower of Tier 4 Final Yanmar performance under the cowl, the SV100-7 represents our most powerful mini excavator so you can easily dig deeper and run attachments with confidence.

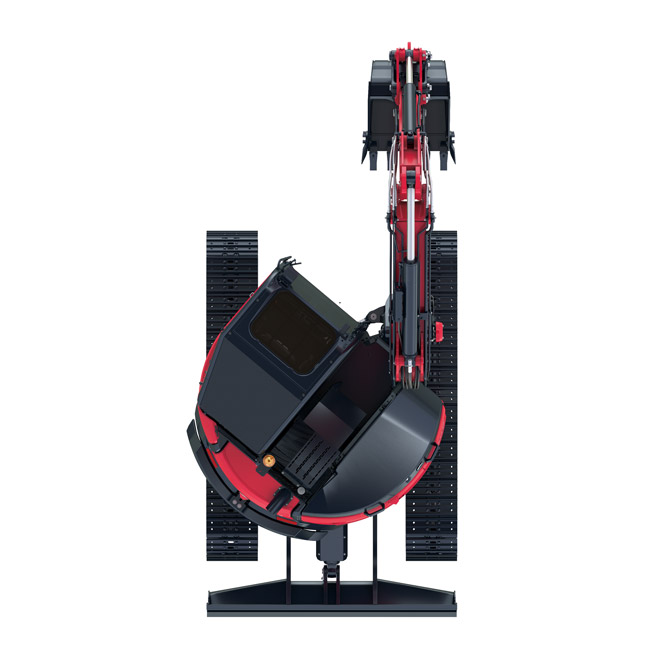

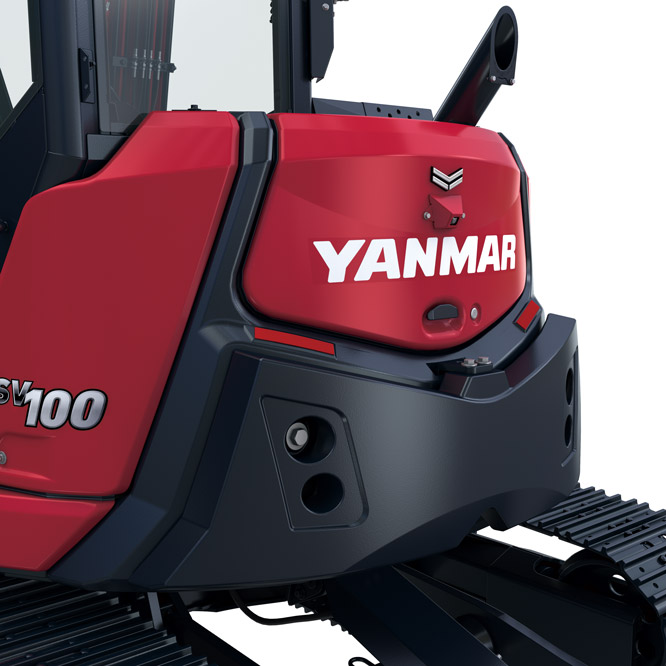

The compact design allows the counterweight to be attached tight to the house resulting in near-zero tail swing performance for tight jobsite capability.
Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

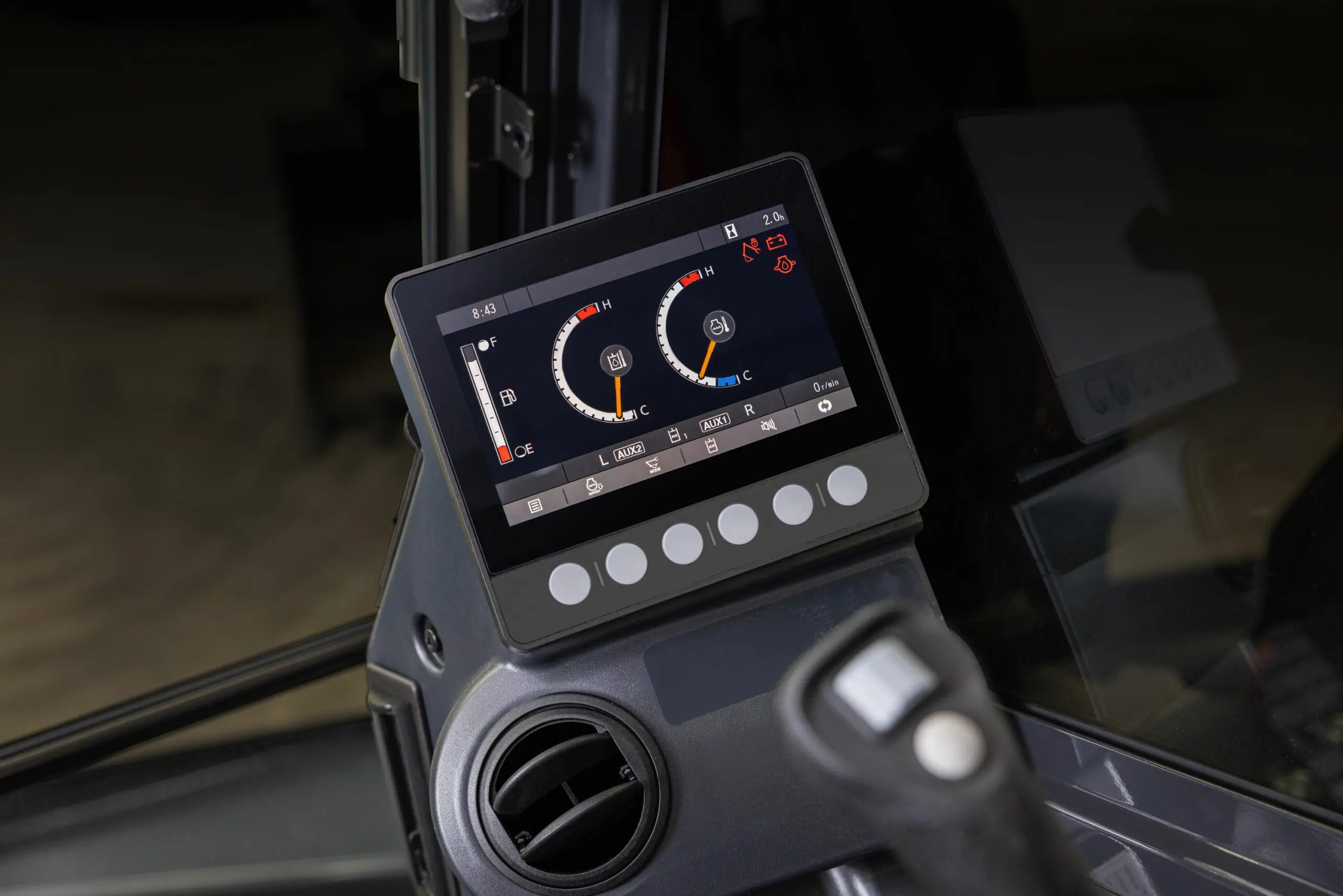

Work in comfort with a quieter and more spacious operator area outfitted with ergonomic controls and a 7-inch color display. Keep an eye on your surroundings with increased visibility from more glass area and standard side and rear cameras.

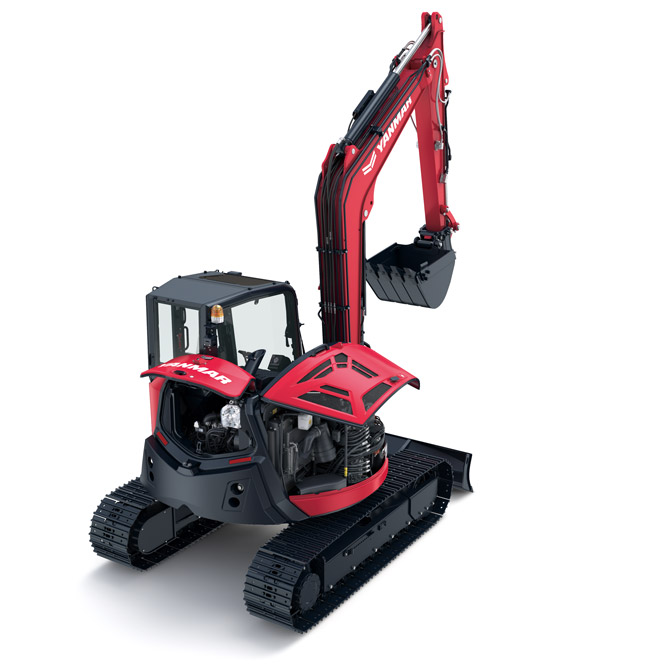

Complete maintenance work and refueling quickly and efficiently with an engine bay designed for maximum accessibility. The open cabin hoods put the generator, valves, radiator, oil-water separator and more right at your fingertips.
Take advantage of fuel savings with no sacrifice to power. Yanmar outfits the SV100-7 with 2PLS hydraulics for a 13% reduction in fuel consumption combined with an extraordinary boost in machine performance, productivity and travel speeds.
| Engine | |
|---|---|
| Model | 4TNV98CT-VBV2 |
| Output | 72 HP |
| Type | Vertical water-cooled 4-cylinder diesel |
| Operating Weight | |
| Cab. Rubber Track | 21,671 lbs |
| Cab. Steel Track | 21,914 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 12,027 / 9,487 lbs |
| Traveling Speed, High / Low – Cab. Rubber Track | 2.7 / 1.3 MPH |
| Traveling Speed, High / Low – Cab. Steel Track | 2.5 / 1.2 MPH |
| Swing Speed | 9 RPM |
| Boom Swing Angle, (L / R) | 60° / 60° |
| Gradability | 25° |
| Ground Contact Pressure | |
| Cab. Rubber Track | 5.5 PSI |
| Cab. Steel Track | 5.7 PSI |
| Hydraulic System | |
| Pump Capacity | 36.4 x 2 + 5.5 GPM |
| Main Relief Set Pressure | 3,988 x 2 + 493 PSI |
| Blade Dimensions | |
| Width x Height | 7’7” x 1’8” |
| Working Area of Blade (Upper / Lower) | 1’7” / 1’7” |
| Fuel Tank | |
| Capacity | 30.9 Gals |
