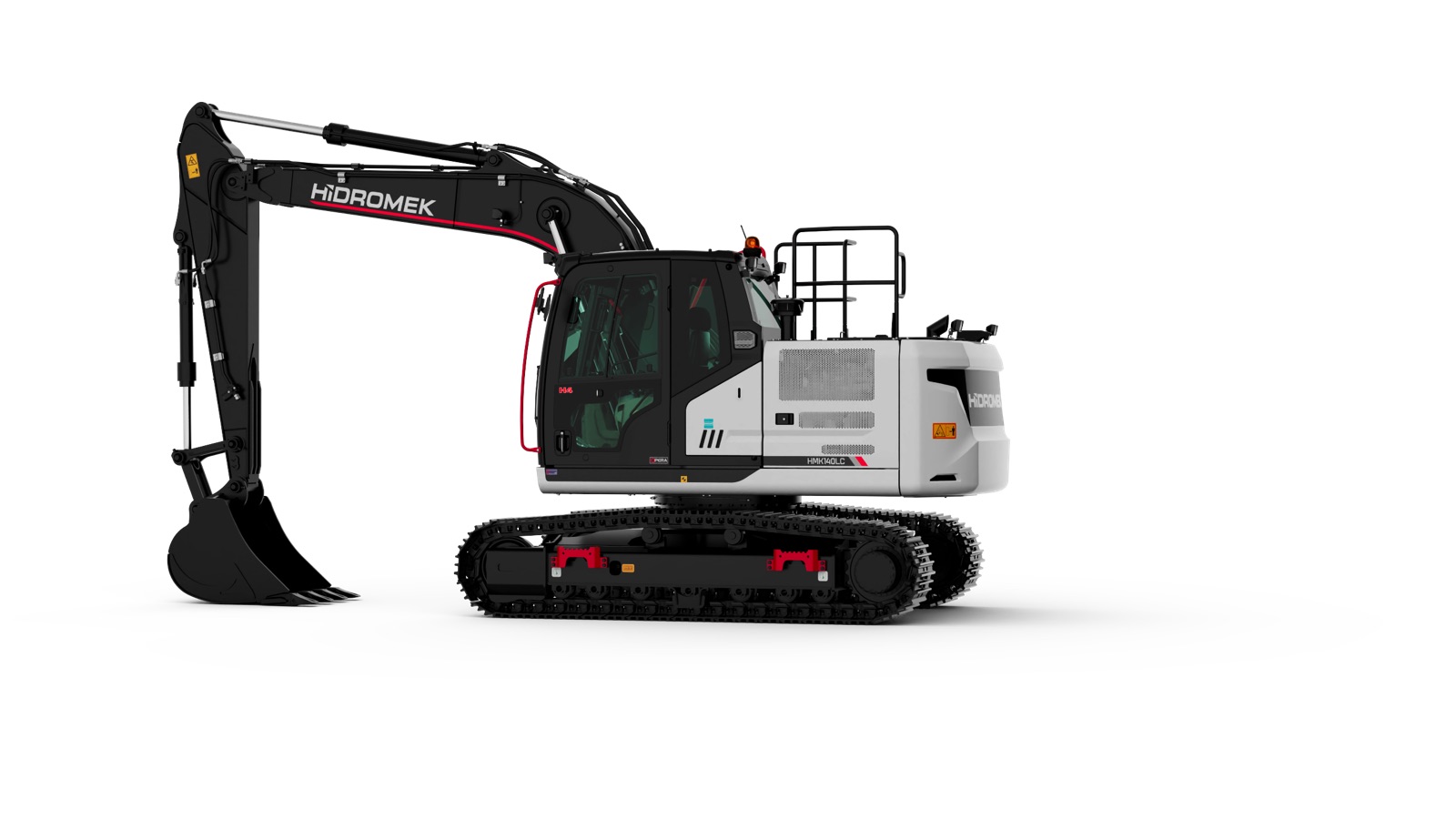

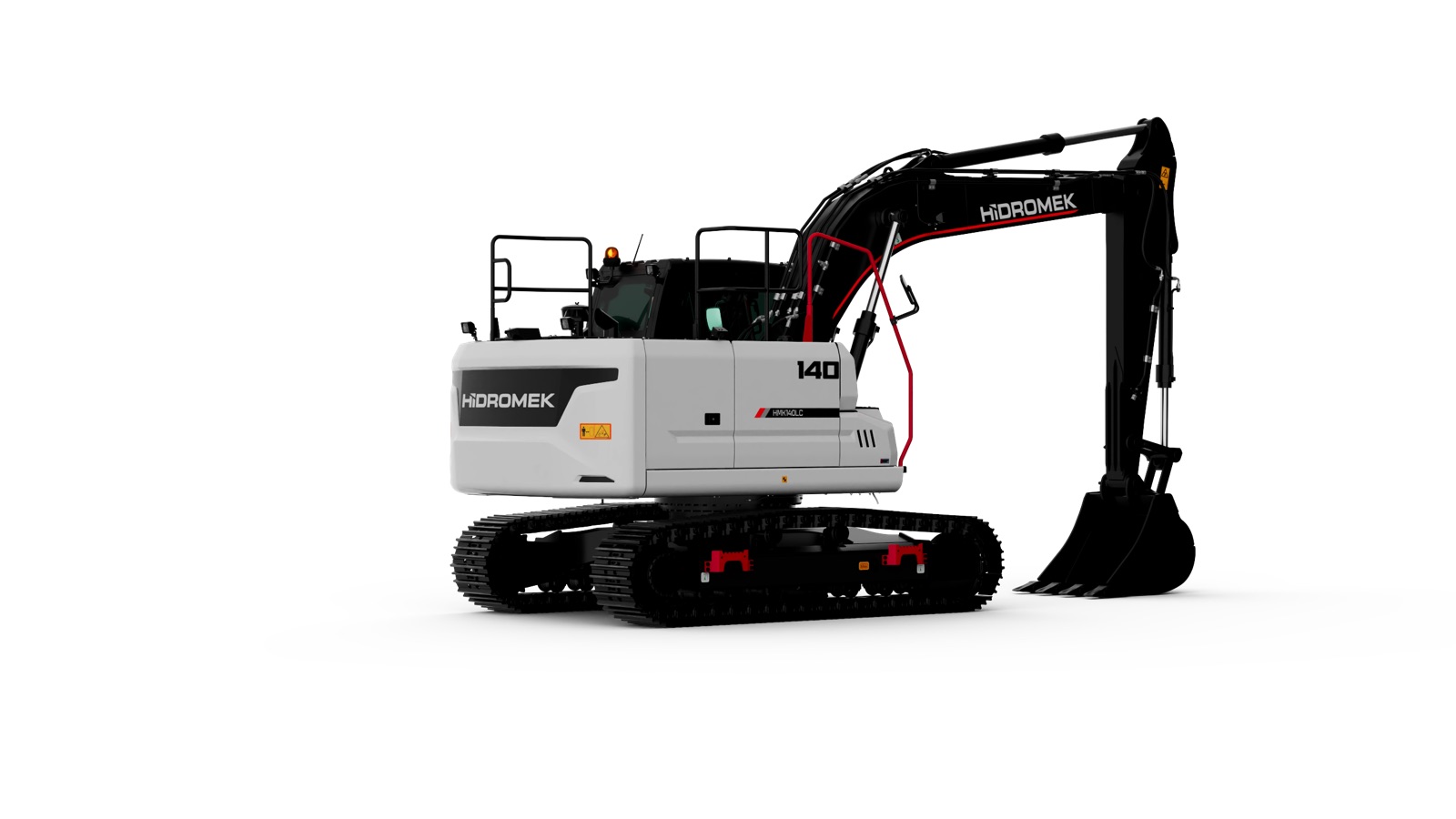

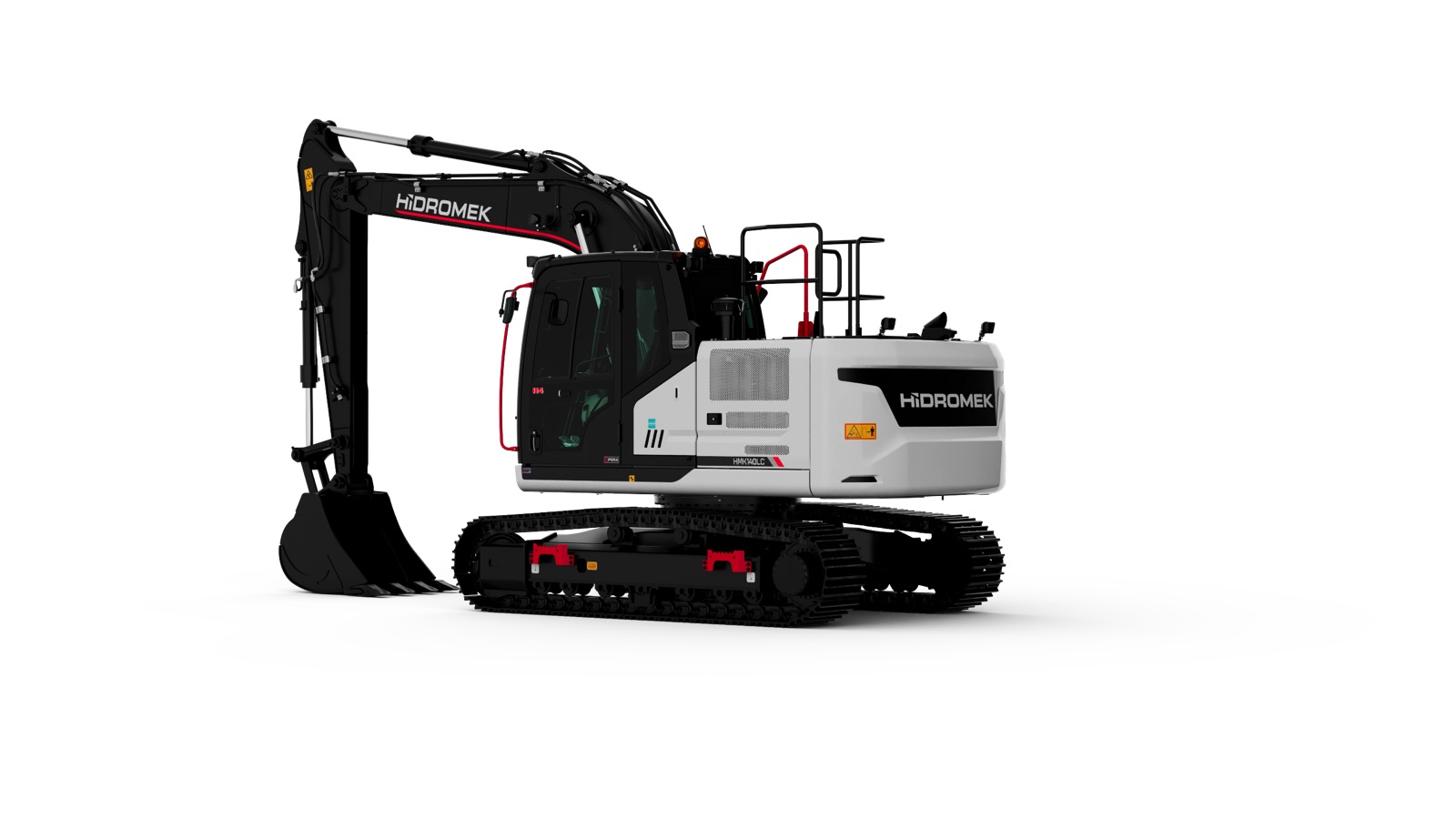

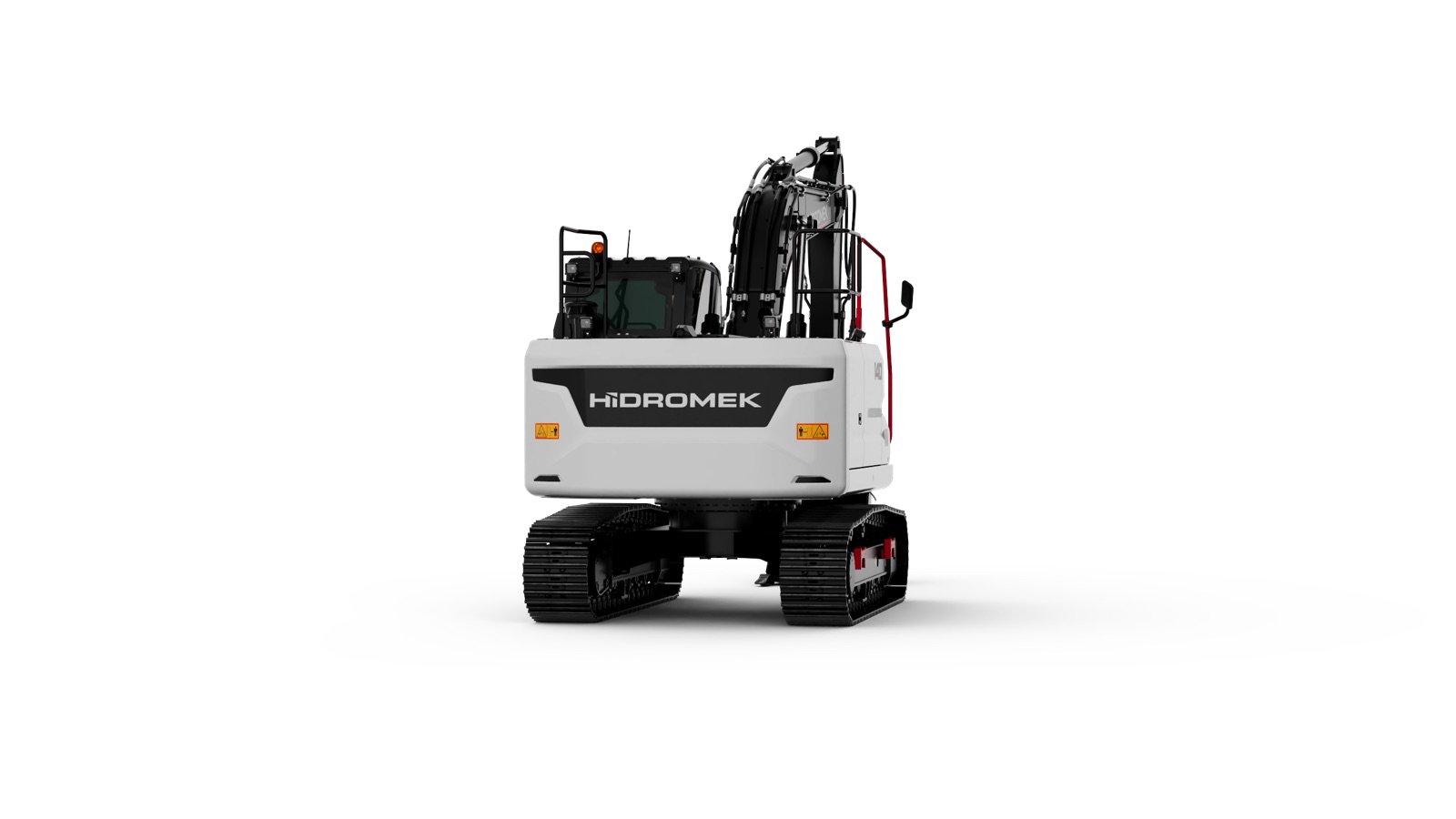

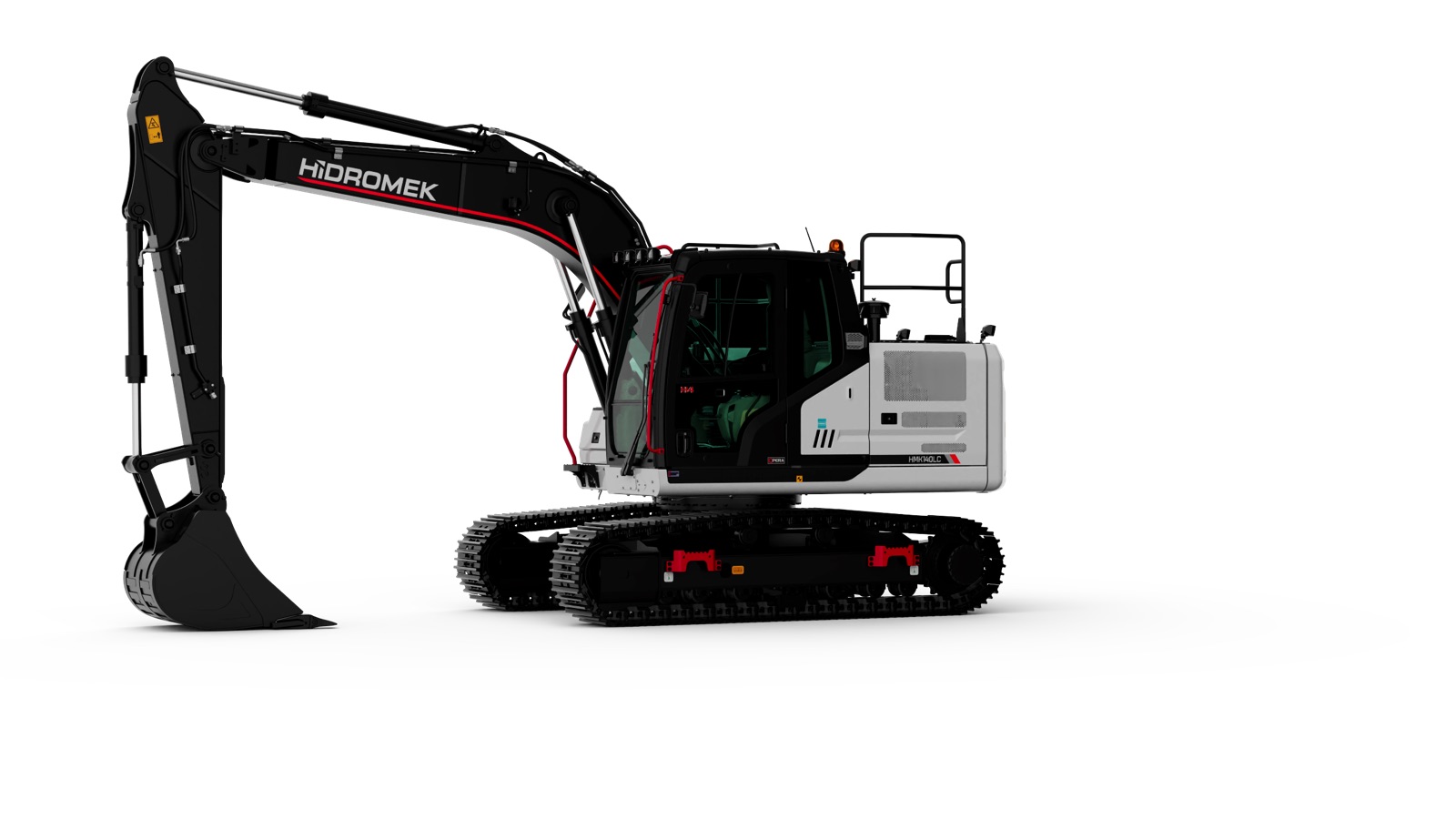

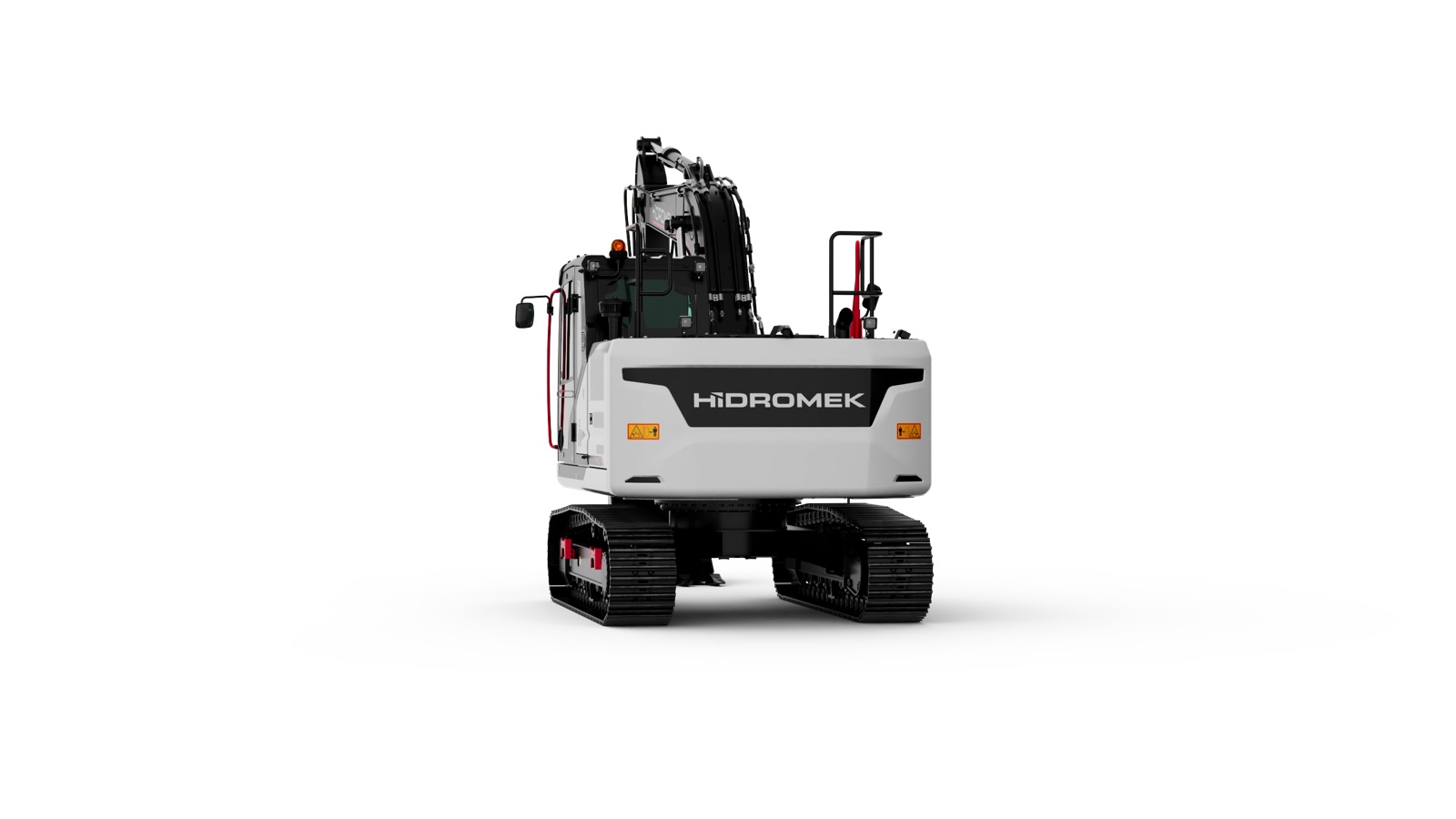

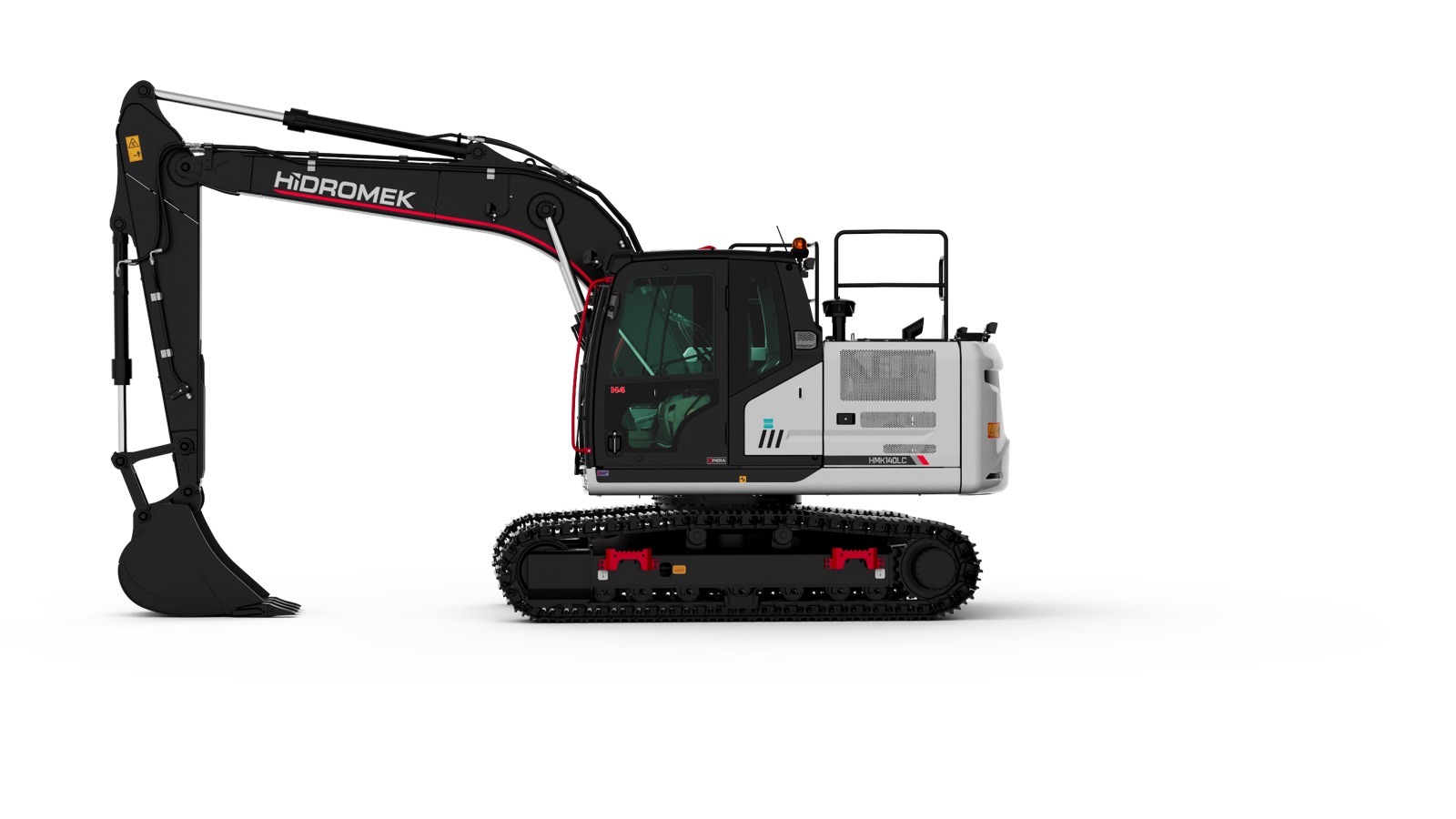

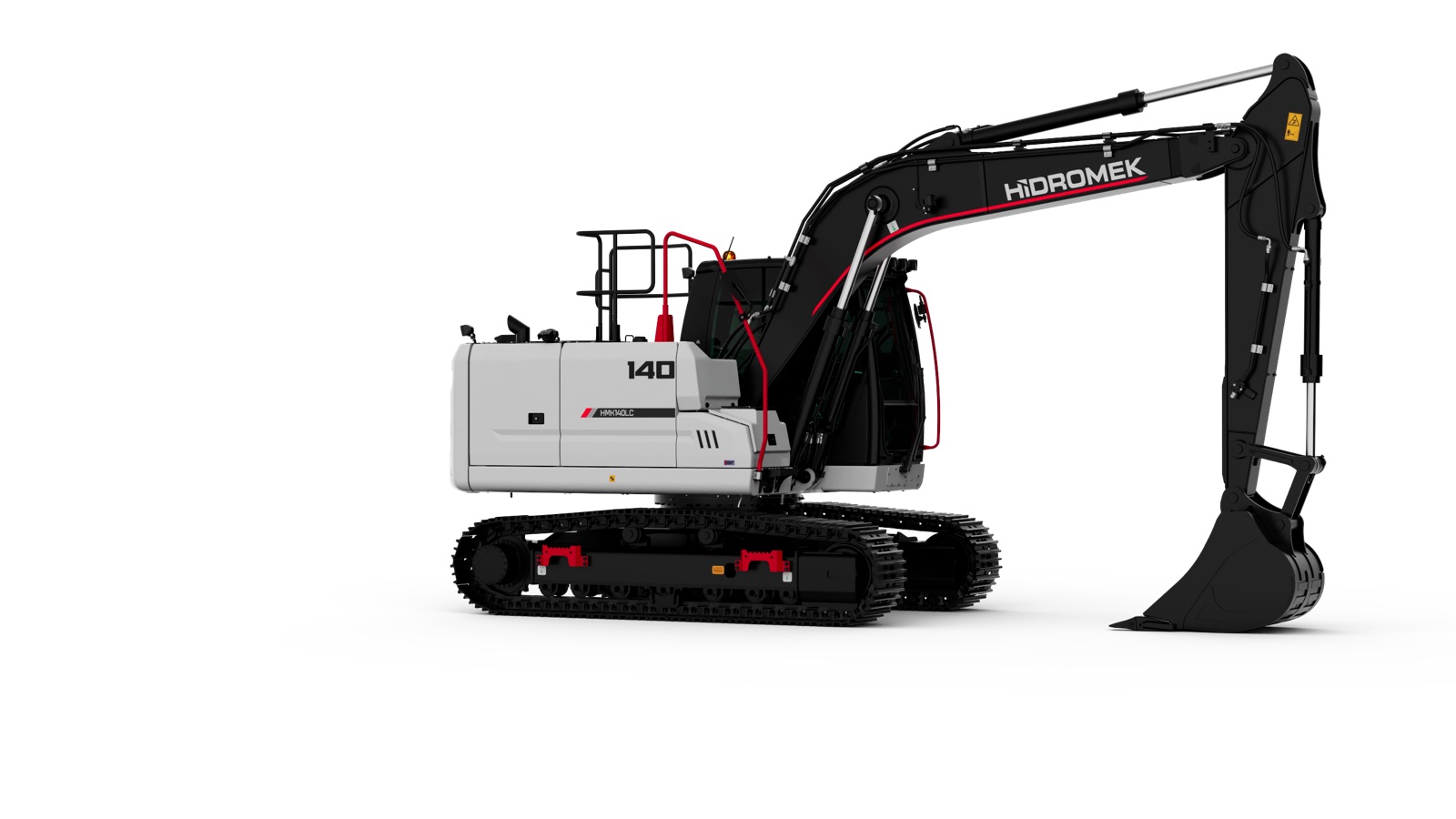

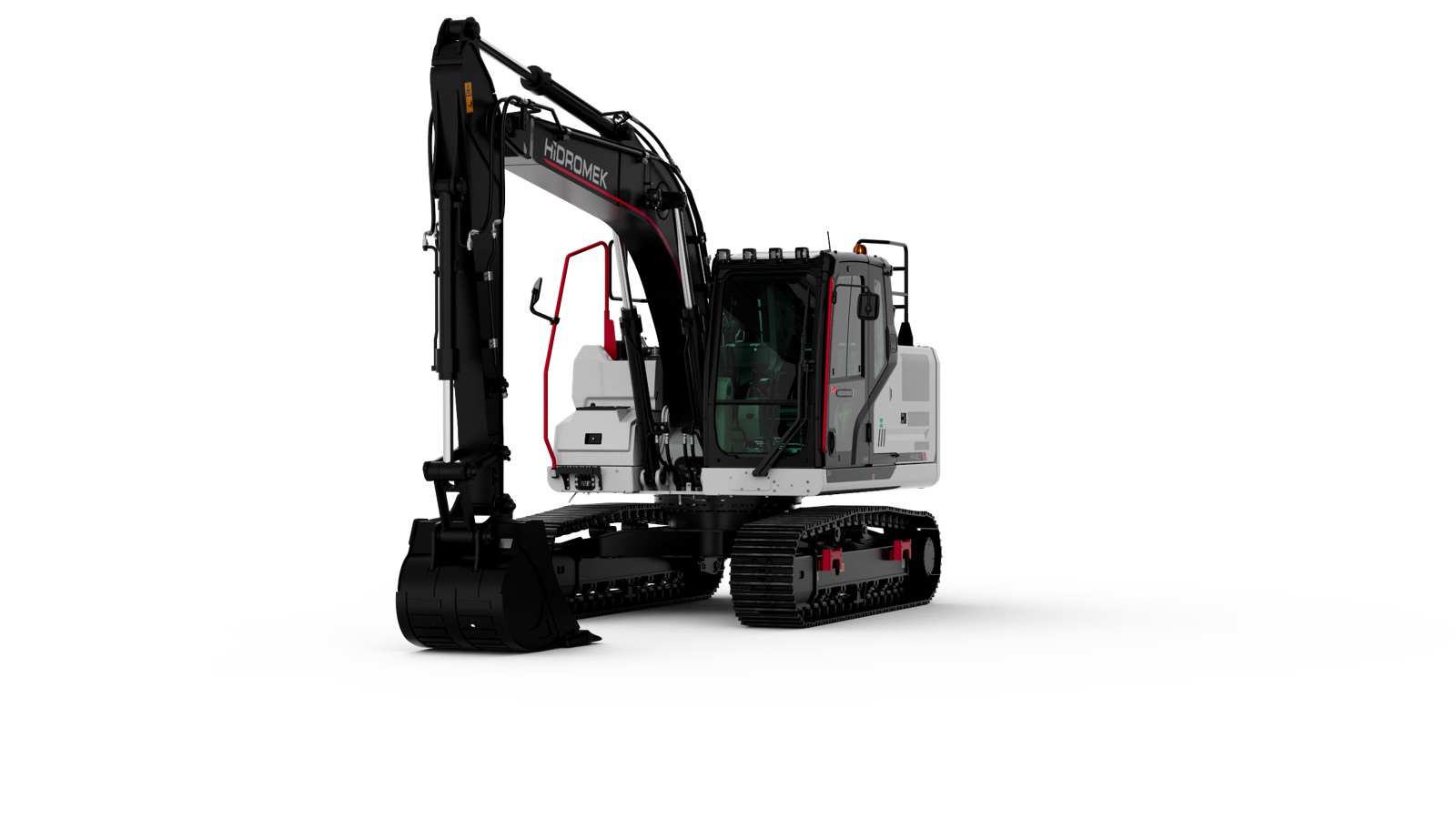

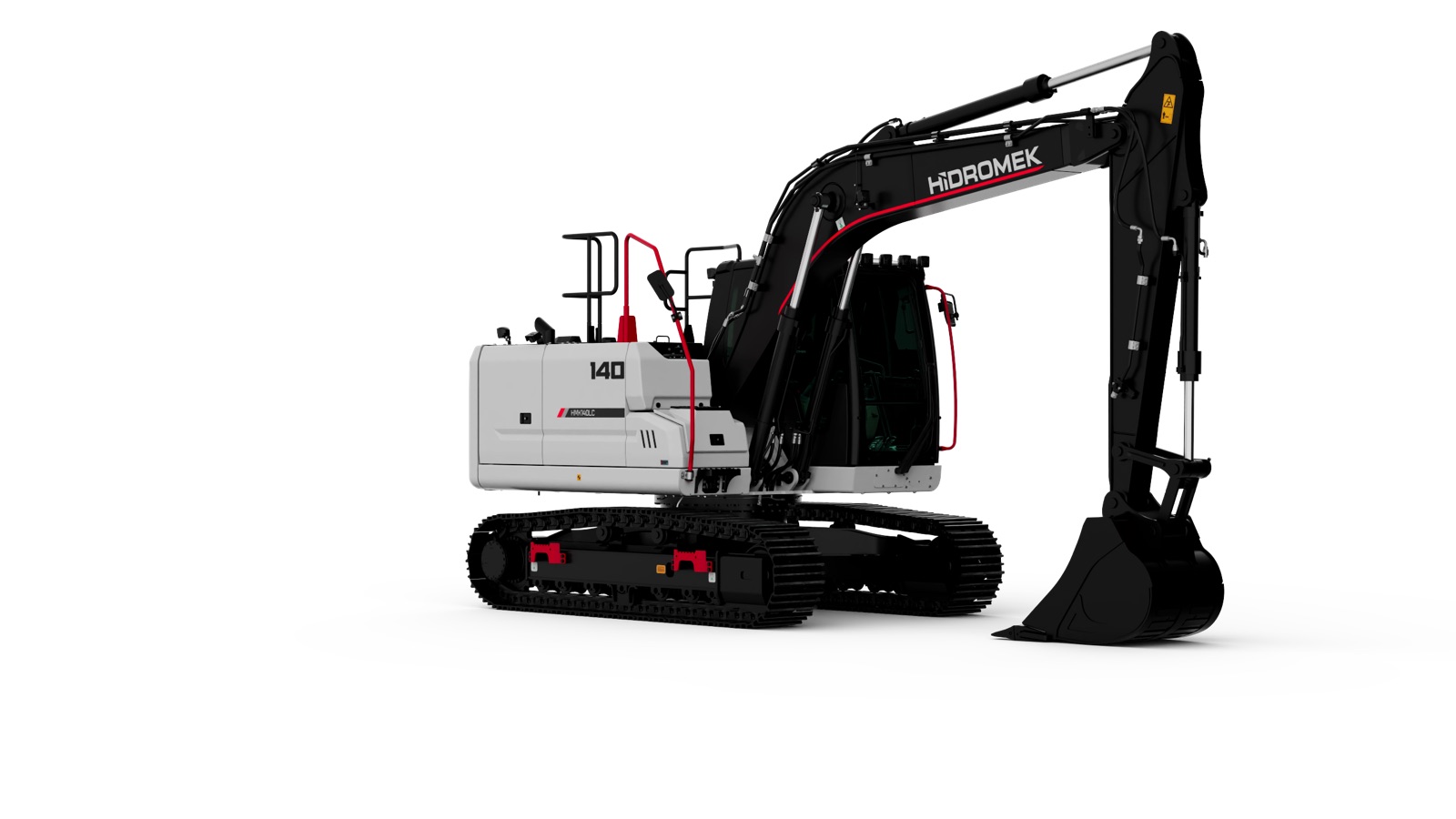

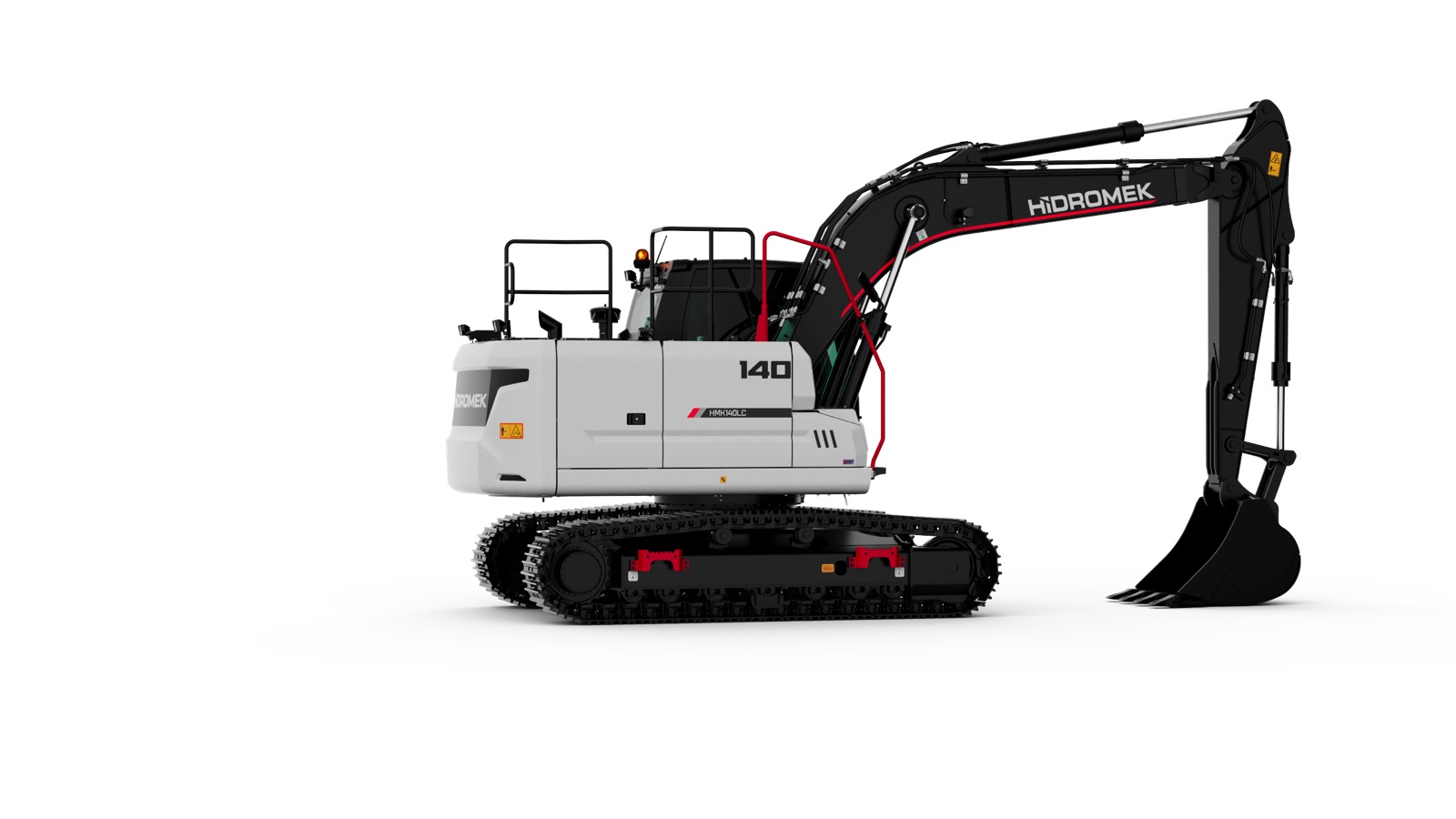

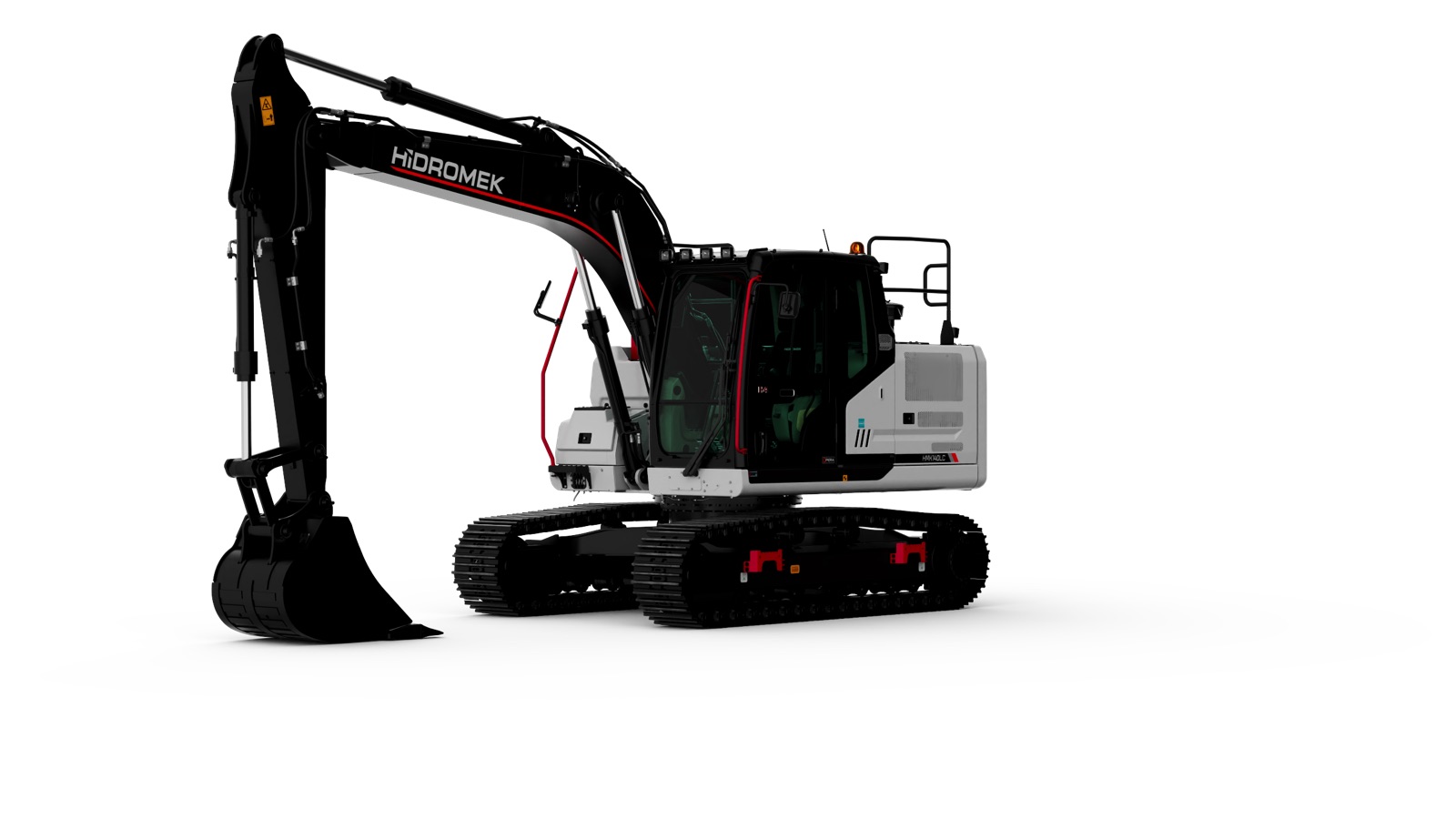

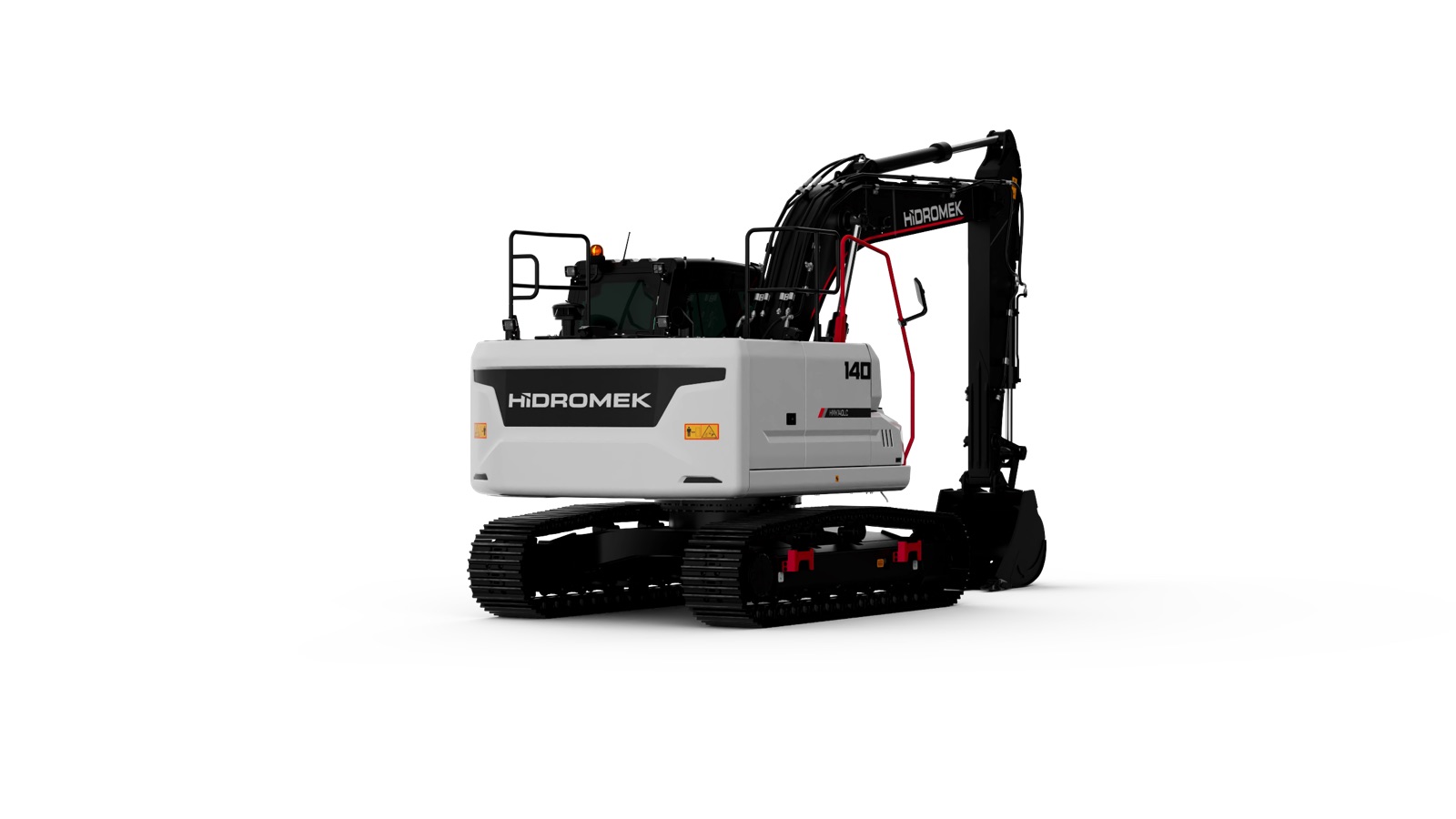

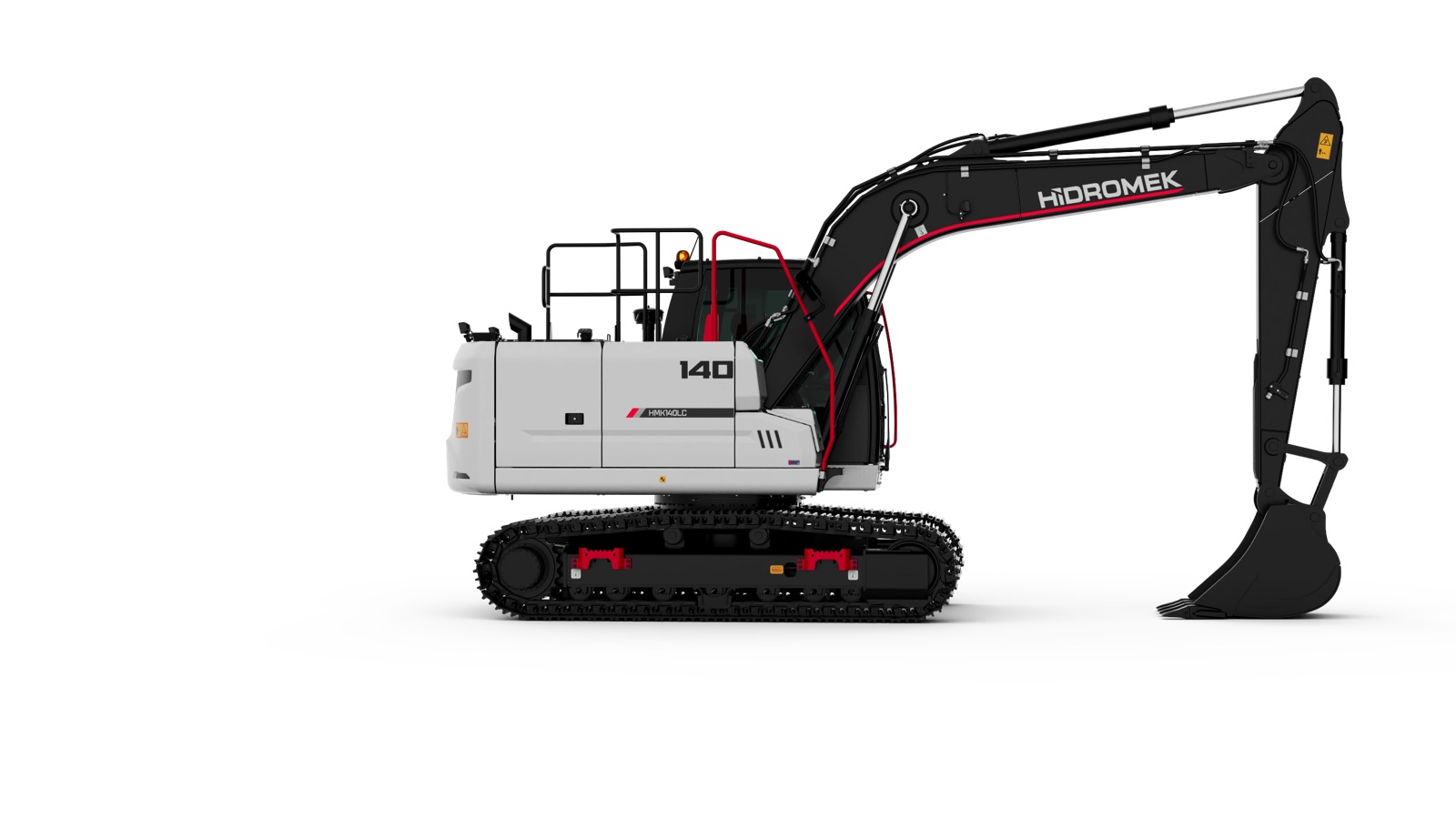

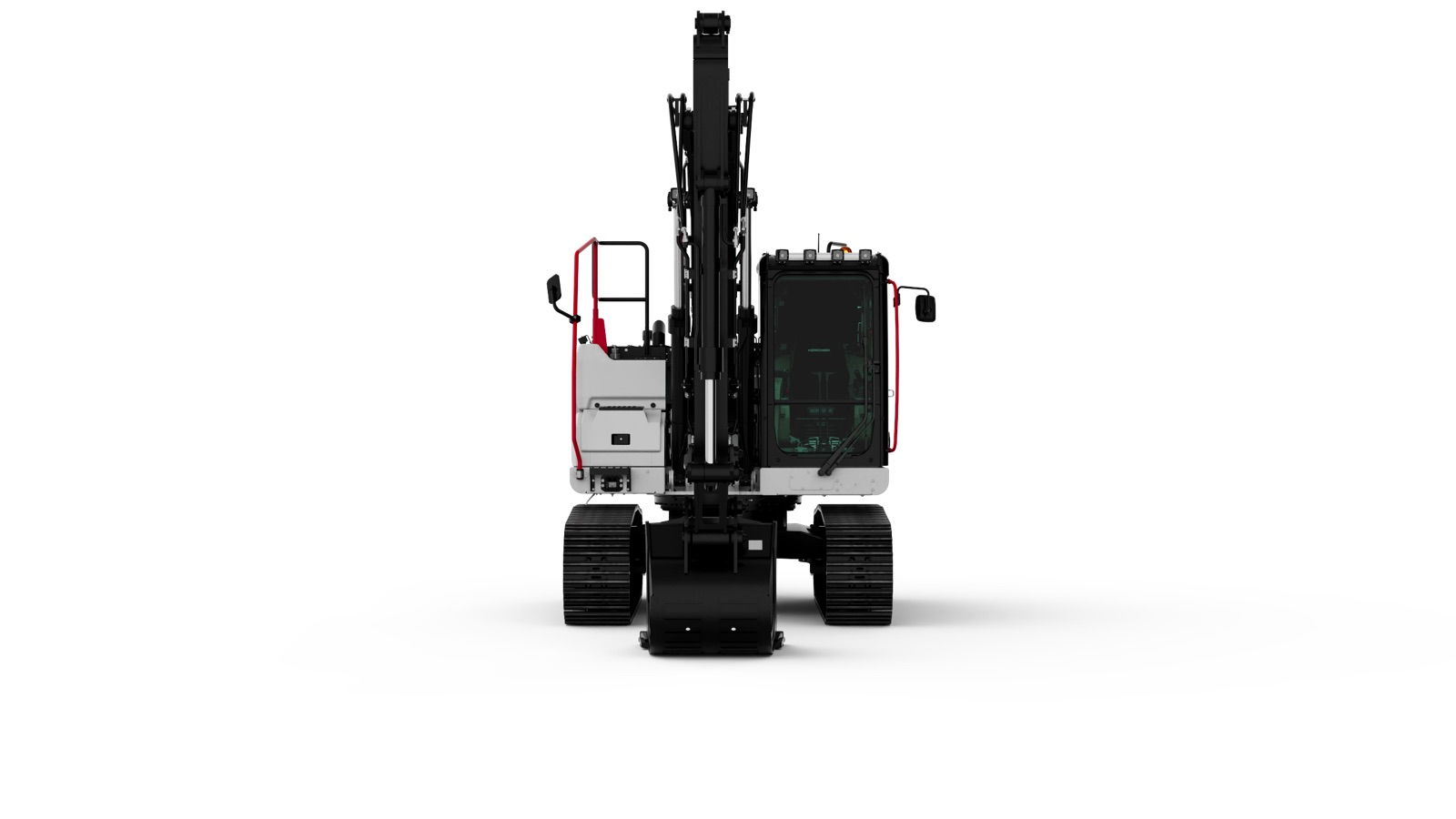

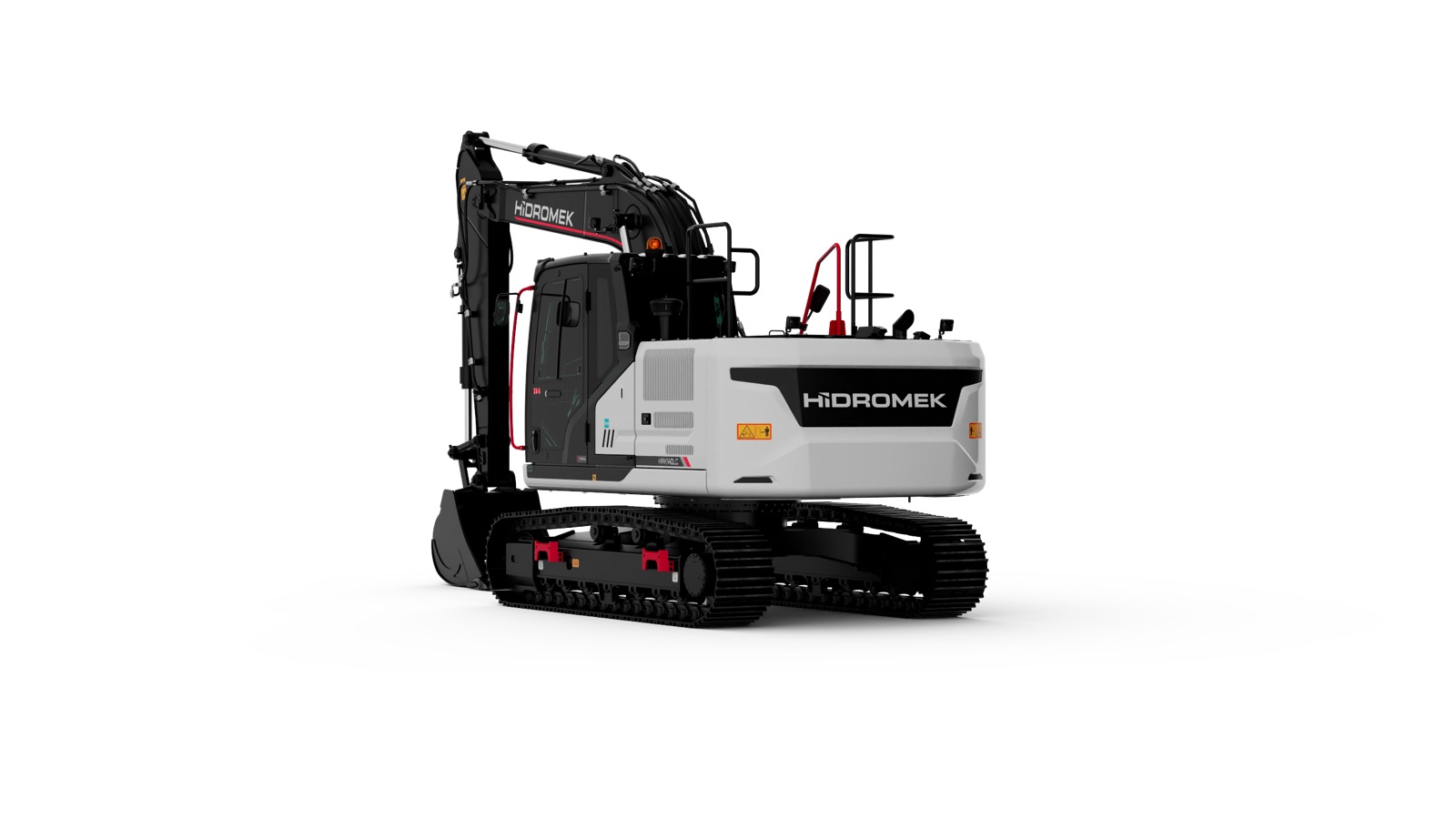

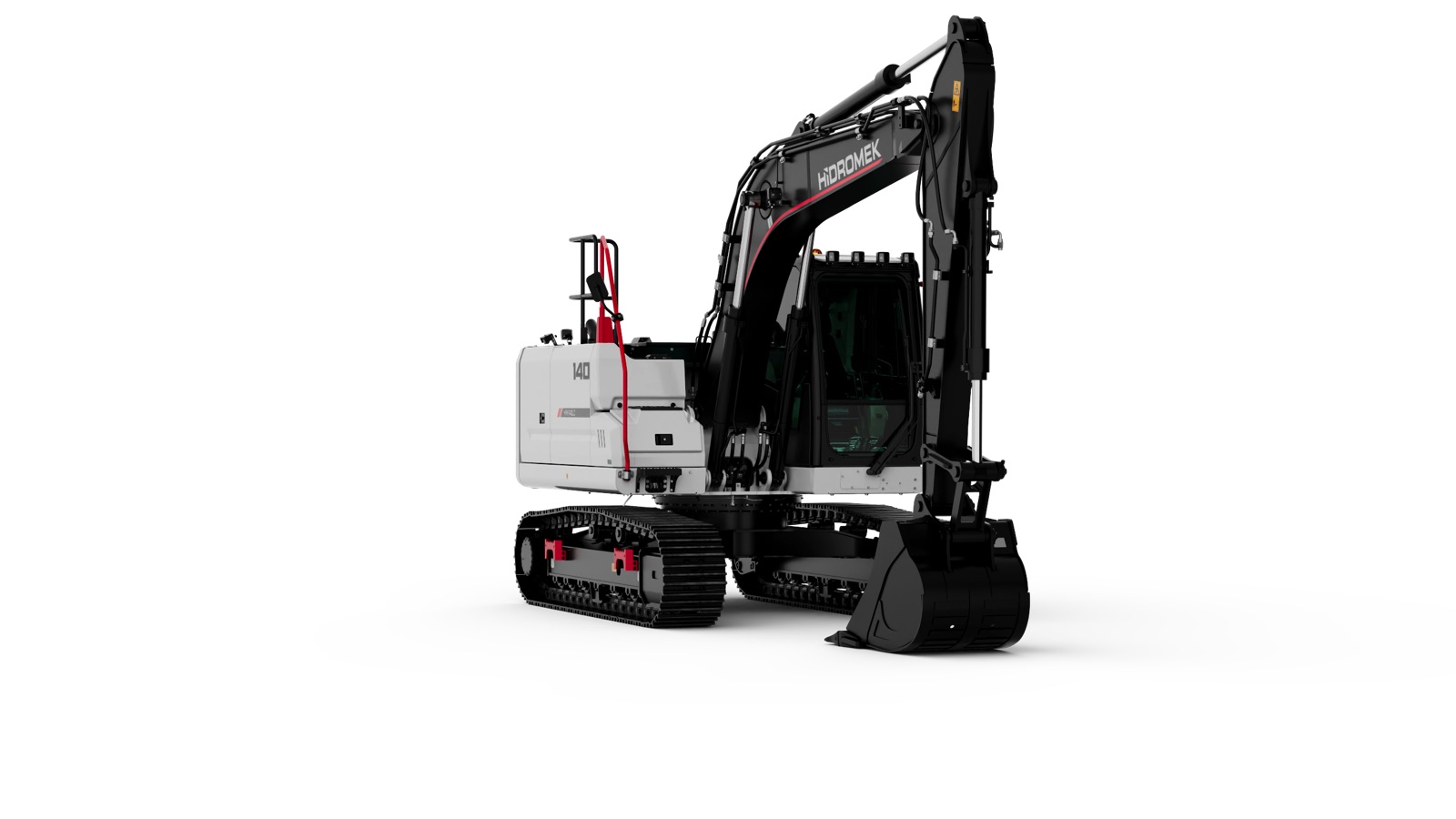

HMK 140 LC

Maximum Power

106,7 HP (78,5 kW) @2000 rpm

Bucket Digging Force (ISO)

10.000 kgf

Bucket capacity

0,6 m³

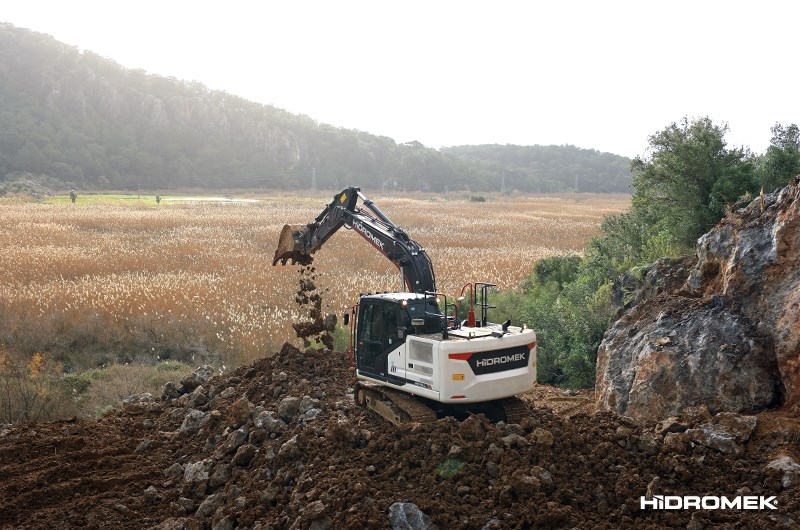

HİDROMEK H4 Series excavators are built with reinforced heavy-duty construction to ensure high performance, long service life, and smooth operation in tough working conditions. They are manufactured in modern facilities with strict quality control for maximum durability.

The H4 Series is designed for safety, visibility, and operator comfort. It features a ROPS & FOPS certified cabin for protection and improved visibility with cameras, LED lights, and safety indicators for secure operation in all conditions.

Features

  • Heavy-duty reinforced structure for durability
  • ROPS & FOPS safety cabin
  • Improved visibility with cameras and LED lights
  • Red safety handles and warning labels
  • Audio warning systems (horn, swing, travel alerts)

Specifications

Engine

  • Power: 106.7 HP (78.5 kW) @ 2000 rpm
  • Torque: 375 Nm @ 1800 rpm
  • Model: ISUZU 4JJ1X
  • 4-cylinder turbocharged diesel engine
  • Displacement: 2999 cc

Hydraulic System

  • Max Flow: 2 × 129 L/min
  • Max Pressure: up to 372 kgf/cm²

Performance

  • Swing Speed: 11.1 rpm
  • Travel Speed: 3.30 – 5.60 km/h
  • Bucket Capacity: 0.6 m³
  • Digging Force: 10,000 kgf

Dimensions

  • Max Digging Depth: 5,360 mm
  • Max Reach: 8,070 mm
  • Boom: 4,600 mm
  • Arm: 2,300 mm

Operating Weight

  • 15,000 kg
