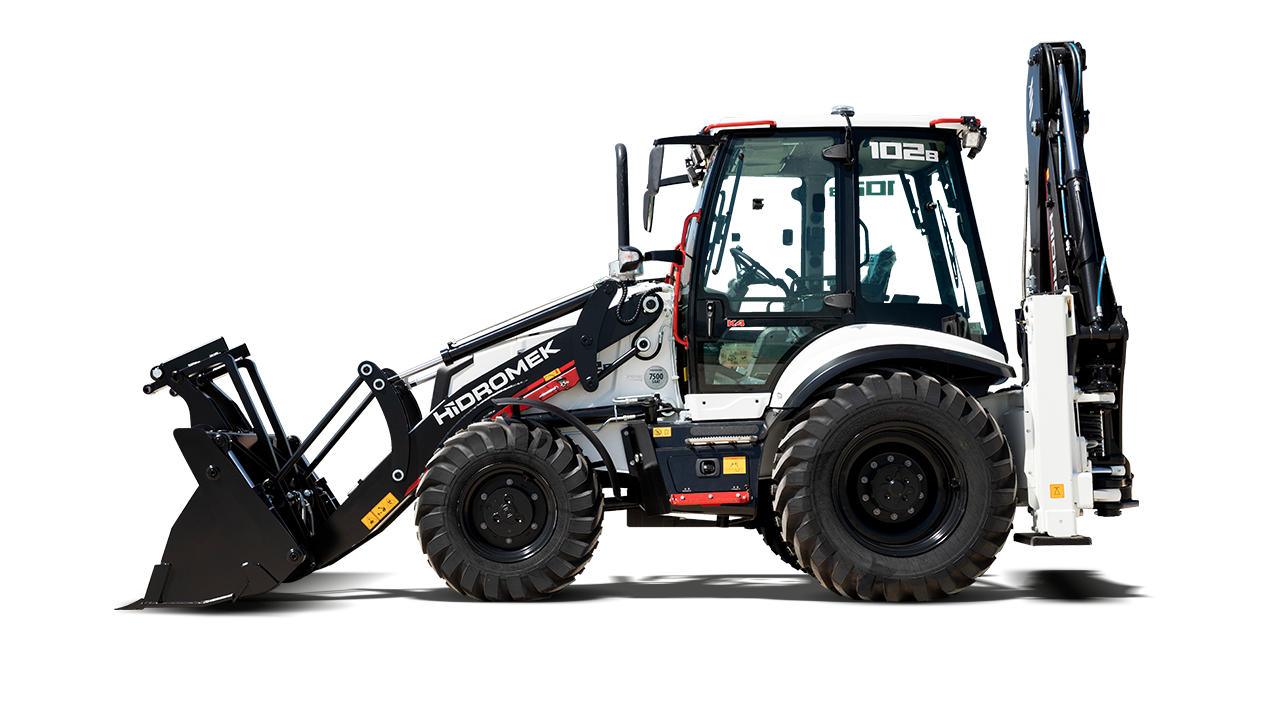

K4 HMK 102 B SUPRA

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.1 m³

  • View Specs & Dimensions Brochure
The HİDROMEK K4 Series is designed for severe geographical conditions and heavy-duty operations. It features a strong structural design and an advanced hydraulic system that delivers maximum breakout force even at low engine speeds, ensuring powerful, efficient, and reliable performance.

K4 Series backhoe loaders are engineered for a wide range of applications including excavation, infrastructure, superstructure, agriculture, forestry, landscaping, and industrial work. With compatibility for multiple attachments, these machines offer excellent versatility. Their improved hydraulic and cylinder systems enhance productivity, allowing faster operations and better fuel efficiency.

Features

  • Heavy-duty construction for harsh working environments
  • High-efficiency closed-type hydraulic system
  • Variable displacement piston pump with flow-sharing technology
  • High oil flow for improved performance
  • Compatible with multiple attachments (bucket, hammer, auger, ripper, etc.)
  • 20% faster operational performance
  • 3% improved fuel efficiency
  • Autoshift transmission with lock-up system
  • Suitable for construction, agriculture, forestry, and industrial use

Specifications

Engine

  • Brand / Model: Perkins 904J-E36TA
  • Maximum Power: 100 HP (74.4 kW) @ 2200 rpm
  • Displacement: 3621 cc
  • Type: Water-cooled turbocharged diesel engine
  • Maximum Torque: 430 Nm @ 1500 rpm
  • Bore & Stroke: Ø 98 × 120 mm
  • Emission Class: EU Stage 5 / US Tier 4 Final

Hydraulic System

  • Pressure: 255 bar
  • Type: Closed hydraulic system with variable displacement piston pump
  • Technology: Flow-sharing + regeneration valves
  • Main Pump Flow: 163 L/min @ 2200 rpm

Tires

  • Front: 16/70 – 20 (12 Ply Rating)
  • Rear: 16.9 – 28 (14 Ply Rating)
  • Optional: 18.4 – 26 (12 Ply Rating)

Driving Speed

  • 1st Gear: 4 km/h
  • 2nd Gear: 7 km/h
  • 3rd Gear: 9 km/h
  • 4th Gear: 15 km/h
  • 5th Gear: 24 km/h
  • 6th Gear: 40 km/h

Loader Performance

  • Maximum Loader Bucket Breakout Force: 7380 kgf
  • Loader Bucket Capacity: 1.1 m³
  • Maximum Loading Arm Breakout Force: 7380 kgf
  • Lifting Capacity (Max Height): 3660 kg

Backhoe Performance

  • Backhoe Bucket Capacity: 0.18 m³
  • Maximum Bucket Breakout Force: 7020 kgf
  • Maximum Arm Breakout Force: 3160 kgf

Operating Weight

  • 9,300 kg

Transmission

  • Type: Autoshift transmission (heavy-duty with lock-up)
  • Gears: 6 forward, 3 reverse
  • View Specs & Dimensions Brochure
