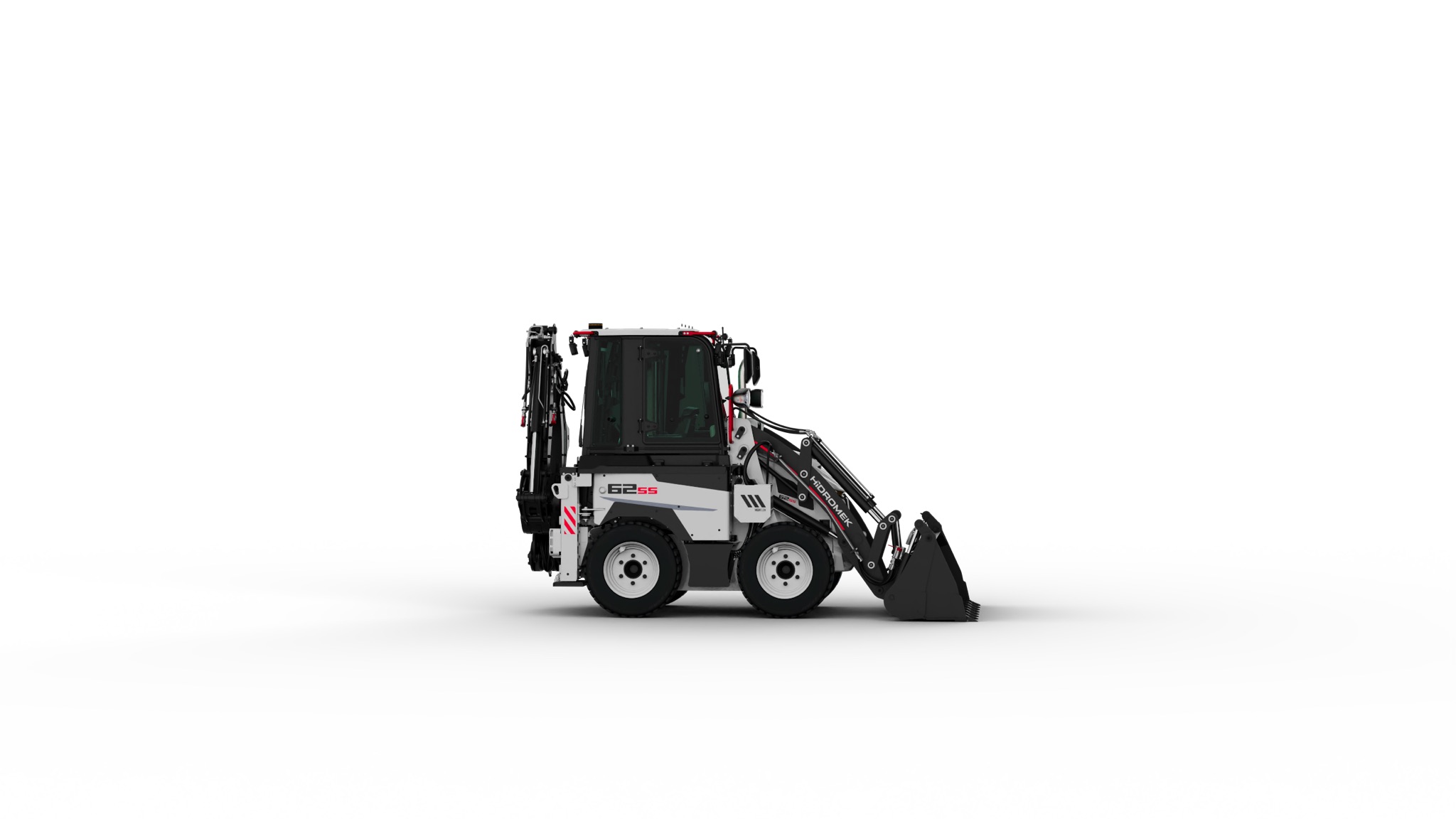

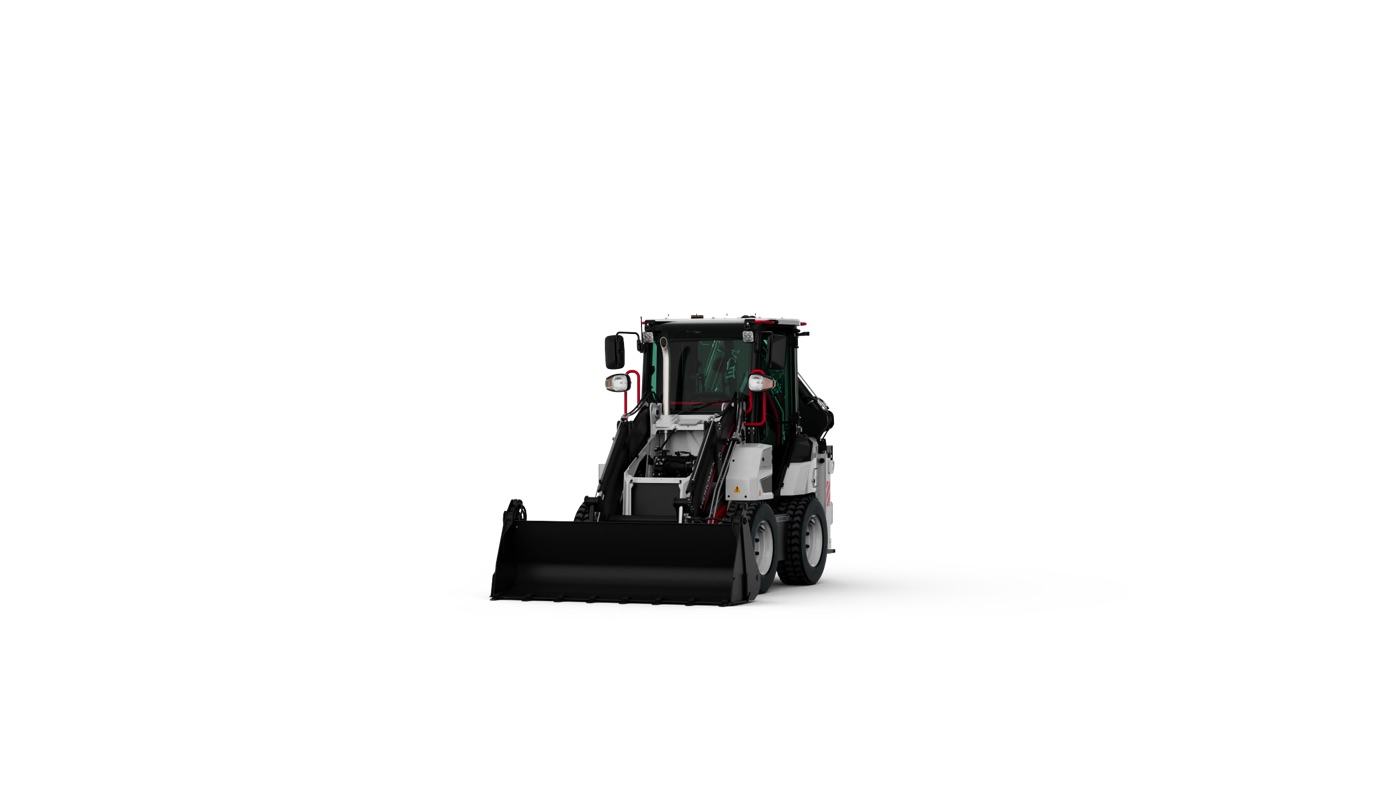

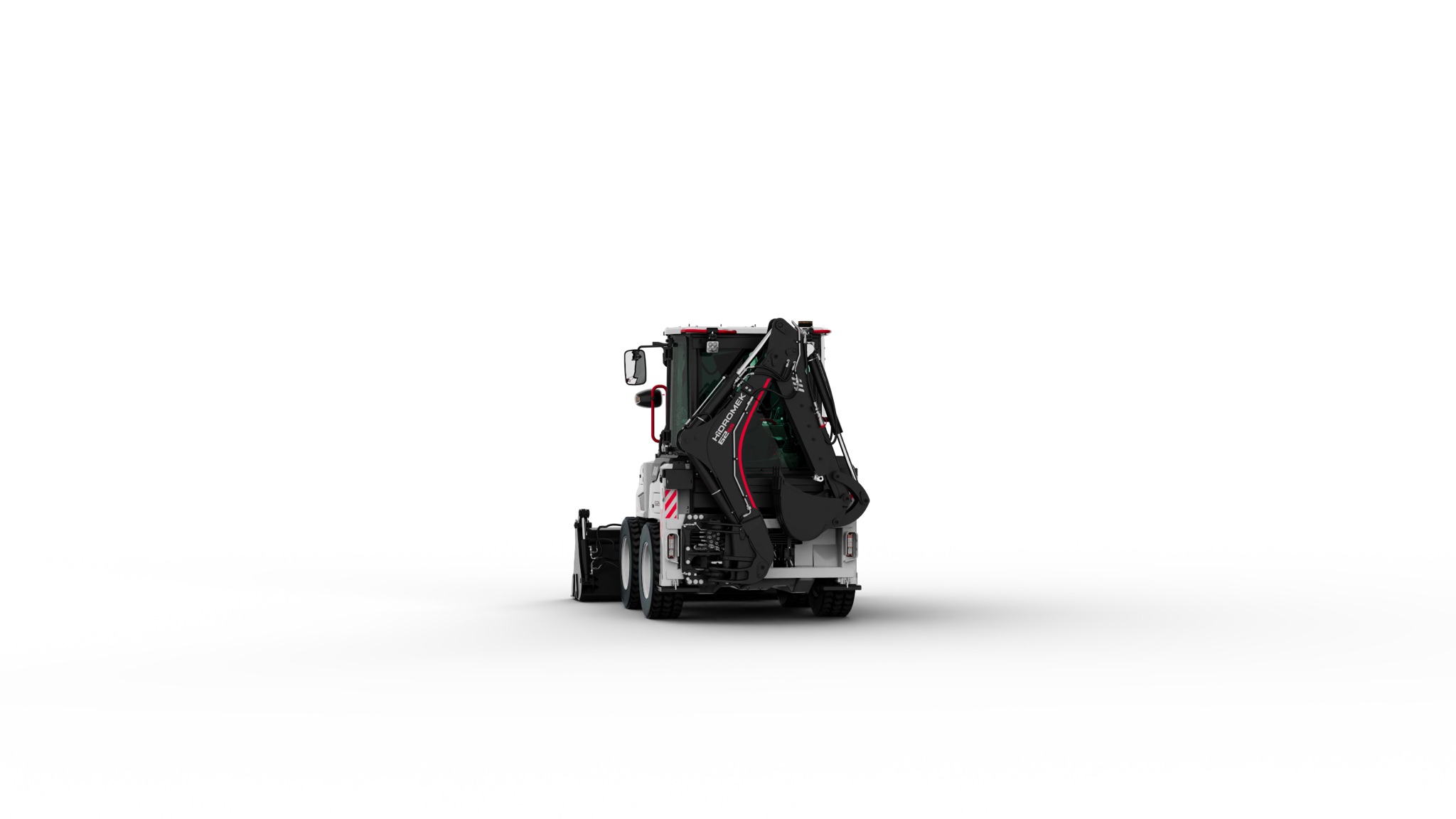

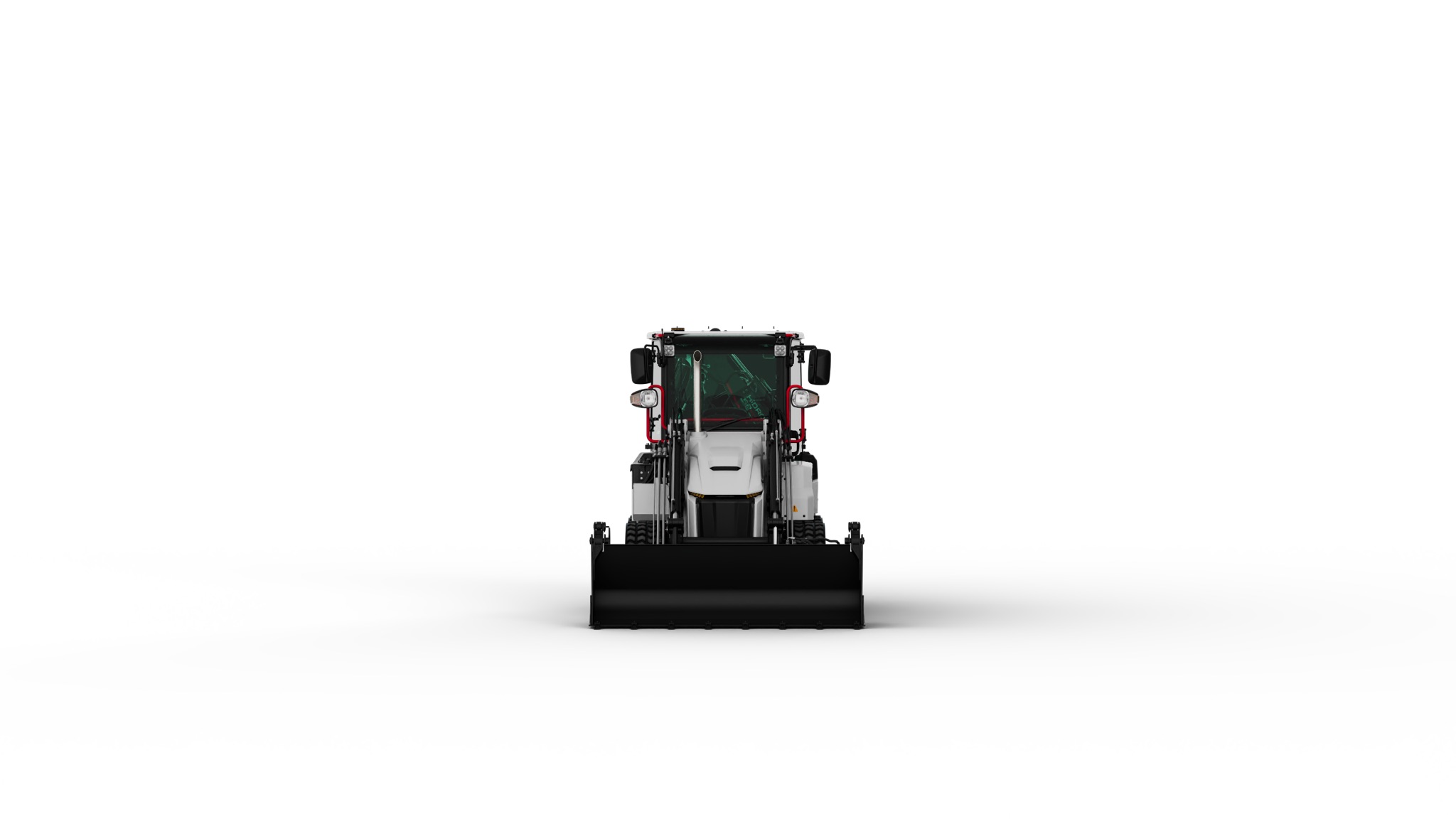

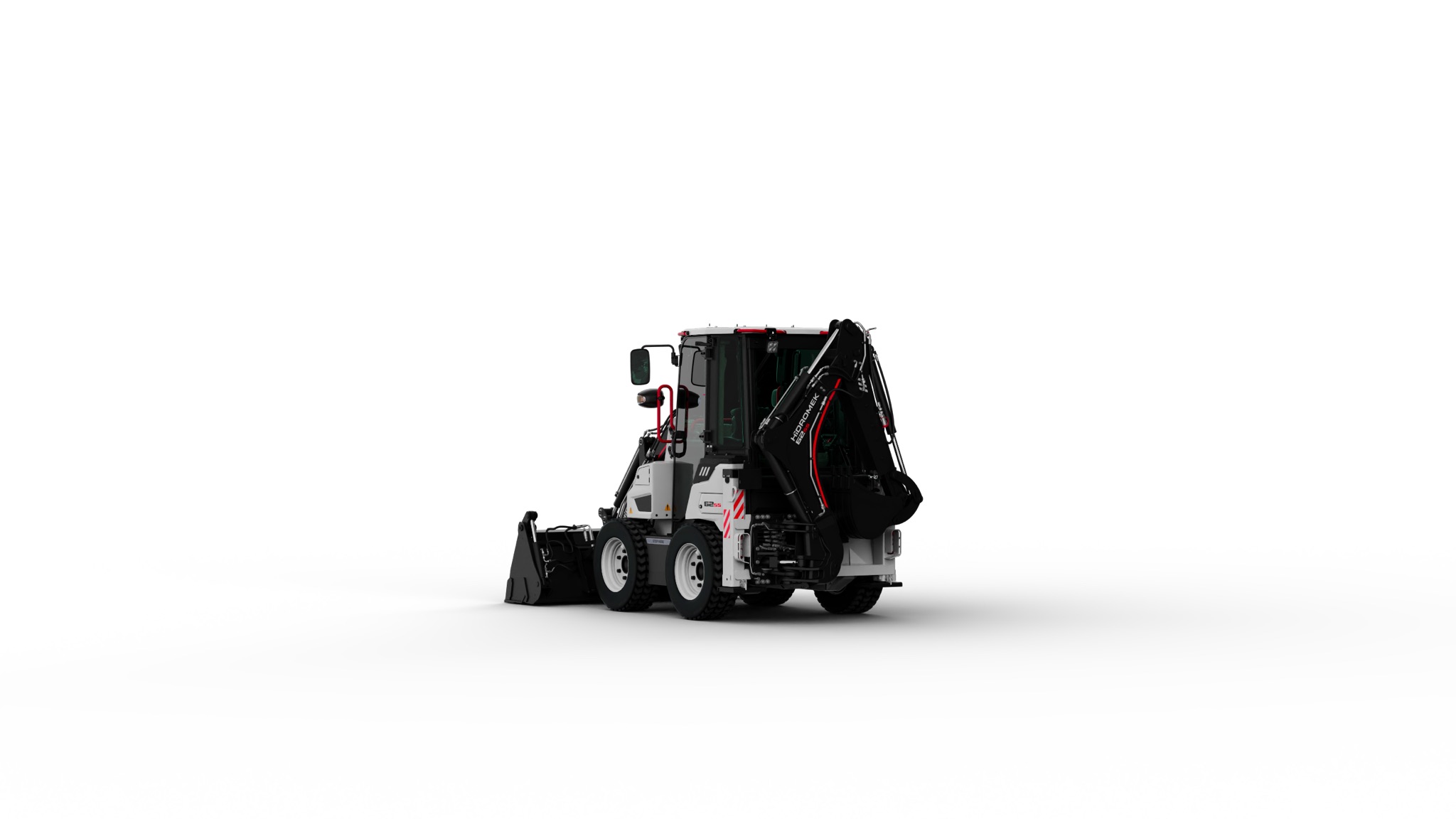

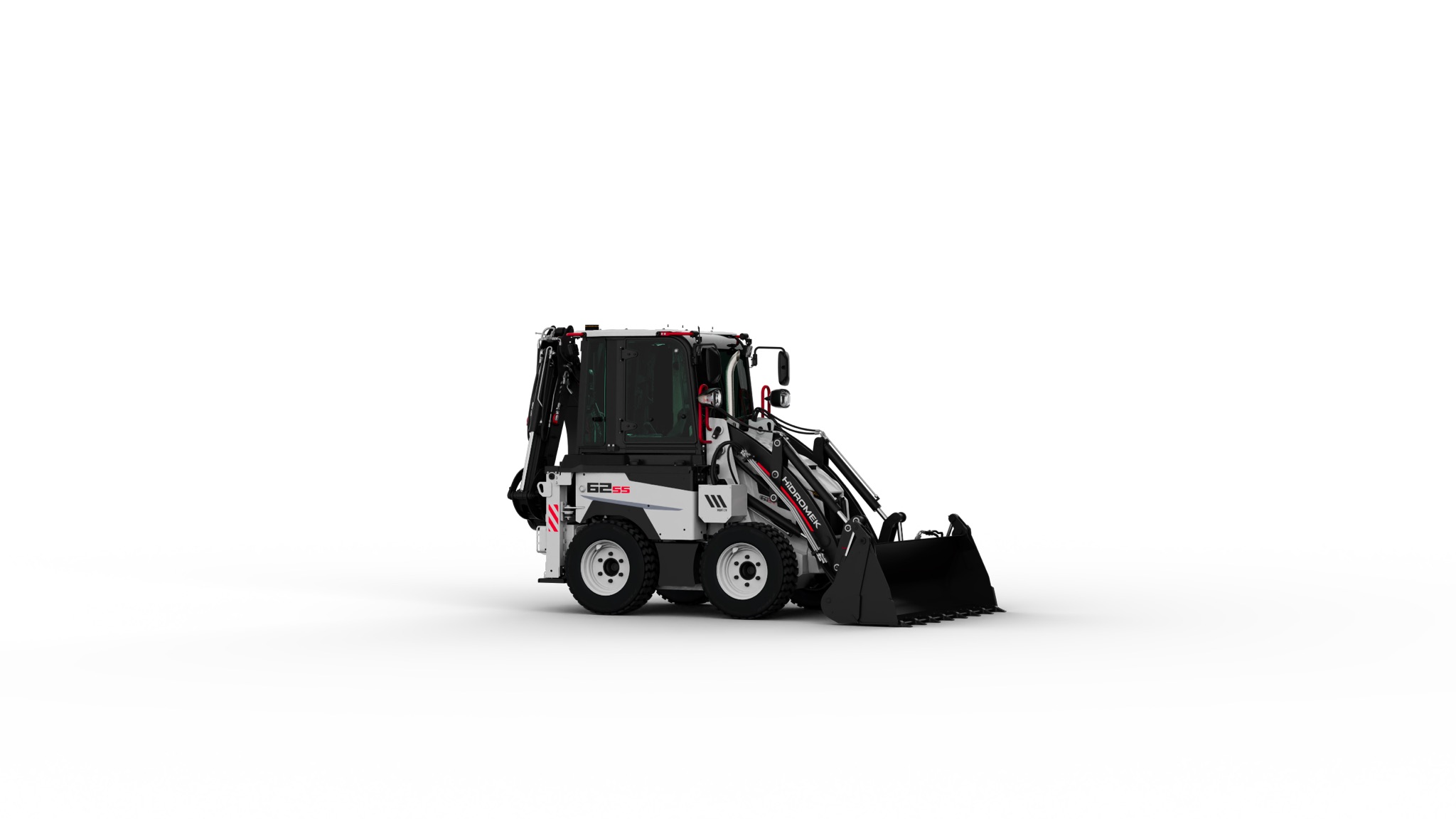

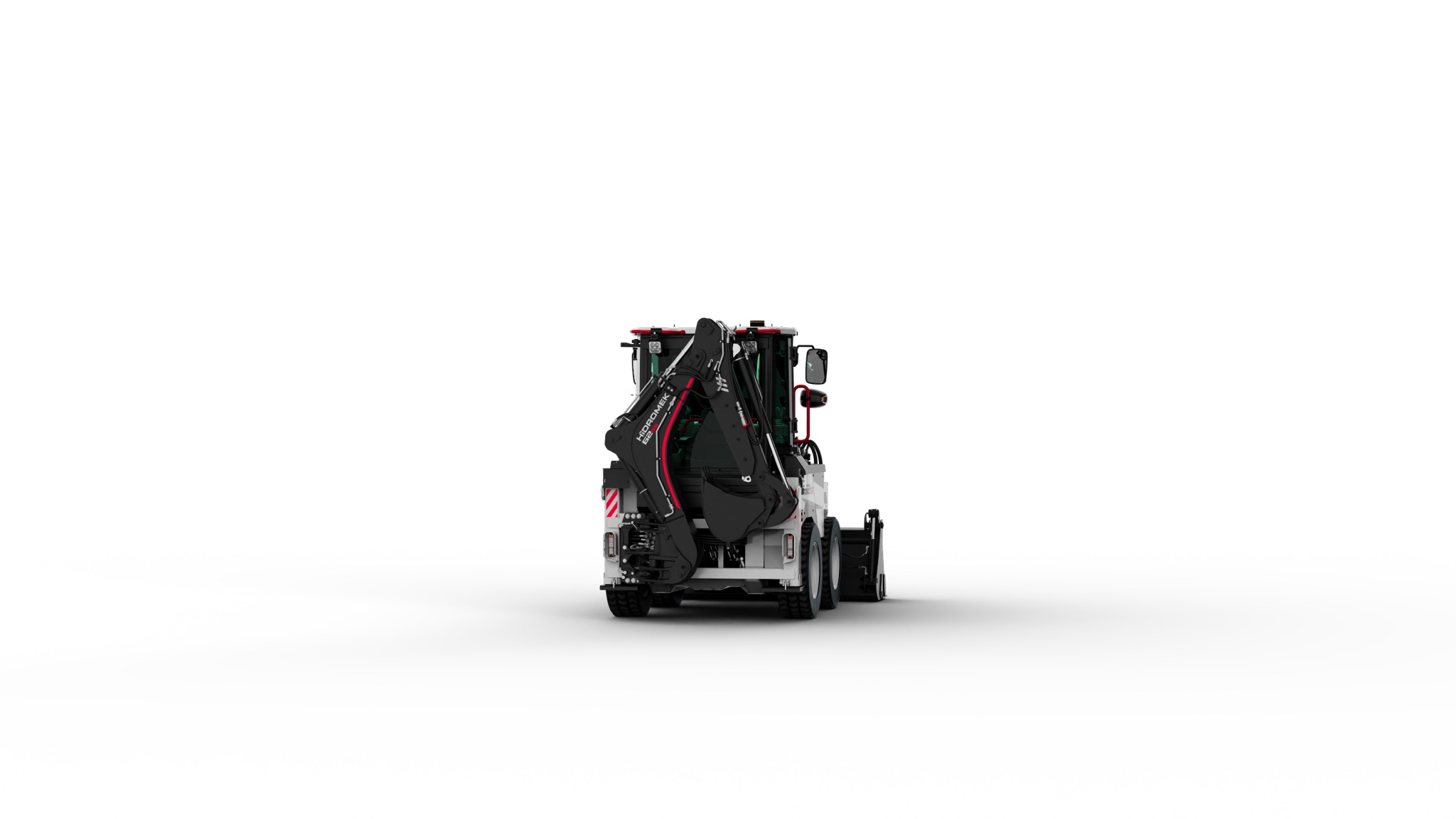

K4 HMK 62 SS

Maximum Power

65,1 HP (48,6 kW) @2700 rpm

Maximum loader bucket breakout force

2883 kgf

Loader Bucket Capacity

0,35 m³

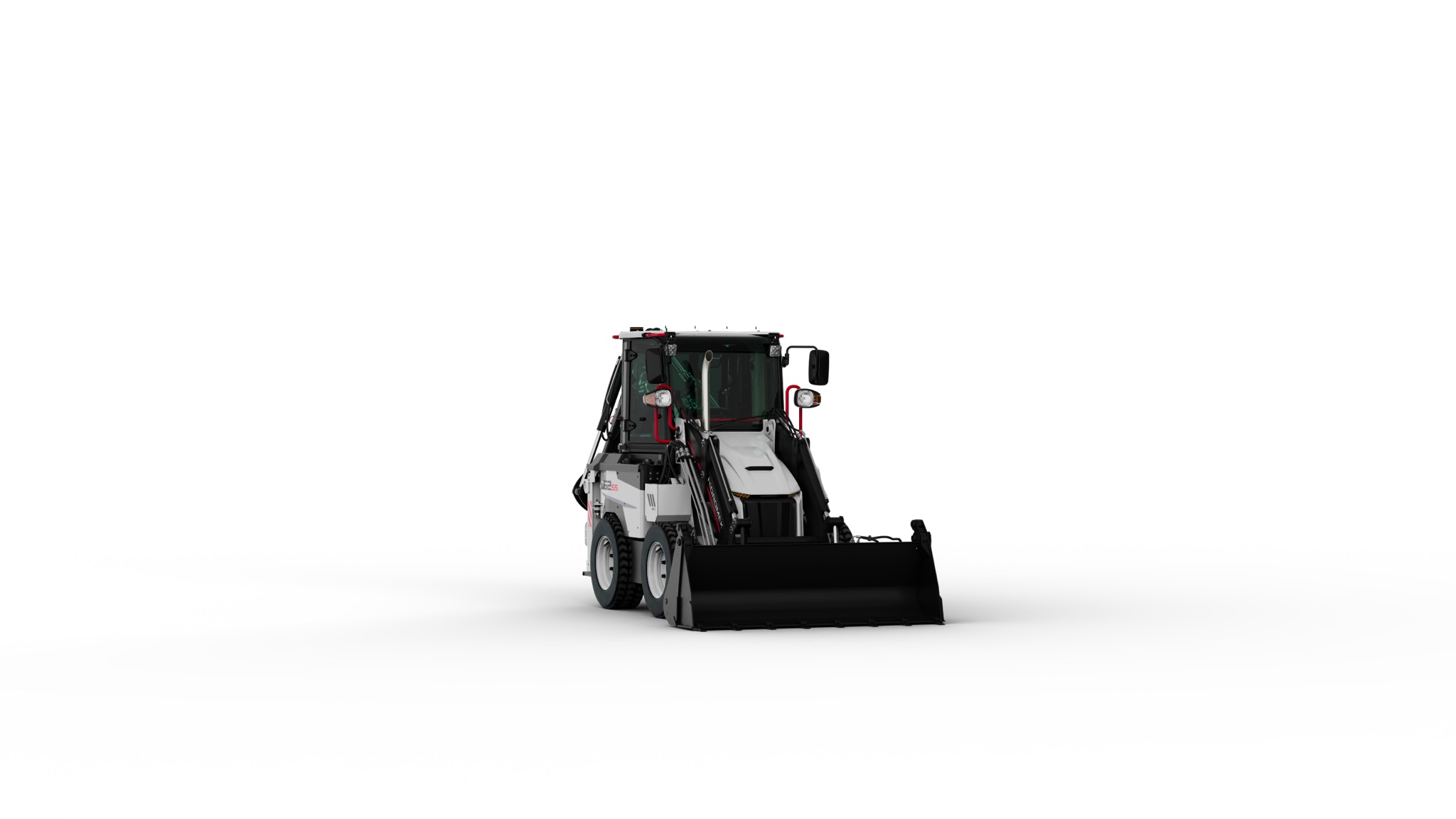

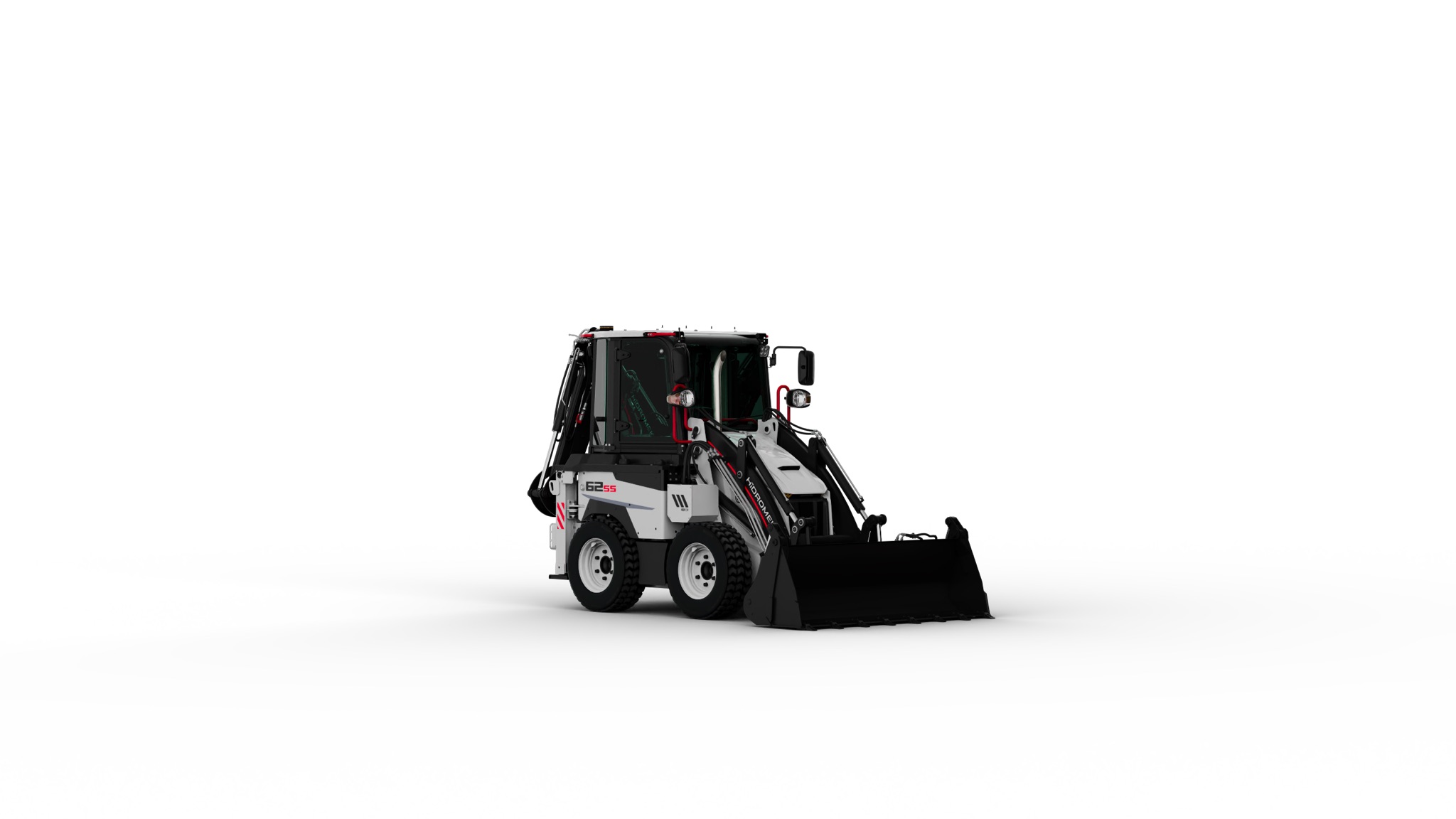

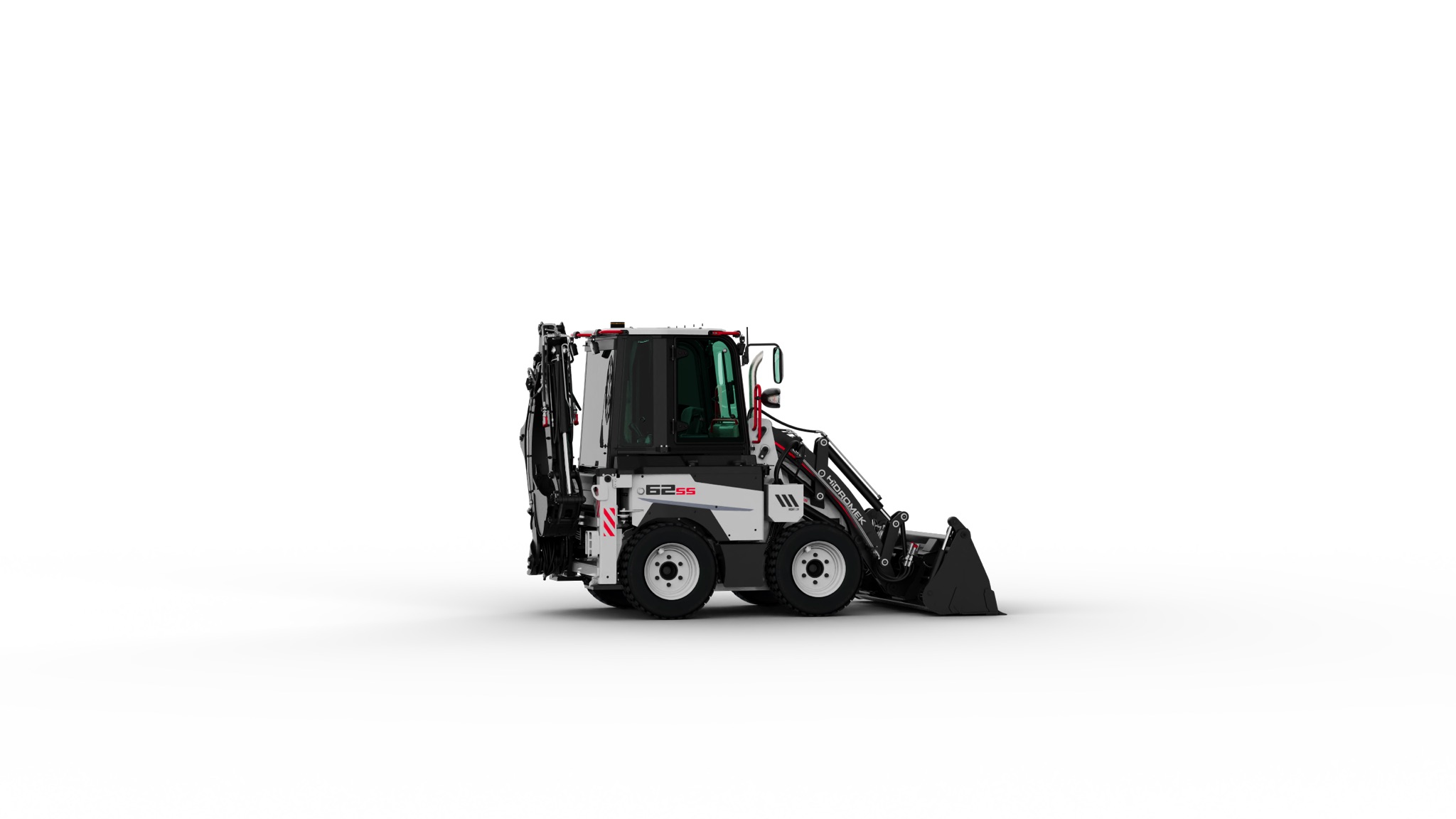

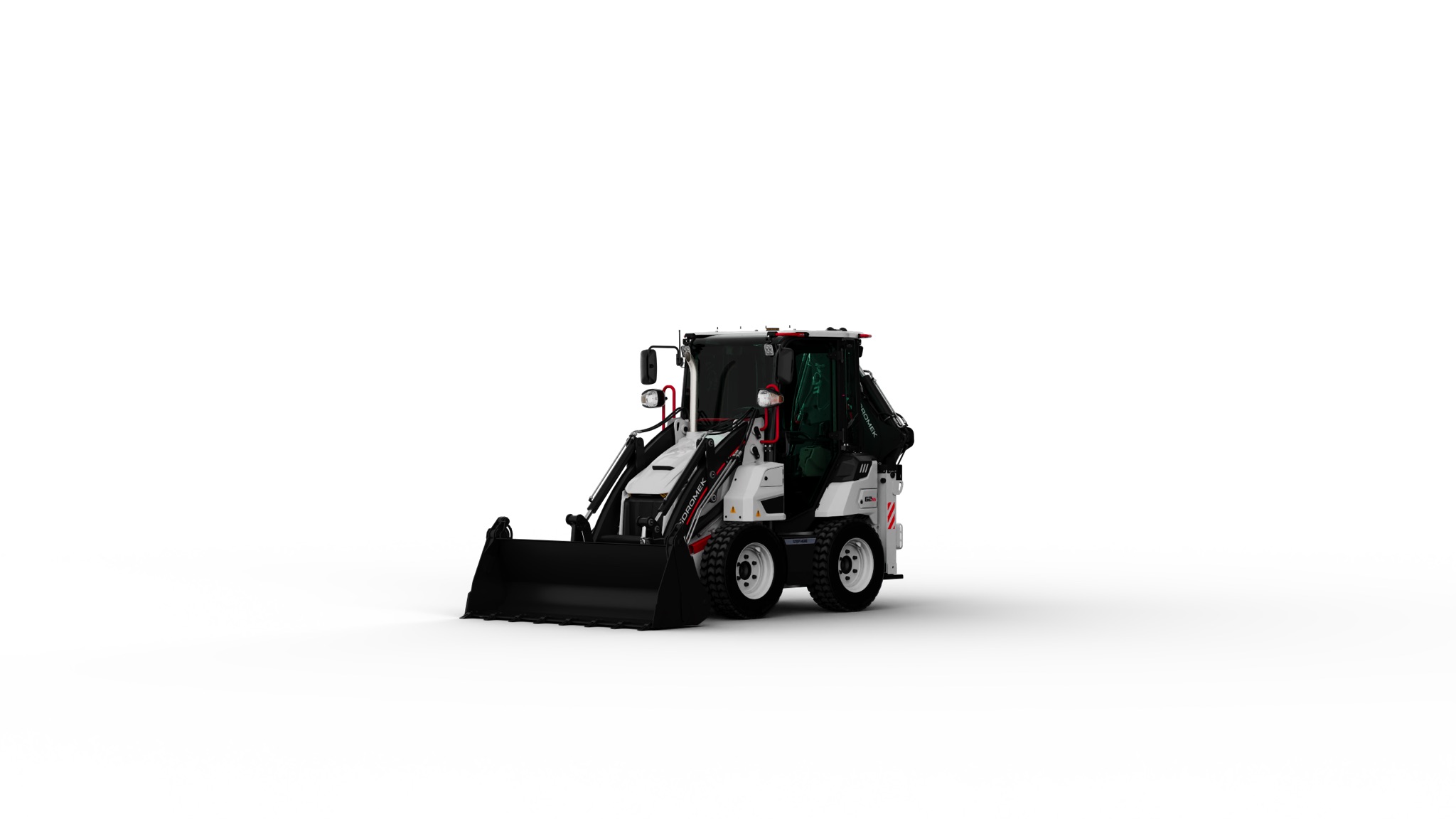

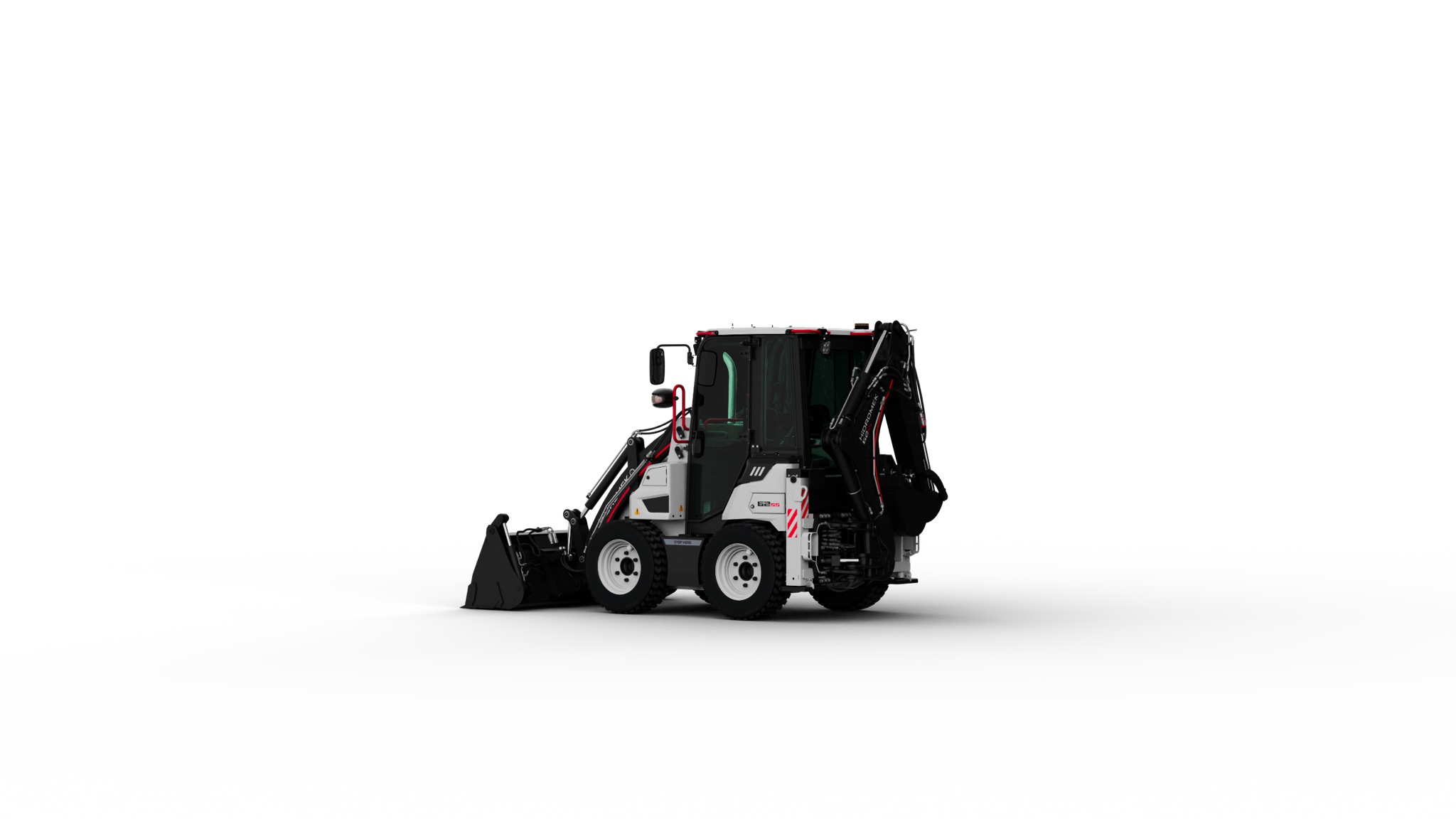

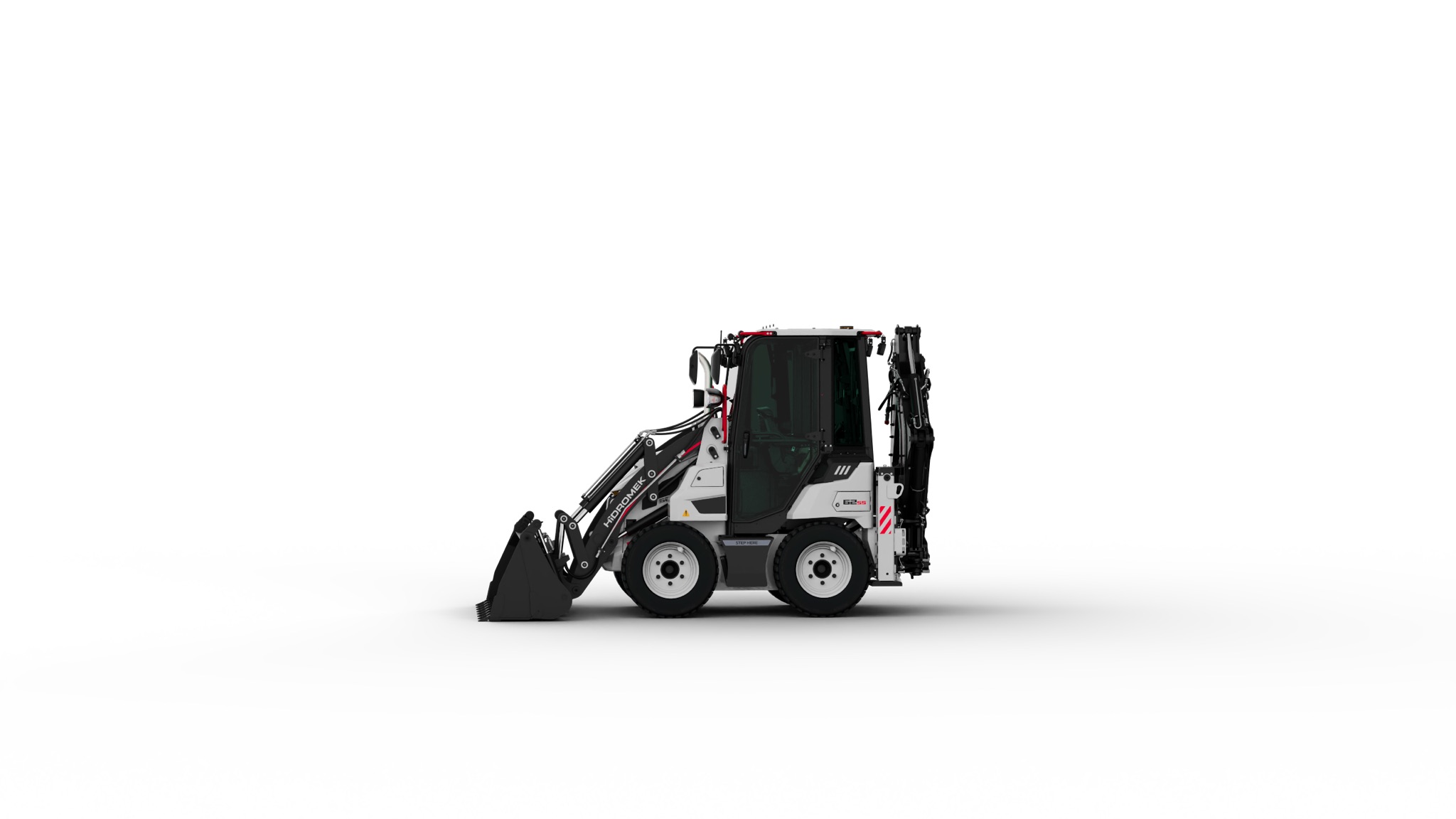

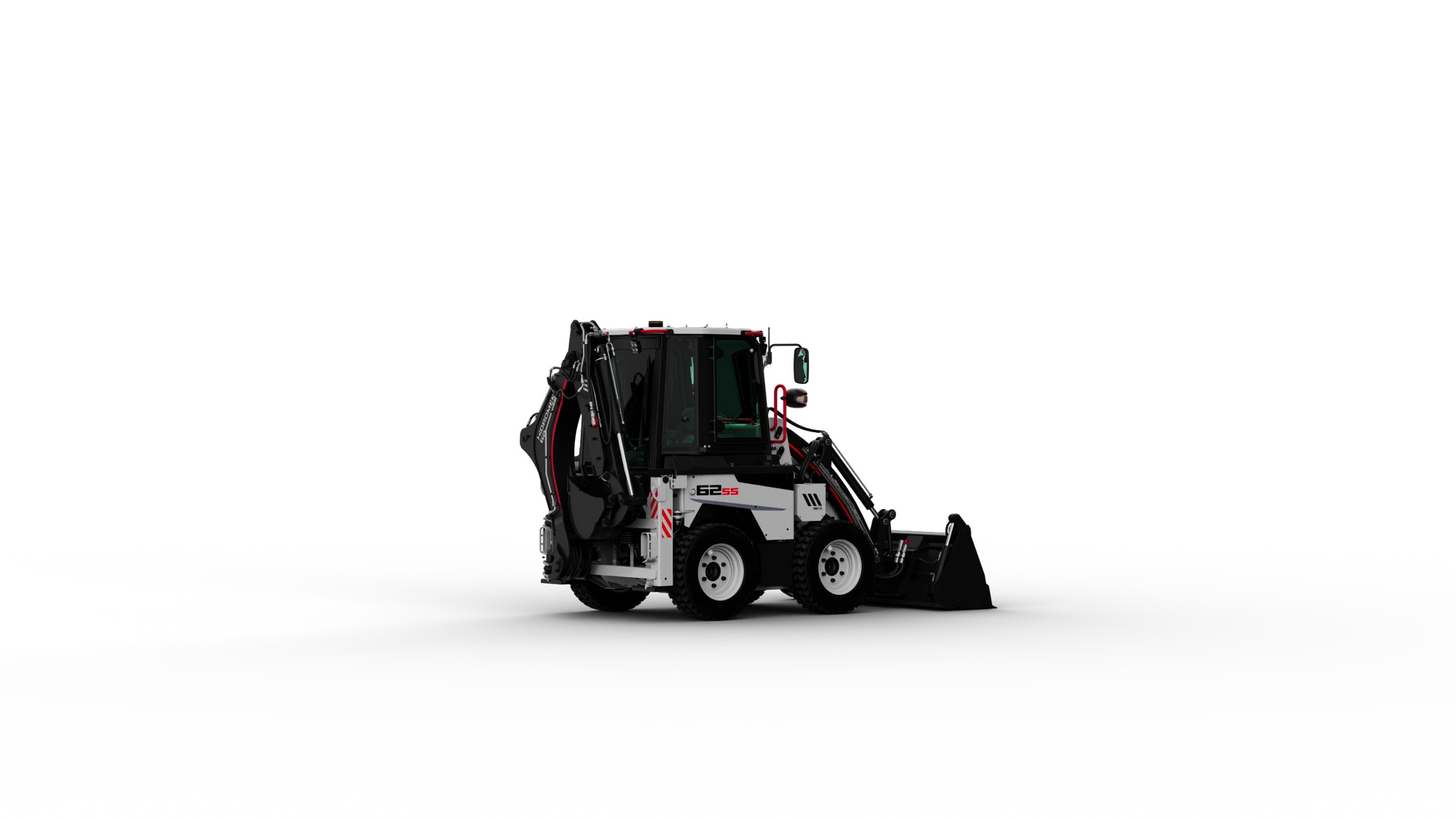

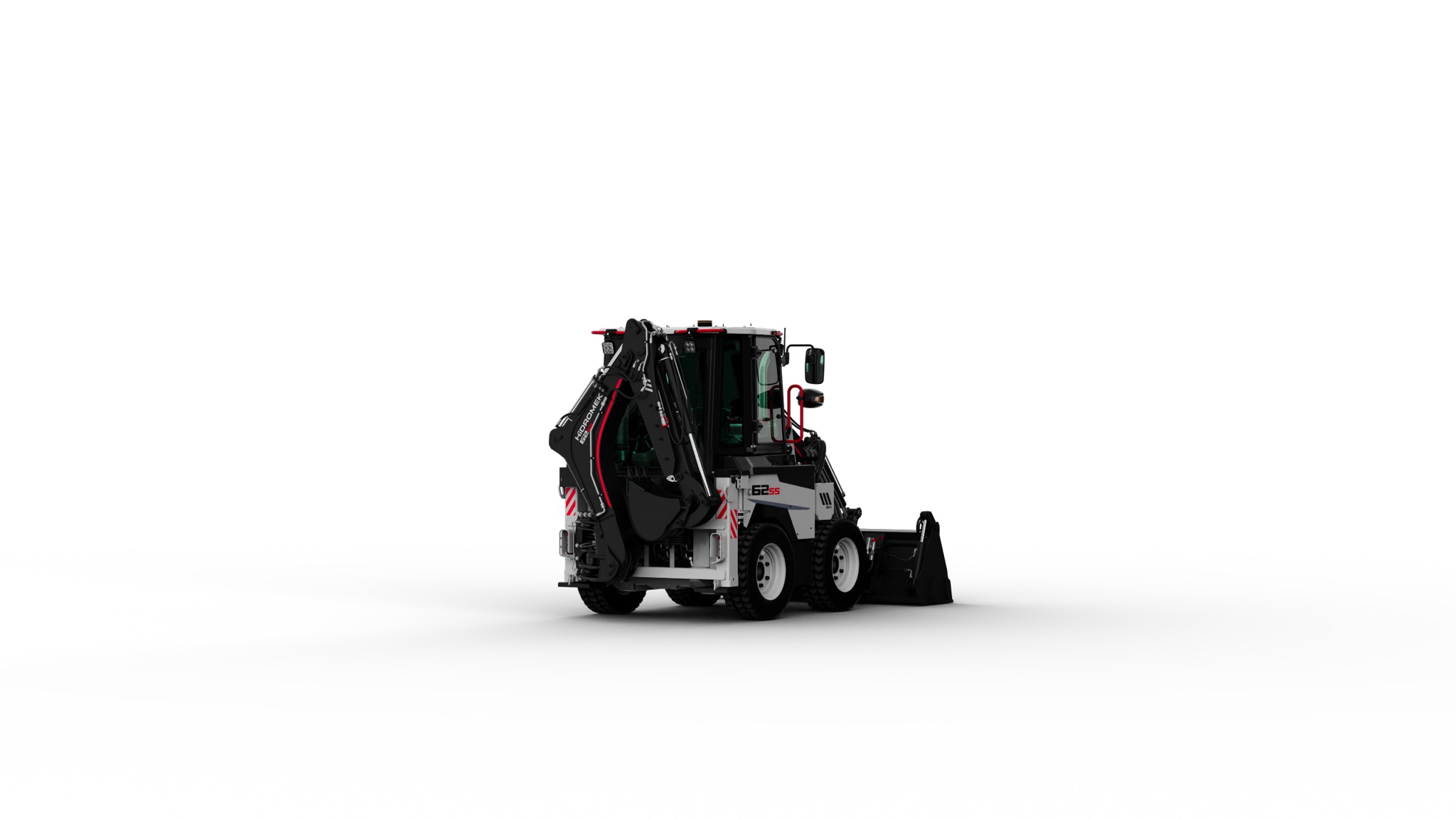

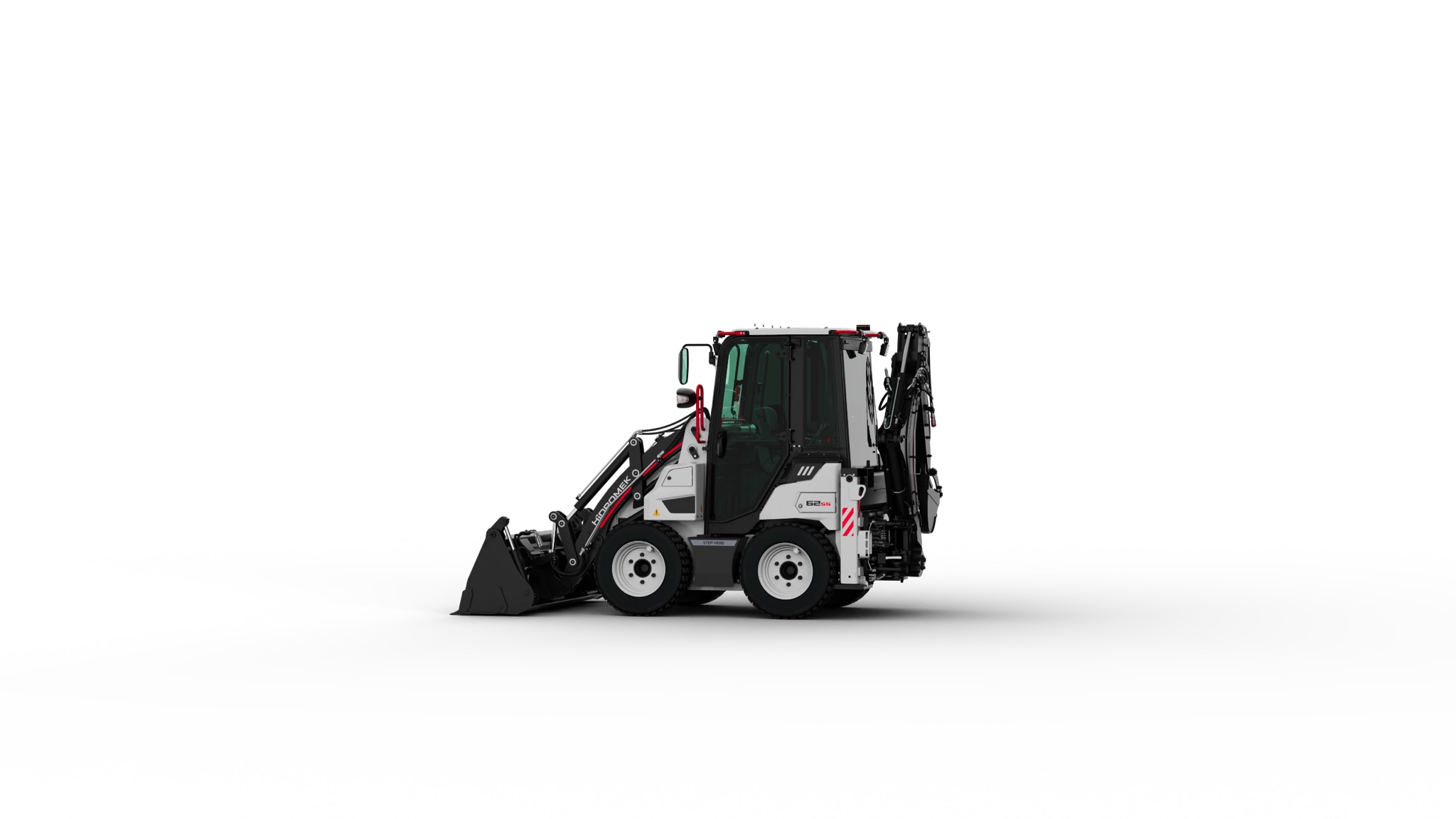

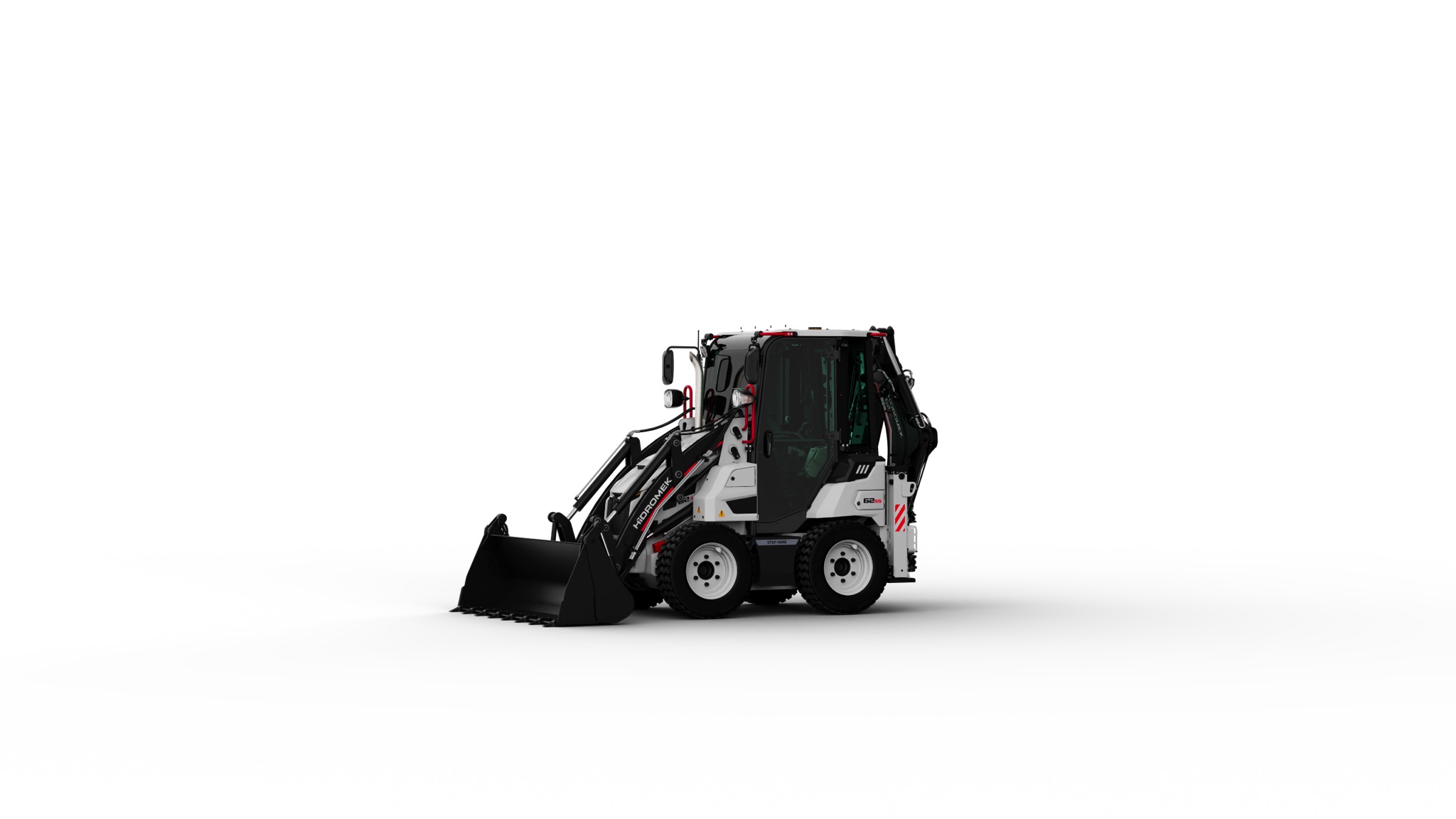

HİDROMEK HMK 62 SS is a compact yet powerful and reliable machine designed to perform efficiently even under tough working conditions and long operating hours. It combines durability with high performance, making it suitable for demanding environments.

The HMK 62 SS allows you to perform the work of both a mini excavator and a mini loader with a single machine, reducing investment costs and increasing productivity. Its compact structure, 360-degree rotation capability, and versatile design make it ideal for urban construction sites and agricultural applications where space is limited.

Features

  • Compact and space-saving design
  • 360° rotation on its own axis
  • Combines mini excavator and mini loader functions
  • Banana boom for enhanced backhoe performance
  • Additional auxiliary hydraulic lines (standard)
  • Suitable for urban construction and agricultural work
  • Cost-effective solution with higher productivity
  • Built for long working hours and tough conditions

Specifications

Engine

  • Brand / Model: KUBOTA V2403-CR-T-EW03
  • Maximum Power: 65.1 HP (48.6 kW) @ 2700 rpm
  • Displacement: 2434 cm³
  • Type: Water-cooled turbocharged diesel engine
  • Maximum Torque: 199 Nm @ 1600 rpm
  • Bore & Stroke: 87 × 102.4 mm
  • Emission Class: Stage V / Tier 4 Final (EU/EPA)

Hydraulic System

  • Pressure: 250 bar
  • Main Pump Flow: 60 L/min @ 3000 rpm

Tires

  • Front: 10 × 16.5 10 PR SKZ
  • Rear: 10 × 16.5 10 PR SKZ

Loader Performance

  • Maximum Loader Bucket Breakout Force: 2883 kgf
  • Loader Bucket Capacity: 0.35 m³
  • Maximum Loading Arm Breakout Force: 2600 kgf
  • Lifting Capacity (Max Height): 885 kg

Backhoe Performance

  • Backhoe Bucket Capacity: 0.06 m³
  • Maximum Bucket Breakout Force: 1985 kgf
  • Maximum Arm Breakout Force: 1500 kgf

Operating Weight

  • 3,875 kg
