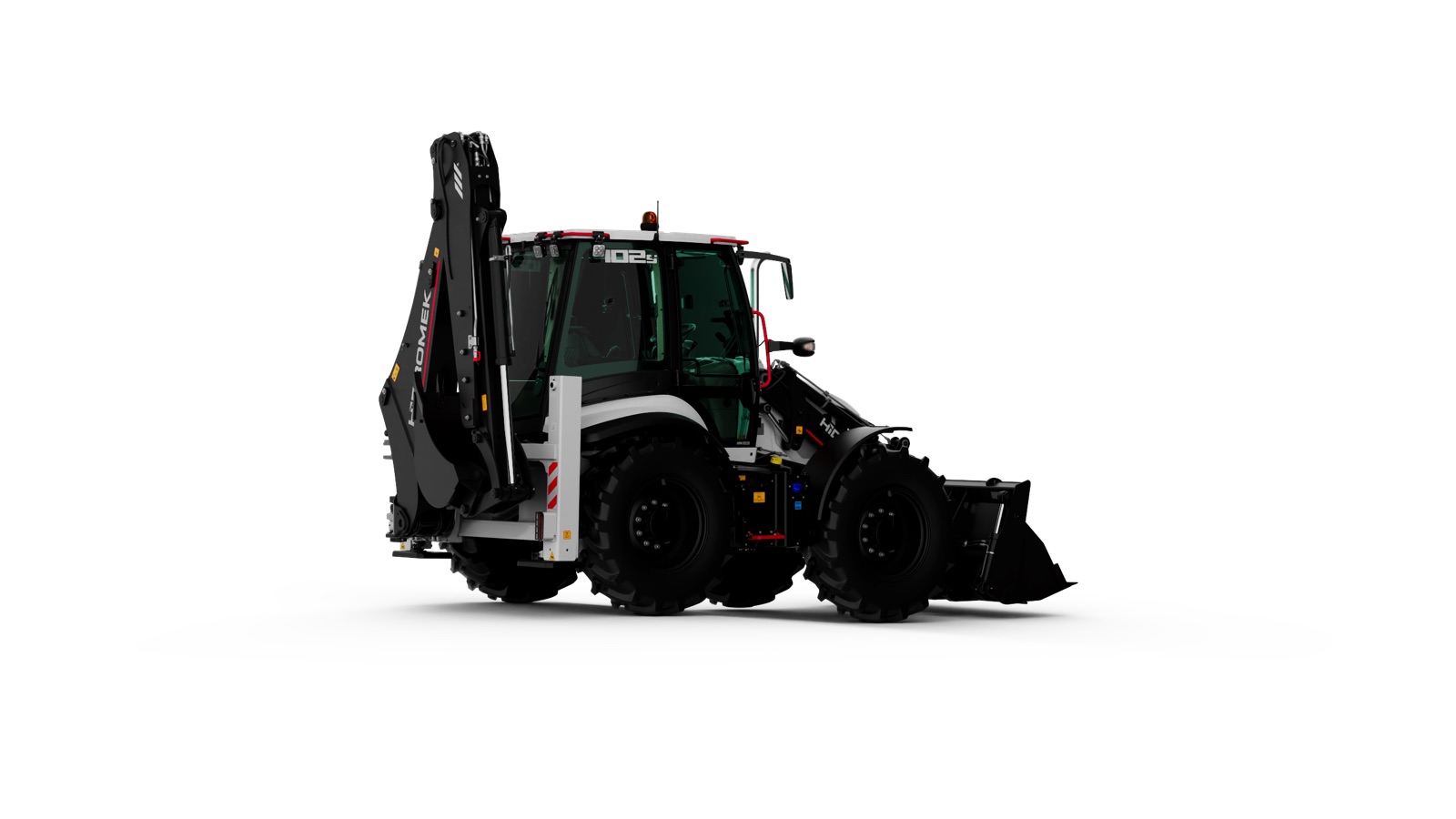

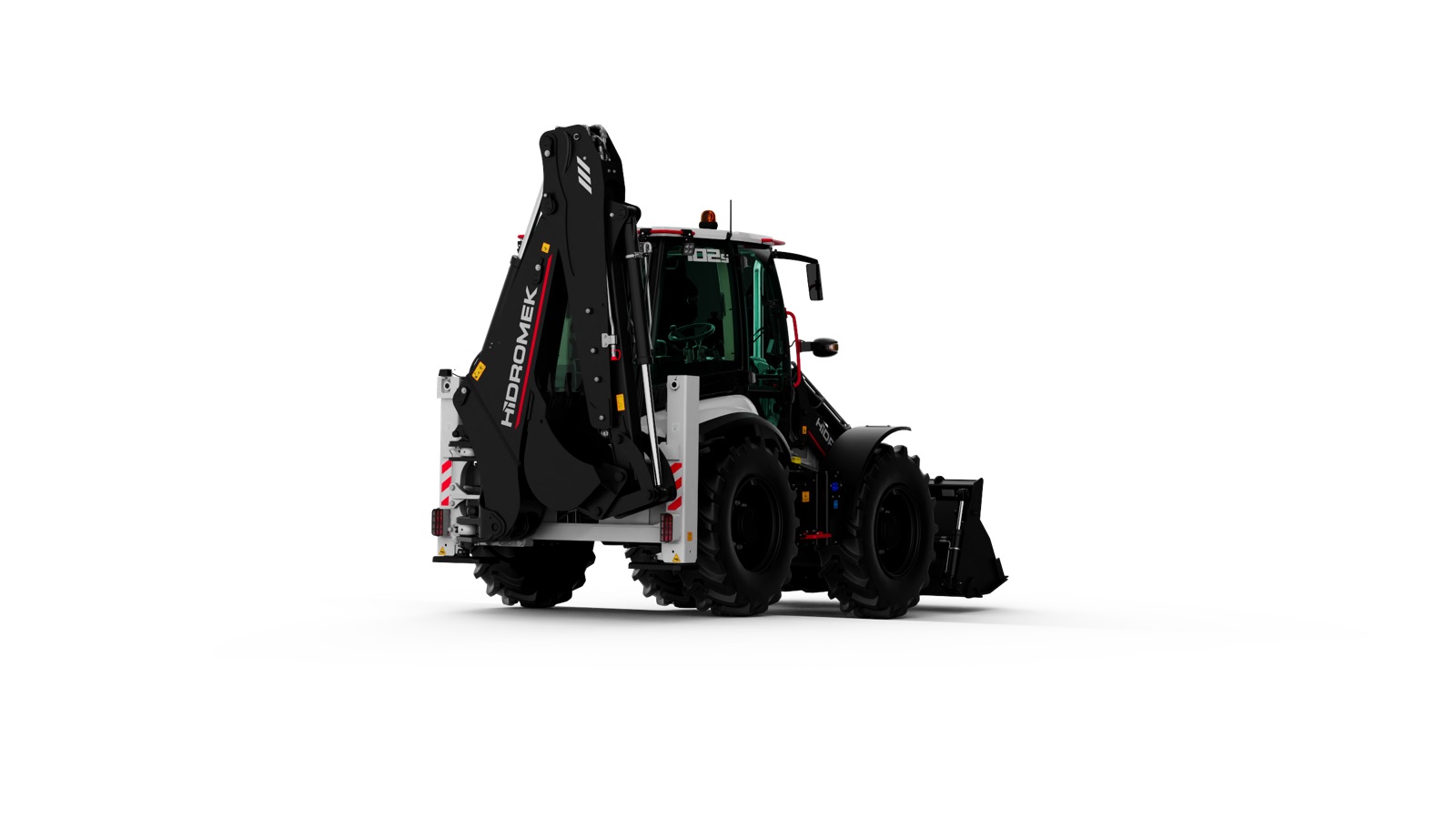

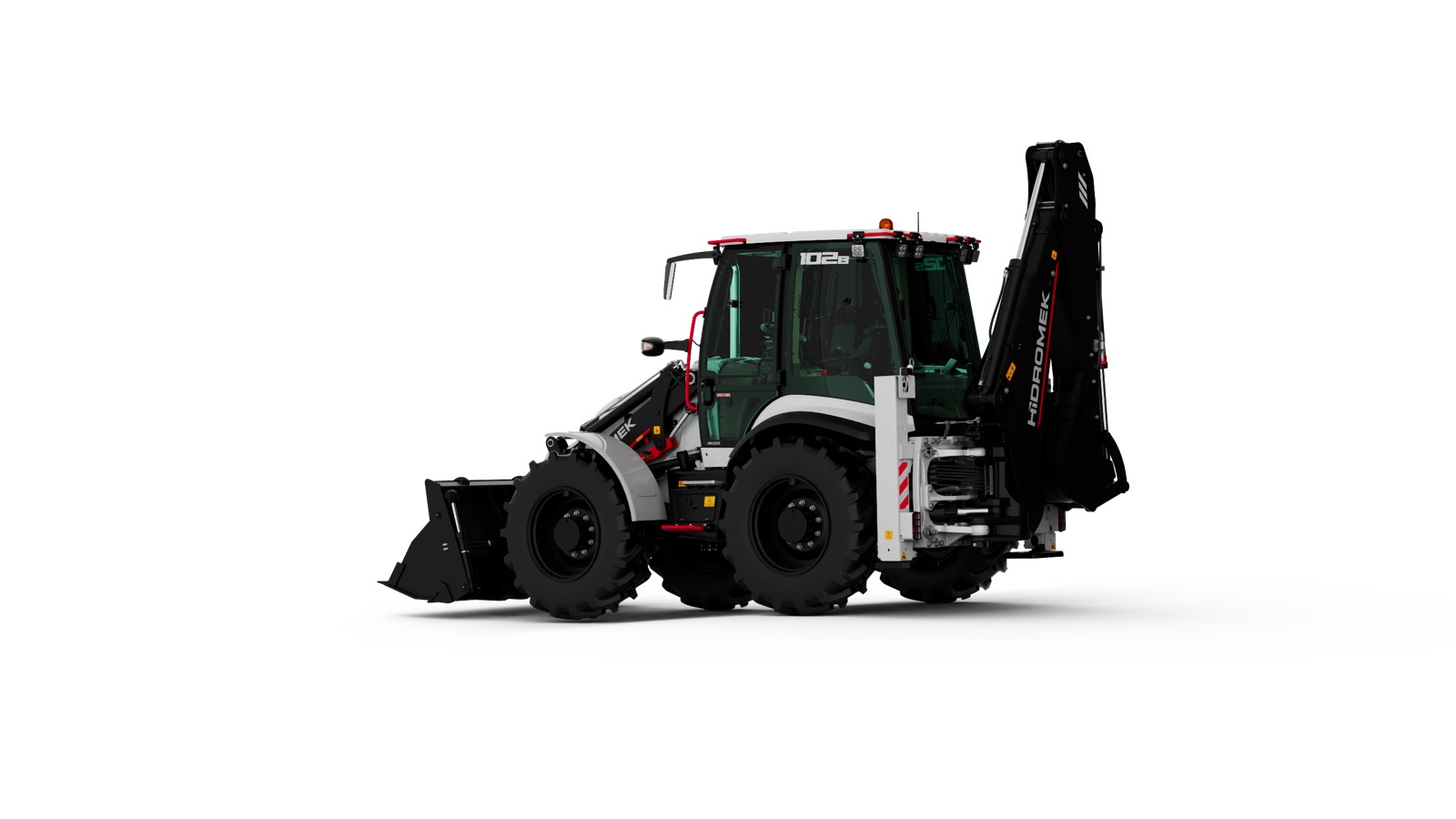

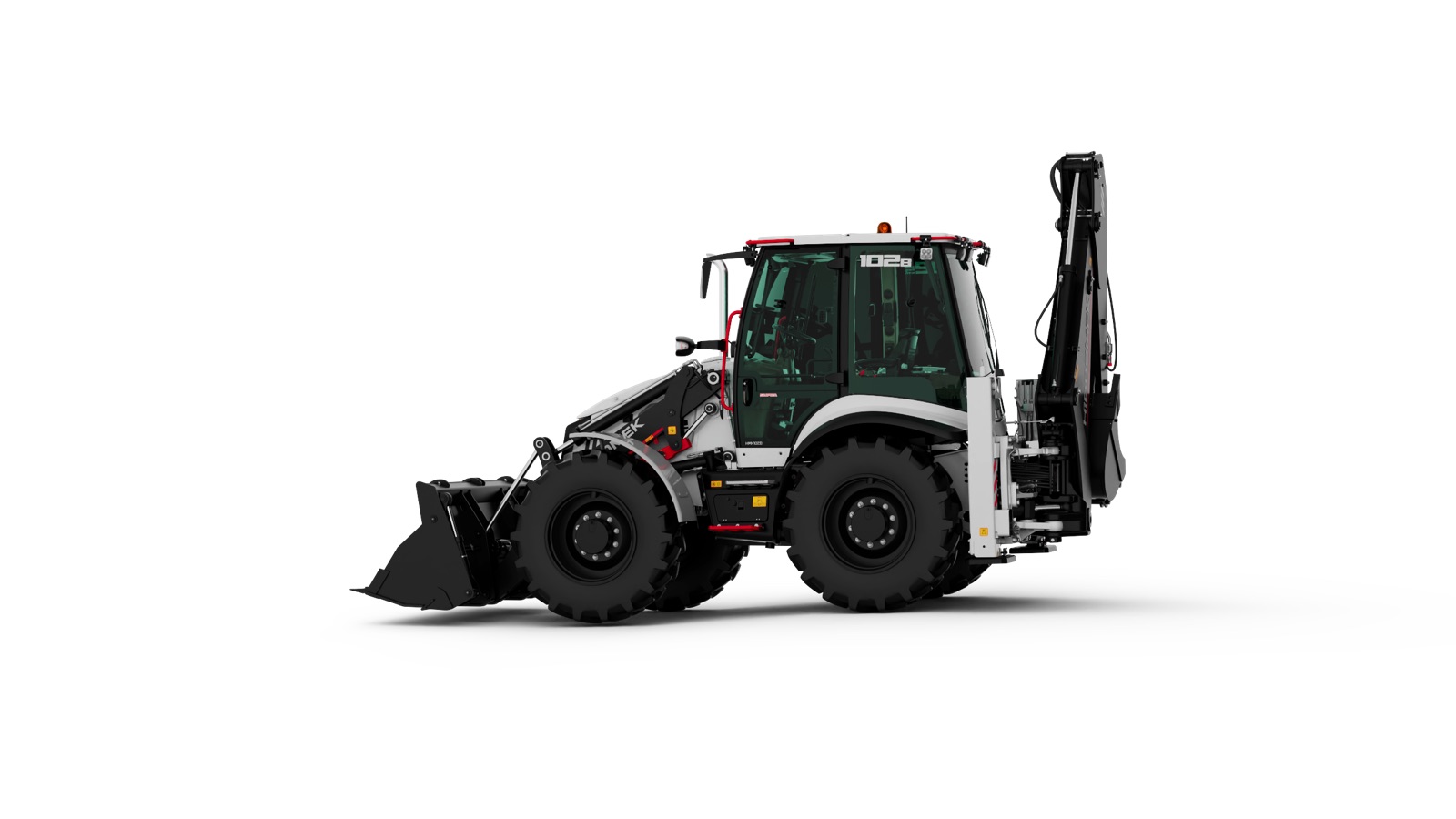

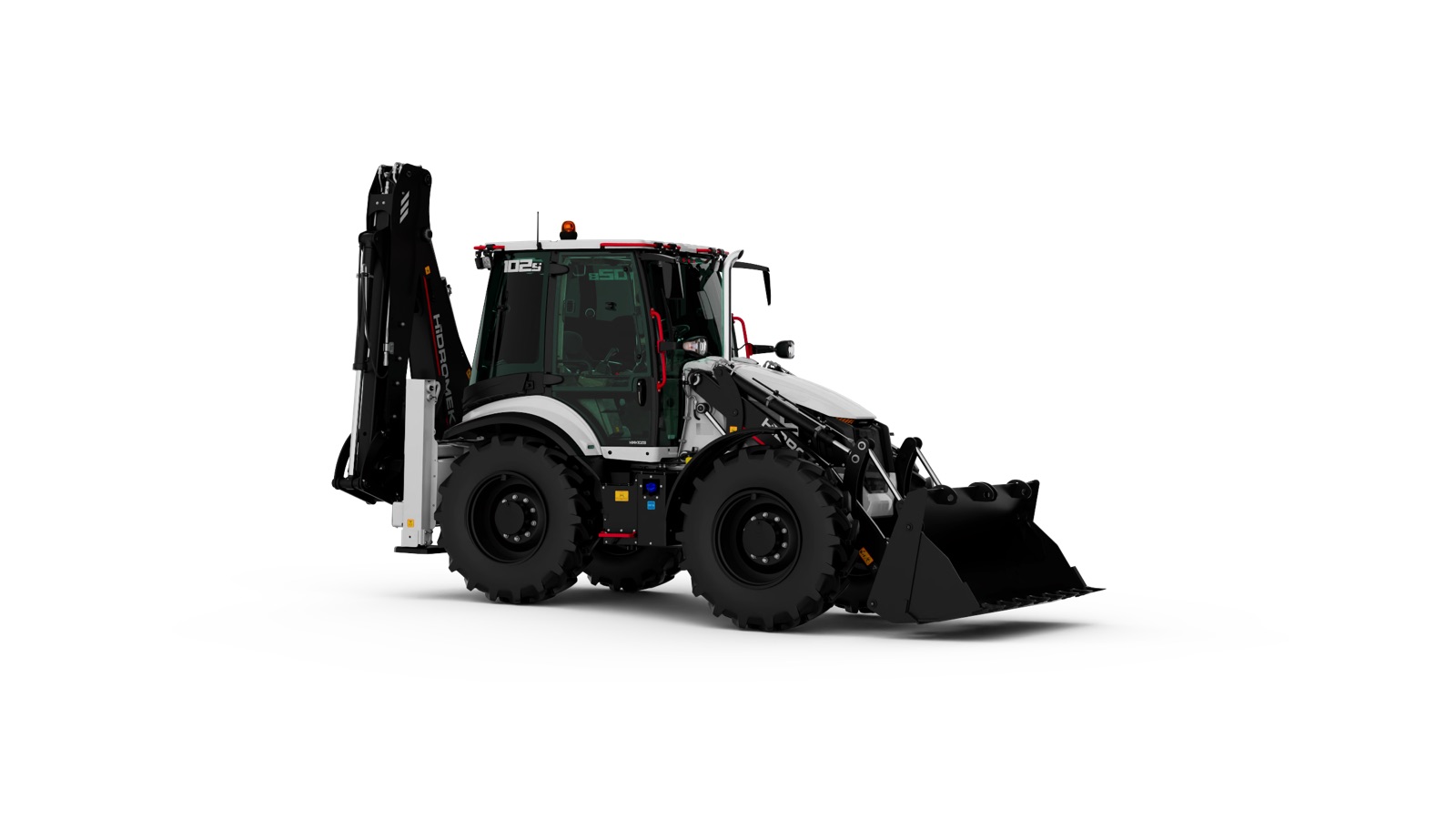

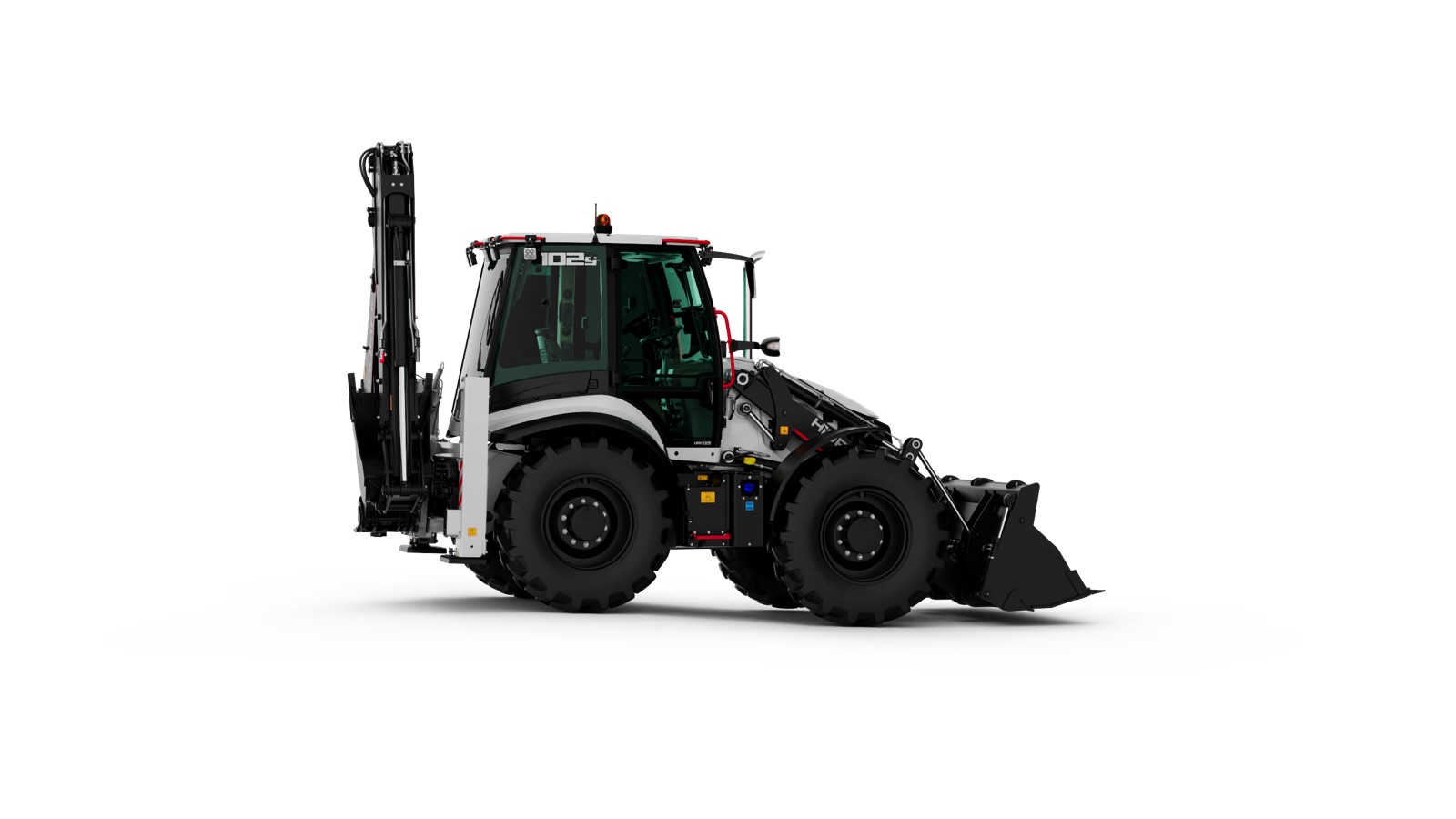

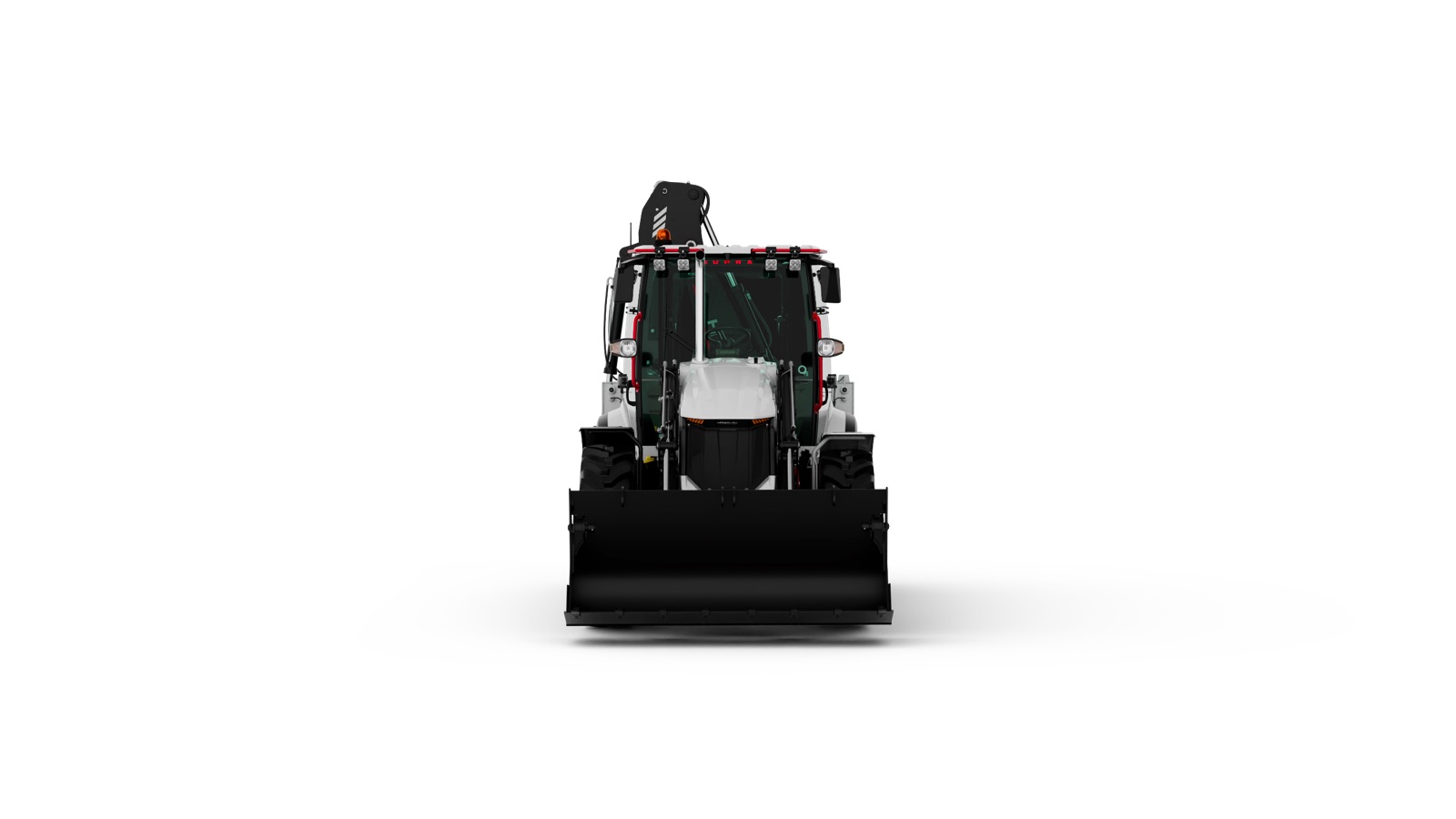

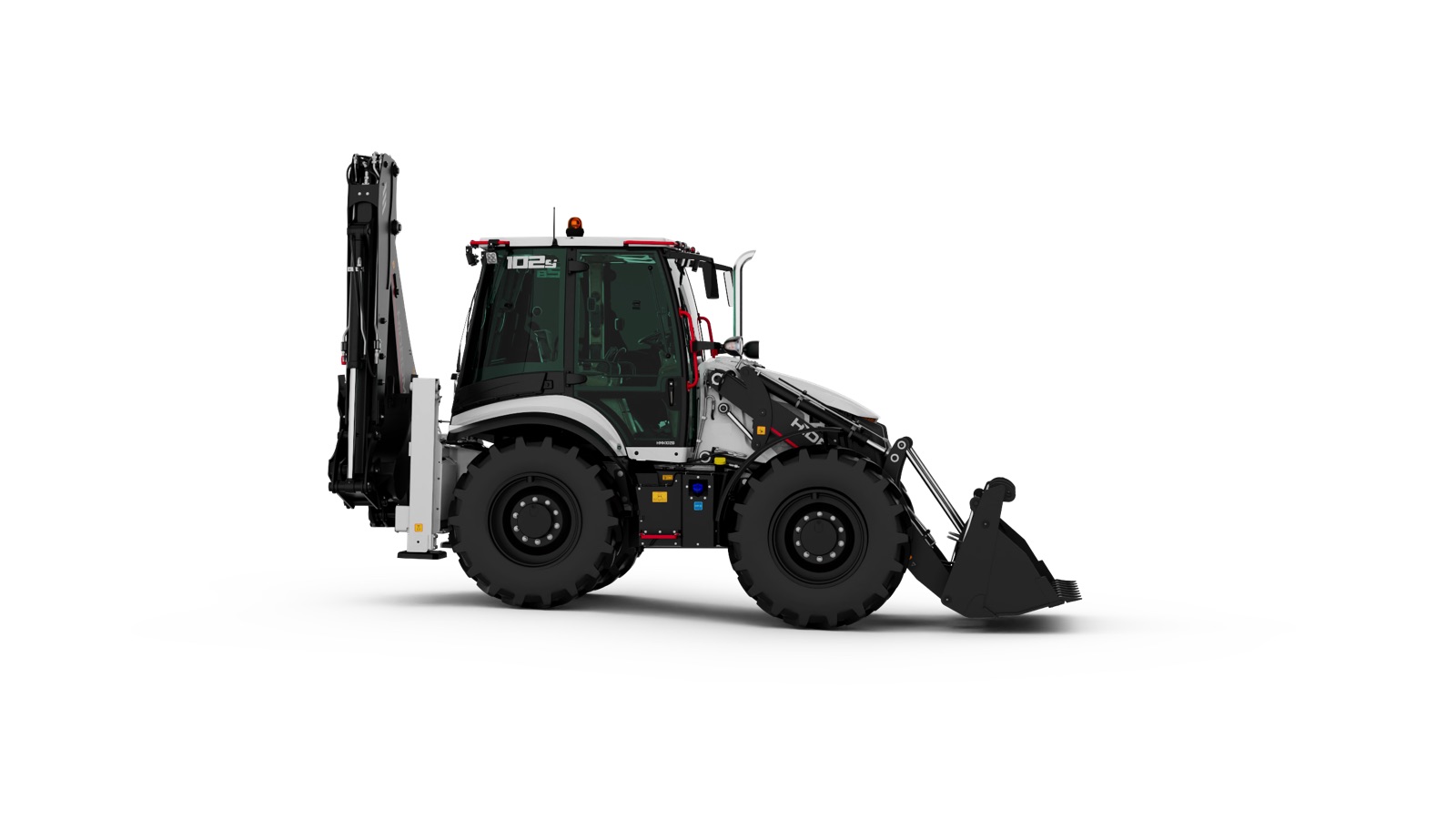

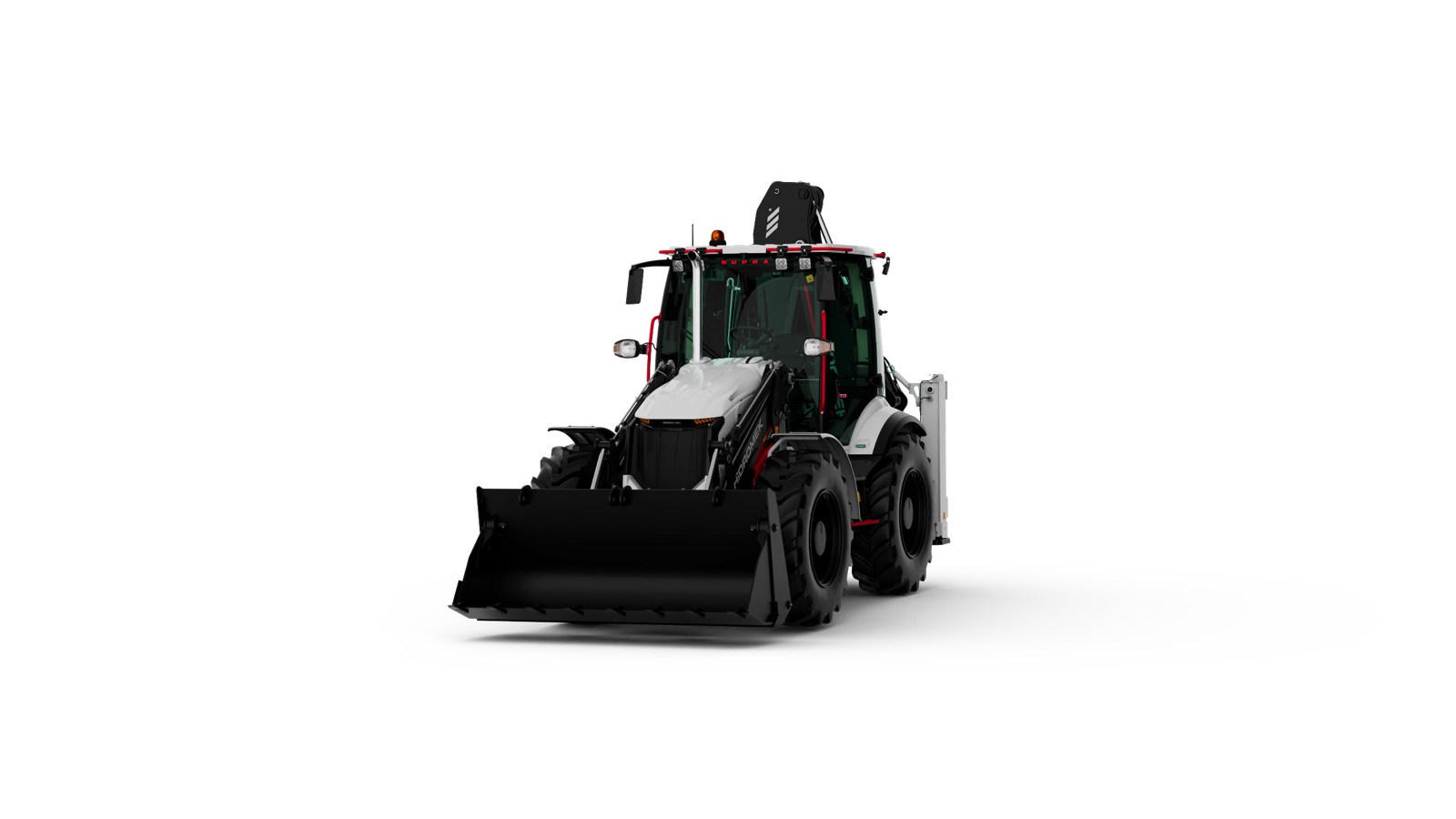

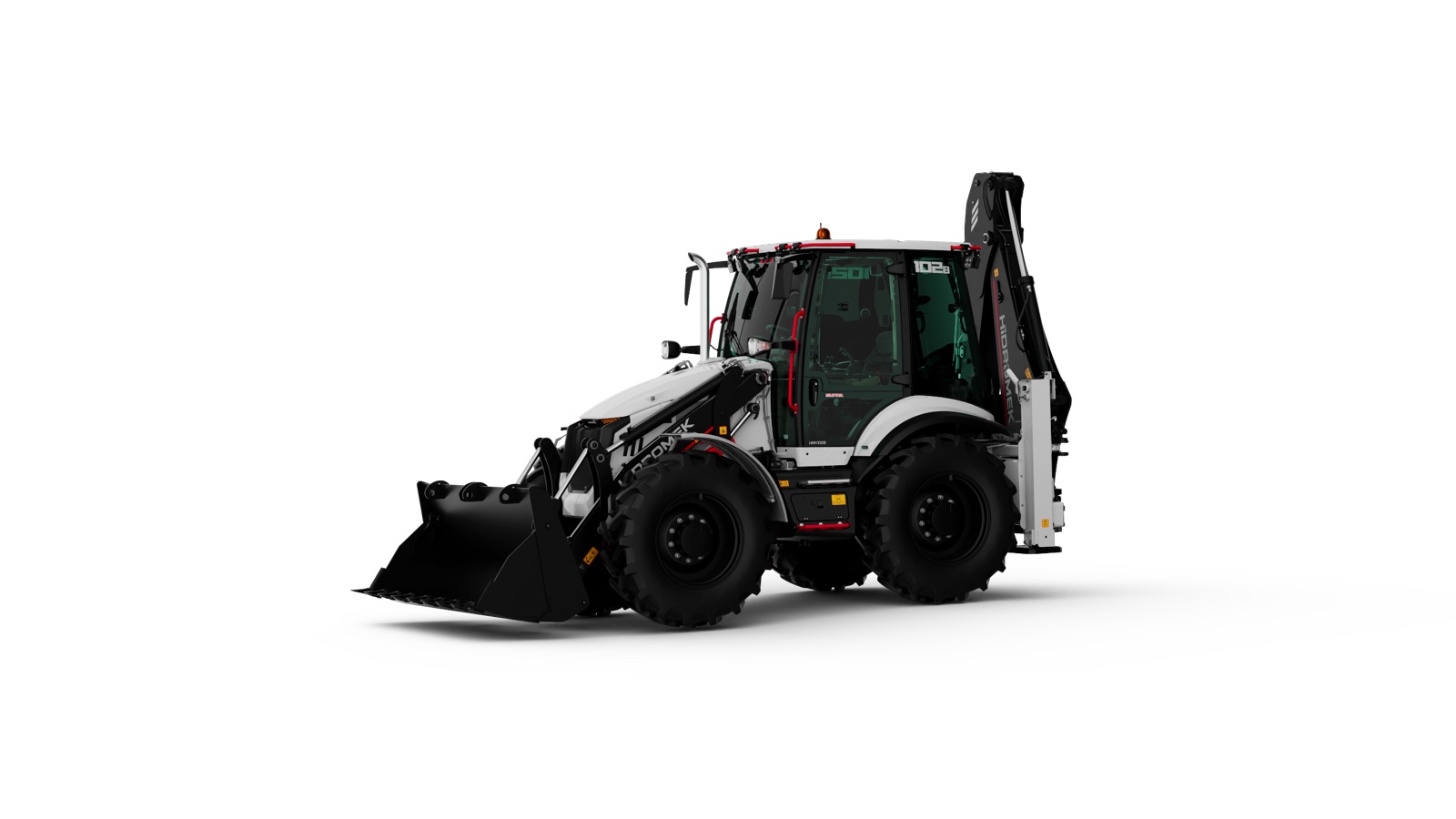

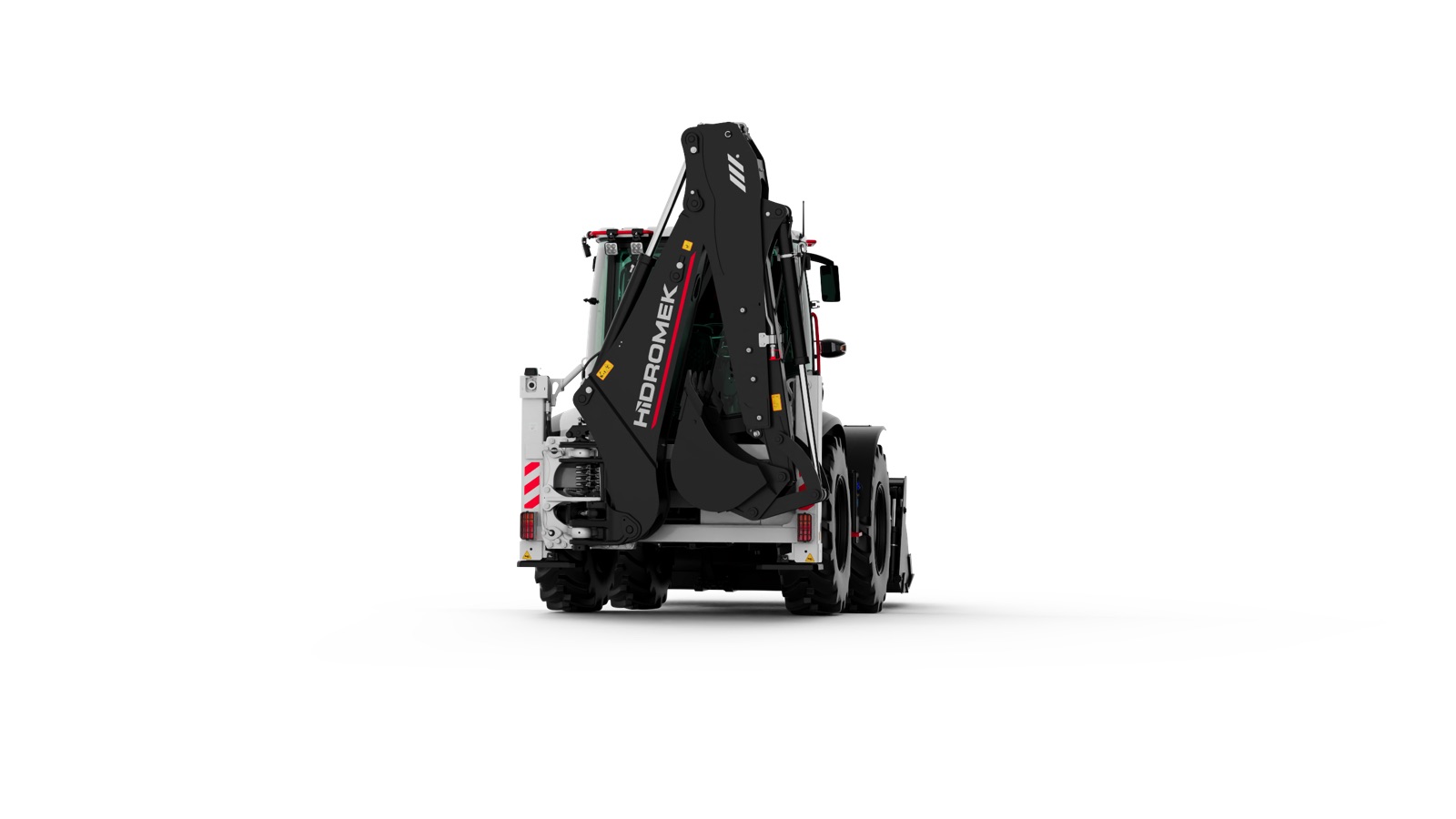

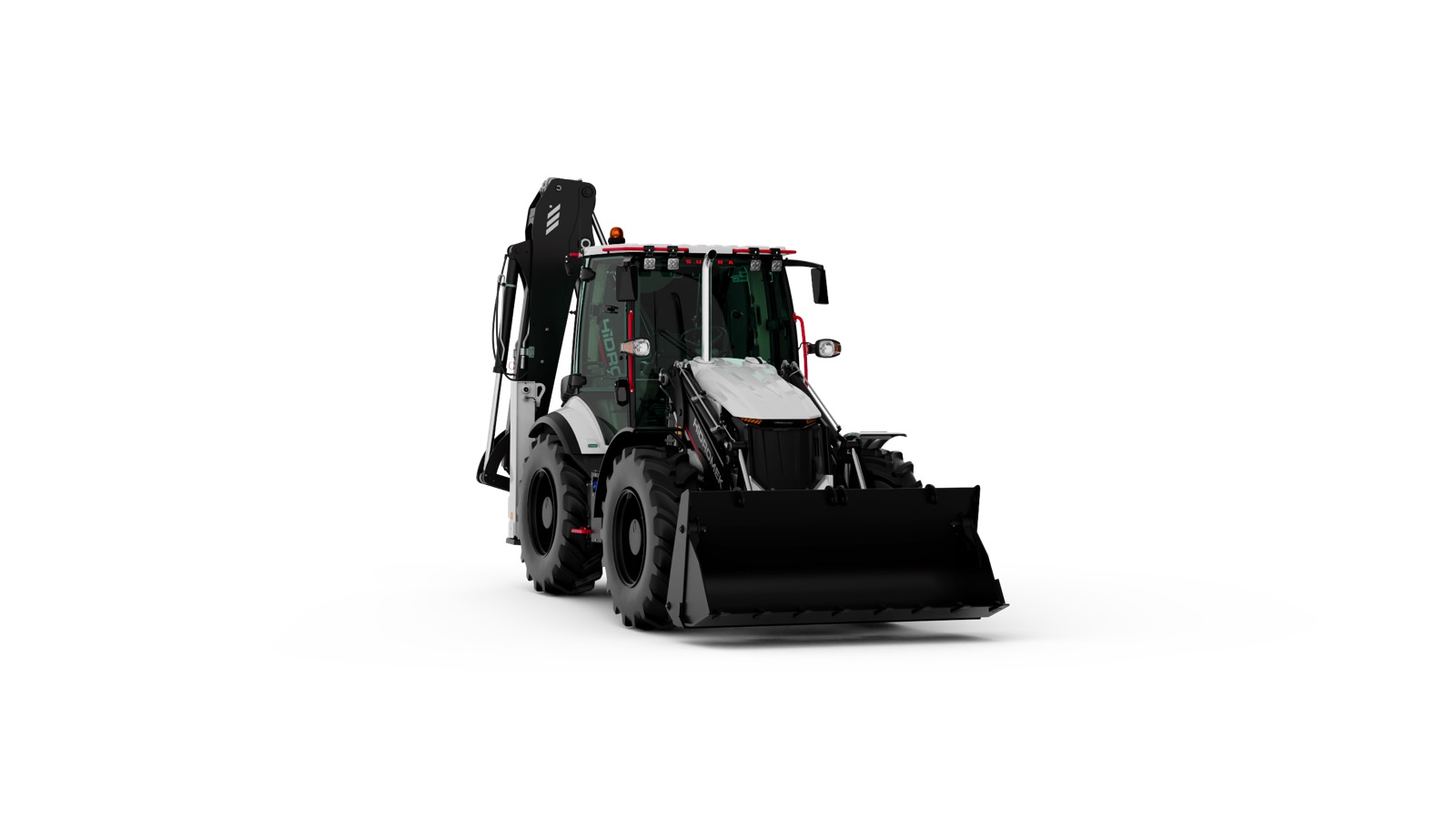

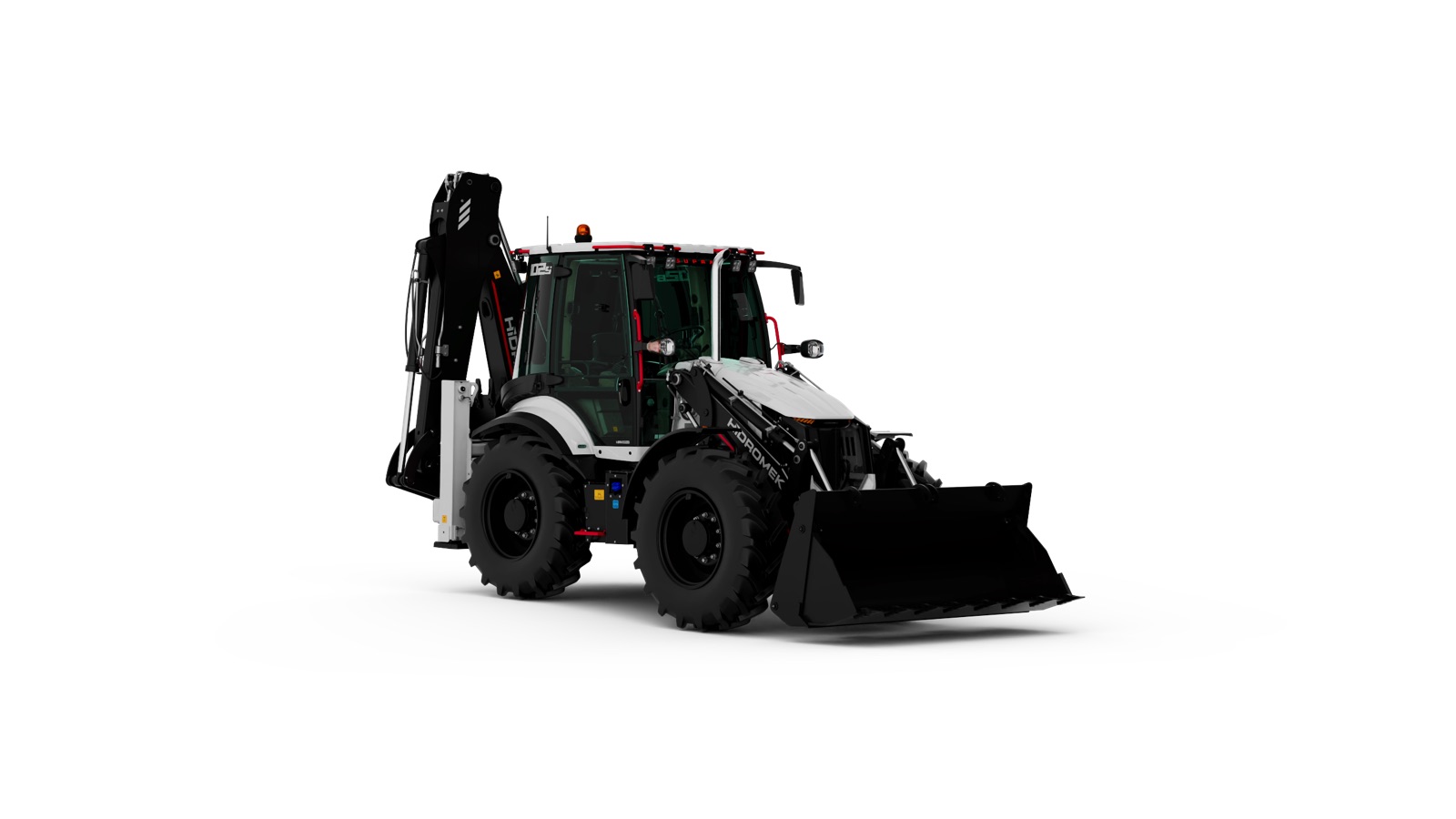

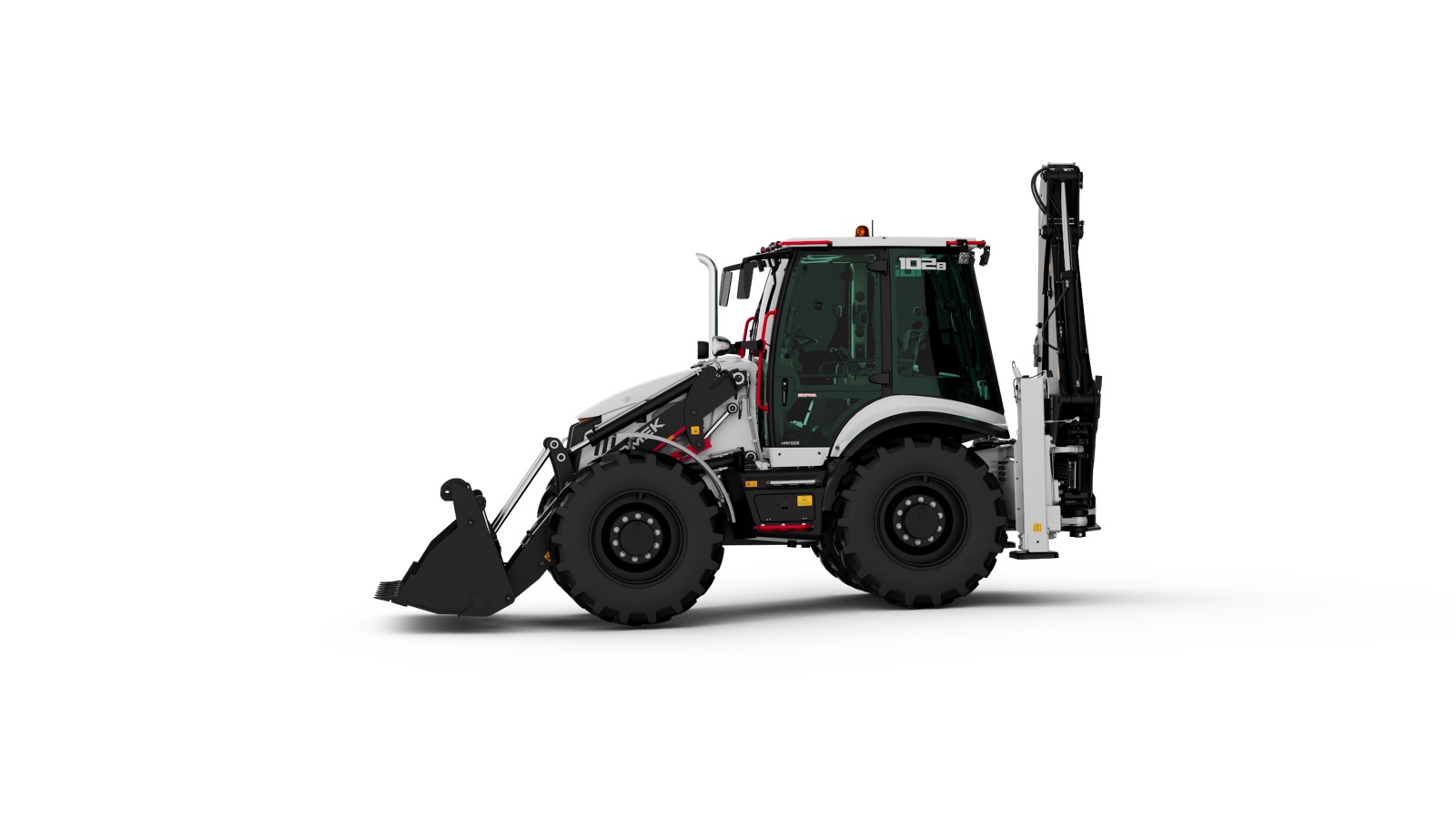

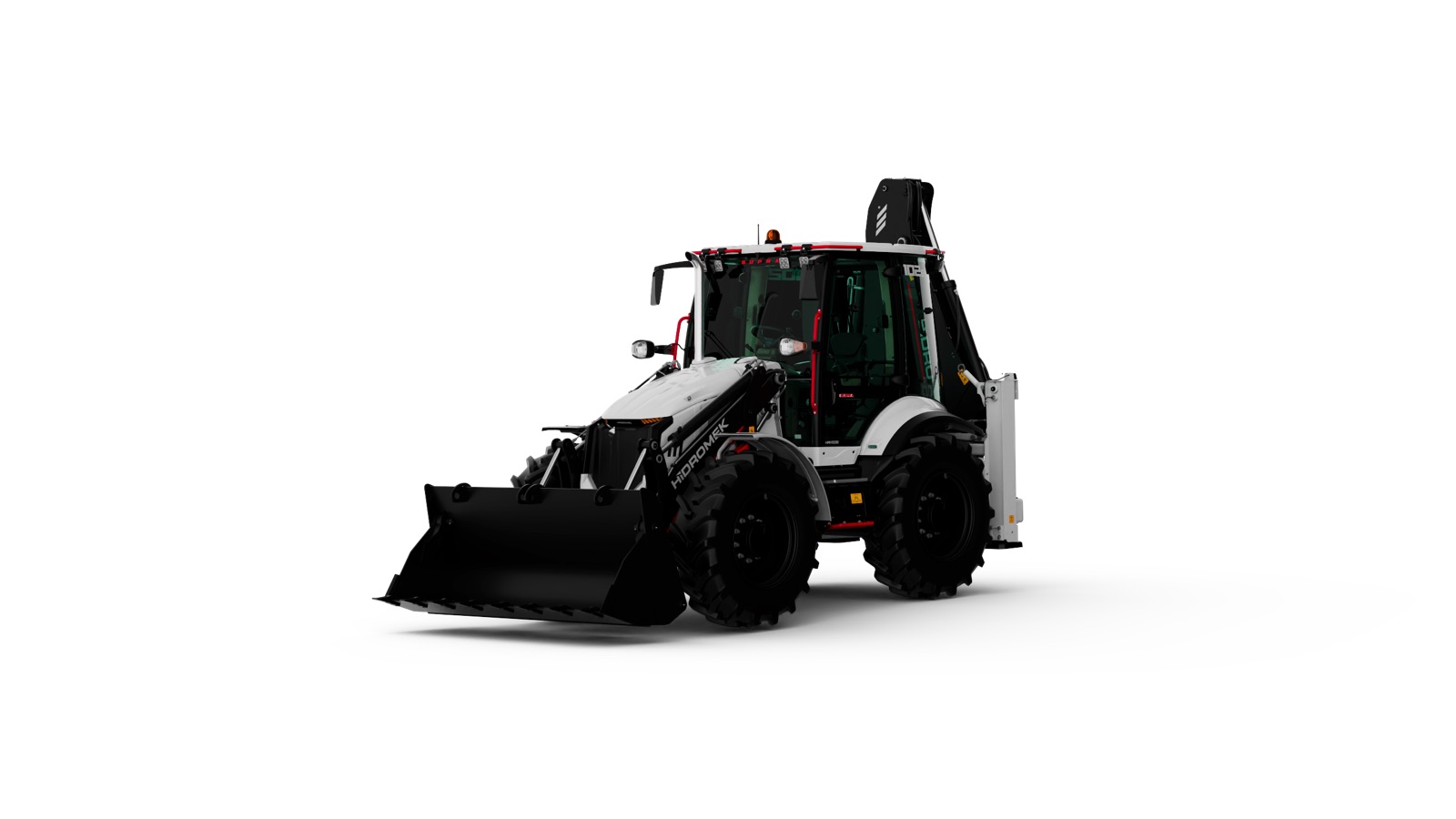

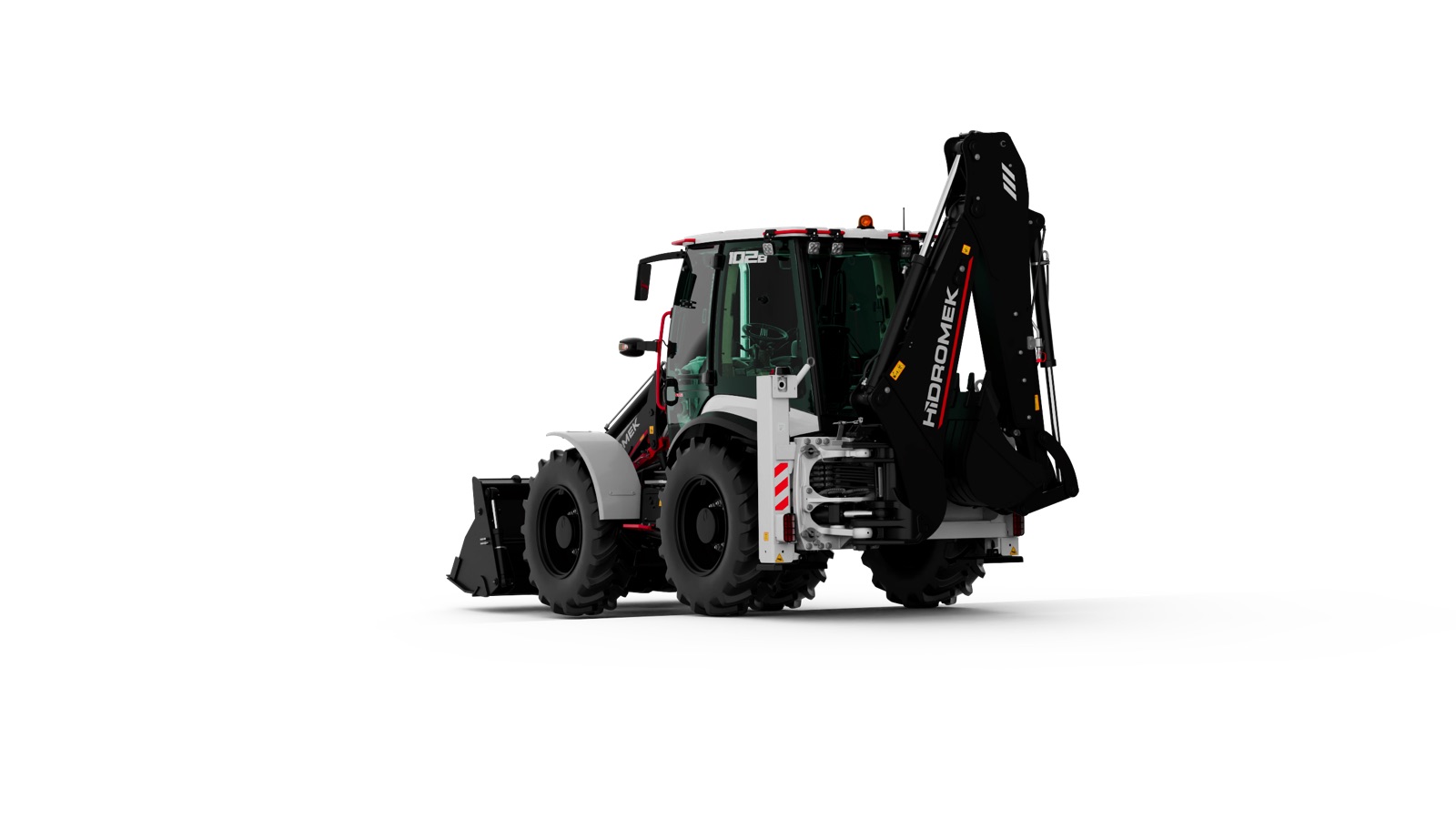

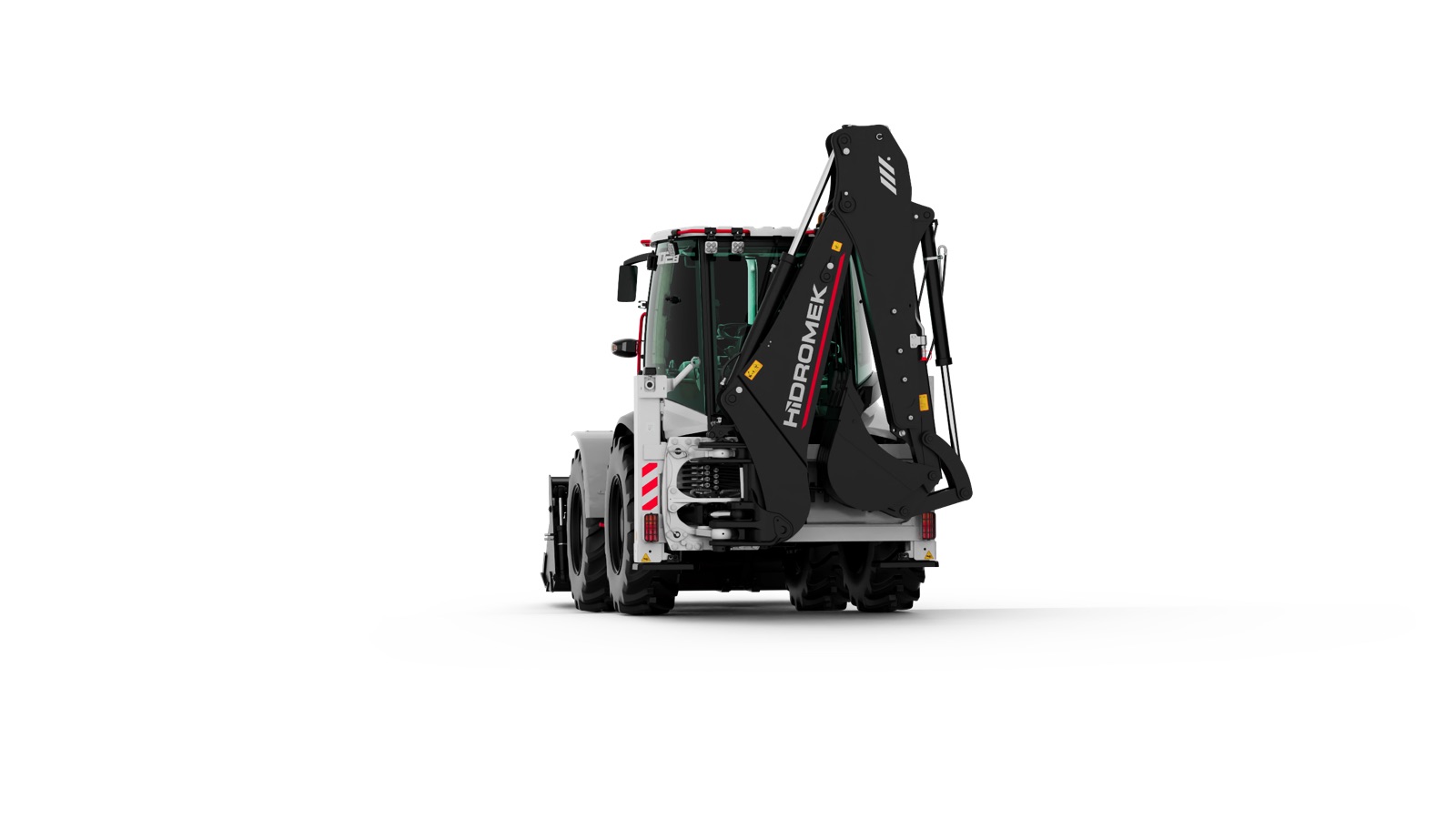

K4 HMK 102 S SUPRA

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.2 m³

  • View Specs & Dimensions Brochure
The HİDROMEK K4 Series is engineered for severe geographical conditions and heavy-duty operations. It delivers high productivity through its strong structure and advanced hydraulic system, providing maximum breakout force even at low engine speeds and ensuring efficient, reliable performance.

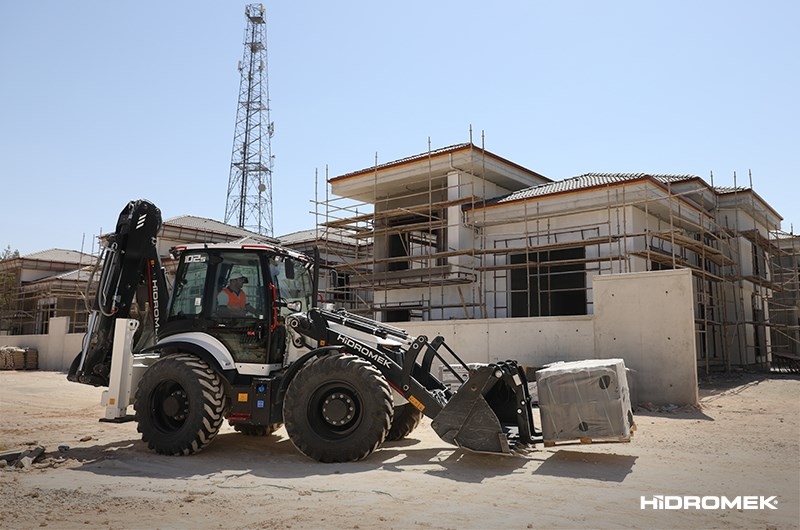

K4 Series backhoe loaders are designed for excavation, infrastructure, superstructure, agriculture, forestry, landscaping, and industrial applications. Thanks to compatibility with a wide range of attachments, they offer exceptional versatility. The improved hydraulic and cylinder system enhances speed, efficiency, and fuel economy, enabling operators to complete more work in less time.

Features

  • Heavy-duty structure for extreme working conditions
  • High-efficiency closed hydraulic system
  • Variable displacement piston pump with flow-sharing technology
  • Regeneration valve system for improved performance
  • High oil flow for maximum efficiency

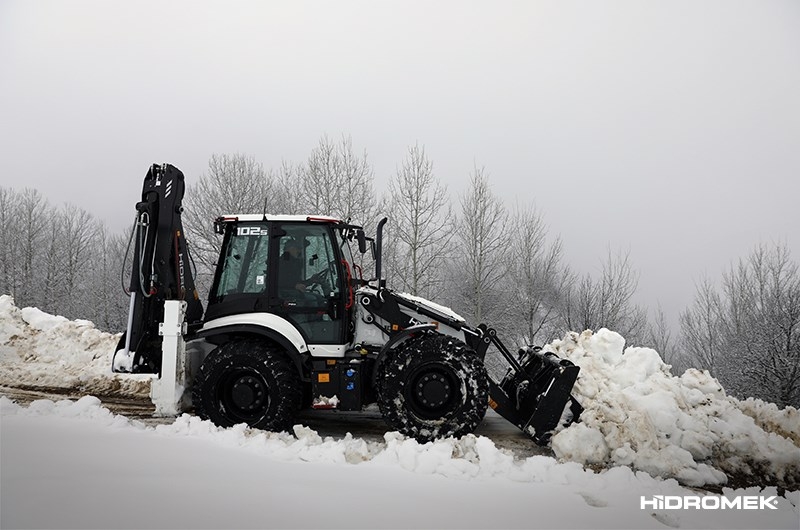

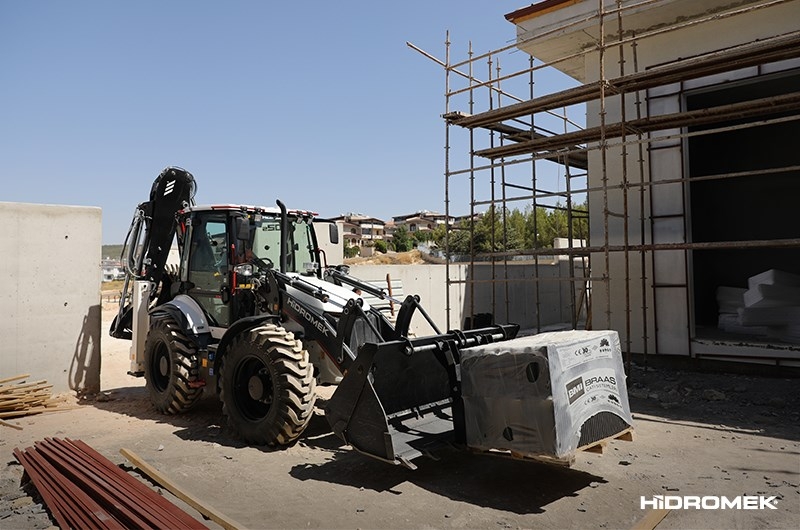

  • Compatible with multiple attachments (bucket, auger, hammer, ripper, snow plow, etc.)
  • 20% faster loading/unloading operations
  • 3% improved fuel efficiency
  • Autoshift transmission with lock-up system
  • Suitable for construction, agriculture, forestry, and industrial use

Specifications

Engine

  • Brand / Model: Perkins 904J-E36TA
  • Maximum Power: 100 HP (74.4 kW) @ 2200 rpm
  • Displacement: 3,621 cc
  • Type: Water-cooled turbocharged diesel engine
  • Maximum Torque: 430 Nm @ 1500 rpm
  • Bore & Stroke: Ø 98 × 120 mm
  • Emission Class: EU Stage 5 / US Tier 4 Final

Hydraulic System

  • Pressure: 255 bar
  • Type: Closed hydraulic system with variable displacement piston pump
  • Features: Flow-sharing + regeneration valves
  • Main Pump Flow: 163 L/min @ 2200 rpm

Tires

  • Front: 16.9 – 28 (14 Ply Rating)
  • Rear: 16.9 – 28 (14 Ply Rating)

Driving Speed

  • 1st Gear: 4 km/h
  • 2nd Gear: 7 km/h
  • 3rd Gear: 9 km/h
  • 4th Gear: 15 km/h
  • 5th Gear: 24 km/h
  • 6th Gear: 40 km/h

Loader Performance

  • Maximum Loader Bucket Breakout Force: 7380 kgf
  • Loader Bucket Capacity: 1.2 m³
  • Maximum Loading Arm Breakout Force: 7380 kgf
  • Lifting Capacity (Max Height): 3660 kgf

Backhoe Performance

  • Backhoe Bucket Capacity: 0.18 m³
  • Maximum Bucket Breakout Force: 7020 kgf
  • Maximum Arm Breakout Force: 3160 kgf

Operating Weight

  • 9,650 kg

Transmission

  • Type: Autoshift transmission (heavy-duty with lock-up)
  • Gears: 6 forward, 3 reverse
  • View Specs & Dimensions Brochure
