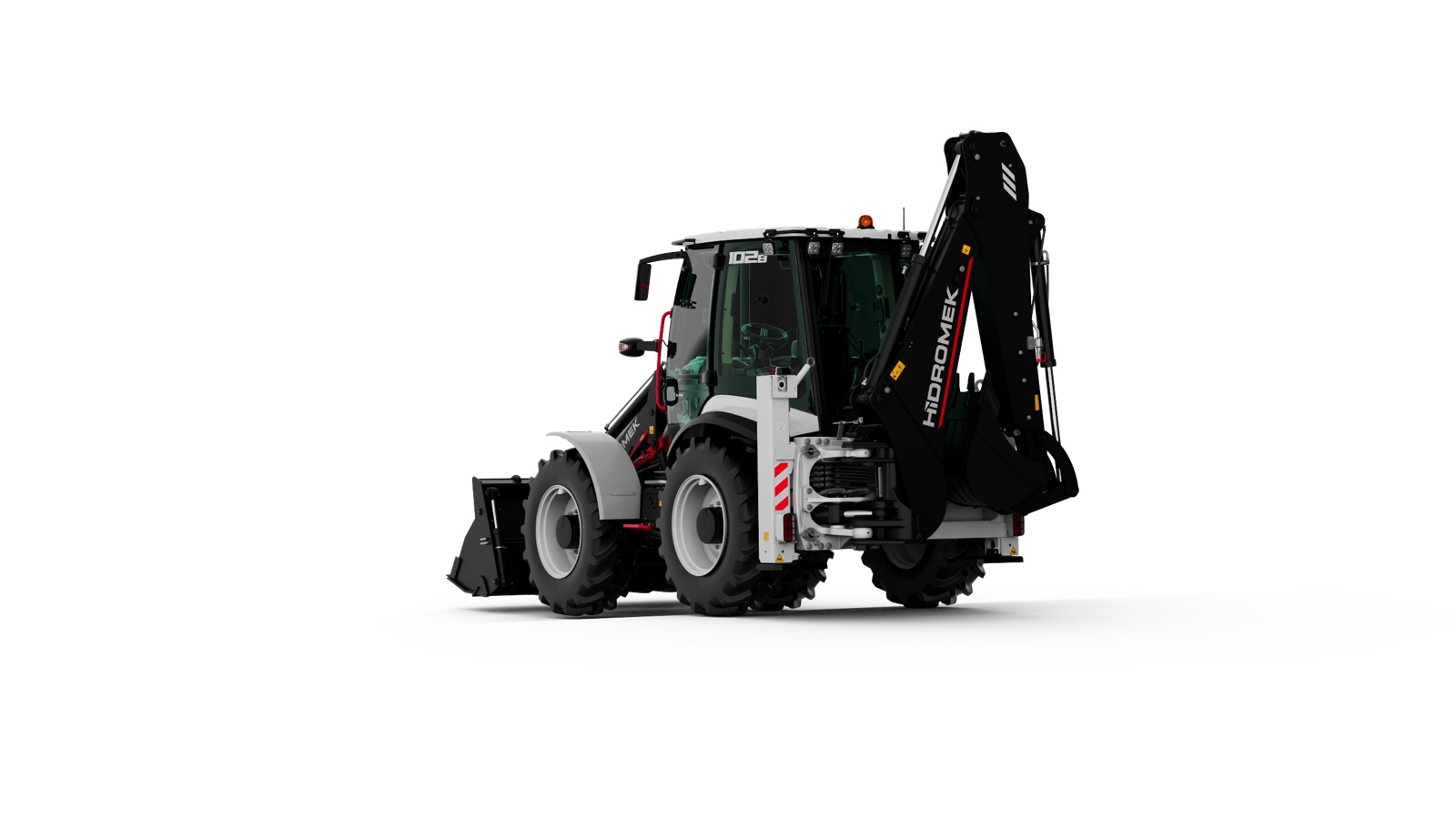

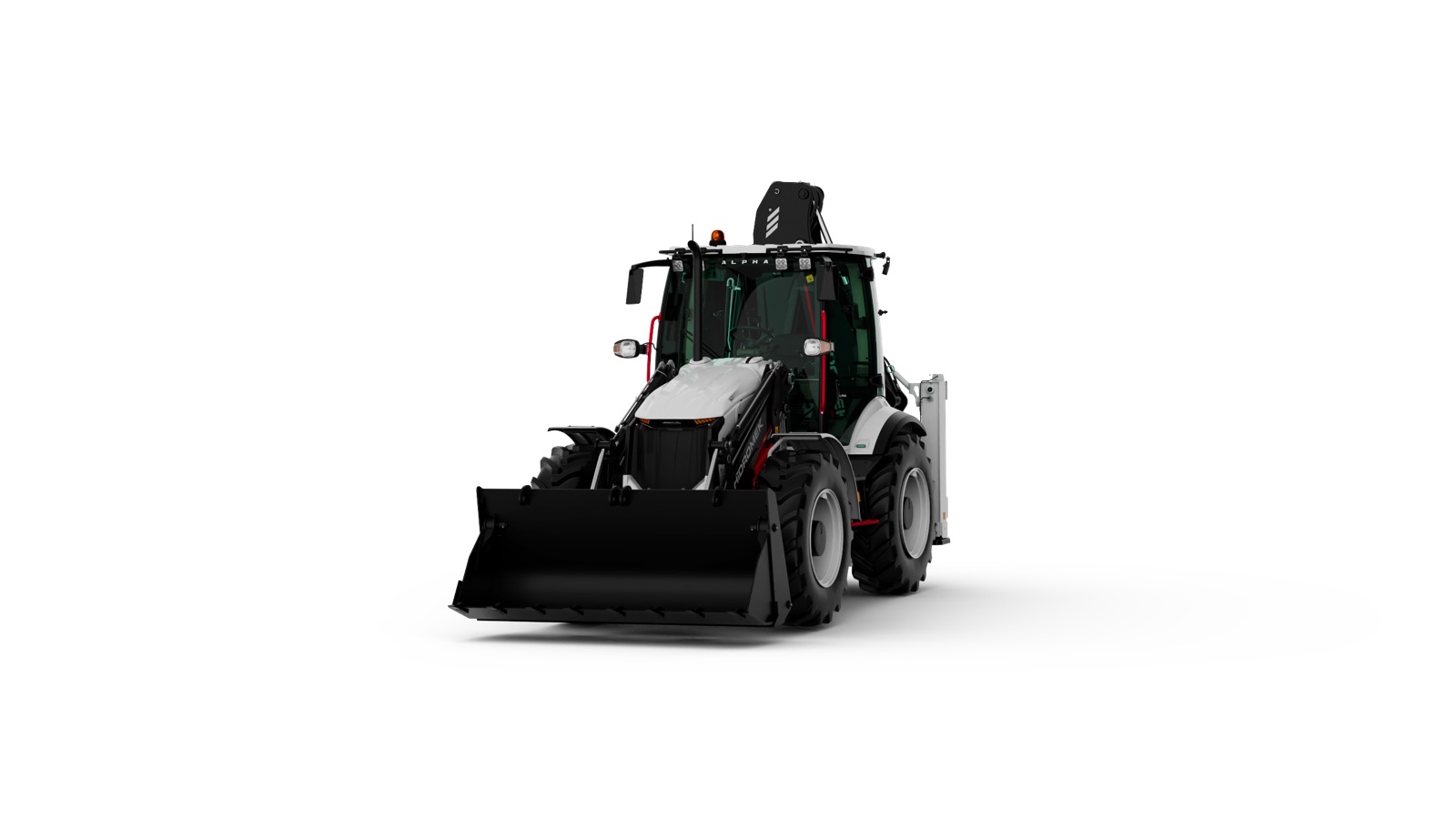

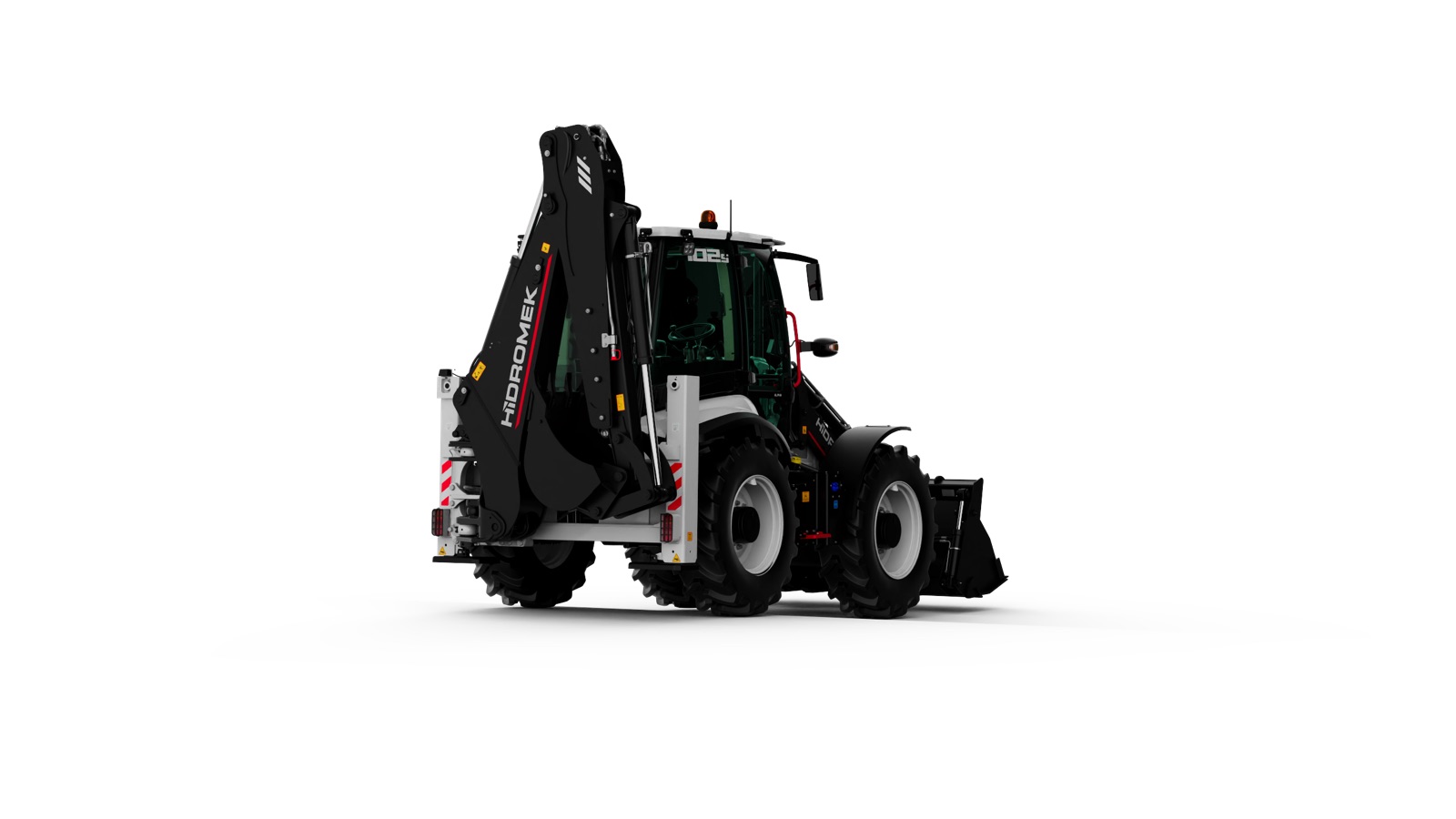

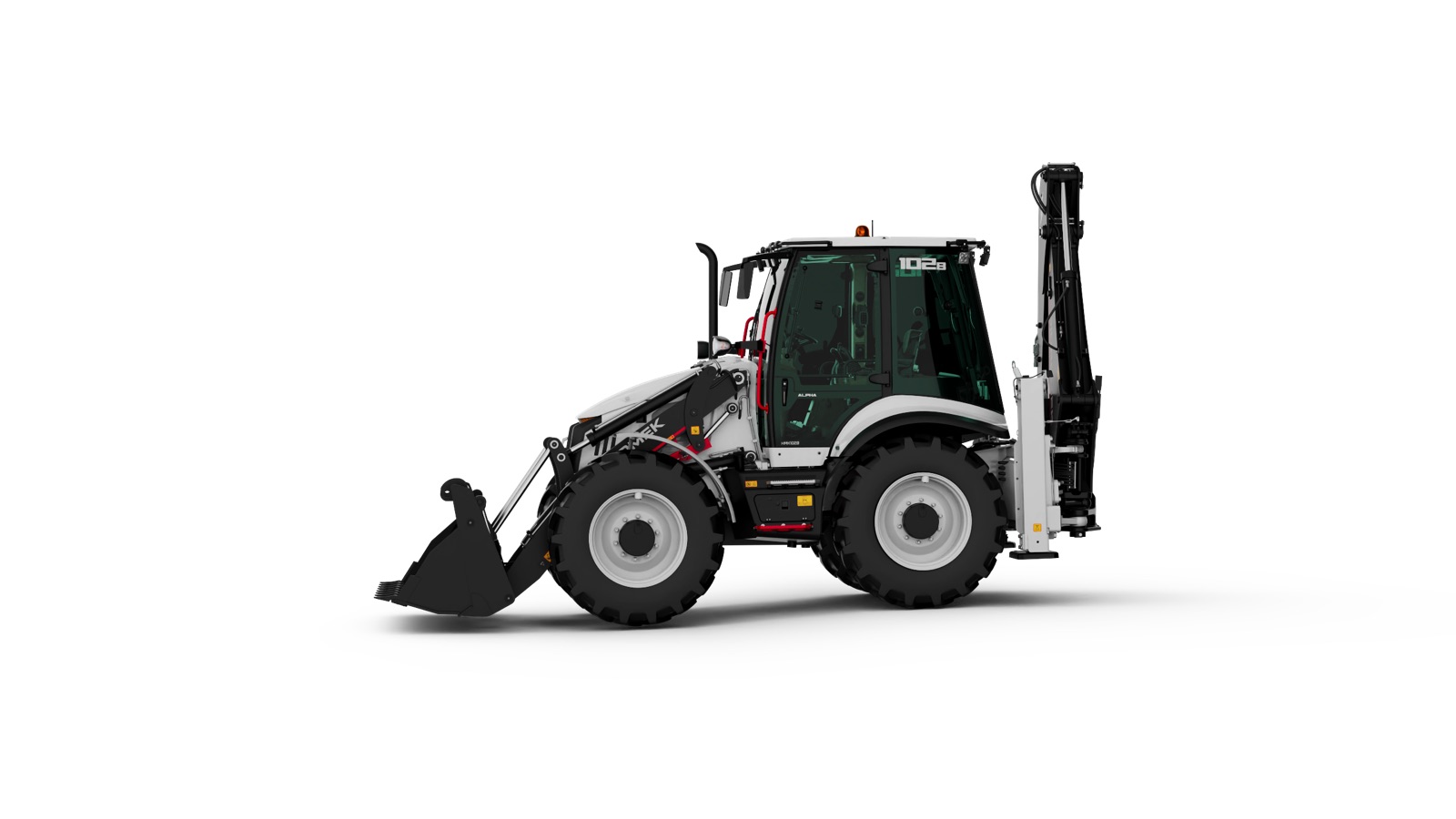

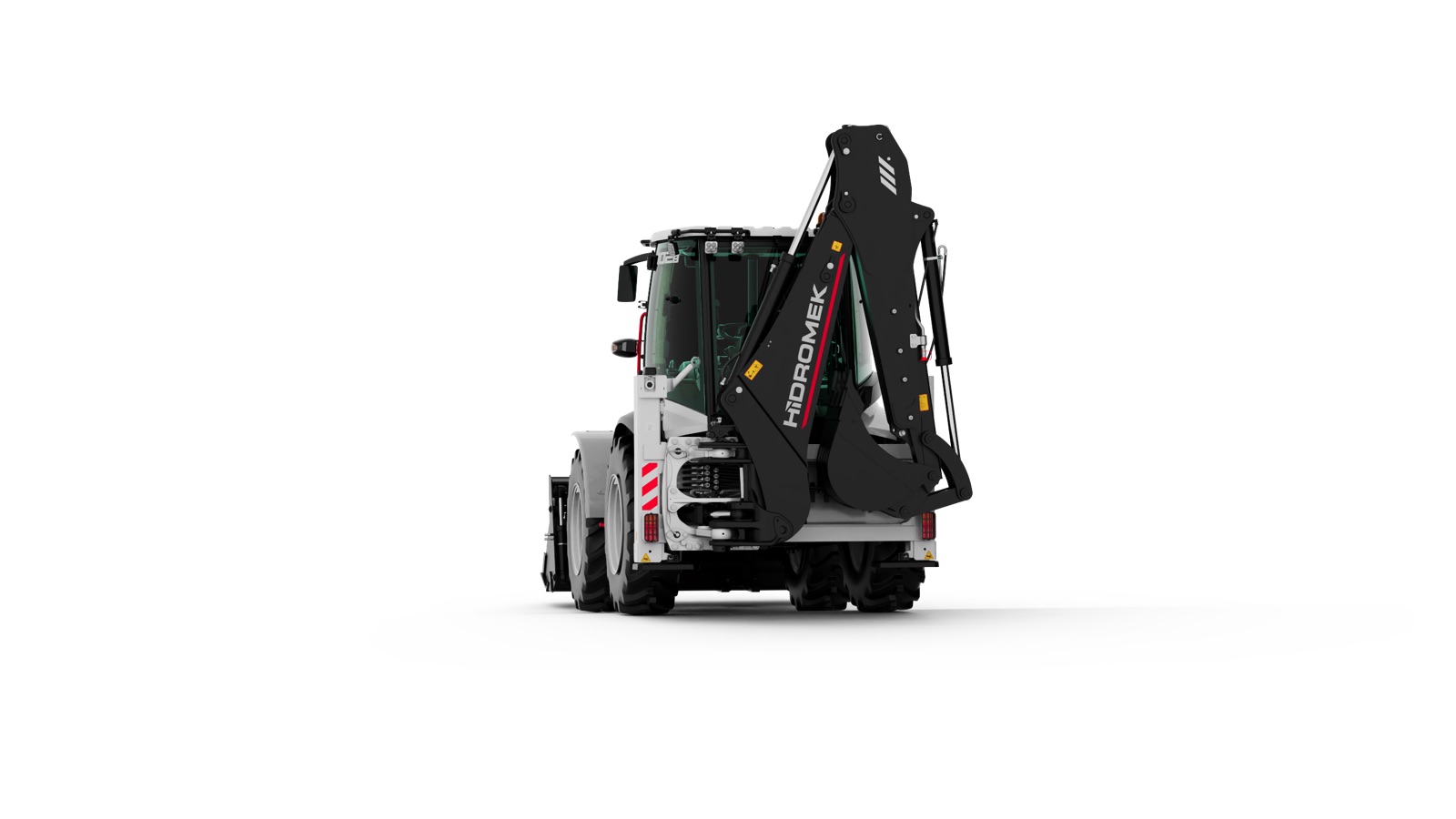

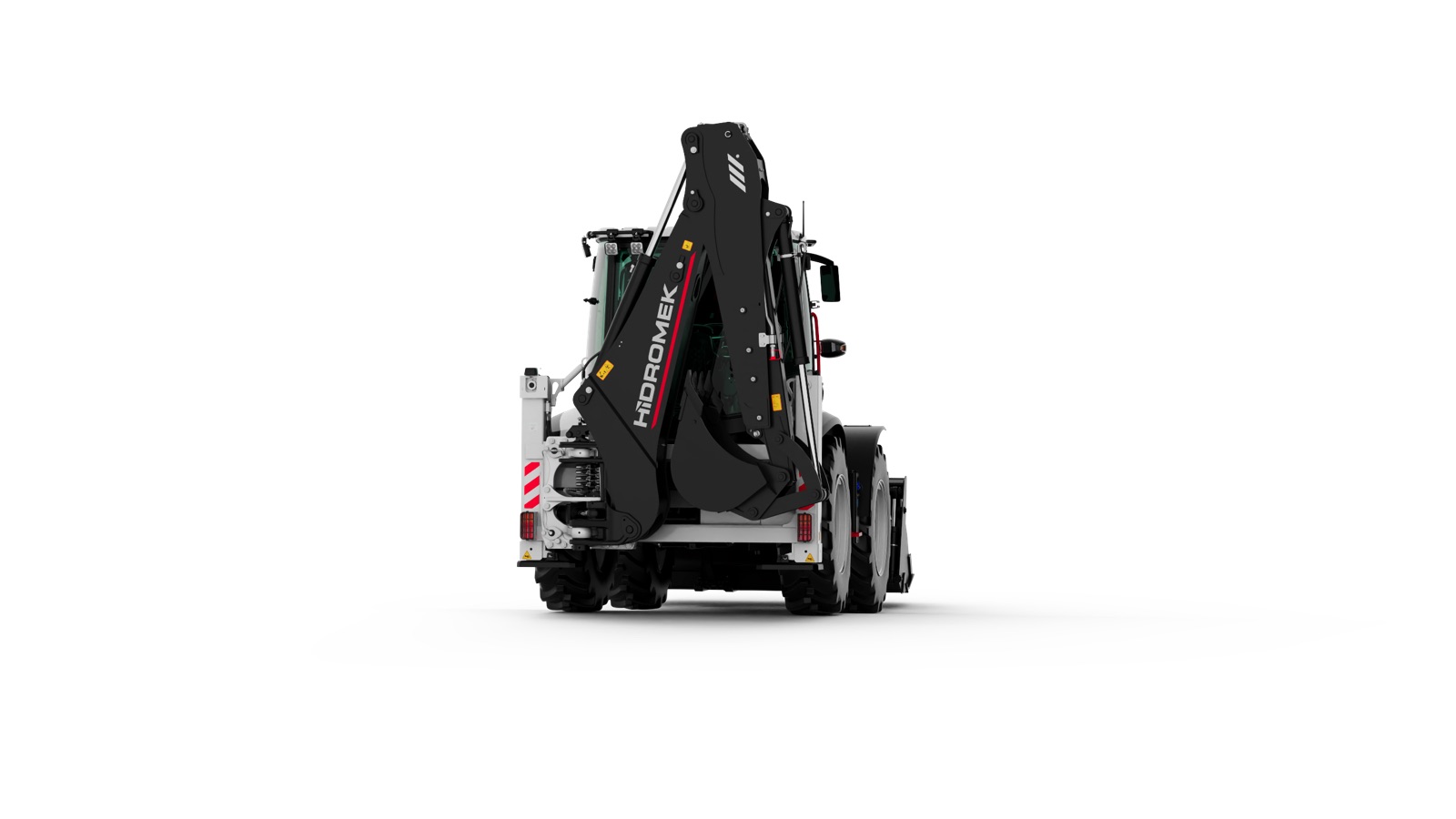

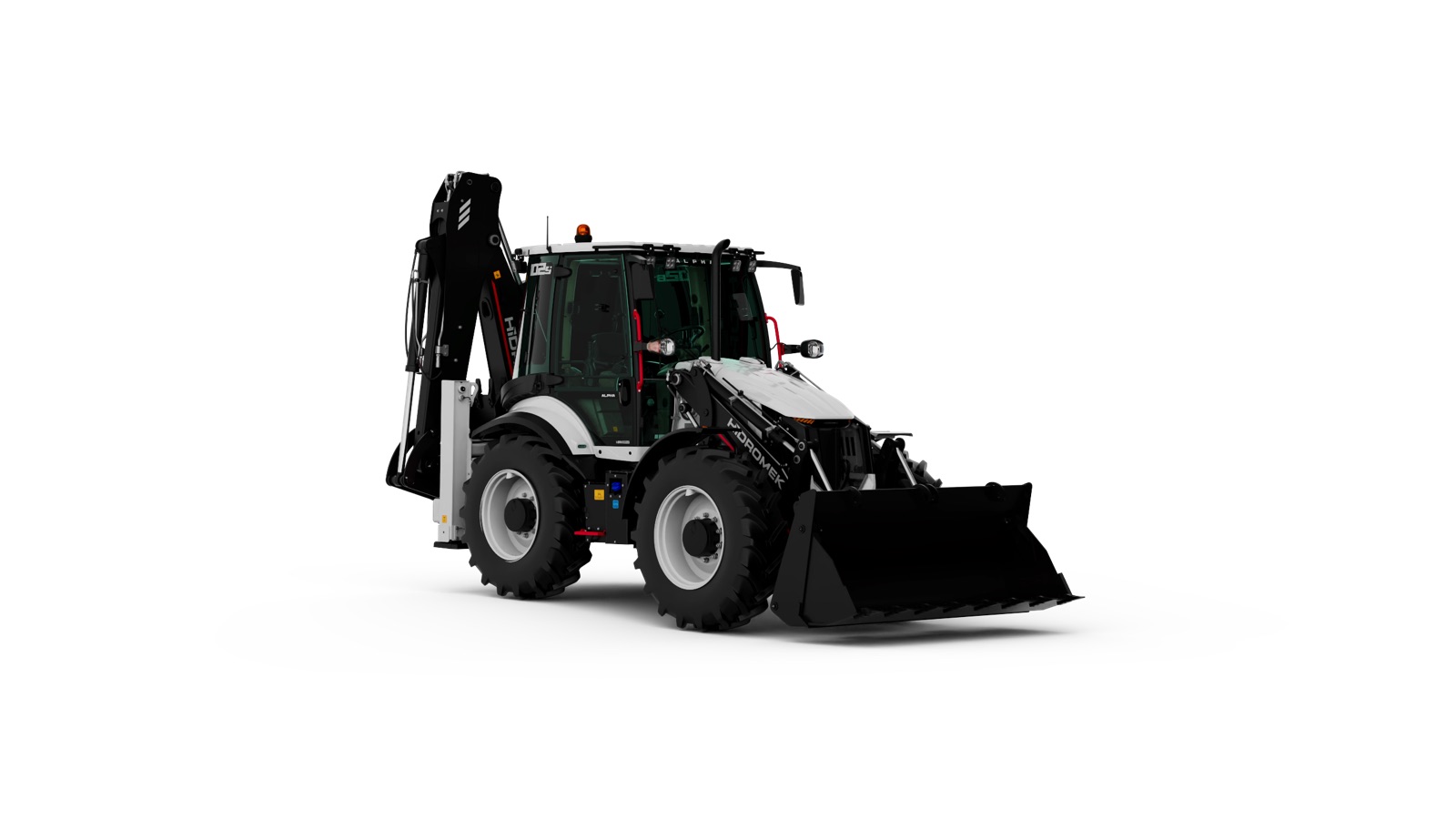

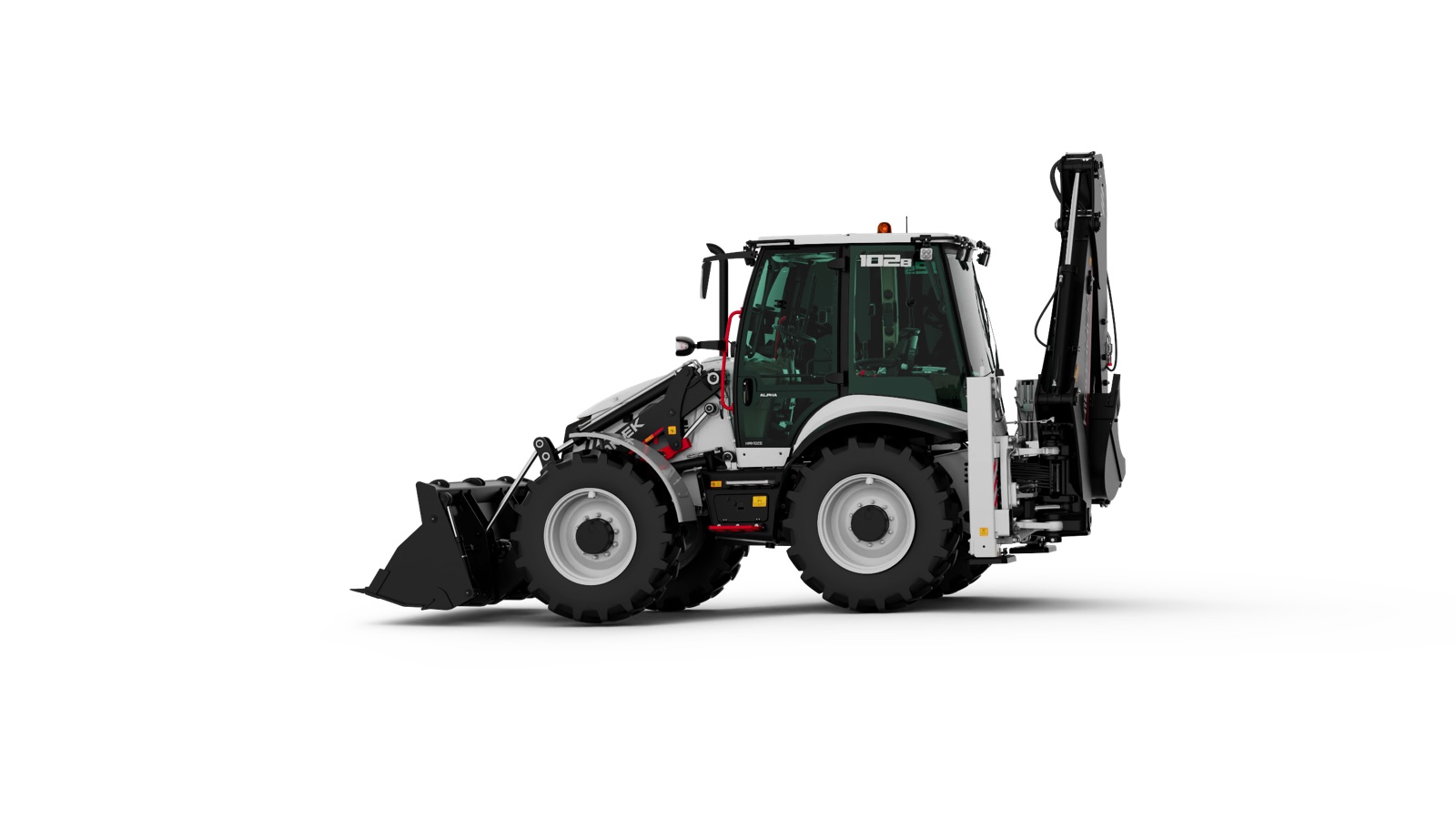

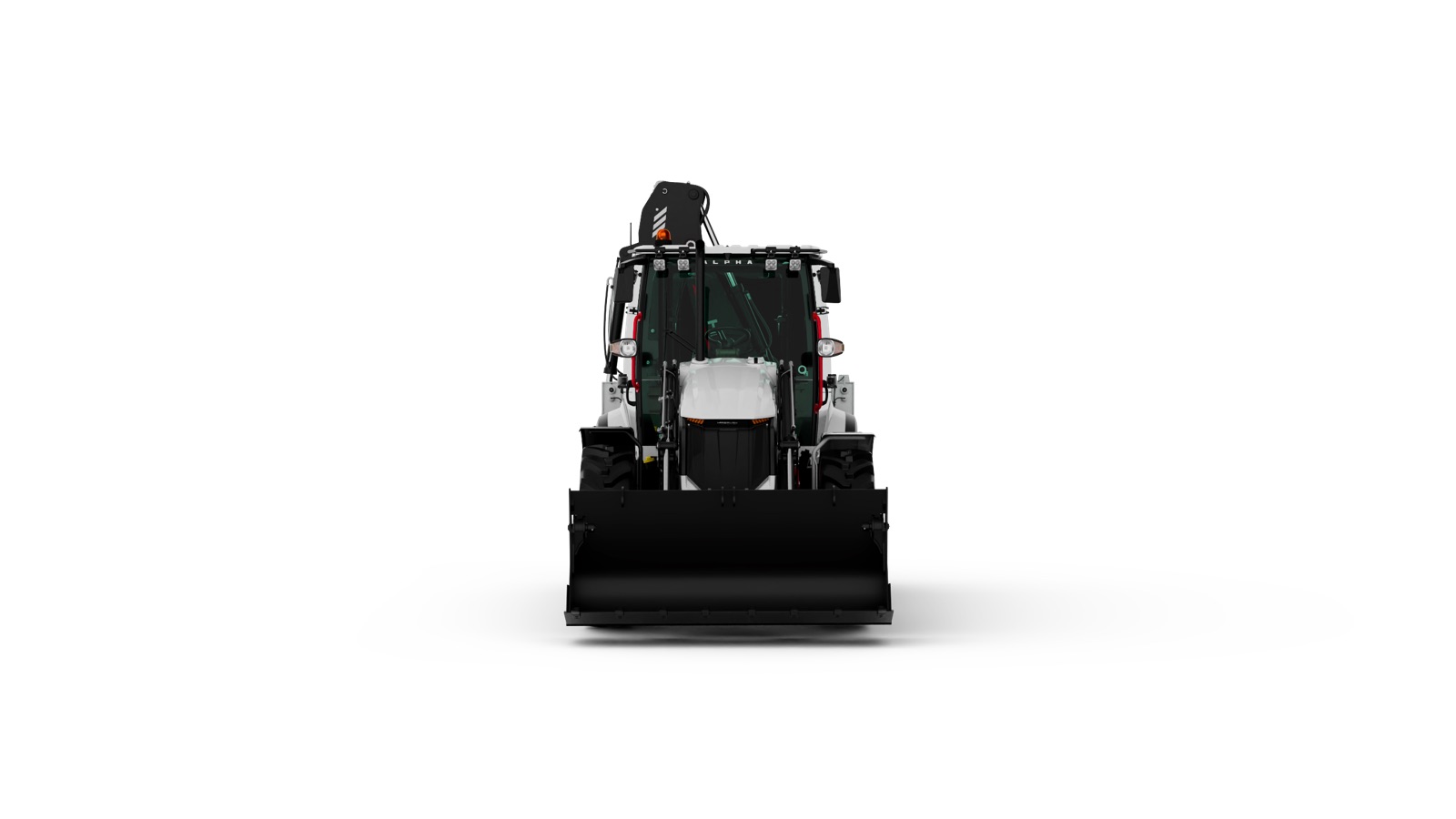

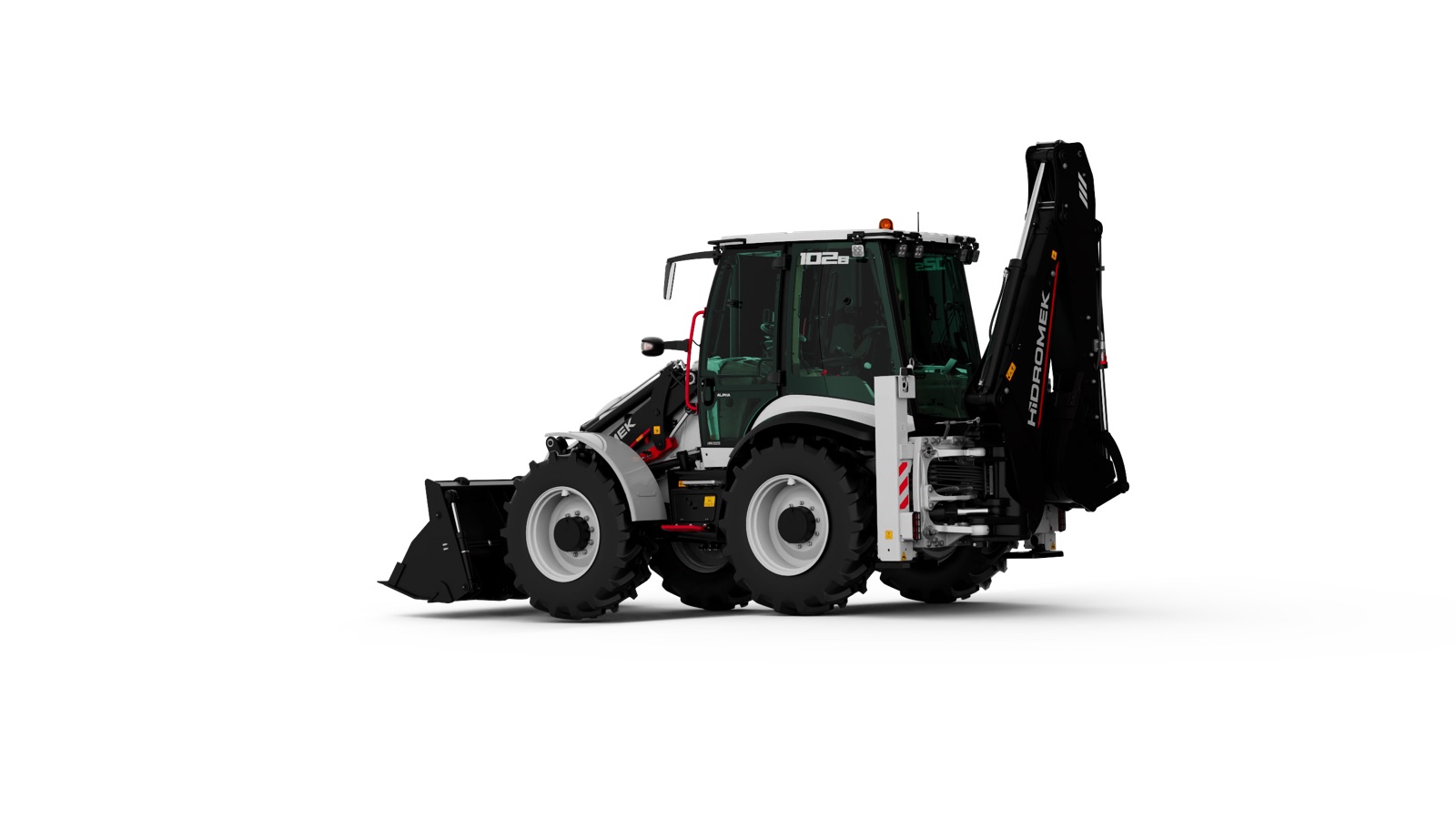

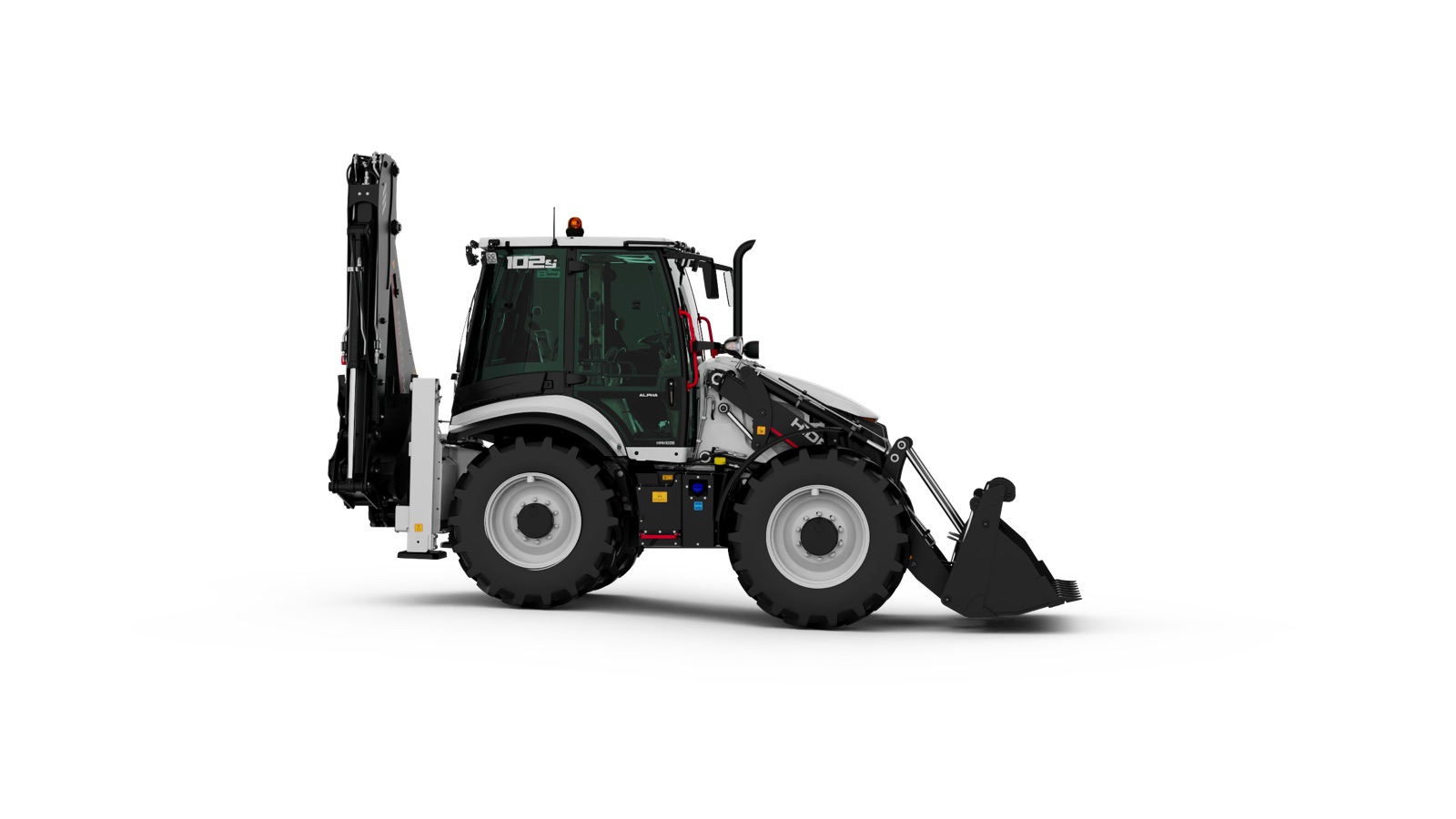

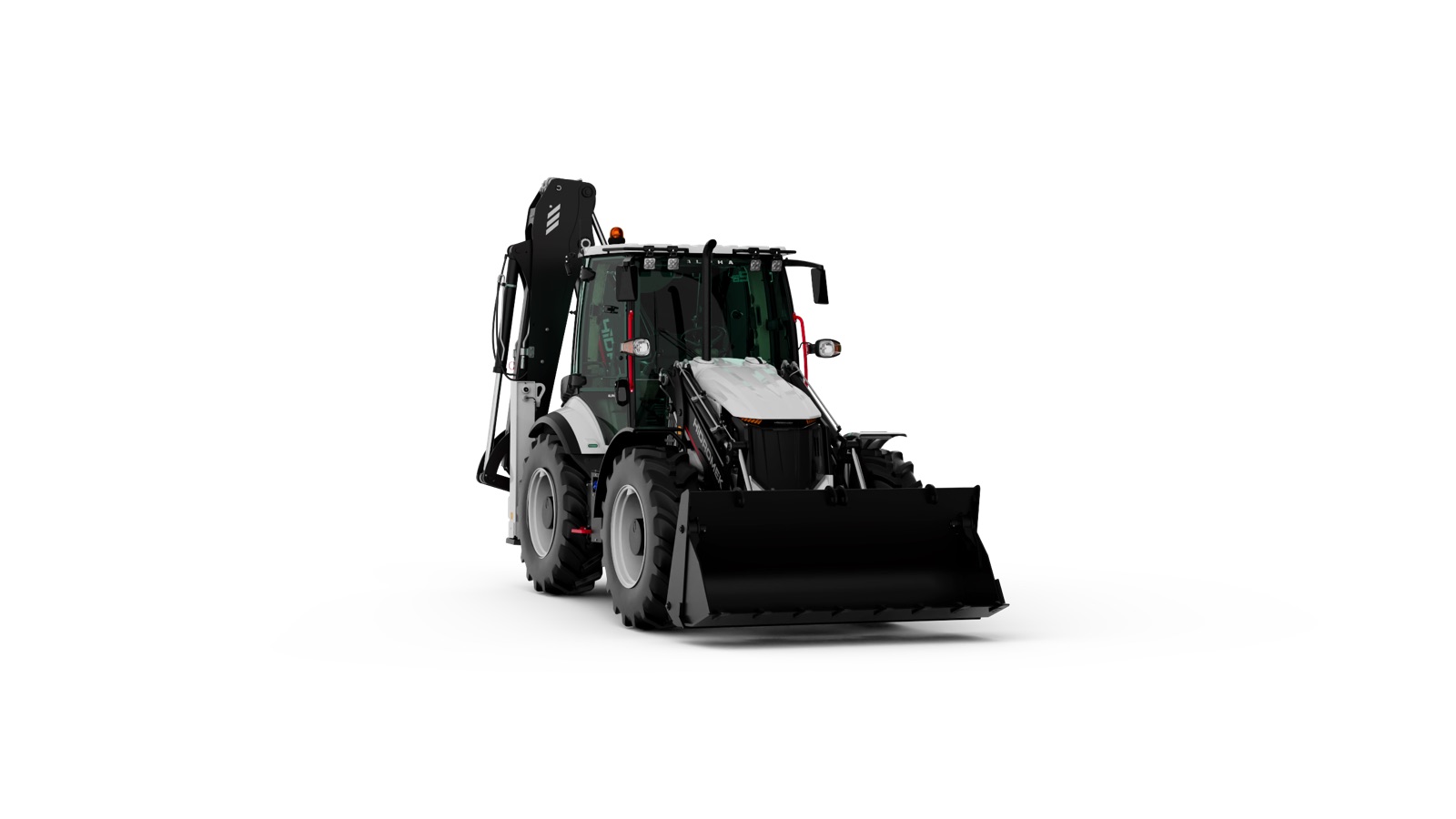

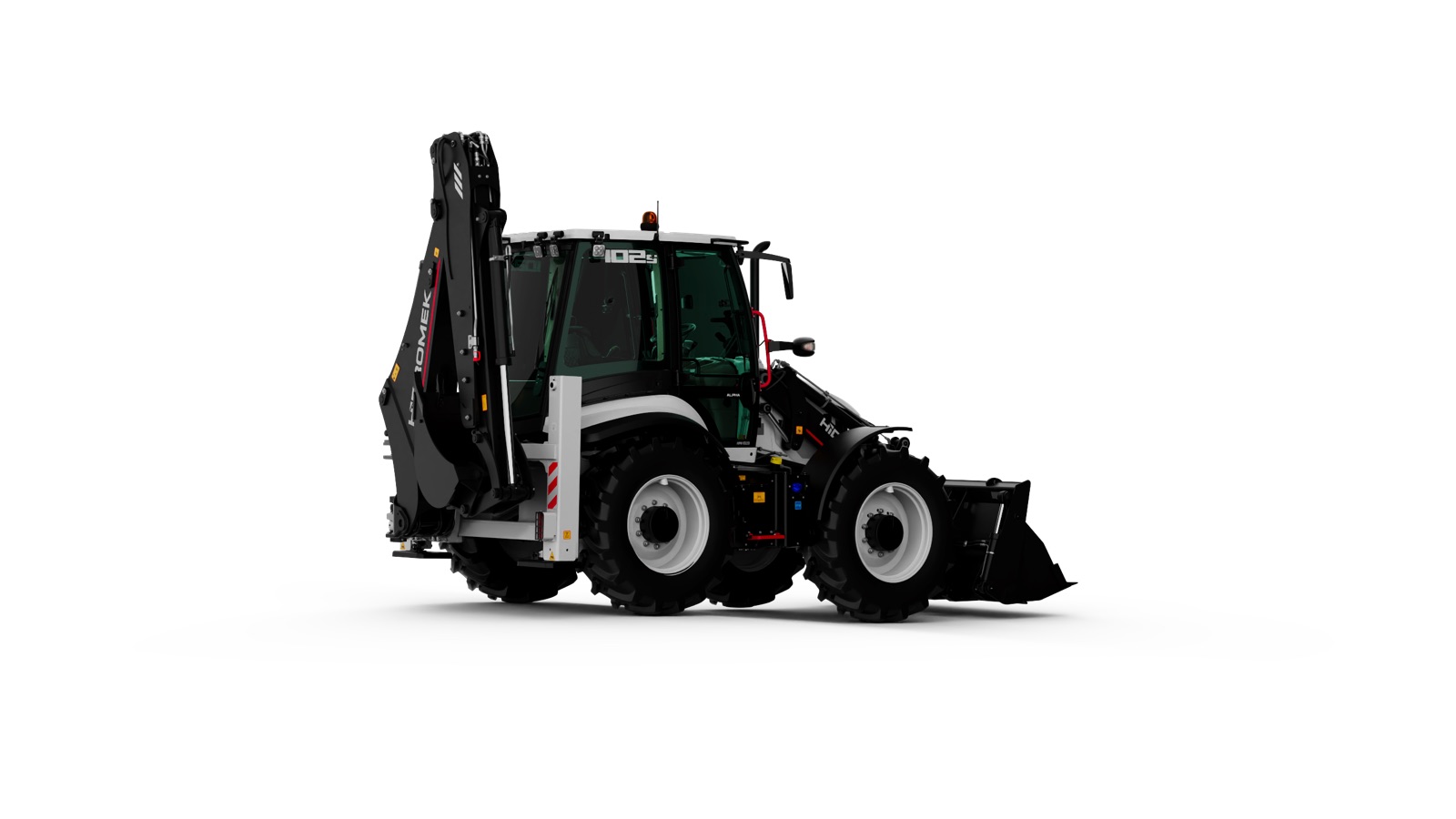

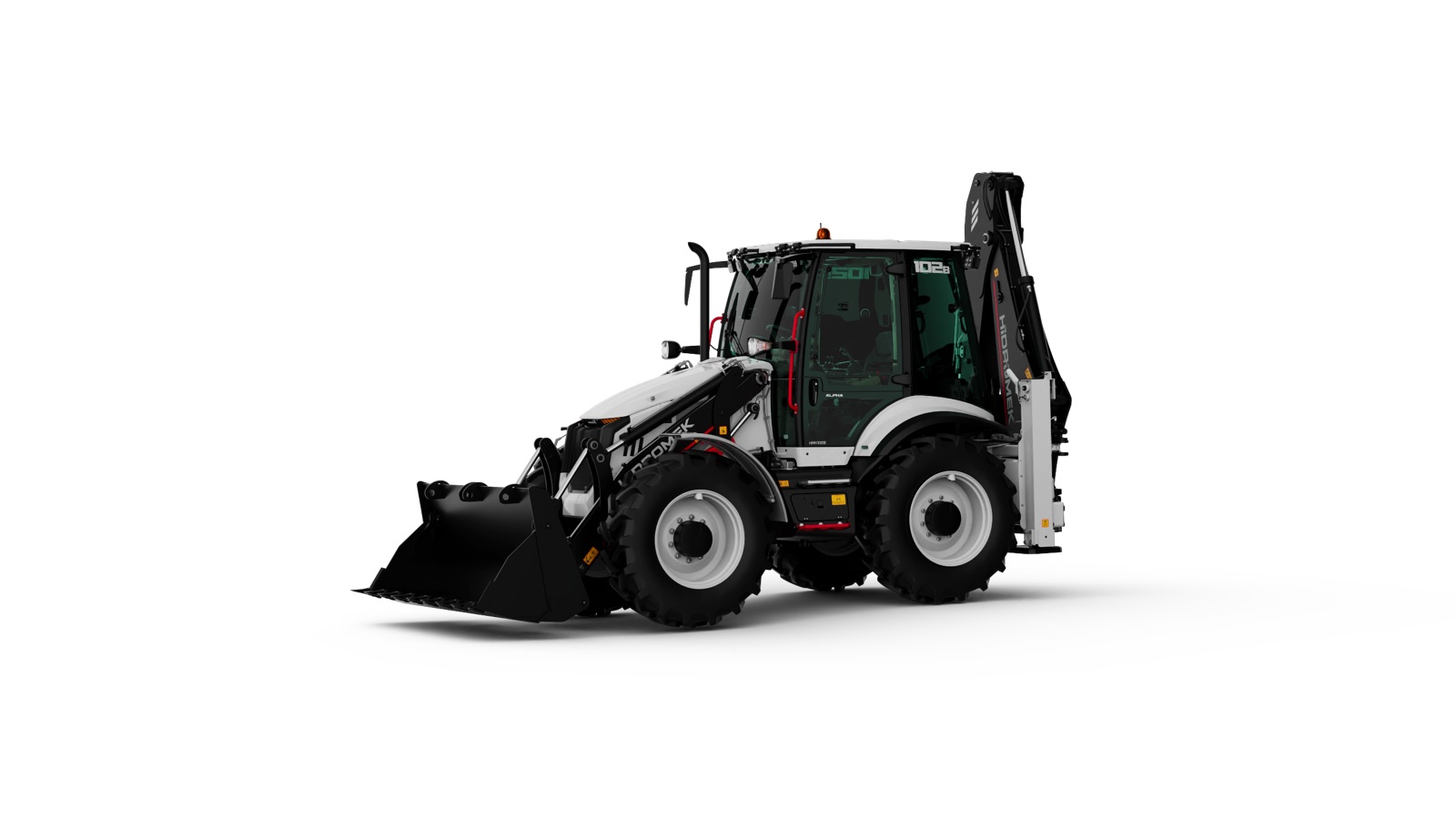

K4 HMK 102 S ALPHA

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.1 m³

  • View Specs & Dimensions Brochure
The HİDROMEK K4 Series is engineered for tough geographical and heavy-duty working conditions. Its robust build and advanced hydraulic system deliver high breakout force even at low engine speeds, ensuring reliable and powerful performance in demanding environments.

K4 Series backhoe loaders are versatile machines designed for excavation, infrastructure, superstructure, agriculture, forestry, landscaping, and industrial applications. With the ability to use a wide range of attachments, they provide flexibility and efficiency across multiple job types. Enhanced cylinder design improves speed and fuel efficiency, allowing operators to complete more work in less time.

Features

  • Heavy-duty and durable structure
  • High-performance hydraulic system with strong breakout force
  • Efficient operation at low engine RPM
  • Wide compatibility with attachments (forklift, auger, hammer, snow plow, etc.)
  • 20% faster loading and unloading operations
  • 3% improved fuel efficiency
  • High oil flow for better hydraulic performance
  • Ideal for construction, agriculture, and industrial work
  • Autoshift transmission for heavy-duty service

Specifications

Engine

  • Brand / Model: Perkins 904J-E36TA
  • Maximum Power: 100 HP (74.4 kW) @ 2200 rpm
  • Displacement: 3,621 cc
  • Type: Water-cooled turbocharged diesel engine
  • Maximum Torque: 430 Nm @ 1500 rpm
  • Bore & Stroke: Ø 98 × 120 mm
  • Emission Class: EU Stage 5 / US Tier 4 Final

Hydraulic System

  • Pressure: 255 bar
  • Type: Tandem gear pump (simple and efficient)
  • Auxiliary Pump Flow: 57.2 L/min @ 2200 rpm
  • Main Pump Flow: 90 L/min @ 2200 rpm

Tires

  • Front: 16.9 – 28 (14 Ply Rating)
  • Rear: 16.9 – 28 (14 Ply Rating)

Driving Speed

  • 1st Gear: 4 km/h
  • 2nd Gear: 7 km/h
  • 3rd Gear: 9 km/h
  • 4th Gear: 15 km/h
  • 5th Gear: 24 km/h
  • 6th Gear: 40 km/h

Loader Performance

  • Maximum Loader Bucket Breakout Force: 7380 kgf
  • Loader Bucket Capacity: 1.1 m³
  • Maximum Loading Arm Breakout Force: 7380 kgf
  • Lifting Capacity (Max Height): 3660 kg

Backhoe Performance

  • Backhoe Bucket Capacity: 0.18 m³
  • Maximum Bucket Breakout Force: 7020 kgf
  • Maximum Arm Breakout Force: 3160 kgf

Operating Weight

  • 9,650 kg

Transmission

  • Type: Autoshift transmission (heavy-duty)
  • Gears: 6 forward, 3 reverse
  • View Specs & Dimensions Brochure
