HMK 600 MG

Maximum Power

214 HP - 242 HP (160 - 180 kW) @2200 rpm

Maximum Torque

1000 Nm @ (1200 - 1600 rpm)

Length x Height x Thickness

3710 mm x 610 mm x 19 mm

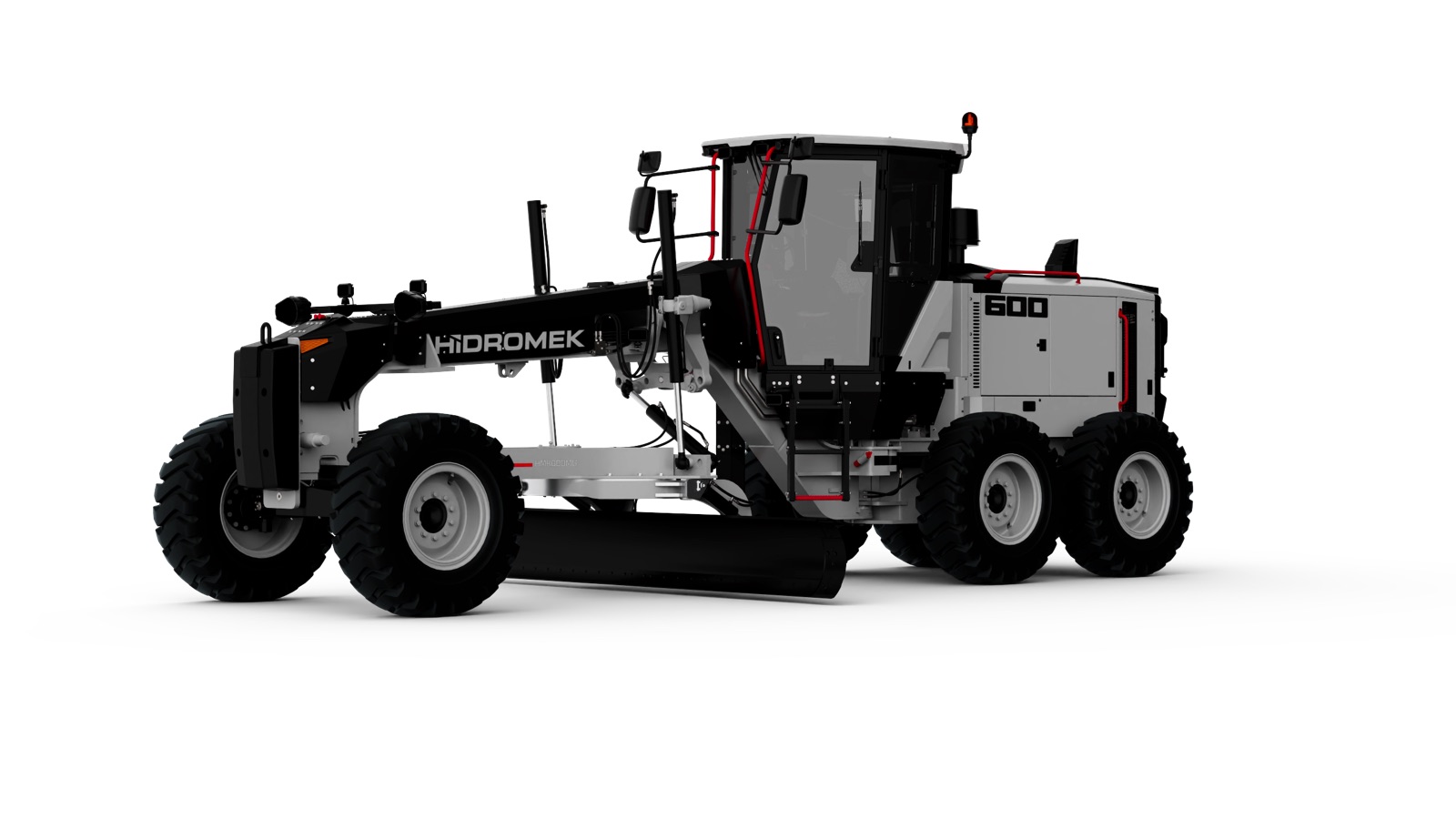

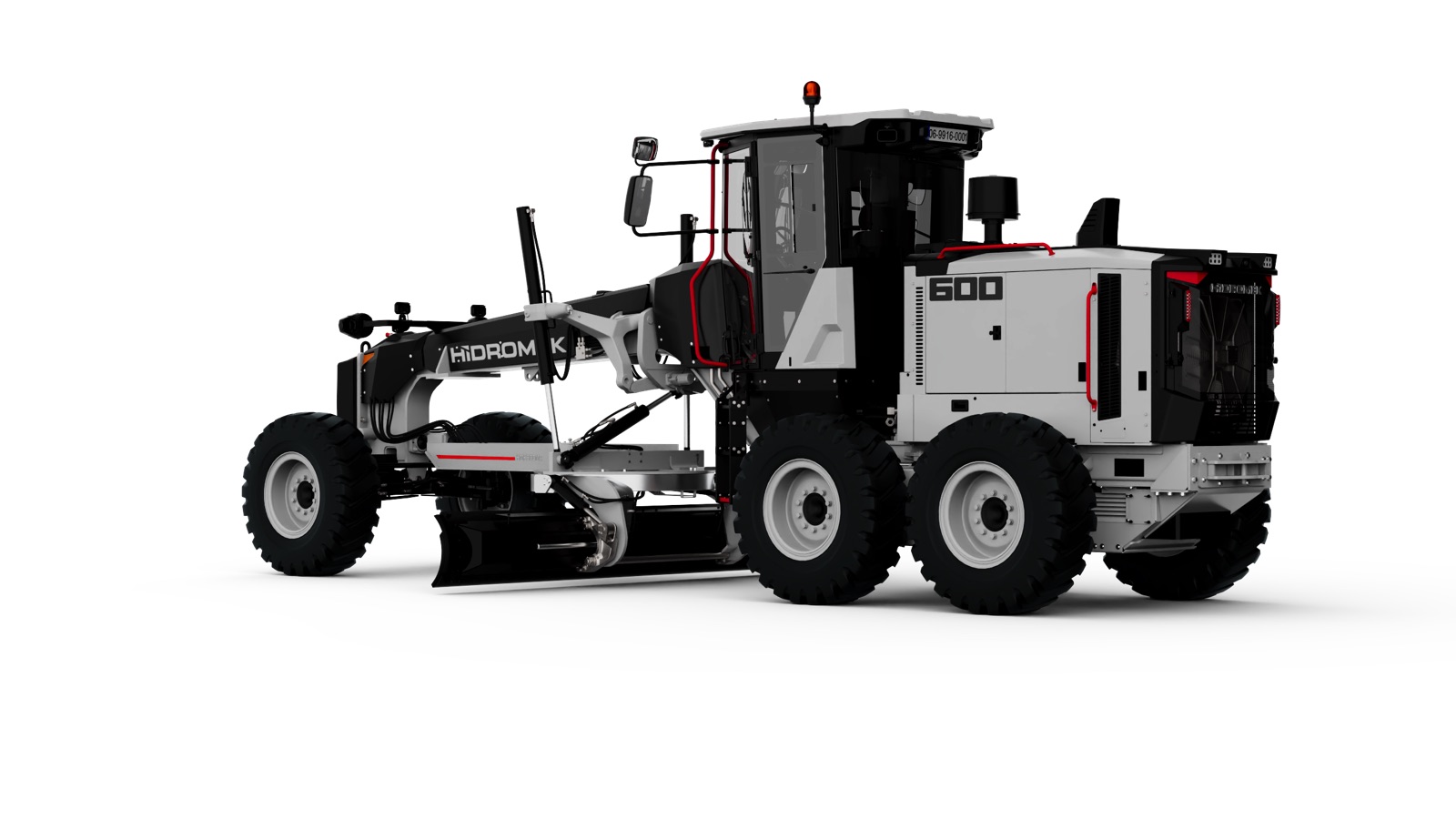

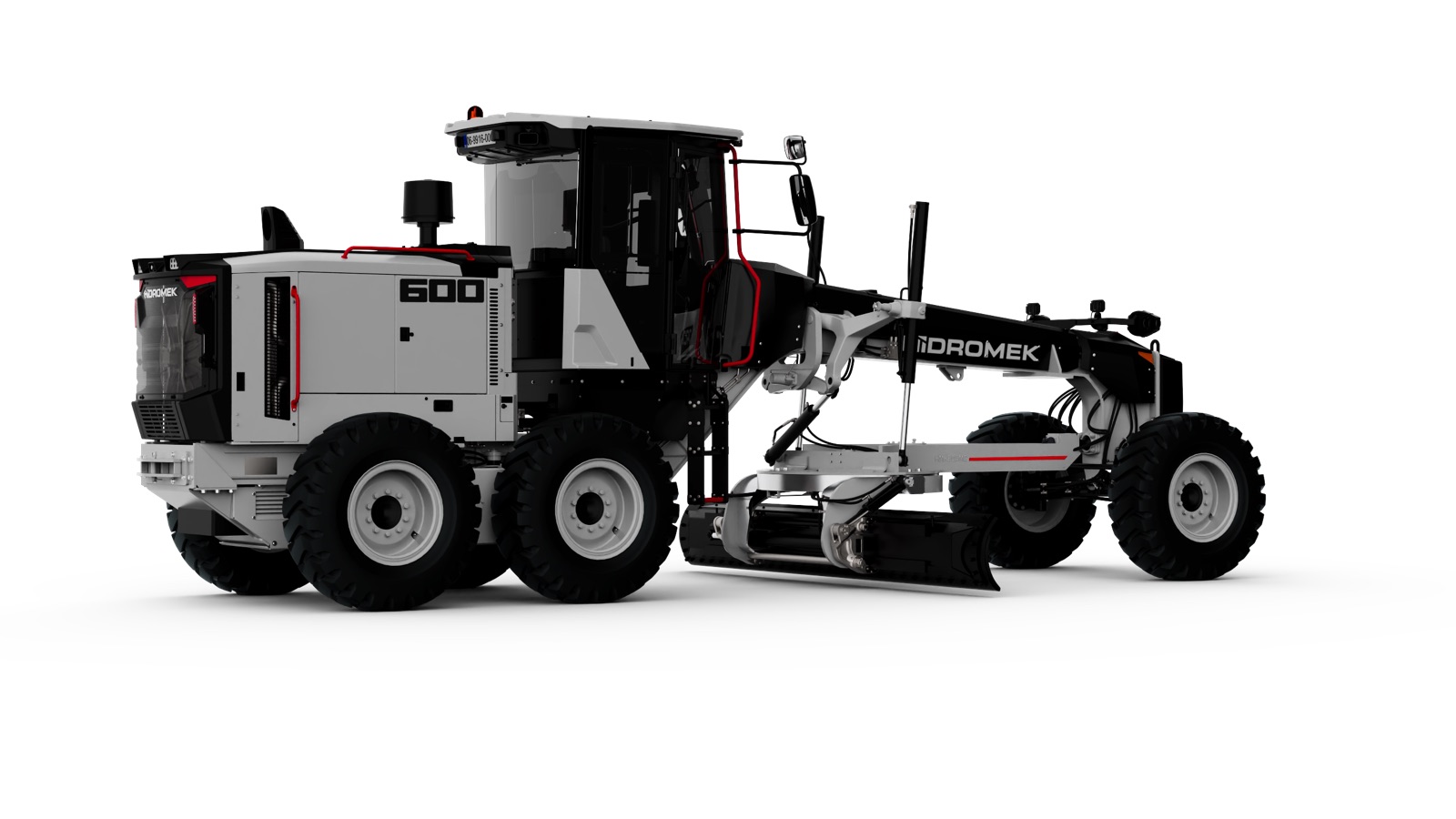

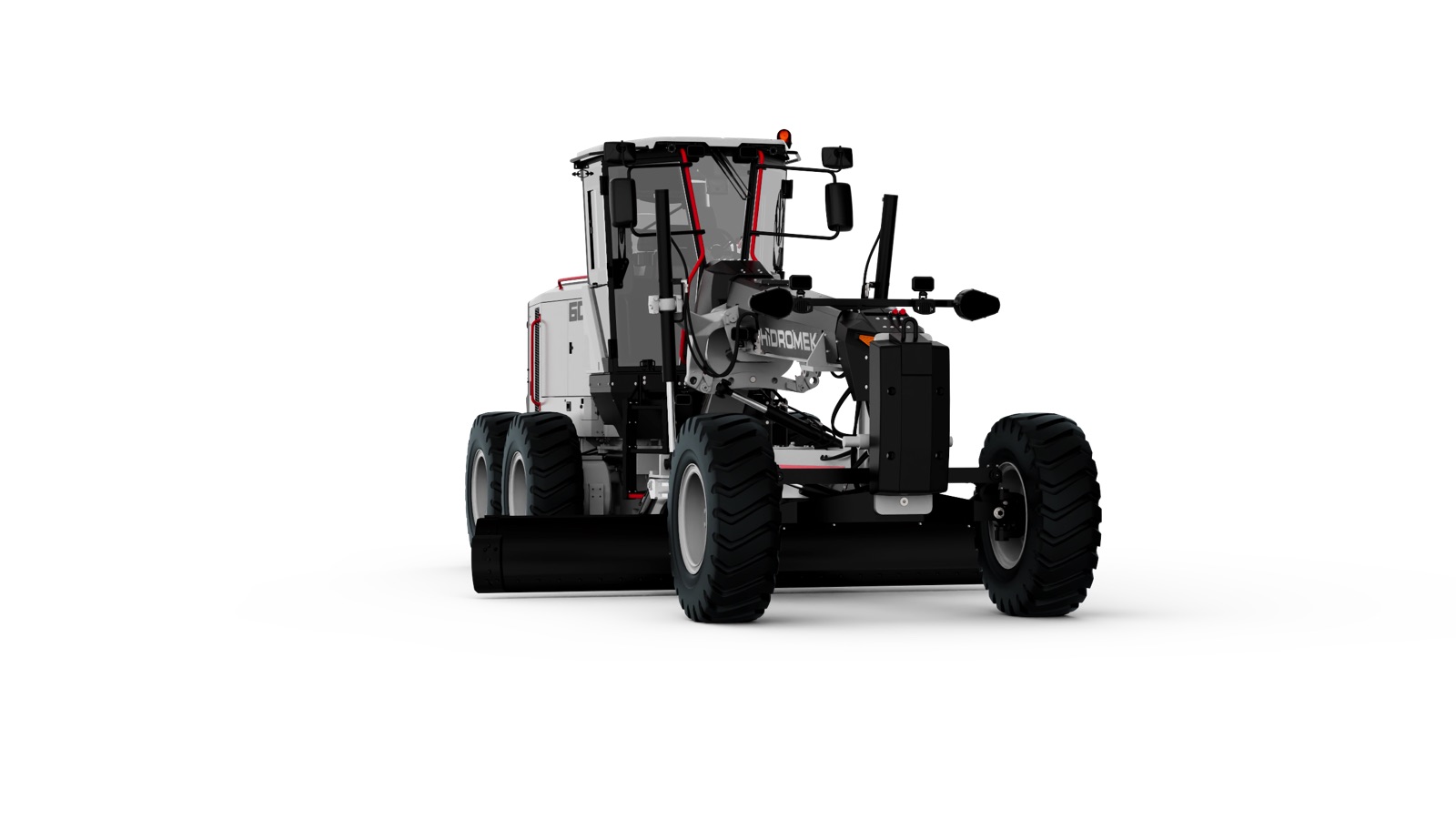

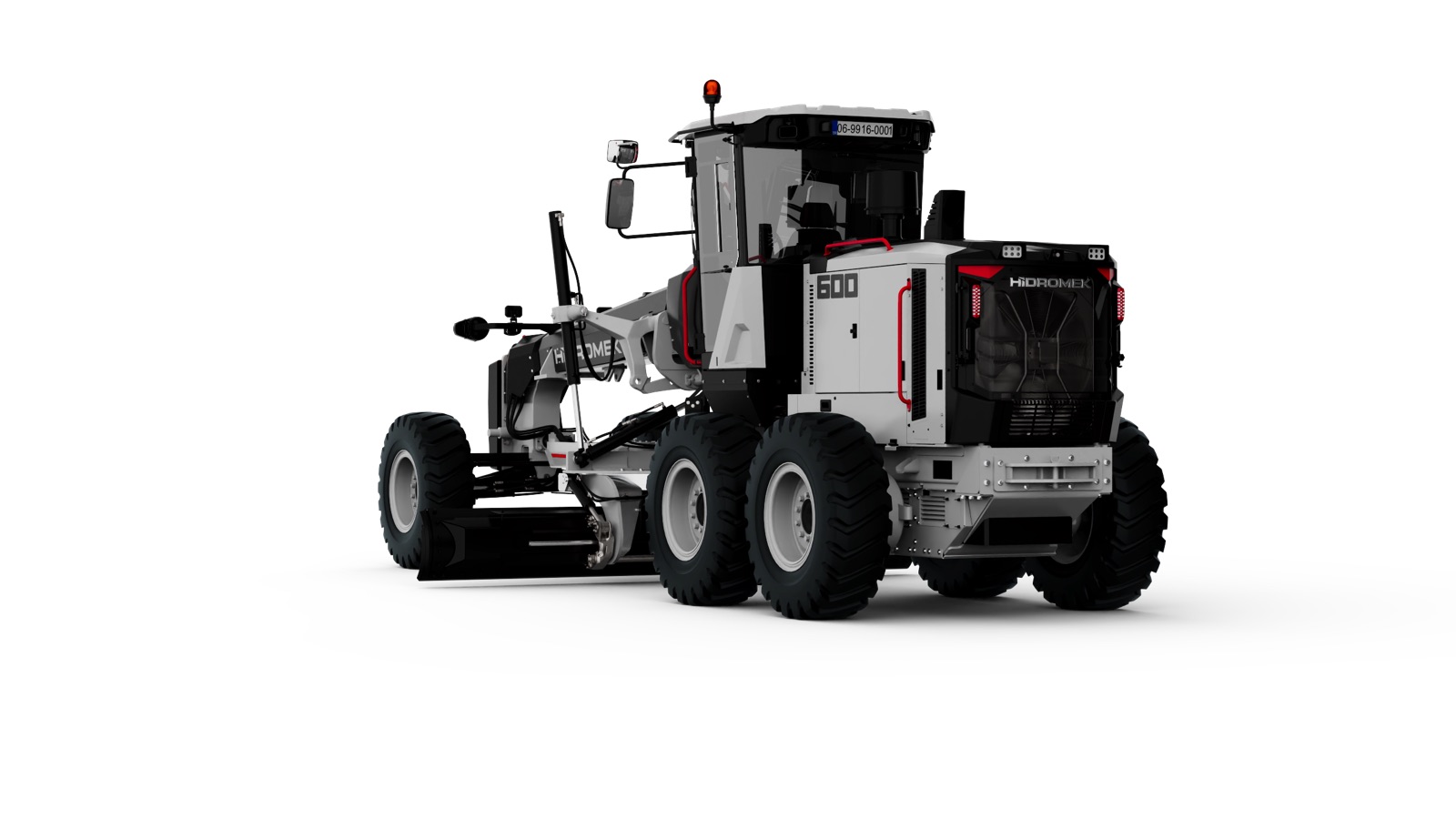

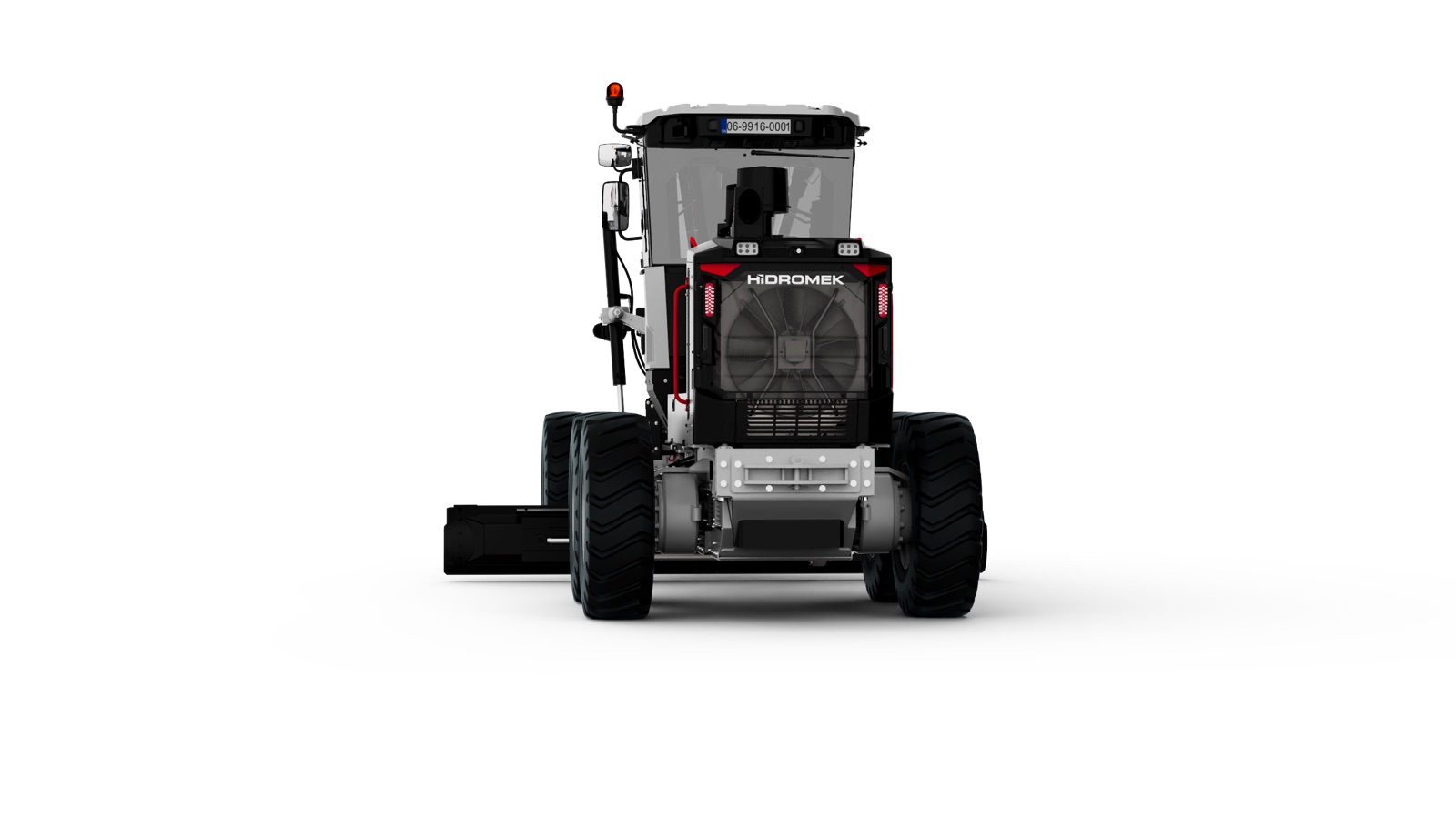

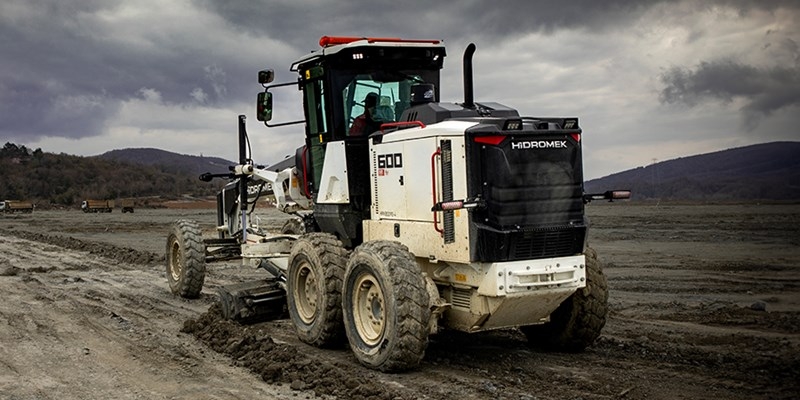

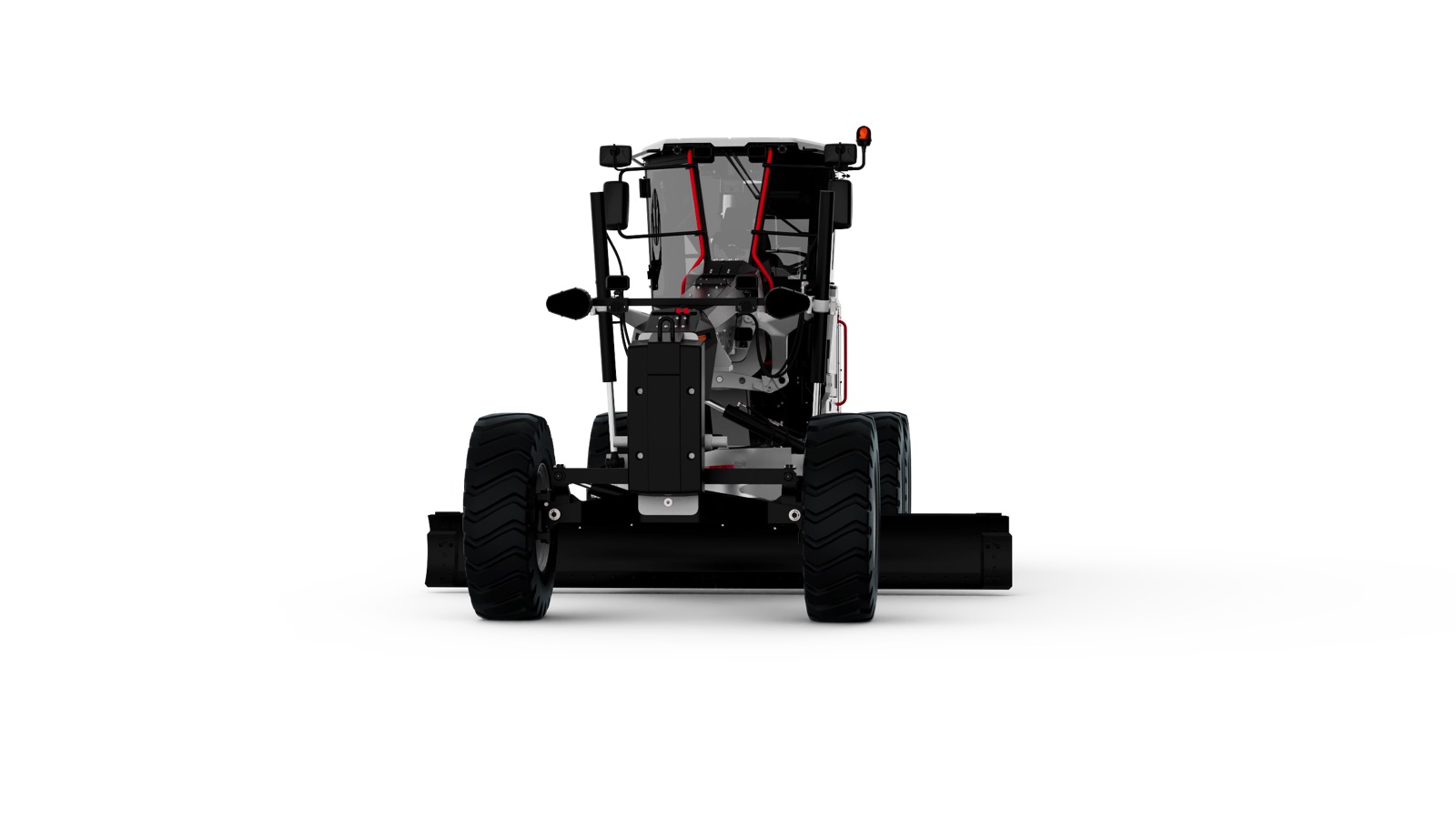

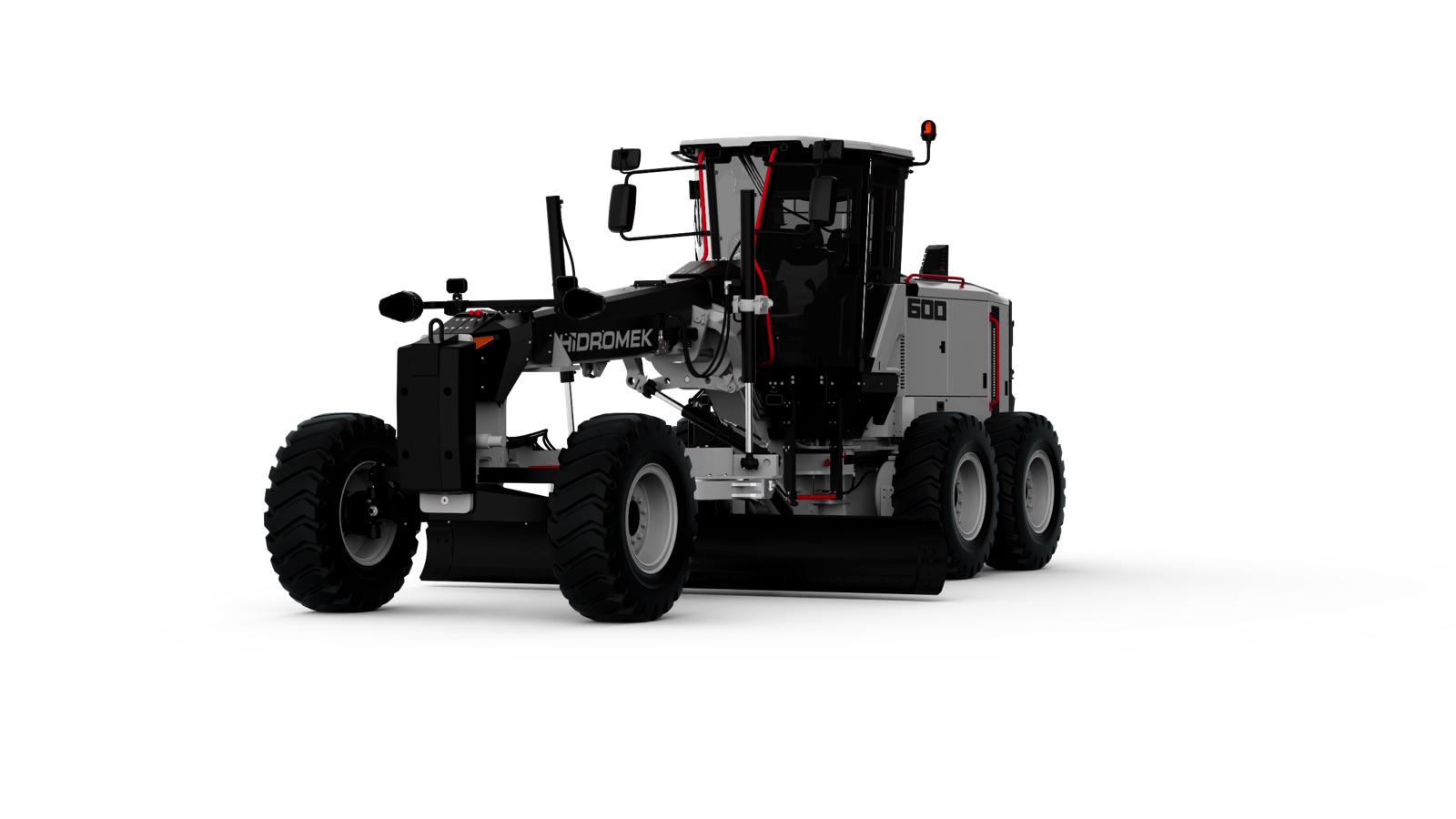

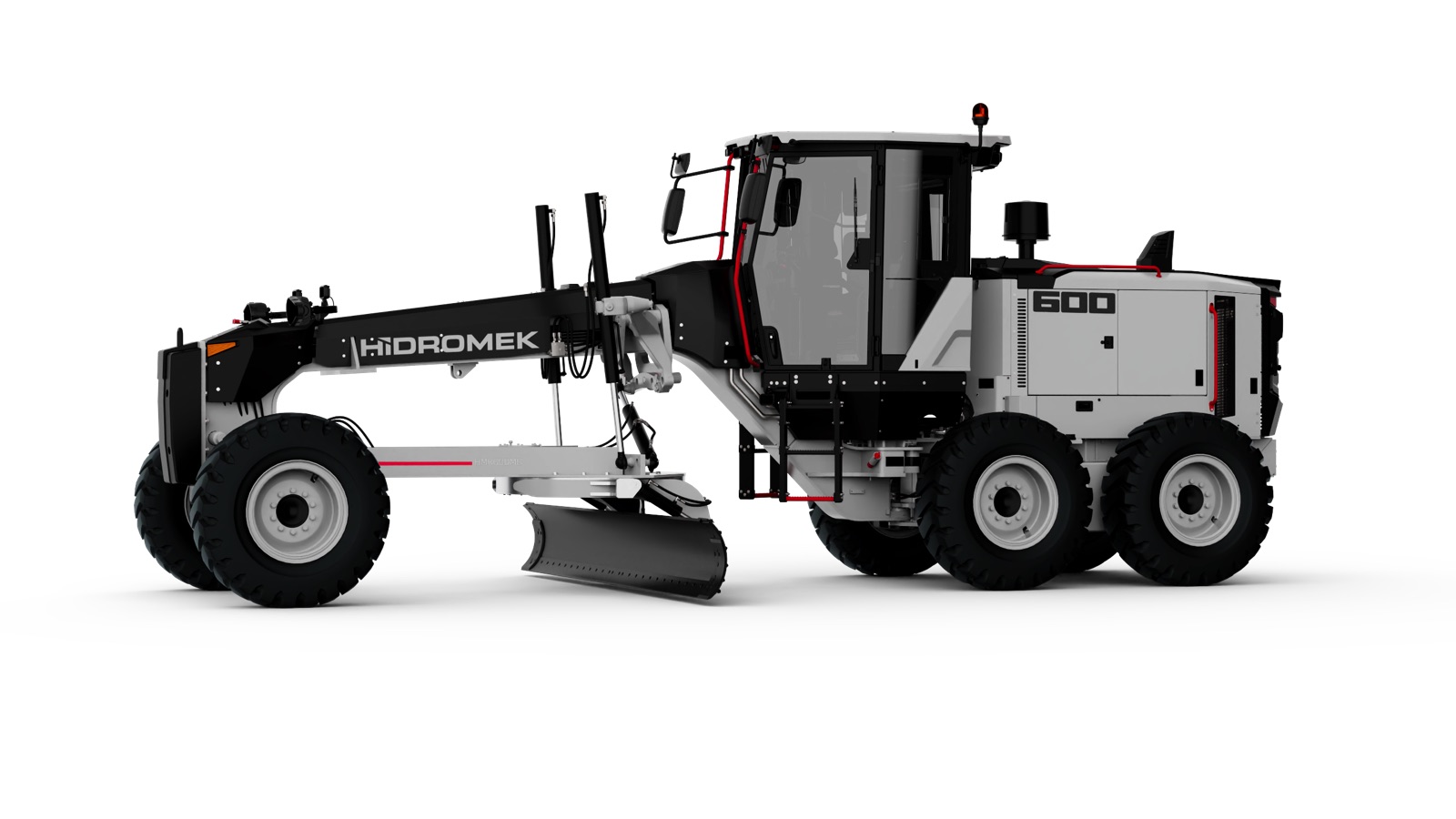

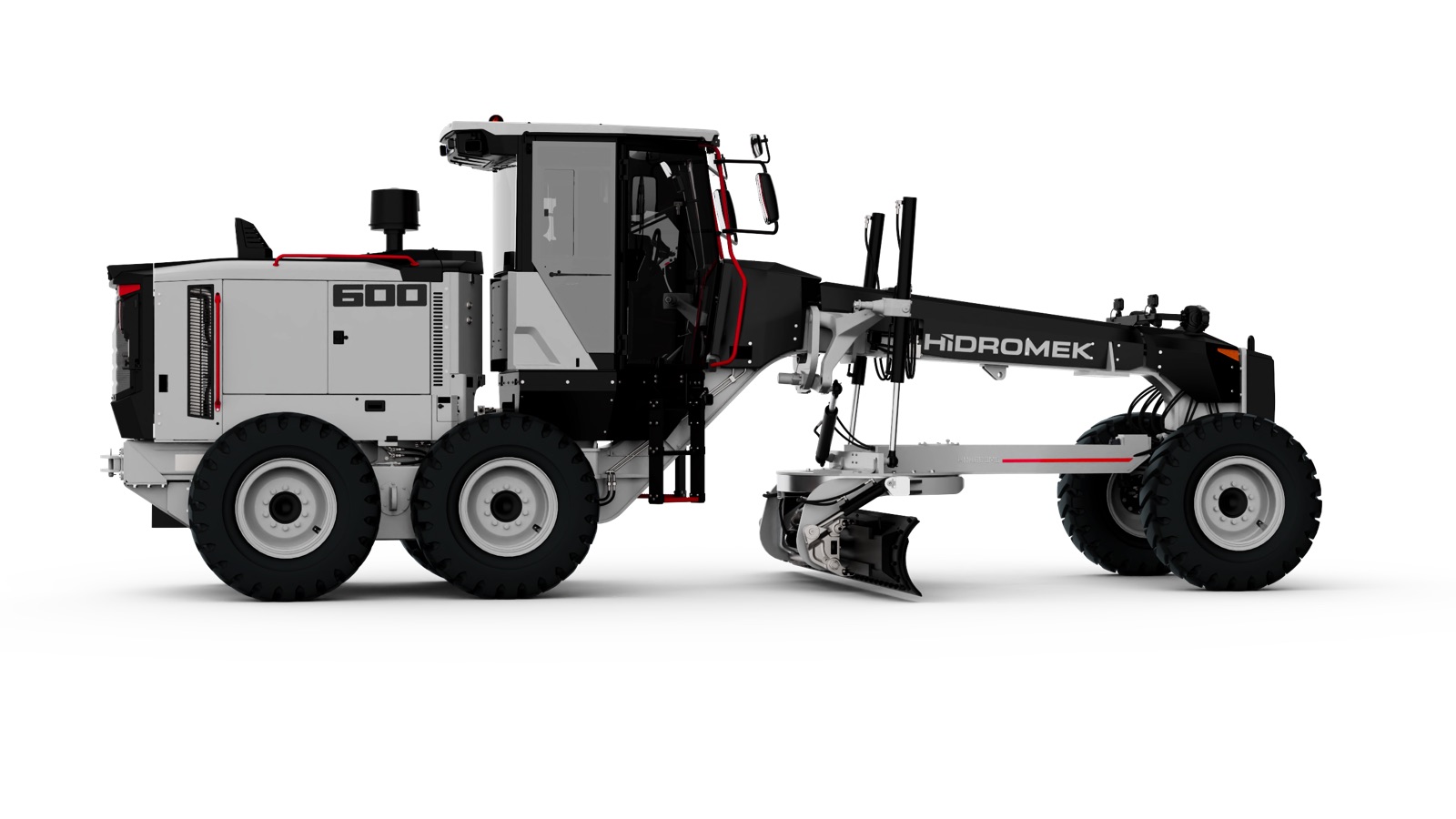

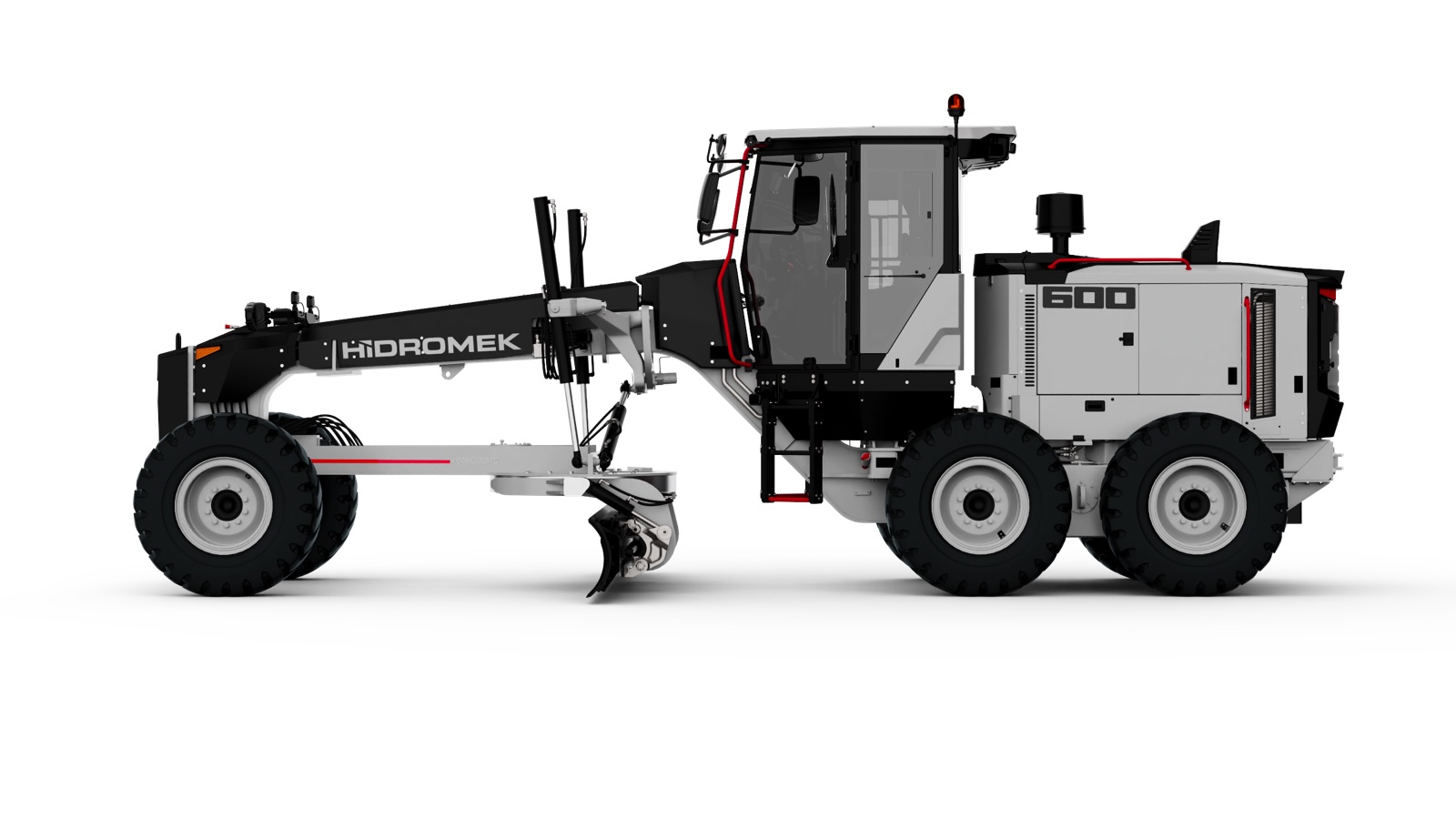

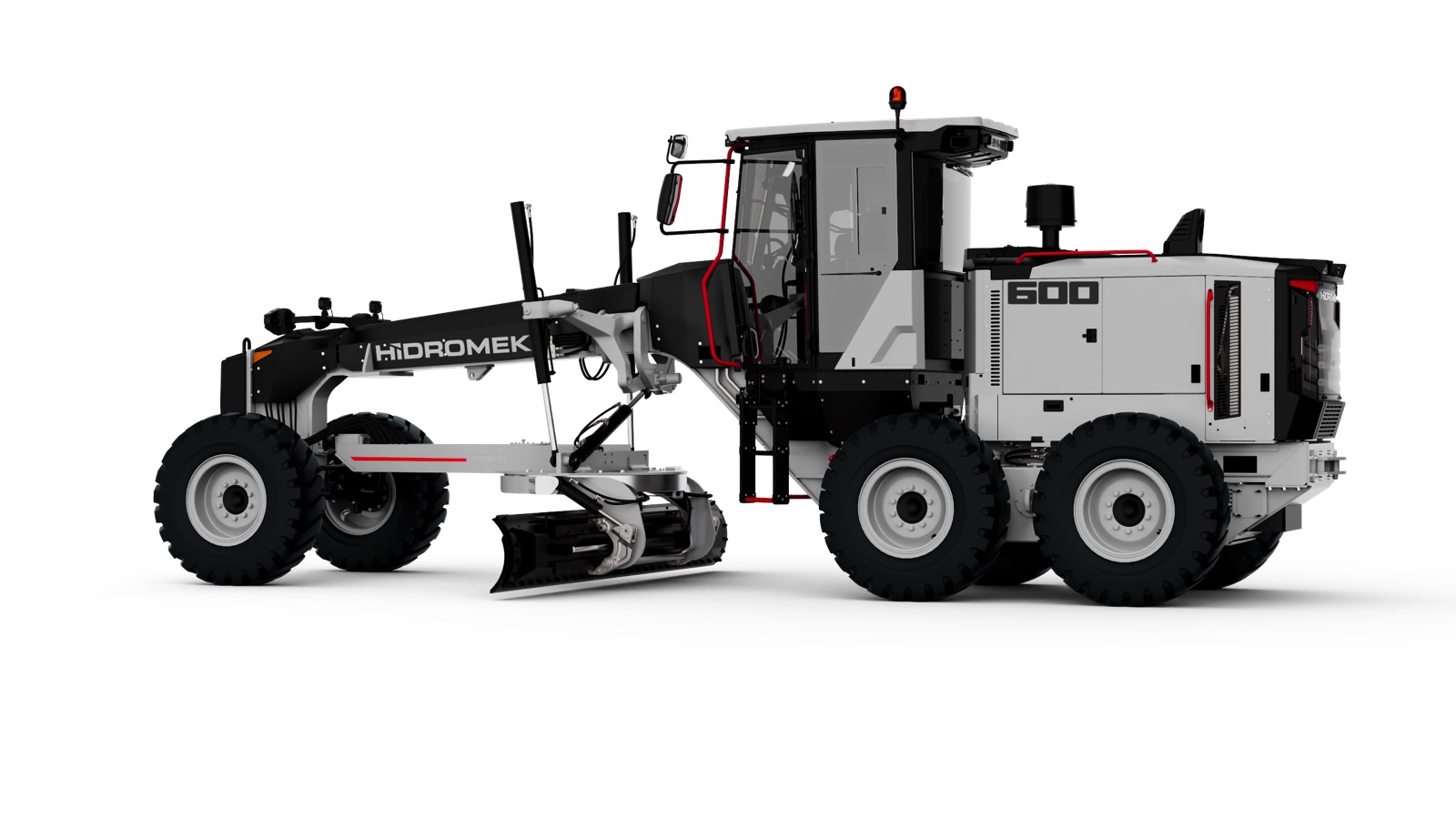

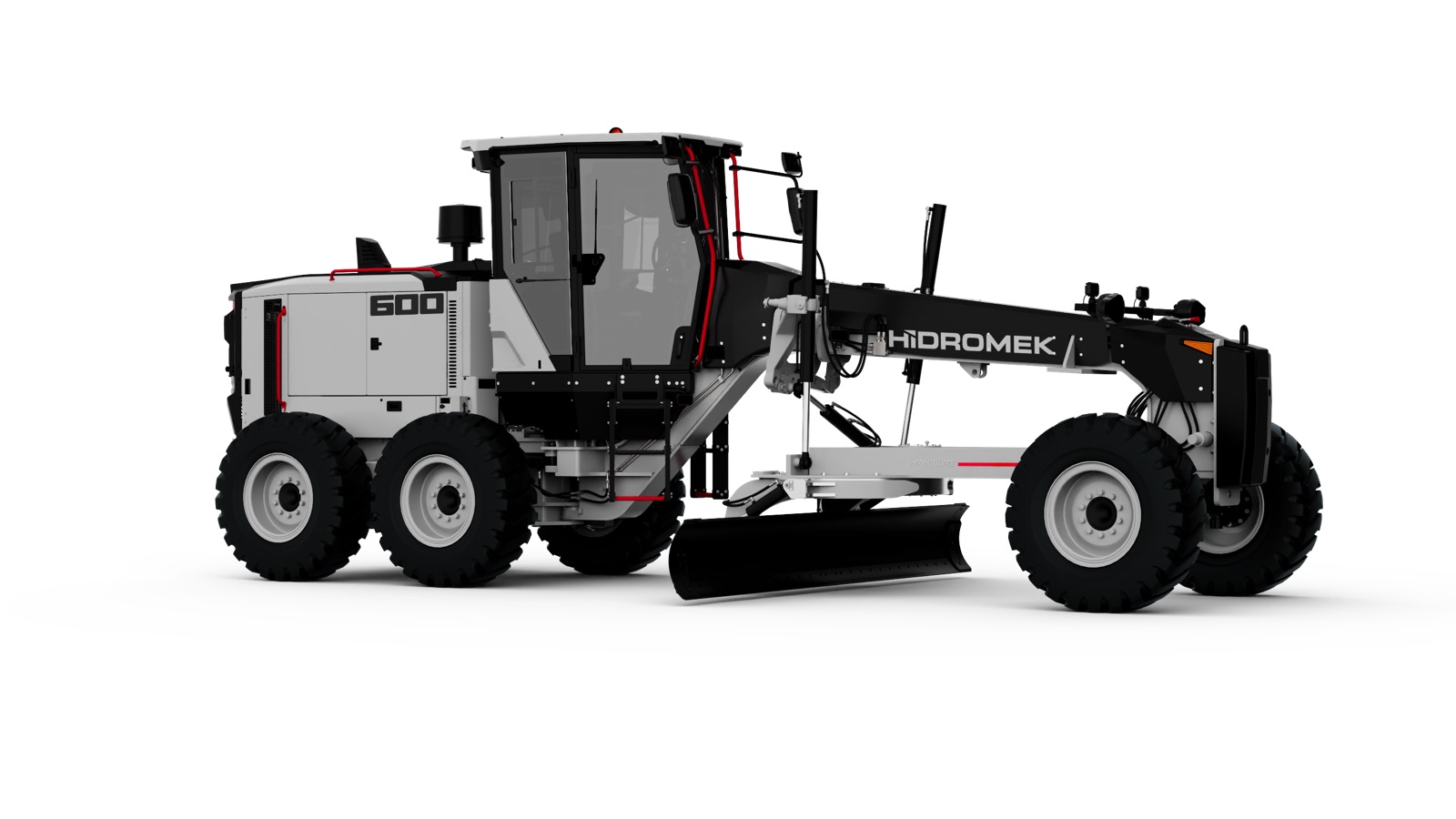

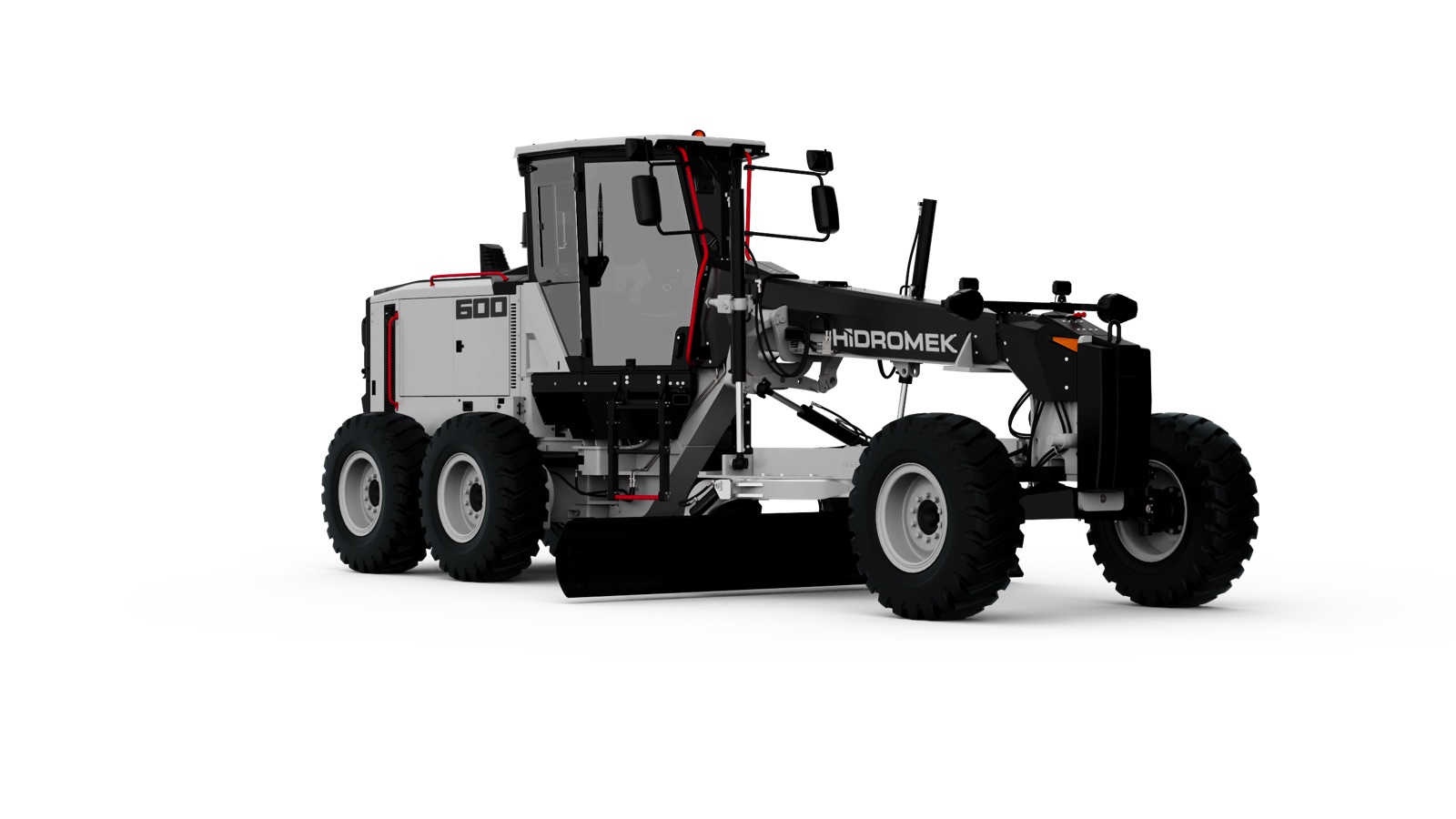

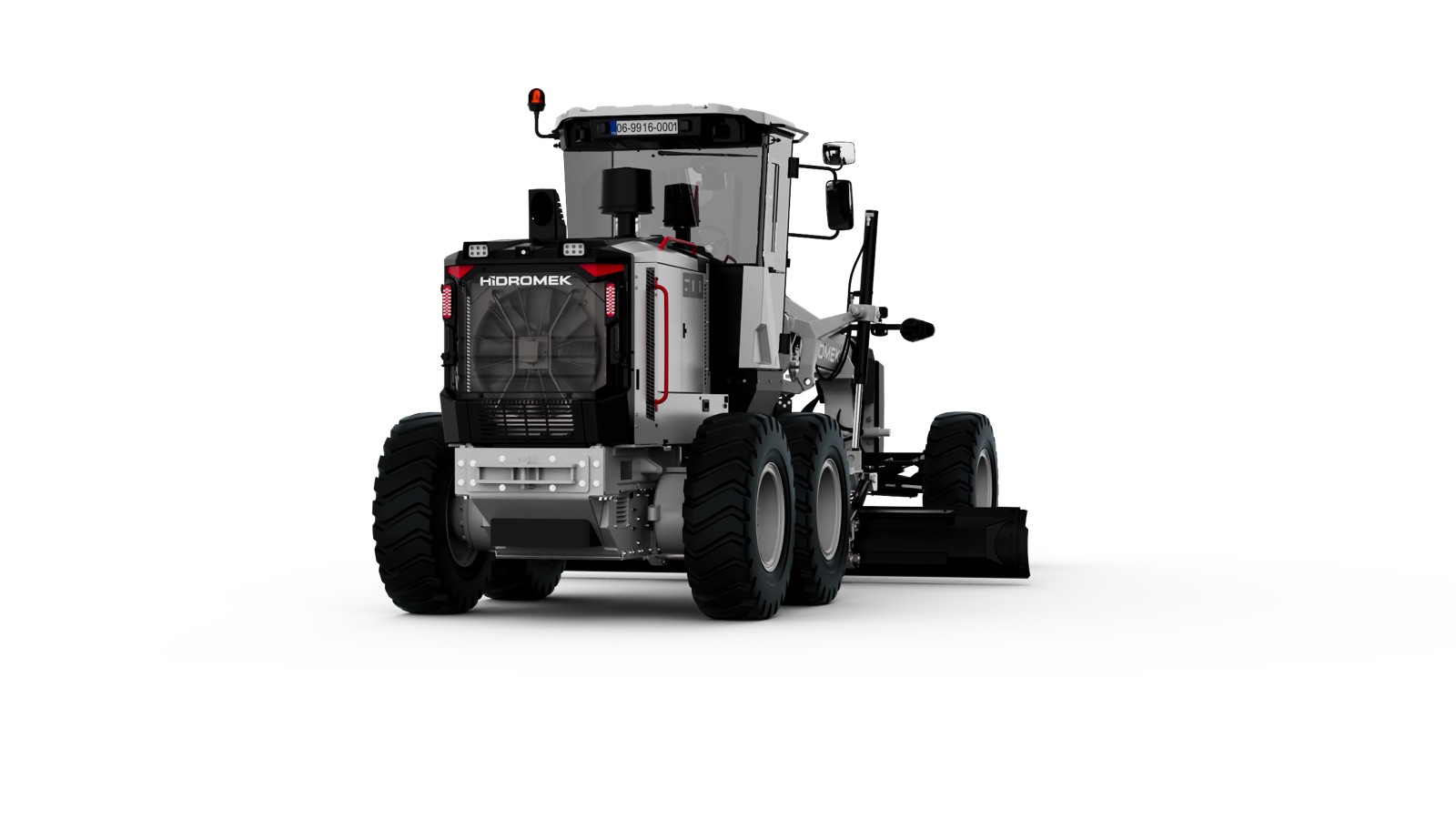

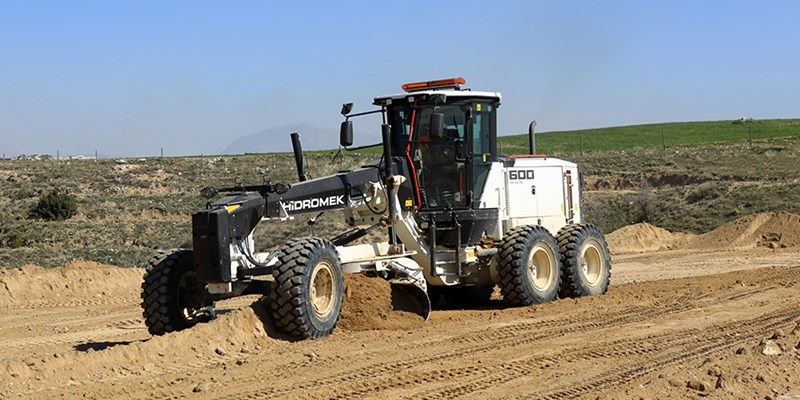

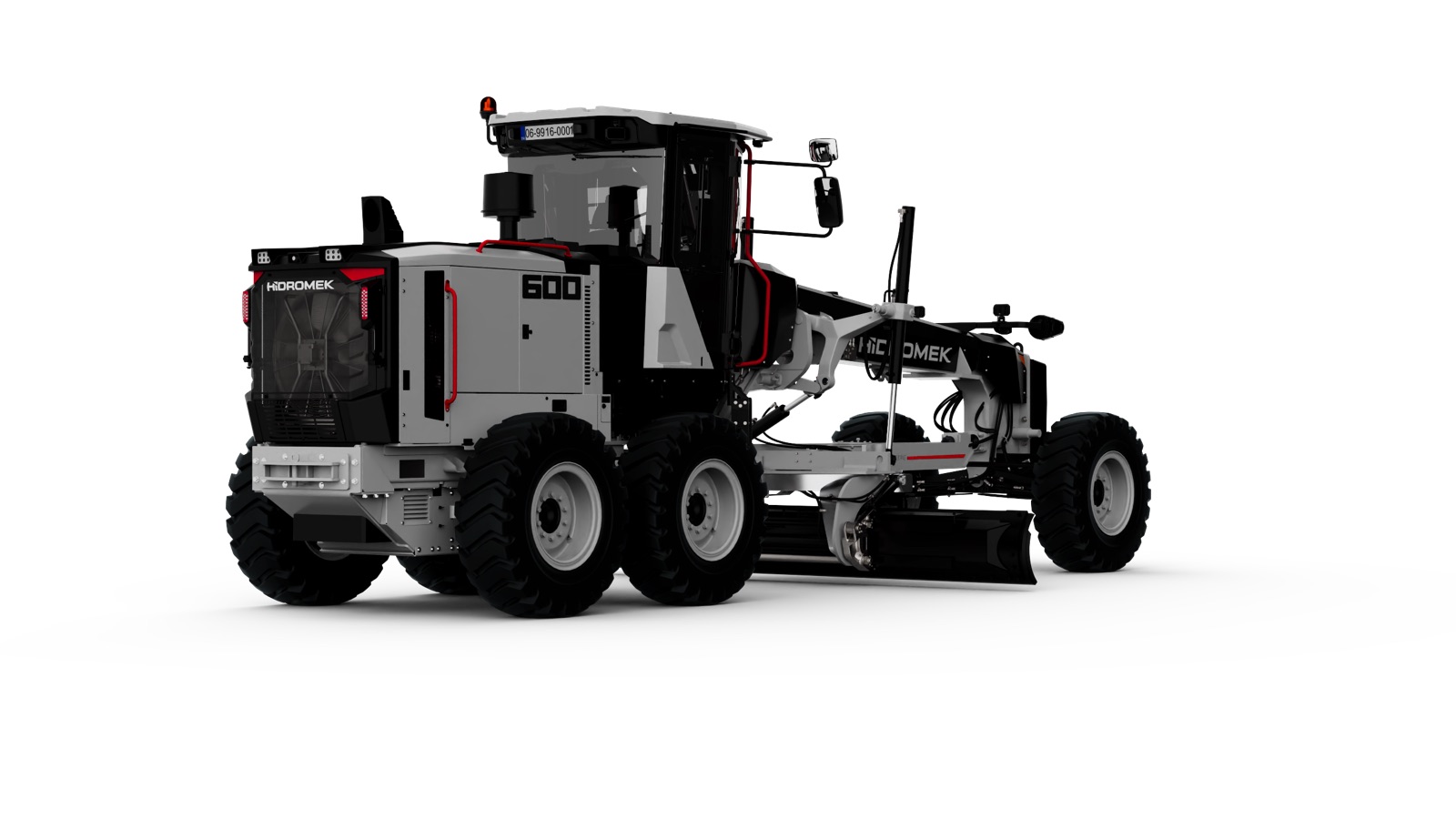

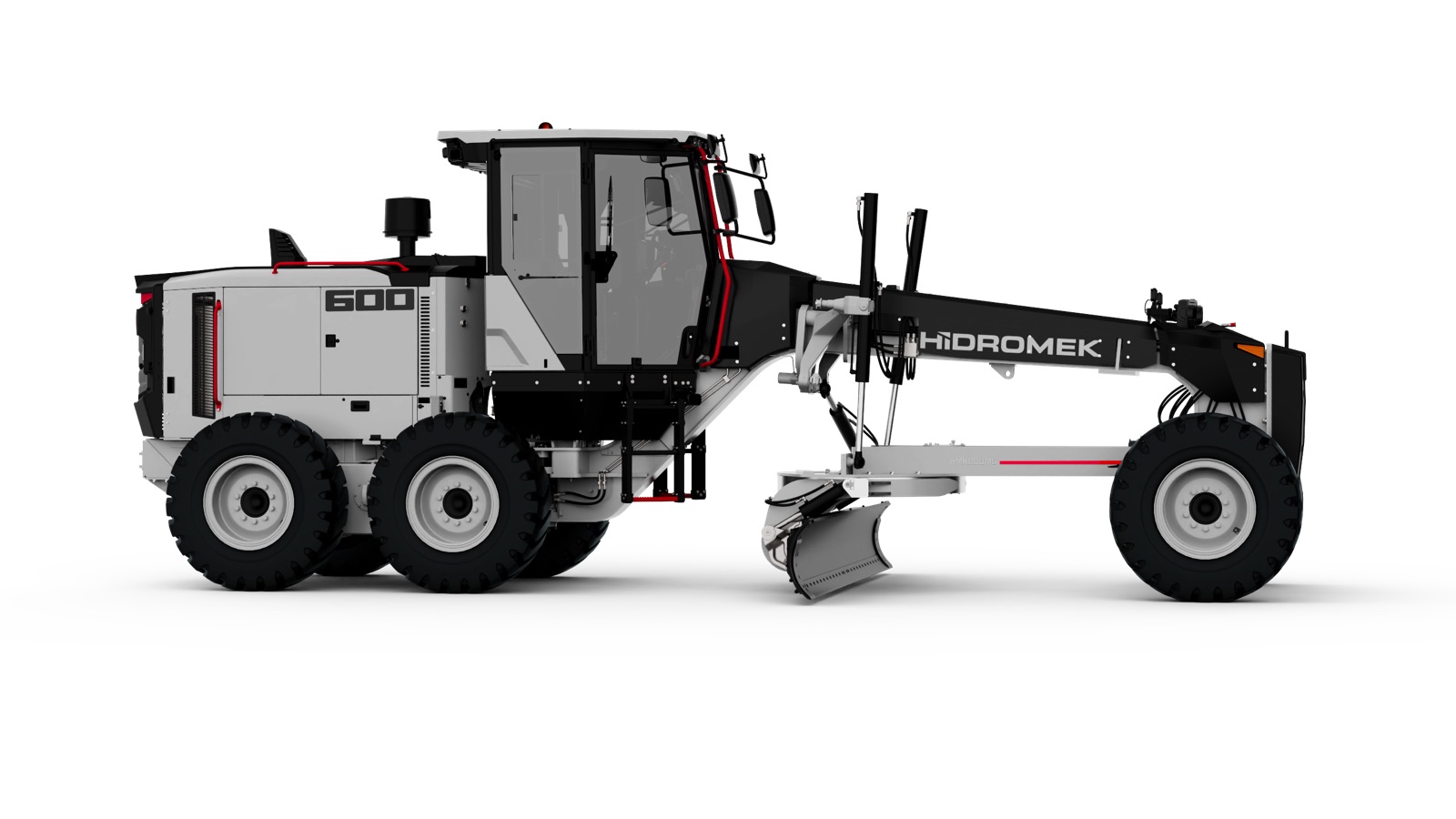

HİDROMEK HMK 600 MG is a powerful motor grader designed for high performance, precision control, and operator comfort. Equipped with a strong drivetrain, advanced hydraulic system, and durable frame, it is built to handle a wide range of grading, leveling, and snow removal operations in demanding environments.

HMK 600 MG stands out with its advanced control systems, variable horsepower engine, and superior maneuverability. It offers efficient performance with low fuel consumption, enhanced driving comfort, and high durability, making it suitable for both heavy construction and municipal applications.

Features

Advanced Drivetrain & Control

  • 8 forward and 8 reverse gears
  • Joystick and steering wheel control options
  • FNR button for quick direction and speed changes
  • Cruise control and automatic gear selection

Powerful Engine Performance

  • Mercedes engine with variable horsepower (187–214 HP)
  • Fuel-efficient and durable for tough conditions
  • Hydrostatic cooling fan with automatic reverse cleaning

Intelligent Hydraulic System

  • Load-sensing closed-center hydraulic system
  • Adjustable hydraulic pressure for different attachments
  • Reduced power loss and improved efficiency

Operator Comfort & Visibility

  • Hexagonal cab design for wide visibility
  • 7” TFT display for full machine control
  • Rear-view camera integration for safer operation

Strong Frame & Durability

  • High-strength frame developed with simulations and field tests
  • Long service life and improved durability

Blade & Attachment Efficiency

  • Standard 3.7 m blade (optional 4.01 m / 4.31 m)
  • Clutch system to absorb impacts and prevent damage
  • Blade accumulators for shock absorption
  • Suitable for leveling, grading, digging, and snow clearing

Specifications

Engine

  • Model: Mercedes-Benz OM 936 LA
  • Power: 214–242 HP (160–180 kW) @ 2200 rpm
  • Torque: 1000 Nm @ 1200–1600 rpm
  • Displacement: 7700 cc
  • Cylinders: 6
  • Emission Class: Stage V EU

Performance

  • 1st Gear: 4 km/h
  • 2nd Gear: 5.4 km/h
  • 3rd Gear: 8.2 km/h
  • 4th Gear: 11.2 km/h
  • 5th Gear: 16 km/h
  • 6th Gear: 21.6 km/h
  • 7th Gear: 32.9 km/h
  • 8th Gear: 45.2 km/h

Transmission

  • Type: Direct drive powershift (planetary gear, electro-hydraulic)
  • Gears: 8 forward / 8 reverse
