cover_header (1)

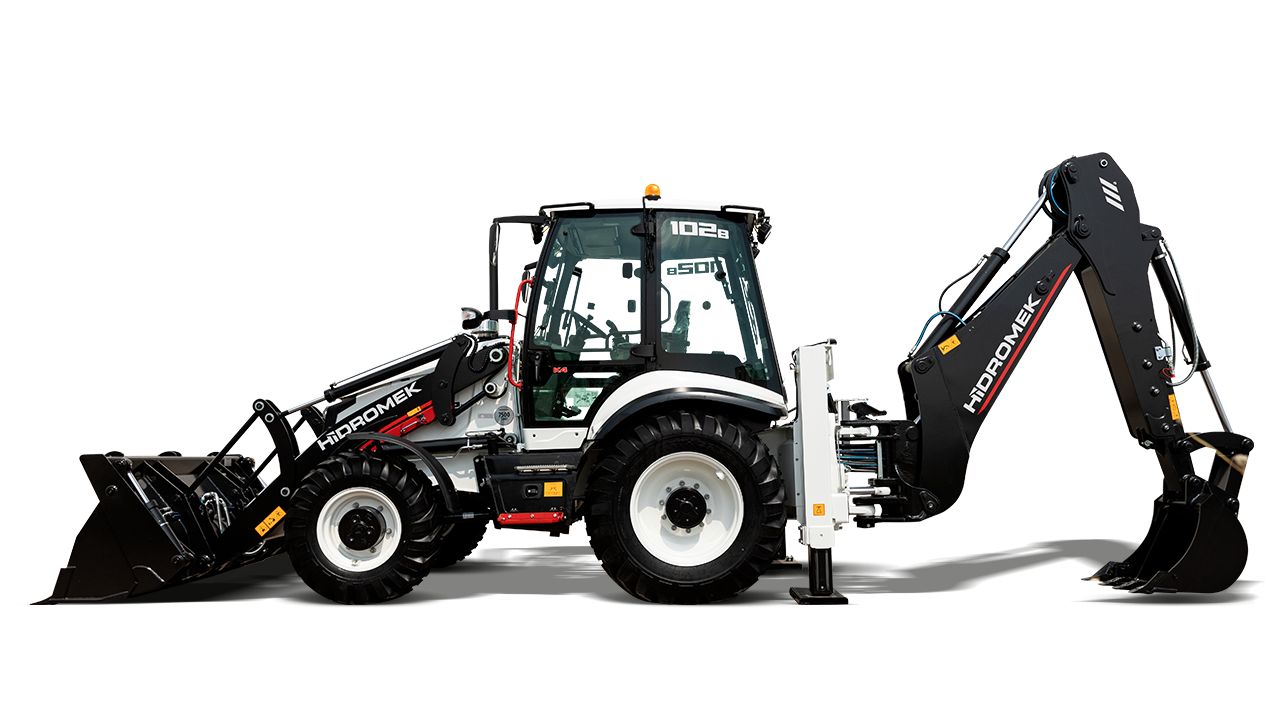

K4 HMK 102 B ALPHA GREENTEC

Maximum Power

74,3 HP (55,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.0 m³

  • View Specs & Dimensions Brochure
HİDROMEK K4 Series backhoe loaders are designed for severe geographical and heavy-duty working conditions. They deliver high productivity with a strong structural design and an efficient hydraulic system that provides maximum breakout force even at low engine revolutions, along with high oil flow capacity. These machines are suitable for excavation, infrastructure, superstructure, agriculture, forestry, landscaping, and industrial applications using a wide range of attachments.

The K4 Series is built to deliver faster and more efficient performance in demanding environments. With improved engineering and hydraulic enhancements, these machines are optimized for productivity and fuel efficiency. Their versatility allows them to operate with multiple attachments, making them suitable for a broad range of construction and industrial tasks.

Features

  • 20% faster operation due to improved loader cylinder design
  • 3% improved fuel efficiency for better productivity per liter
  • Compatible with multiple attachments including:
    • Leveling shovel
    • Forklift
    • Hammer
    • Auger
    • Log grapple
    • Snow plow
    • Ripper
    • Stone collecting bucket
    • Trapeze bucket
    • Polyp attachment
  • High breakout force for heavy-duty tasks
  • Improved hydraulic system for smoother and faster operations
  • Designed for multi-industry use including construction, agriculture, and forestry

Specifications

Engine

  • Brand / Model: Perkins 904J-E36TA
  • Maximum Power: 74.3 HP (55.4 kW) @ 2200 rpm
  • Displacement: 3,621 cc
  • Type: Turbocharged, water-cooled diesel engine
  • Maximum Torque: 424 Nm @ 1200 rpm
  • Bore & Stroke: 98 x 120 mm
  • Emission Class: EU Stage 5 / US Tier 4 Final

Hydraulic System

  • Pressure: 227 bar
  • Type: Tandem gear pump
  • Auxiliary Pump Flow: 57.2 L/min @ 2200 rpm
  • Main Pump Flow: 90 L/min @ 2200 rpm

Tires

  • Front: 16/70 – 20 (12 PR)
  • Rear: 16.9 – 28 (14 PR) (Optional: 18.4 – 26, 12 PR)

Driving Speed

  • 1st: 4 km/h
  • 2nd: 7 km/h
  • 3rd: 9 km/h
  • 4th: 15 km/h
  • 5th: 24 km/h
  • 6th: 40 km/h

Loader Performance

  • Bucket Breakout Force: 7380 kgf
  • Bucket Capacity: 1.0 m³
  • Arm Breakout Force: 7380 kgf
  • Lifting Capacity: 3660 kg

Backhoe Performance

  • Bucket Capacity: 0.18 m³
  • Bucket Breakout Force: 6865 kgf
  • Arm Breakout Force: 3290 kgf

Operating Weight

  • 8,950 kg

Transmission

  • Type: Autoshift (heavy-duty)
  • Gears: 6 forward / 3 reverse
  • View Specs & Dimensions Brochure
