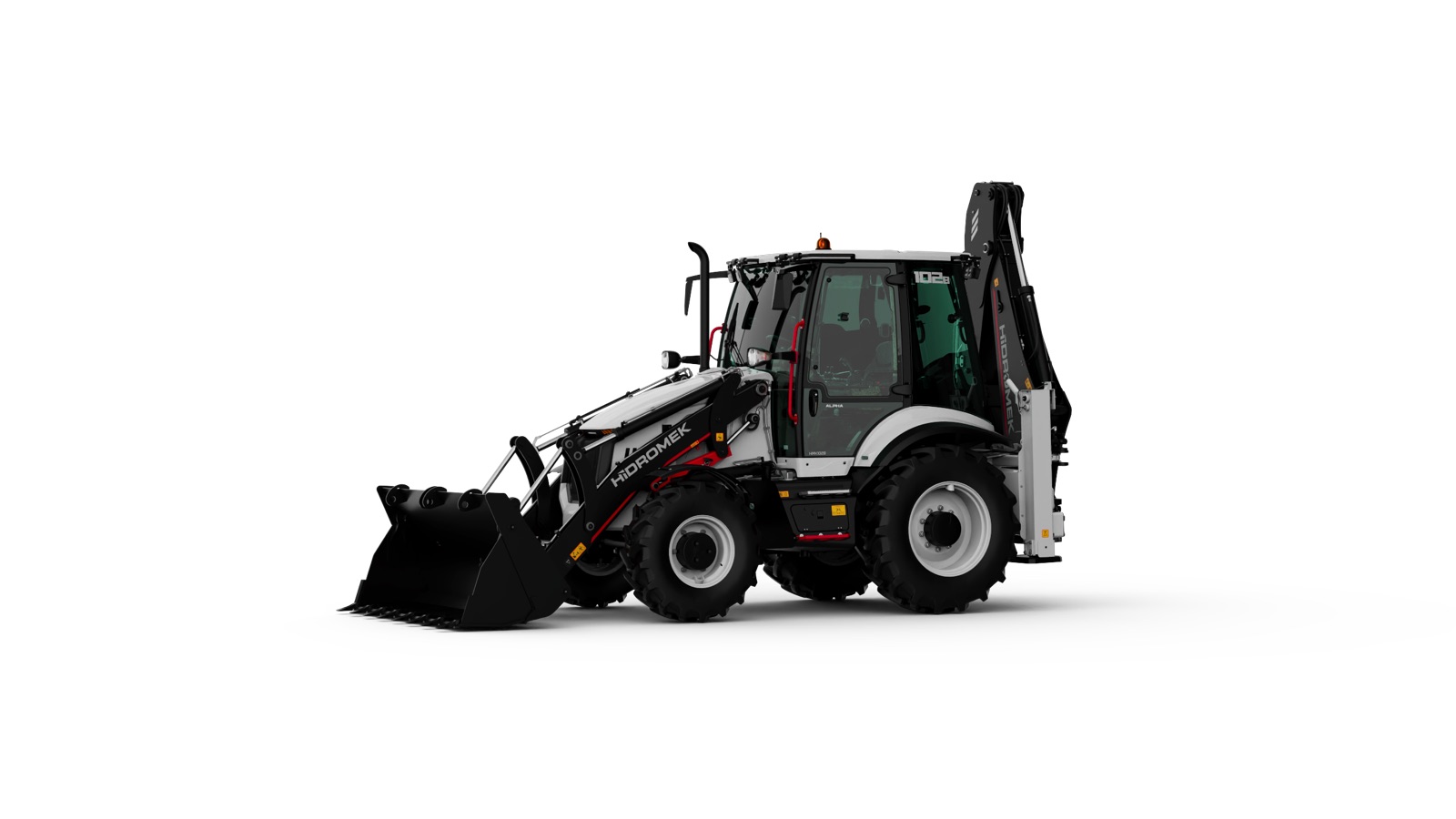

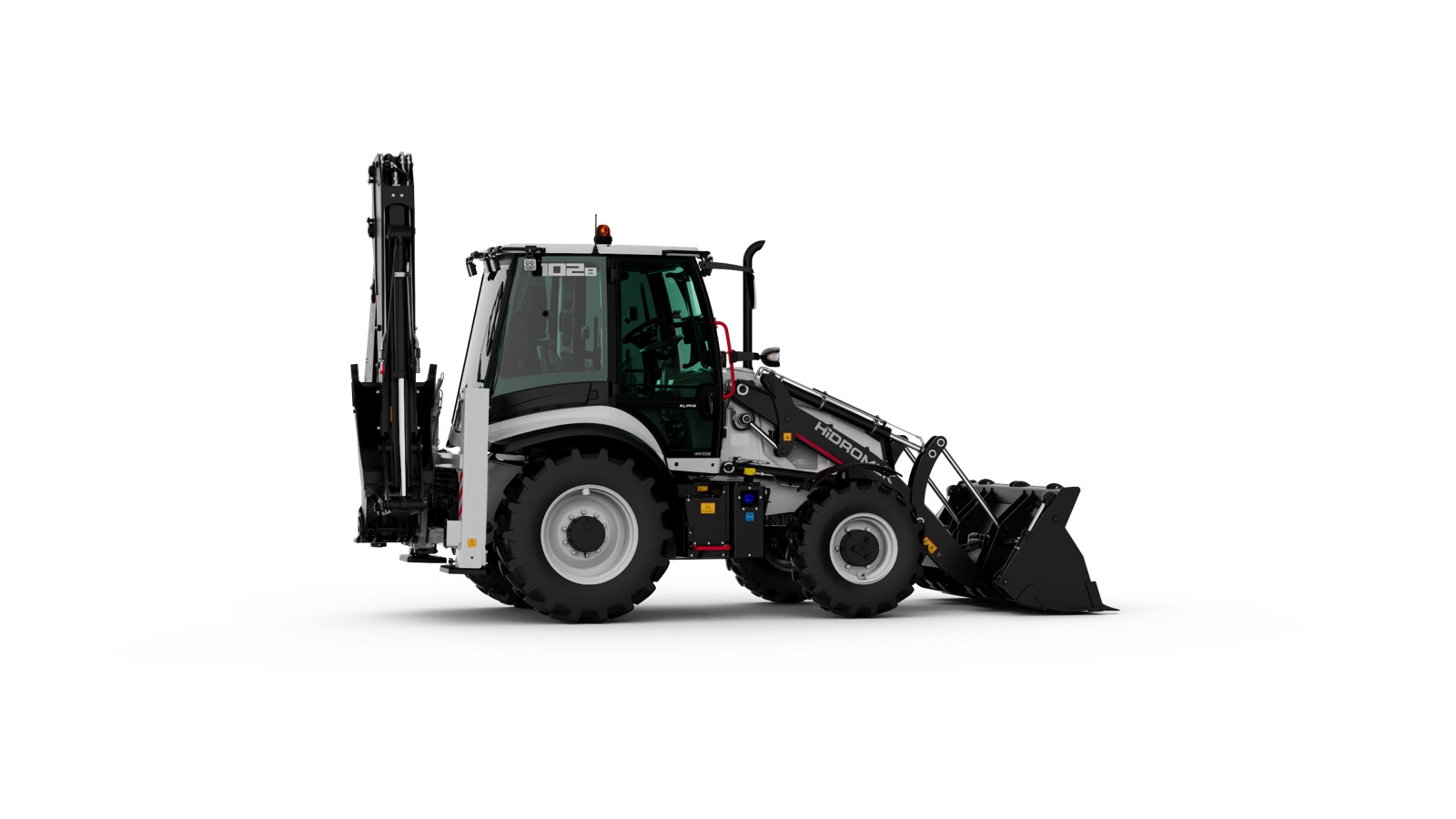

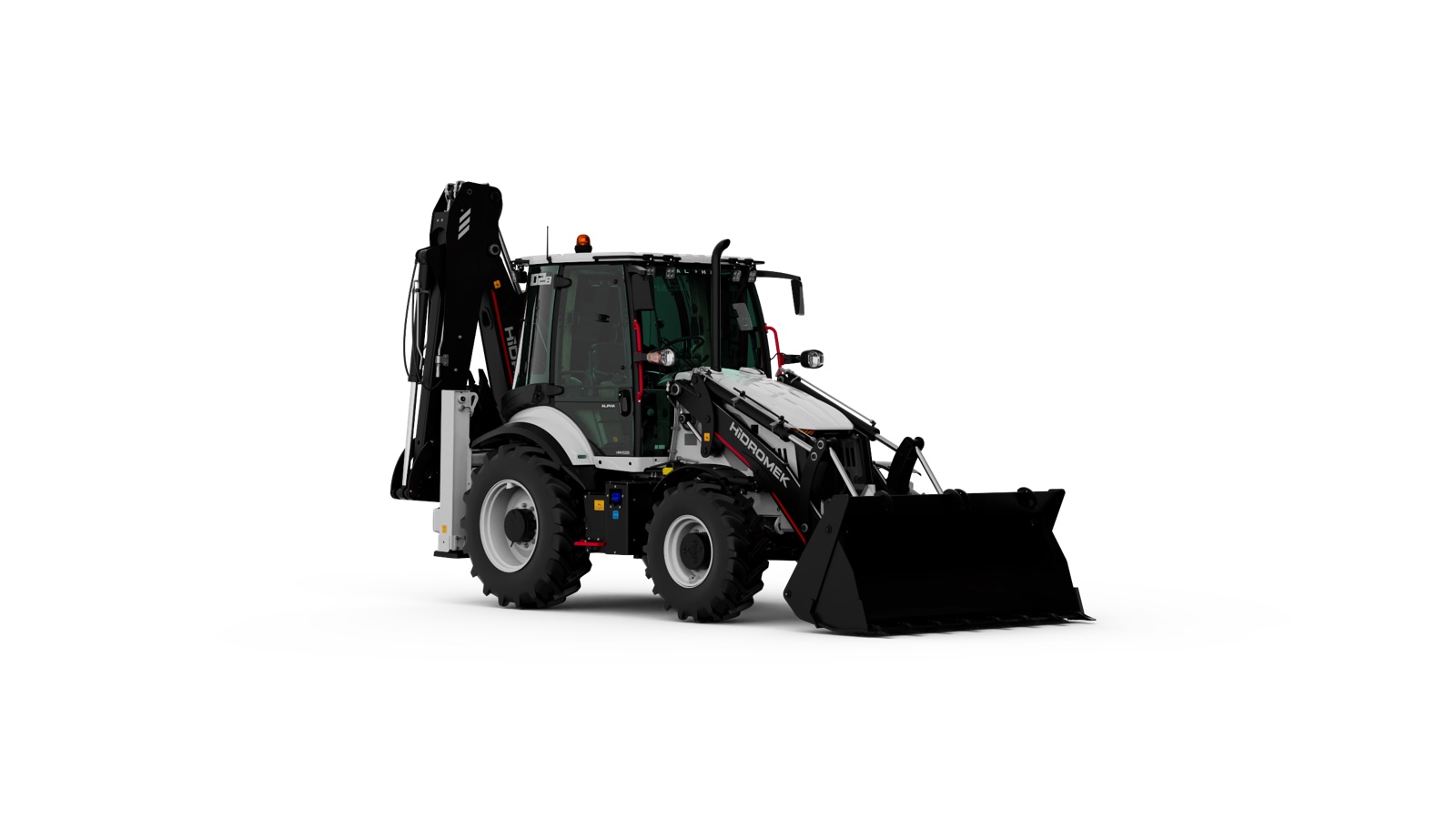

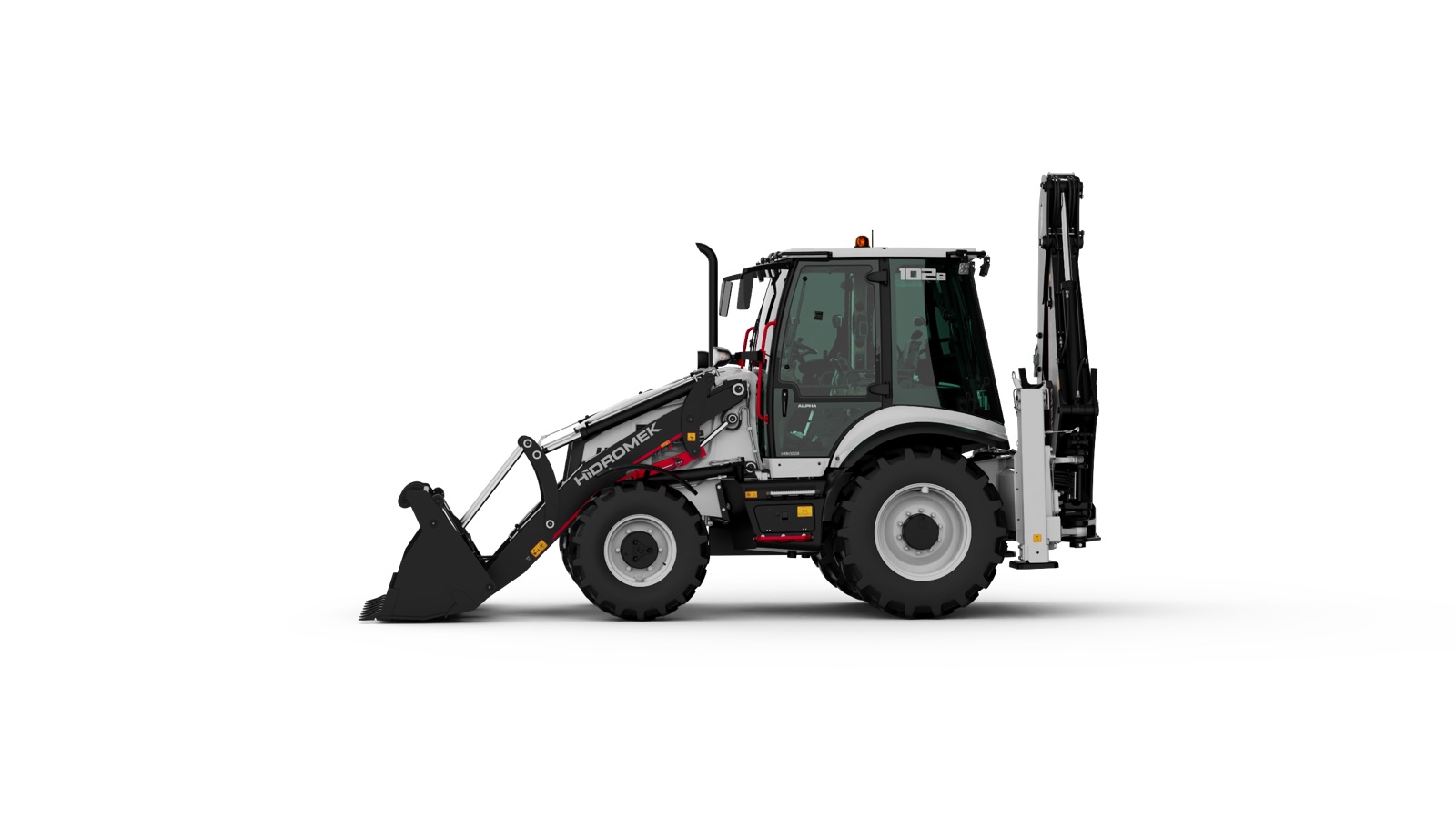

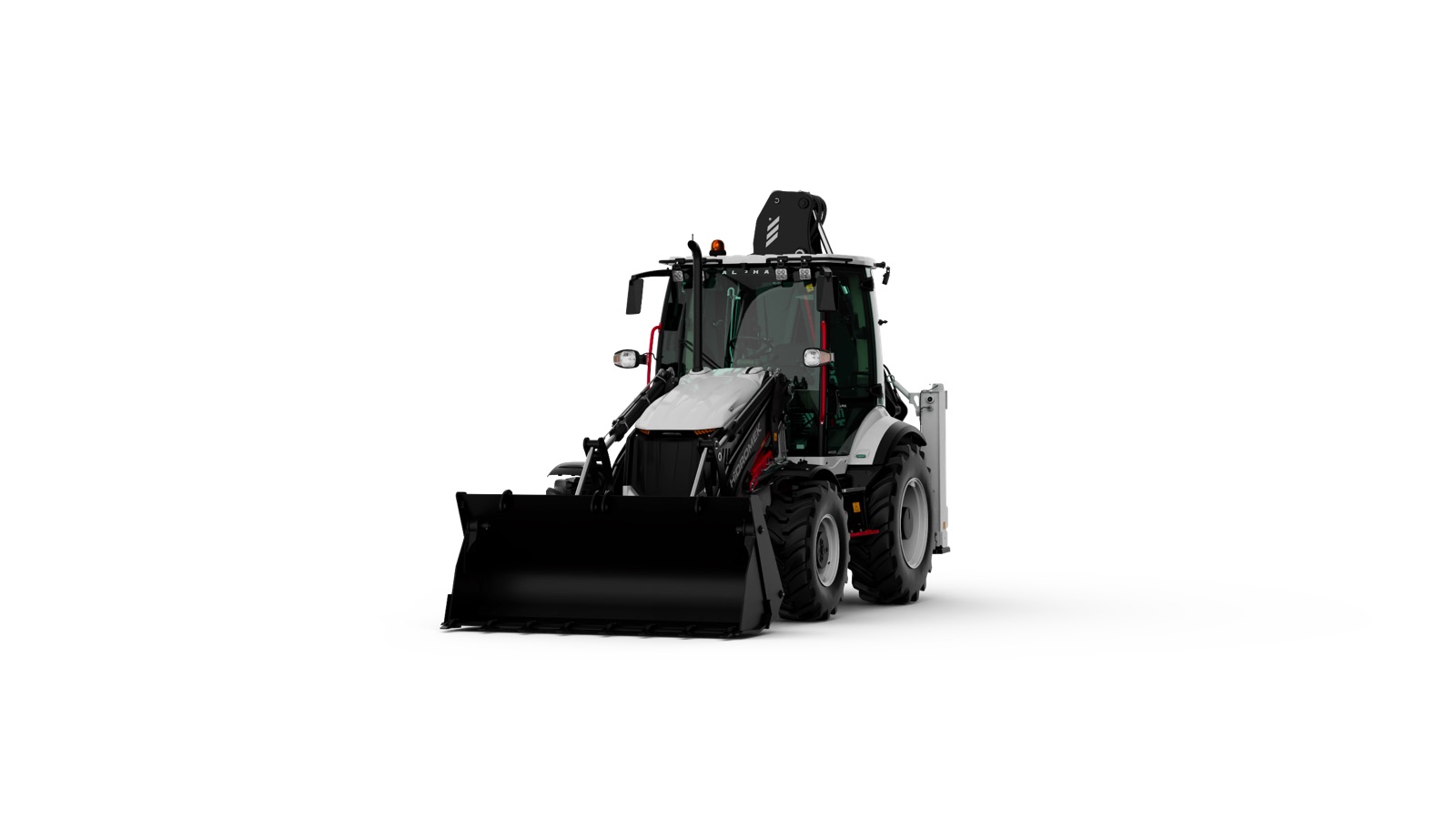

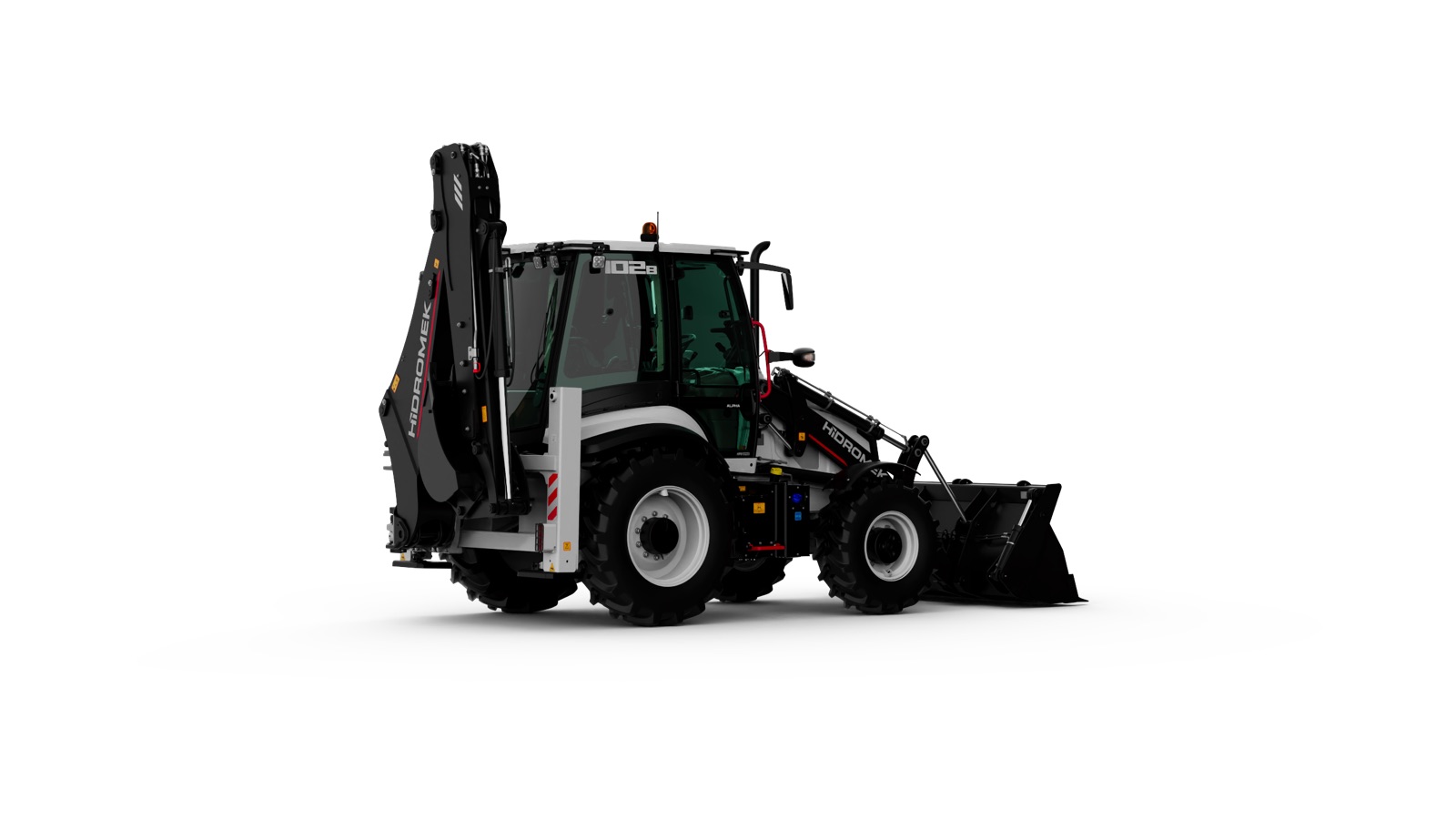

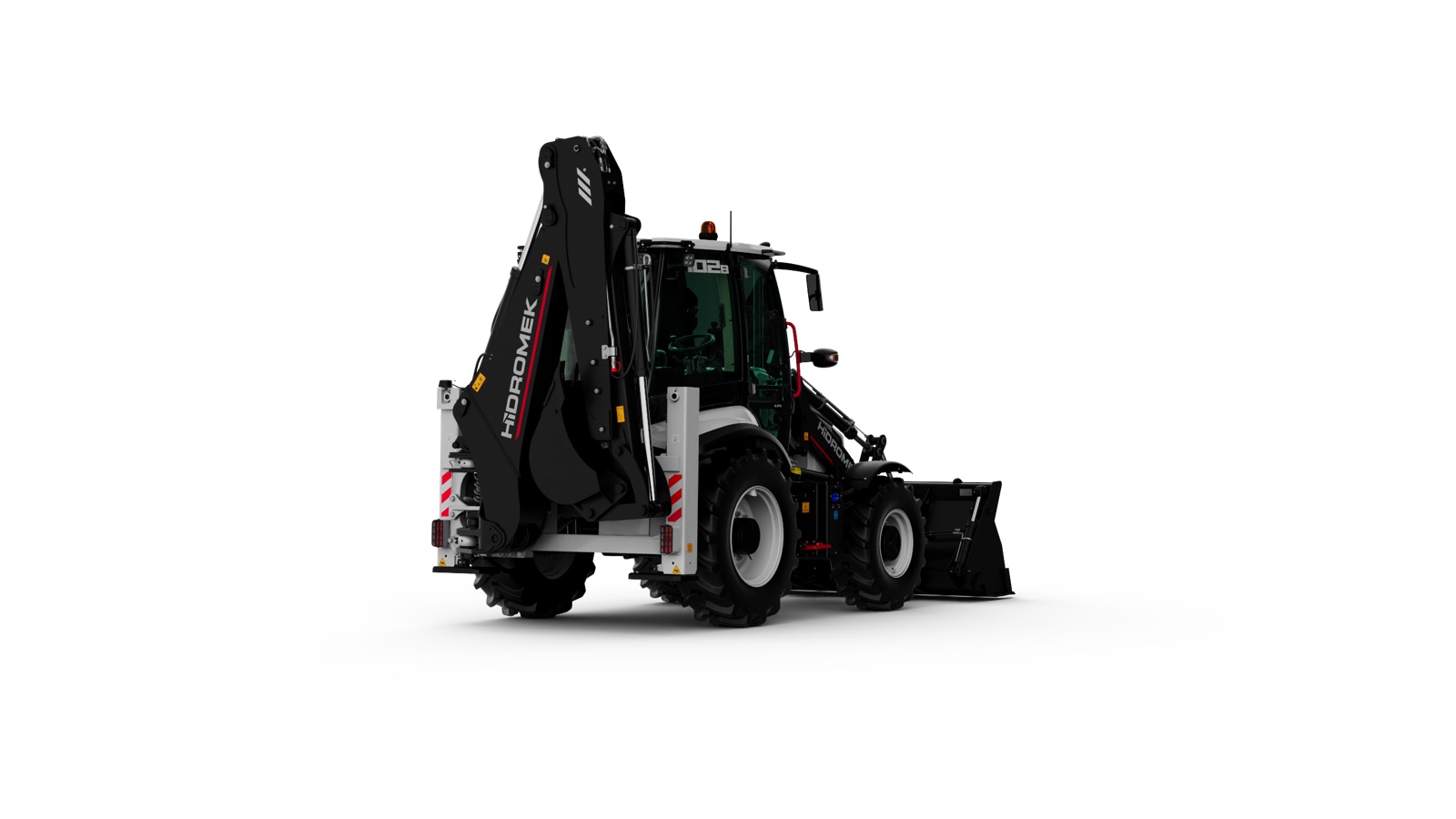

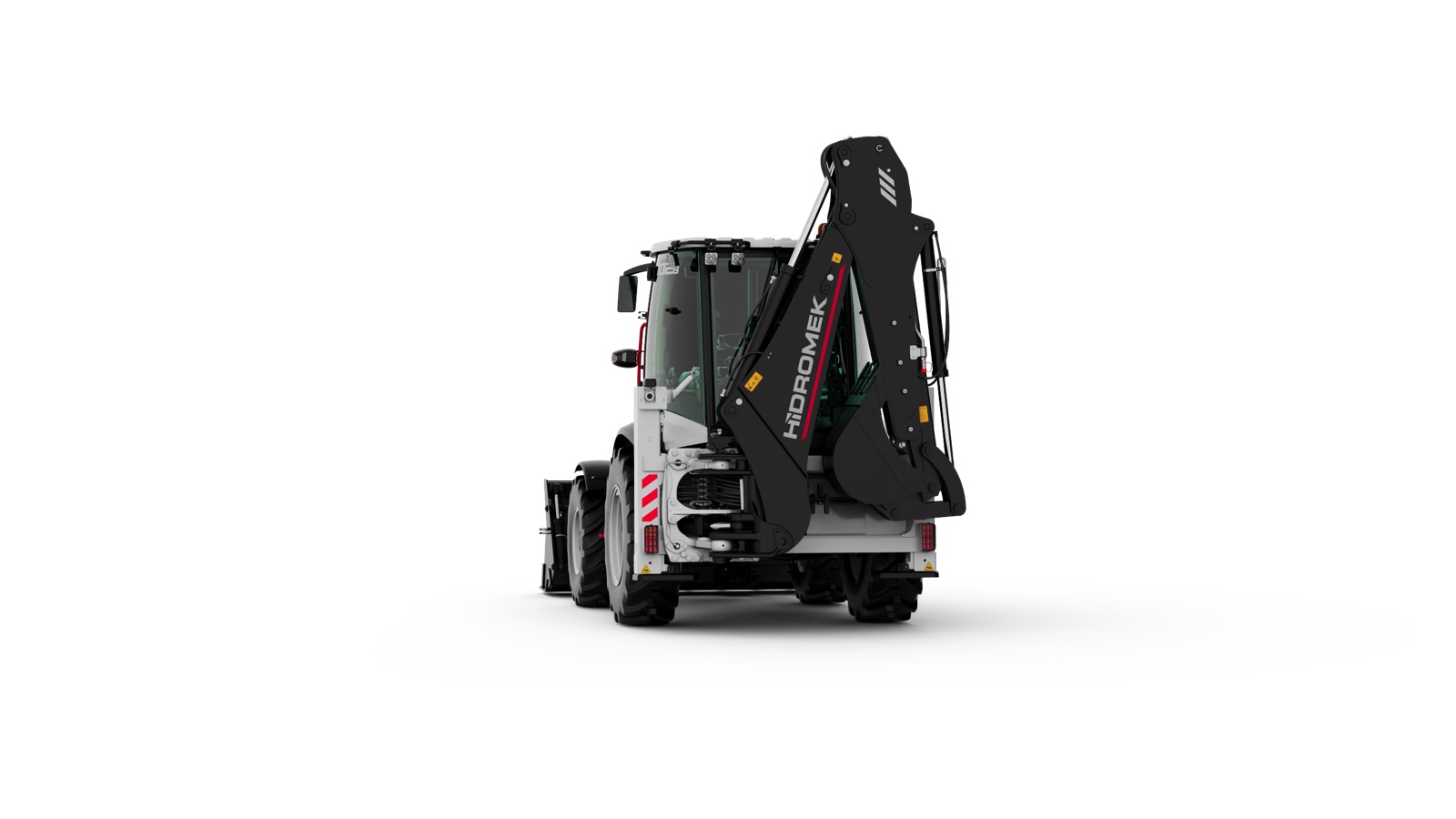

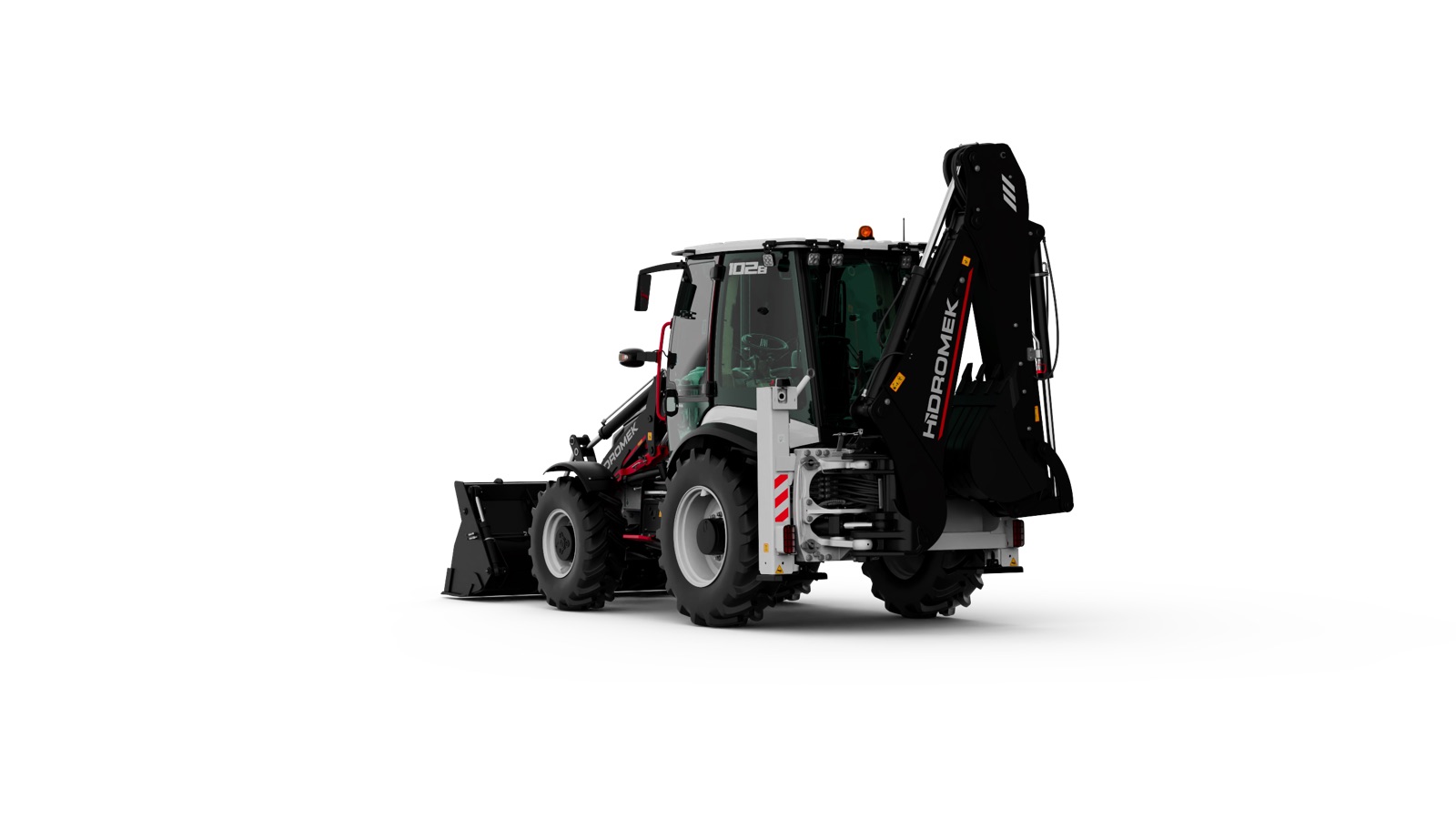

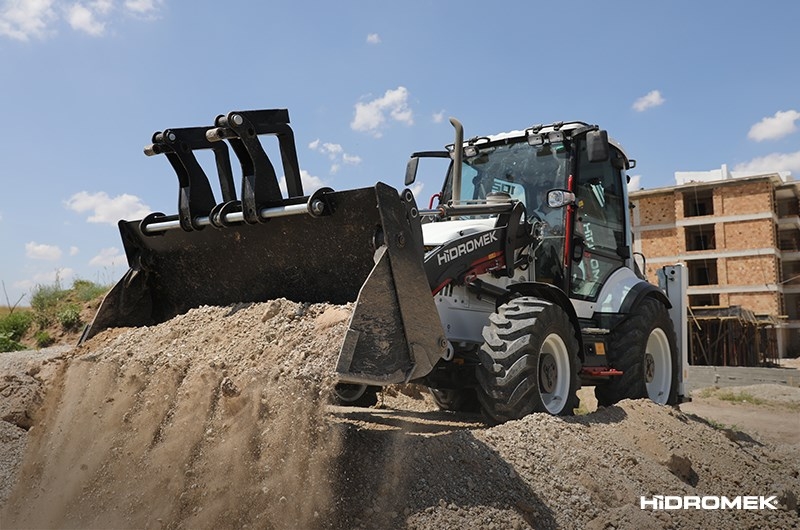

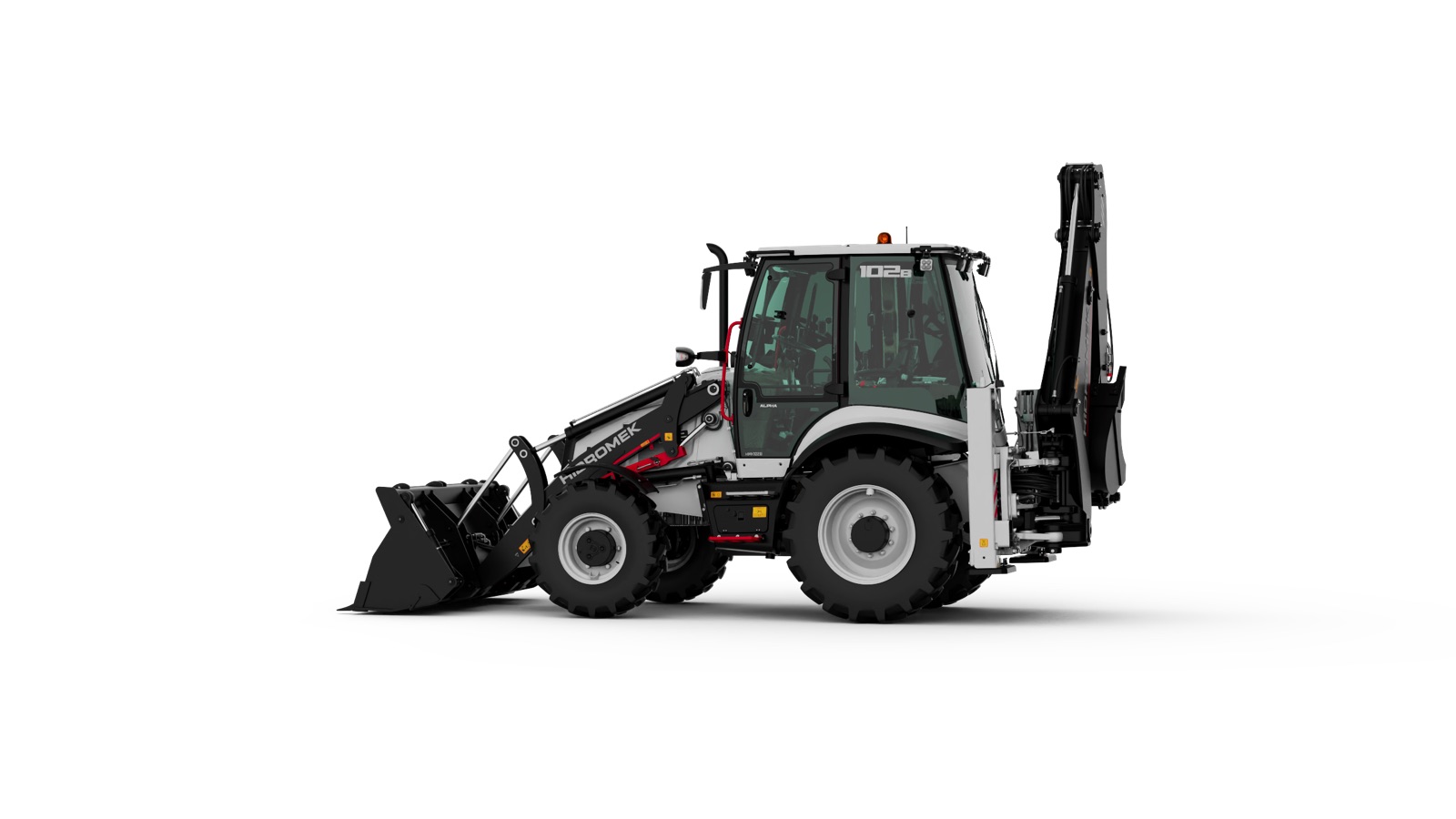

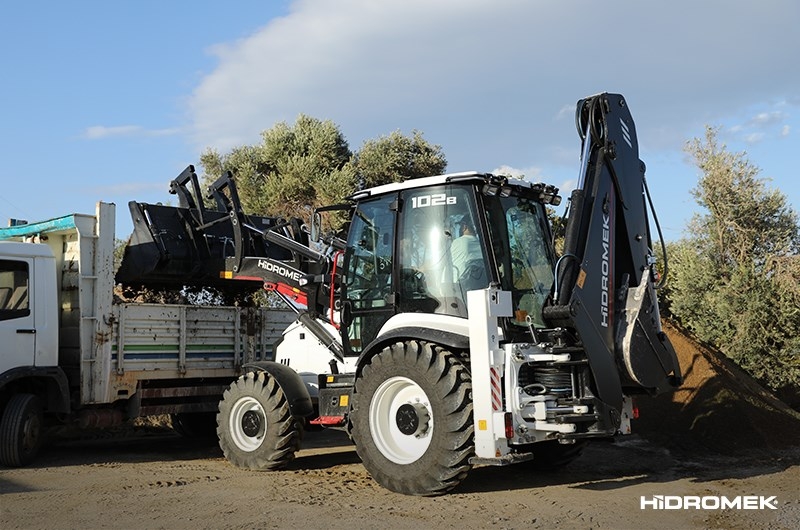

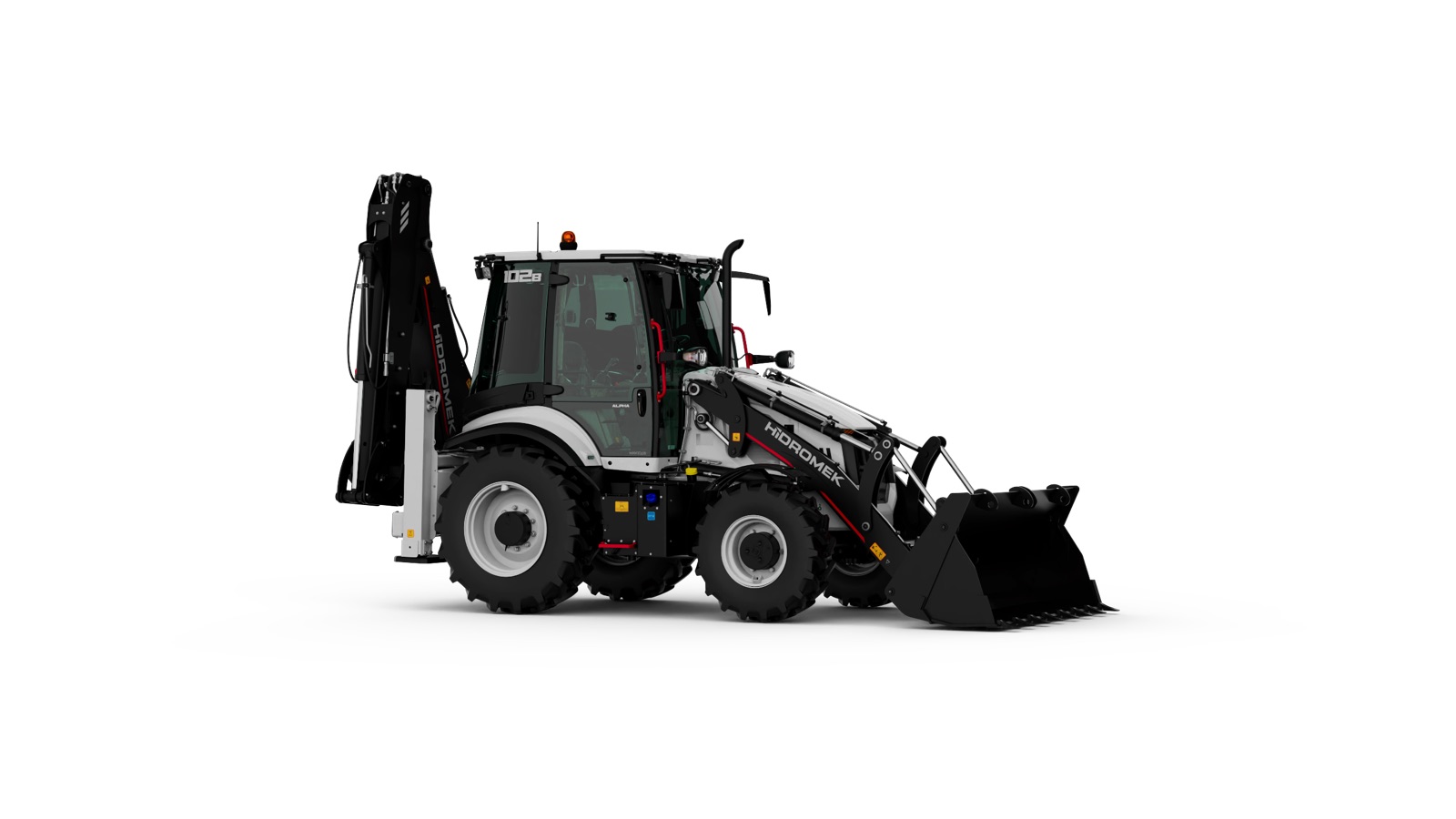

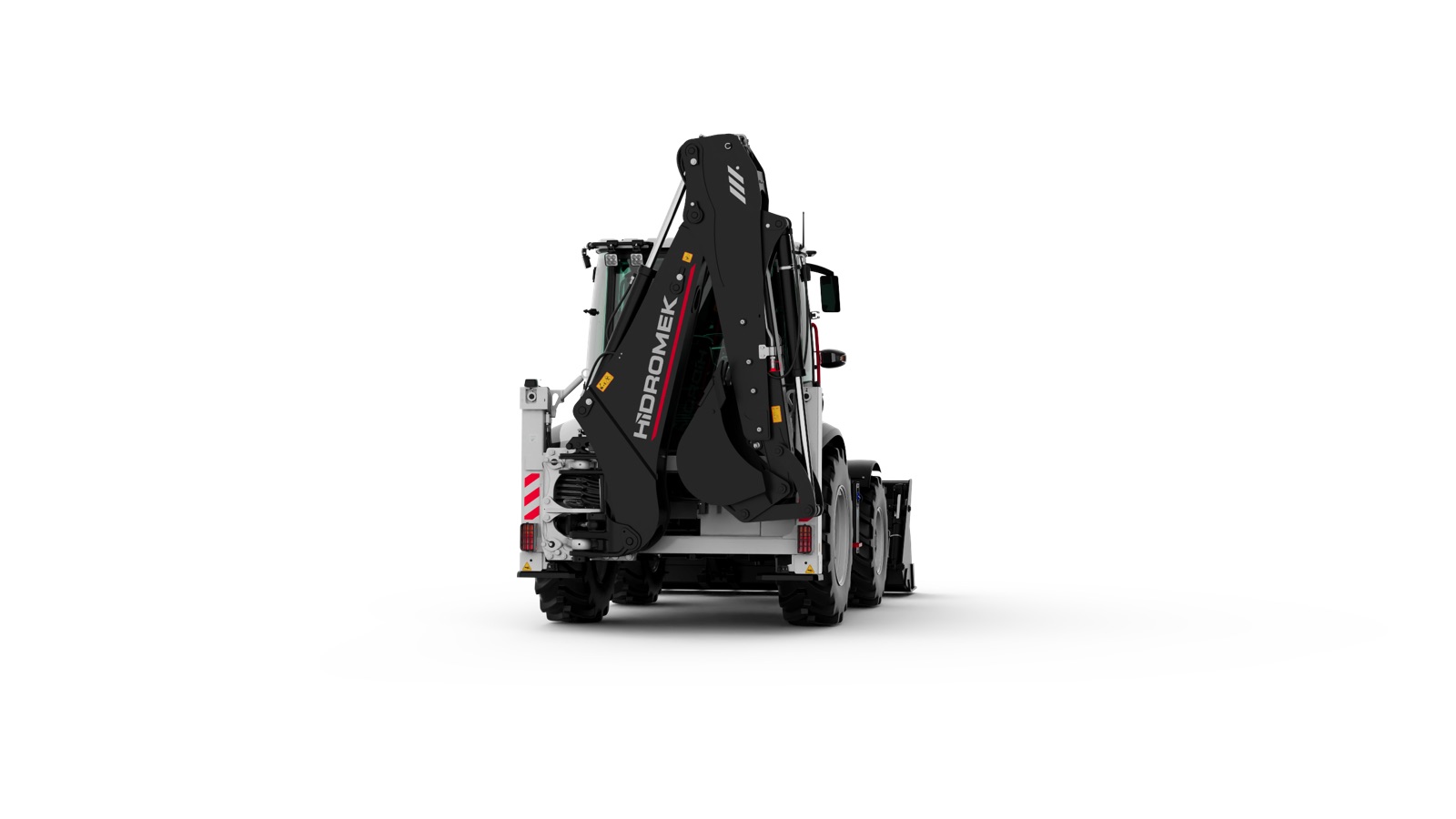

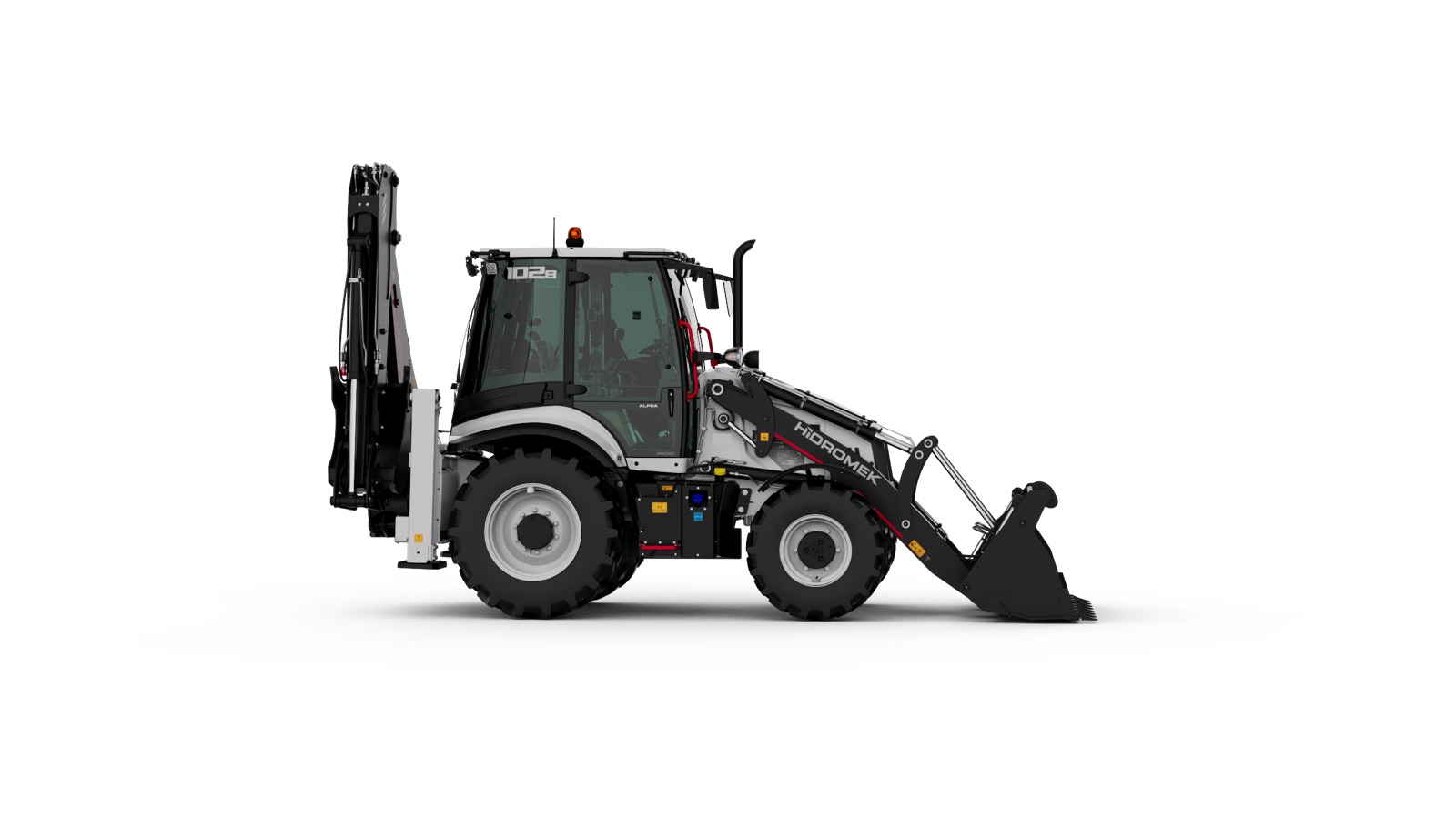

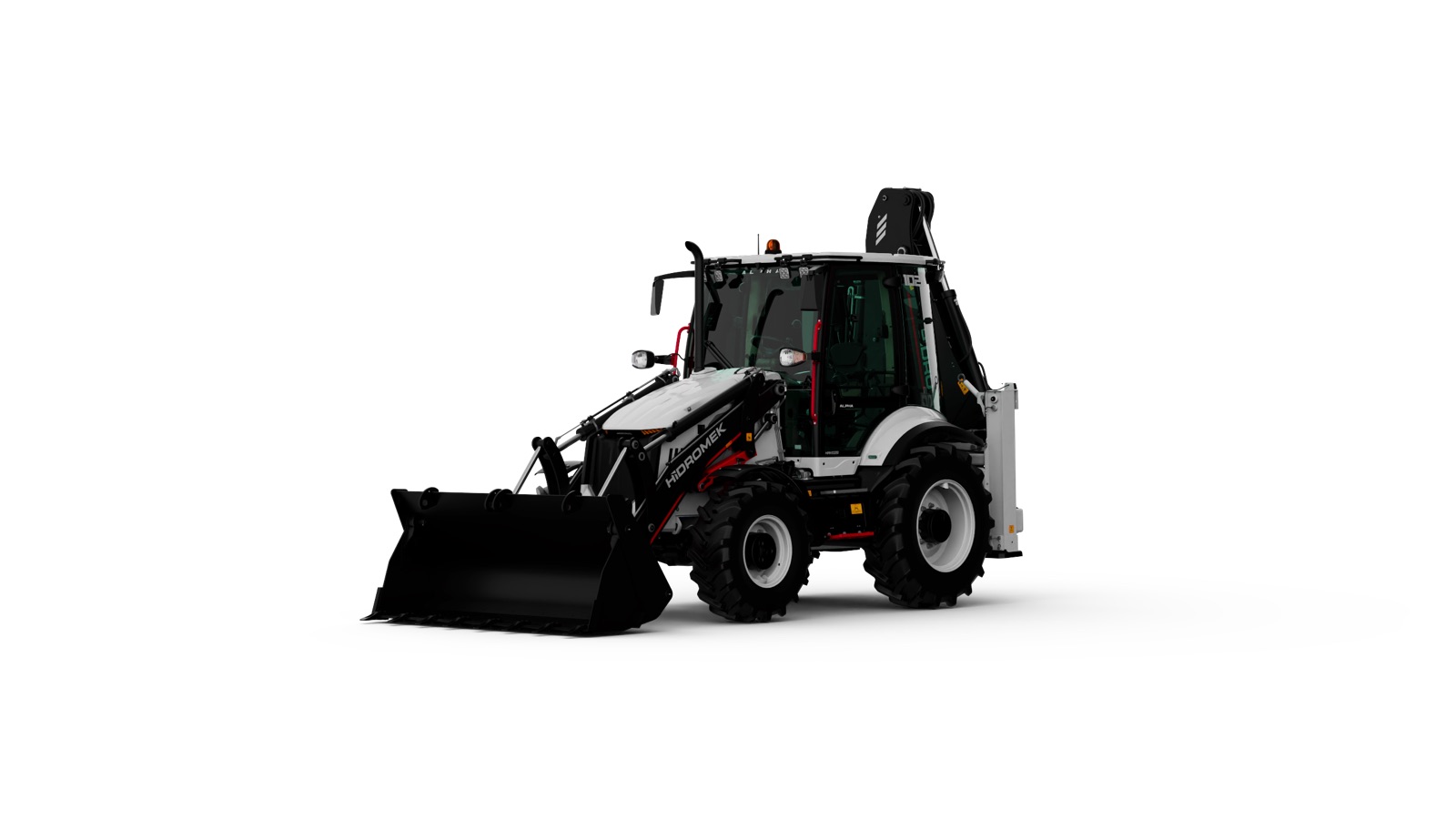

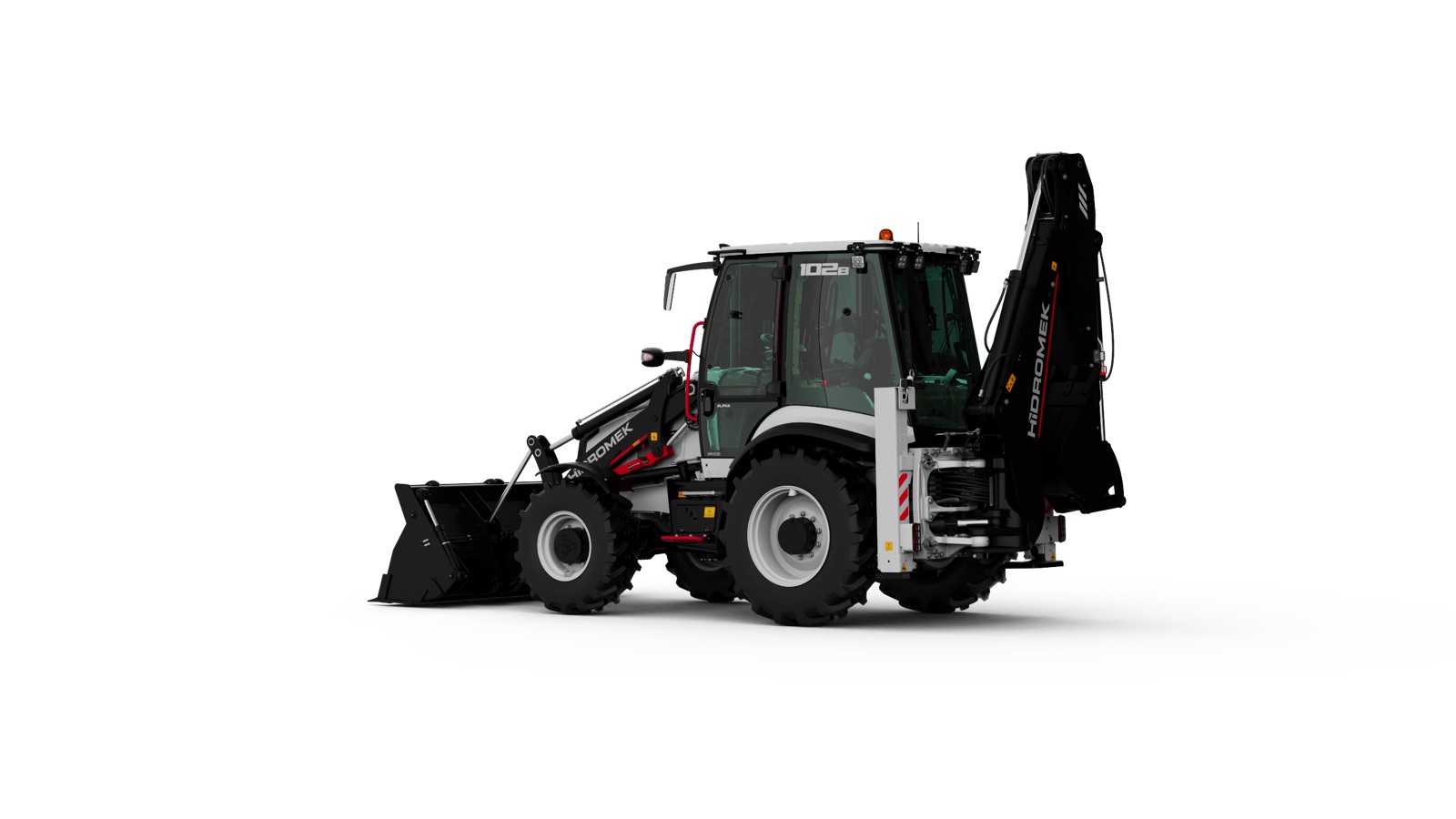

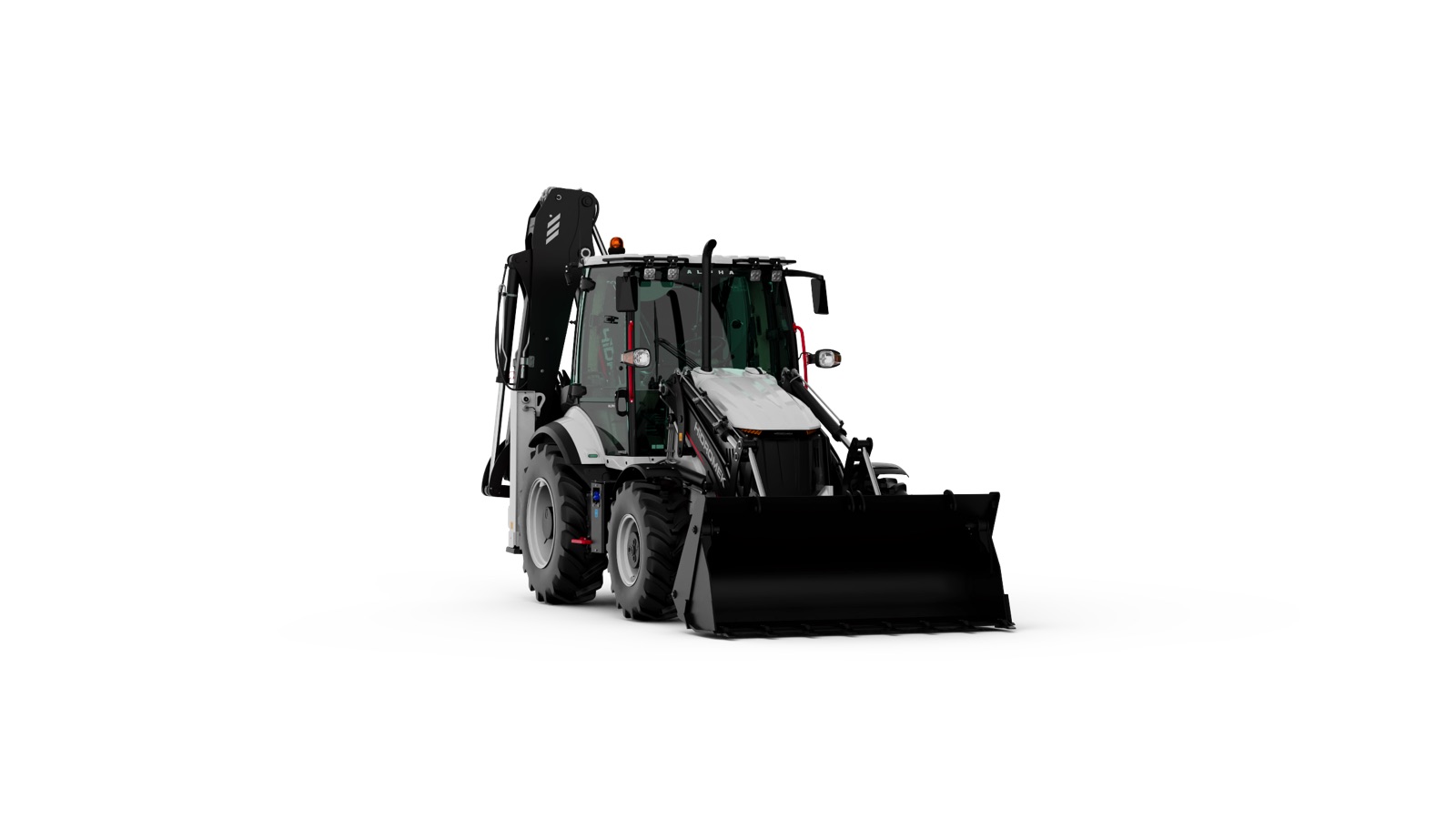

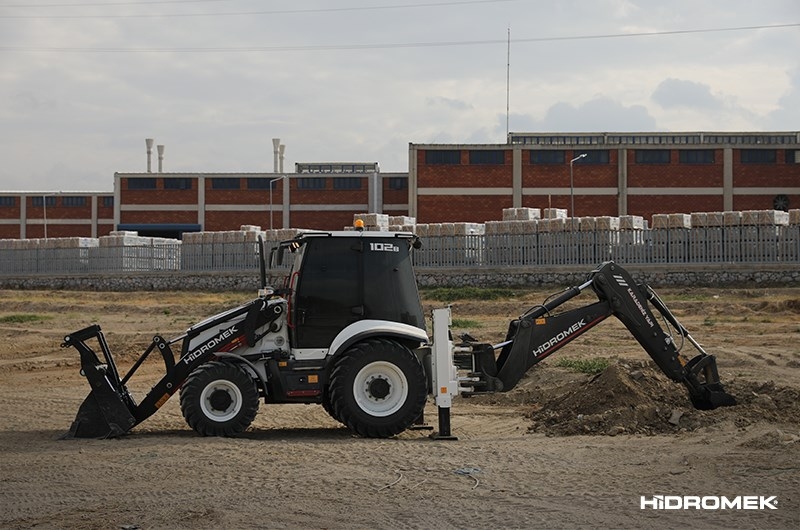

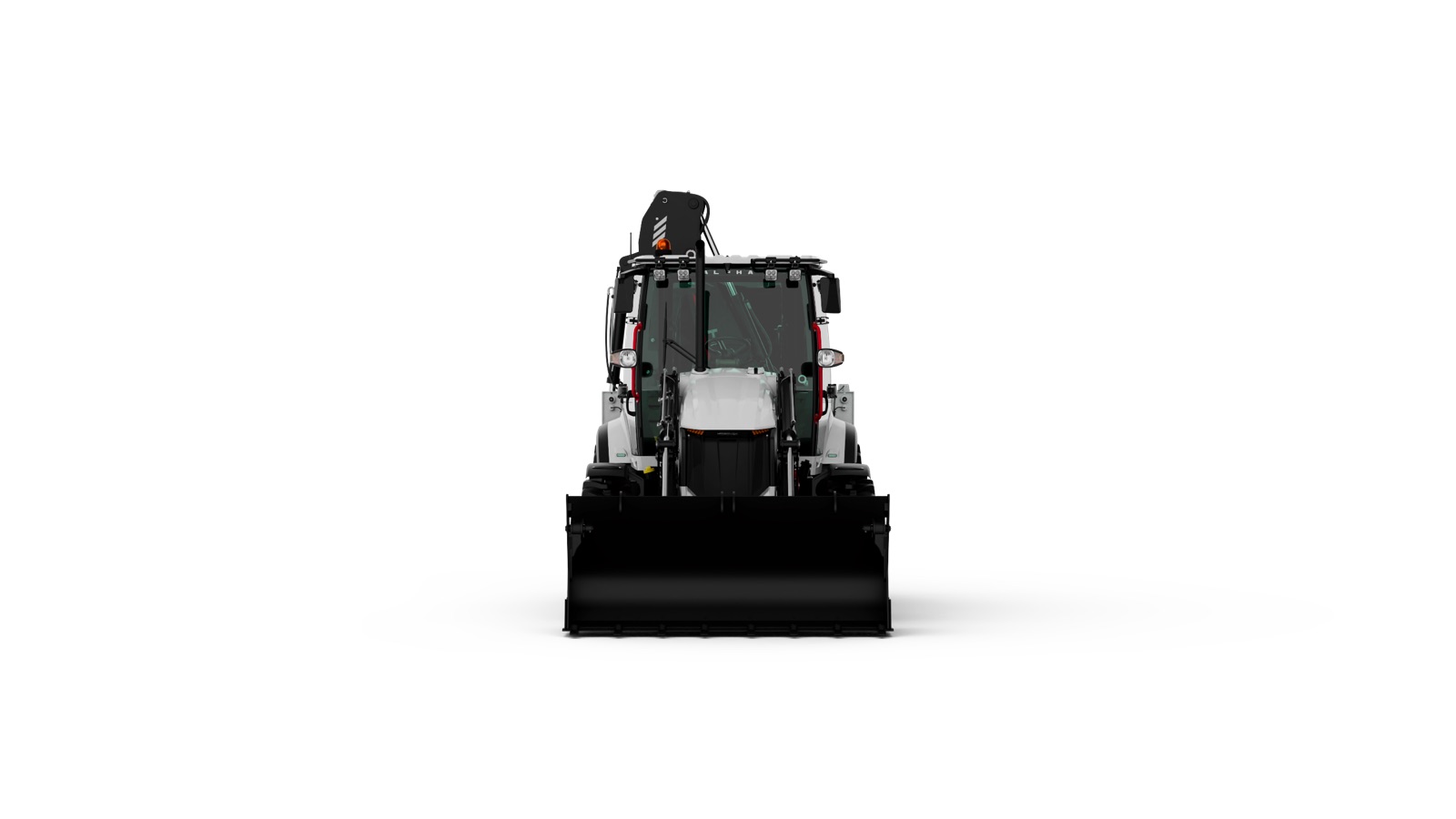

K4 HMK 102 B ALPHA

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.1 m³

  • View Specs & Dimensions Brochure
The HİDROMEK K4 Series is built for severe geographical and heavy-duty working conditions. With its robust structure and high-efficiency hydraulic system, it delivers maximum breakout force even at lower engine speeds, ensuring powerful and consistent performance across demanding tasks.

K4 Series backhoe loaders are designed to handle a wide range of applications including excavation, infrastructure, superstructure, agriculture, forestry, landscaping, and industrial work. Thanks to compatibility with various attachments, these machines offer versatility and efficiency. Improved cylinder design enables faster operations and better fuel efficiency, helping you complete more work in less time and at lower cost.

Features

  • Strong and durable structure for harsh environments
  • High-efficiency hydraulic system with strong breakout force
  • Works efficiently even at low engine revolutions
  • Compatible with multiple attachments (forklift, hammer, auger, snow plow, etc.)
  • 20% faster operation due to improved loader cylinder design
  • 3% better fuel efficiency
  • High oil flow for improved performance
  • Suitable for construction, agriculture, forestry, and industrial use

Specifications

Engine

  • Brand / Model: Perkins 904J-E36TA
  • Maximum Power: 100 HP (74.4 kW) @ 2200 rpm
  • Displacement: 3,621 cc
  • Type: Water-cooled turbocharged diesel engine
  • Maximum Torque: 430 Nm @ 1500 rpm
  • Bore & Stroke: Ø 98 × 120 mm
  • Emission Class: EU Stage 5 / US Tier 4 Final

Hydraulic System

  • Pressure: 255 bar
  • Type: Tandem gear pump (simple, reliable, efficient)
  • Auxiliary Pump Flow: 57.2 L/min @ 2200 rpm
  • Main Pump Flow: 90 L/min @ 2200 rpm

Tires

  • Front: 16/70 – 20 (12 Ply Rating)
  • Rear: 16.9 – 28 (14 Ply Rating)
  • Optional: 18.4 – 26 (12 Ply Rating)

Driving Speed

  • 1st Gear: 4 km/h
  • 2nd Gear: 7 km/h
  • 3rd Gear: 9 km/h
  • 4th Gear: 15 km/h
  • 5th Gear: 22 km/h
  • 6th Gear: 40 km/h

Loader Performance

  • Maximum Loader Bucket Breakout Force: 7380 kgf
  • Loader Bucket Capacity: 1.1 m³
  • Maximum Loading Arm Breakout Force: 7380 kgf
  • Lifting Capacity (Max Height): 3660 kg

Backhoe Performance

  • Backhoe Bucket Capacity: 0.18 m³
  • Maximum Bucket Breakout Force: 7020 kgf
  • Maximum Arm Breakout Force: 3160 kgf

Operating Weight

  • 9,300 kg
  • View Specs & Dimensions Brochure

Compare

HMK 230 MG

Uncategorized

Maximum Power

124 HP (92,6 kW) @2200 rpm

Maximum Torque

530 Nm @1400 rpm

Length x Height x Thickness

3,100 mm x 610 mm

Details

K4 HMK 102 B ALPHA GREENTEC

Uncategorized

Maximum Power

74,3 HP (55,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.0 m³

Details

K4 HMK 102 S SUPRA

Uncategorized

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.2 m³

Details

K4 HMK 102 B SUPRA

Uncategorized

Maximum Power

100 HP (74,4 kW) @2200 rpm

Maximum loader bucket breakout force

7380 kgf

Loader Bucket Capacity

1.1 m³

Details

K4 HMK 62 SS

Uncategorized

Maximum Power

65,1 HP (48,6 kW) @2700 rpm

Maximum loader bucket breakout force

2883 kgf

Loader Bucket Capacity

0,35 m³

Details

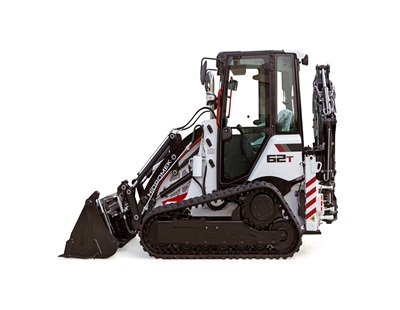

K4 HMK 62 T
