SV40

Weight

9,515 lbs.

HorsePower

39 HP

Max Dig Depth

11’10”

This changes everything

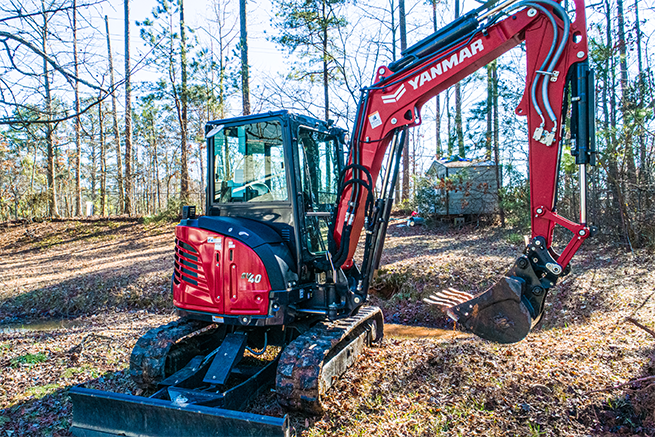

The SV40 redefines the mini excavator category by pushing the limits of performance and capability. With best-in-class power, digging force and lifting capacity, you’ll be hard pressed to find a job it can’t do. More than just powerful, the SV40 also features our patented hydraulic quick-coupler attachment system, auto-shifting two-speed shift travel to efficiently move between work areas, and standard blade float control. You can also add optional 4-way or 6-way blade control. Plus, the advanced cab features innovative and intuitive controls, informative LCD monitoring system, and automated diagnostic making it easier to schedule maintenance for less down time and increased productivity.

Hard work shouldn’t feel like it

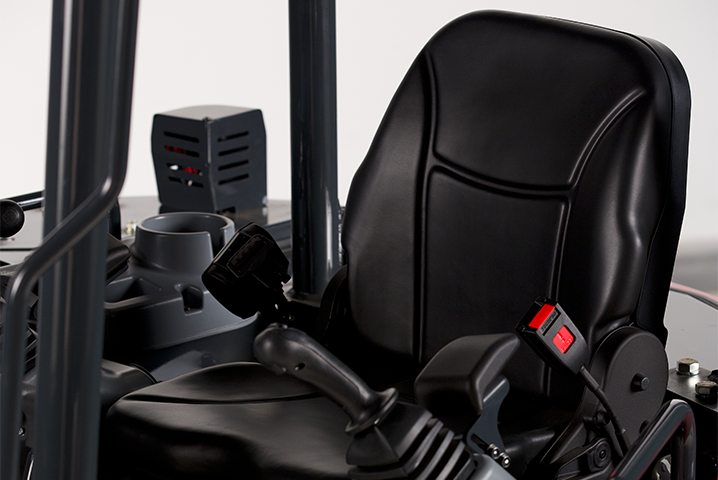

The intelligently designed operator station of the SV40 is designed to be easy to use and easy to monitor machine performance. Controls fall perfectly into place and an LCD monitor makes it easy to keep tabs on engine and hydraulic parameters. Plus, with a second optional auxiliary hydraulic circuit available, you’ll have even more control over attachments.

Features

Best-in-class power

Let this four-cylinder Tier 4 Final Yanmar diesel make quick work of the biggest job with a nearly unstoppable 39-horsepower and the added efficiency of auto deceleration and ECO mode.

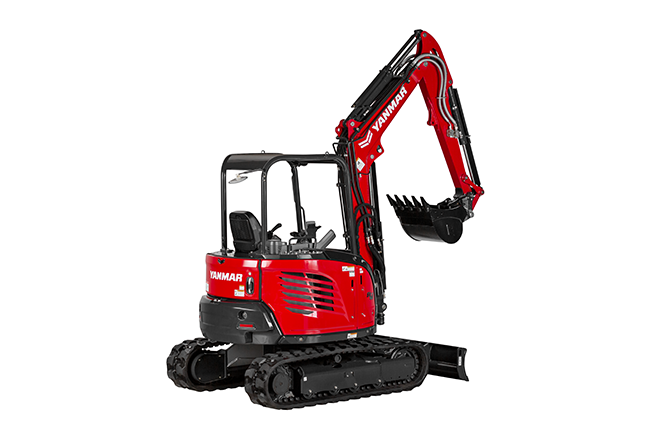

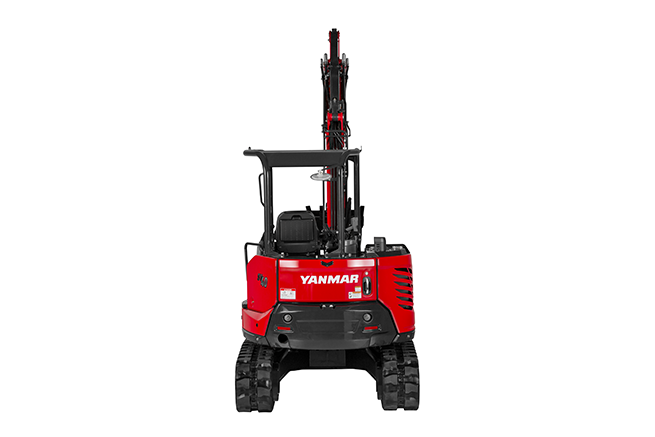

Tight tail swing

The compact design allows the counterweight to be attached tight to the house resulting in near-zero tail swing performance for tight jobsite capability.
SmartAssist technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
Standard eco mode

Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.
Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.
Convenient hydraulics

Two available auxiliary circuits, standard proportional control, and PTO Selector Value allows you to set the perfect flow and choose single or double action.

Specifications

Engine
Model	YANMAR 4TNV88C-PBV1
Output	39.0 HP / 2,400 rpm
Type	Water-cooled 4-cylinder diesel
Operating Weight
Rubber Track (Canopy)	9,206 lbs
Steel Track (Canopy)	9,493 lbs
Rubber Track (Cabin)	9,515 lbs
Steel Track (Cabin)	9,801 lbs
Performance
Max Digging Force, Bucket / Arm	7,209 / 4,211 lbs
Traveling Speed, High / Low	2.9 / 1.5 MPH
Swing Speed	10 RPM
Boom Swing Angle, (L / R)	43° / 65°
Ground Contact Pressure
Rubber Track (Canopy)	4.5 PSI
Steel Track (Canopy)	4.63 PSI
Rubber Track (Cabin)	4.64 PSI
Steel Track (Cabin)	4.79 PSI
Hydraulic System
Pump Capacity	11.2 + 11.2 + 9.7 + 2.8 GPM
Main Relief Set Pressure	3,553 x 2 + 3,133 + 566 PSI
Blade Dimensions
Width x Height	68″ x 15.2″
Fuel Tank
Capacity	14.8 Gals
