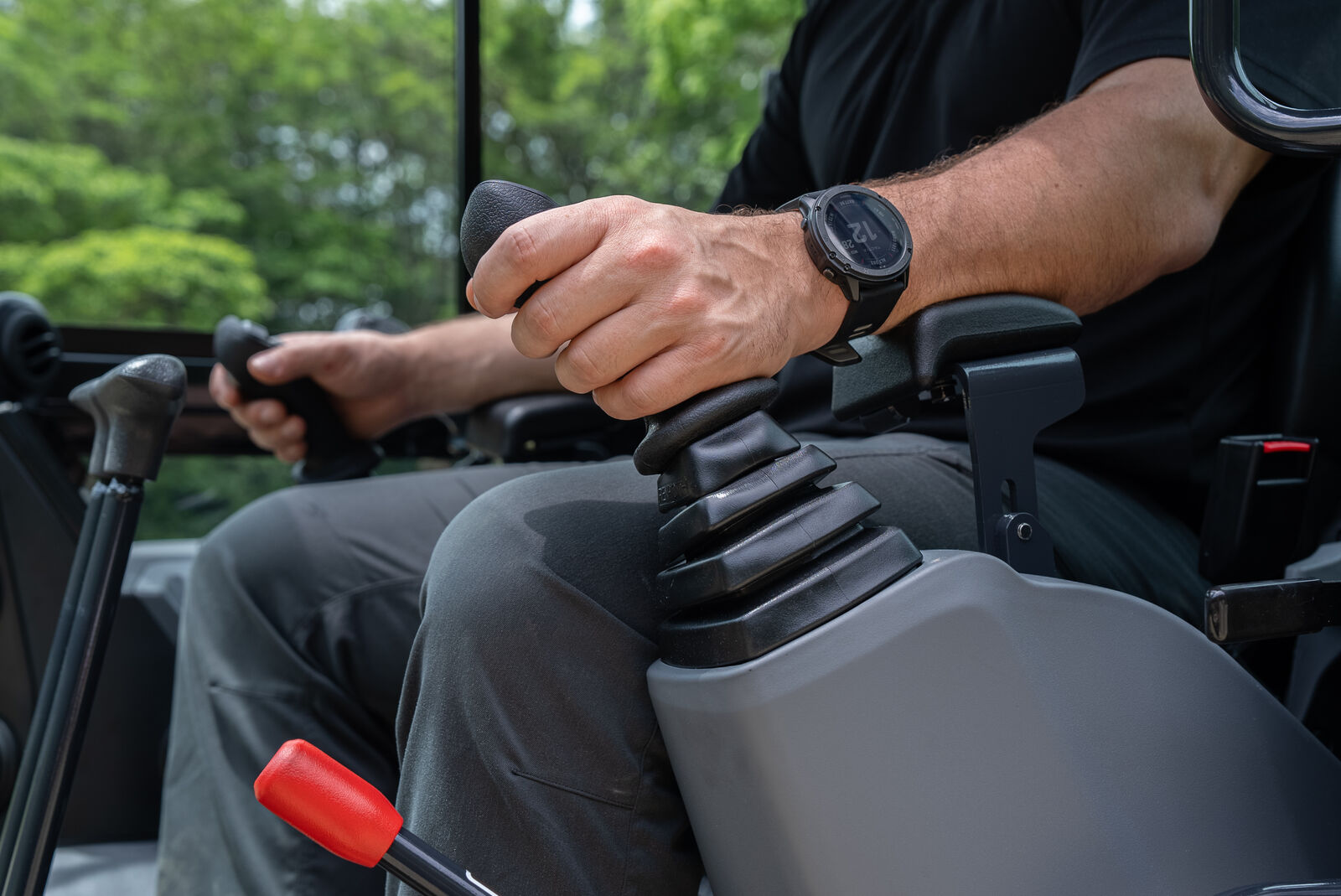

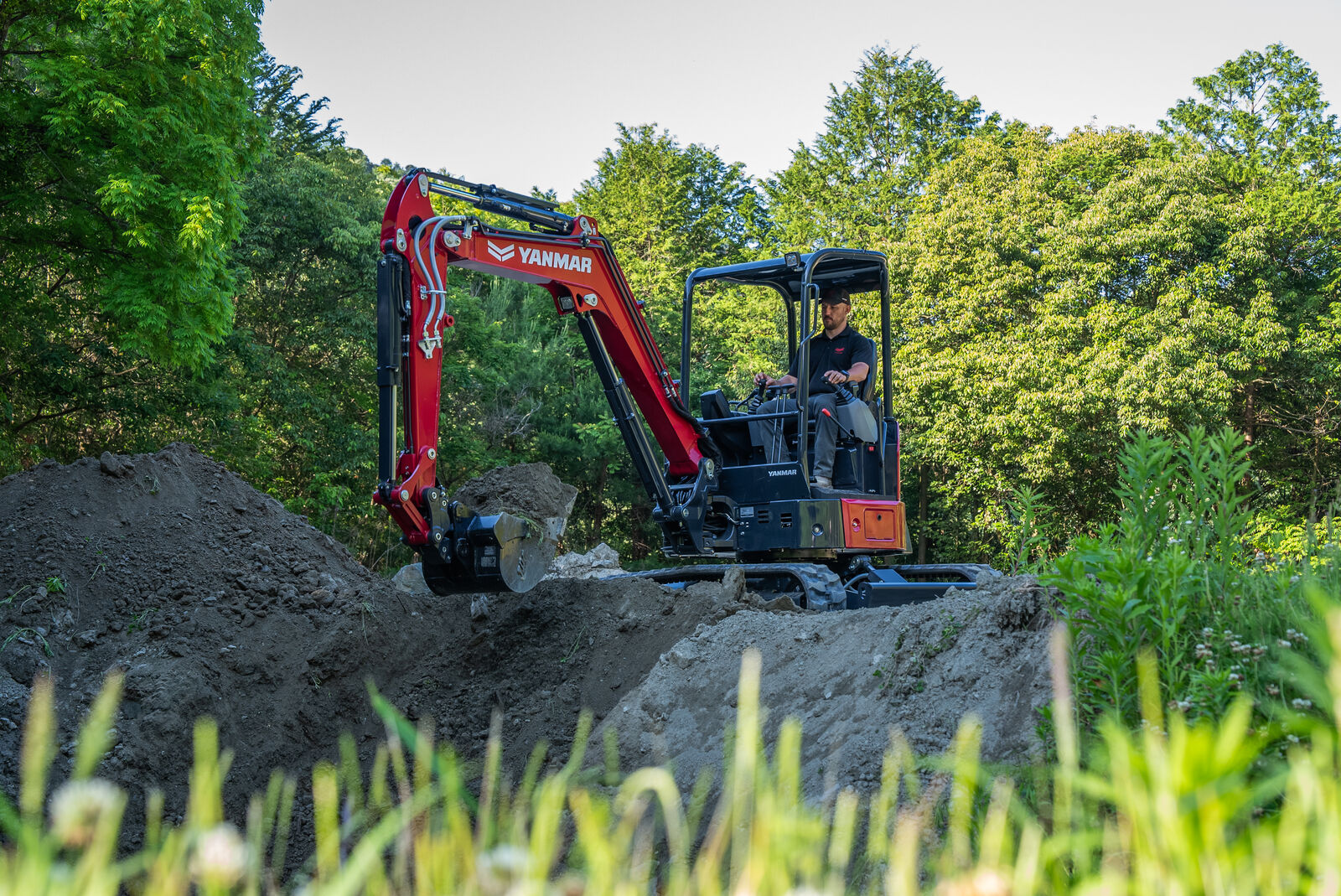

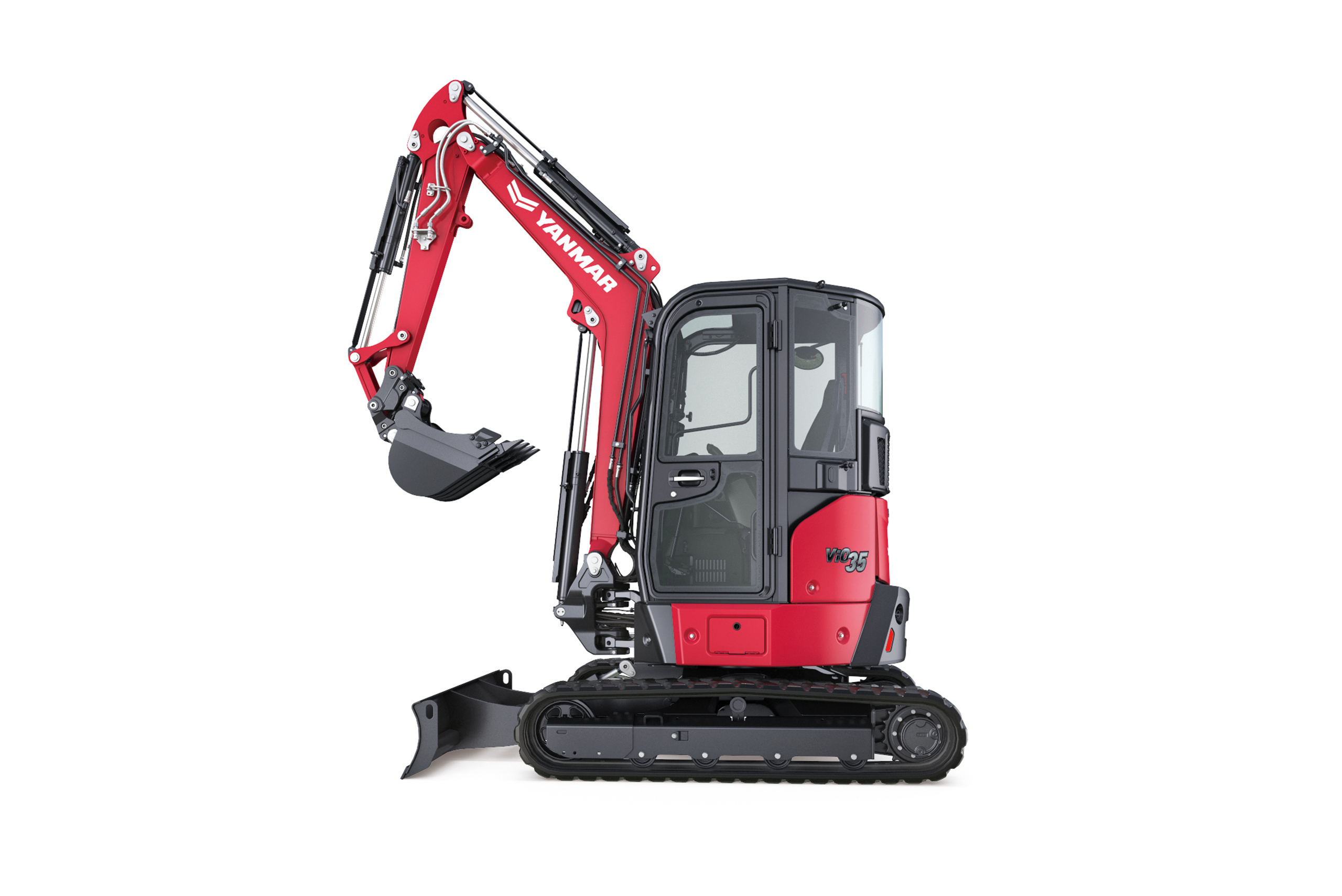

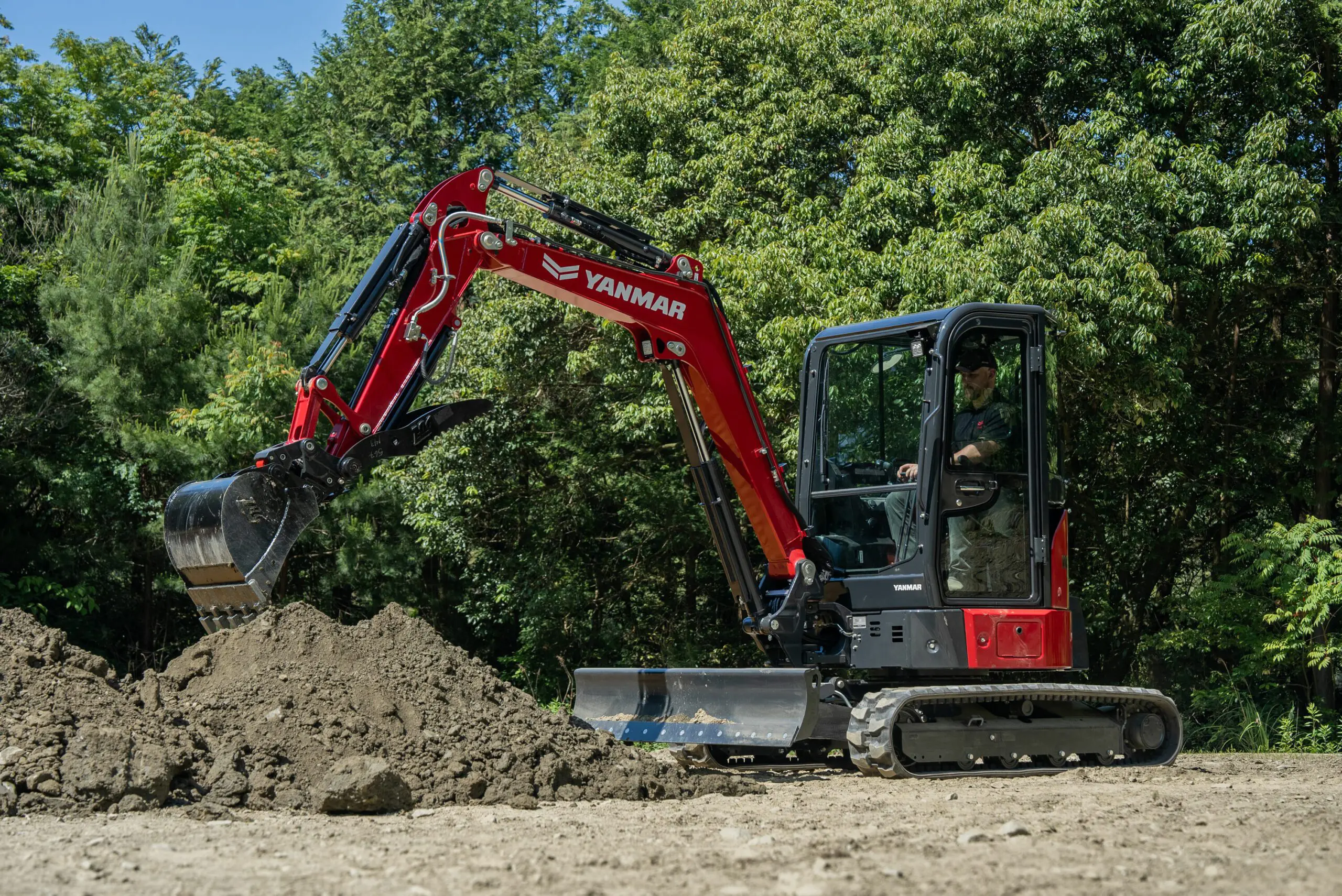

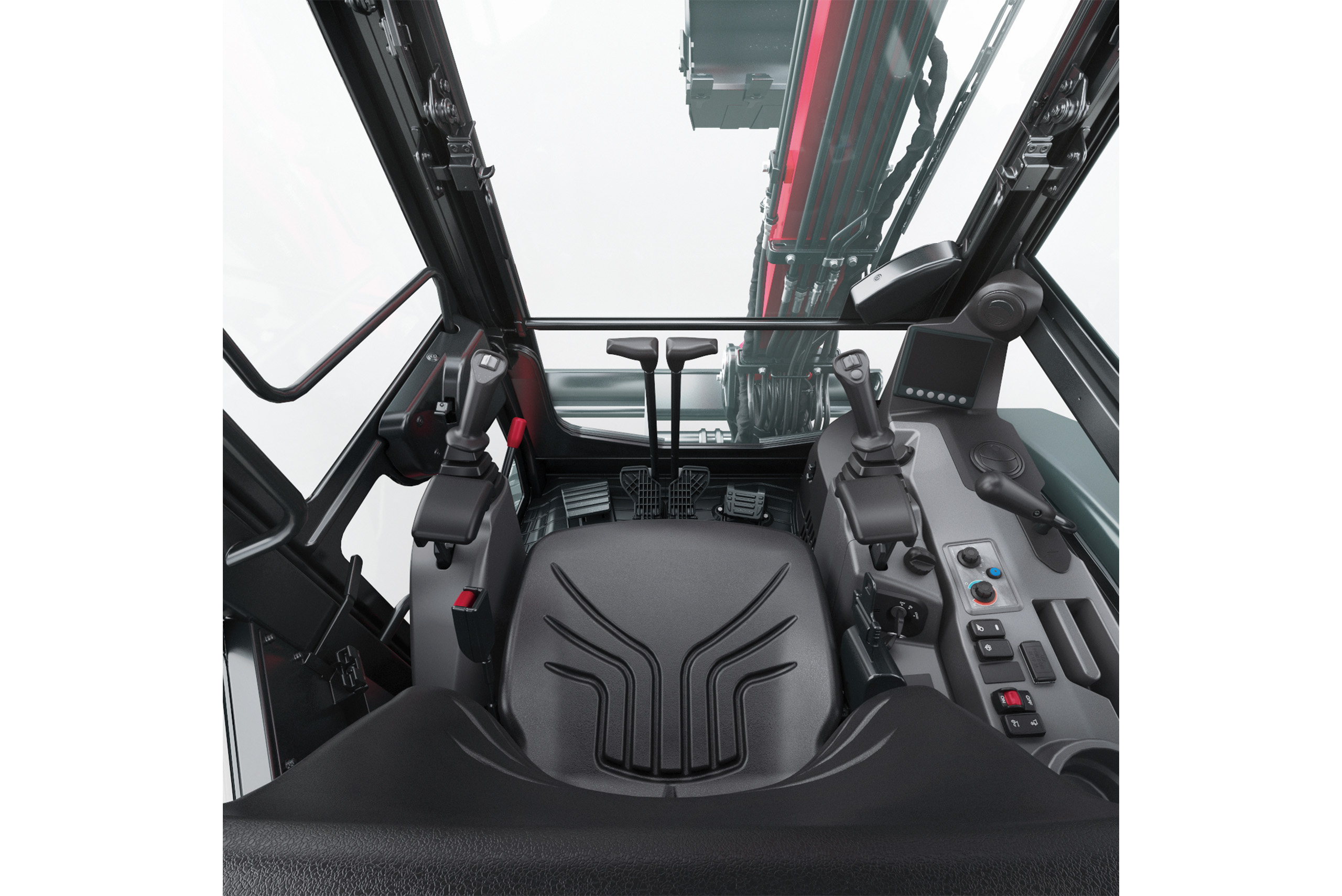

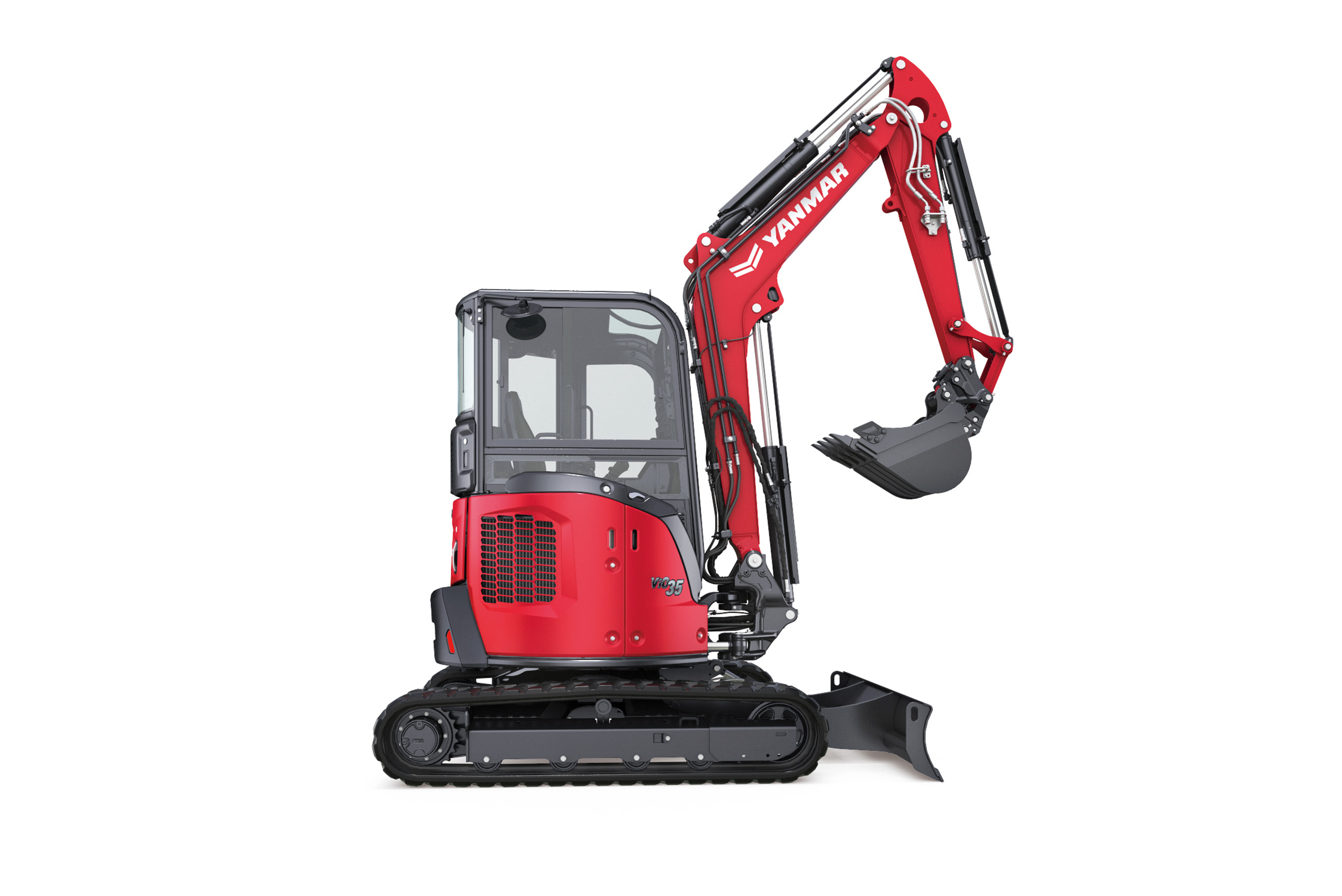

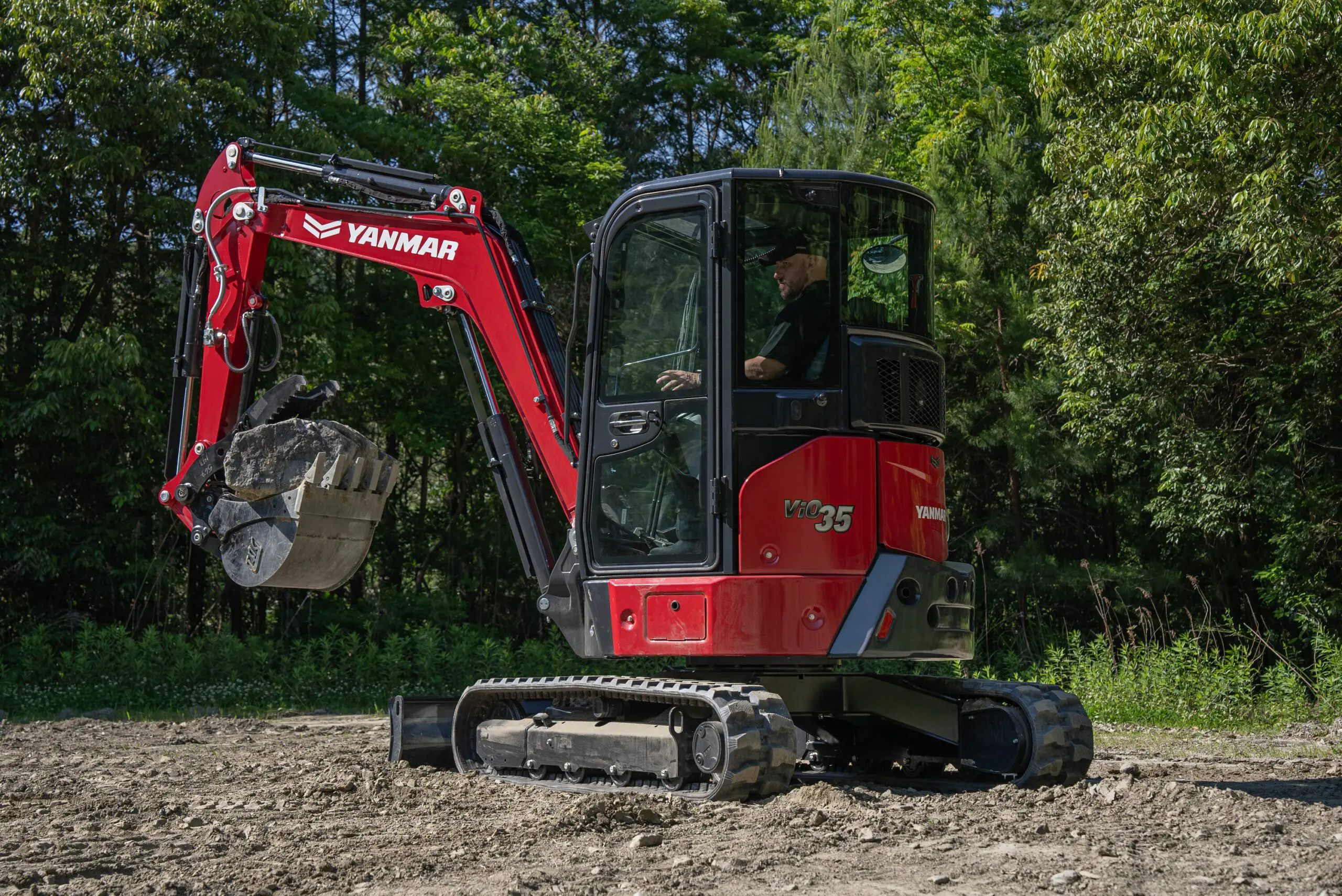

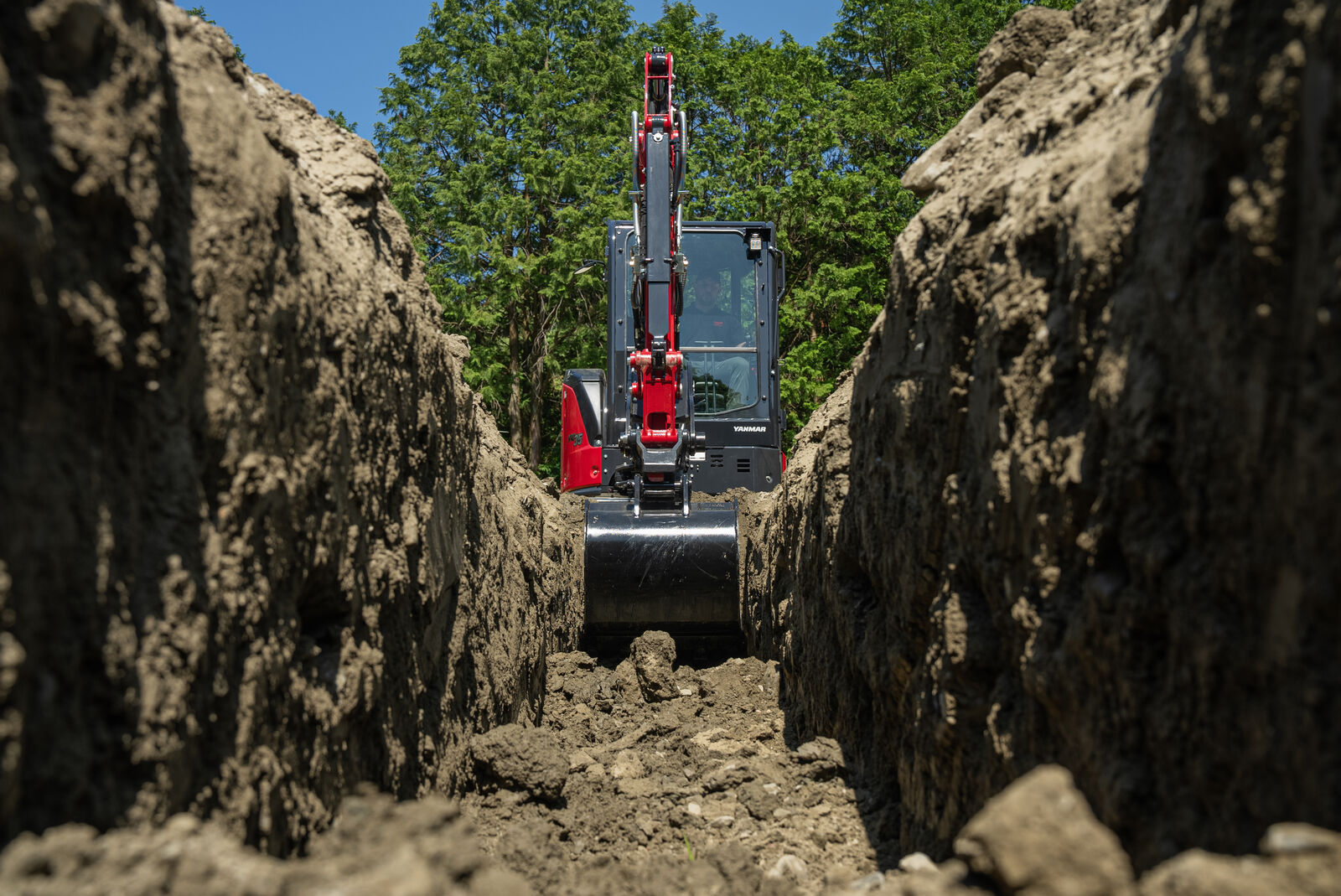

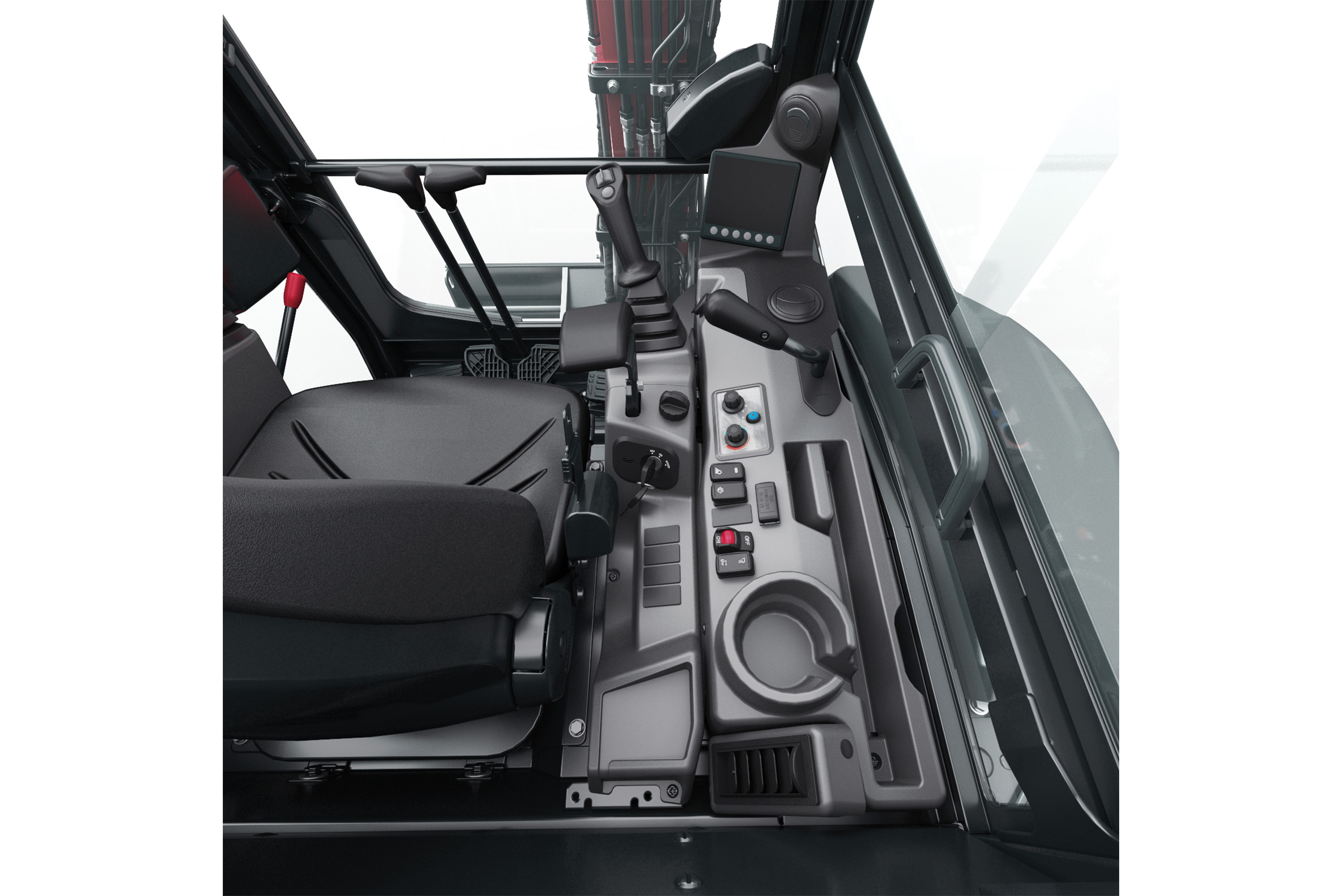

Achieve high power in a compact size with the 24.4-horsepower Yanmar ViO35-7 mini excavator. Powered by a Tier 4 Final Yanmar engine, the 3.5-ton-class machine is a flexible and robust workhorse with high power for its 7,882-pound size, making it easy, reliable and efficient to operate. Get more done with increased productivity from the ViO35-7’s three-pump system which provides industry-leading multi-function performance. The robust machine is built with your experience top of mind, featuring leading 360-degree visibility, plenty of foot space, a comfortable seat and ergonomic controls.
The ViO35-7’s 24.4-horsepower Yanmar diesel engine paired with an efficient and powerful three-pump flow sharing hydraulic system provides industry-leading multi-function performance. The machine’s ECO mode takes efficiency a step further by reducing fuel consumption.

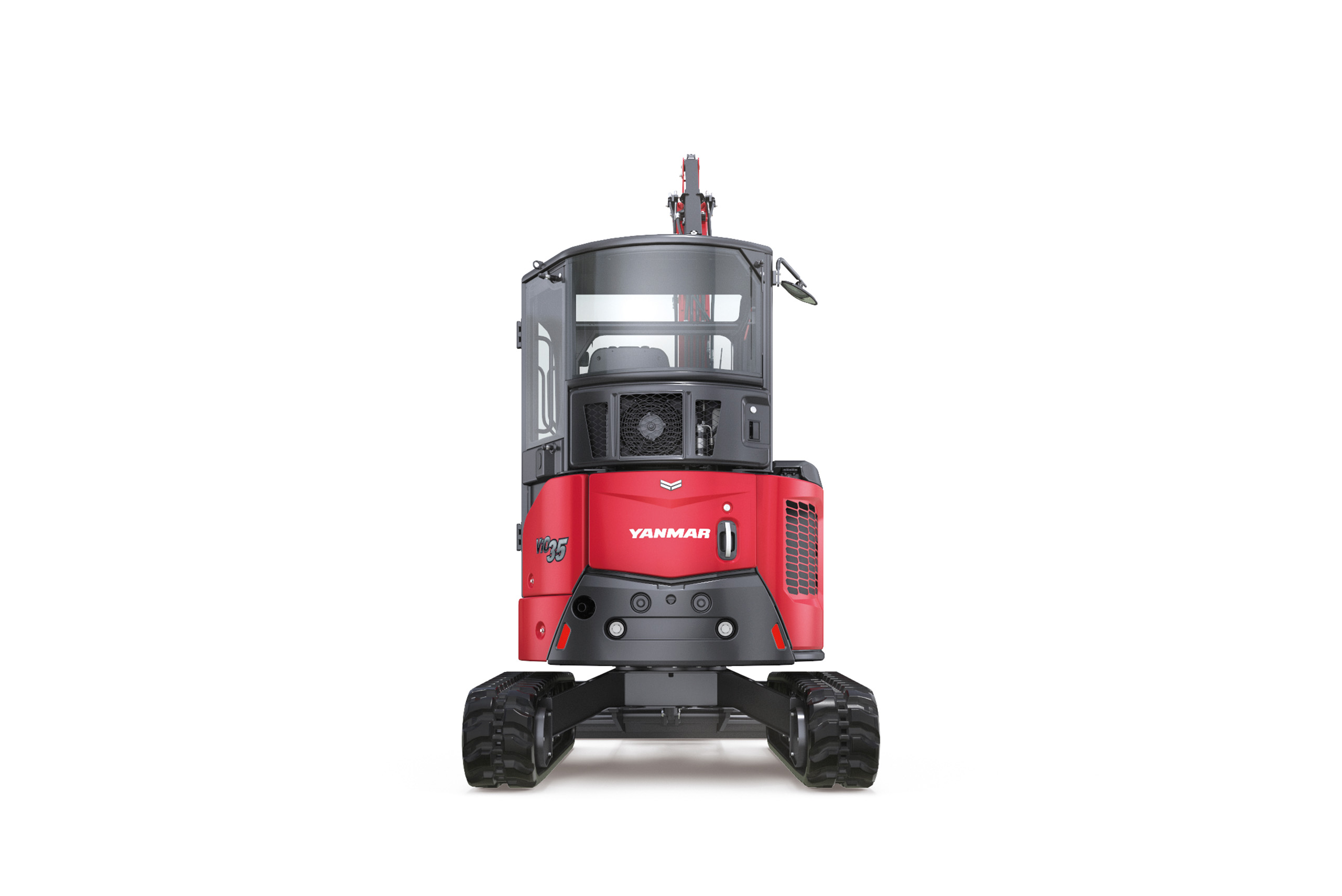

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
Advanced SmartAssist Remote telematics saves you time and money with real-time remote data analytics, geo-fencing, optimized preventative service scheduling and more. Plus, the ViO35-7’s 4.3-inch color display puts a variety of options and information at your fingertips.
Yanmar designed the ViO35-7 with a robust build and guarding in every possible location. That includes a highly durable undercarriage, cylinder guards, hose guards, strategic placement of the boom light, and more.

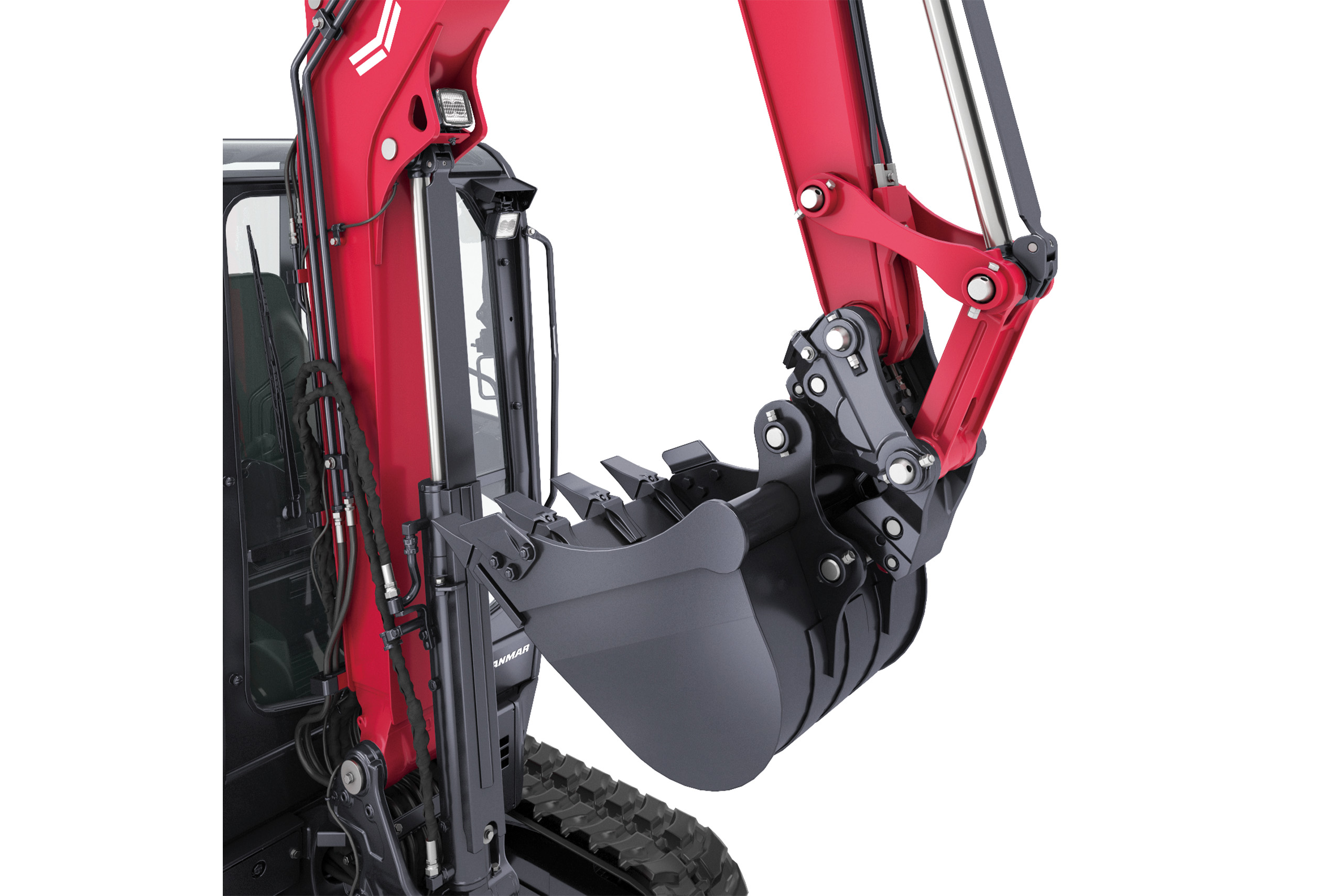

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.
Conveniently adjust your auxiliary hydraulic performance to your intended application with the AUX flow rate control and five customizable attachment settings integrated into the display. Also take advantage of optional dual auxiliary circuits and a single/double acting flow selector valve on the primary AUX circuit.
| Engine | |
|---|---|
| Model | 3TNV88F-ESBV |
| Rated Output | 24.4 HP / 2,200 rpm |
| Type | Water-cooled 4-cycle diesel |
| Operating Weight | |
| Rubber Track (Canopy) | 7,905 lbs |
| Steel Track (Canopy) | 8,124 lbs |
| Rubber Track (Cabin) | 8,214 lbs |
| Steel Track (Cabin) | 8,434 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 5,643 / 4,266 lbs |
| Traveling Speed, High / Low | 2.7 / 1.6 MPH |
| Swing Speed | 9.5 RPM |
| Boom Swing Angle, (L / R) | 43 / 65 |
| Ground Contact Pressure (Rubber Track) | |
| Canopy | 4.80 PSI |
| Cabin | 4.97 PSI |
| Hydraulic System | |
| Pump Capacity | 9.8 GPM x 2 {Variable displacement pump} 6.9 GPM x 1, 2.9 GPM x 1 {Gear pump} |
| Main Relief Set Pressure | 3,205 x 2, 3,133 x 1 PSI |
| Blade Dimensions | |
| Width | 5′ 8″ |
| Stroke, Raise / Lower from G.L. | 1′ 5″ / 1′ 3″ |
| Fuel Tank | |
| Capacity | 10.8 Gals |
