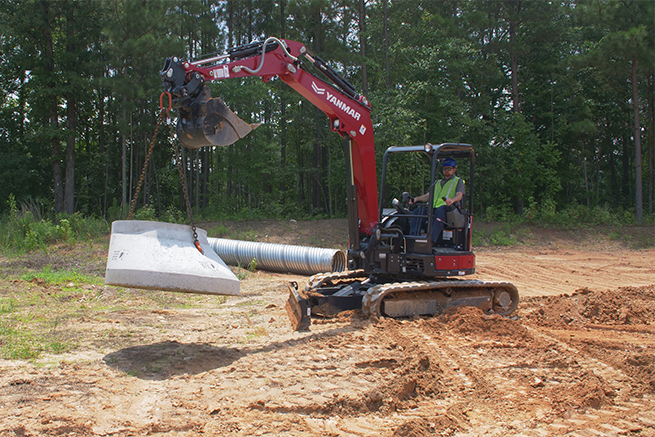

When you combine the best-in-class performance with true zero tail swing technology, you get the definitive performance of the Vi050-6A. This 5-ton mini excavator never shies away from work thanks to the hard-nosed performance of its 39HP Tier 4 Final Yanmar diesel engine. We then super-charged its capability with compact workspace capability of true zero tail swing, giving you the ability to dig, backfill and pack quickly in the tightest confines. The full-featured Vi050-6A features the standard performance and efficiency of ECO mode, auto deceleration, 78” backfill blade, and auto-shifting two-speed travel. Plus add even more capability with optional 4-way blade control, blade auto-float, and second auxiliary hydraulic circuit, and you’ll soon discover doing more for less is second nature for this mini excavator.
Let this four-cylinder Tier 4 Final Yanmar diesel make quick work of the biggest job with a nearly unstoppable 39-horsepower and the added efficiency of auto deceleration and ECO mode.

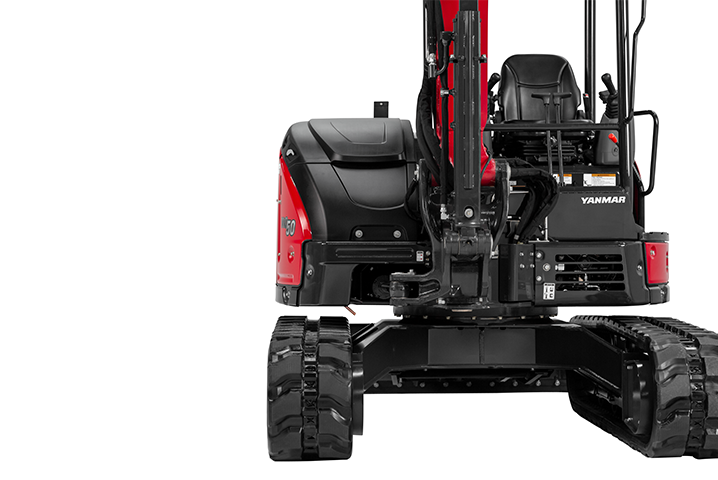

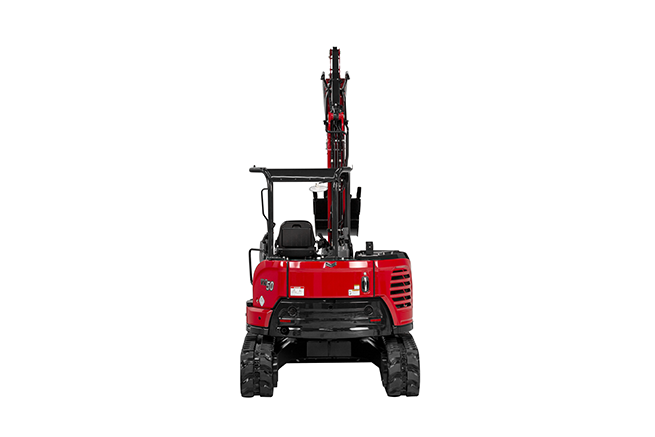

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.

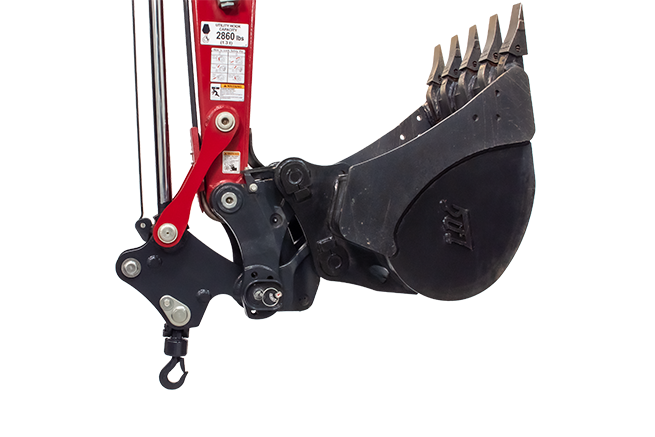

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.
Two available auxiliary circuits, standard proportional control, and PTO Selector Value allows you to set the perfect flow and choose single or double action.
| Engine | |
|---|---|
| Model | YANMAR 4TNV88C-PBV1 |
| Output | 39.0 / 2,400 HP |
| Type | Vertical 4-cylinder water-cooled direct injection diesel engine |
| Operating Weight | |
| Rubber Track (Canopy) | 10,417 lbs |
| Steel Track (Canopy) | 10,703 lbs |
| Rubber Track (Cabin) | 10,792 lbs |
| Steel Track (Cabin) | 11,078 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 6,497 / 4,676 lbs |
| Traveling Speed, High / Low | 2.9 / 1.5 MPH |
| Swing Speed | 10 RPM |
| Boom Swing Angle, (L / R) | 68° / 68° |
| Ground Contact Pressure | |
| Rubber Track (Canopy) | 4.25 PSI |
| Steel Track (Canopy) | 4.42 PSI |
| Rubber Track (Cabin) | 4.41 PSI |
| Steel Track (Cabin) | 4.58 PSI |
| Hydraulic System | |
| Pump Capacity | 11.2 + 11.2 + 9.7 + 2.8 GPM |
| Main Relief Set Pressure | 3,553 x 2 + 3,133 + 566 PSI |
| Blade Dimensions | |
| Width x Height | 6’6″ x 1’4″ |
| Fuel Tank | |
| Capacity | 17.4 Gals |
