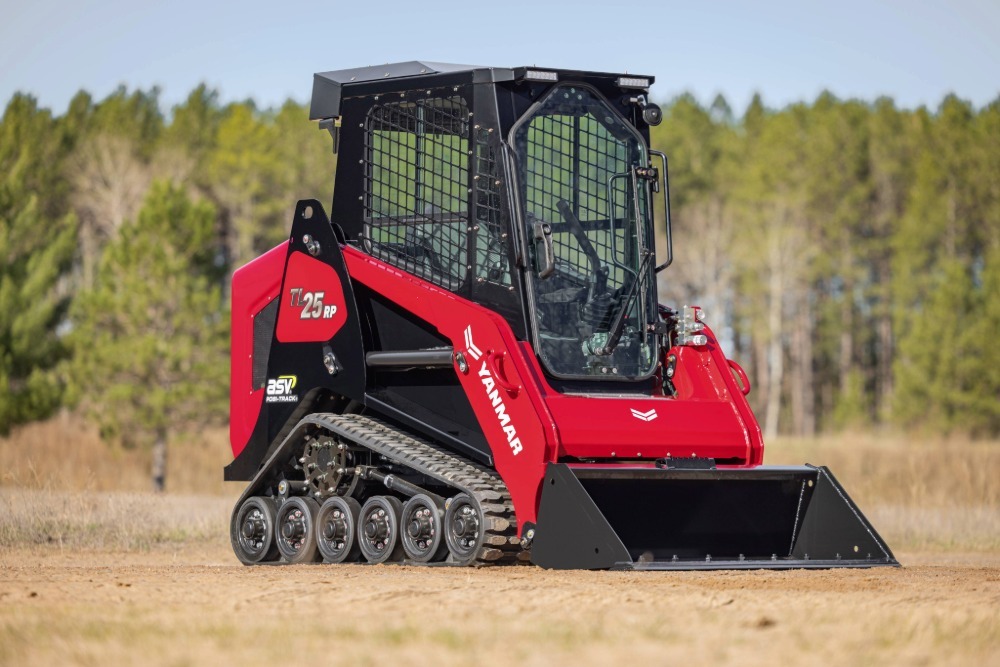

Yanmar TL25RP Compact Track Loader

Product Overview

The Yanmar TL25RP is a compact track loader designed to deliver strong performance in tight spaces, sensitive areas, and demanding jobsite conditions. Built with ASV Posi-Track® fully suspended torsion-axle undercarriage technology, the TL25RP provides smooth suspension, low ground pressure, and dependable traction across uneven or soft terrain. With a compact 48-inch footprint, an operating weight of 3,870 lbs, 23.2 horsepower, and an 800 lb rated operating capacity, this machine is ideal for landscapers, rental operators, light construction crews, and contractors who need a compact, capable loader that can work confidently where larger equipment cannot.

Key Highlights

• Compact track loader built for tight spaces and sensitive ground conditions
• ASV Posi-Track® undercarriage technology
• Fully suspended torsion-axle undercarriage
• Compact 48-inch footprint
• Open ROPS operating weight: 3,870 lbs / 1,755 kg
• Enclosed cab operating weight: 4,235 lbs / 1,921 kg
• Gross power rating: 23.2 hp / 17.1 kW
• Rated operating capacity: 800 lbs / 363 kg
• Operating capacity at 50% tipping weight: 1,143 lbs / 513 kg
• Tipping weight: 2,285 lbs / 1,036 kg
• Breakout force: 2,250 lbs / 1,021 kg
• Maximum travel speed: 6.9 mph / 11.1 kph
• Optional cold weather cab available
• Rear-tilting hood provides access to major service points
• 3.5-inch multi-functional color display
• Right and left-hand pilot hydraulic joystick controls
• Standard engine block heater

Built for Tight Spaces and Sensitive Ground

The TL25RP is designed for jobsites where space, traction, and ground protection matter. Its compact size makes it easier to move through confined areas, while the ASV Posi-Track® undercarriage helps reduce ground pressure and improve traction on soft, uneven, or sensitive surfaces. This makes the TL25RP a strong fit for landscaping, light construction, rental fleets, residential work, and jobs where larger machines may be too heavy or difficult to maneuver.

Operator Comfort and Visibility

The TL25RP is built around the operator with a seated operator station that helps reduce all-day standing fatigue while offering protection from the elements. The premium configuration can include a mechanical suspension seat, roof panel, and sound insulation for additional comfort. Large windows provide clear sightlines in every direction, helping the operator stay aware of the surrounding work area throughout the day.

Performance and Maintenance

The TL25RP is powered by a turbocharged Yanmar 3-cylinder diesel engine that delivers 23.2 horsepower and 63.2 ft-lb of peak torque. With an 800 lb rated operating capacity and 2,250 lb breakout force, it is built to push, dig, load, and move material confidently. For easier maintenance, the rear-tilting hood opens to major service points, helping reduce downtime and keeping the machine productive in the field.

Controls and Display

The TL25RP uses separate right and left-hand pilot hydraulic joysticks to manage loader and drive functions independently. Auxiliary hydraulic flow can be controlled through joystick buttons or a continuous console switch. A hand-operated rotary throttle provides precise engine speed control, while the 3.5-inch color display shows key machine information including engine RPM, coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, diagnostics, system monitoring, fault logging, and more.

Operating Specifications

• Loader arms: Radial
• Operating weight, open ROPS: 3,870 lbs / 1,755 kg
• Operating weight, enclosed cab: 4,235 lbs / 1,921 kg
• Ground pressure at operating weight: 3.2 psi / 22 kPa
• Rated operating capacity, 35% of tipping weight: 800 lbs / 363 kg
• Operating capacity, 50% of tipping weight: 1,143 lbs / 513 kg
• Tipping weight: 2,285 lbs / 1,036 kg
• Maximum travel speed: 6.9 mph / 11.1 kph
• Breakout force: 2,250 lbs / 1,021 kg

Auxiliary Hydraulic System

• Standard auxiliary hydraulic flow: 9.9 gpm / 37.5 lpm
• Standard auxiliary hydraulic pressure: 3,000 psi / 20,684 kPa
• Controls: Variable flow through joystick buttons or continuous flow through console switch
• Couplers: Push-to-connect quick couplers mounted on manifold block with pressure relief valve
• Cooling system: High-efficiency oil cooler beside engine radiator, not stacked
• Quick-attach mounting plate: ASV Mini-Track loader coupler with manual latching pins

Engine

• Engine type: Diesel, 3-cylinder, turbocharged
• Engine model: Yanmar 3TNV80FT
• Gross power rating: 23.2 hp / 17.1 kW
• Displacement: 77 cu in / 1.3 L
• Peak torque: 63.2 ft-lb / 85.7 Nm
• Cooling system: Engine-driven fan and coolant/antifreeze-filled radiator
• Intake air cleaner: Dual stage
• Emission controls: Meets all U.S. EPA Tier 4 Final standards
• Standard engine feature: Engine block heater

Undercarriage

• Track type: General purpose track with embedded co-polymer cords and all-purpose treads
• Track width: 11 in / 279 mm
• Length of track on ground: 55 in / 1,397 mm
• Ground contact area: 1,210 in² / 0.78 m²
• Drive system: Two hydrostatic direct-drive sprockets controlled by single joystick
• Undercarriage suspension: Two independent torsion axles per undercarriage
• Roller wheels: Twelve ultra-high molecular weight polyethylene and rubber wheels per track with sealed bearings

Service Capacity

• Fuel tank capacity: 13 gal / 49 L
• DEF capacity: N/A

Electrical System

• Nominal charge: 12 V
• Battery: 590 CCA
• Charging system: 55 amp alternator
• Outlets: One 12 V port inside operator station
• Wiring: Pre-wired for all factory-available accessories

Operator Station

• Cab options: Open ROPS Base or Cold Weather Cab
• Seat: Vinyl seat with built-in operator presence switch, lap bar, and 2-inch / 51 mm wide seat belt
• Loader control: Right-hand pilot hydraulic joystick controls loader lift, lower, tilt, and intermittent auxiliary hydraulic control
• Drive control: Left-hand pilot hydraulic joystick controls machine speed and direction
• Machine display: Multi-functional 3.5-inch color display with engine RPM, coolant temperature, oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, diagnostics, system monitoring, fault logging, and more
• Engine speed control: Hand-operated rotary throttle
• ROPS: Meets ISO 3471
• FOPS: Meets ISO 3449
• Operator restraint anchorage: Meets ISO 6683 CAL OSHA 1596

Lighting and Standard Features

• Two fixed forward-facing LED lights
• One adjustable rear-facing LED light
• One interior light
• Two red LED tail lights
• Horn
• Backup alarm
• Rear window on premium configuration
• Cup holder on premium configuration
• Phone holder on premium configuration
• Roof panel on premium configuration

Optional Features

• Rear view camera
• Turf track with smooth treads
• Bumper
• Brush guard
• Full rail metal seals
• 1/4-inch polycarbonate front door
• Premium mechanical suspension seat

Best-Fit Applications

The TL25RP is well suited for compact equipment users who need a small but capable loader for tight-access work, sensitive ground conditions, and everyday material handling. Common applications include:

• Landscaping
• Light construction
• Residential jobsite work
• Rental fleets
• Site cleanup

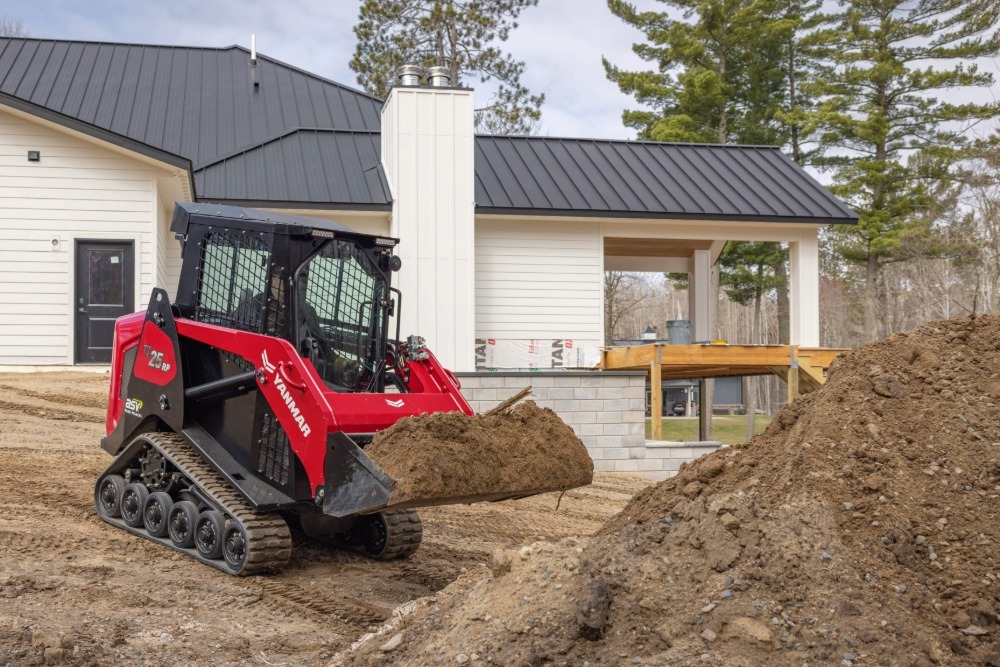

• Material movement

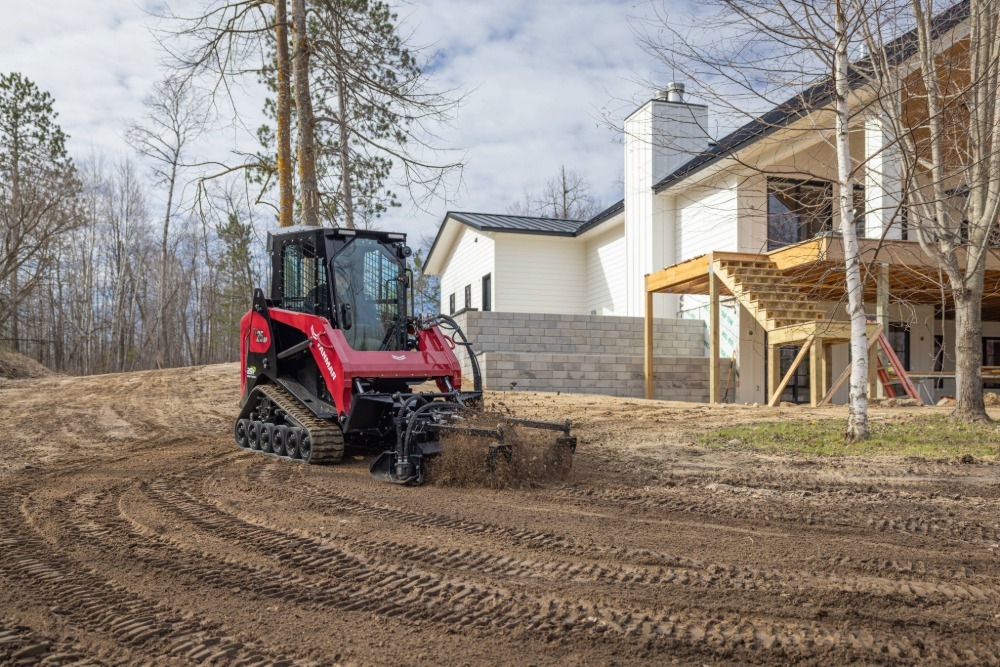

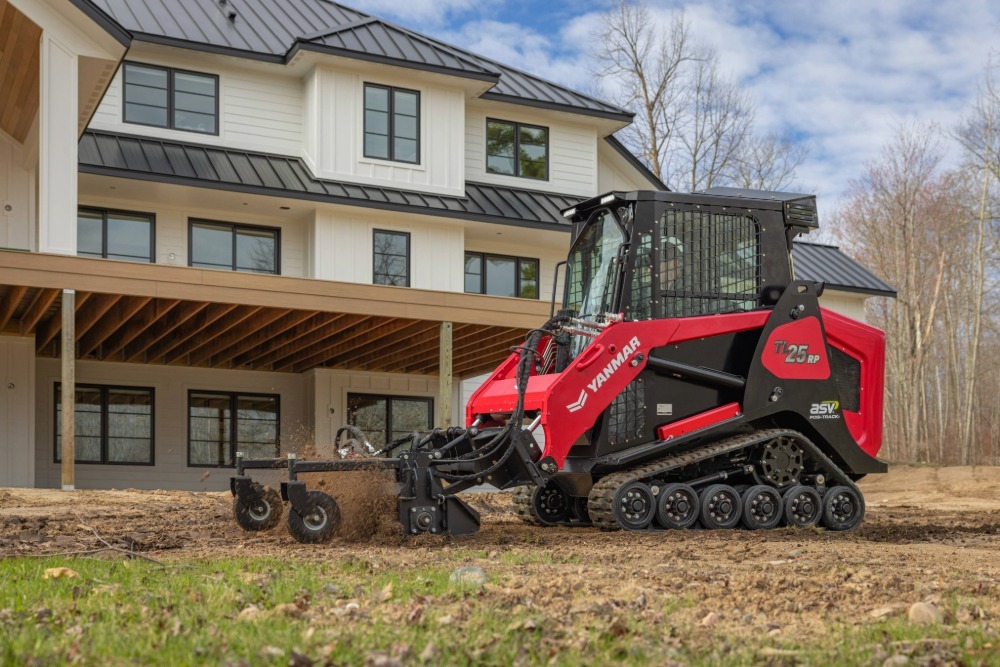

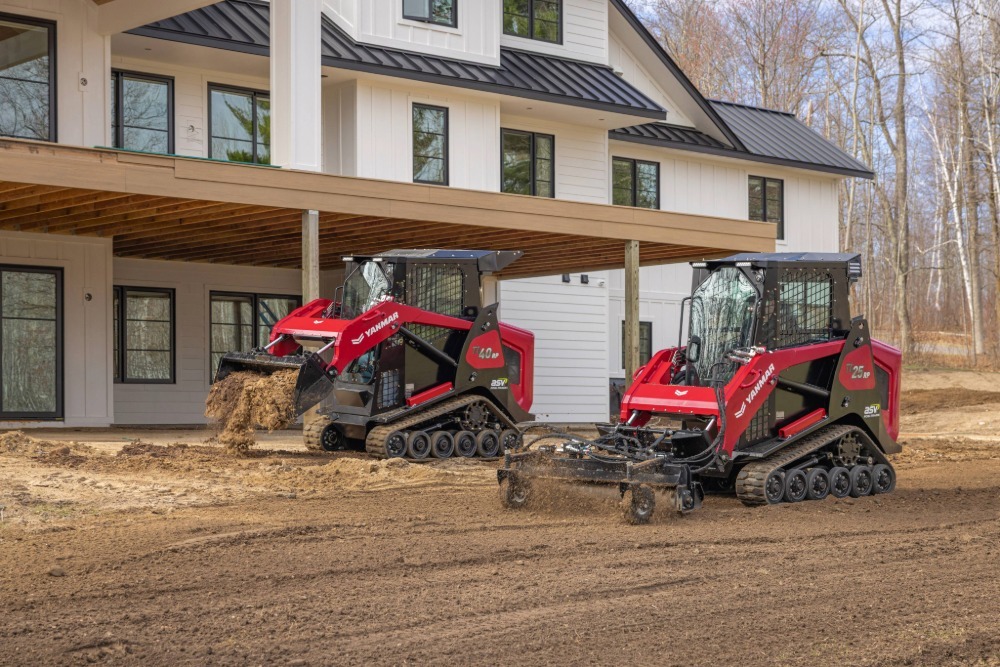

• Grading and leveling

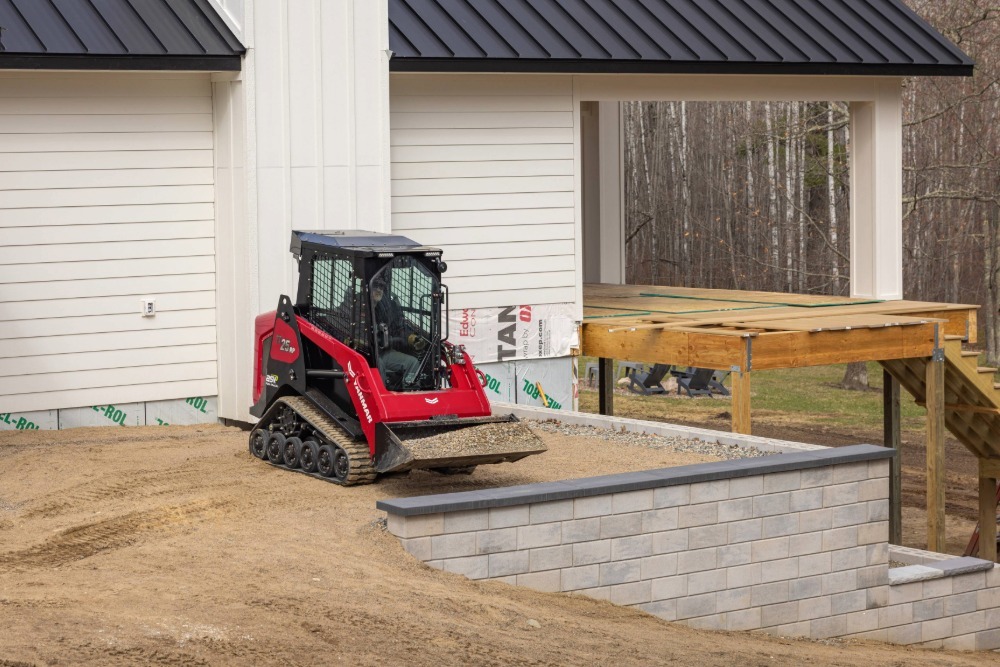

• Work around foundations
• Jobsites with limited access
• Soft or uneven terrain

Specification Note

Certain specifications are based on engineering calculations and are intended for comparison purposes only. Actual specifications may vary based on design, manufacturing, operating conditions, machine configuration, and other factors. Specifications and availability are subject to change without notice.
