Yanmar TL40RP Compact Track Loader

Product Overview

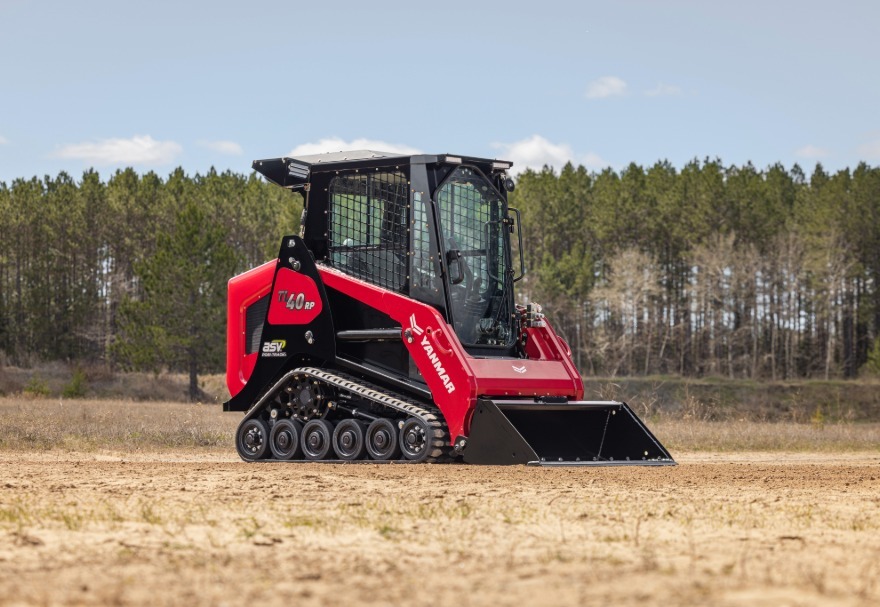

The Yanmar TL40RP is a compact track loader designed to deliver greater power, capacity, and auxiliary hydraulic performance while maintaining a compact, maneuverable 48-inch footprint. Built on ASV Posi-Track® fully suspended torsion-axle undercarriage technology, the TL40RP provides smooth suspension, strong traction, and confident performance across varied ground conditions, from soft turf to demanding construction sites. With an operating weight of 4,030 lbs, 38.2 horsepower, and a 930 lb rated operating capacity, this machine is a strong fit for contractors, landscapers, rental operators, and crews that need more capability without giving up compact transportability.

Key Highlights

• Compact track loader built for more power and capacity in a compact design
• ASV Posi-Track® fully suspended torsion-axle undercarriage
• Compact 48-inch footprint
• Open ROPS operating weight: 4,030 lbs / 1,828 kg
• Enclosed cab operating weight: 4,355 lbs / 1,975 kg
• Gross power rating: 38.2 hp / 28.5 kW
• Rated operating capacity: 930 lbs / 422 kg
• Operating capacity at 50% tipping weight: 1,330 lbs / 603 kg
• Tipping weight: 2,660 lbs / 1,206 kg
• Breakout force: 2,480 lbs / 1,125 kg
• Maximum travel speed: 7.1 mph / 11.4 kph
• Standard auxiliary hydraulic flow: 13.3 gpm / 50.4 lpm
• Available all-weather cab for year-round comfort
• Rear-tilting hood provides access to major service points
• 4.3-inch multi-functional color display
• Pilot-operated hydraulic joystick controls
• Standard engine block heater
• Pre-wired for factory-available accessories

Built for More Capability in Tight Spaces

The TL40RP is designed for users who need more performance than an entry-level compact track loader while still requiring a small footprint for tight-access work. Its compact design helps maintain maneuverability and transportability, while its increased power, rated operating capacity, breakout force, and auxiliary hydraulic performance allow it to take on a wider range of applications.

ASV Posi-Track® Undercarriage Technology

The TL40RP is built on ASV Posi-Track® fully suspended torsion-axle undercarriage technology. This system is designed to provide a smoother ride, strong traction, and confident operation across varied terrain. Its low ground pressure and track design make the machine well suited for soft turf, uneven ground, landscaping work, construction sites, and conditions where traction and stability matter.

Operator Comfort and Visibility

The TL40RP is built around the operator with a seated operator station that helps reduce all-day standing fatigue while protecting the operator from the elements. The Premium configuration adds comfort-focused features such as a mechanical suspension seat, roof panel, and sound insulation. An available all-weather cab supports year-round operation, while large windows provide strong visibility around the machine throughout the workday.

Performance and Maintenance

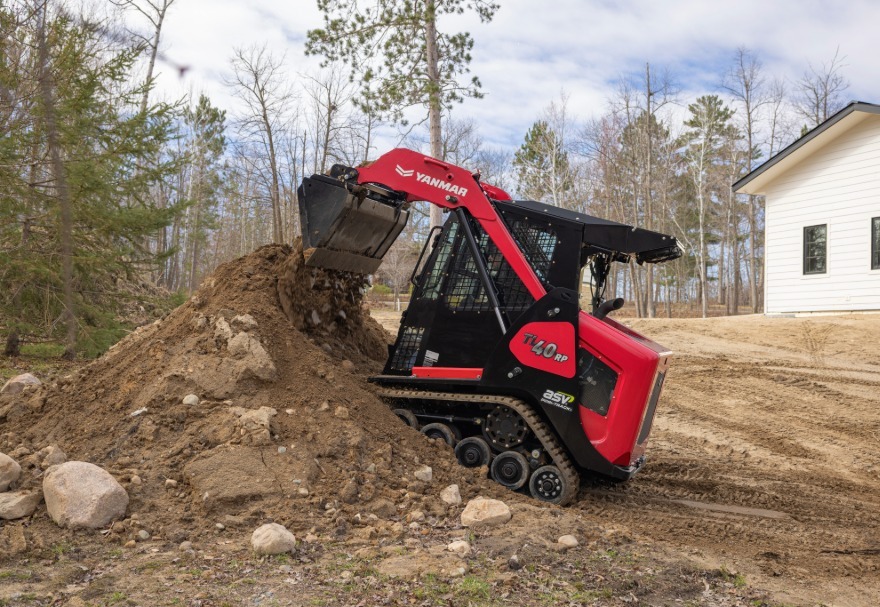

The TL40RP is powered by a turbocharged Yanmar 3-cylinder diesel engine producing 38.2 horsepower and 93.6 ft-lb of peak torque. With a 930 lb rated operating capacity and 2,480 lb breakout force, it is built to push, dig, load, and move material confidently across demanding jobsites. For easier maintenance, the rear-tilting hood opens to major service points, helping reduce downtime and keep the machine productive in the field.

Controls and Display

The TL40RP uses pilot-operated hydraulic joysticks to manage loader and drive functions independently. Auxiliary hydraulic variable flow is controlled through the joystick rocker switch, while continuous flow can be managed through the console switch. A hand-operated rotary throttle provides precise engine speed management, and the 4.3-inch color display shows key machine information including engine RPM, coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, and more.

Operating Specifications

• Loader arms: Radial
• Operating weight, open ROPS: 4,030 lbs / 1,828 kg
• Operating weight, enclosed cab: 4,355 lbs / 1,975 kg
• Ground pressure at operating weight: 3.3 psi / 22.75 kPa
• Rated operating capacity, 35% of tipping weight: 930 lbs / 422 kg
• Operating capacity, 50% of tipping weight: 1,330 lbs / 603 kg
• Tipping weight: 2,660 lbs / 1,206 kg
• Maximum travel speed: 7.1 mph / 11.4 kph
• Breakout force: 2,480 lbs / 1,125 kg

Auxiliary Hydraulic System

• Standard auxiliary hydraulic flow: 13.3 gpm / 50.4 lpm
• Standard auxiliary hydraulic pressure: 3,000 psi / 20,684 kPa
• Controls: Variable flow via joystick rocker switch or continuous flow via console switch
• Couplers: Push-to-connect quick couplers mounted on manifold block with pressure relief valve
• Cooling system: High-efficiency oil cooler beside engine radiator, not stacked
• Quick-attach mounting plate: ASV Mini-Track loader coupler with manual latching pins

Engine

• Engine type: Diesel, 3-cylinder, turbocharged
• Engine model: Yanmar 3TNV86CT
• Gross power rating: 38.2 hp / 28.5 kW
• Displacement: 95.7 cu in / 1.6 L
• Peak torque: 93.6 ft-lb / 126.9 Nm
• Cooling system: Engine-driven fan and coolant/antifreeze-filled radiator
• Intake air cleaner: Dual stage
• Emission controls: Meets all U.S. EPA Tier 4 Final standards
• Standard engine feature: Engine block heater

Undercarriage

• Track type: General purpose track with embedded co-polymer cords and all-purpose treads
• Track width: 11 in / 279 mm
• Length of track on ground: 55 in / 1,397 mm
• Ground contact area: 1,210 in² / 0.78 m²
• Drive system: Two hydrostatic direct-drive sprockets controlled by single joystick
• Undercarriage suspension: Two independent torsion axles per undercarriage
• Roller wheels: Twelve ultra-high molecular weight polyethylene and rubber wheels per track with sealed bearings

Service Capacity

• Fuel tank capacity: 13 gal / 49 L
• DEF capacity: N/A

Electrical System

• Nominal charge: 12 V
• Battery: 590 CCA
• Charging system: 80 amp alternator
• Outlets: One 12 V port inside operator station
• Wiring: Pre-wired for all factory-available accessories

Operator Station

• Cab options: Open ROPS Base, Open ROPS Premium, Cold Weather Cab Premium, and All Weather Cab Premium
• Seat: Vinyl seat with built-in operator presence switch on Base configuration; premium mechanical suspension seat with built-in operator presence switch on Premium configuration
• Restraints: Lap bar and 2-inch / 51 mm wide seat belt
• Loader control: Right-hand pilot hydraulic joystick controls loader lift, lower, tilt, and intermittent auxiliary hydraulic control
• Drive control: Left-hand pilot hydraulic joystick controls machine speed and direction
• Machine display: Multi-functional 4.3-inch color display with engine RPM, coolant temperature, oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, and more
• Engine speed control: Hand-operated rotary throttle
• ROPS: Meets ISO 3471
• FOPS: Meets ISO 3449
• Operator restraint anchorage: Meets ISO 6683 CAL OSHA 1596

Lighting and Standard Features

• Two fixed forward-facing LED lights
• One adjustable rear-facing LED light
• One interior light
• Two red LED tail lights
• Horn
• Backup alarm
• Rear window on Premium configuration
• Cup holder on Premium configuration
• Phone holder on Premium configuration
• Roof panel on Premium configuration
• Sound insulation on Premium configuration
• 8-pin attachment connector on Premium configuration

Optional Features

• Rear view camera
• Turf track with smooth treads
• Bumper
• Brush guard
• Full rail metal seals
• 1/4-inch polycarbonate front door

Best-Fit Applications

The TL40RP is well suited for compact equipment users who need more power, auxiliary hydraulic performance, and rated operating capacity while still working in tight or sensitive areas. Common applications include:

• Construction
• Landscaping
• Utility work
• Rental fleets

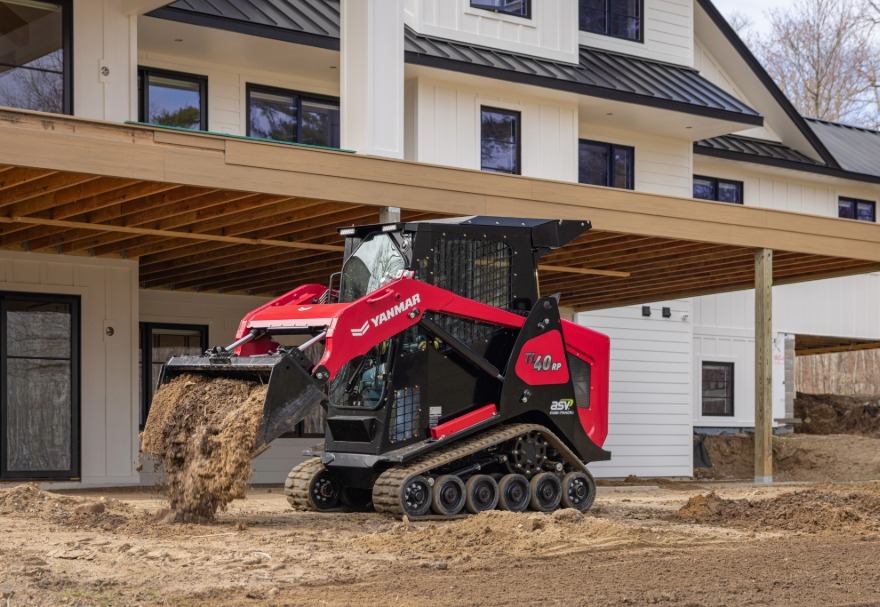

• Residential jobsite work
• Site preparation
• Material handling
• Grading and leveling
• Loading and cleanup

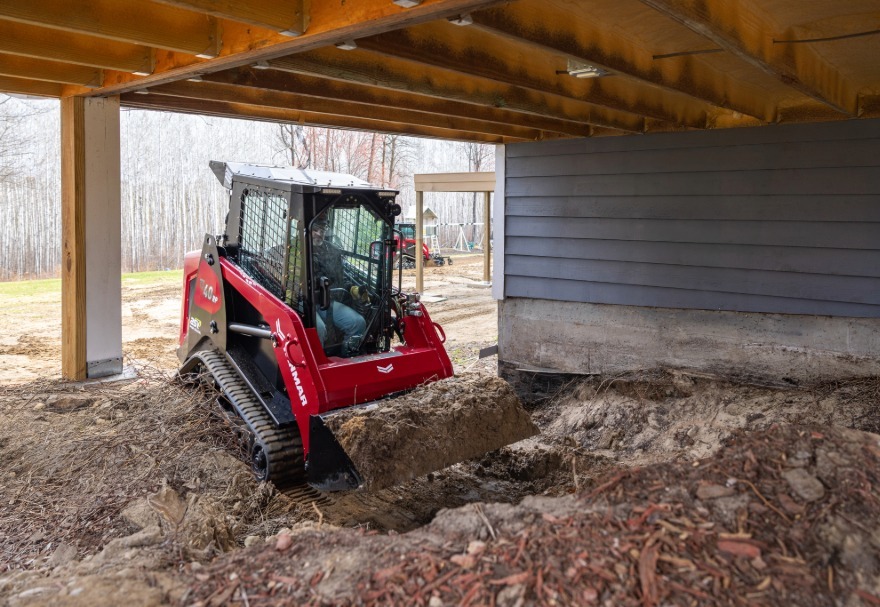

• Work around foundations
• Soft turf or sensitive ground conditions
• Year-round operation with available cab options

Specification Note

Certain specifications are based on engineering calculations and are intended for comparison purposes only. Actual specifications may vary based on design, manufacturing, operating conditions, machine configuration, and other factors. Specifications and availability are subject to change without notice.
