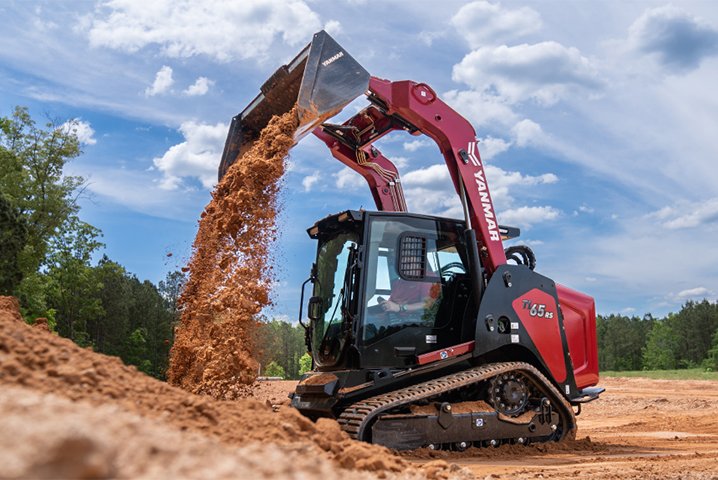

TL65RS-1C

Weight

8,575 lbs

HorsePower

67 hp

ROC

2,100 lbs

Agile Power for Tight Spaces

Introducing the TL65RS-1C, Yanmar’s compact track loader that’s as rugged as they come yet meticulously designed. This machine unites brute force with rare finesse, offering a perfect balance for tackling a myriad of tasks. Under its hood roars a 67-horsepower Yanmar engine, ready to take on the toughest terrains and heaviest loads without breaking a sweat.

Compact Power, Maximum Versatility

From maneuvering through cramped corners to lifting heavy loads with ease, the TL65RS-1C doesn’t just get the job done, it excels at it. Its rugged exterior hints at the resilience under the hood, making it a dependable companion for every project, no matter the challenge. So, if you’re looking for a compact track loader that doesn’t compromise on power or performance, the TL65RS-1C is your ultimate choice.

Features

Premium Comfort and Visibility

Step into the TL65RS-1C’s cab, your command center encased in comfort and practicality. The suspended seat keeps you cruising in comfort, while the touchscreen and panoramic view keep you in control. And there’s a removable roof hatch for quick escapes when the going gets rough. It’s not just a workspace; it’s your cockpit for mastering every task.
Built for Endurance and Dependability

Count on the TL65RS-1C’s rugged reliability, from its steel-embedded undercarriage to heavy-duty tracks. Featuring easy service access, it’s built to take a beating and keep going. No downtime, no compromises. Just relentless performance when you need it most.
Enhanced Control

Level up your operator game with the TL65RS-1C’s cutting-edge 7-inch color display and preset options for attachment angles and loader arm positions. Its rugged Dual Direction Self Leveling and Automatic Ride Control features make for seamless shifting between low and high-speed modes.

Specifications

Operating Specifications
Loader Arms	Radial
Operating Weight (Open ROPS Base)	8,575 lbs
Operating Weight (AWC Cab Base)	8,915 lbs
Ground Pressure at Operating Weight	5.7 psi
Rated Operating Capacity (35% of tipping load)	2,100 lbs
Tipping Load	6,000 lbs
Travel Speed, Maximum	7.5 mph
Engine
Type	Diesel 4-cylinder, Intercooled Turbo
Model	Yanmar 4TN86CHT
Gross Power Rating	67 hp
Displacement	2.1 L
Torque, Peak	193.8 ft-lb
Cooling System	Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner	Dual-stage
Emission Controls	Meets all U.S. EPA Tier 4 final standards
Undercarriage
Track Width	12.6 in.
Length of Track on Ground	60 in.
Ground Contact Area	1,512 in.2
Drive System	Two hydrostatic direct drive sprockets controlled by single joystick
Undercarriage Suspension	Two independent torsion axles per undercarriage
Auxiliary Hydraulic System
Pump Capacity, Low/High	21.4 / 26.7 gpm
Max System Pressure, Low / High	3,480 / 3,771 psi
Controls	Intermittent via joystick button or continuous via console switch.
Couplers	Flat Faced Couplers: 1/2 in.
Cooling System
Details	High efficiency side-by-side radiator and oil cooler
Electrical System
Nominal Charge	12 V
Battery	800 CCA
Charging System	80 amp alternator
Outlets	1-12 V port inside operator station
Wiring	Pre-wired for all factory-available accessories
Service Capacity
Fuel Tank	21.4 gal
Operator Station
Cab	ROPS or All-Weather Cab with curved glass door
Seat	Mechanical suspension seat with 2-in. seat belt
Controls	Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
Engine Speed	Standard hand dial operation with foot pedal optional
7-in. Color Machine Display	Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages
Safety & Structure
ROPS	ISO 3471; Restraint-ISO 6683, SAE J2292, Cal OSHA 1596
FOPS	ISO 3449 Level 1 (Level 2 optional), emergency roof exit
Illumination	2 – Forward-facing LED lights 2 – Rear-facing LED lights
Standard Features
Features	Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow
Optional Features
Options	All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, LED side lights, rear view camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control
