HMK 360 LC

Maximum Power

281 HP (210 kW) @1900 rpm

Bucket Digging Force (ISO)

21.100 kgf

Bucket capacity

Light M. 2.1 m3

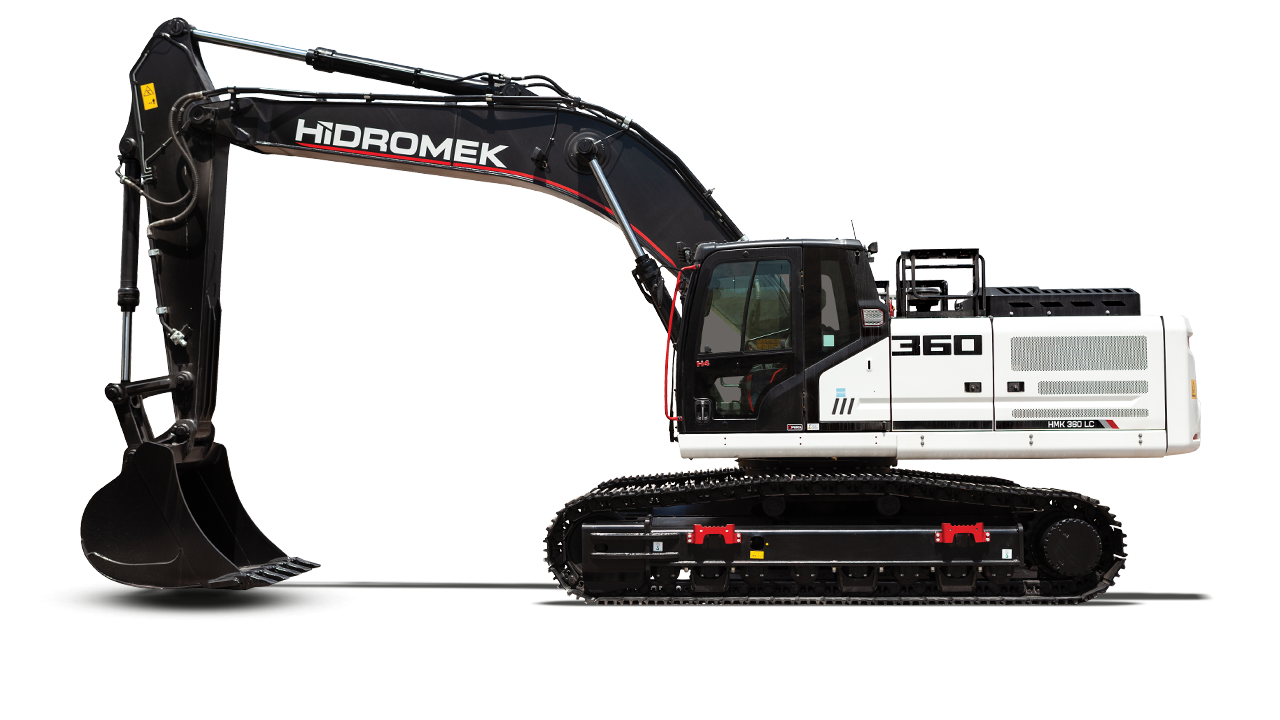

HİDROMEK HMK 360 LC crawler excavator is designed to take productivity to the next level. With its powerful engine and strong structure, it delivers high performance in demanding earthmoving, digging, and loading operations. It is especially effective in large-scale construction and site preparation work.

The HMK 360 LC stands out with its high efficiency and strong performance in all types of earthmoving tasks such as site preparation, land shaping, and construction works. Its heavy-duty design, long boom-arm configuration, and large earthmoving bucket significantly improve work efficiency and productivity.

Features

High Productivity

  • Powerful engine for maximum performance
  • Optimized boom and arm design for efficient digging
  • Large earthmoving bucket for higher output

Heavy-Duty Performance

  • Built for demanding construction and excavation work
  • High tonnage structure for stability and strength
  • Suitable for large-scale earthmoving operations

Efficient Operation

  • Strong hydraulic system for smooth control
  • High digging and loading capability
  • Improved work efficiency in all conditions

Specifications

Engine

  • Power: 281 HP (210 kW) @ 1900 rpm
  • Torque: 1080 Nm @ 1500 rpm (Gross)
  • Model: ISUZU 6HK1X
  • 6-cylinder turbocharged diesel engine
  • Displacement: 7790 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 290 L/min
  • Pilot Pump: 28.5 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 285 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 9.3 rpm

Travel

  • Maximum Drawbar Pull: 30,740 kgf
  • High Speed: 4.9 km/h
  • Low Speed: 2.9 km/h

Digging Performance

  • Bucket Digging Force (ISO): 21,100 kgf
  • Bucket Capacity: 2.1 m³ (Light Material)
  • Arm Breakout Force (ISO): 16,400 kgf

Working Dimensions

  • Boom: 6,500 mm
  • Arm: 3,200 mm
  • Maximum Digging Depth: 7,630 mm
  • Maximum Reach at Ground Level: 11,180 mm

Operating Weight

  • 38,700 kg
