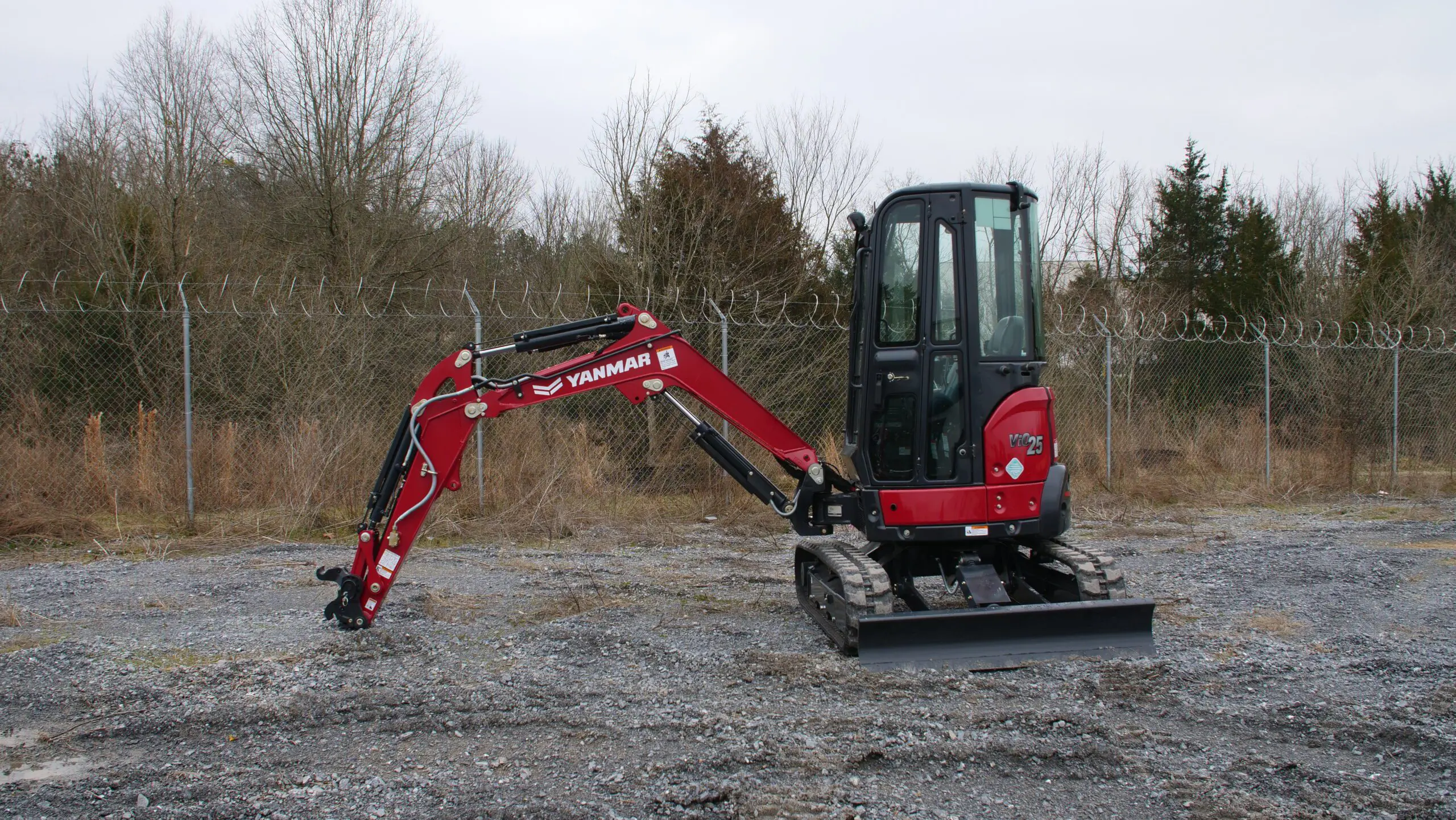

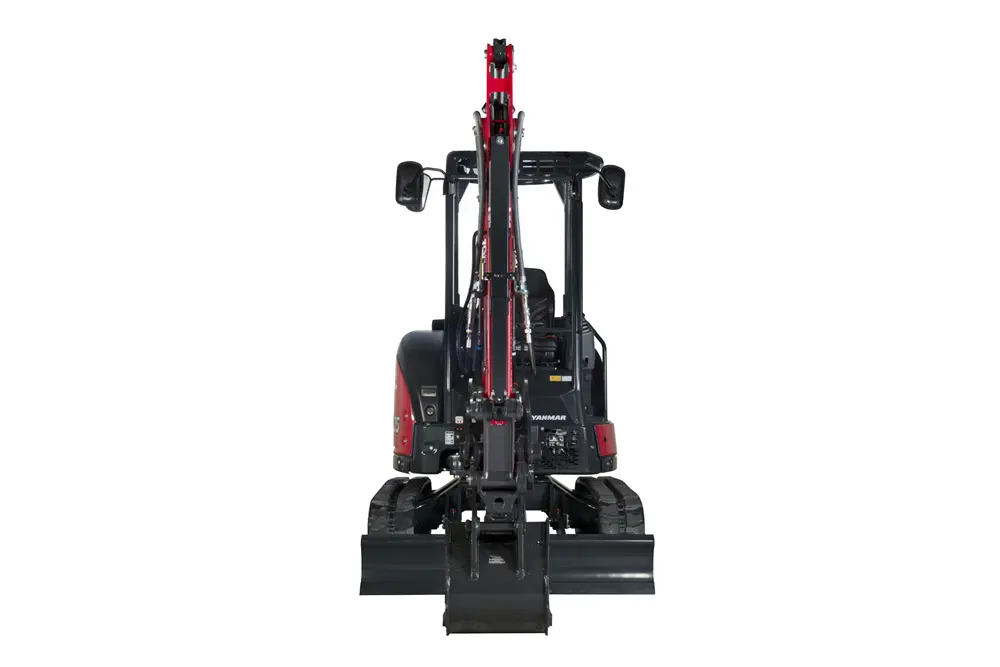

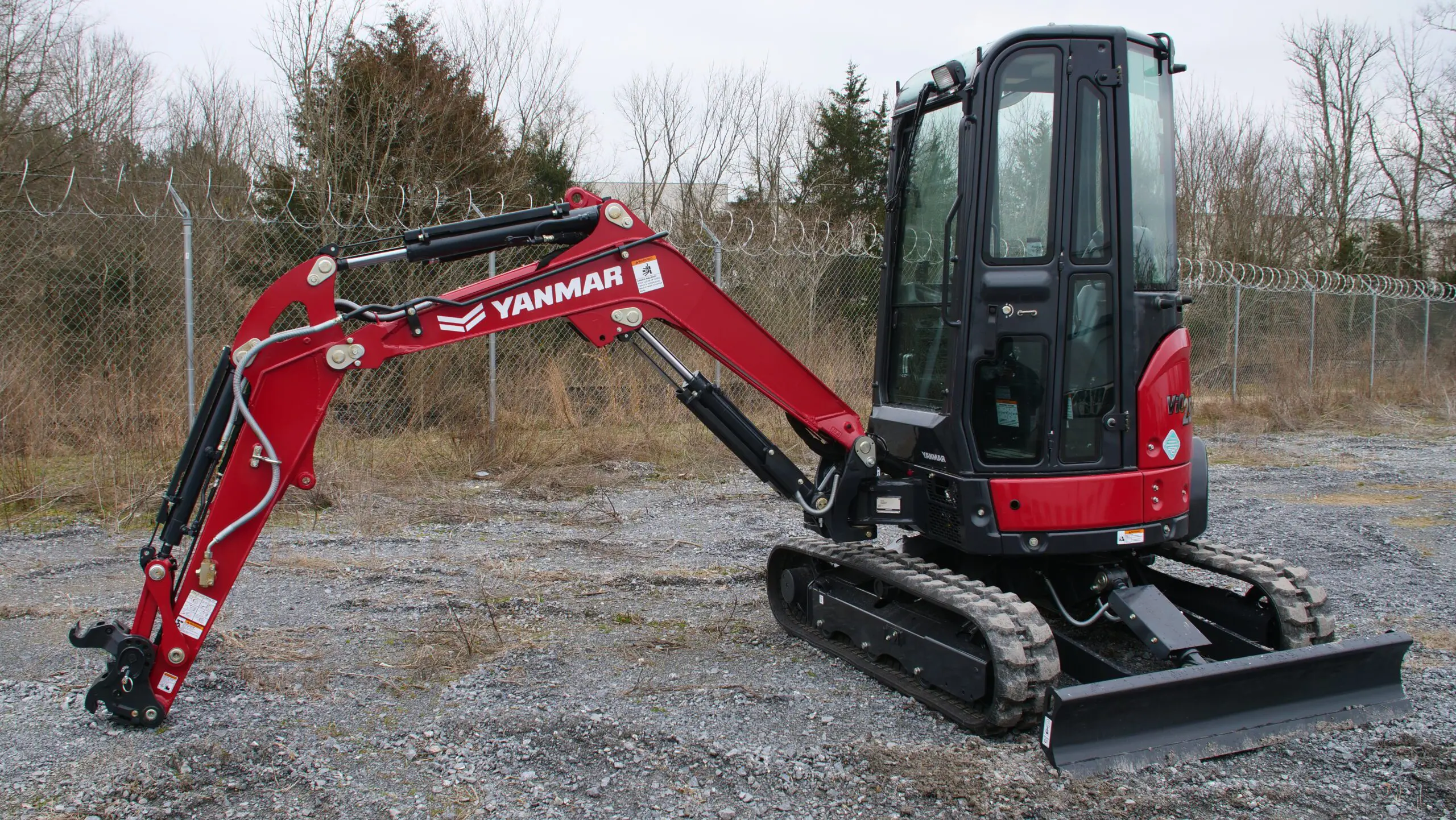

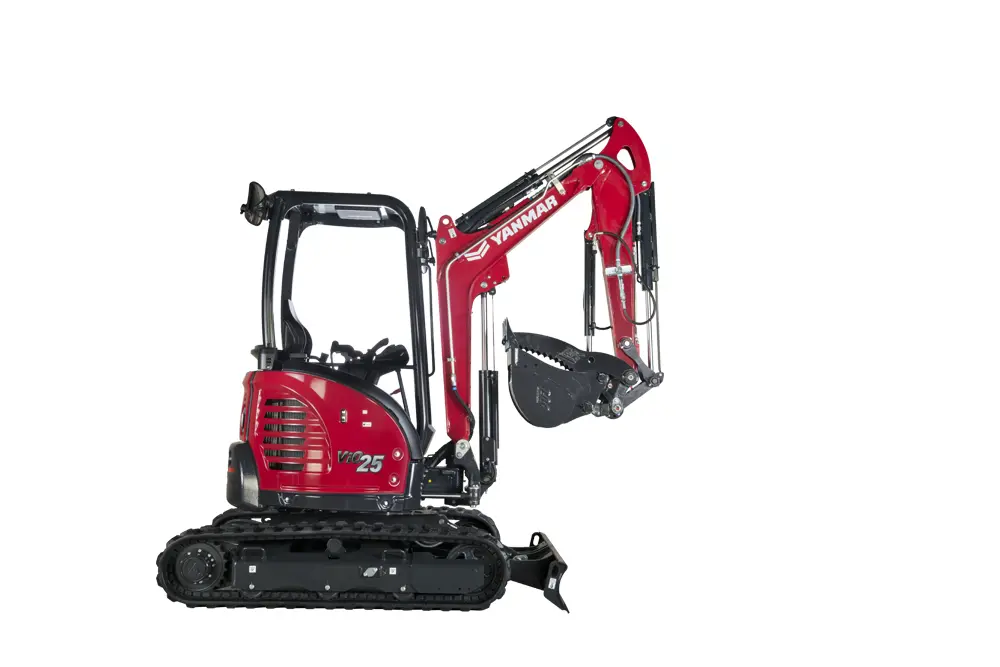

When tight residential or inner-city jobsites call for big time performance, it’s time to call in the work anywhere toughness of the Vi025-6B. This 2.5-ton category mini-excavator is sized right to fit through narrow openings, while its zero tail swing design gives it the nimble capability to get busy in nearly any cramped space. Throttle up the reliable Yanmar 3-cylinder diesel engine and put more than 20-horses to work while digging to depths up to 10 feet, all while enjoying the fuel efficiency and quiet of Tier 4 Final performance. That performance is paired with a comfortable operator station for the ability to work longer days with less fatigue.

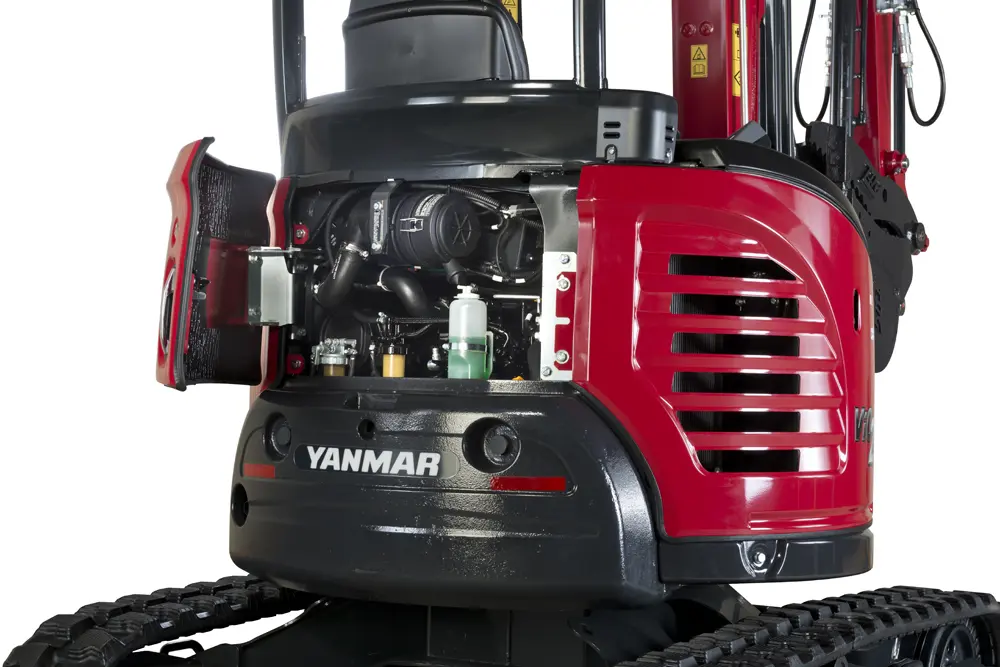

With Tier 4 Final rated efficiency, 20.4-horsepower, auto deceleration and ECO mode, our legendary Yanmar diesel engines provide performance when you need it, and fuel savings when you don’t.

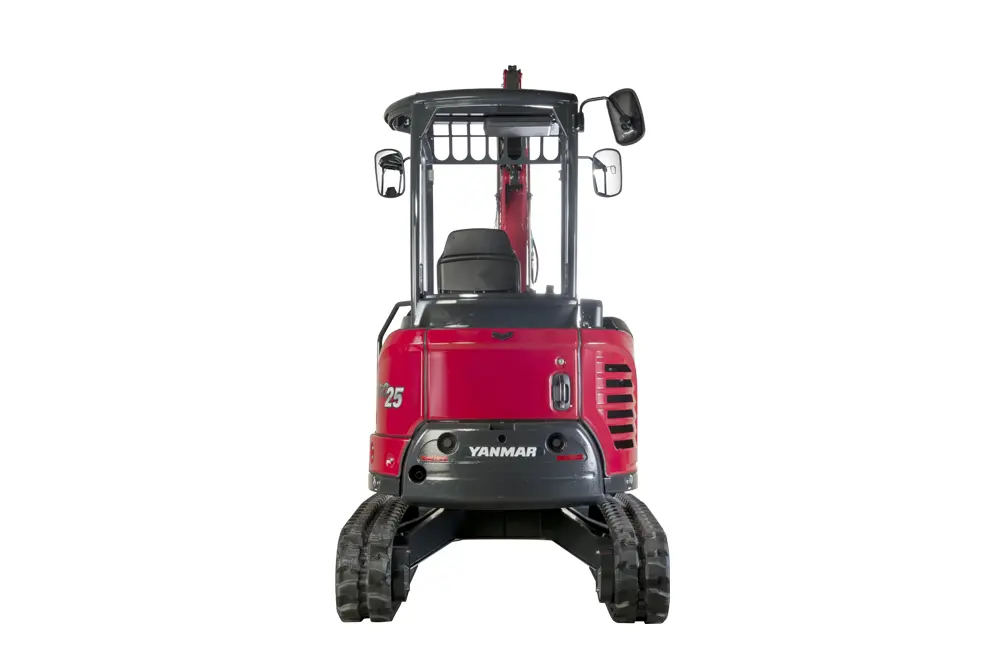

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
Not only will you save fuel, but you’ll reduce the noise of an idle machine running full throttle for no reason. Save money and your sanity.
Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.
Choose your action and the perfect flow with the PTO Selector Valve and standard proportional control. Select single or double action on the auxiliary circuit.
| Engine | |
|---|---|
| Model | Tier 4 Final 3TNV80F-SXNBV |
| Rated Output | 20.4 HP / 2,500 RPM |
| Type | Water-cooled 4-cylinder diesel |
| Operating Weight | |
| Rubber Track (Canopy) | 5,908 lbs |
| Steel Track (Canopy) | 6,151 lbs |
| Rubber Track (Cabin) | 6,140 lbs |
| Steel Track (Cabin) | 6,383 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 4,788 / 2,833 lbs. |
| Traveling Speed, High / Low | 2.8 / 1.7 MPH |
| Swing Speed | 10 RPM |
| Boom Swing Angle, (L / R) | 46 / 74 |
| Ground Contact Pressure (Rubber Track) | |
| Canopy | 4.4 PSI |
| Cabin | 4.5 PSI |
| Hydraulic System | |
| Pump Capacity | Double variable displacement pump: 2*7.9 GPM
Gear Pump: 5.6 GPM |
| Main Relief Set Pressure | 2,987 x 2, 2,631 x 1 PSI |
| Blade Dimensions | |
| Width | 4’11” |
| Stroke, Raise / Lower from G.L. | 1′ / 1′ 2″ |
| Fuel Tank | |
| Capacity | 8 Gals |
