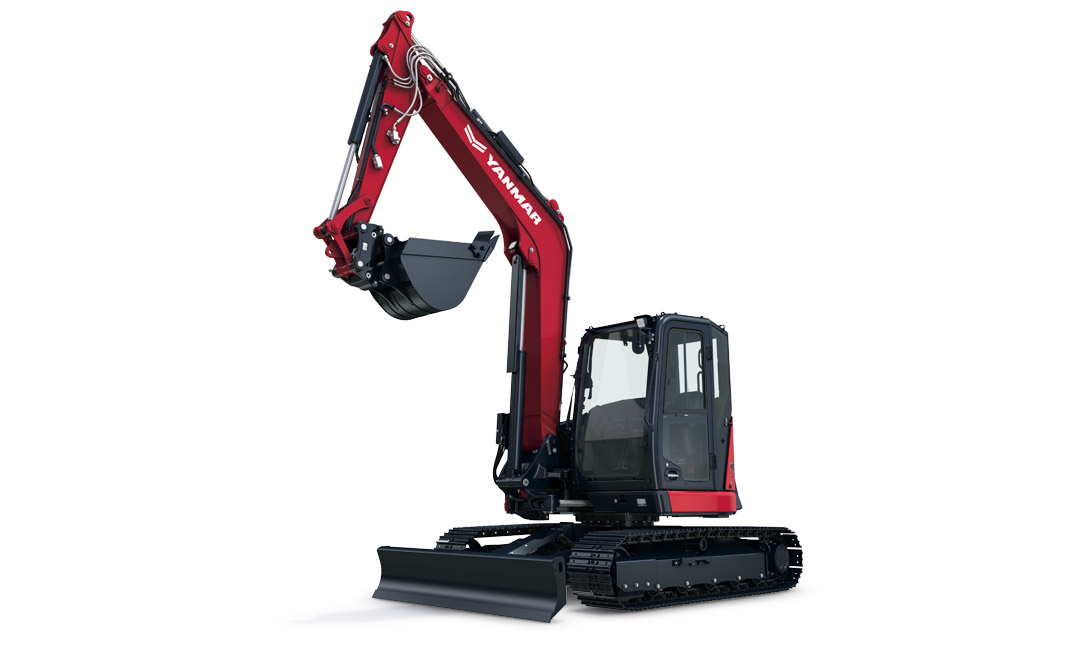

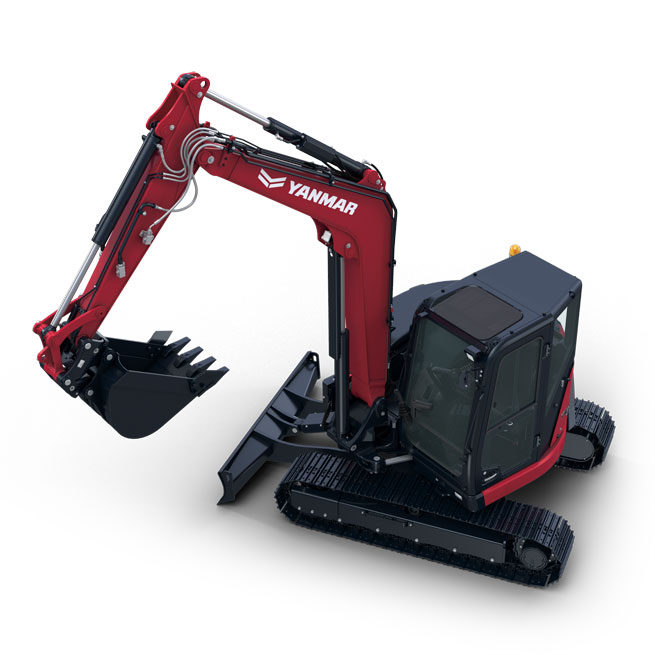

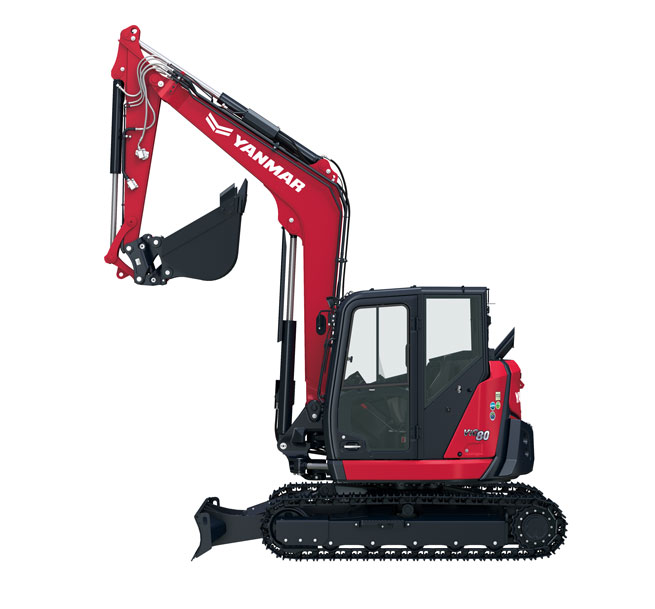

The ViO80-7 goes where larger conventional tail swing excavators can’t and does so while providing unmatched machine performance. The biggest of our true zero tail swing excavators, the ViO80-7 is powered by a 67-horsepower Tier 4 Final Yanmar engine and is ideal for fleets and work in utility, construction, demolition and landscaping applications, to name a few. The improved model uses its included 2-Pump Load Sensing (2PLS) hydraulics to direct hydraulic flow where it’s needed most. This allows for higher speeds, productivity, performance, and maximum fuel efficiency. Plus, the ViO80-7’s upgraded cab includes a more spacious operator area, a 7-inch color display, improved visibility and more.

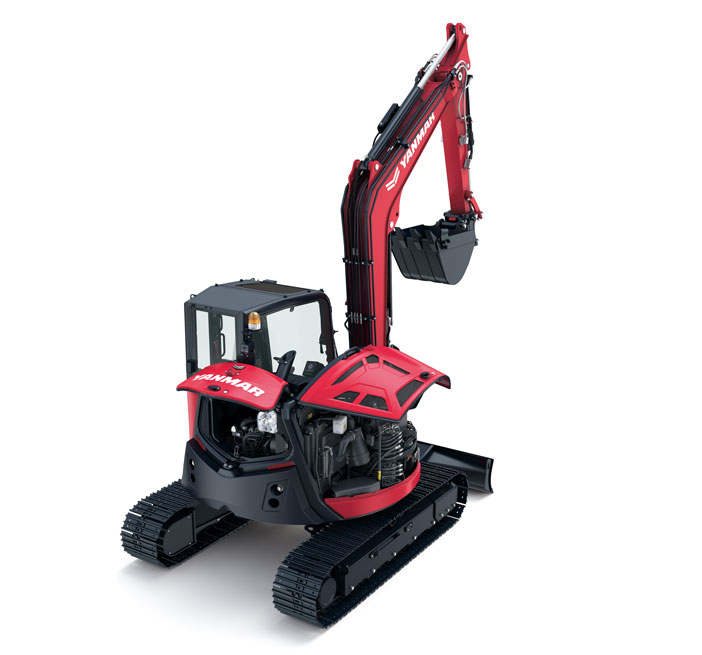

Our legacy of compact Yanmar diesel engines has never been stronger. With 67-horsepower and Tier 4 Final certification, it’s an uncompromising union of performance and efficiency.

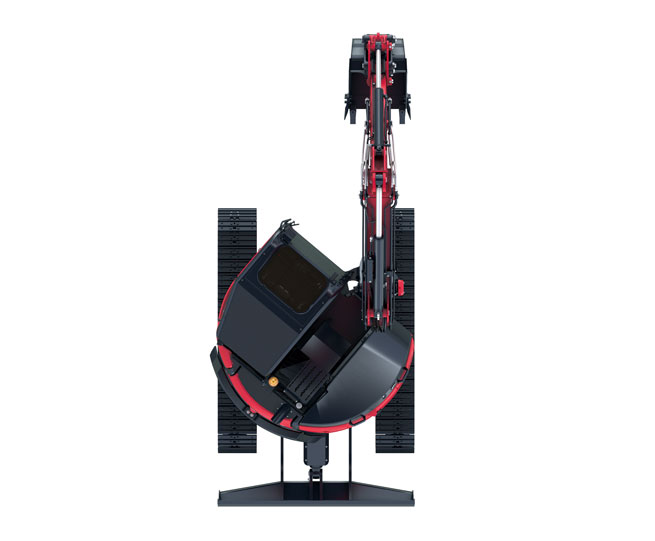

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
Take advantage of fuel savings with no sacrifice to power. Yanmar outfits the ViO80-7 with 2PLS hydraulics for a 13% reduction in fuel consumption combined with an extraordinary boost in machine performance, productivity and travel speeds.
Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

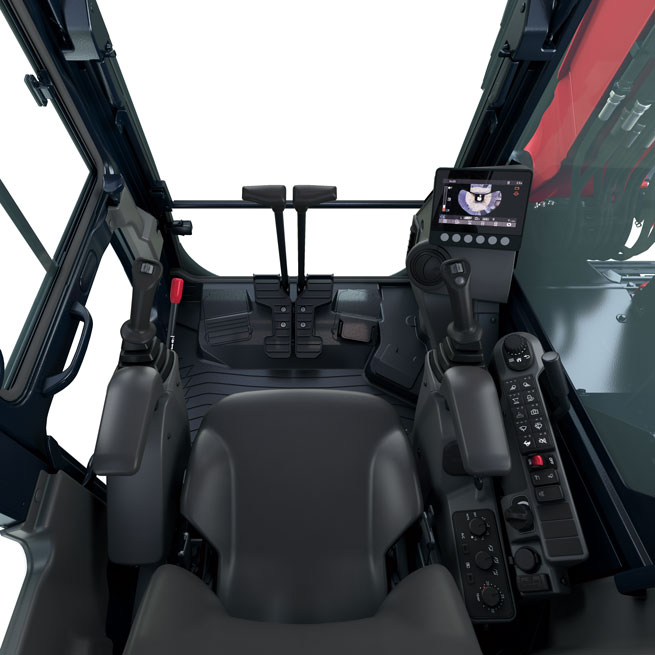

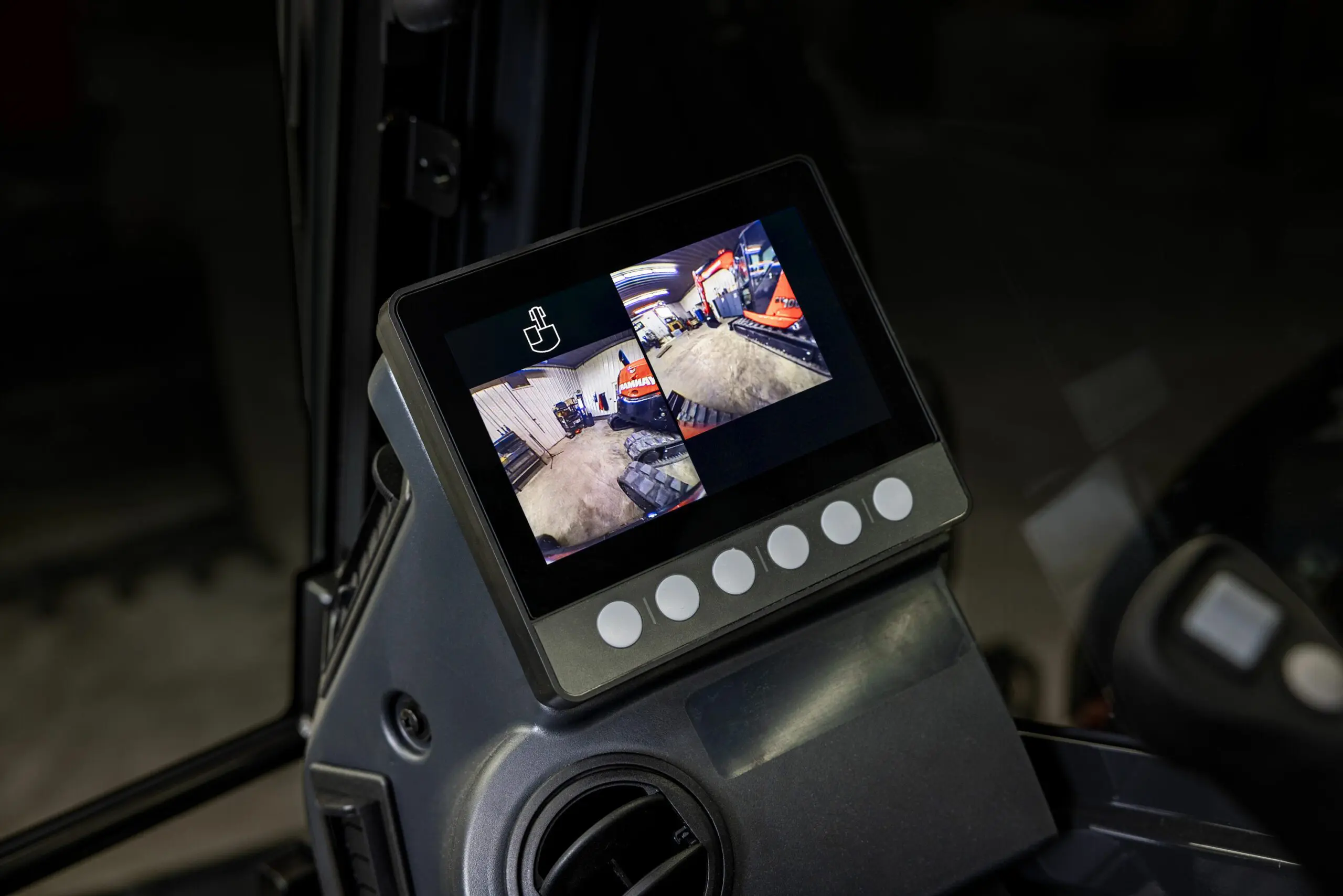

Work in comfort with a quieter and more spacious operator area outfitted with ergonomic controls and a 7-inch color display. Keep an eye on your surroundings with increased visibility from more glass area and standard side and rear cameras.
| Engine | |
|---|---|
| Model | YANMAR 4TNV98CT-VBV2 |
| Output | 67.1 HP |
| Type | Vertical water-cooled 4-cylinder diesel |
| Operating Weight | |
| Cab. Rubber Track | 18,409 lbs |
| Cab. Steel Track | 18,453 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 10,813 / 8,093 lbs |
| Traveling Speed, High / Low – Rubber Track | 2.9 / 1.6 MPH |
| Traveling Speed, High / Low – Steel Track | 2.8 / 1.4 MPH |
| Swing Speed | 9 RPM |
| Boom Swing Angle, (L / R) | 60° / 60° |
| Gradeability | 25° |
| Ground Contact Pressure | |
| Cab. Rubber Track | 5.3 PSI |
| Cab. Steel Track | 5.3 PSI |
| Hydraulic System | |
| Pump Capacity | 29.46 x 2 + 4.5 GPM |
| Main Relief Set Pressure | 3,989 x 2 + 493 PSI |
| Blade Dimensions | |
| Width x Height | 7’5” x 1’5” |
| Working Area of Blade (Upper/Lower) | 1’4” / 1’6” |
| Fuel Tank | |
| Capacity | 30.9 Gals |
Maximum Power
281 HP (210 kW) @1900 rpm
Bucket Digging Force (ISO)
25.300 kgf
Bucket capacity
2,2 m3
Maximum Power
281 HP (210 kW) @1900 rpm
Bucket Digging Force (ISO)
21.100 kgf
Bucket capacity
Light M. 2.1 m3
Maximum Power
106,7 HP (78,5 kW) @2000 rpm
Bucket Digging Force (ISO)
10.000 kgf
Bucket capacity
0,6 m3
Maximum Power
106,7 HP (78,5 kW) @2000 rpm
Bucket Digging Force (ISO)
10.000 kgf
Bucket capacity
0,6 m³
Maximum Power
141 HP (105 kW) @2000 rpm
Bucket Digging Force (ISO)
10.800 kgf
Standard Bucket Capacity
0,6 m3
