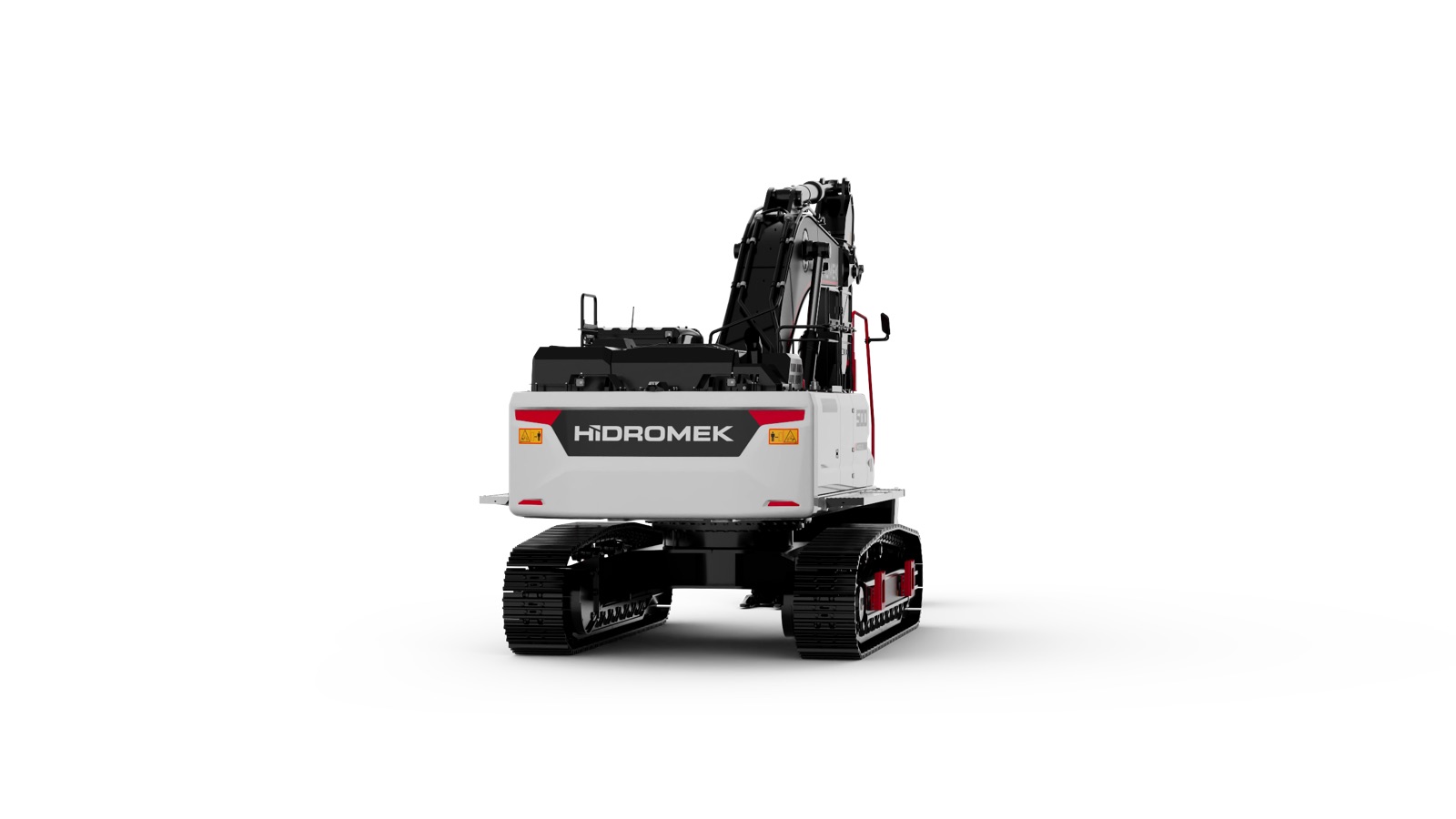

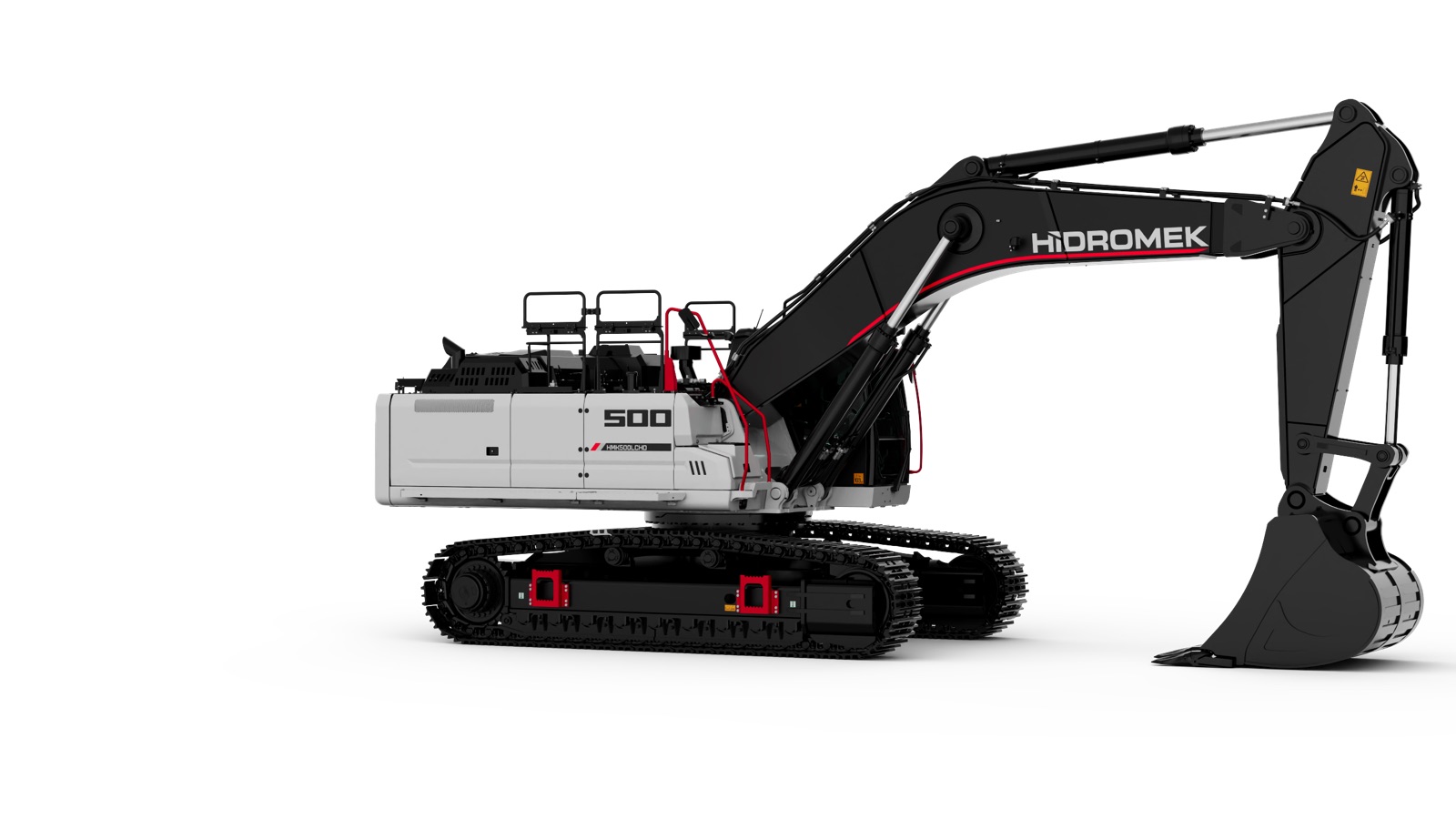

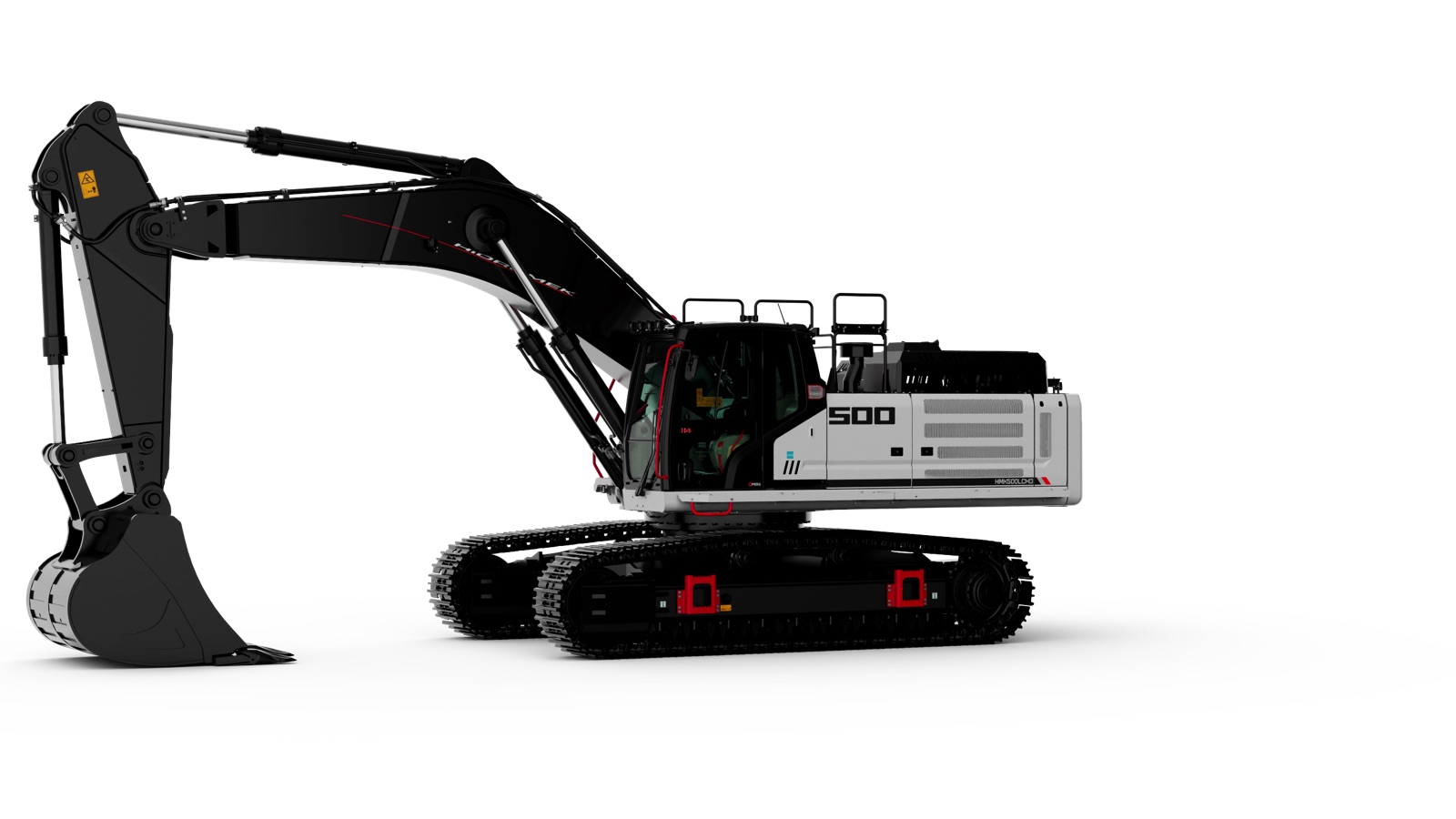

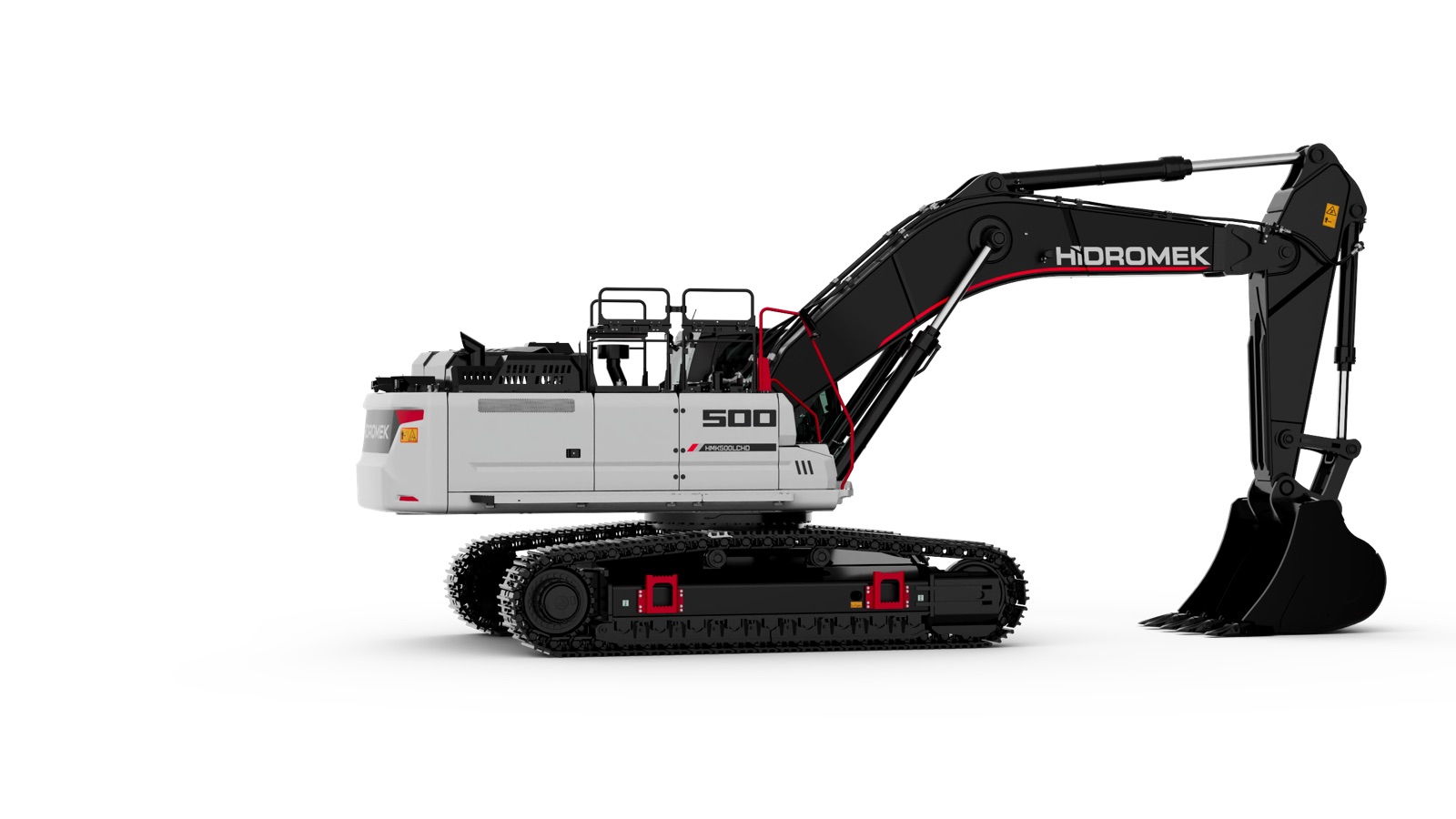

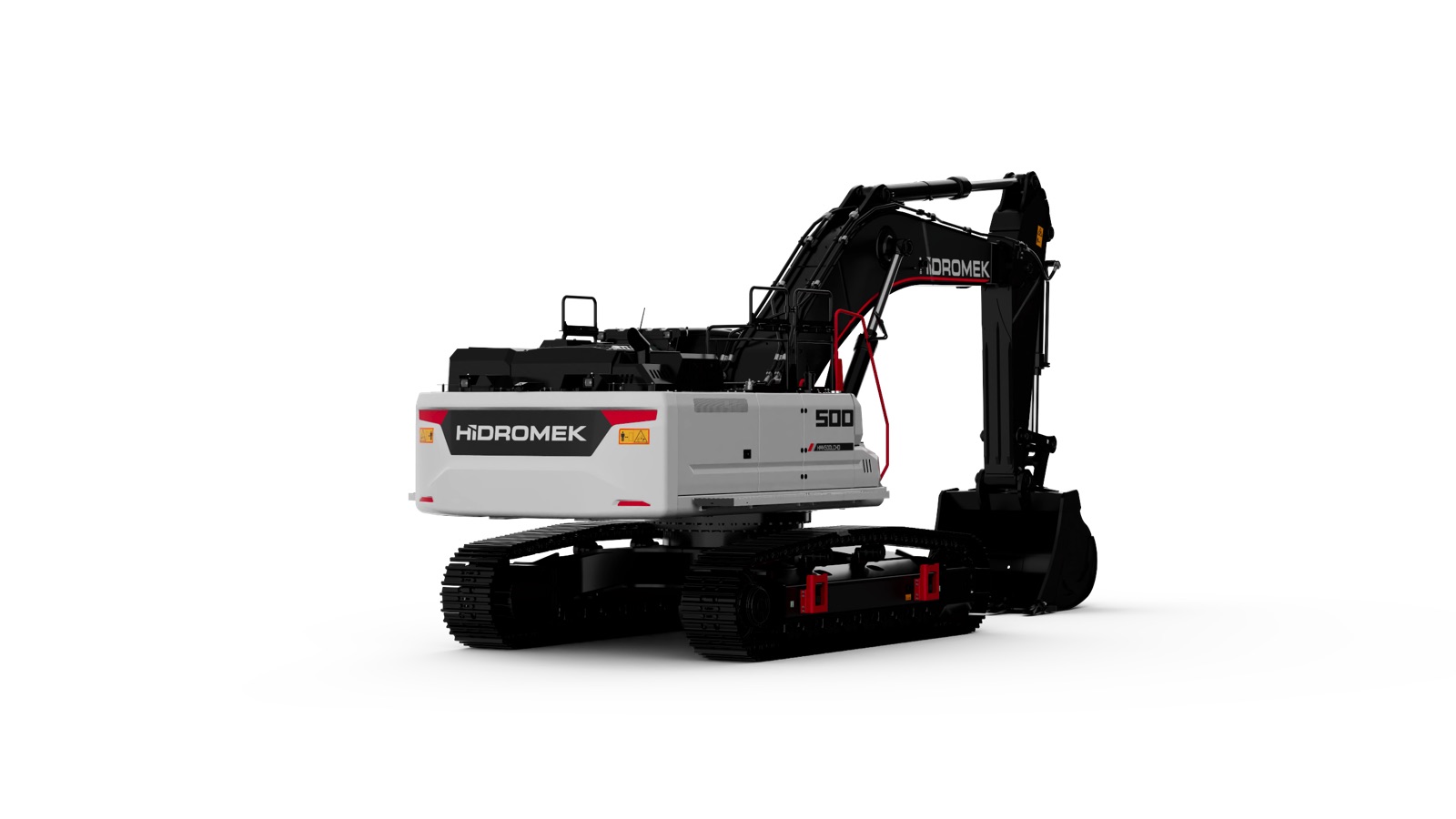

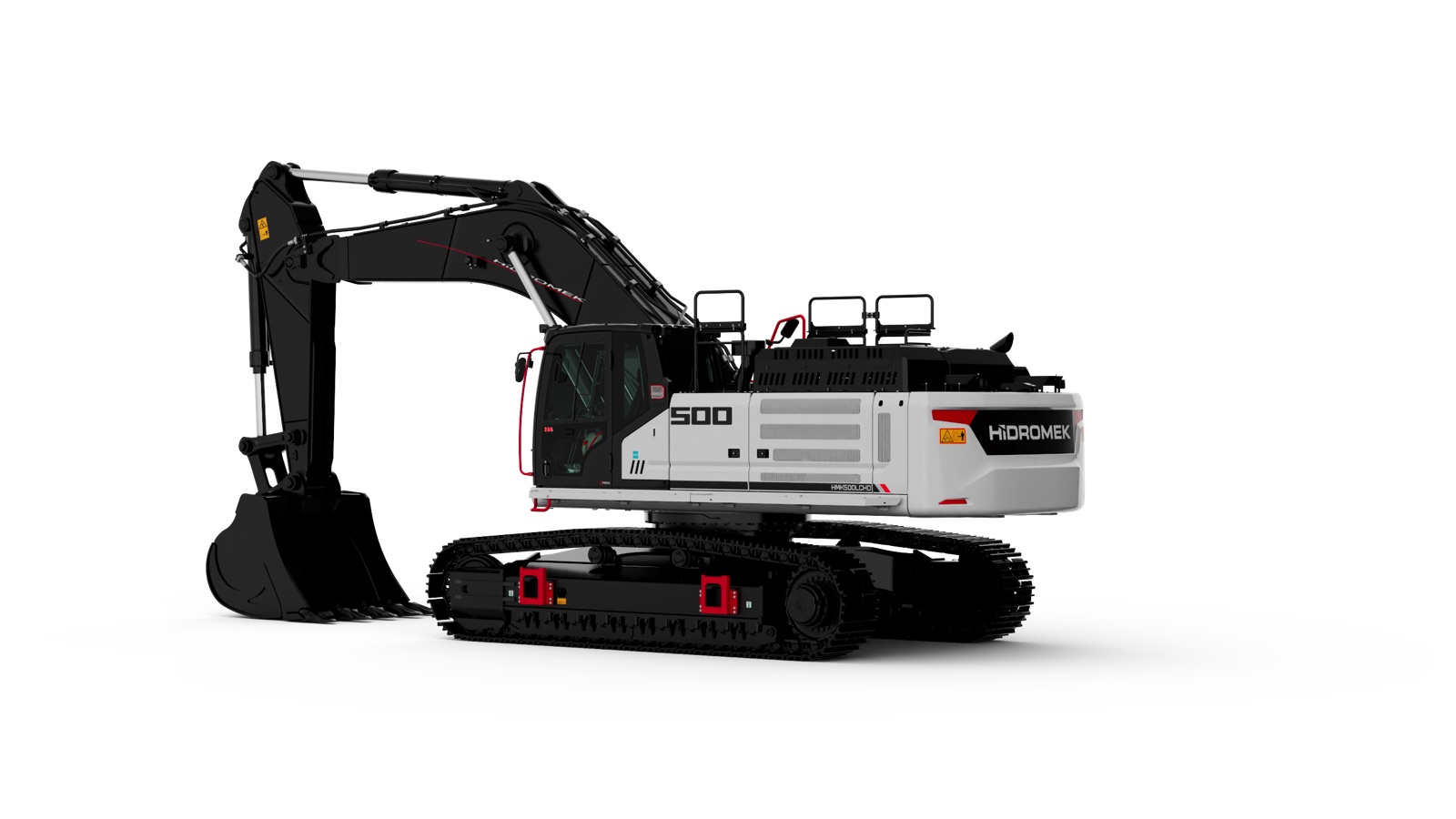

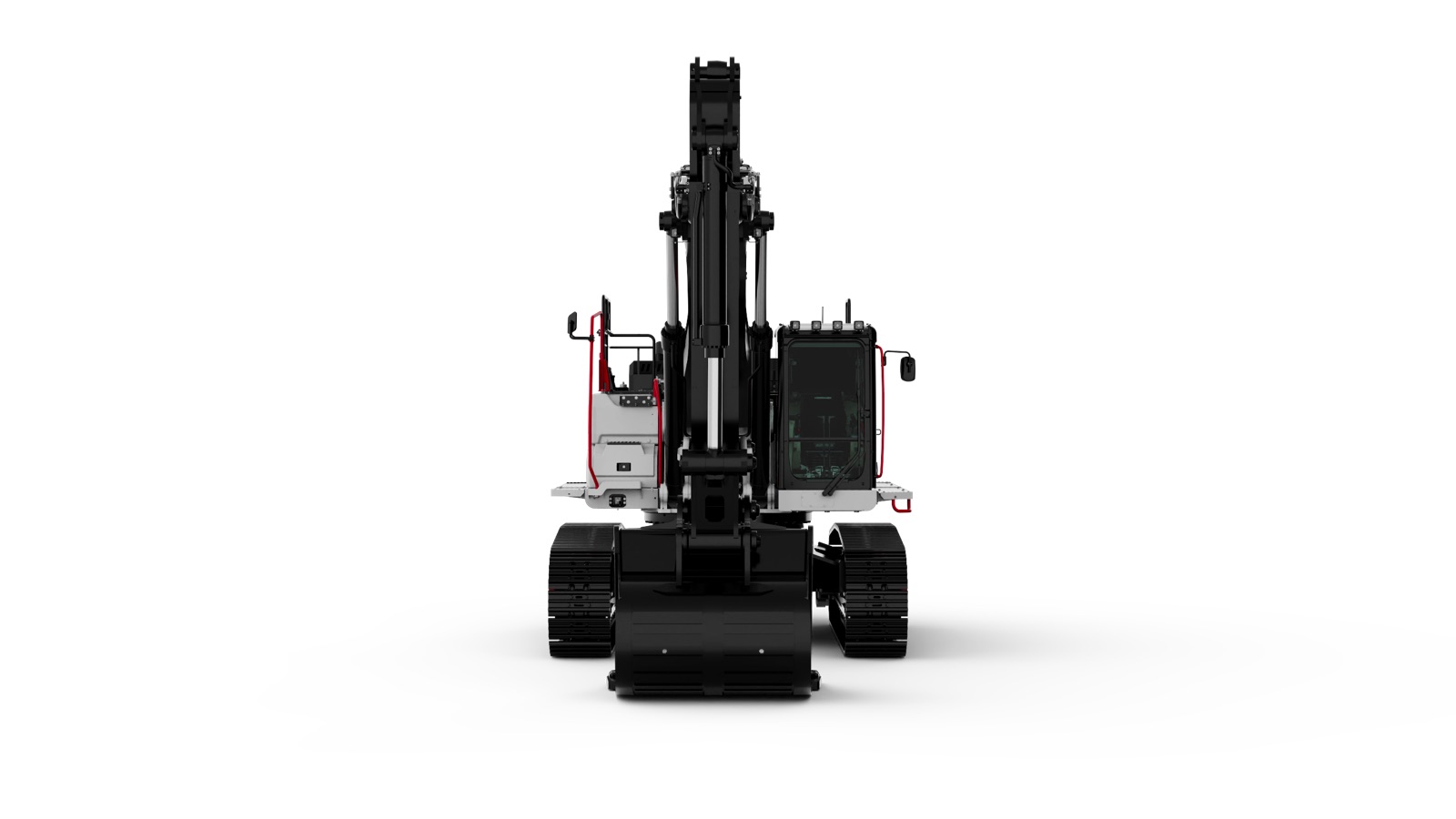

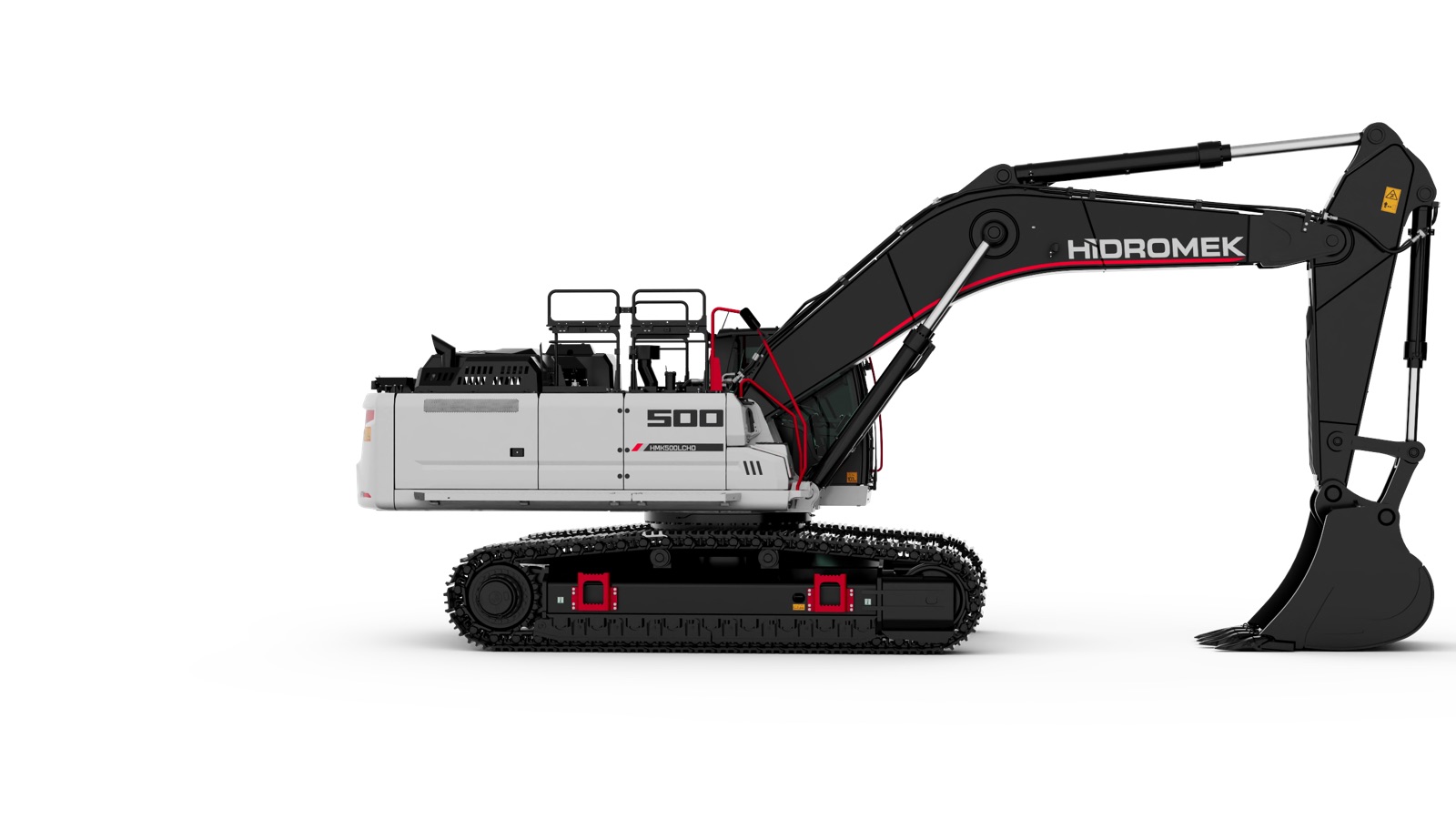

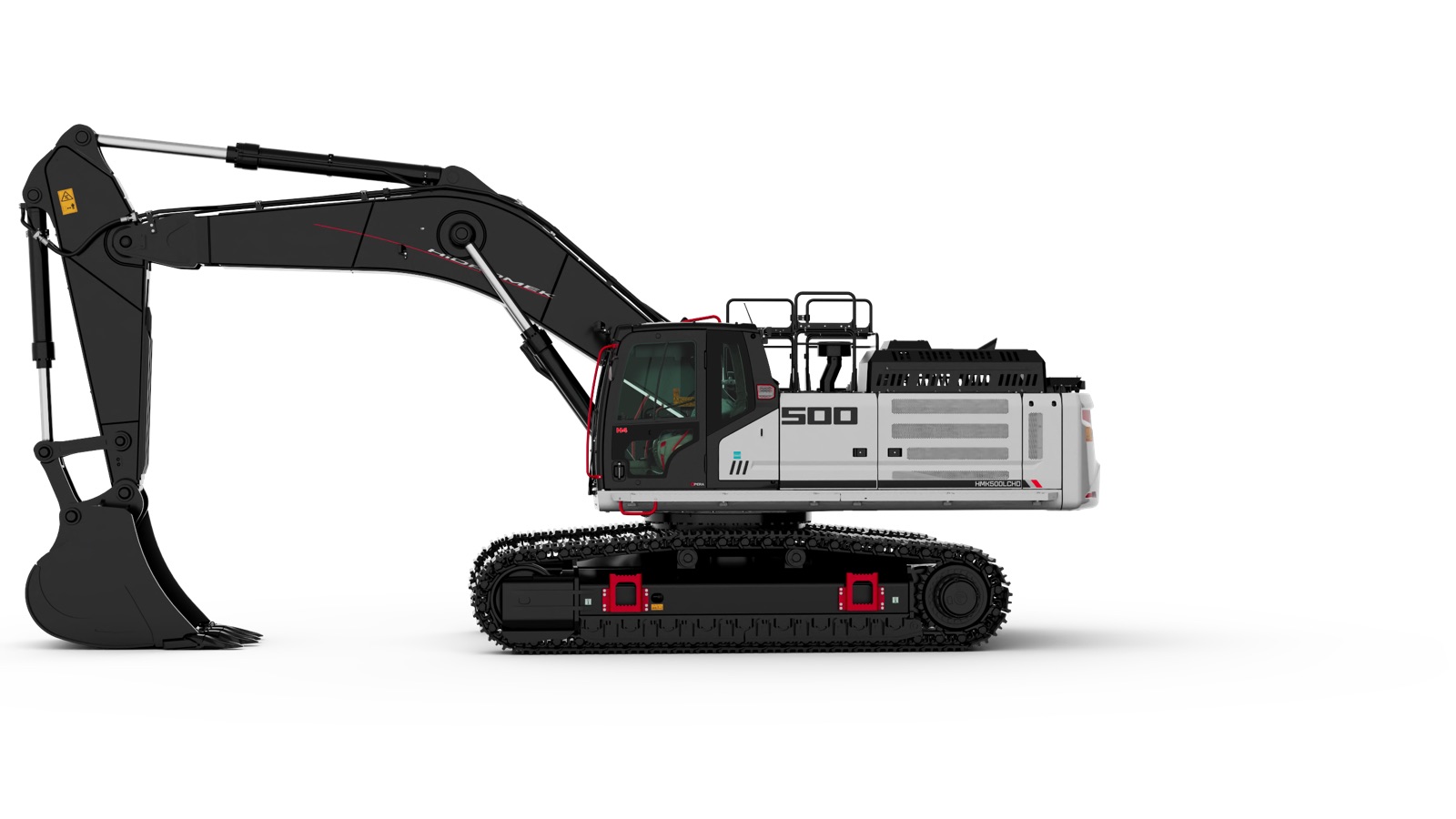

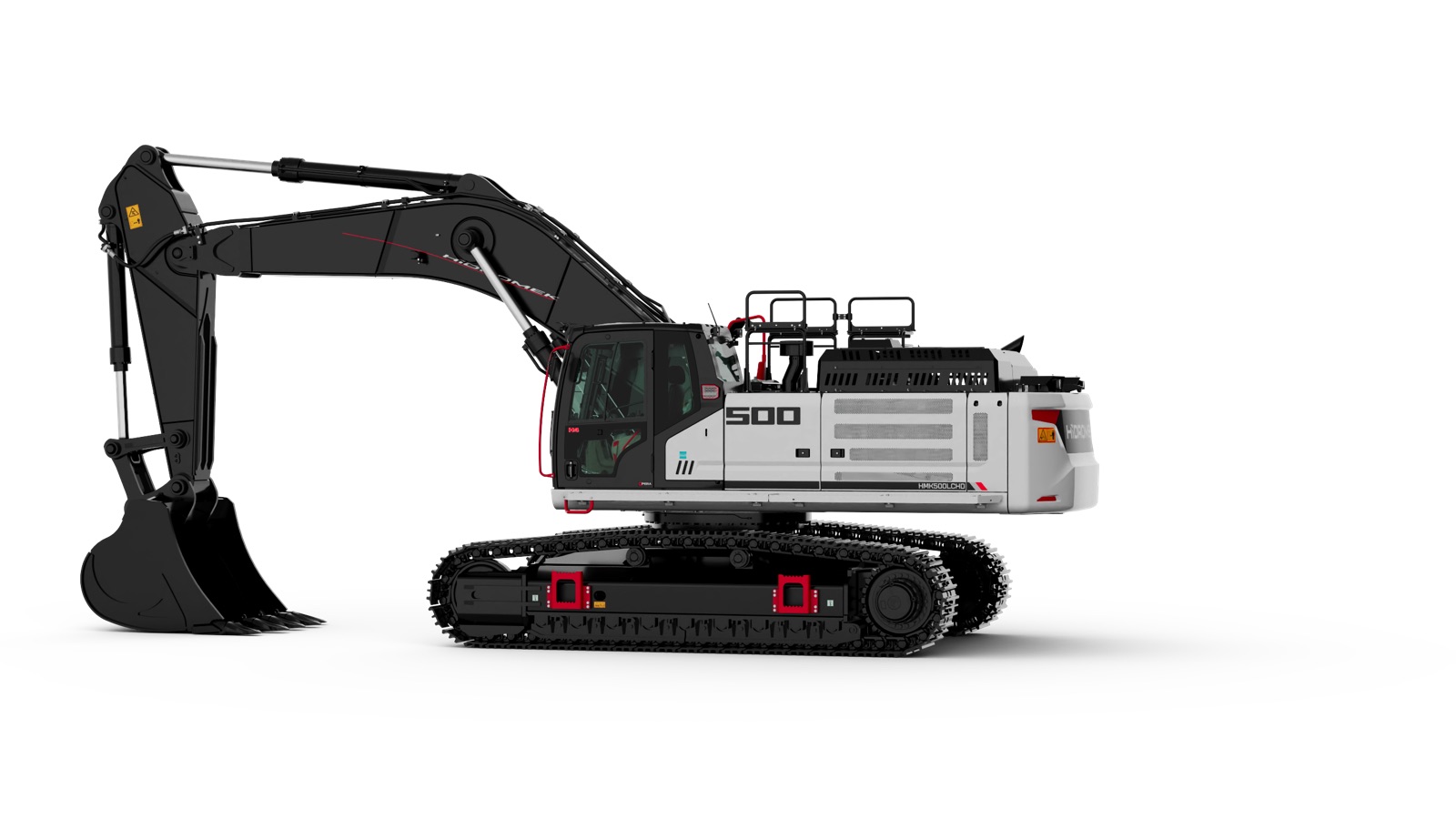

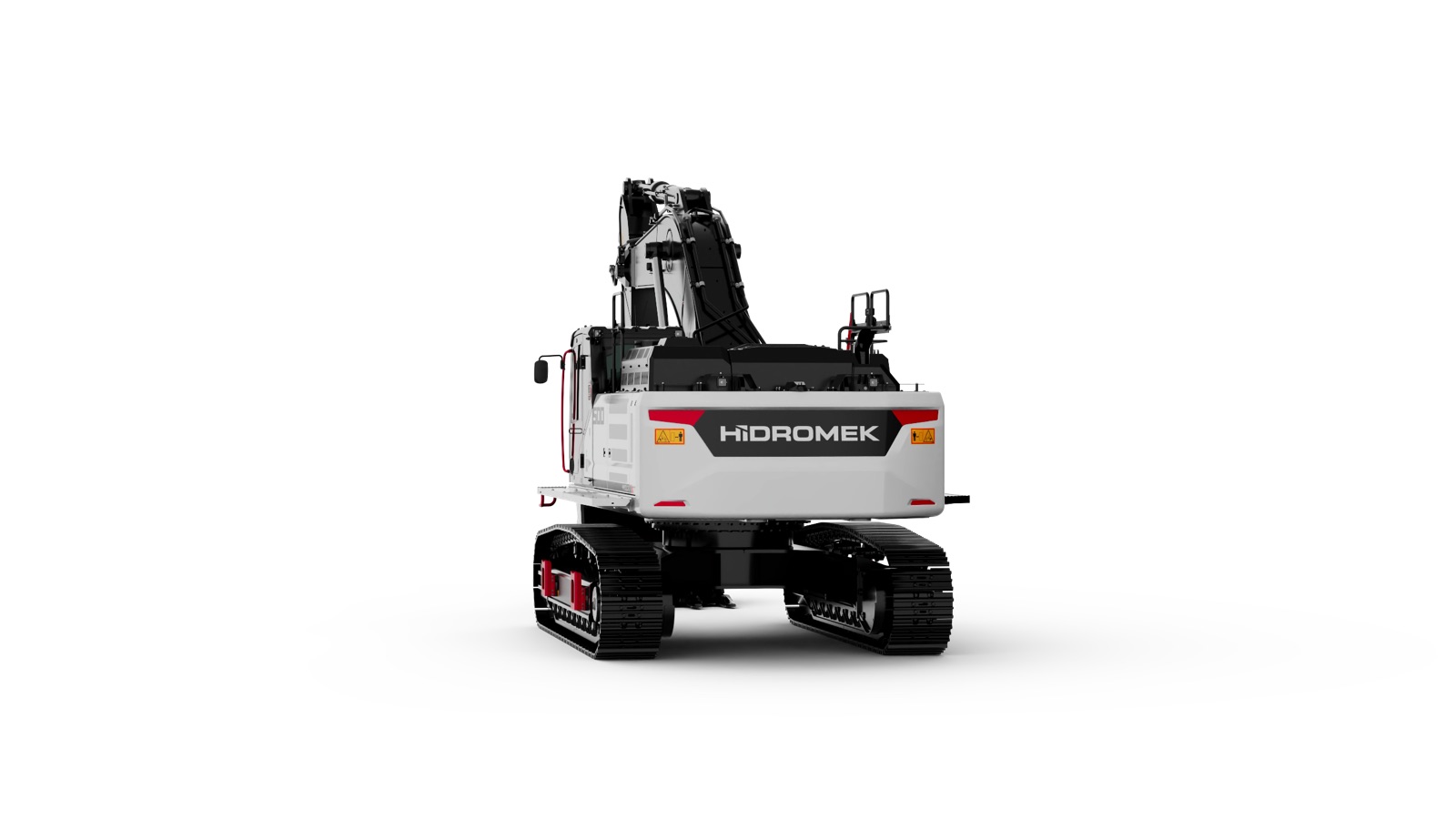

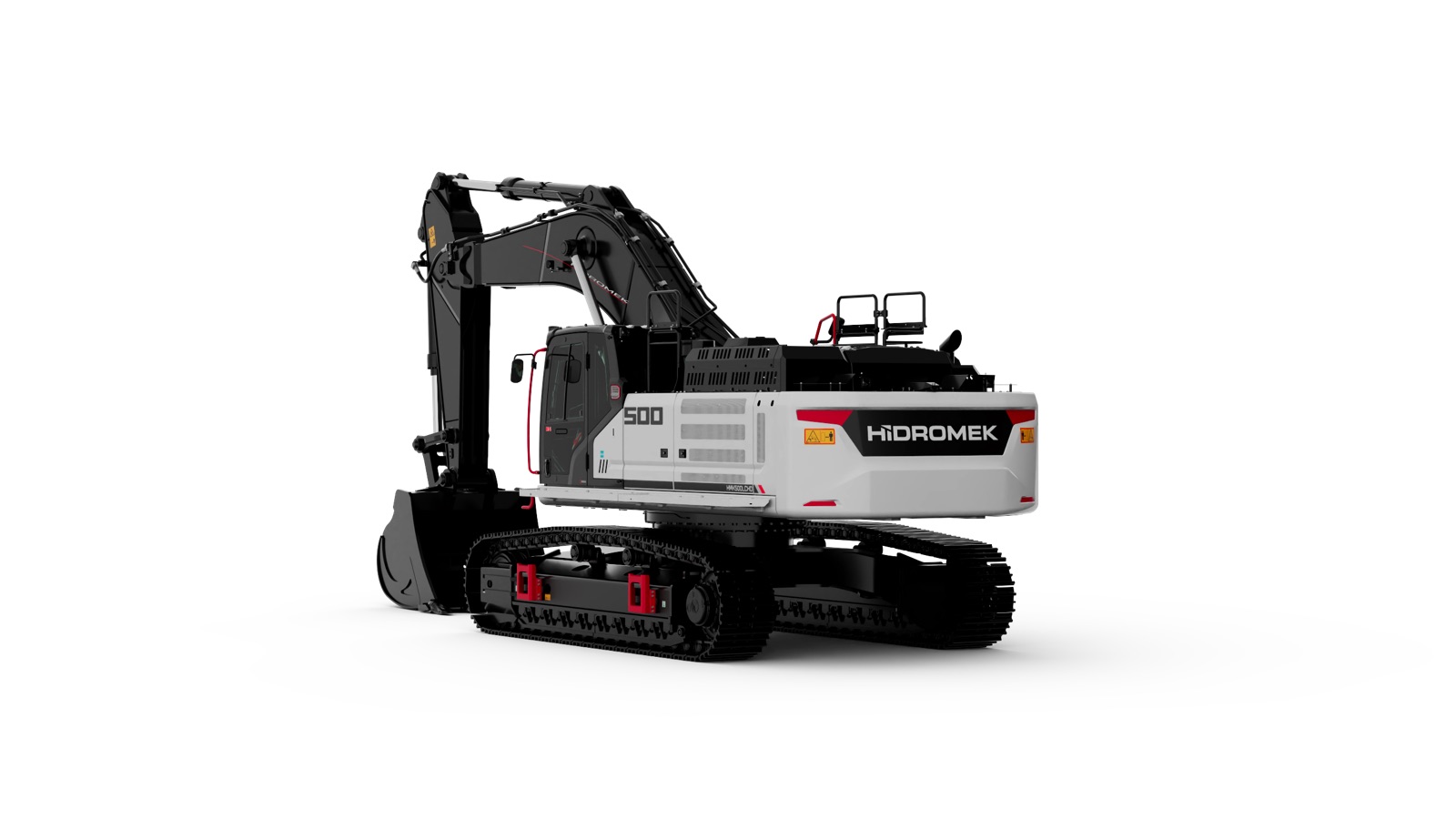

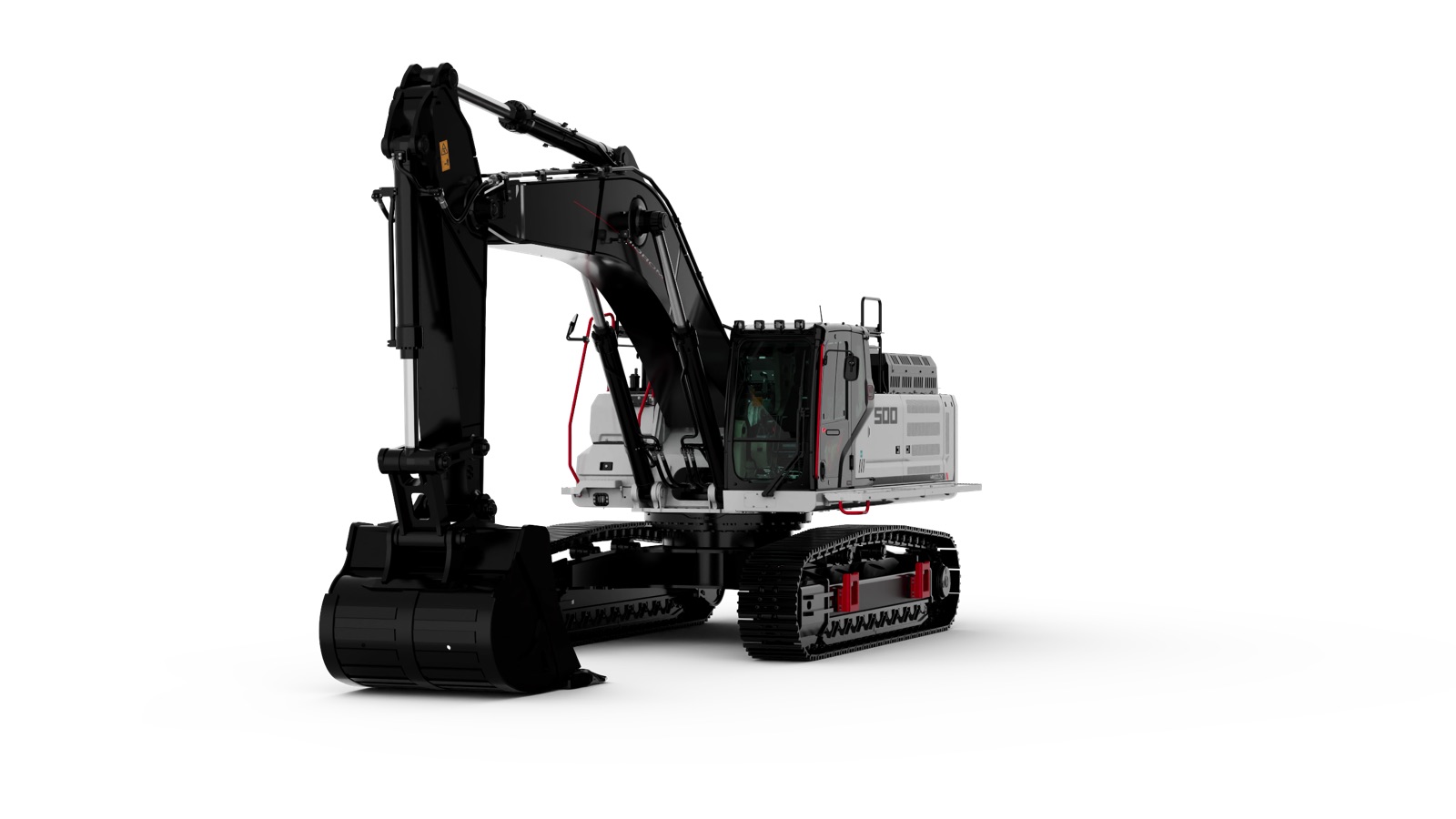

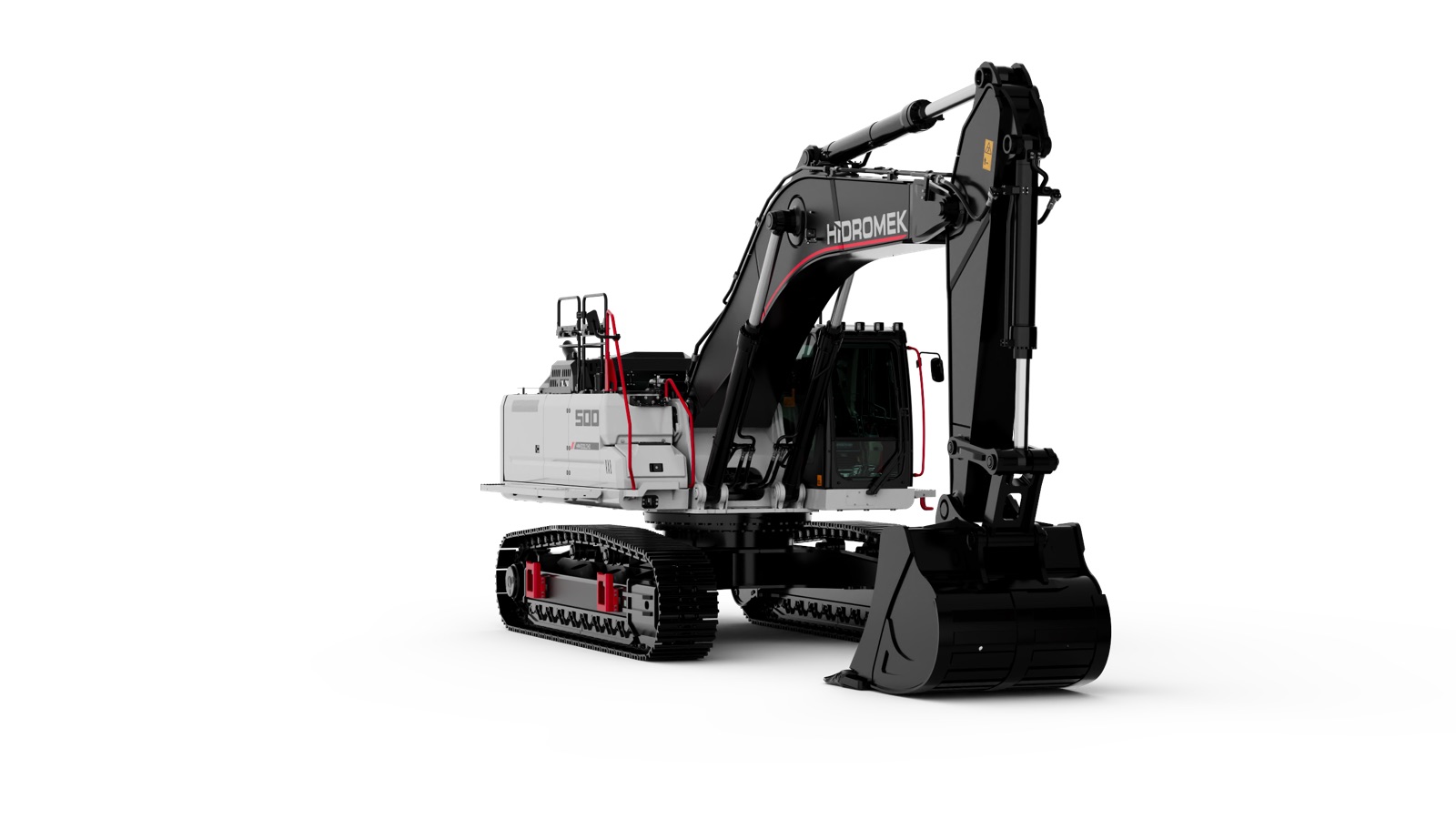

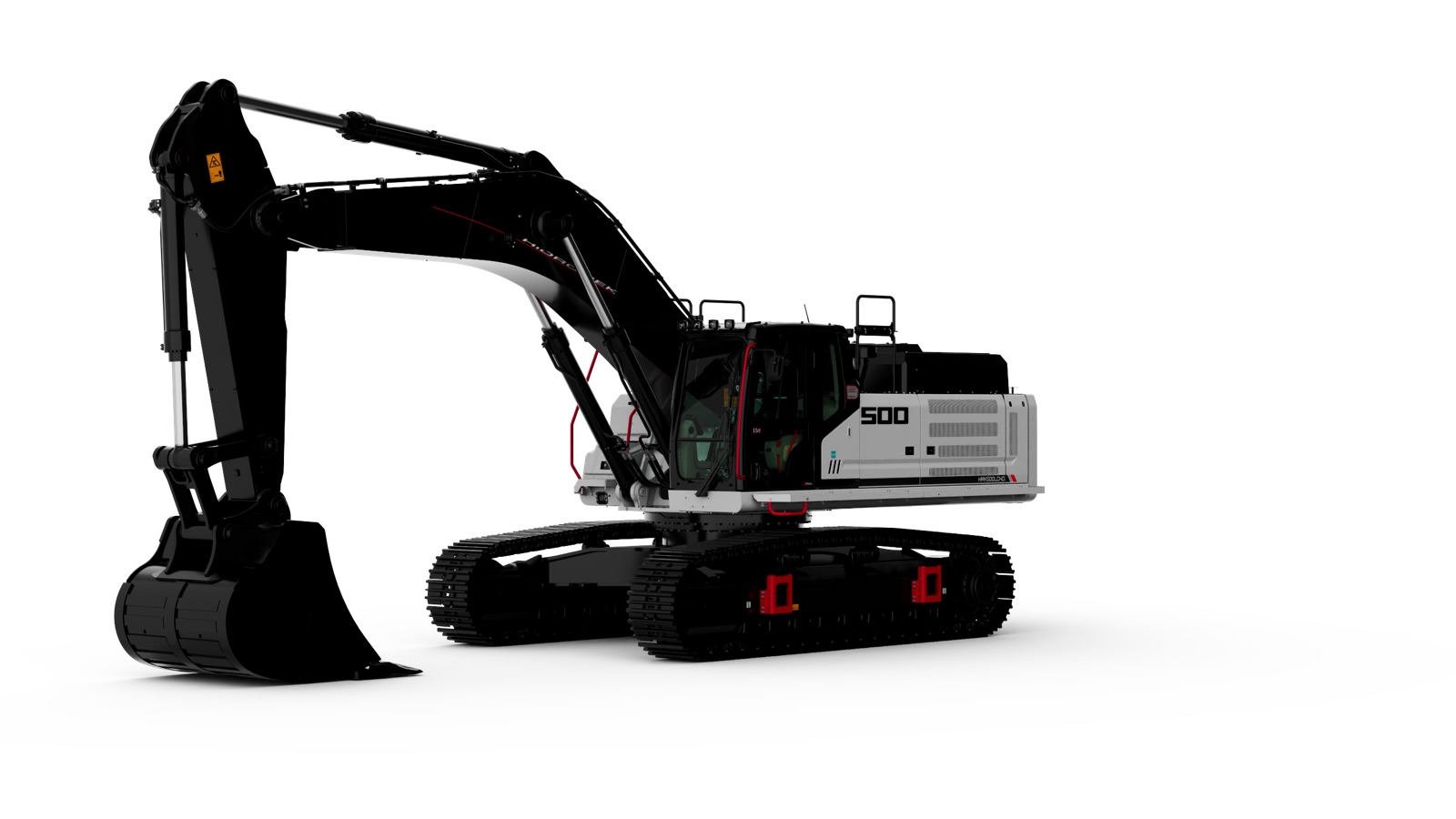

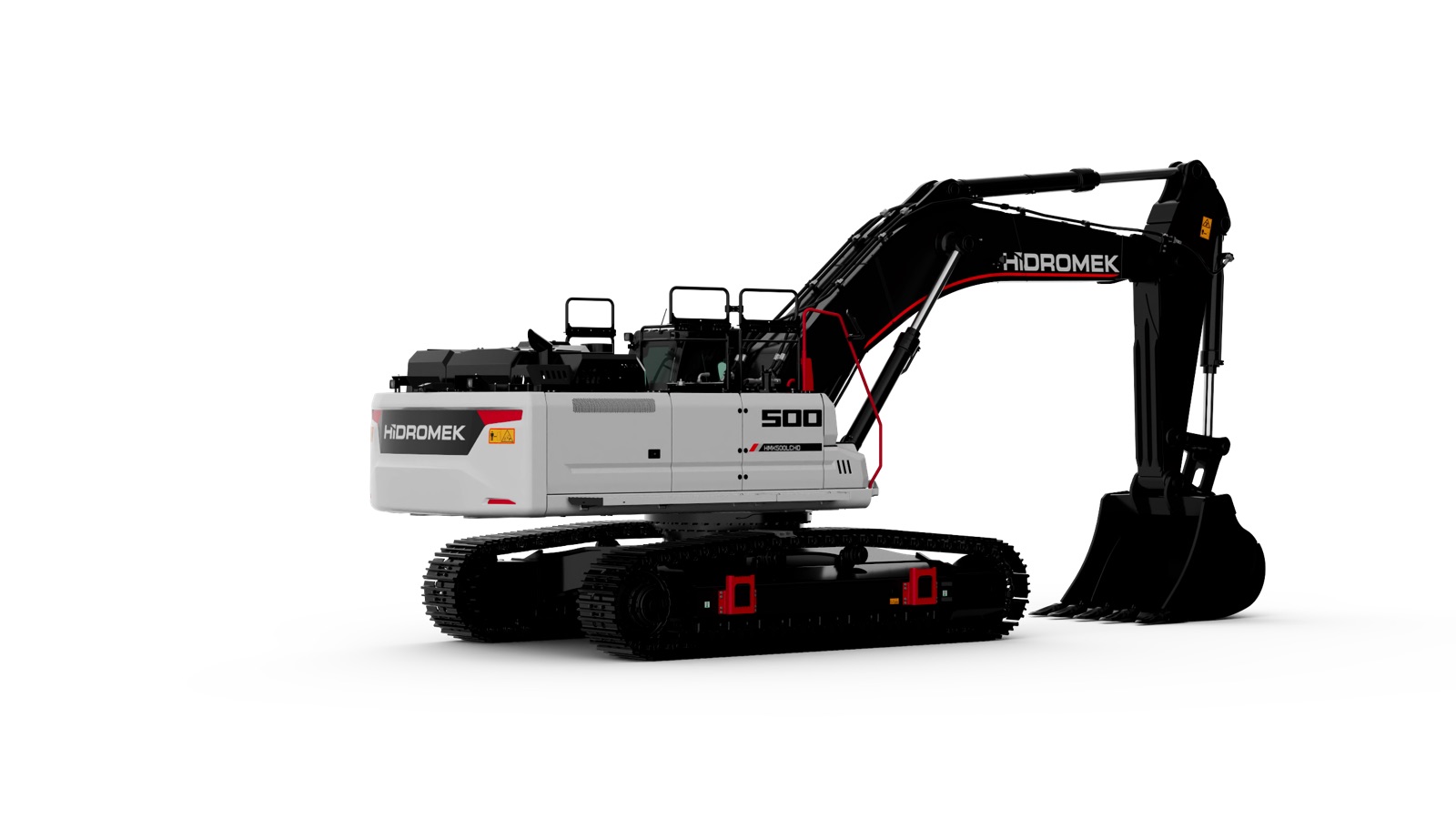

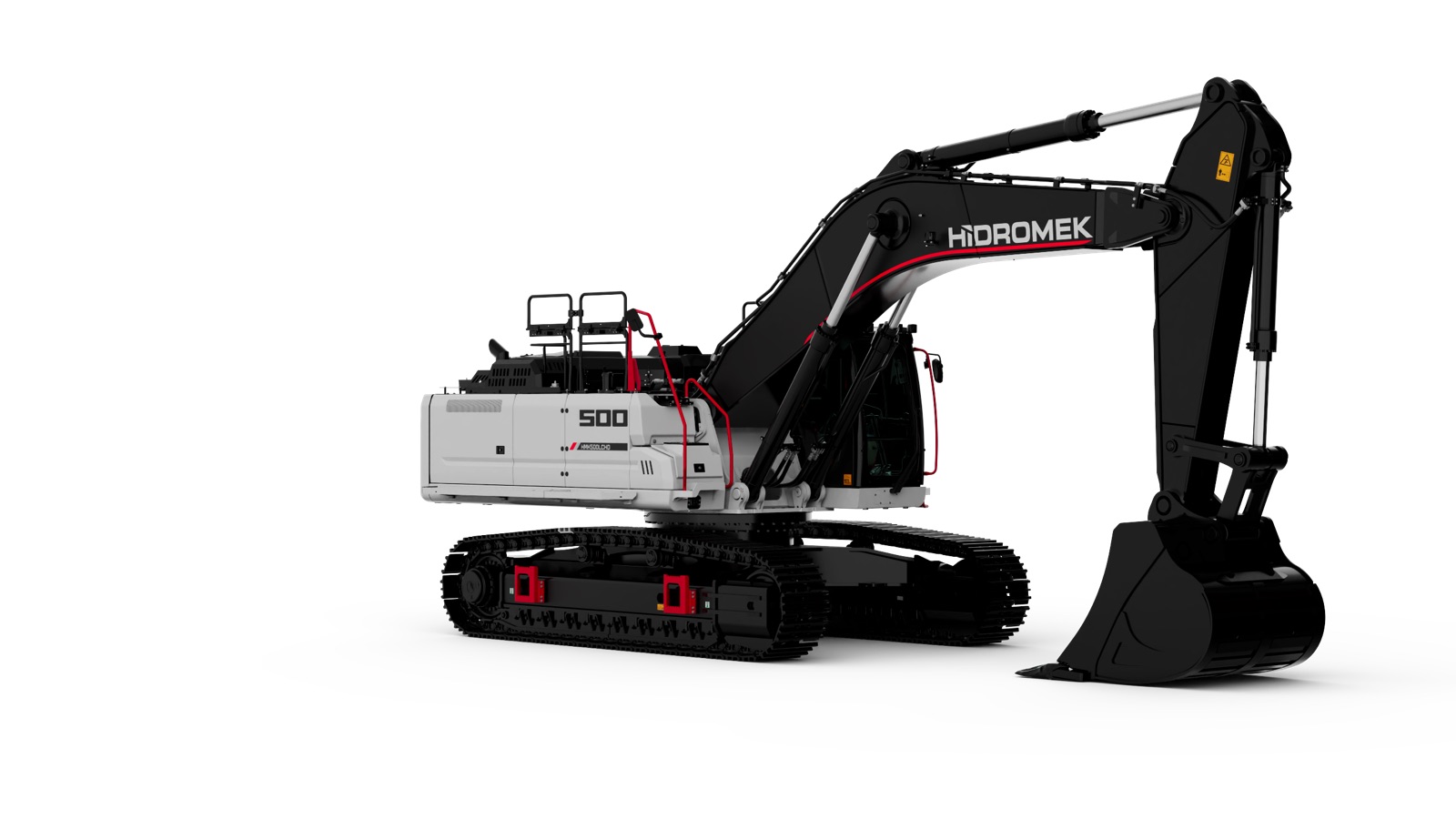

HMK 500 LC HD

Maximum Power

362 HP (270 kW) @2000 rpm

Bucket Digging Force (ISO)

28.500 kgf

Bucket capacity

3,2 m3

  • View Specs & Dimensions Brochure

HİDROMEK HMK 500 LC HD is a heavy-duty excavator designed for maximum strength, durability, and long-lasting performance. It is specially built for tough working environments such as mines, marble quarries, and large construction sites, where high power and reliability are essential.

This model features improved arm, boom, undercarriage, and attachment structures made from more durable materials. It delivers strong performance, high efficiency, and extended service life. The machine is designed to handle the most demanding excavation and material handling operations with ease and stability.

Features

Extra Durable Structure

  • Reinforced arm, boom, and undercarriage
  • Built for mining and quarry operations
  • High-strength materials for long service life

High Performance

  • Powerful engine for heavy-duty work
  • Strong hydraulic system for maximum efficiency
  • High digging and lifting capability

Designed for Tough Environments

  • Suitable for marble quarries and mines
  • Stable operation in large construction sites
  • Built for continuous heavy workload

Specifications

Engine

  • Power: 362 HP (270 kW) @ 2000 rpm
  • Torque: 1650 Nm @ 1300 rpm (Gross)
  • Model: ISUZU 6UZ1X
  • 6-cylinder turbocharged diesel engine
  • Displacement: 9839 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 366 L/min
  • Pilot Pump: 28.5 L/min
  • Pressure (Attachment): 330 kgf/cm²
  • Power Boost: 355 kgf/cm²
  • Travel: 330 kgf/cm²
  • Swing: 330 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 8.3 rpm

Travel

  • Maximum Drawbar Pull: 35,250 kgf
  • High Speed: 4.70 km/h
  • Low Speed: 2.85 km/h

Digging Performance

  • Bucket Digging Force (ISO): 28,500 kgf
  • Bucket Capacity: 3.2 m³
  • Arm Breakout Force (ISO): 27,600 kgf

Working Dimensions

  • Boom: 6,300 mm
  • Arm: 2,600 mm
  • Maximum Digging Depth: 6,480 mm
  • Maximum Reach at Ground Level: 10,490 mm

Operating Weight

  • 52,000 kg
  • View Specs & Dimensions Brochure
