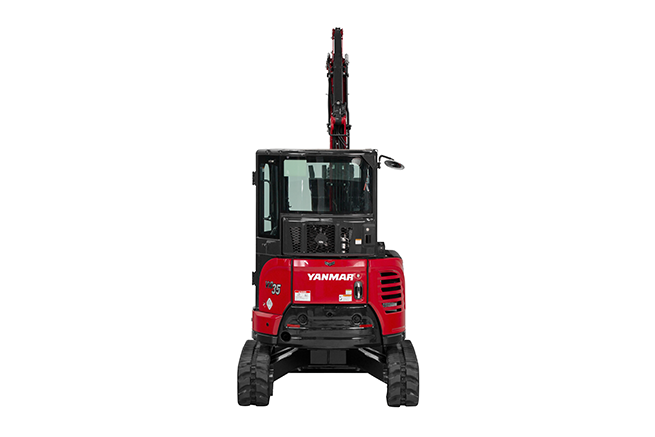

ProductPage_ViO35-6A_Hero-Component_Slider-Image-2

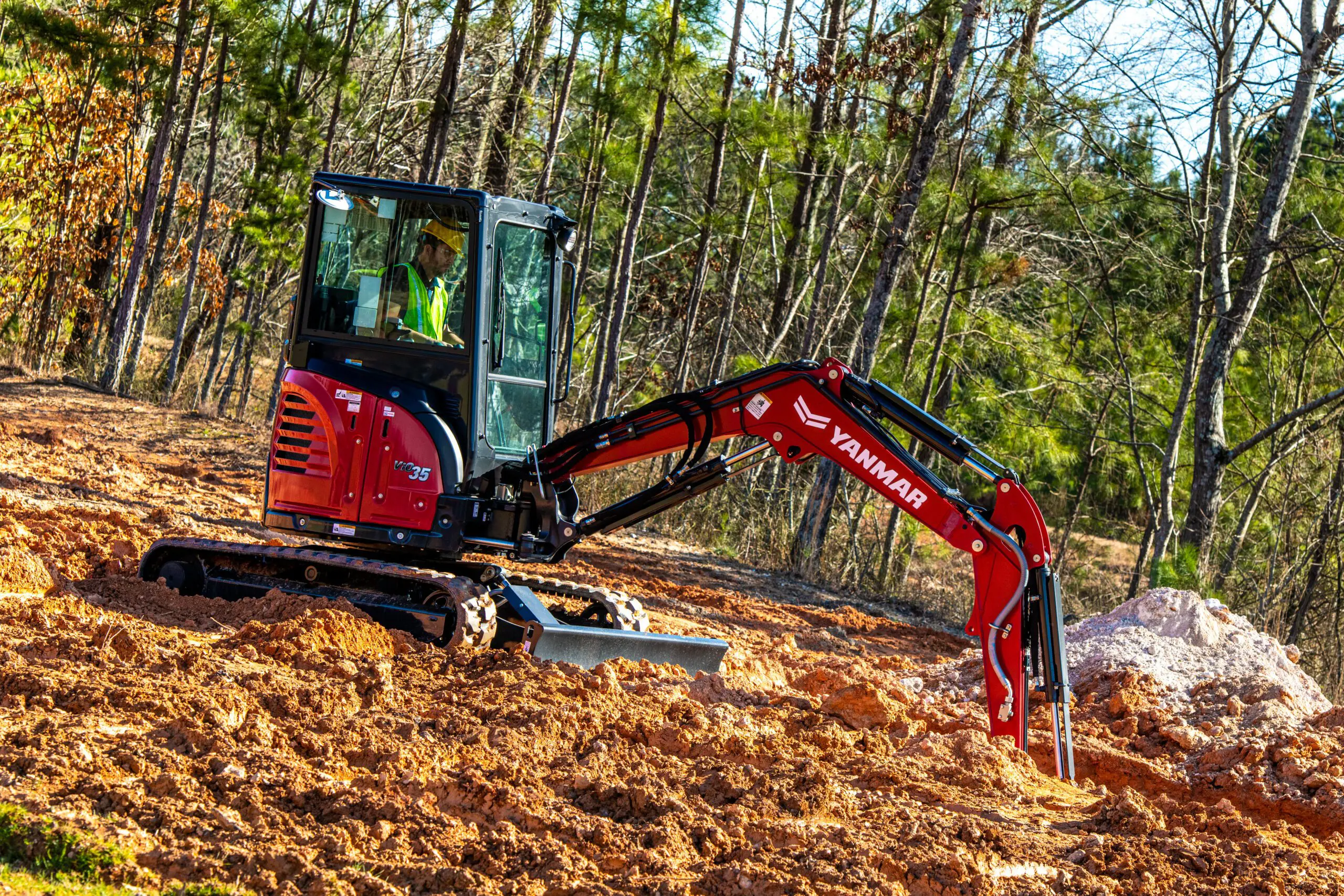

ViO35_red-4-scaled

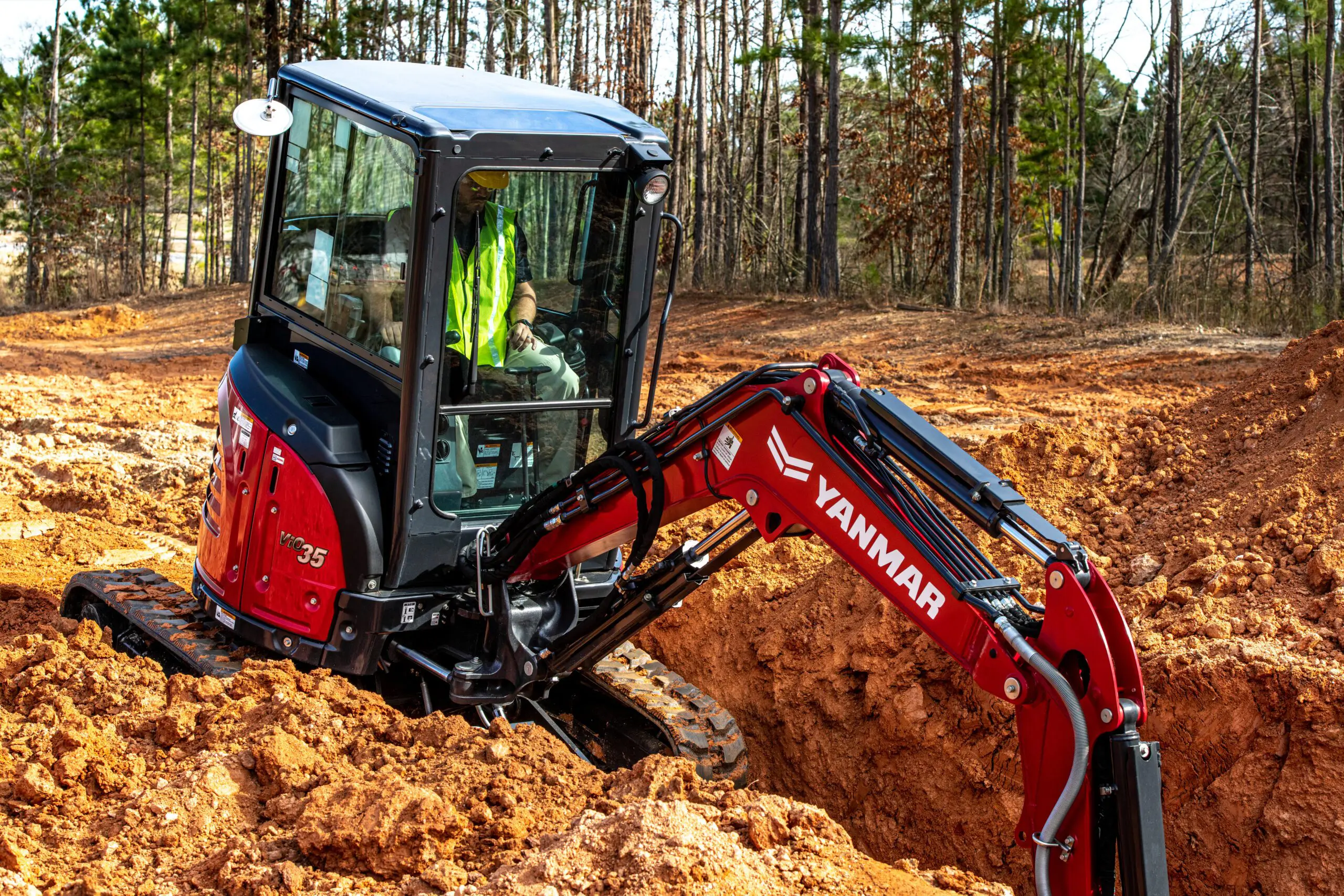

ViO35-6A

Weight

8,214 lbs

HorsePower

24.4 HP

Max Dig Depth

11’3″

Do-it-all performance

Step up to our 3.5-ton class mini excavator and you’ll find the perfect balance of power, capability, comfort, and efficiency to work all-day and increase your bottom line. With a true zero tail swing design ready to work in tight environments, you can add even more capability with available auto-shifting 2-speed travel to quickly move between work areas; blade float functionality for back blading and leveling; and 4-way blade control. And with Tier 4 Final power under the cowl, you’ll not only appreciate our legendary and incredibly quiet work-tough performance, but greater operational efficiency as well. With standard ECO mode and Auto Deceleration, you’ll enjoy up to 20% less fuel consumption than previous models.

Service at your fingertips

The intelligent design of a Yanmar mini excavator is not only built to work harder, but to also make it easier and quicker to perform routine service. Virtually every major component including the engine, hydraulic system, starter, alternator, and battery are a simple access panel away.

Features

  1. Powerfully efficient

    With Tier 4 Final certified efficiency, 24.4-horsepower, auto deceleration and ECO mode, our legendary Yanmar diesel engines provide performance when you need it, and fuel savings when you don’t.

  2. True zero tail swing

    Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.

  3. SmartAssist technology

    Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.

  4. Standard eco mode

    Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.

  5. Quick change attachments

    Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.

  6. Convenient hydraulics

    Choose your action and the perfect flow with the PTO Selector Valve and standard proportional control. Select single or double action on the auxiliary circuit.

Specifications

Engine
Model 3TNV88F-ESBV
Rated Output 24.4 HP / 2,200 rpm
Type Water-cooled 4-cycle diesel
Operating Weight
Rubber Track (Canopy) 7,905 lbs
Steel Track (Canopy) 8,124 lbs
Rubber Track (Cabin) 8,214 lbs
Steel Track (Cabin) 8,434 lbs
Performance
Max Digging Force, Bucket / Arm 5,643 / 4,266 lbs
Traveling Speed, High / Low 2.7 / 1.6 MPH
Swing Speed 9.5 RPM
Boom Swing Angle, (L / R) 43 / 65
Ground Contact Pressure (Rubber Track)
Canopy 4.80 PSI
Cabin 4.97 PSI
Hydraulic System
Pump Capacity 9.8 GPM x 2 {Variable displacement pump}
6.9 GPM x 1, 2.9 GPM x 1 {Gear pump}
Main Relief Set Pressure 3,205 x 2, 3,133 x 1 PSI
Blade Dimensions
Width 5′ 8″
Stroke, Raise / Lower from G.L. 1′ 5″ / 1′ 3″
Fuel Tank
Capacity 10.8 Gals
