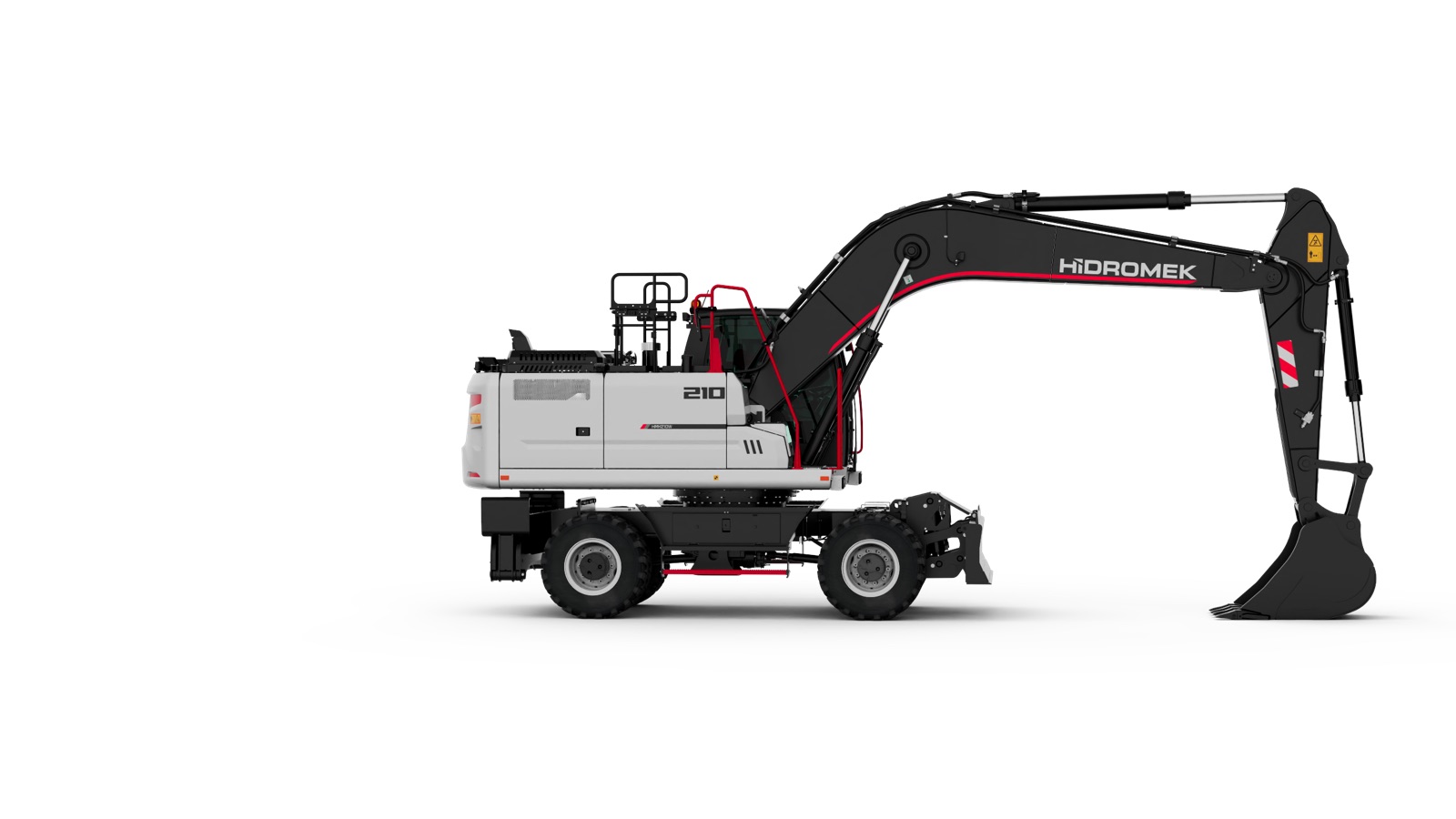

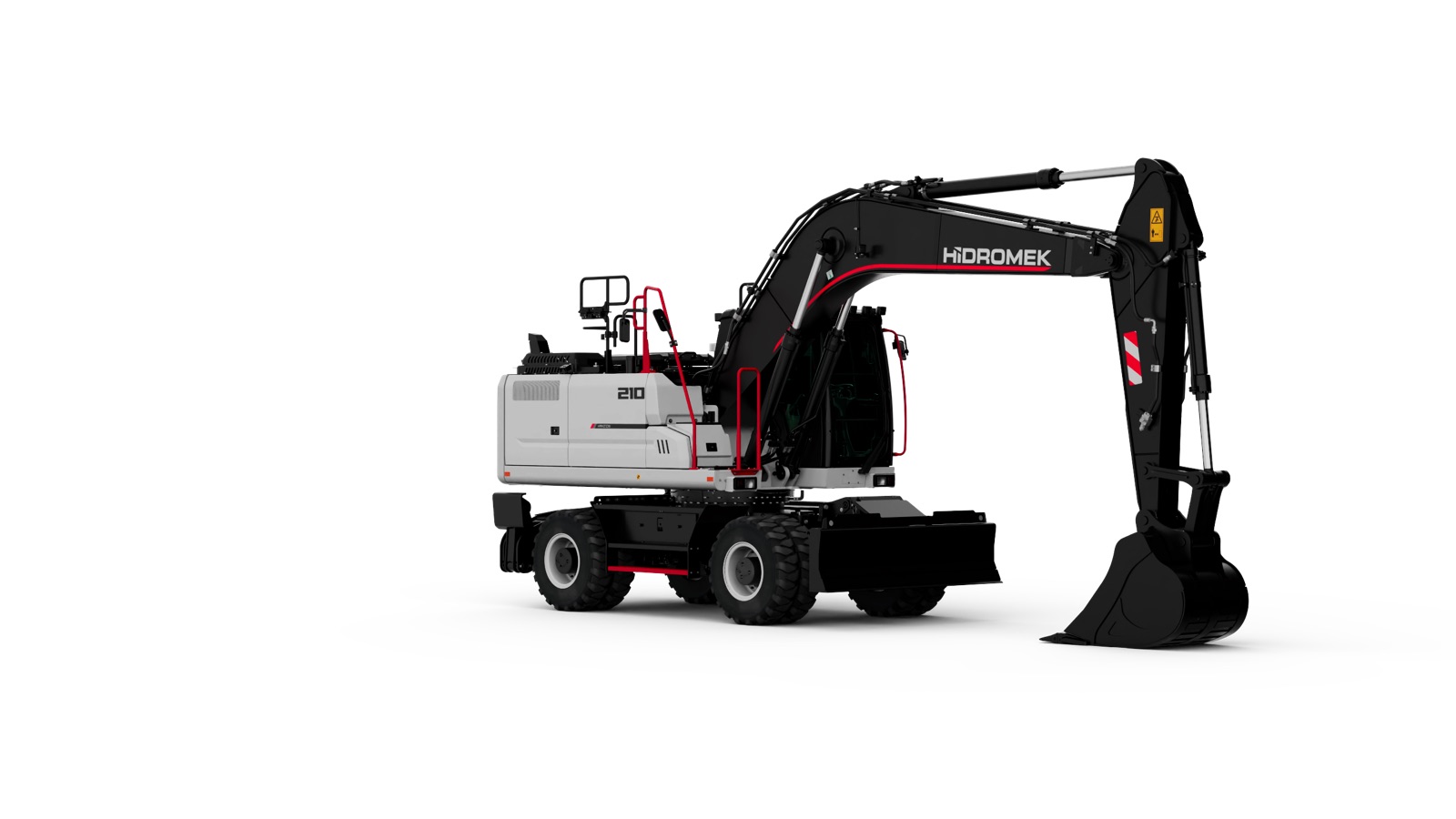

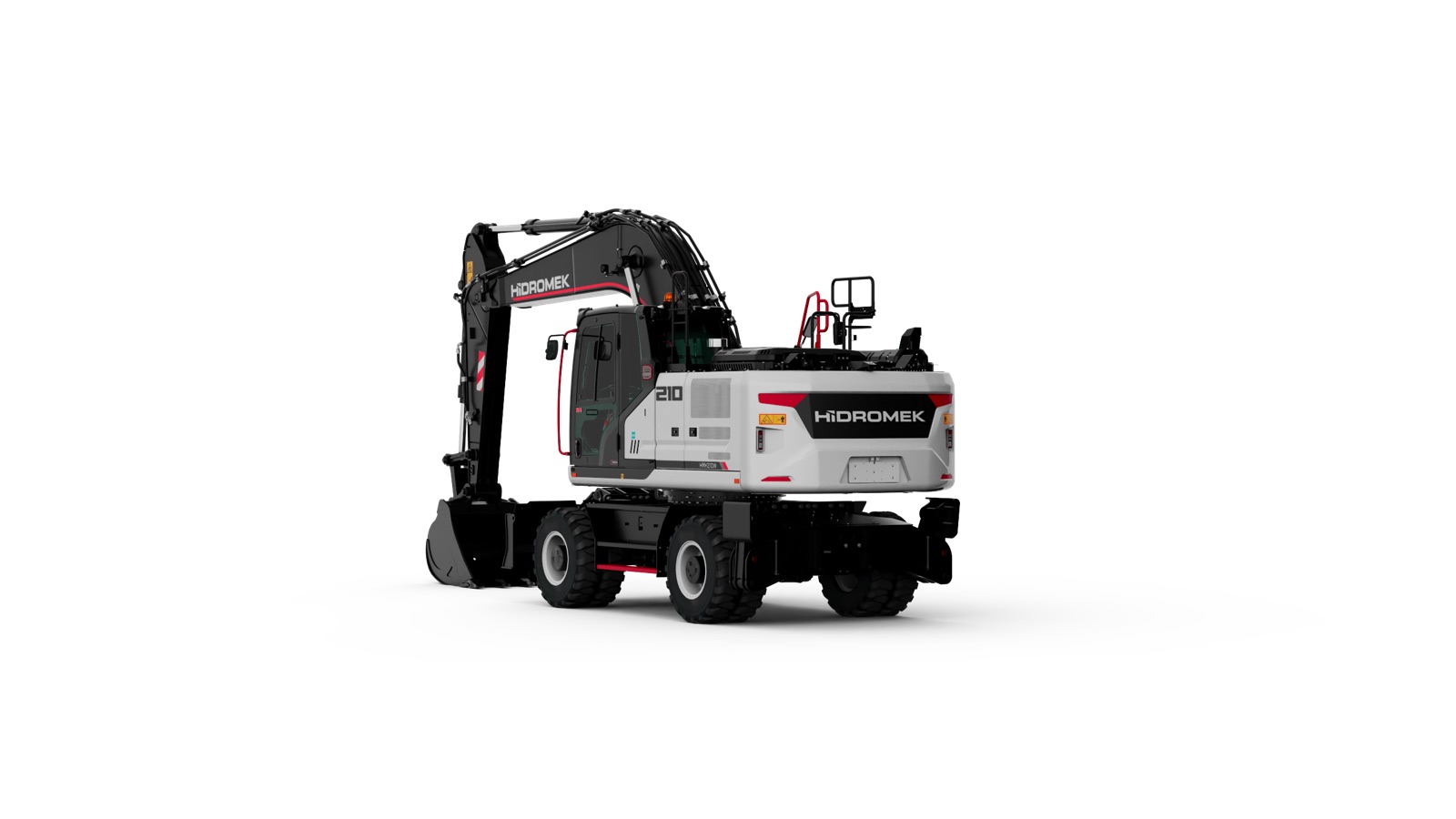

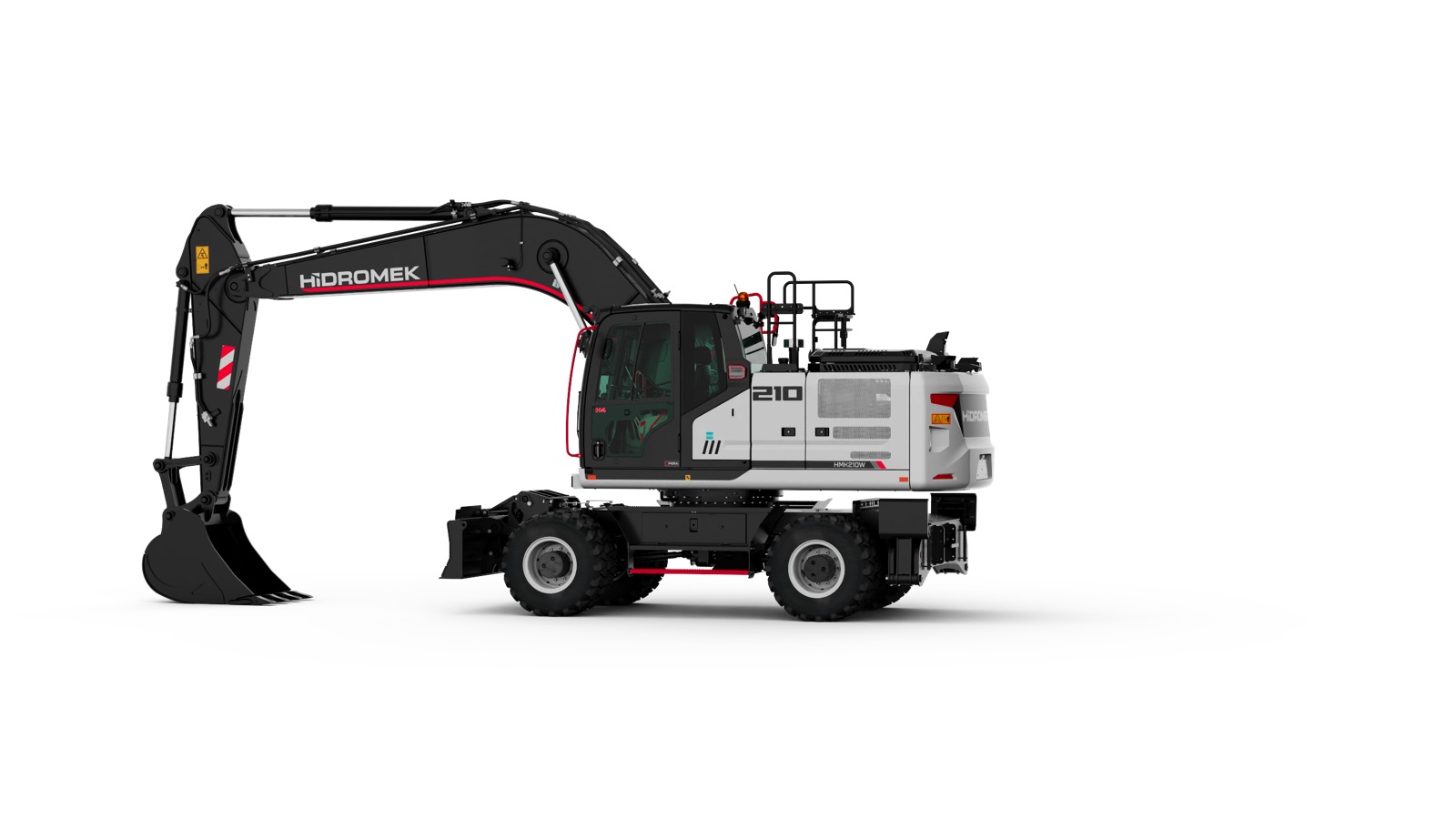

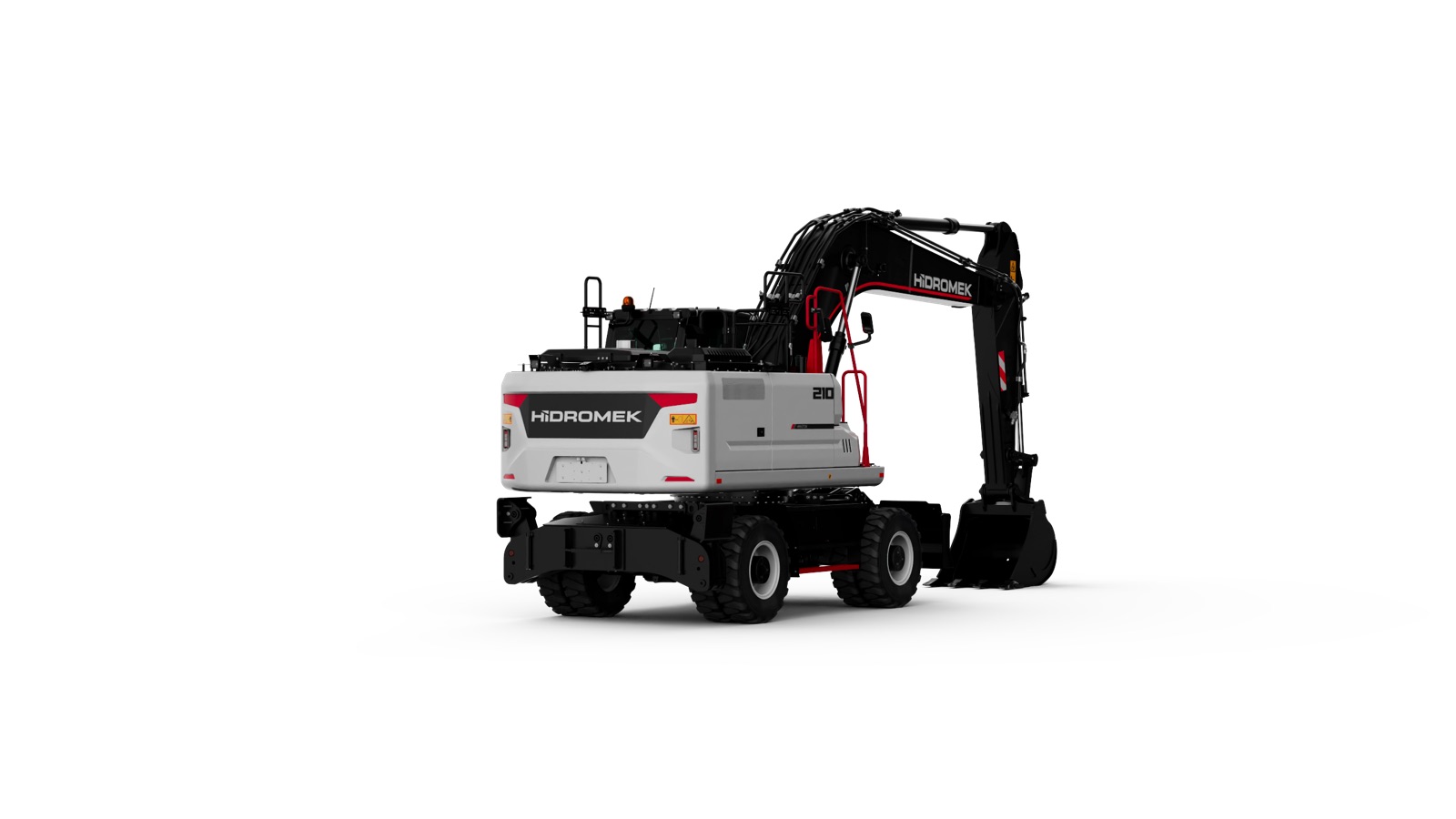

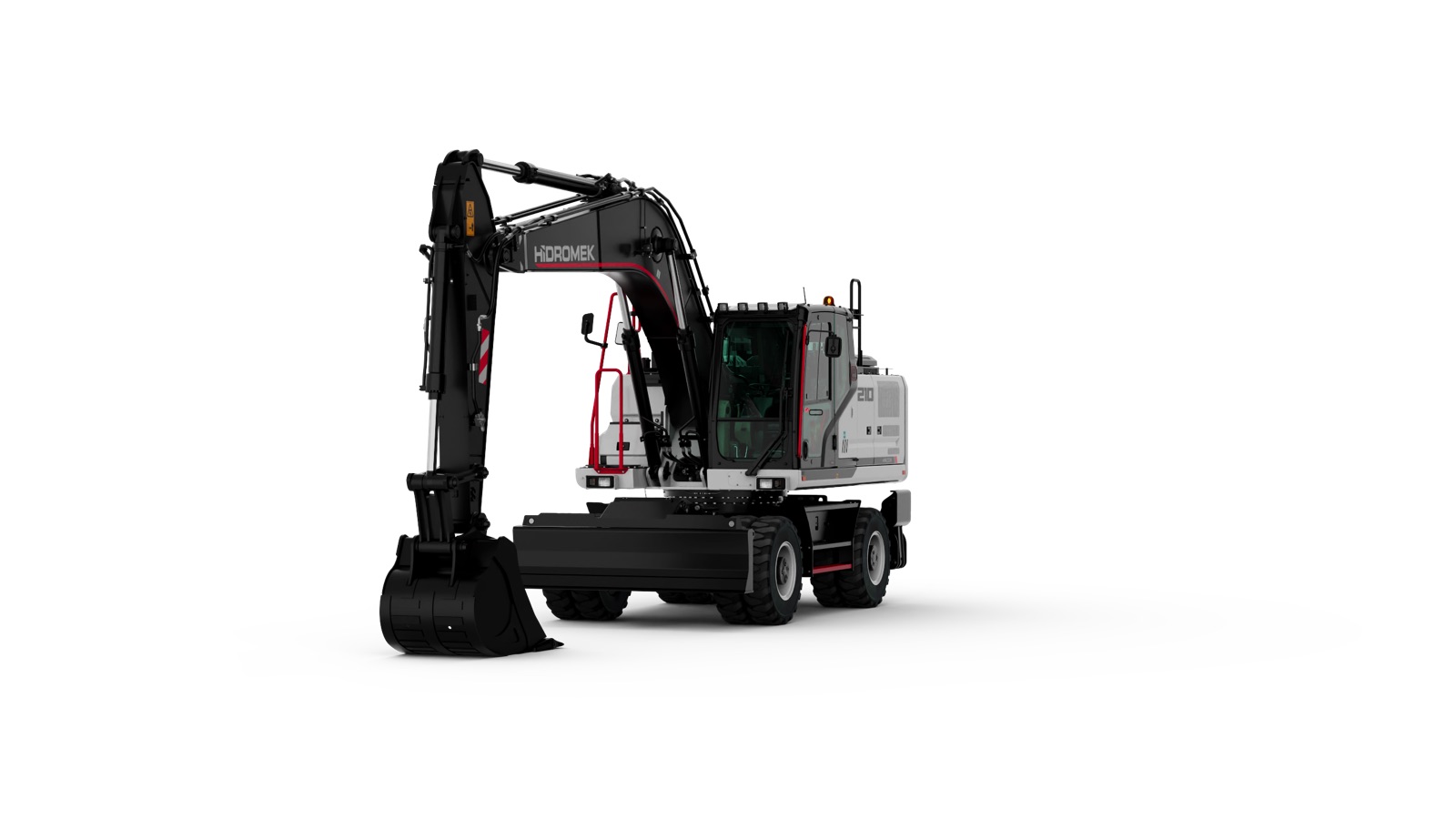

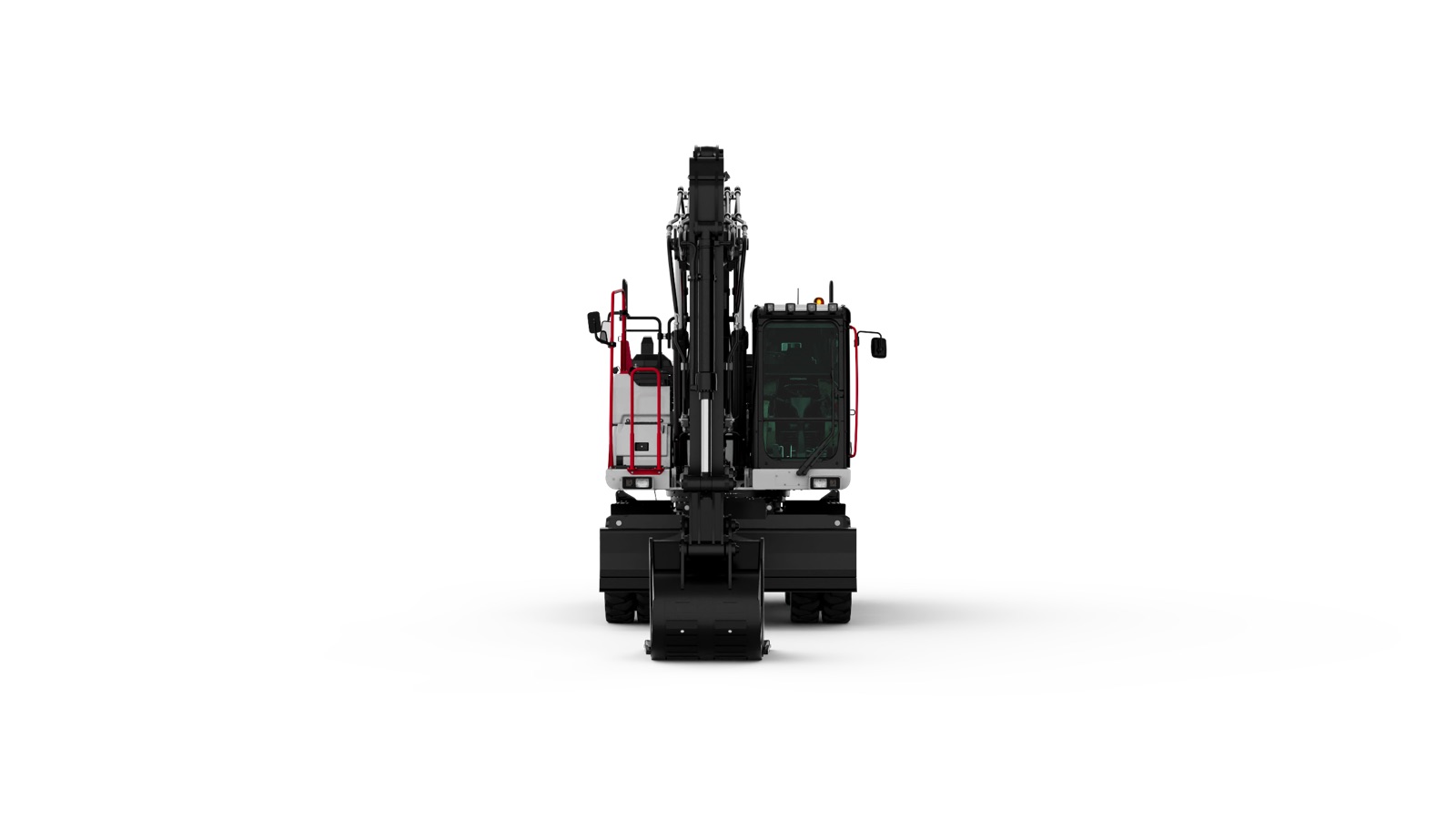

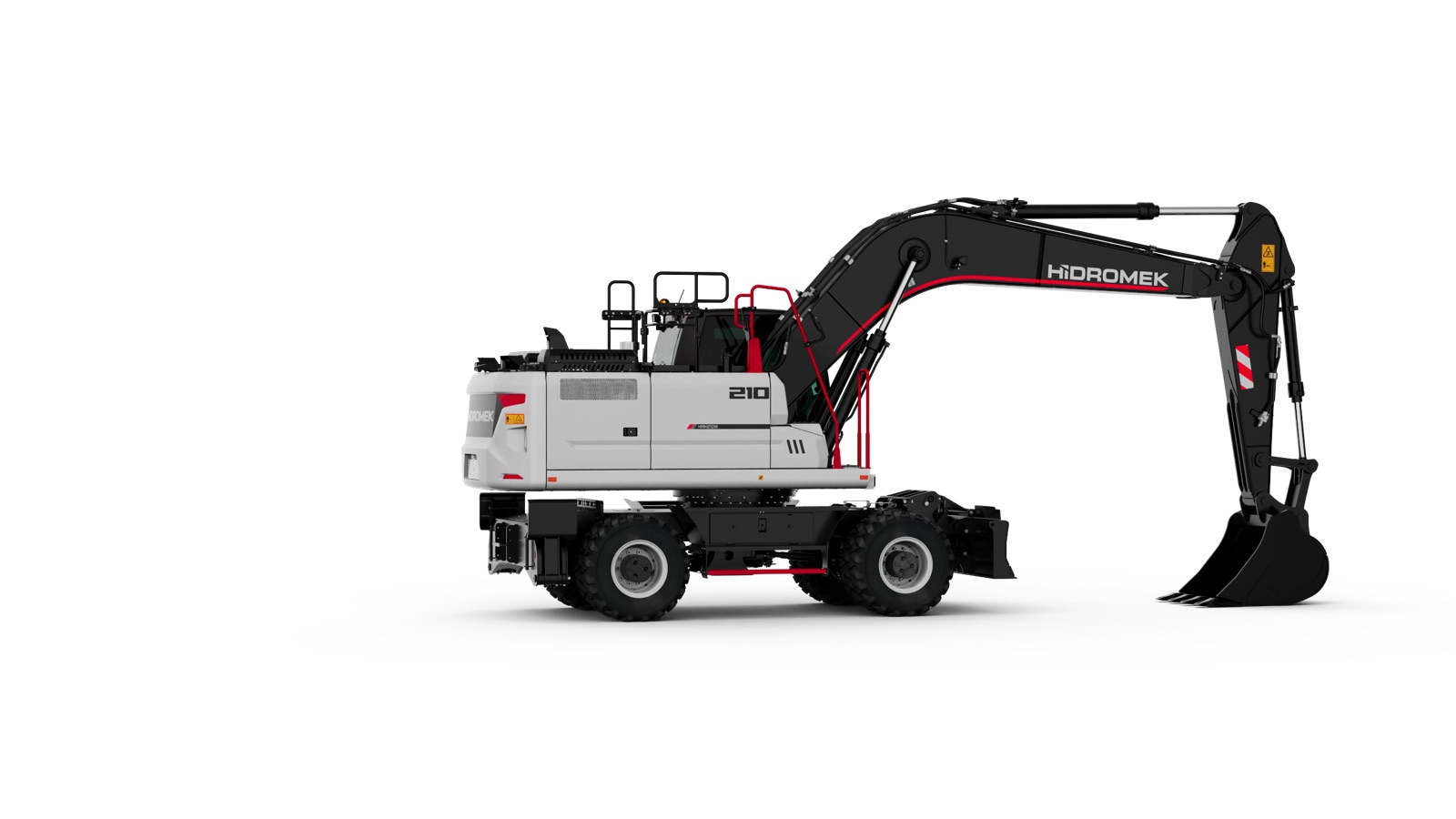

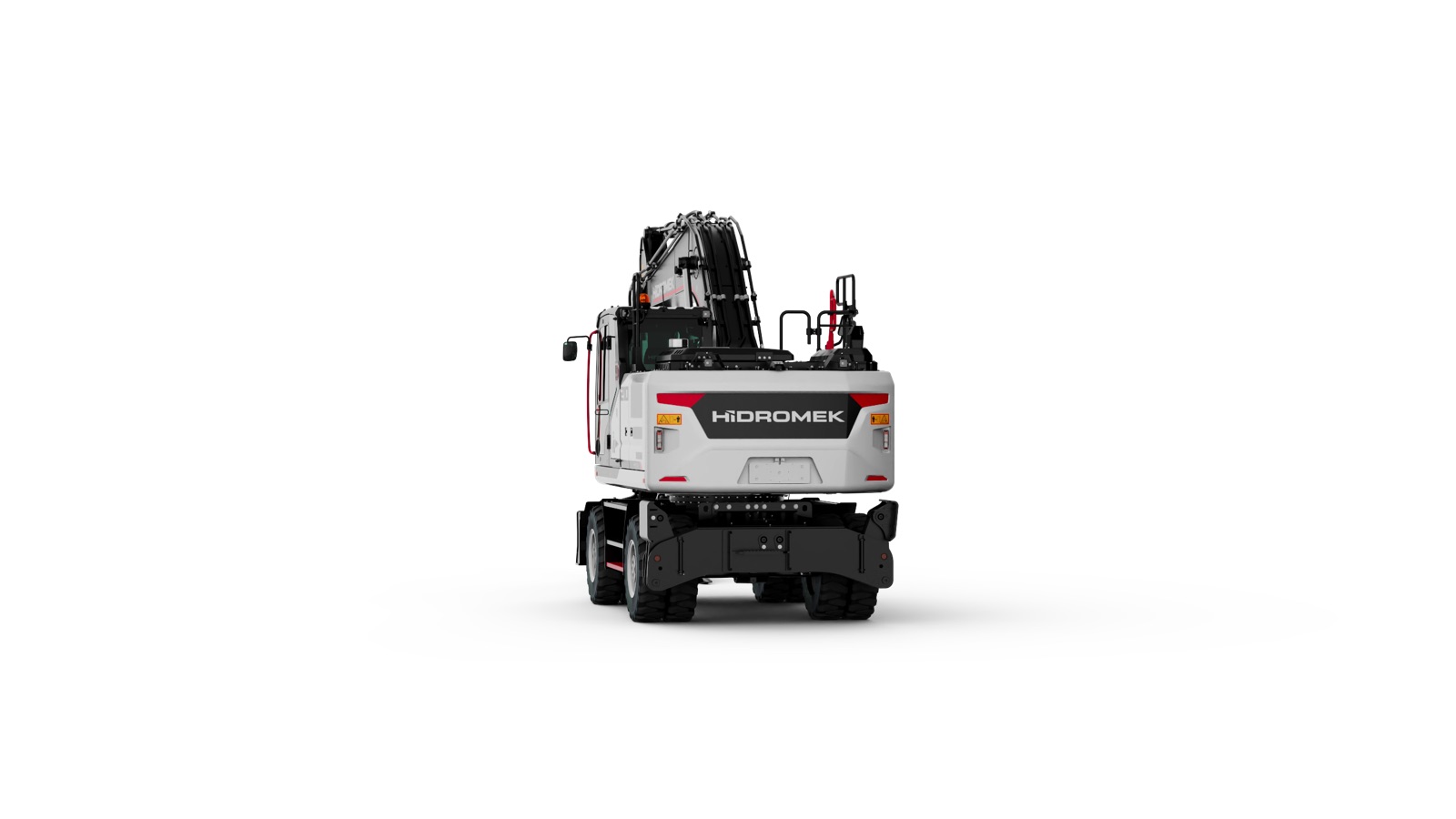

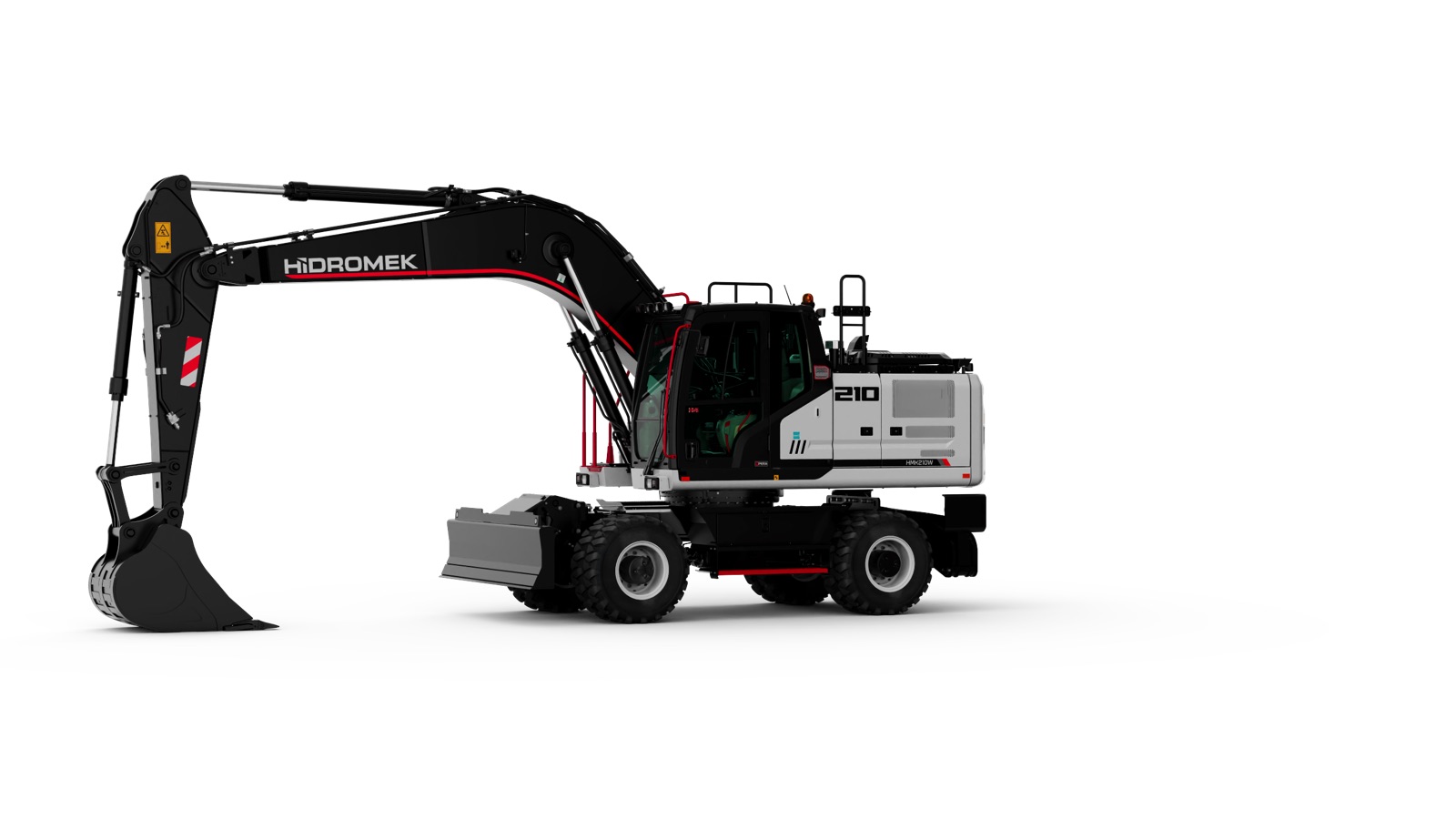

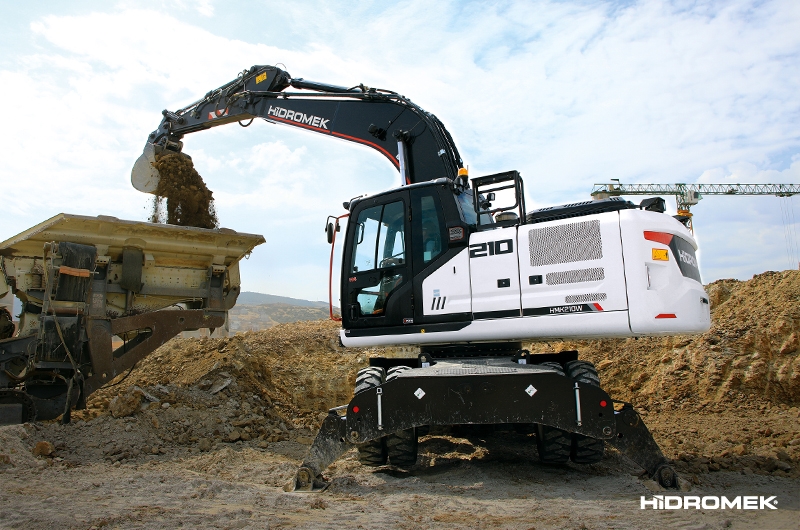

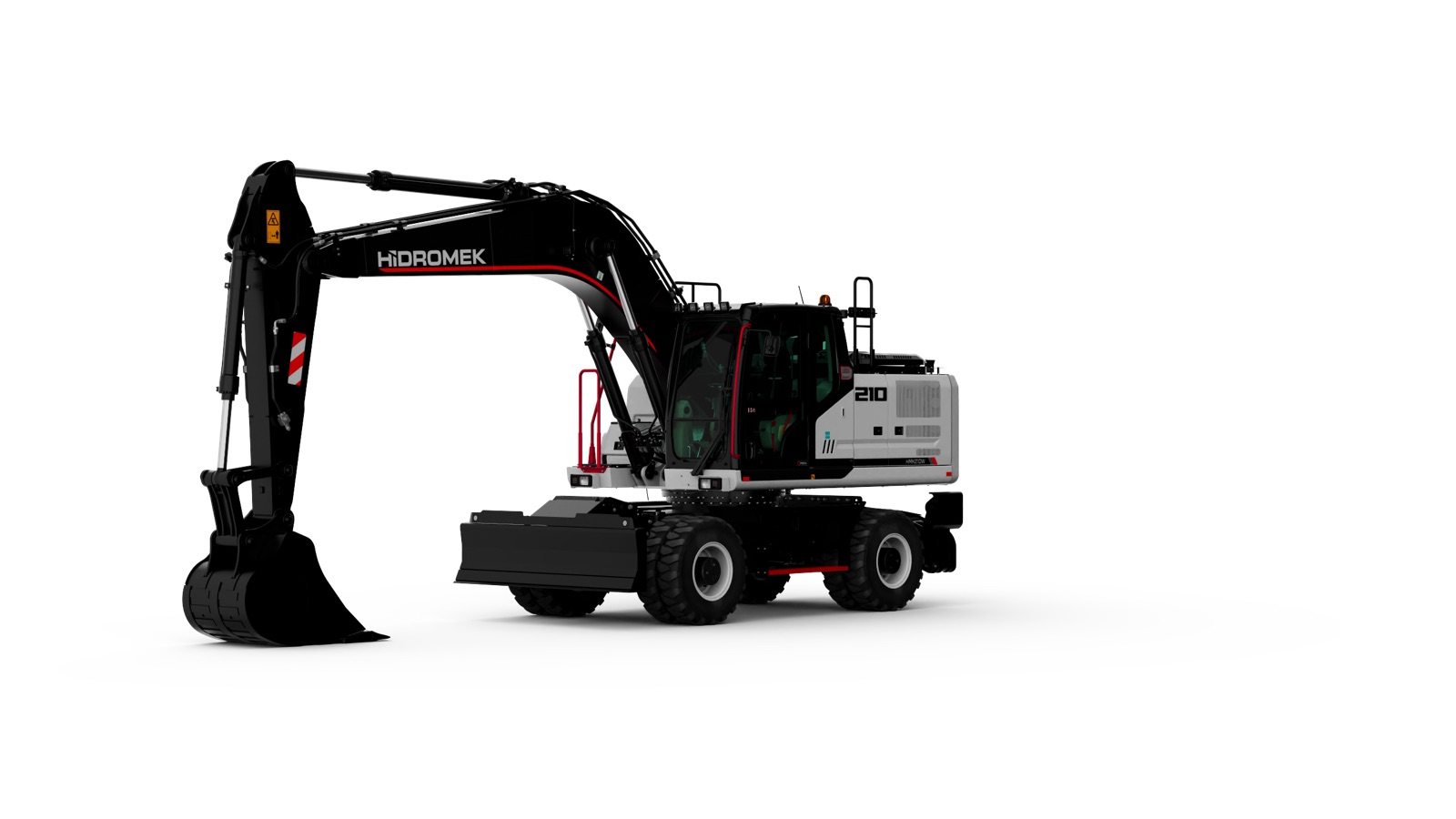

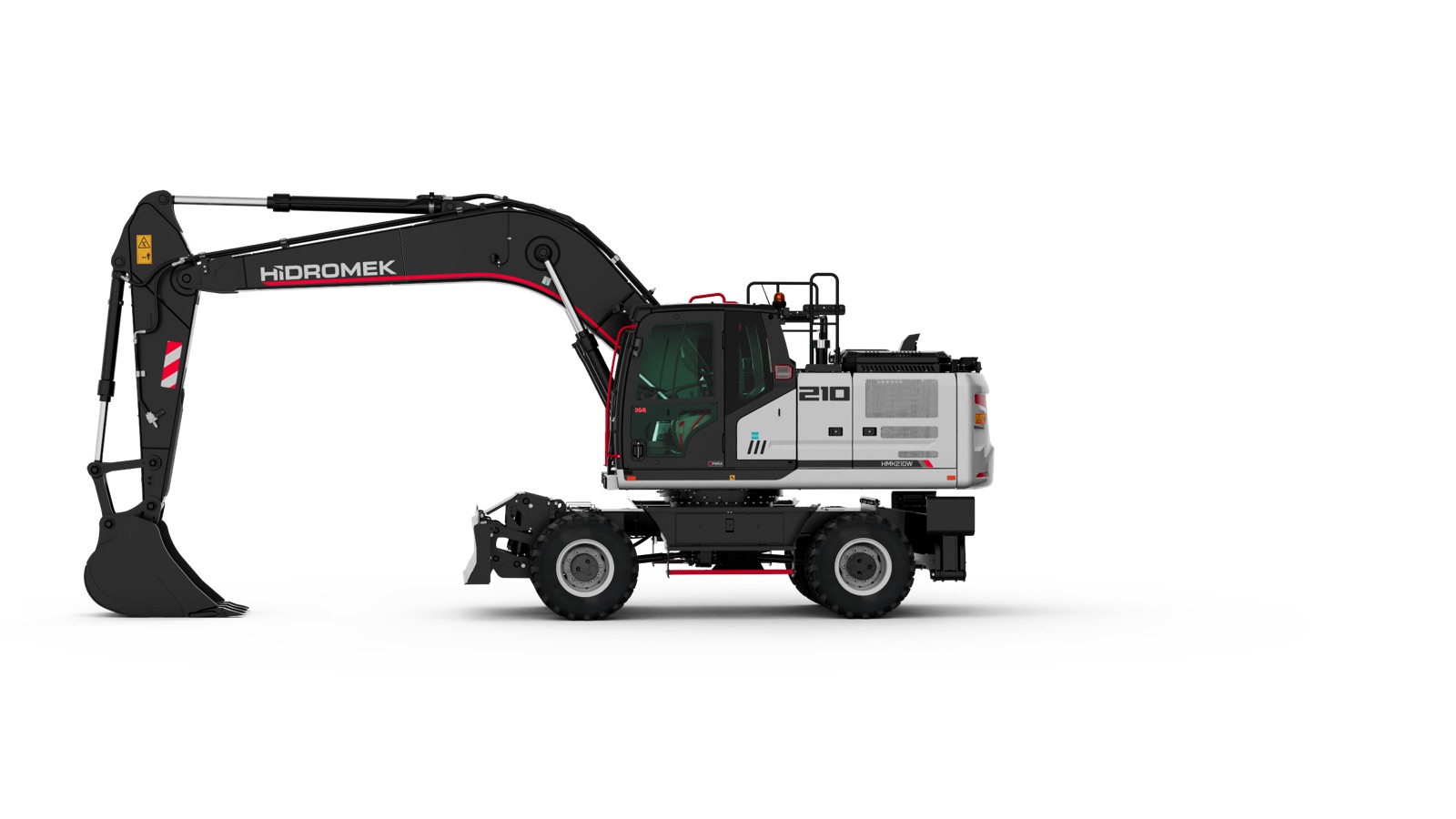

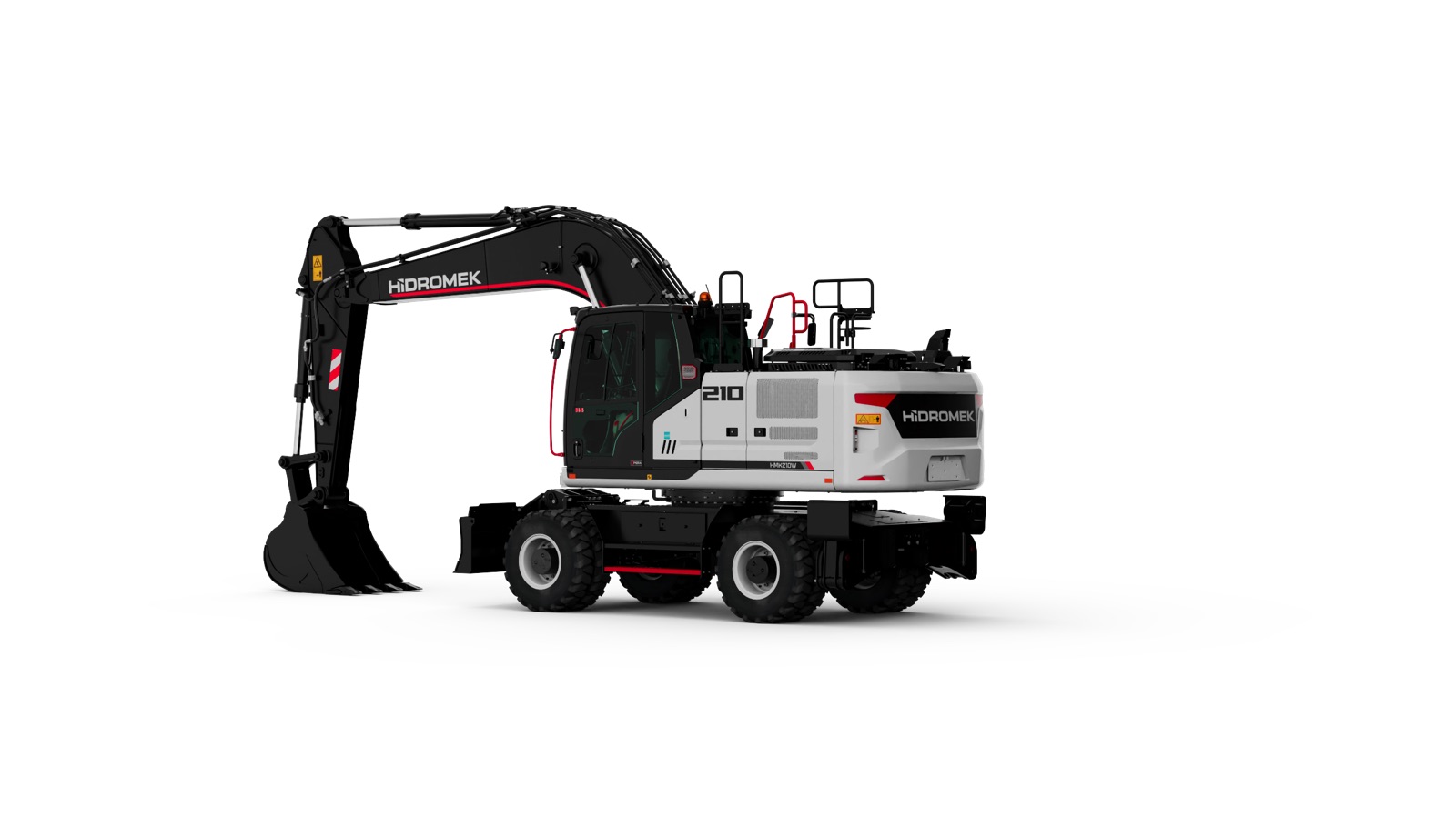

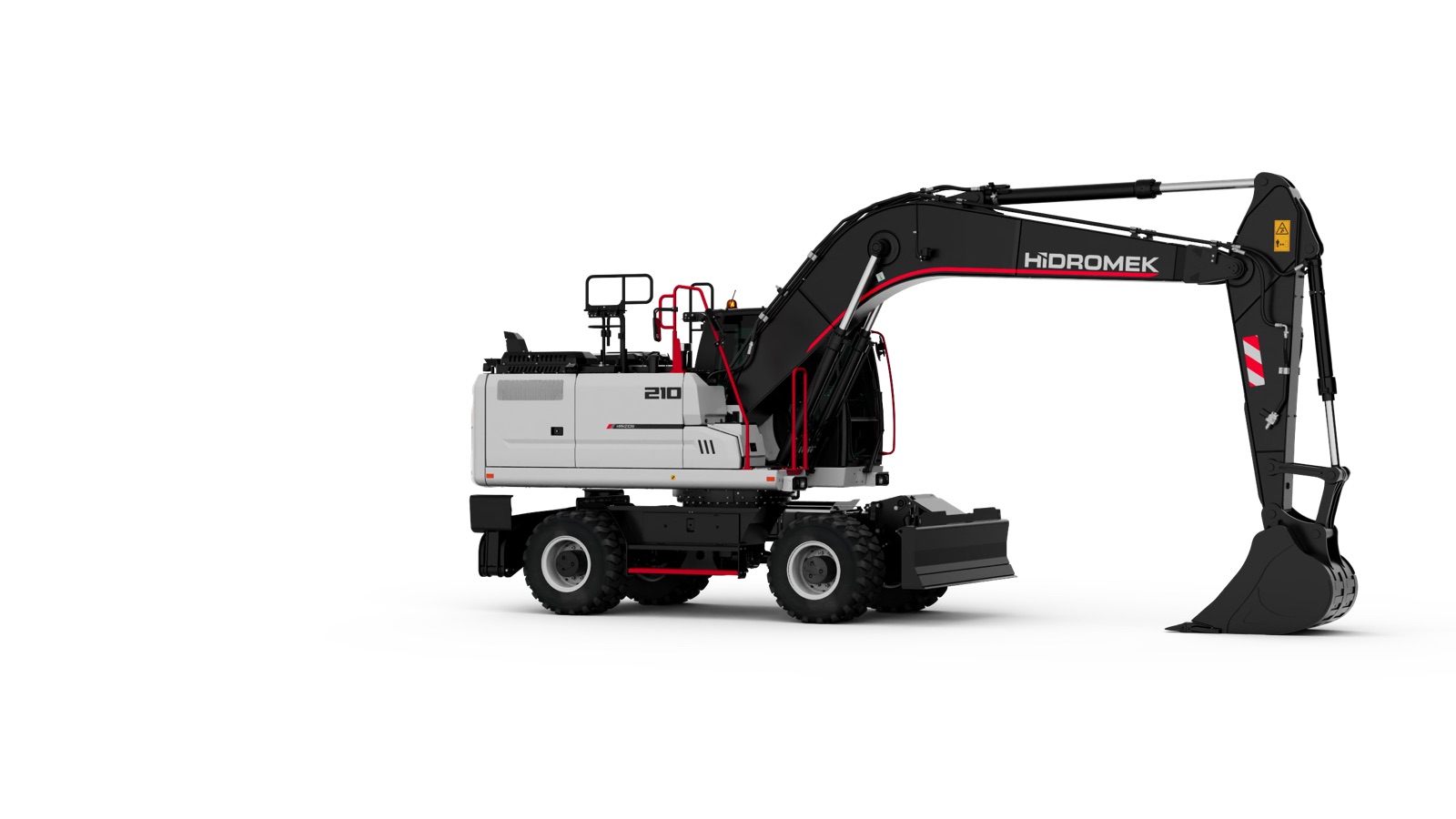

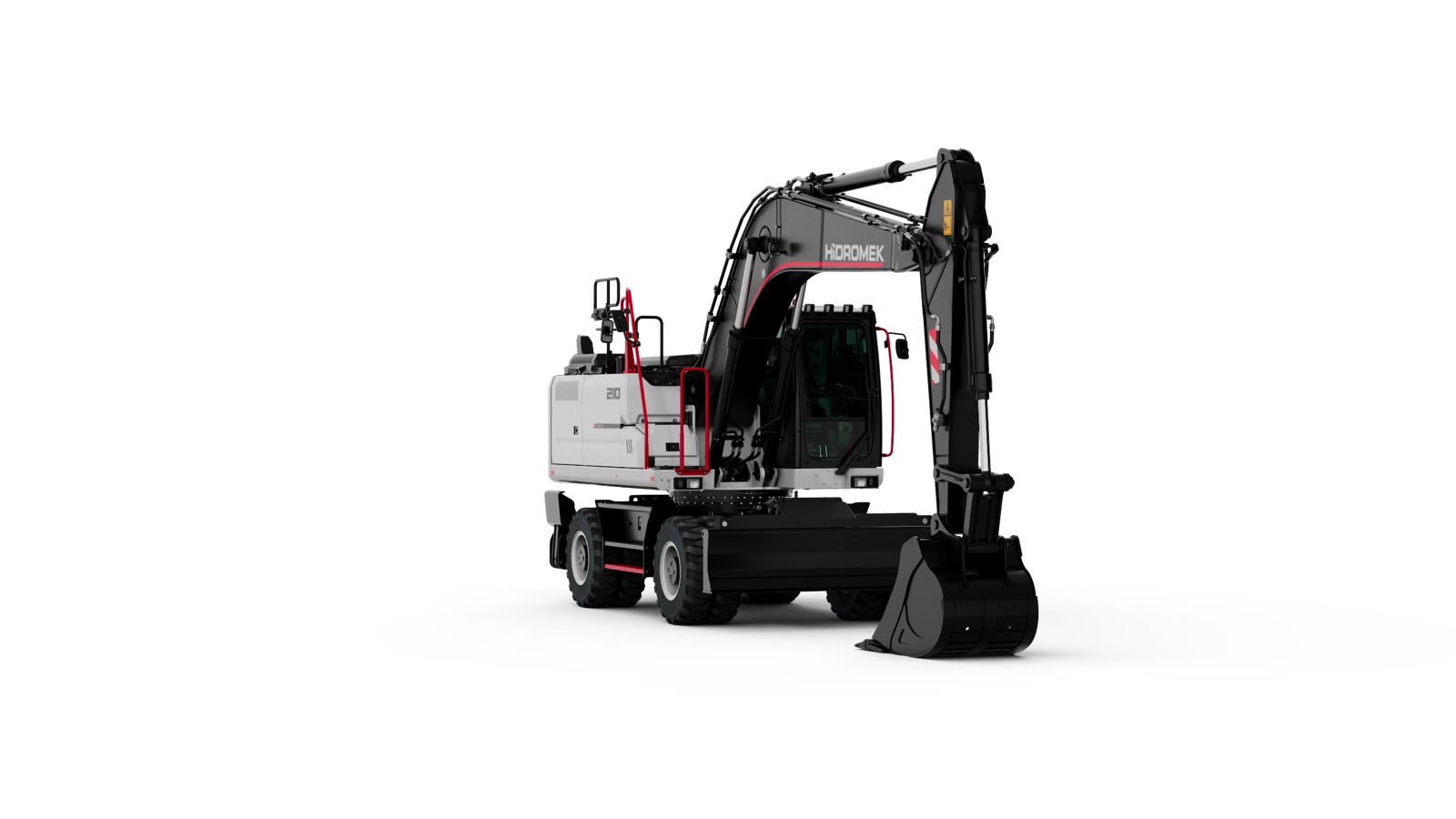

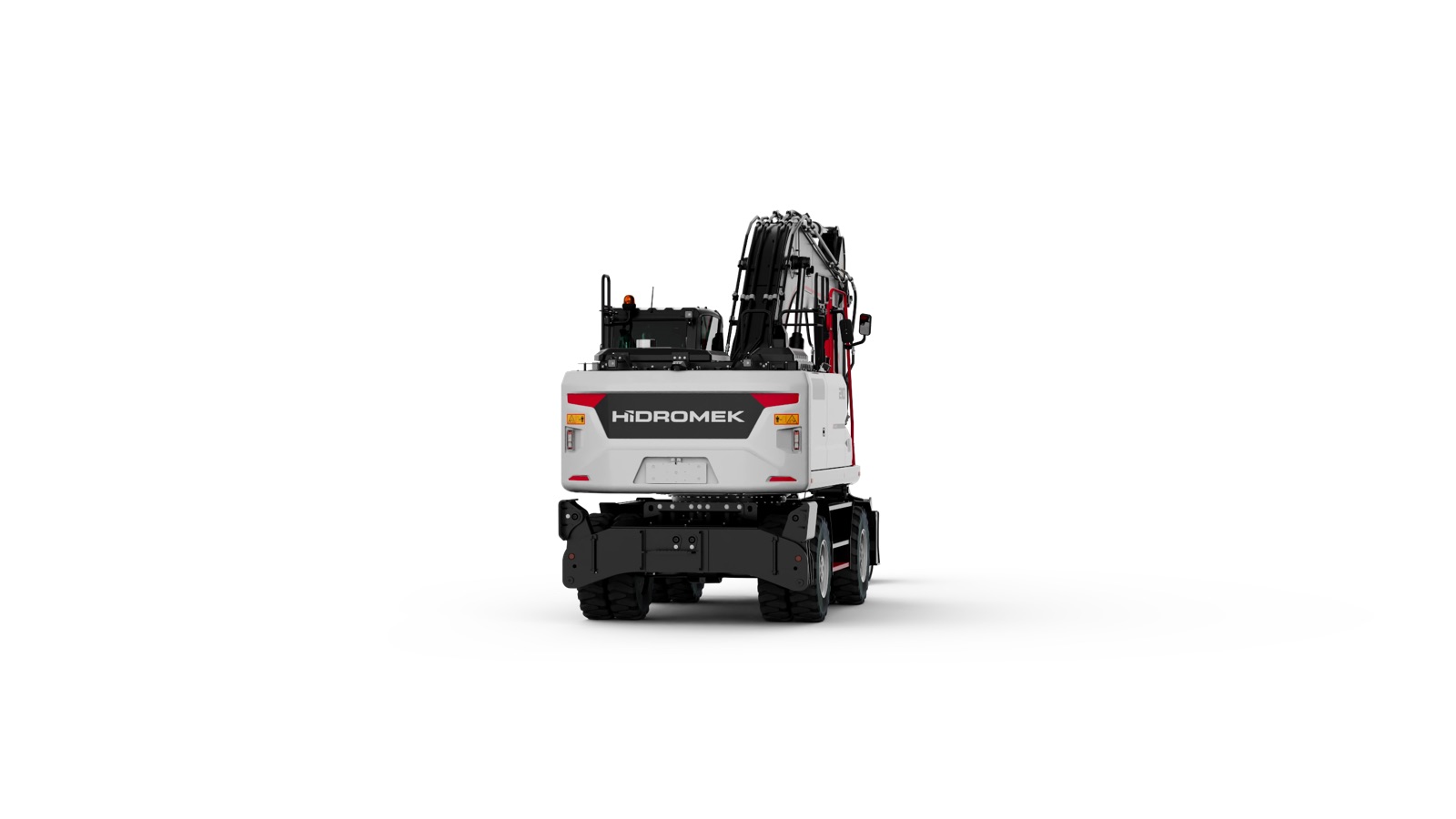

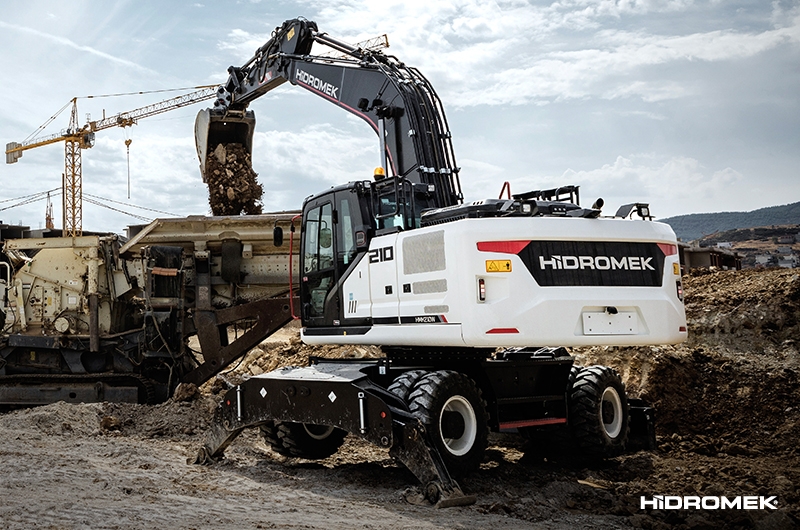

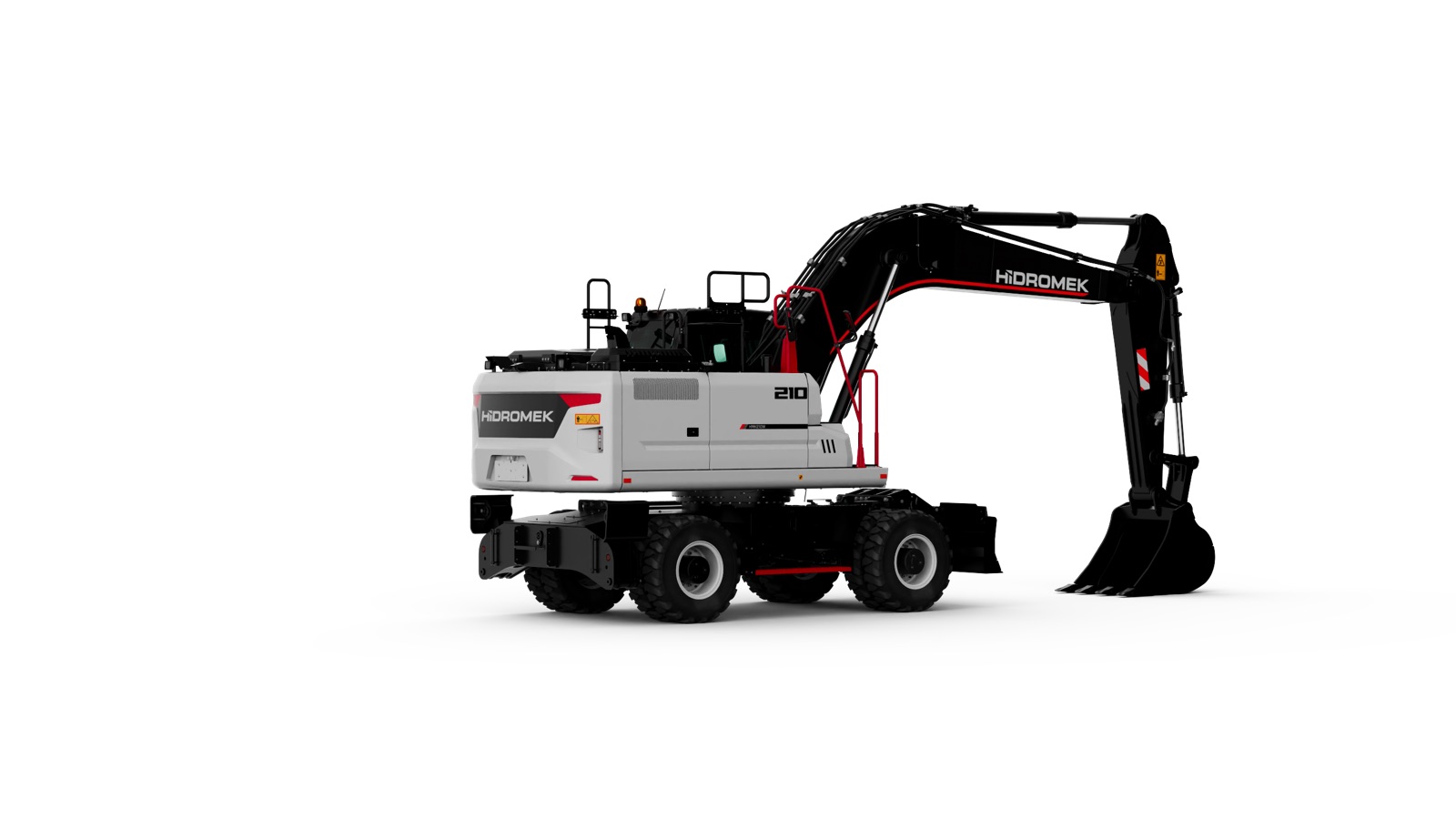

HMK 210 W

Maximum Power

172 HP (128 kW)@2000 rpm

Bucket Digging Force (ISO)

15.900 kgf

Standard Bucket Capacity

0,9 m3

  • View Specs & Dimensions Brochure
The H4 Series excavator is designed with advanced electronic systems that enhance performance, protect key components, and improve fuel efficiency. It integrates intelligent features such as automatic stop, safe fuel transfer, and power boost technology to ensure reliable operation, reduced operational costs, and environmental sustainability.

This excavator is built to deliver superior performance with smart automation and user-friendly controls. Its electronic system optimizes engine and hydraulic performance while minimizing fuel consumption. With an ergonomic 8-inch touch control panel and automated functions, it provides a modern, efficient, and operator-focused working experience.

Features

  • Advanced electronic system for engine and hydraulic protection
  • Automatic engine stop system for fuel savings and reduced idle time
  • Safe fuel transfer pump with automatic shut-off functionality
  • 8-inch ergonomic touch control panel for easy operation and monitoring
  • Power Boost technology for extra power when required
  • Reduced operational costs and improved efficiency
  • Environment-friendly performance with optimized fuel usage
  • User-friendly and safe operation with smart automation

Specifications

Engine

  • Brand / Model: ISUZU 4HK1X
  • Maximum Power: 172 HP (128 kW) @ 2000 rpm
  • Type: Water-cooled, 4-cycle diesel engine
  • Maximum Torque: 670 Nm @ 1600 rpm
  • Displacement: 5193 cc
  • Number of Cylinders: 4
  • Bore x Stroke: 115 x 125 mm
  • Emission Class: EU Stage V

Hydraulic System

  • Type: Dual axial piston pumps with variable displacement
  • Maximum Flow: 2 × 233 L/min
  • Pilot Pump: Gear type, 20 L/min
  • Attachment Pressure: 350 kgf/cm²
  • Power Boost Pressure: 370 kgf/cm²
  • Travel Pressure: 370 kgf/cm²
  • Swing Pressure: 306 kgf/cm²
  • Pilot Pressure: 40 kgf/cm²

Swing System

  • Swing Speed: 11.9 rpm

Working Dimensions

  • Maximum Digging Depth: 5,760 mm
  • Maximum Reach at Ground Level: 9,170 mm

Travel Performance

  • Maximum Drawbar Pull: 11,110 kgf
  • High Speed: 31 km/h
  • Low Speed: 7.7 km/h

Digging Performance

  • Bucket Digging Force (ISO): 15,900 kgf
  • Arm Breakout Force (ISO): 12,600 kgf
  • Standard Bucket Capacity: 0.9 m³

Operating Weight

  • 22,500 kg
  • View Specs & Dimensions Brochure
