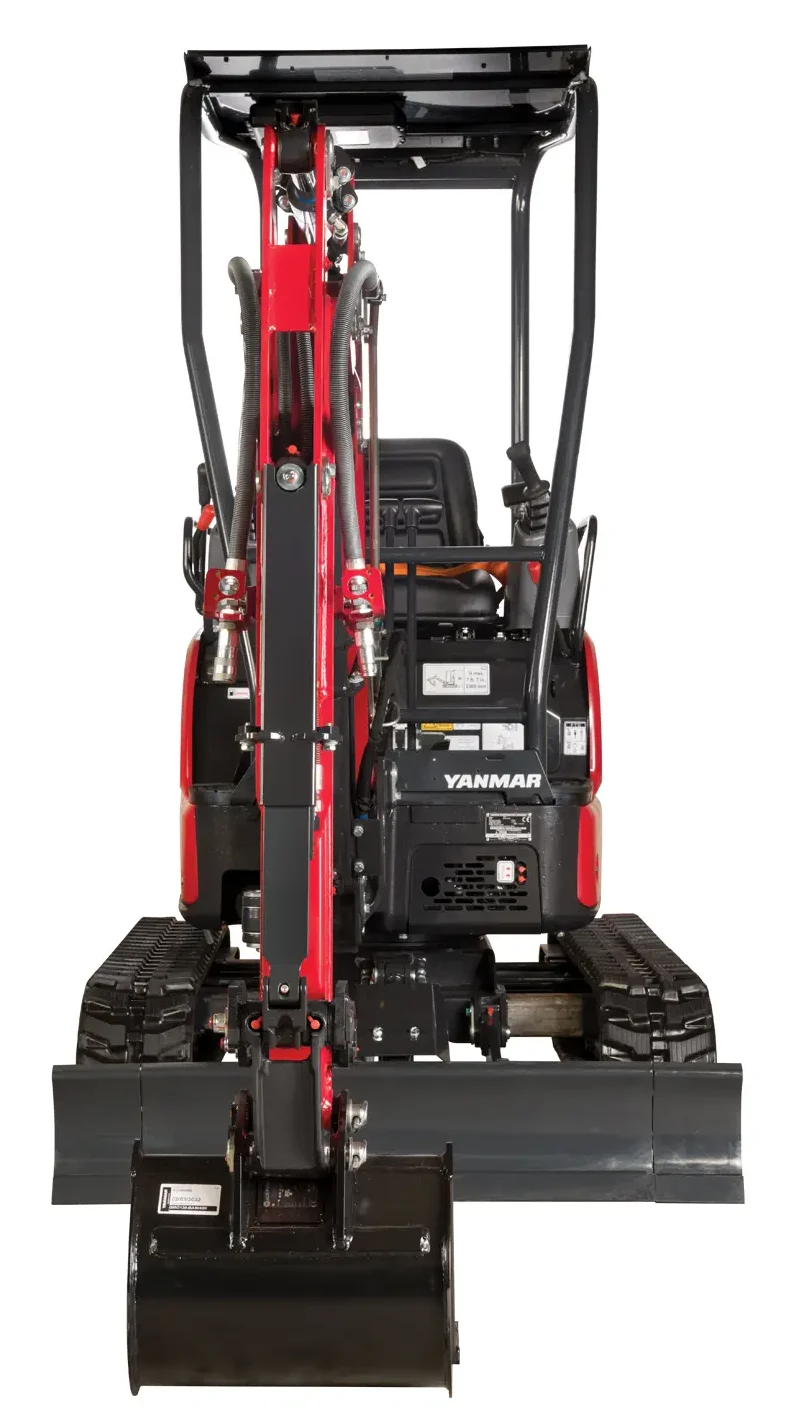

When tight spaces call and you need additional power and digging depth to get the job done quickly, ViO17-1E is the answer. This tight space taskmaster can go almost anywhere. With our unique retractable undercarriage, you can hydraulically extend and retract the track width making it even easier to access narrow jobsites. And the ViO17-1E is our smallest zero tail swing model, giving you the added flexibility to work around walls, buildings, or landscaping. Plus, operators will appreciate the comfortable operator station and intuitive controls.
Producing a work-ready 14.5 horsepower, this Tier 4 Final rated Yanmar diesel engine is as quiet and efficient as it is reliable, making it always ready to work no matter the jobsite.

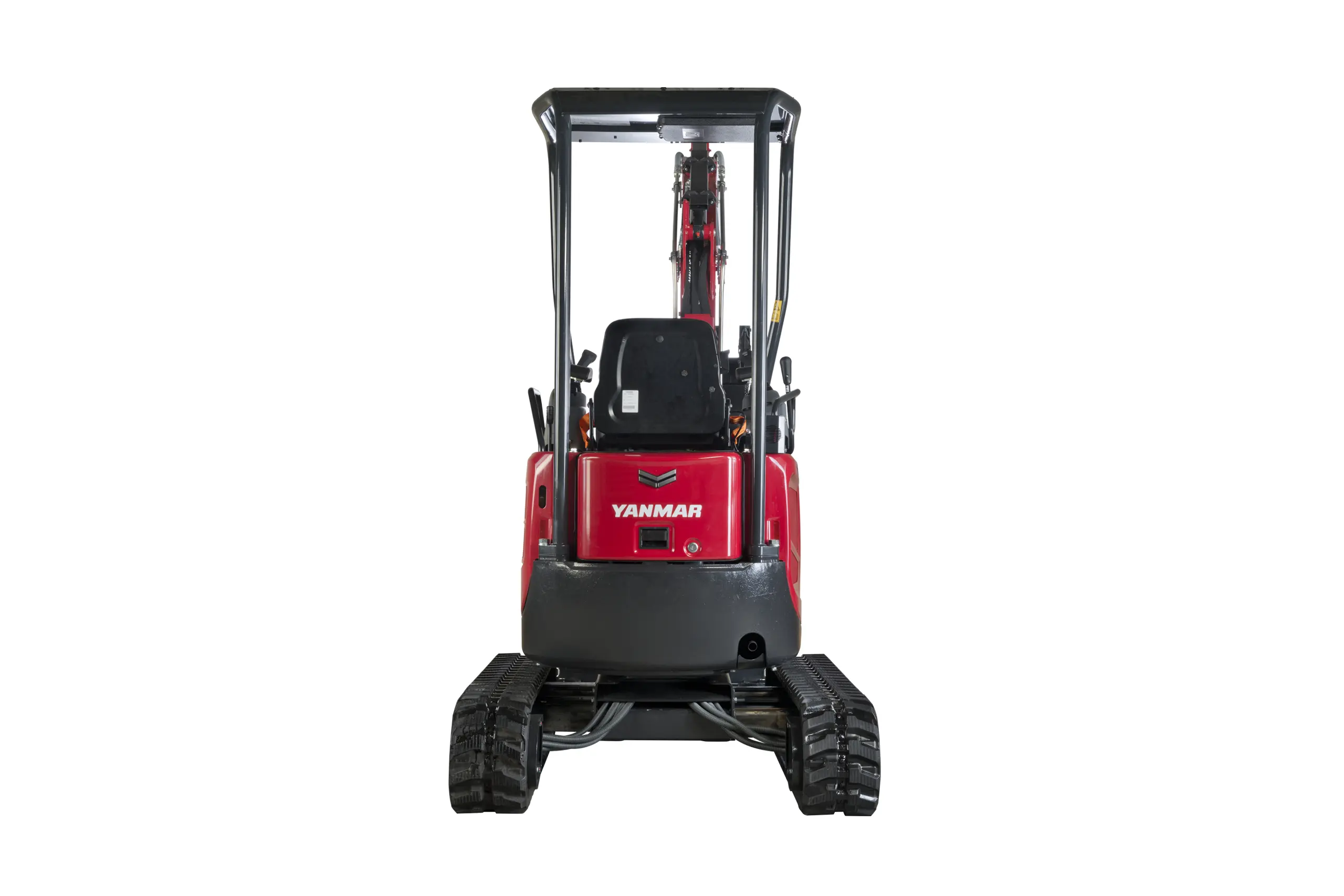

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
Crawl your way into nearly any jobsite with tracks that hydraulically adjust from a stable 50” (1,280 mm) down to a nimble 37” (950 mm).
Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.
Power additional accessories with a standard auxiliary hydraulic circuit featuring an easy-to-use foot-control that provide precise flow control with lock-out capability.
Protect your investment and minimize downtime and repair costs. Cylinder guards reduce impact damage and shield the cylinder rod from abrasive material and hard impact.
| Engine | |
|---|---|
| Model | YANMAR 3TNV74F-SPBV |
| Output | 14.5 HP / 2,400 RPM |
| Type | Water-cooled 3-cylinder diesel |
| Operating Weight | |
| Rubber Track | 4,023 lbs. |
| Performance | |
| Max Digging Force, Bucket / Arm | 3,474 / 1,993 lbs |
| Traveling Speed | 2.6 / 1.3 MPH |
| Swing Speed | 9.5 RPM |
| Boom Swing Angle (L / R) | 42° / 65° |
| Ground Contact Pressure | |
| Rubber Track | 4.1 PSI |
| Hydraulic System | |
| Pump Capacity | Double Variable Displacement Pump: 2*4.6 GPM
Gear Pump: 3.5 GPM |
| Main Relief Set Pressure | 2,986 PSI |
| Blade Dimensions | |
| Width x height | 4´2˝ / 3´1˝ x 9˝.8 |
| Fuel Tank | |
| Capacity | 5.3 Gals |
