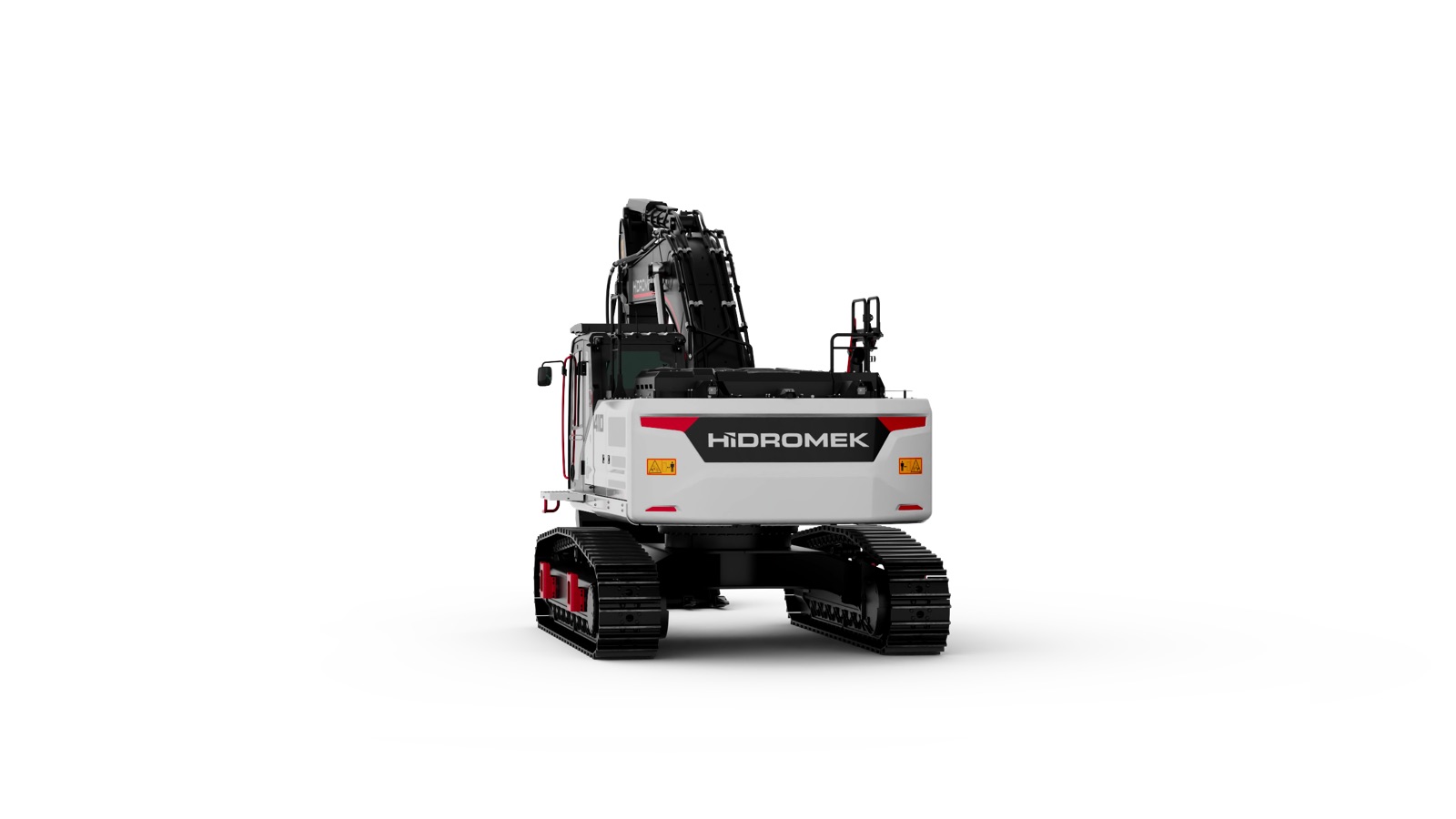

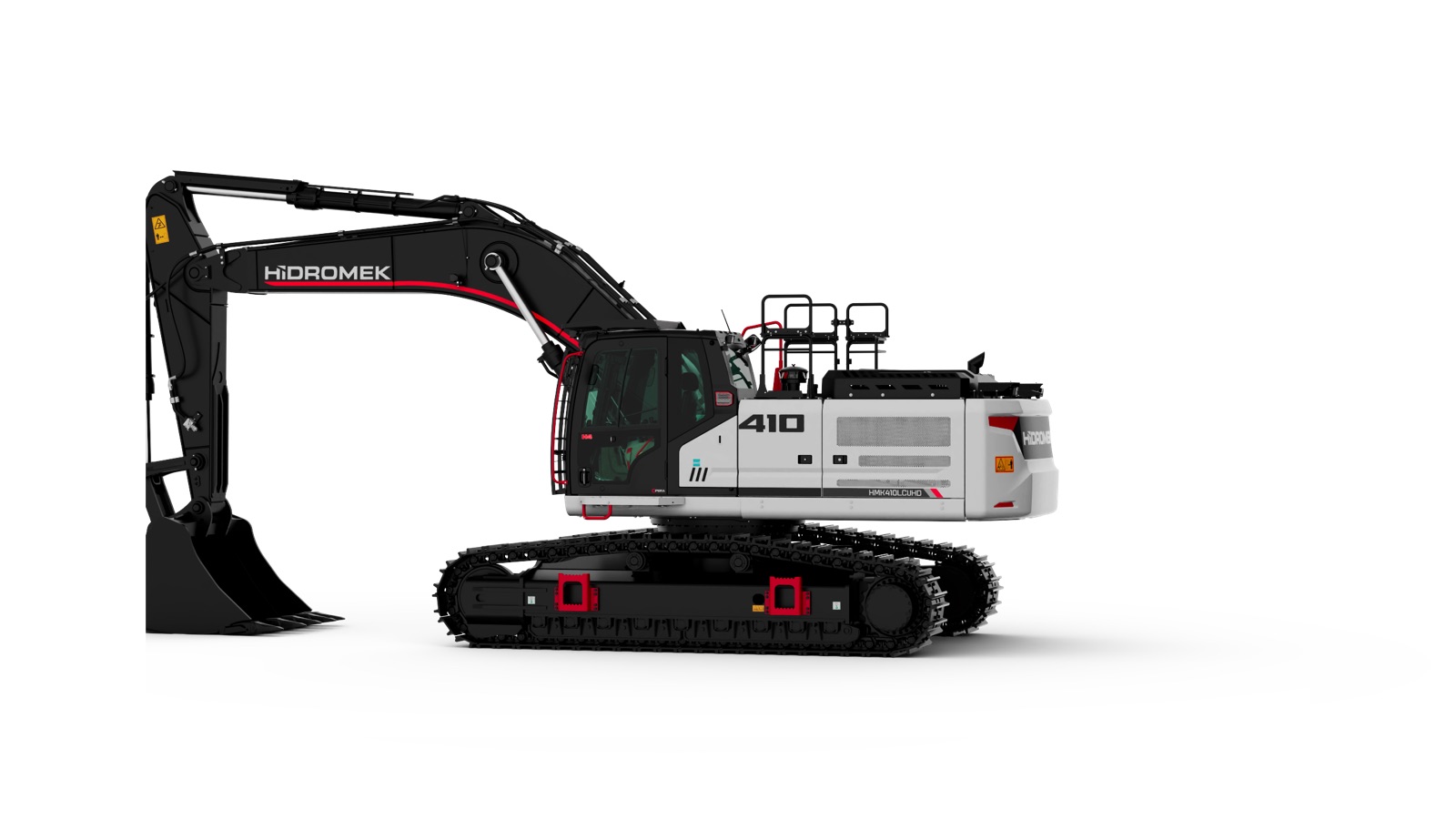

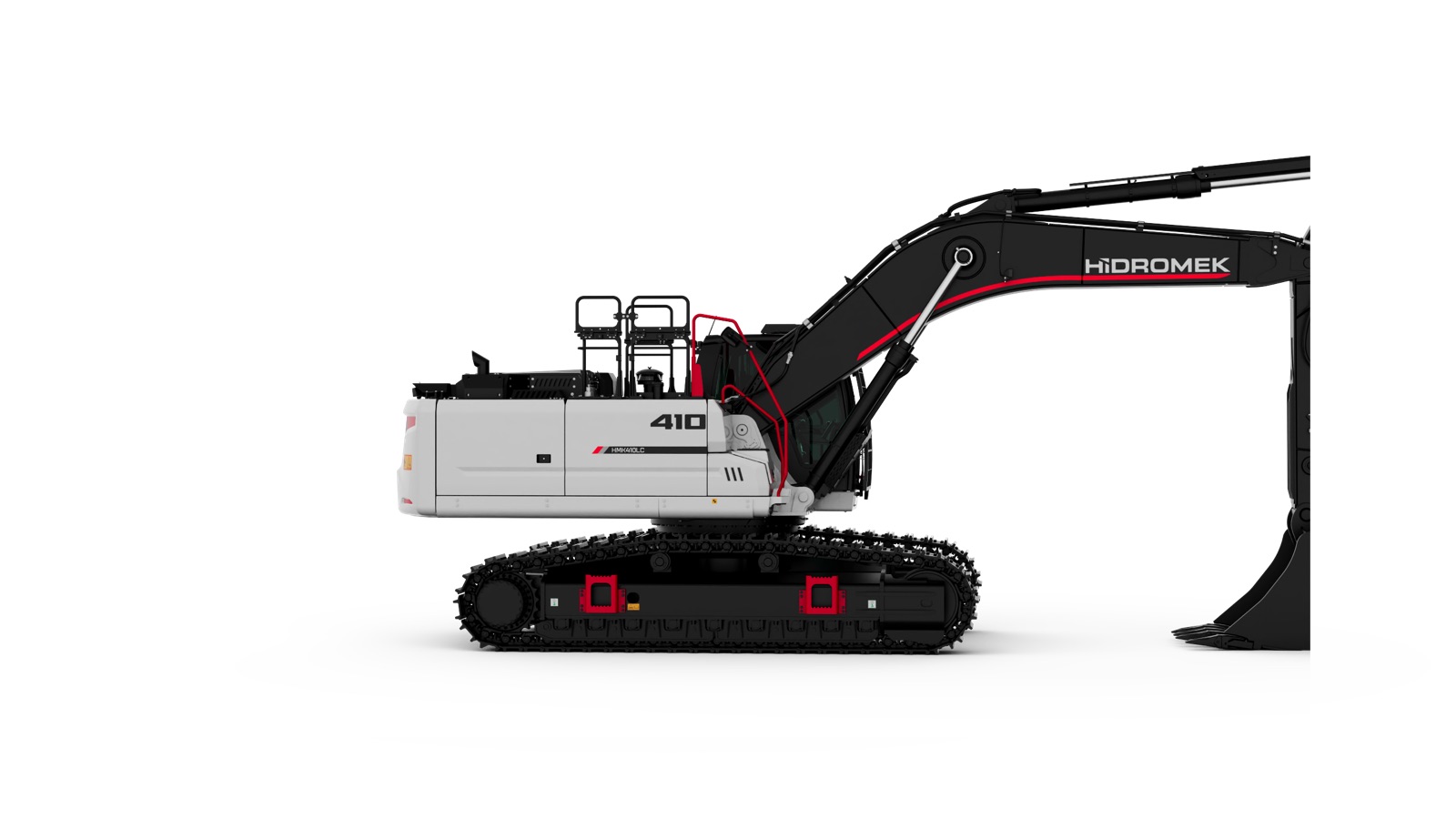

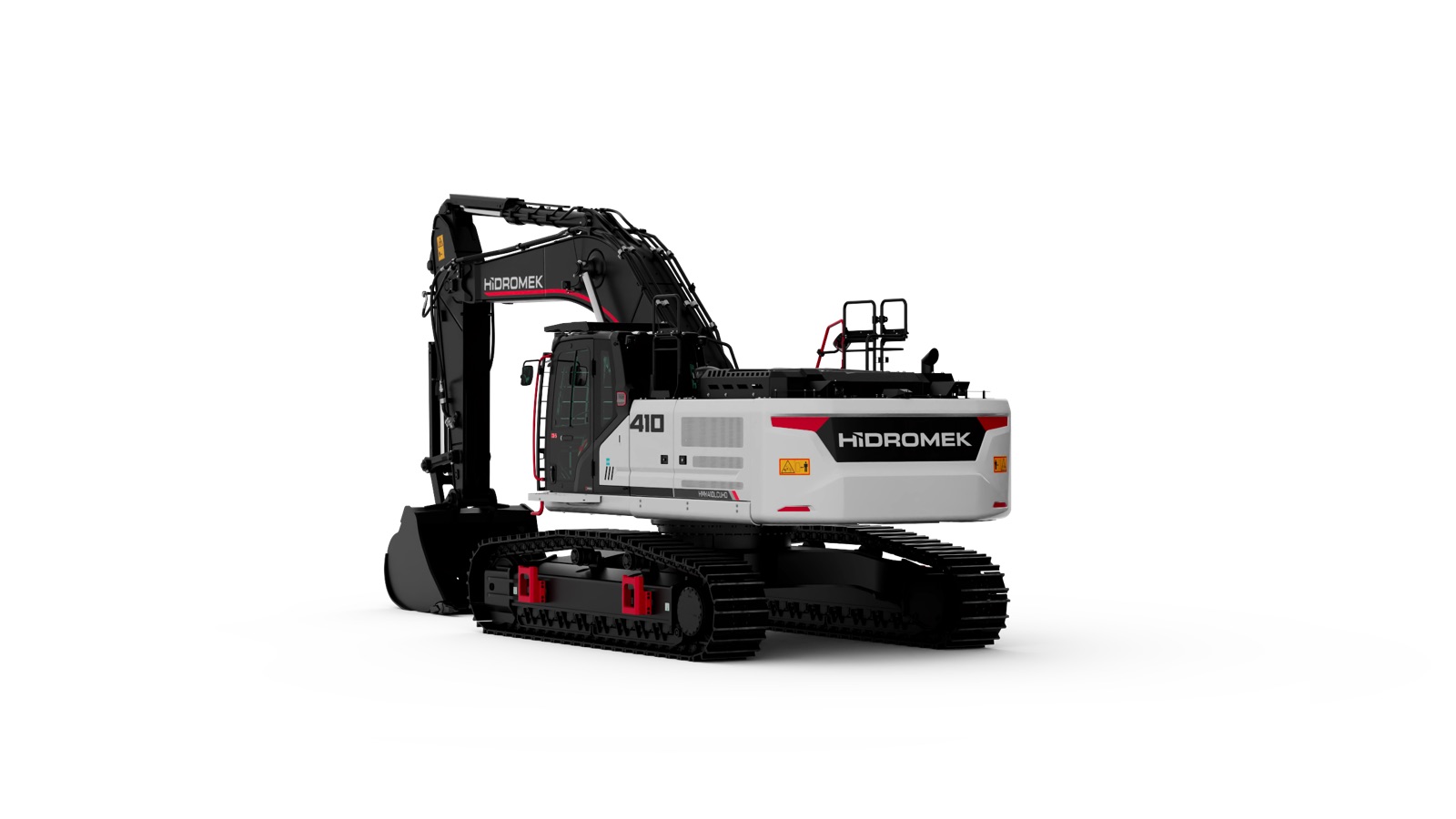

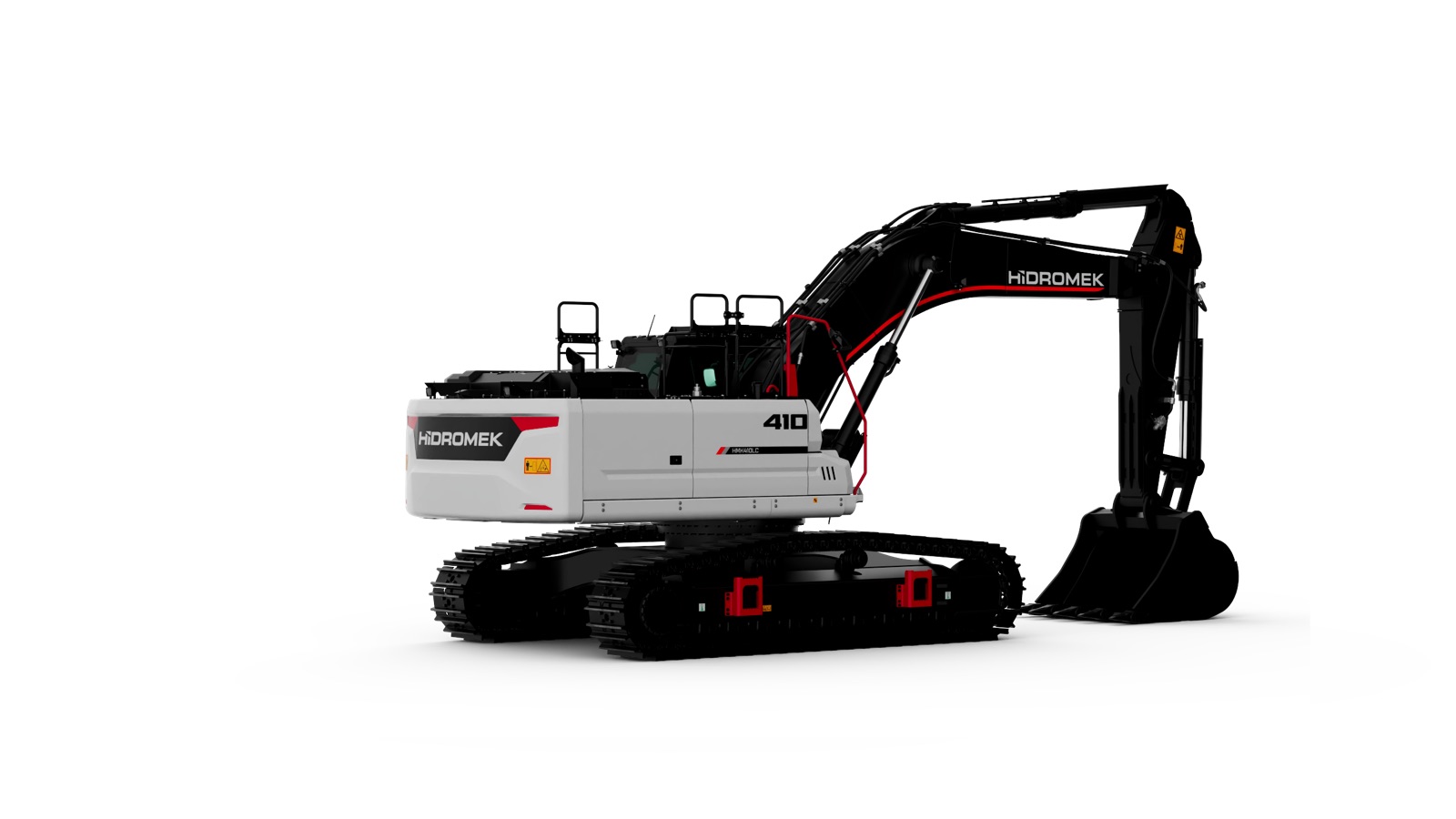

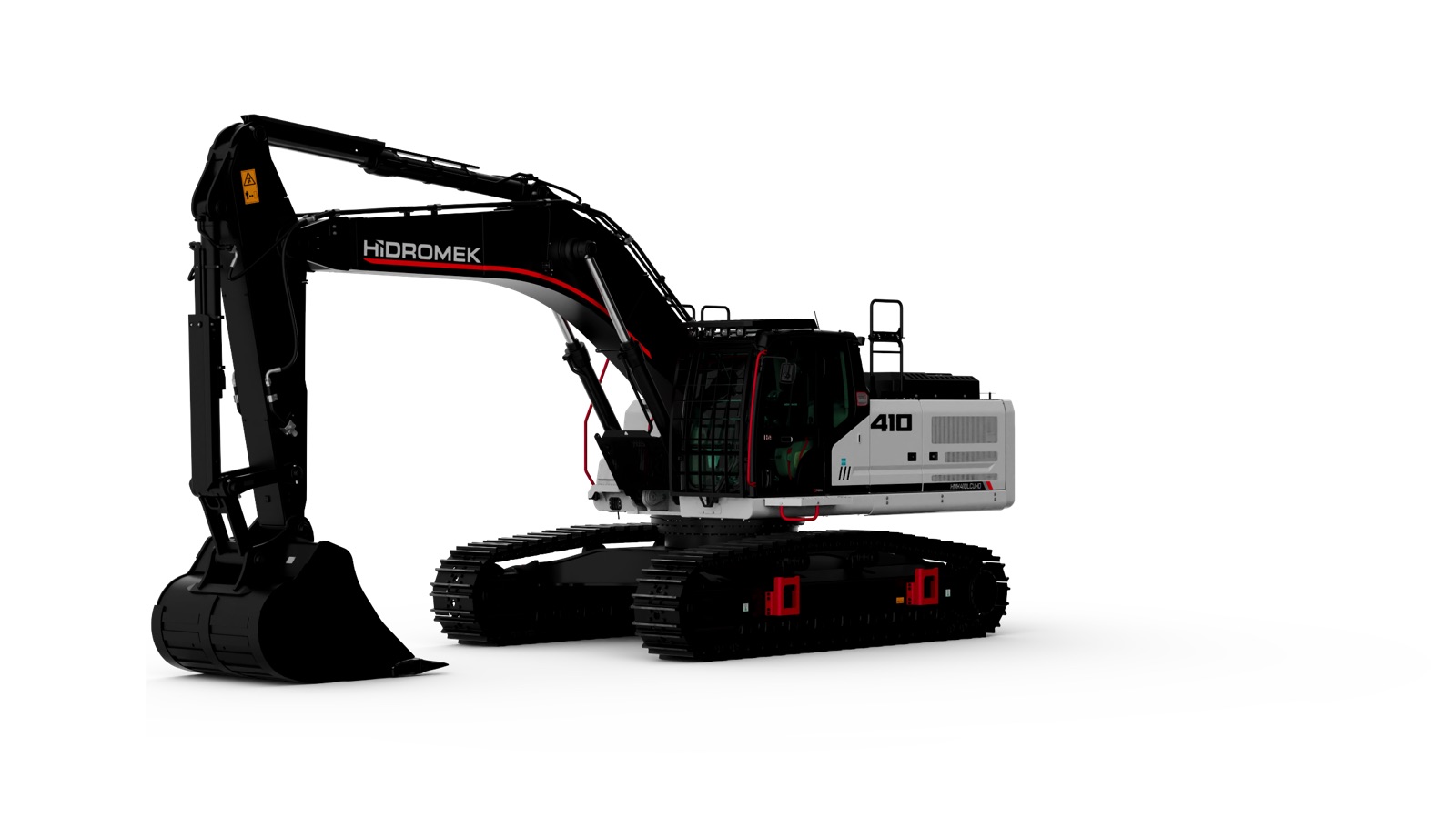

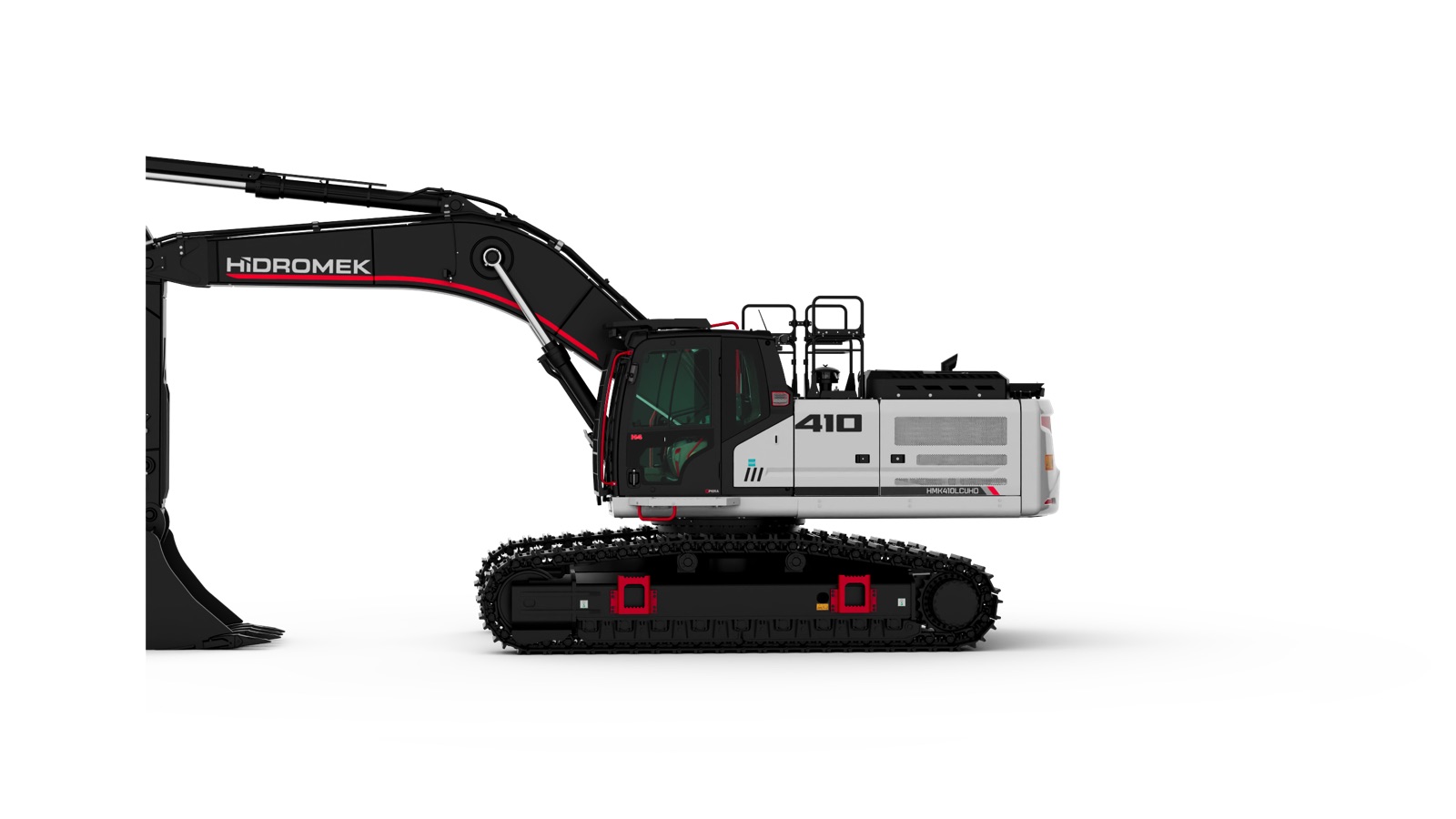

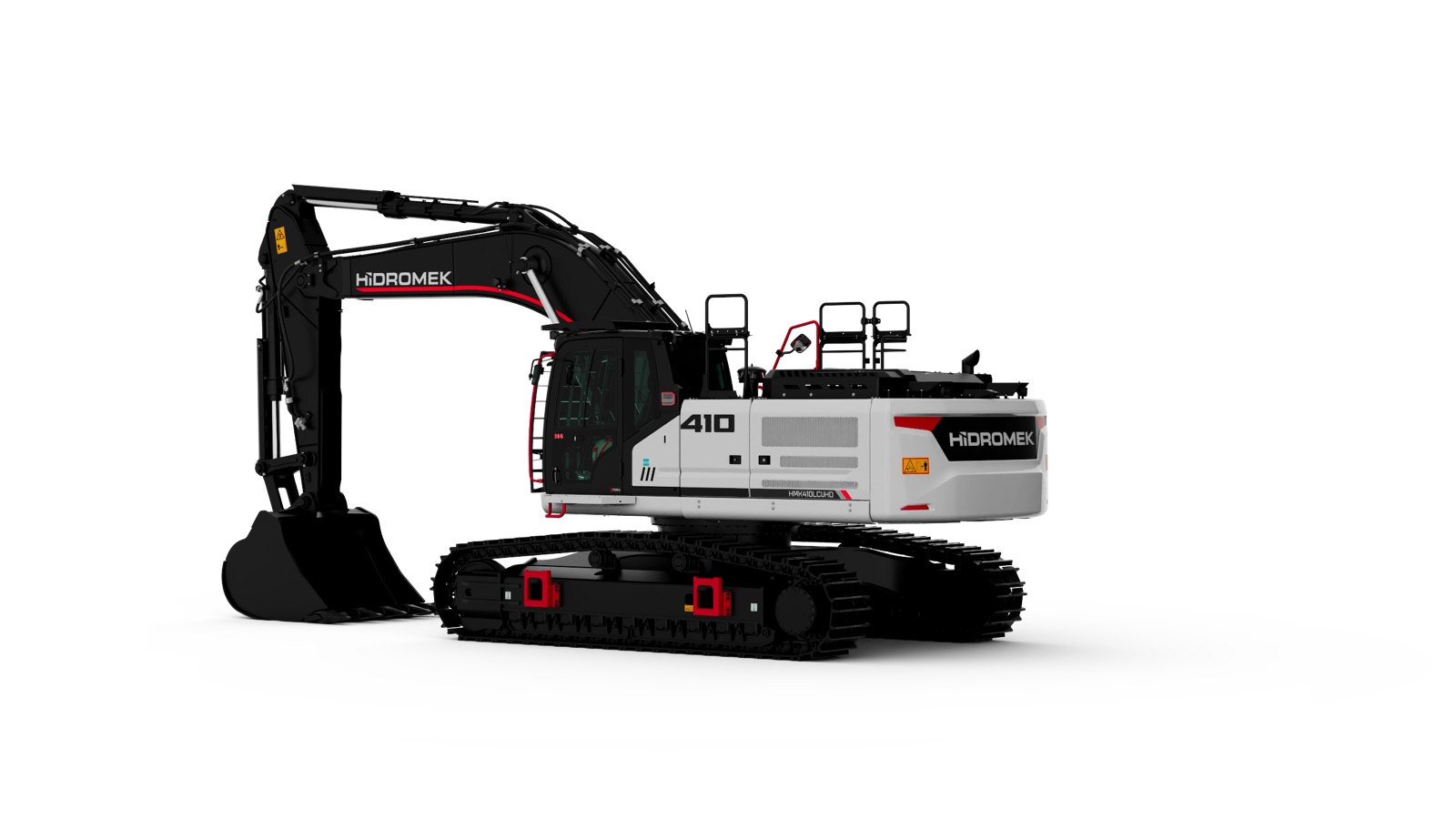

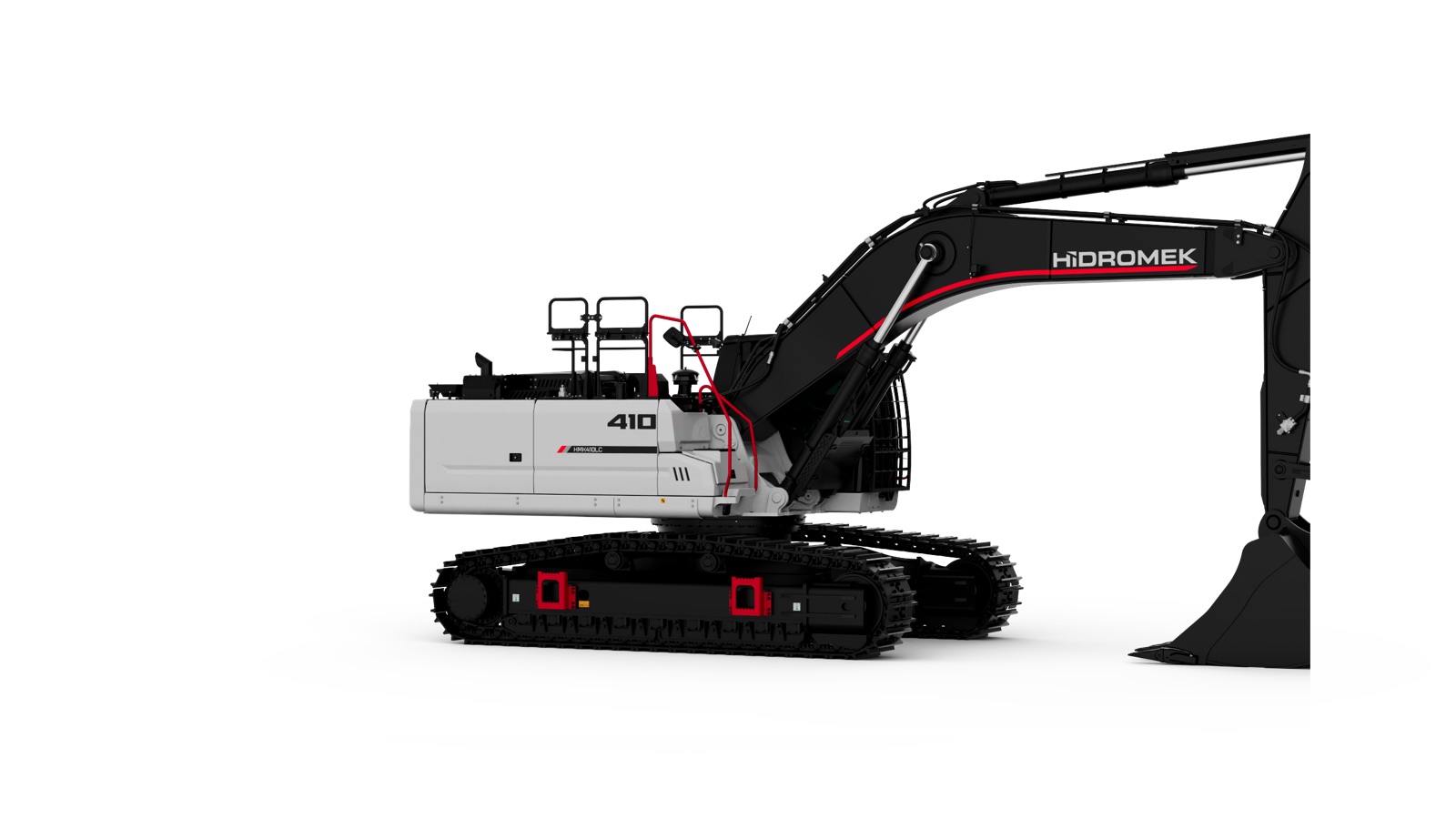

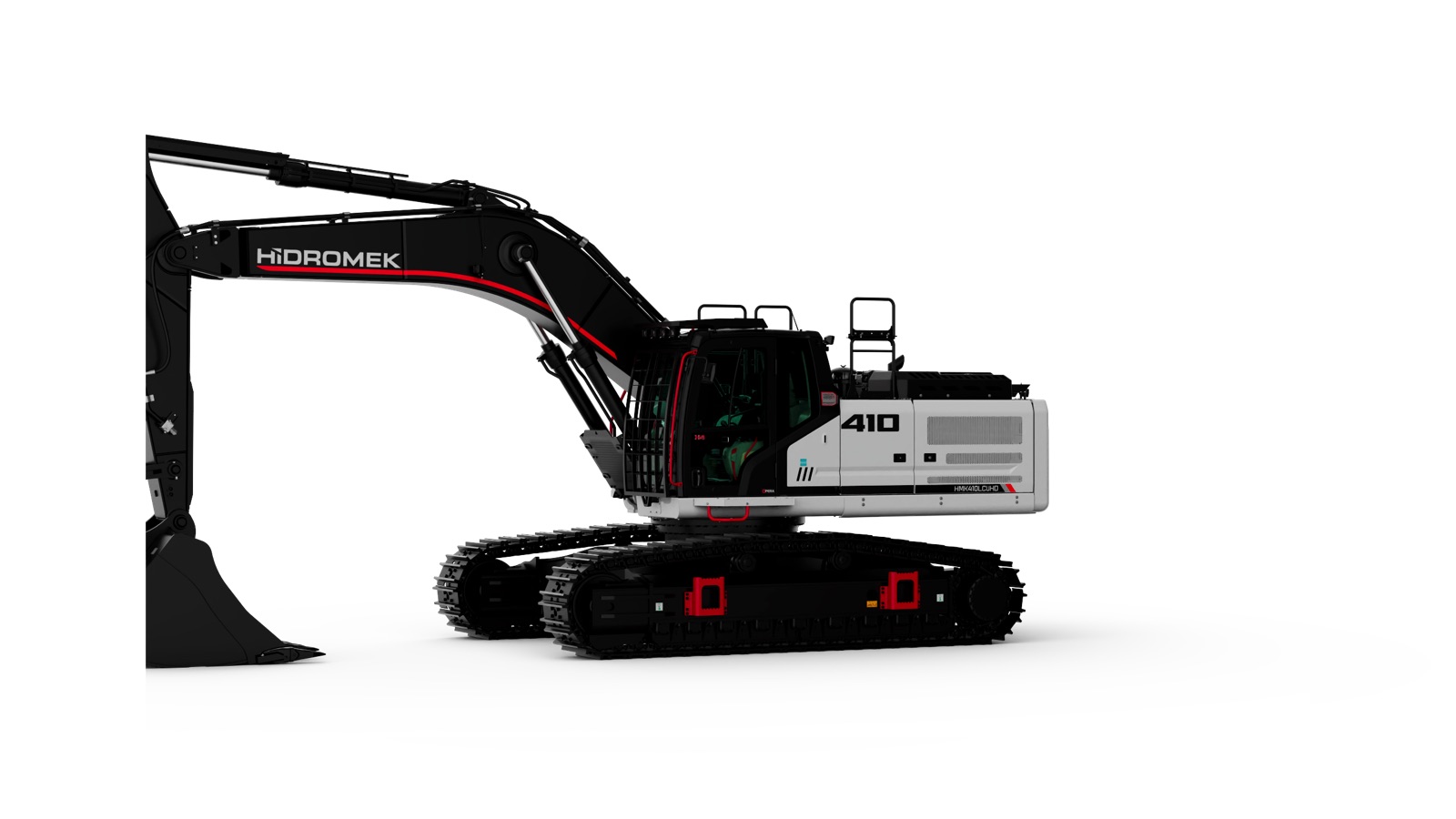

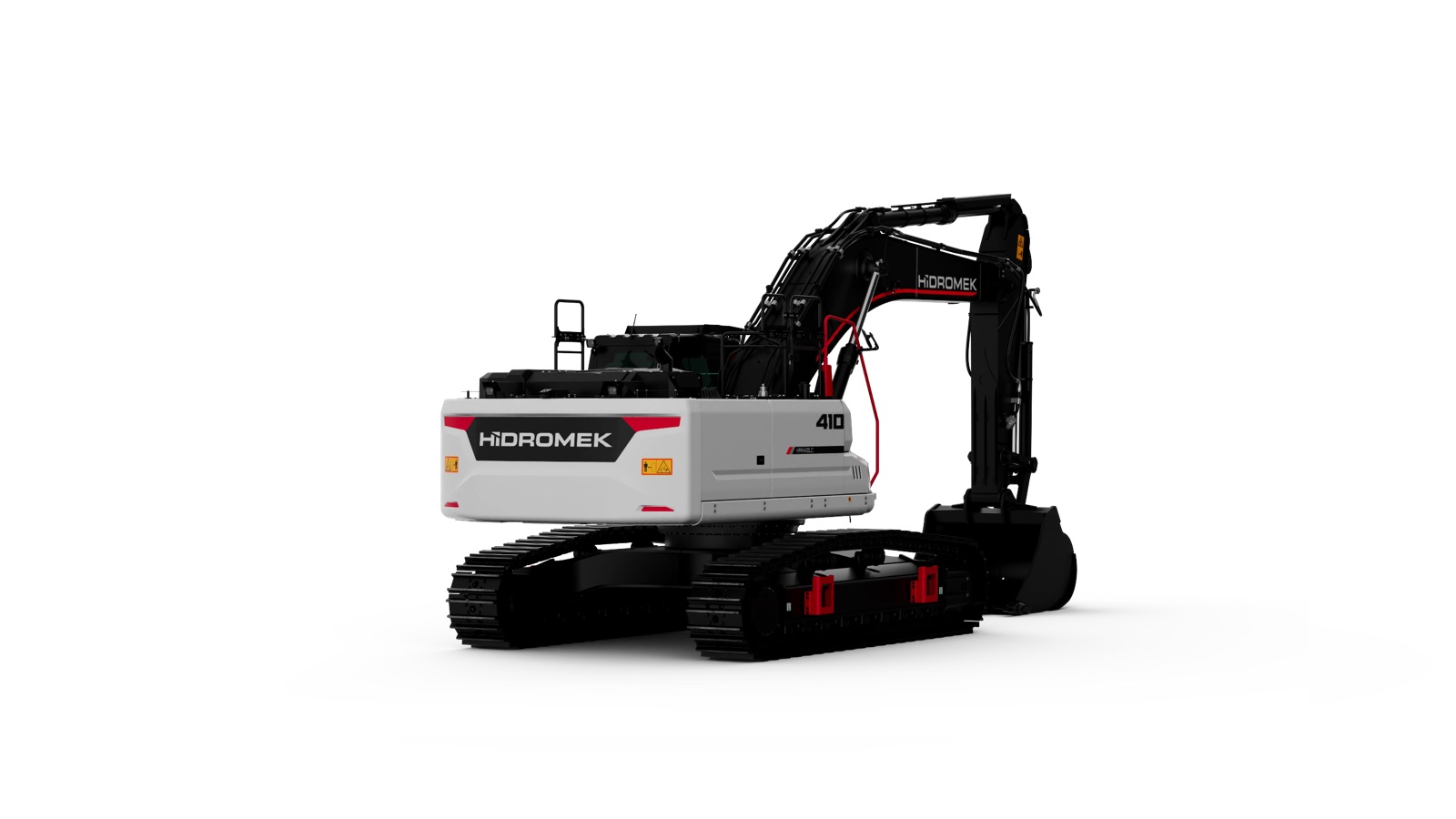

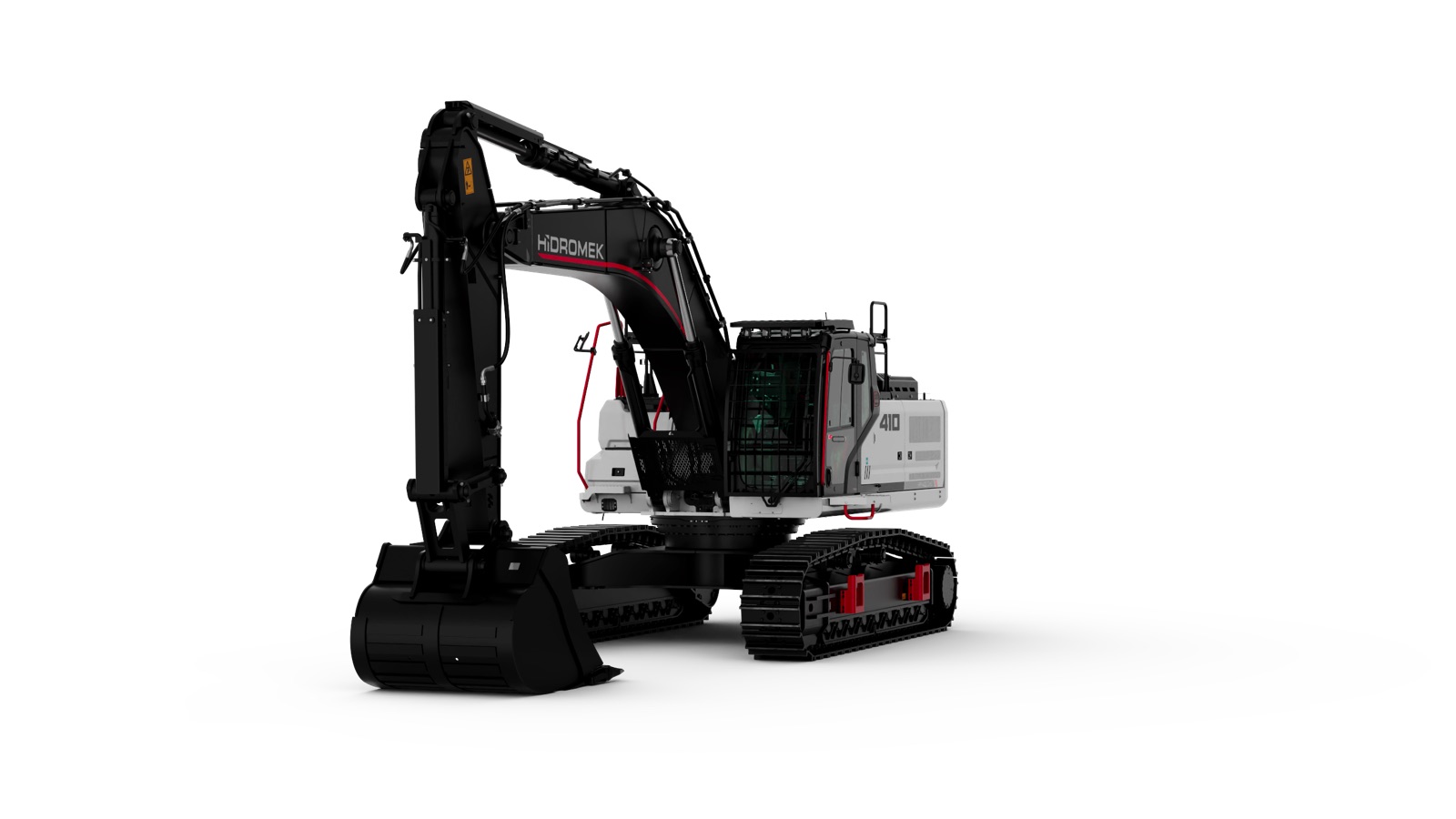

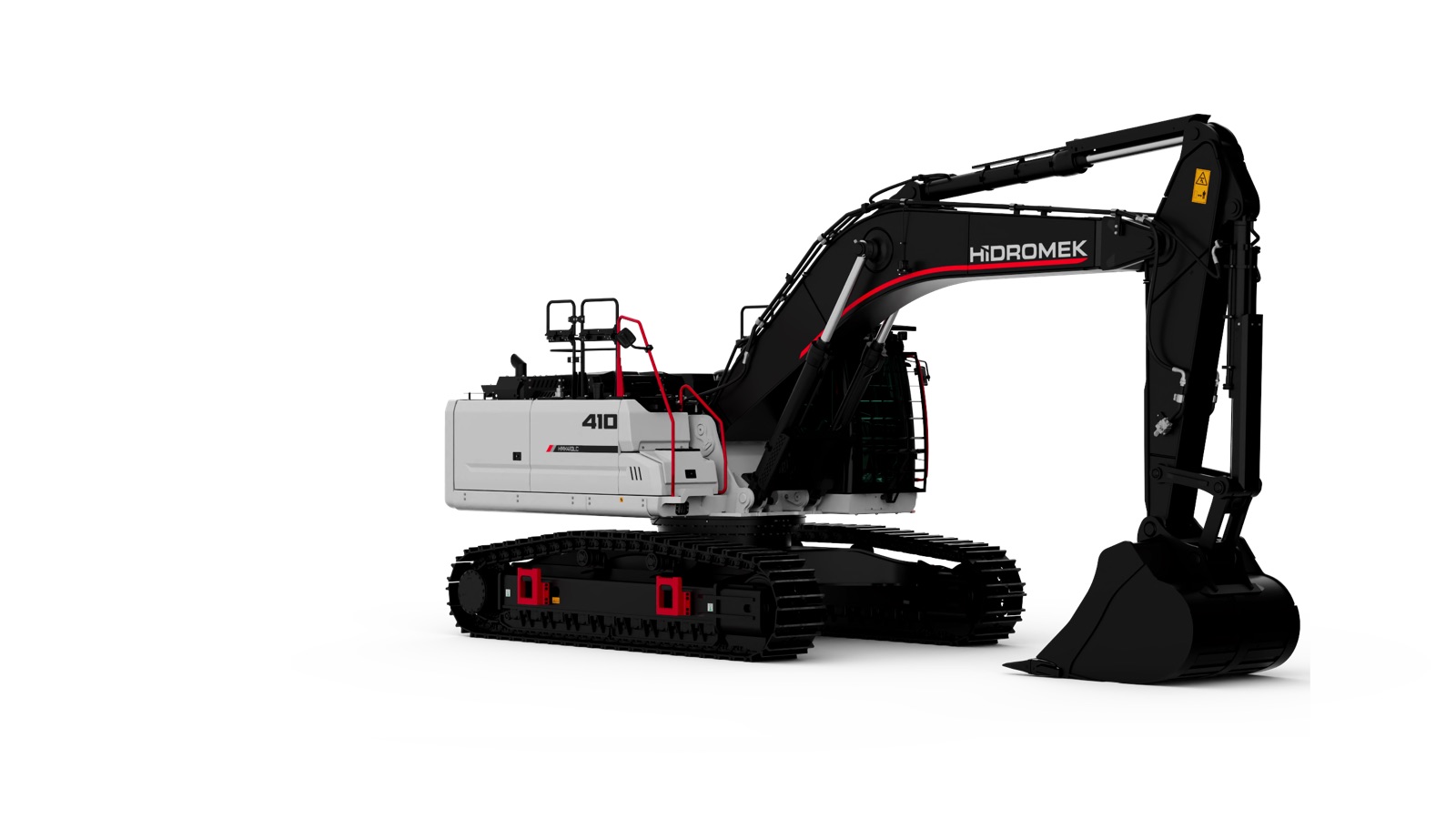

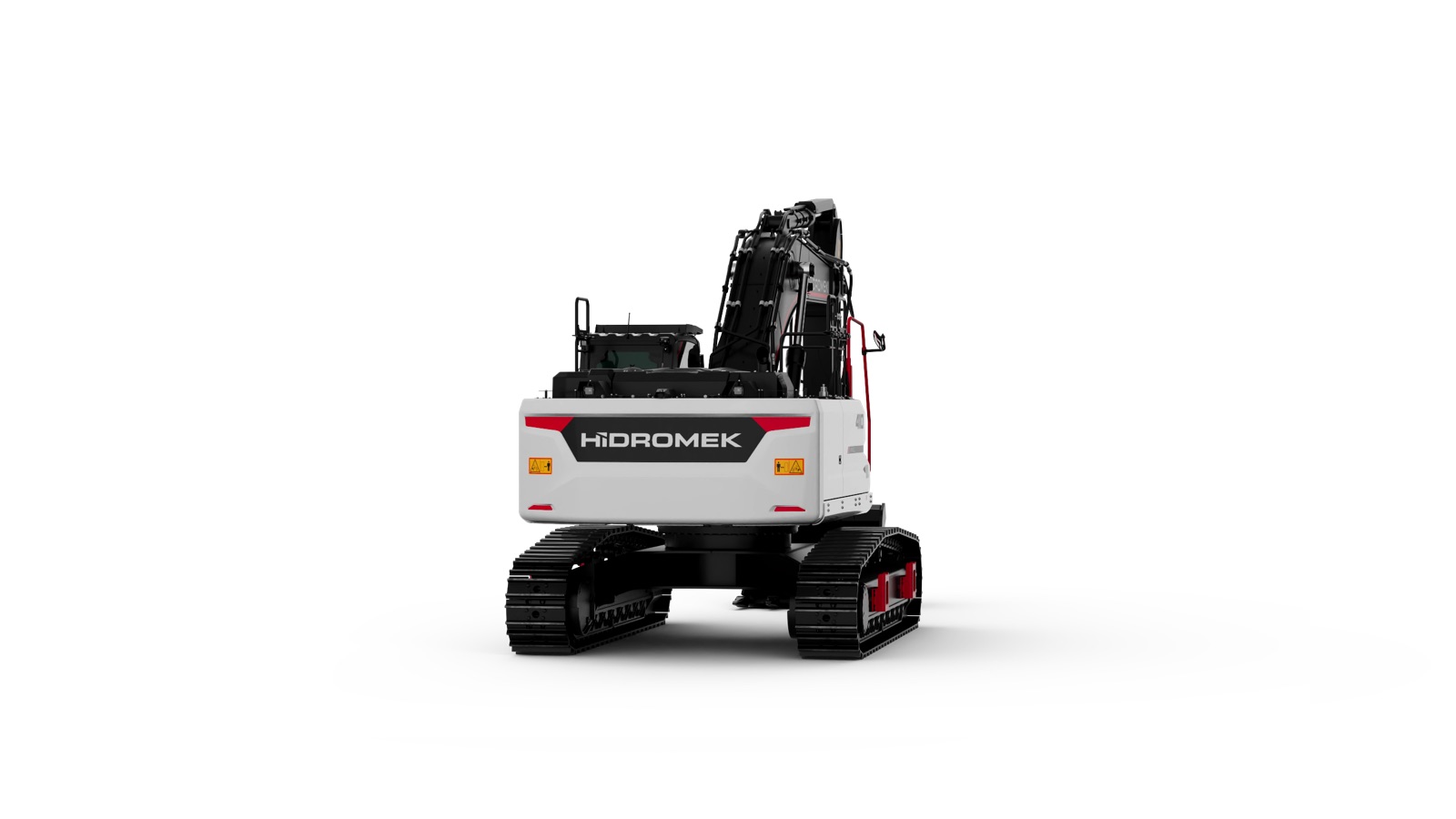

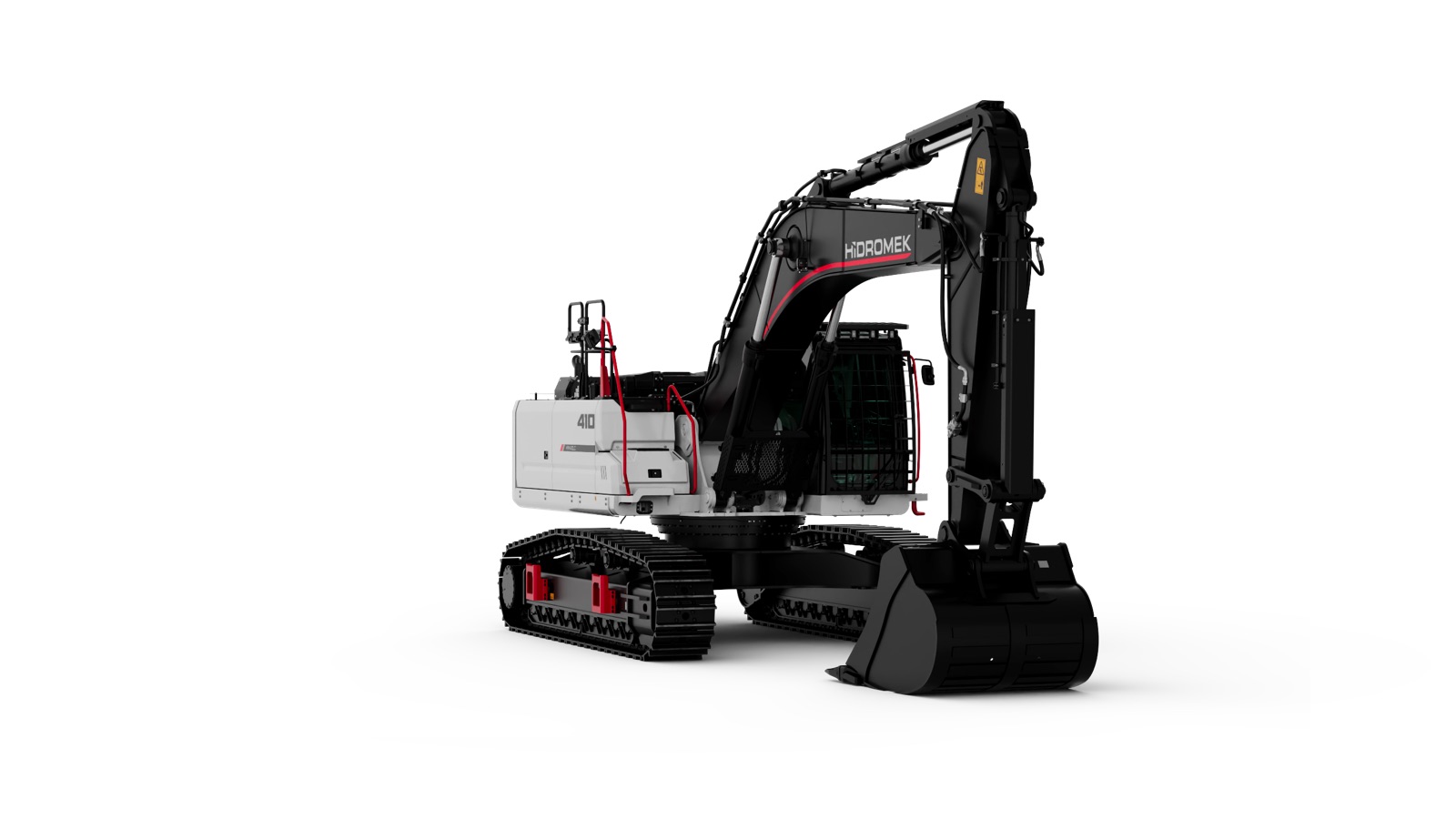

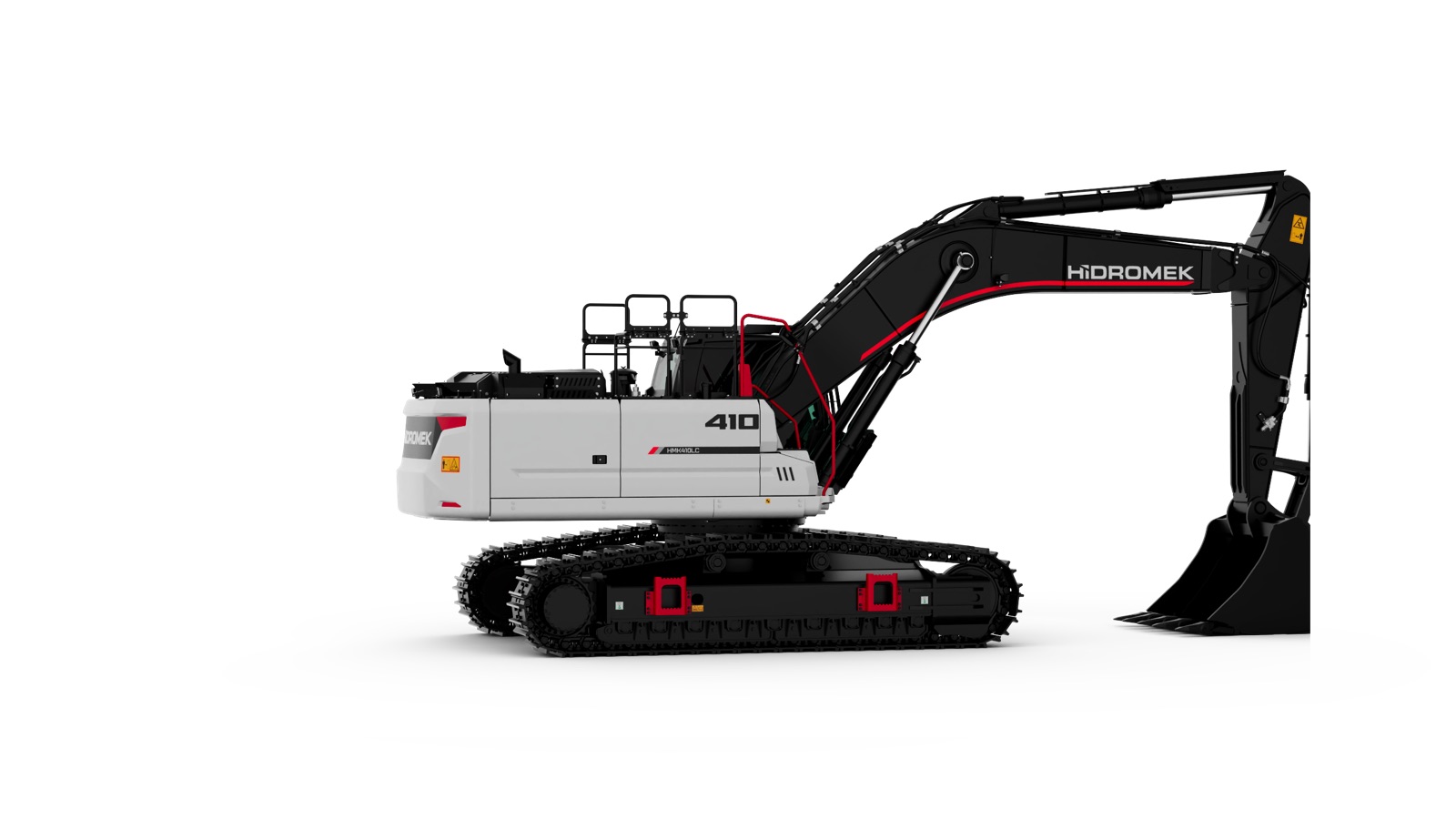

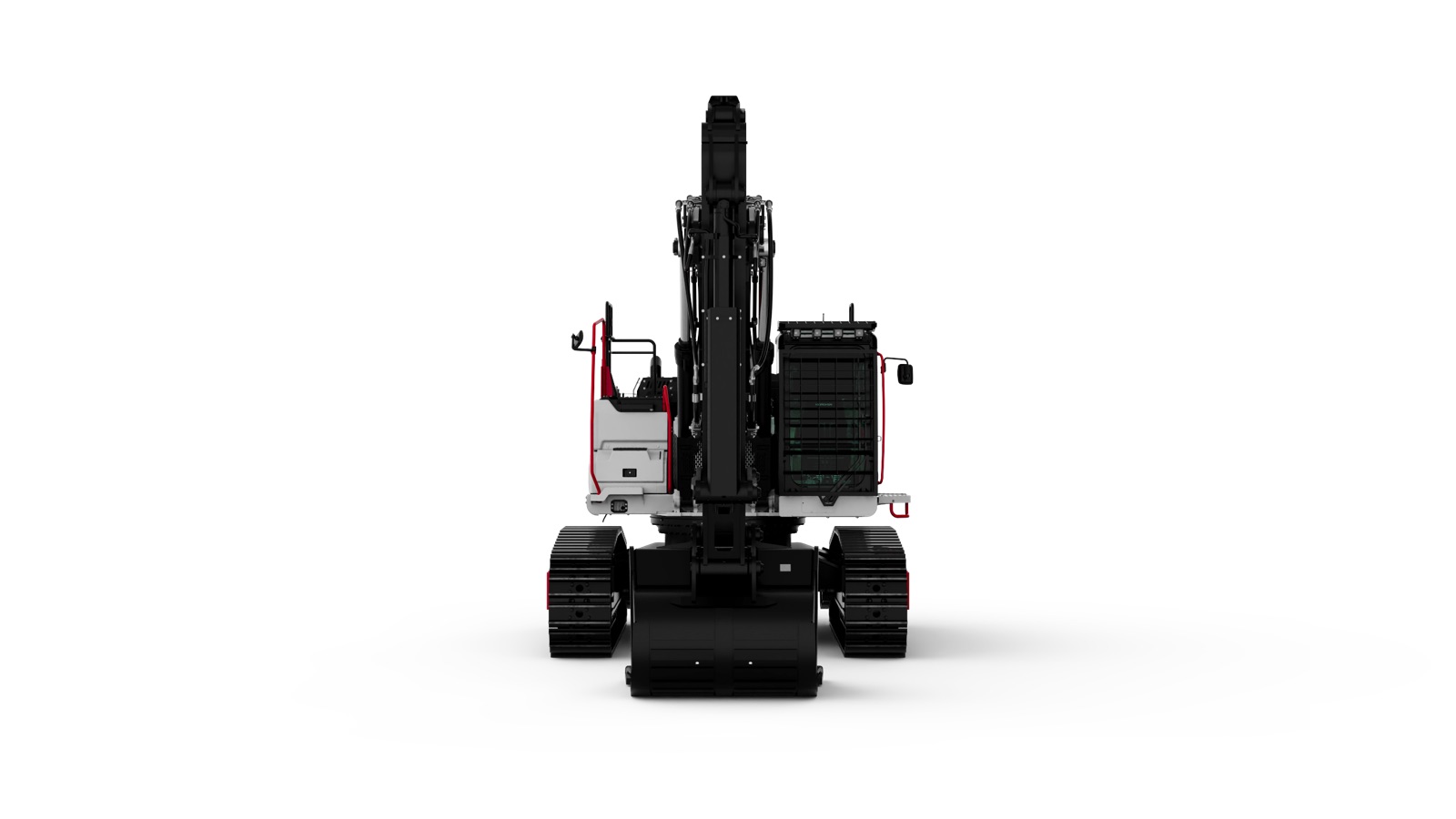

HMK 410 LC UHD

Maximum Power

281 HP (210kW)@1900 rpm

Bucket Digging Force (ISO)

25.300 kgf

Bucket capacity

2,5 m³

  • View Specs & Dimensions Brochure

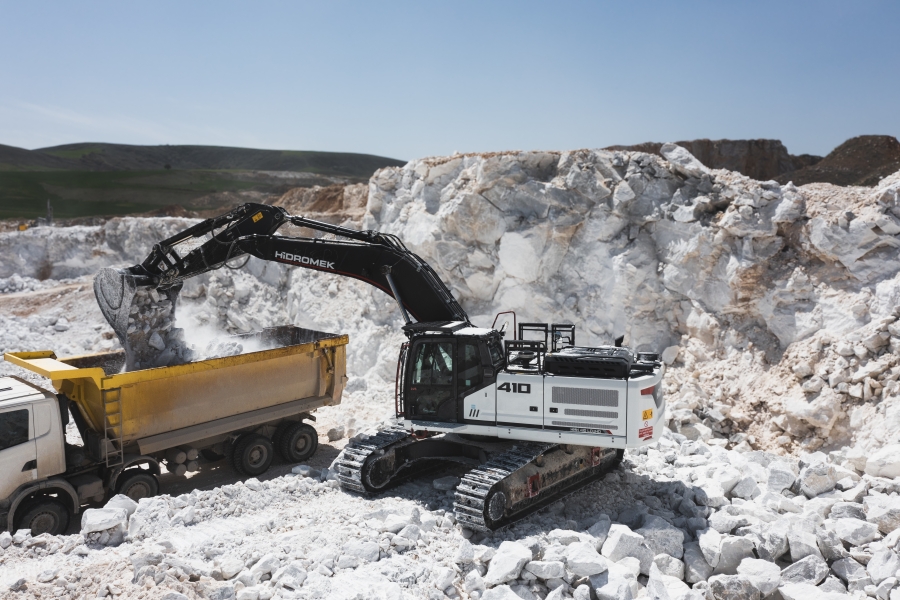

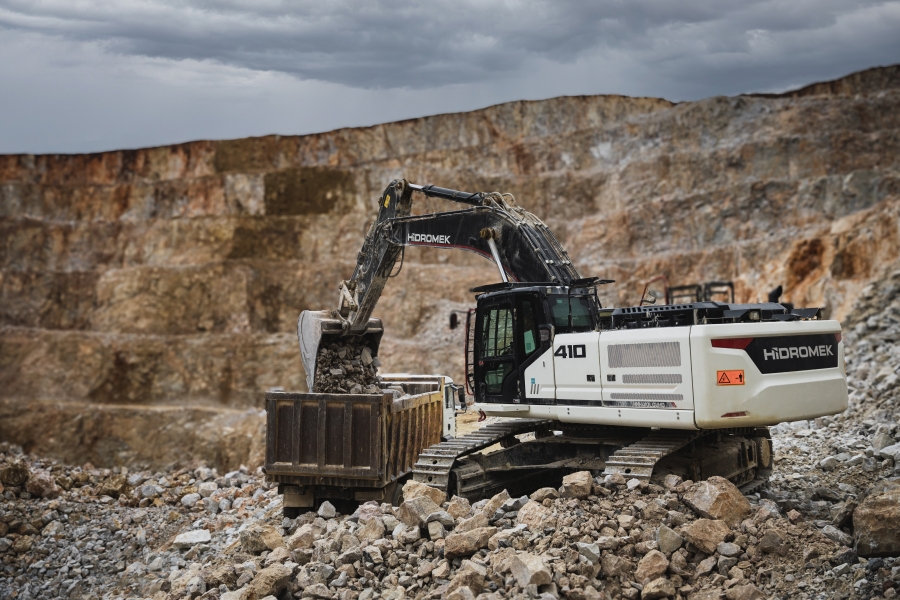

HİDROMEK HMK 410 LC UHD is a heavy-duty excavator designed for maximum durability, productivity, and long-life performance. It is built for extreme working conditions, offering strong excavation power and reliable operation in large-scale projects.

This model is engineered for high efficiency and safety, with reinforced construction and advanced systems. It provides excellent visibility, strong structural durability, and improved operator safety. It is suitable for demanding earthmoving, construction, and industrial applications.

Features

Durable Construction

  • Reinforced heavy-duty structure
  • Designed for harsh working conditions
  • Long-life performance with high reliability

Wide Vision Capacity

  • Camera system reduces blind spots
  • Enhanced LED lighting for night operations
  • Red safety handles and warning labels for visibility

Safety Systems

  • Automatic starting horn
  • Swing warning system
  • Travel warning system

Specifications

Engine

  • Power: 281 HP (210 kW) @ 1900 rpm
  • Torque: 1080 Nm @ 1500 rpm
  • Model: ISUZU 6HK1X
  • 6-cylinder turbocharged diesel engine
  • Displacement: 7790 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 300 L/min
  • Pilot Pump: 28 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 380 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 285 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 9.2 rpm

Travel

  • Maximum Drawbar Pull: 30,260 kgf
  • High Speed: 5.0 km/h
  • Low Speed: 3.0 km/h

Digging Performance

  • Bucket Digging Force (ISO): 25,300 kgf
  • Bucket Capacity: 2.5 m³
  • Arm Breakout Force (ISO): 22,100 kgf

Working Dimensions

  • Boom: 6,100 mm
  • Arm: 2,600 mm
  • Maximum Digging Depth: 6,530 mm
  • Maximum Reach at Ground Level: 10,210 mm

Operating Weight

  • 42,200 kg
  • View Specs & Dimensions Brochure
