HMK 210 LC

Maximum loader bucket breakout force

172 HP (128 kW) @2000 rpm

Bucket Digging Force (ISO)

13.700 kgf

Bucket capacity

1,0 m3

  • View Specs & Dimensions Brochure

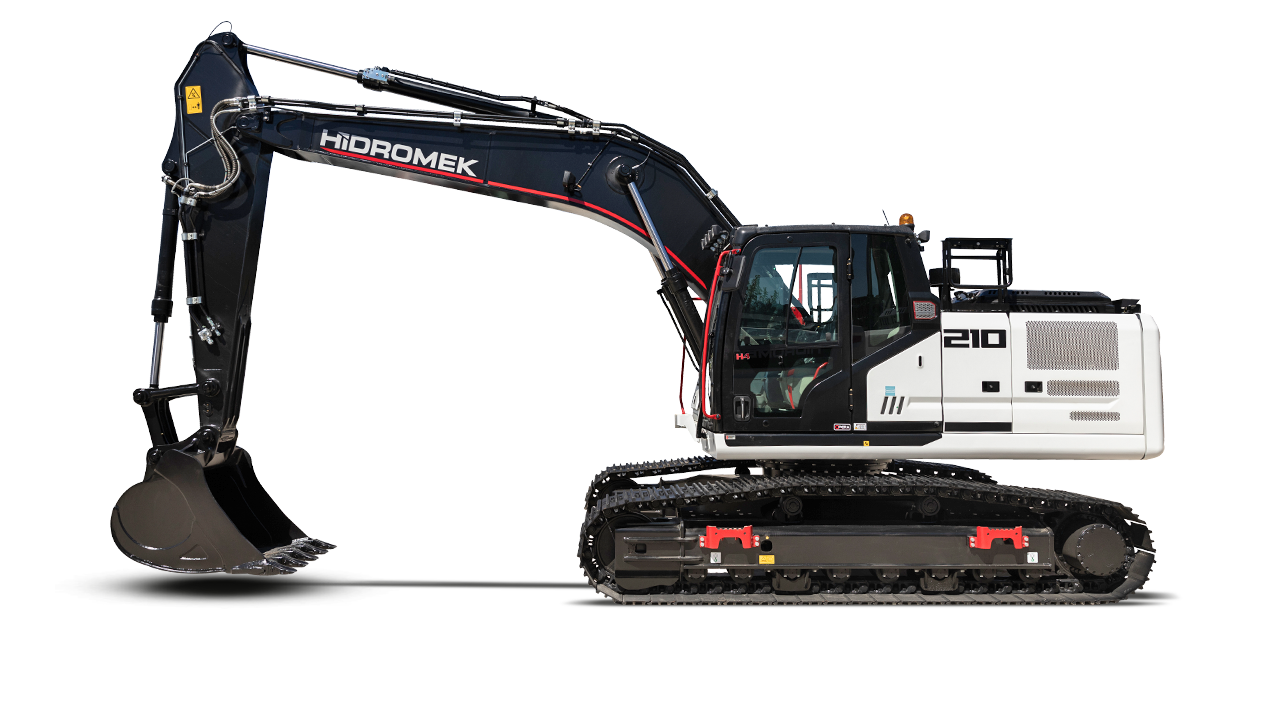

HİDROMEK HMK 210 LC is a powerful excavator designed for heavy-duty operations. It delivers high performance, strong digging power, and efficient operation in demanding construction and excavation environments.

This model is built for durability, strength, and productivity. With its advanced hydraulic system and powerful engine, it ensures stable performance even in tough job sites. The machine is designed to maximize efficiency while maintaining operator comfort and control.

Features

  • High-performance 172 HP engine for strong output
  • Heavy-duty structure for tough working conditions
  • Advanced hydraulic system with high flow capacity
  • Strong digging force for efficient excavation
  • Stable swing system for smooth operation
  • Designed for construction, earthmoving, and large-scale projects
  • Operator-friendly control and efficient fuel usage

Specifications

Engine

  • Power: 172 HP (128 kW) @ 2000 rpm
  • Torque: 670 Nm @ 1600 rpm
  • Model: ISUZU 4HK1X
  • 4-cylinder turbocharged diesel engine
  • Displacement: 5193 cc
  • Emission Class: EU Stage V

Hydraulic System

  • Pump Type: Double variable displacement axial piston pumps
  • Max Flow: 2 × 221 L/min
  • Pilot Pump: 20 L/min
  • Pressure (Attachment): 350 kgf/cm²
  • Power Boost: 370 kgf/cm²
  • Travel: 350 kgf/cm²
  • Swing: 306 kgf/cm²
  • Pilot: 40 kgf/cm²

Swing System

  • Swing Speed: 11.9 rpm

Travel

  • Maximum Drawbar Pull: 18,575 kgf
  • High Speed: 5.7 km/h
  • Low Speed: 3.8 km/h

Digging Performance

  • Bucket Digging Force (ISO): 13,700 kgf
  • Bucket Capacity: 1.0 m³
  • Arm Breakout Force (ISO): 10,700 kgf

Working Dimensions

  • Boom: 5.70 m
  • Arm: 2.92 m
  • Maximum Digging Depth: 6,790 mm
  • Maximum Reach at Ground Level: 9,870 mm

Operating Weight

  • 21,900 kg
  • View Specs & Dimensions Brochure
