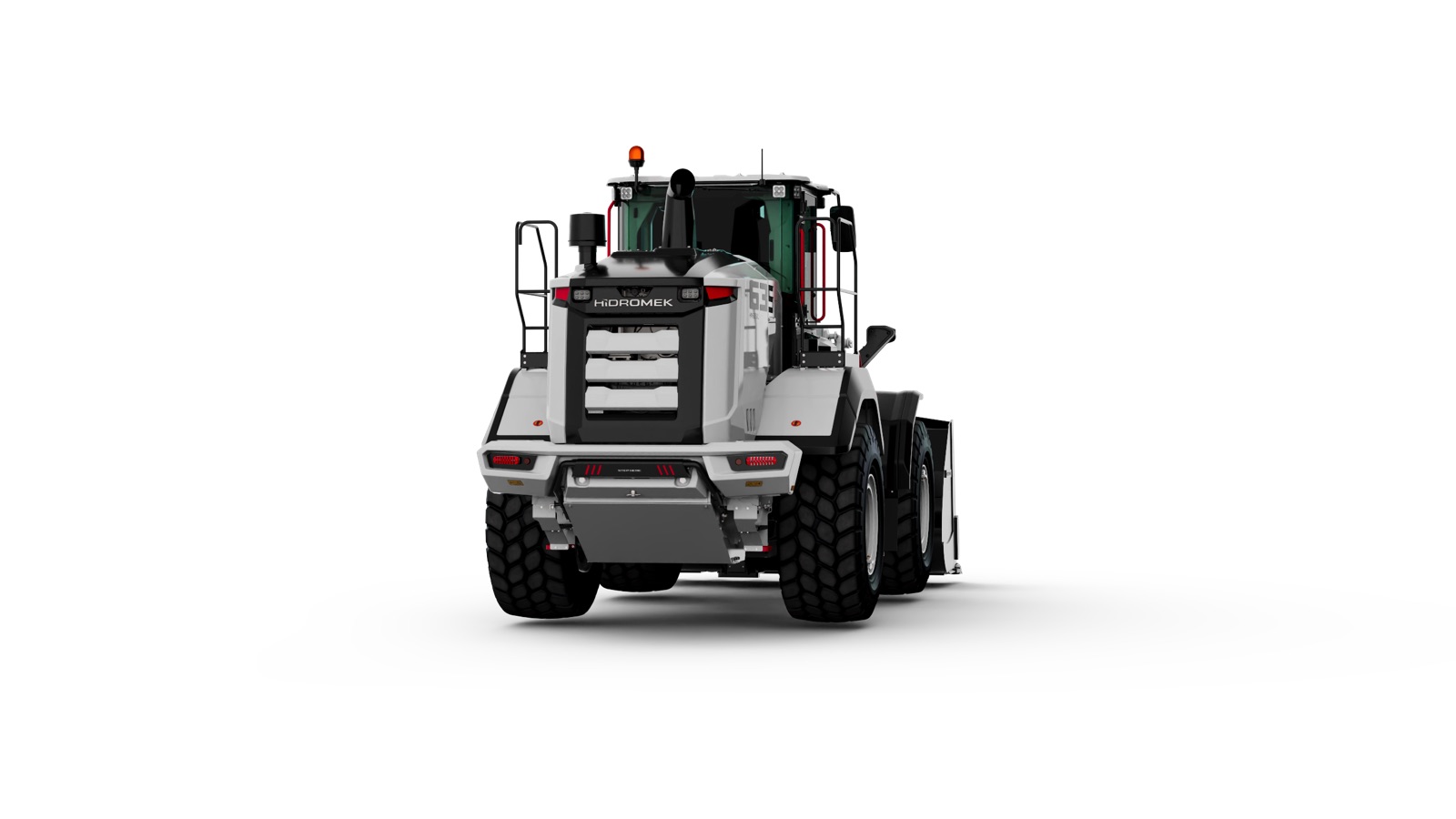

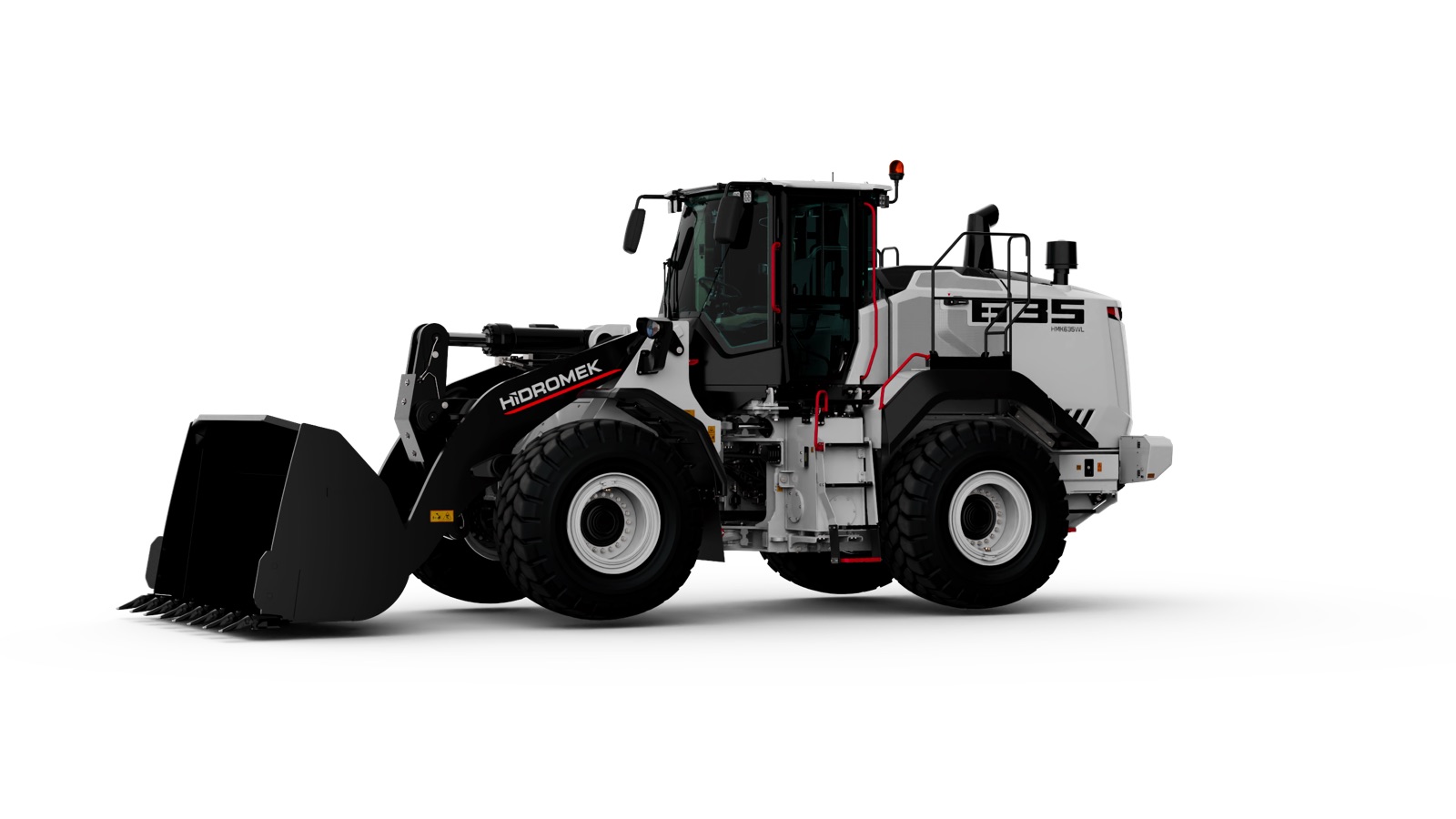

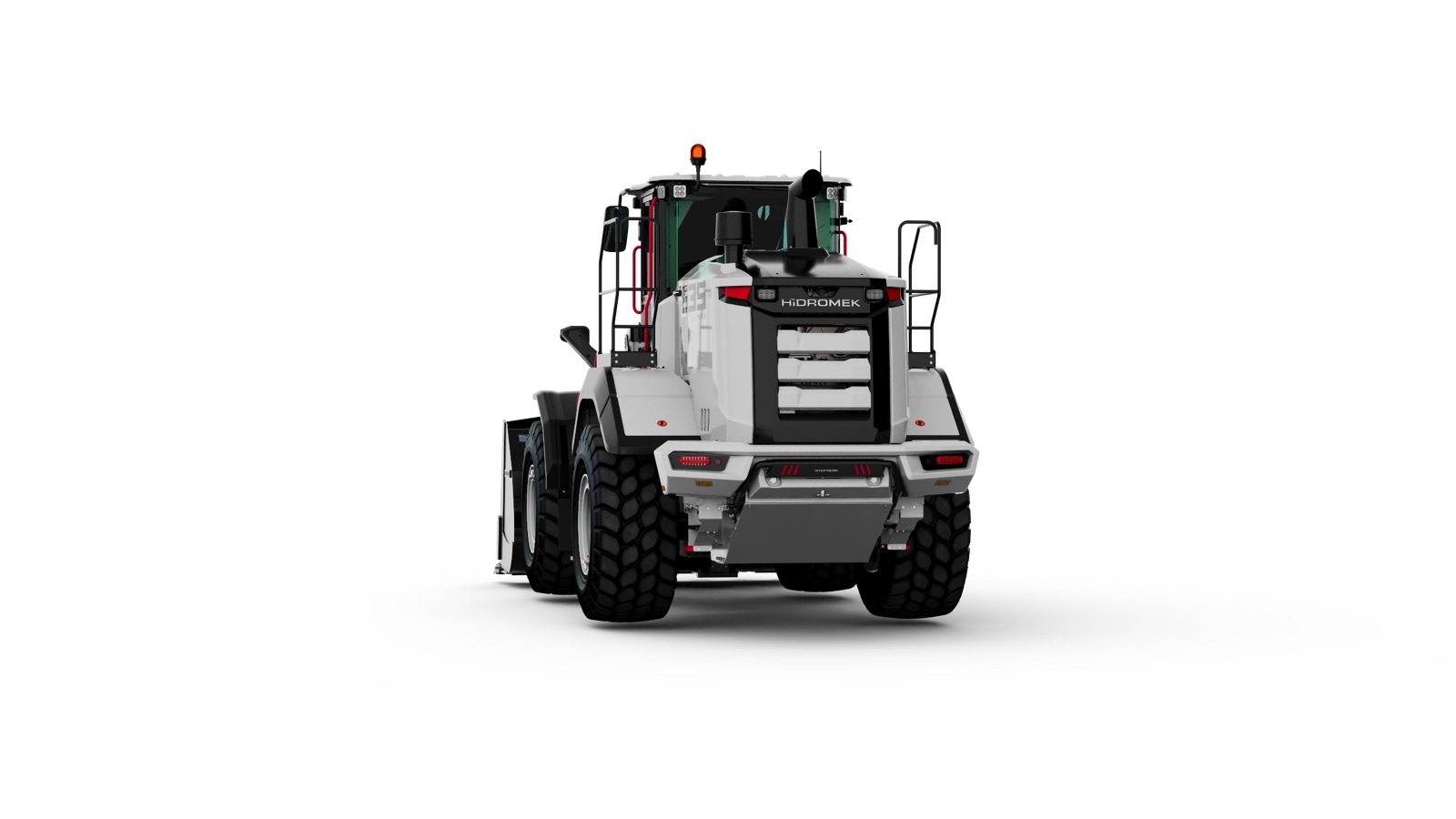

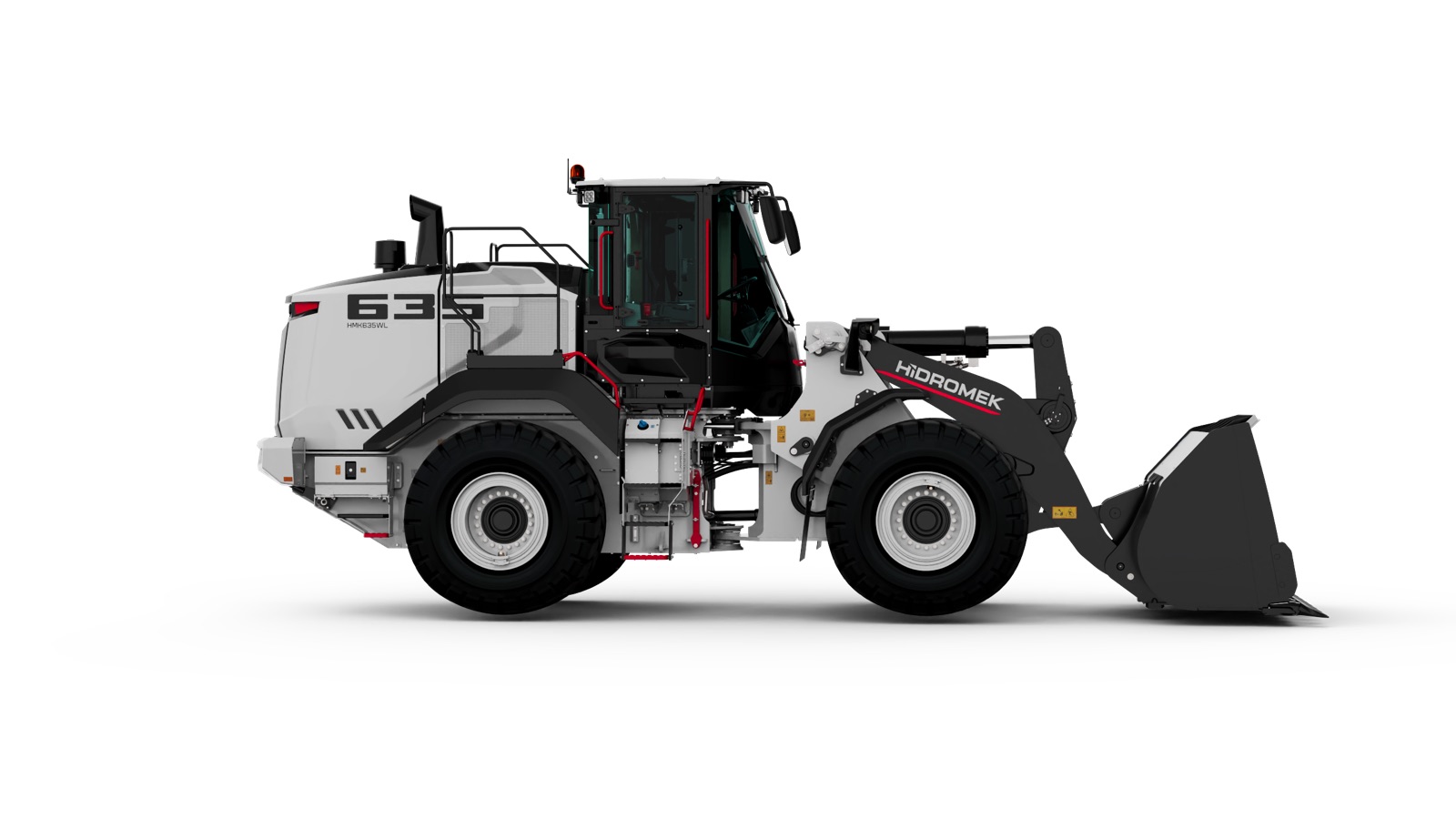

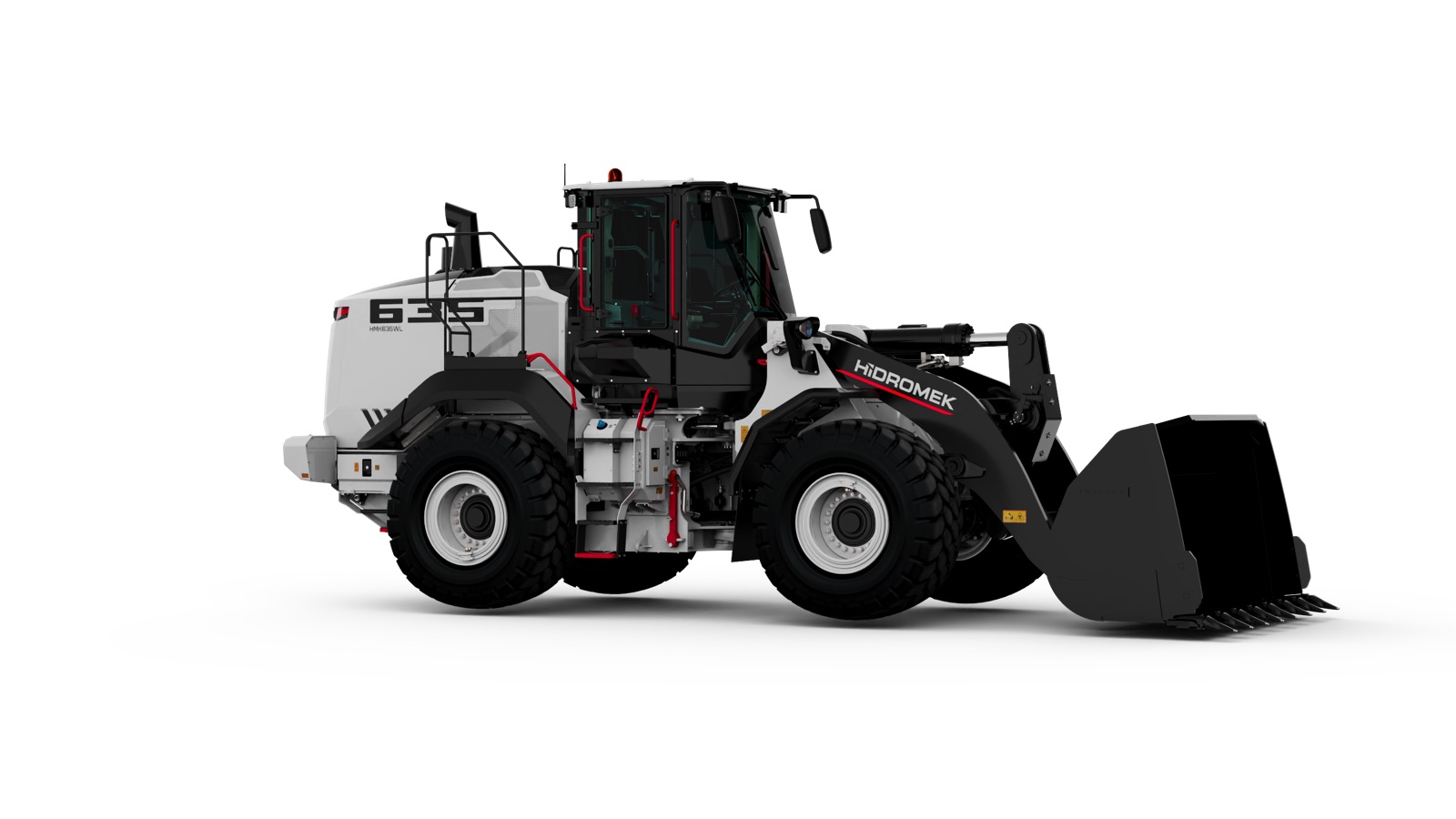

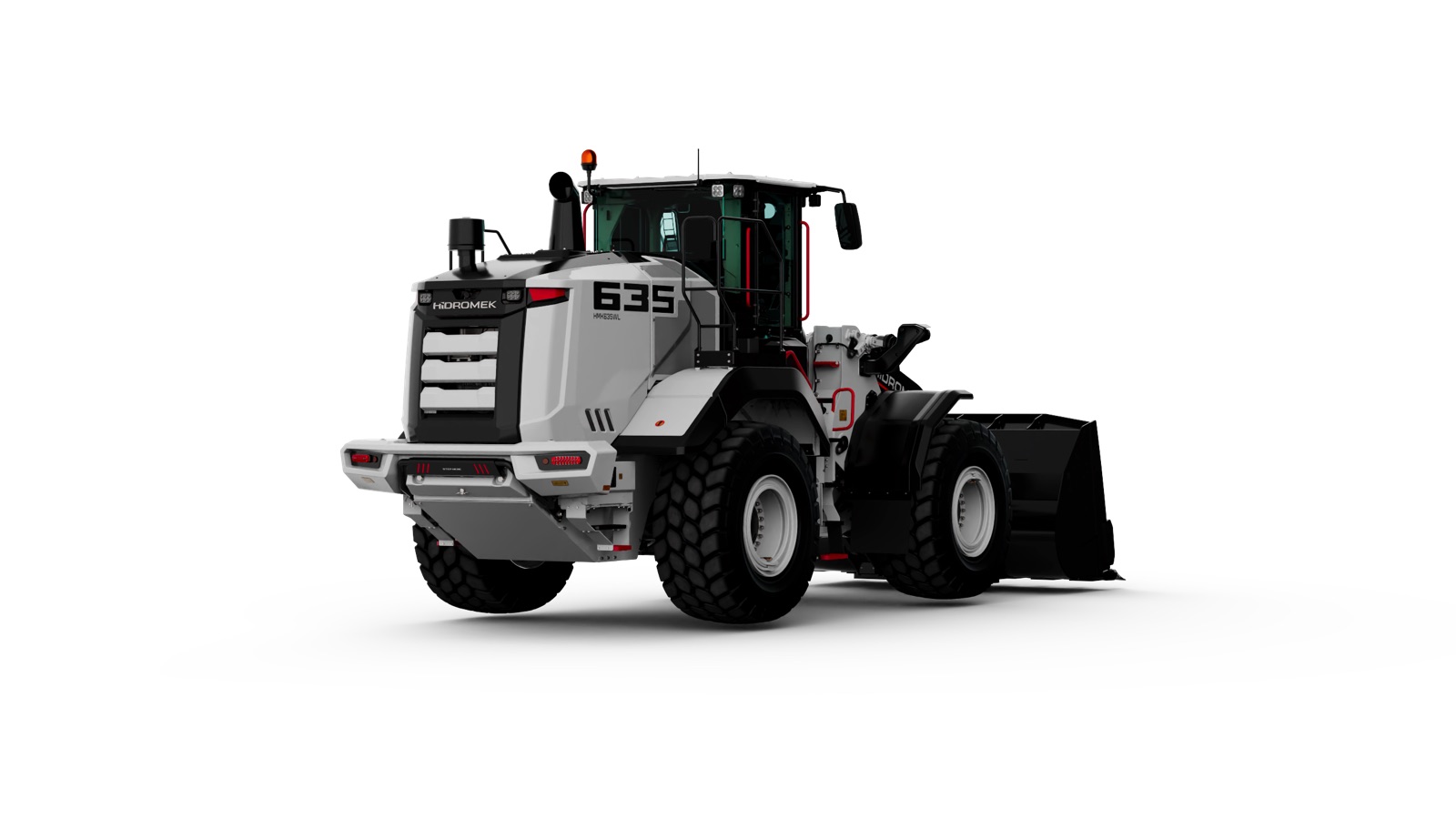

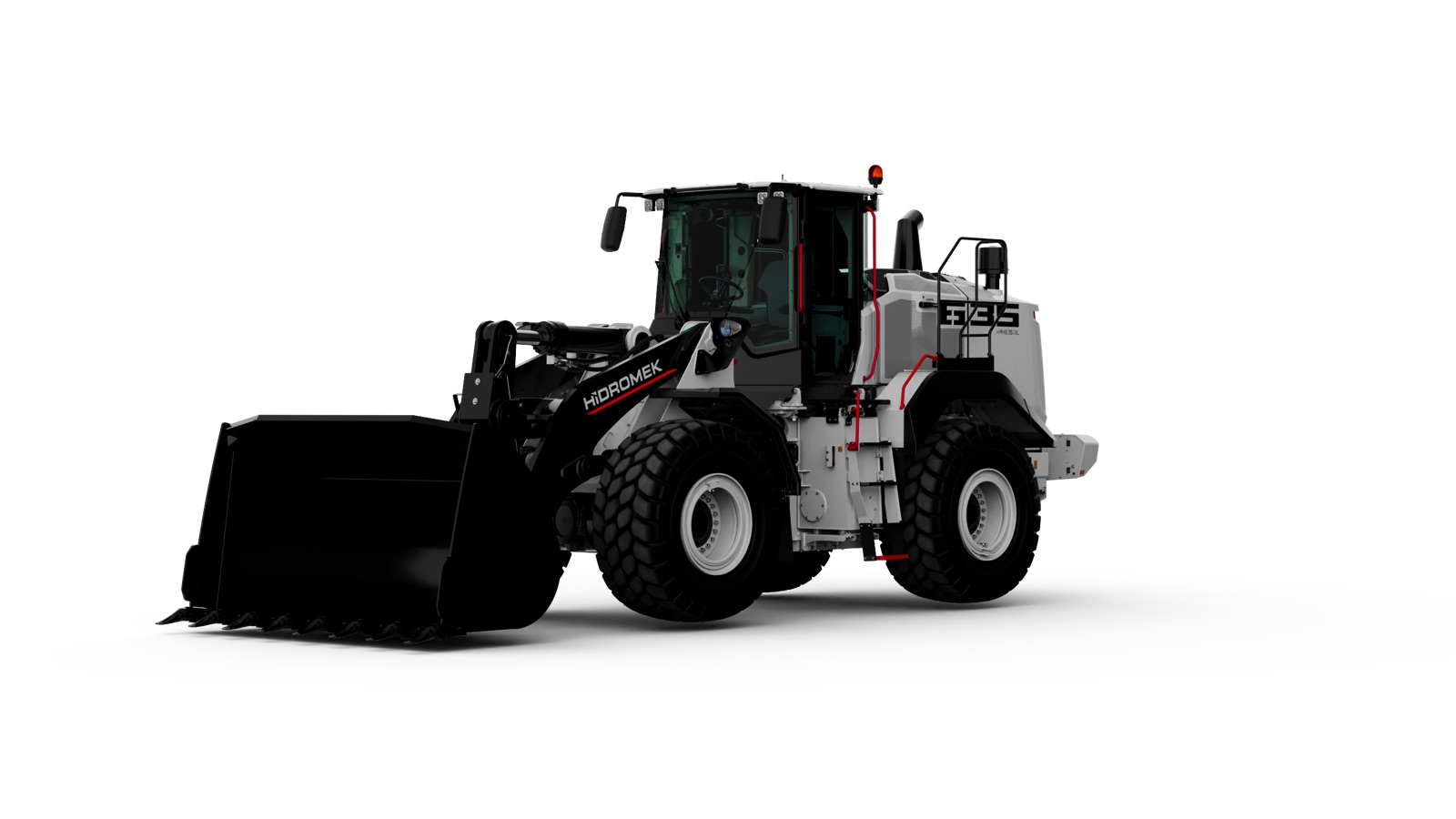

HMK 635 WL

Maximum Power

282 HP (210 kW) @1800 rpm

Bucket capacity

3,5 m³

Maximum breakout force

17650 kgf

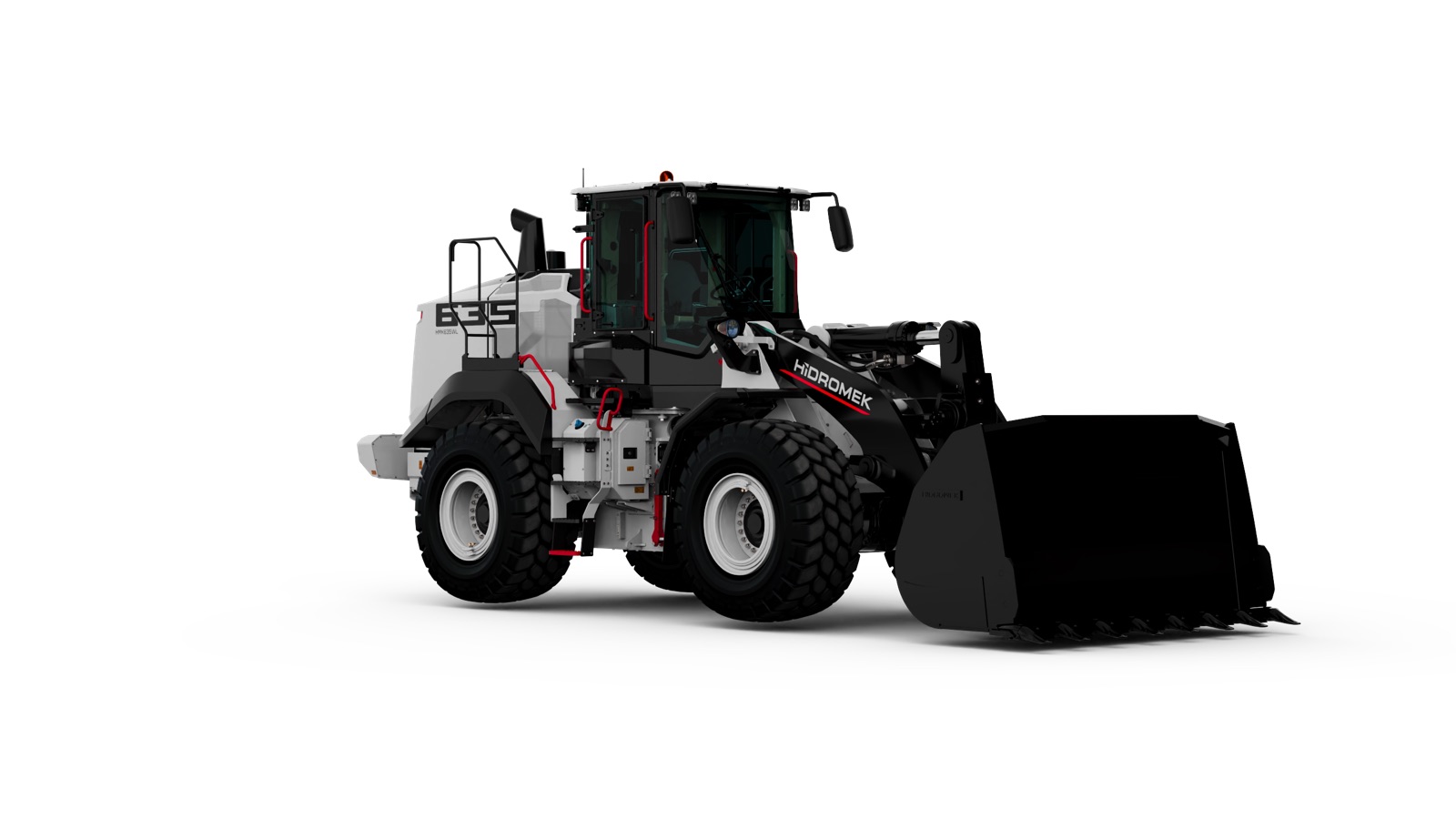

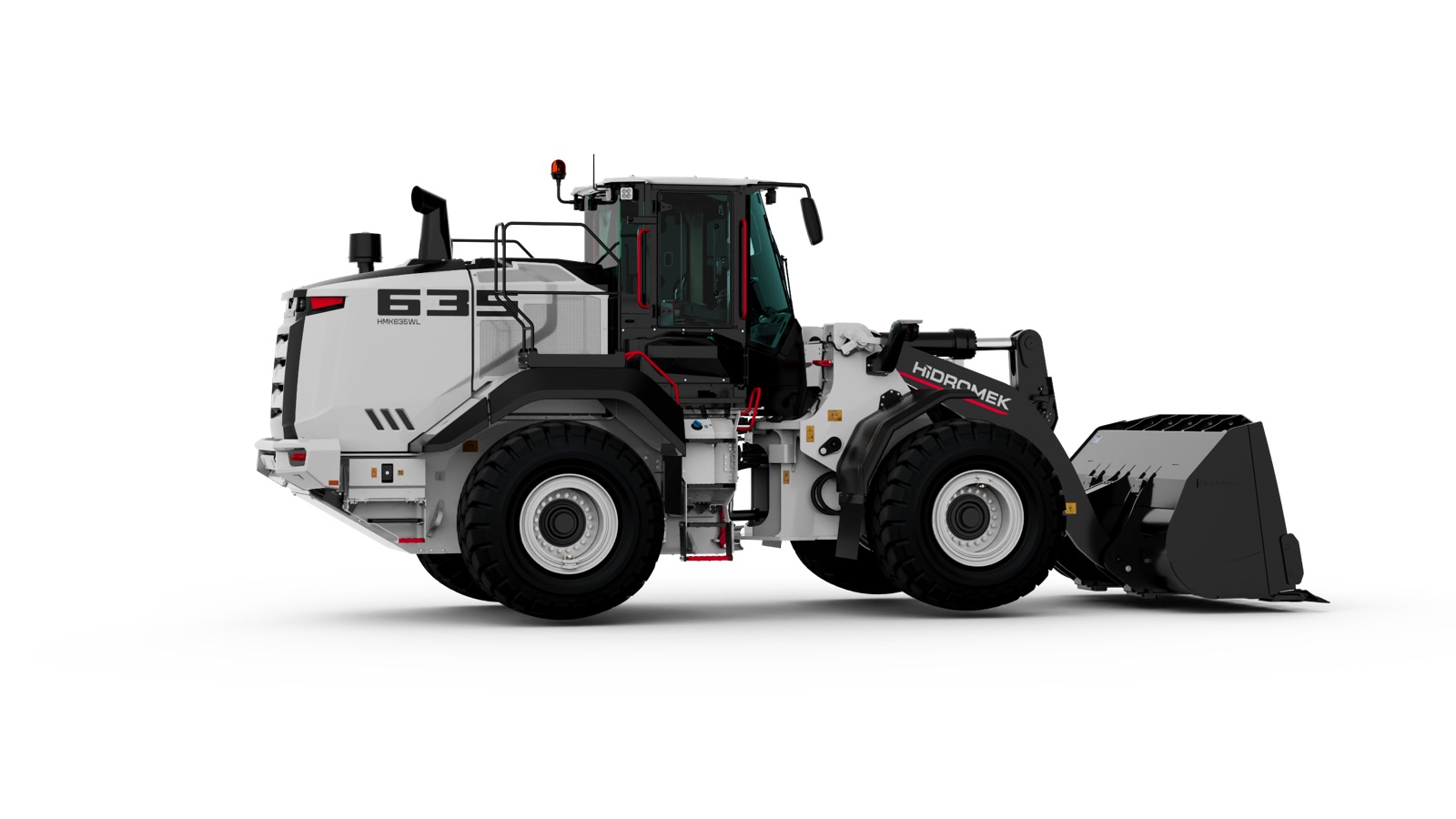

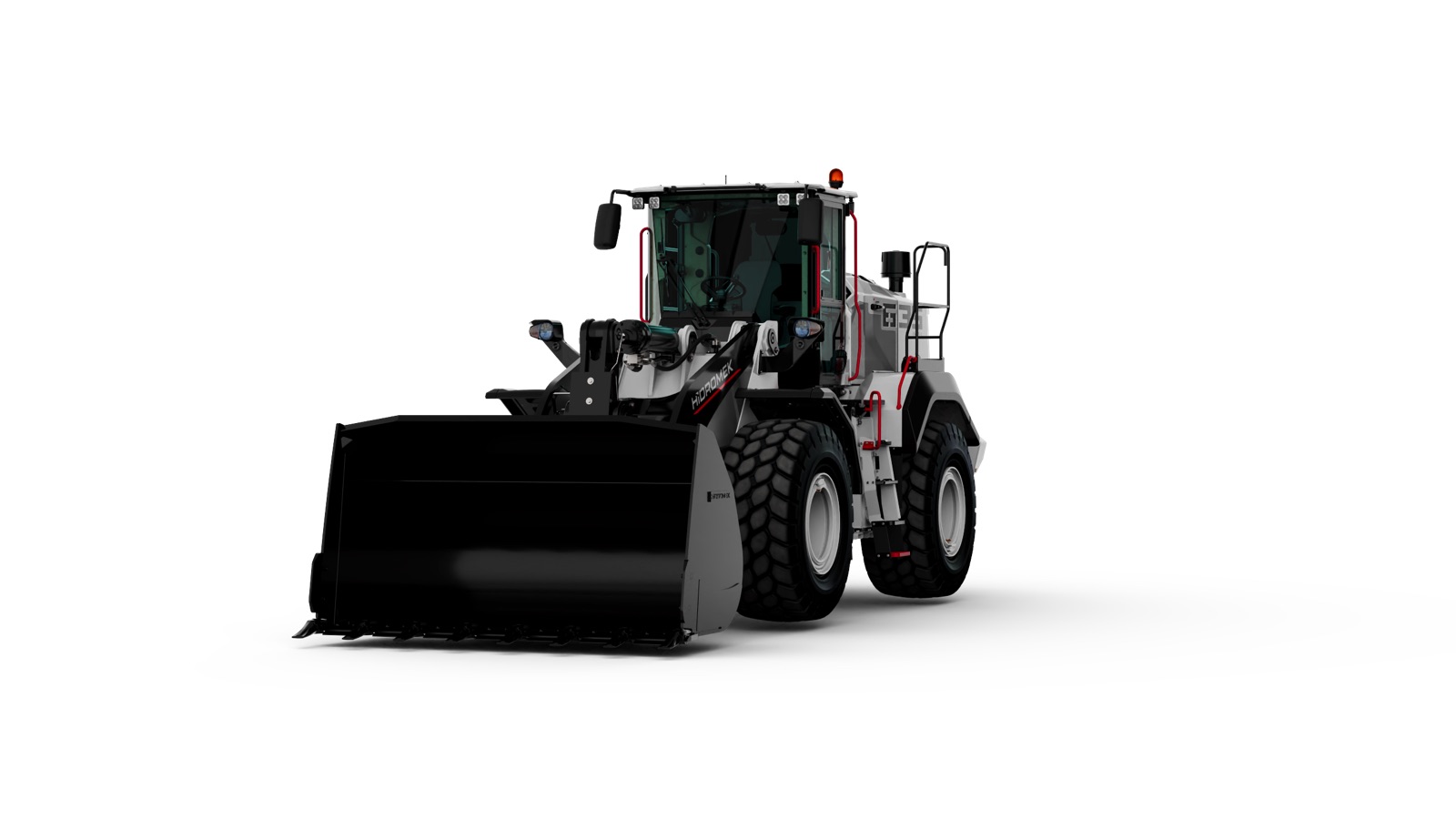

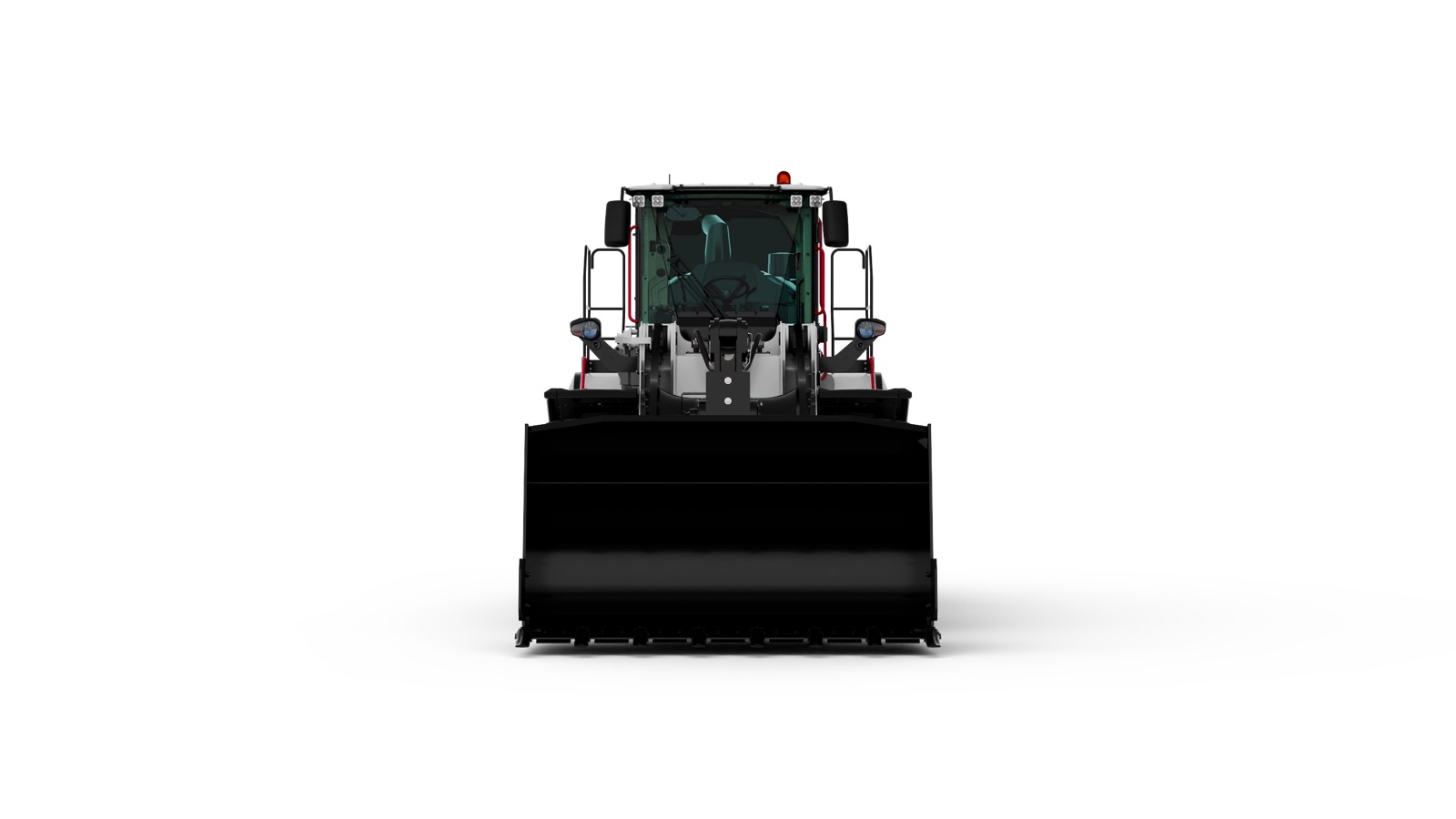

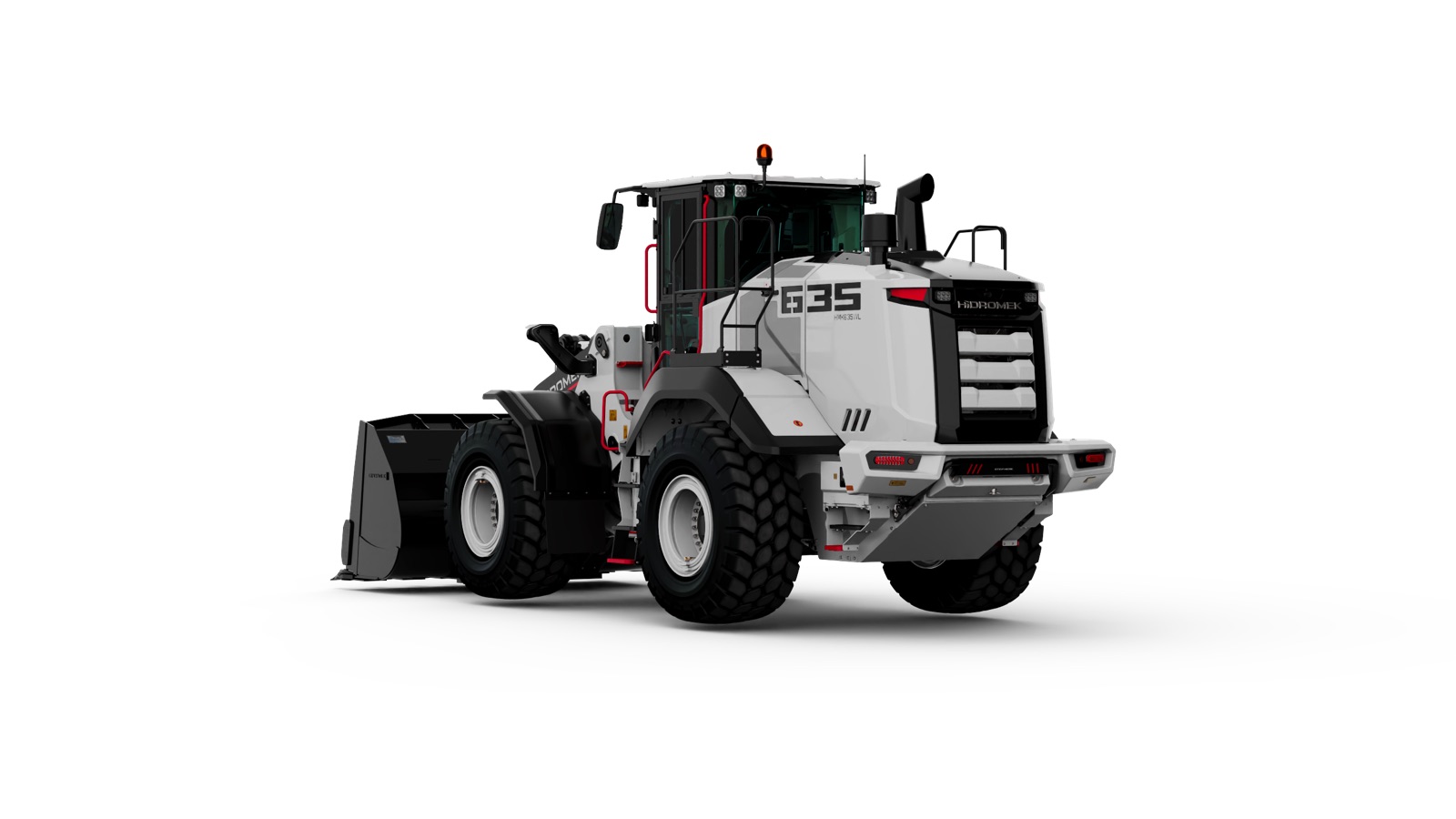

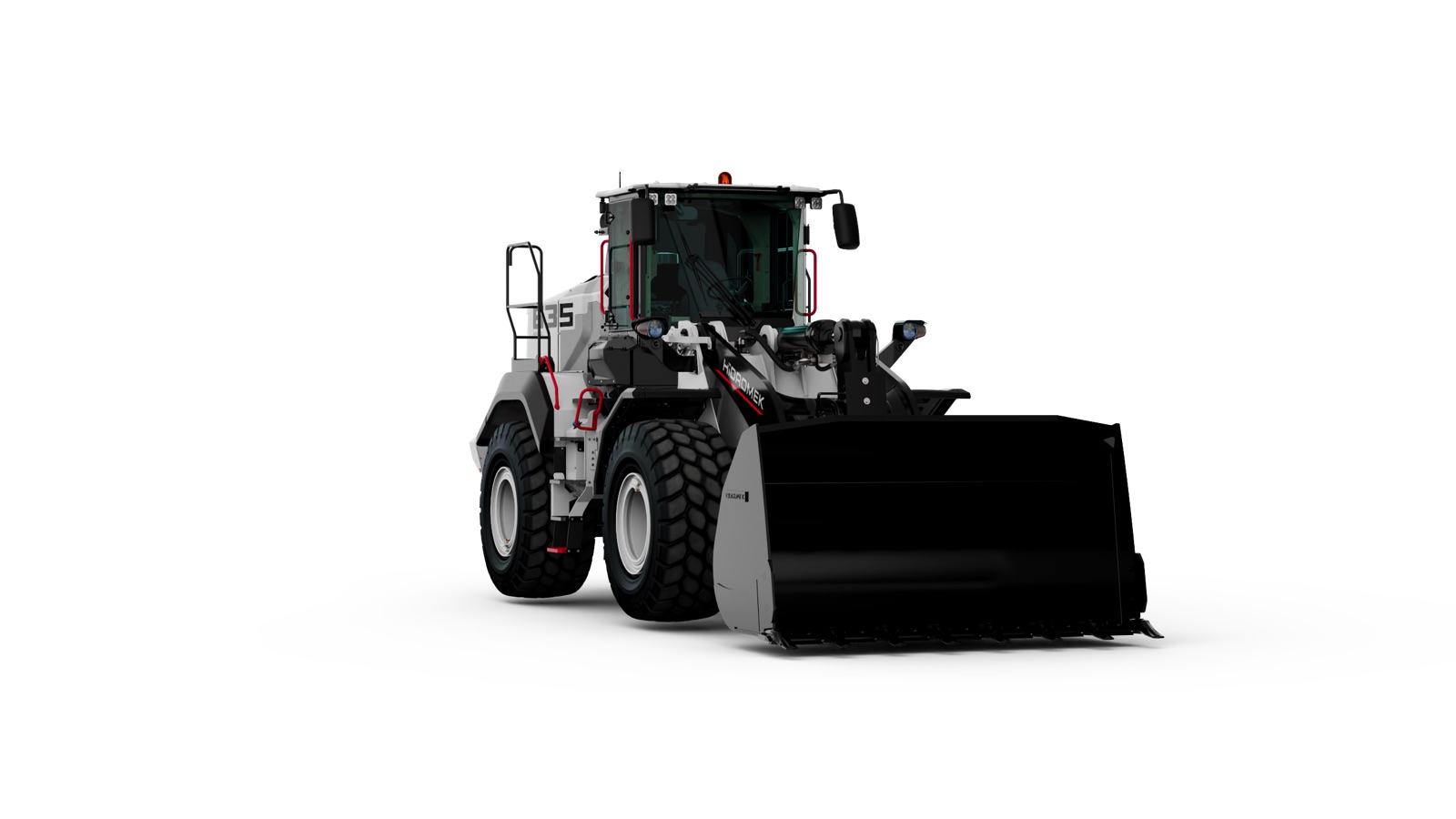

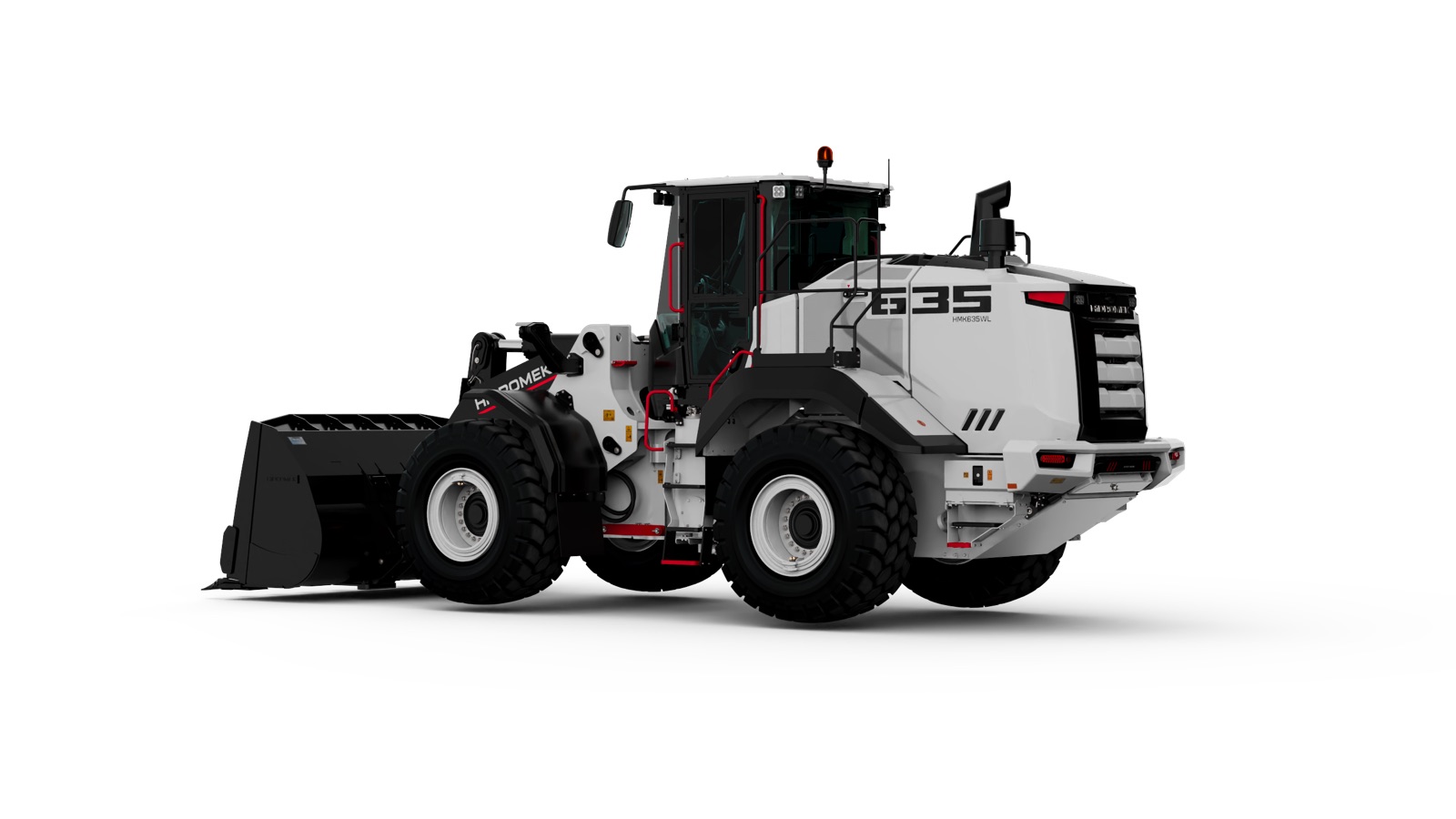

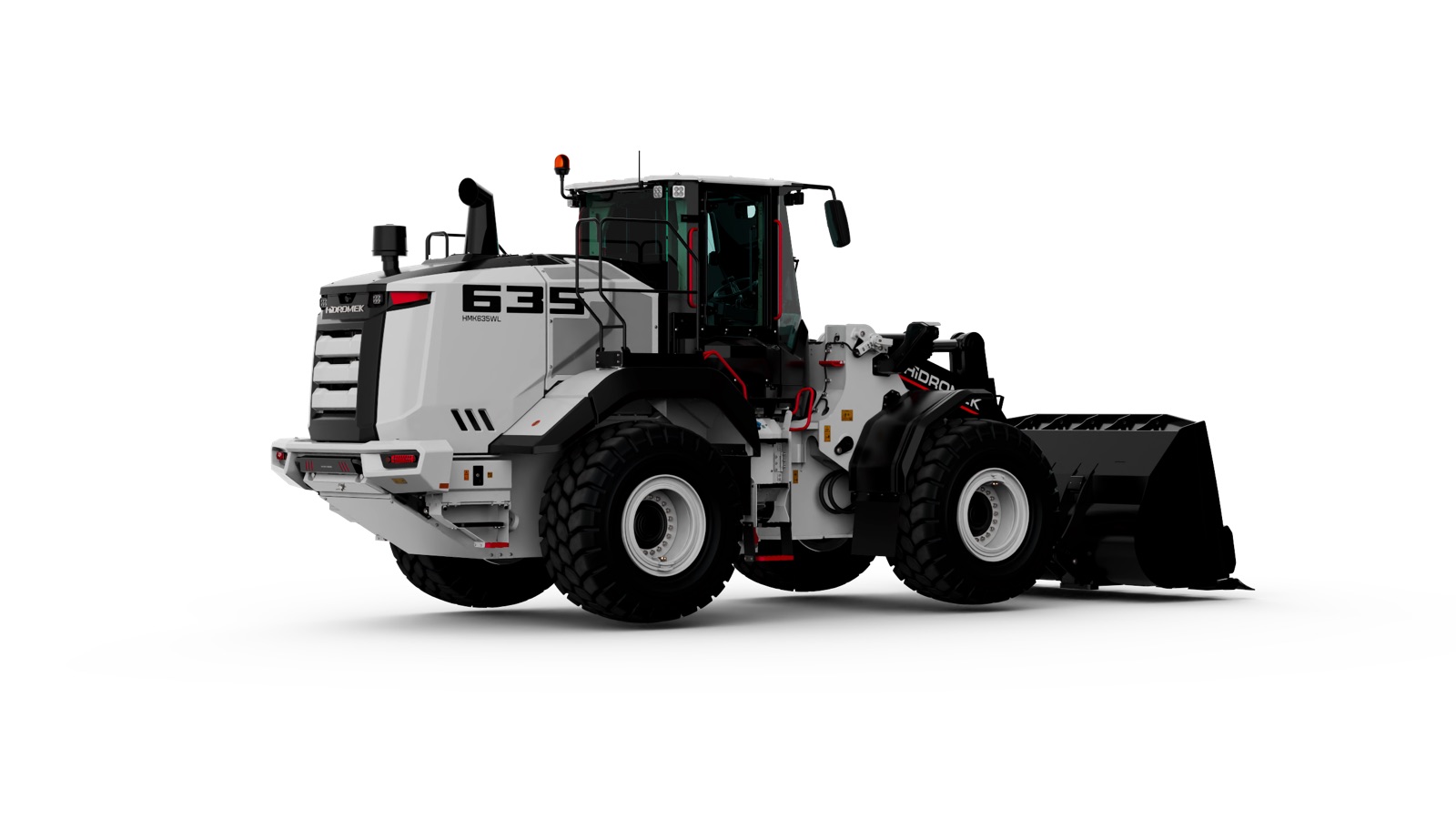

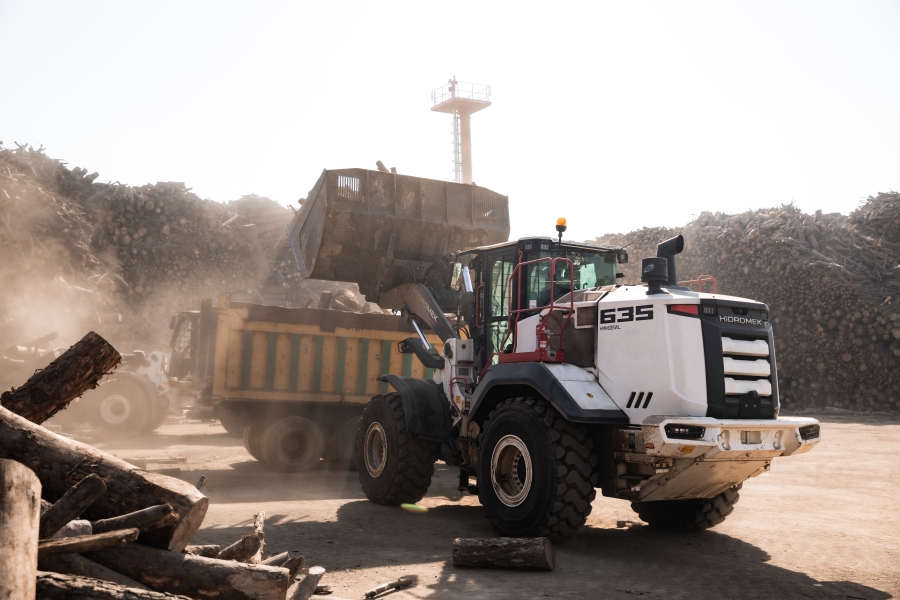

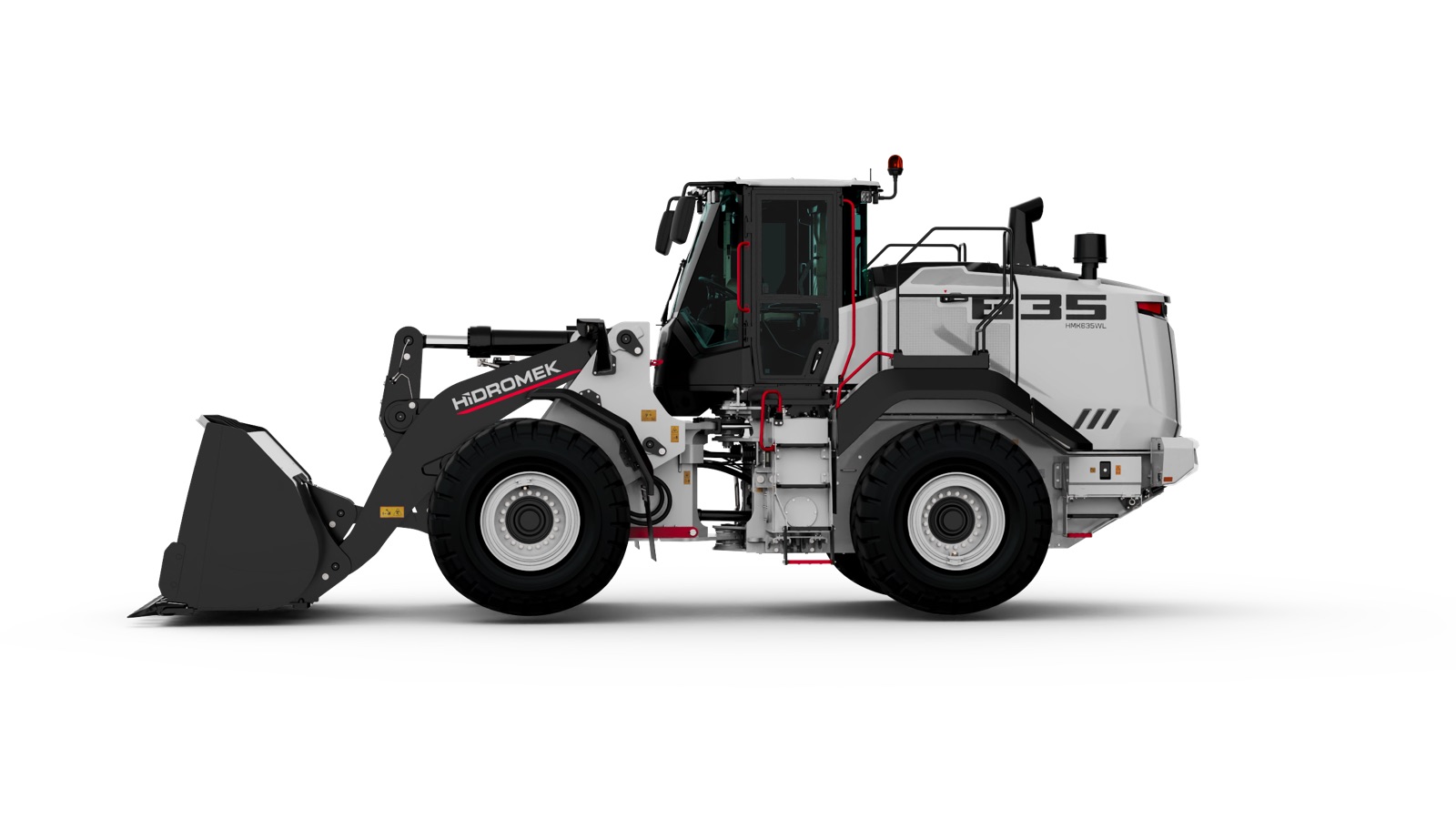

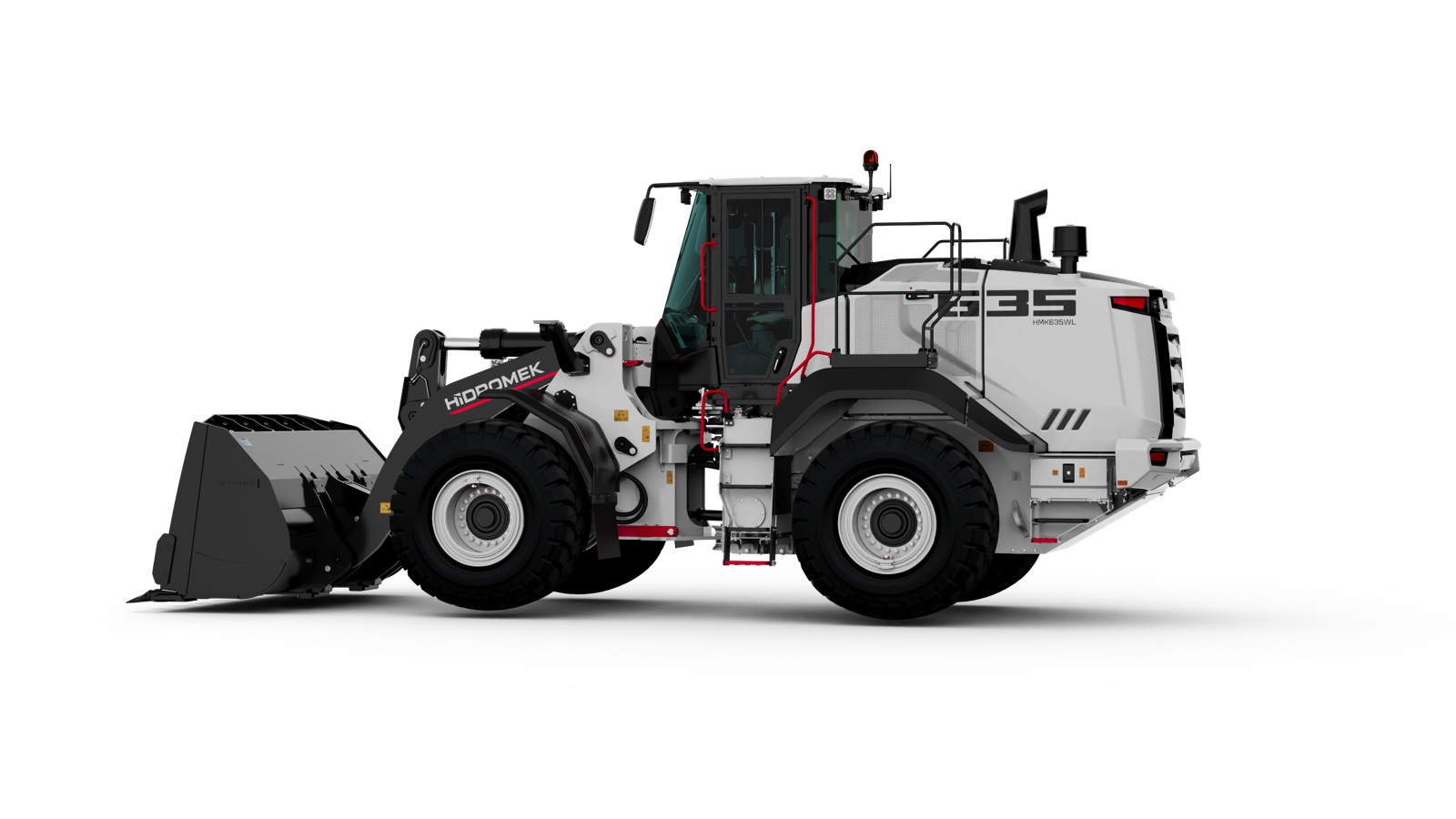

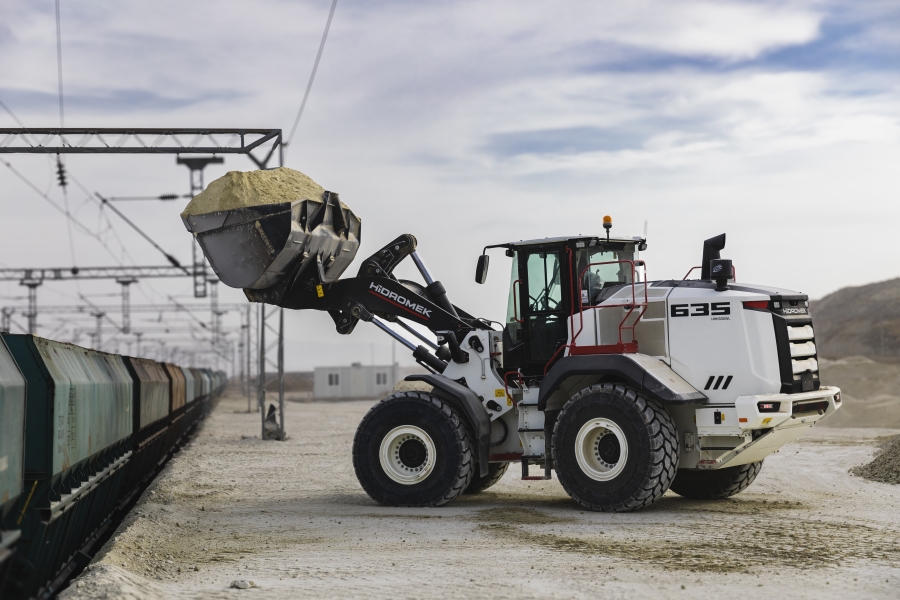

The HMK 635 WL is a heavy-duty wheel loader that combines high performance, versatility, and operator comfort. This machine is used in quarry sites, concrete plants, industrial applications, and public services. With different attachments, it provides productive and efficient operation, especially in tough and severe working conditions.

Features

High performance aur powerful engine
Heavy-duty design for harsh working conditions
Excellent breakout force aur control capability
Multiple attachments support for versatility
Operator comfort aur safety features
Fuel-efficient aur advanced hydraulic system
Strong transmission with multiple gears

Specifications

Engine

Brand / Model: Mercedes-Benz MTU6R1000
Type: Water cooled, turbocharged diesel engine
Maximum Power: 282 HP (210 kW) @1800 rpm
Maximum Torque: 1200 Nm @1200–1600 rpm
Displacement: 7,700 cc
Cylinders: 6 (inline)
Bore x Stroke: 110 x 135 mm
Emission Class: Stage V

Transmission

Gears: 5 forward, 3 reverse

Driving Speed

1st Gear: 5 km/h
2nd Gear: 10 km/h
3rd Gear: 16 km/h
4th Gear: 25 km/h
5th Gear: 40 km/h

Loader Performance

Bucket Capacity: 3.5 m³
Maximum Breakout Force: 17,650 kgf
Static Tipping Load: 15,900 kgf

Operating Weight

20,600 kg
