Weight
15,432 lbs.
HorsePower
100 HP
Bucket Capacity
1.57-2.35 yd³

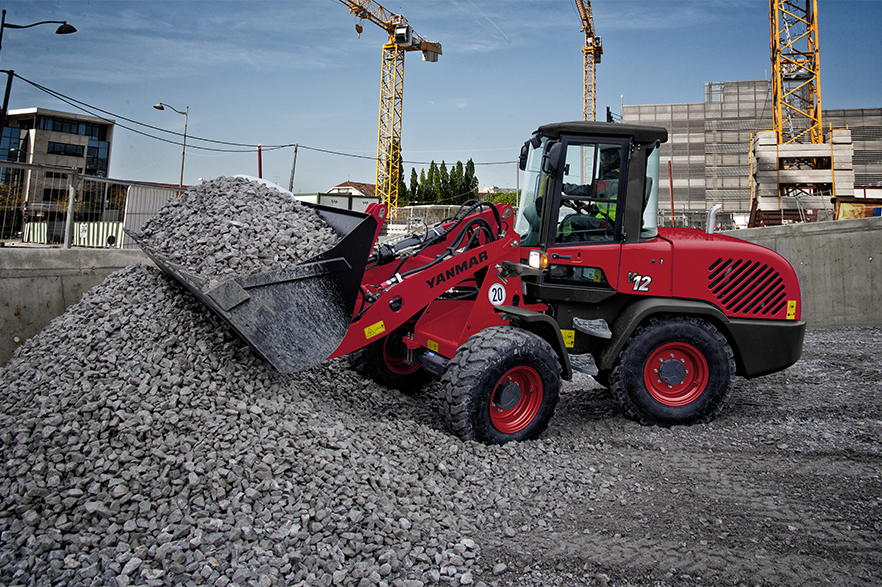

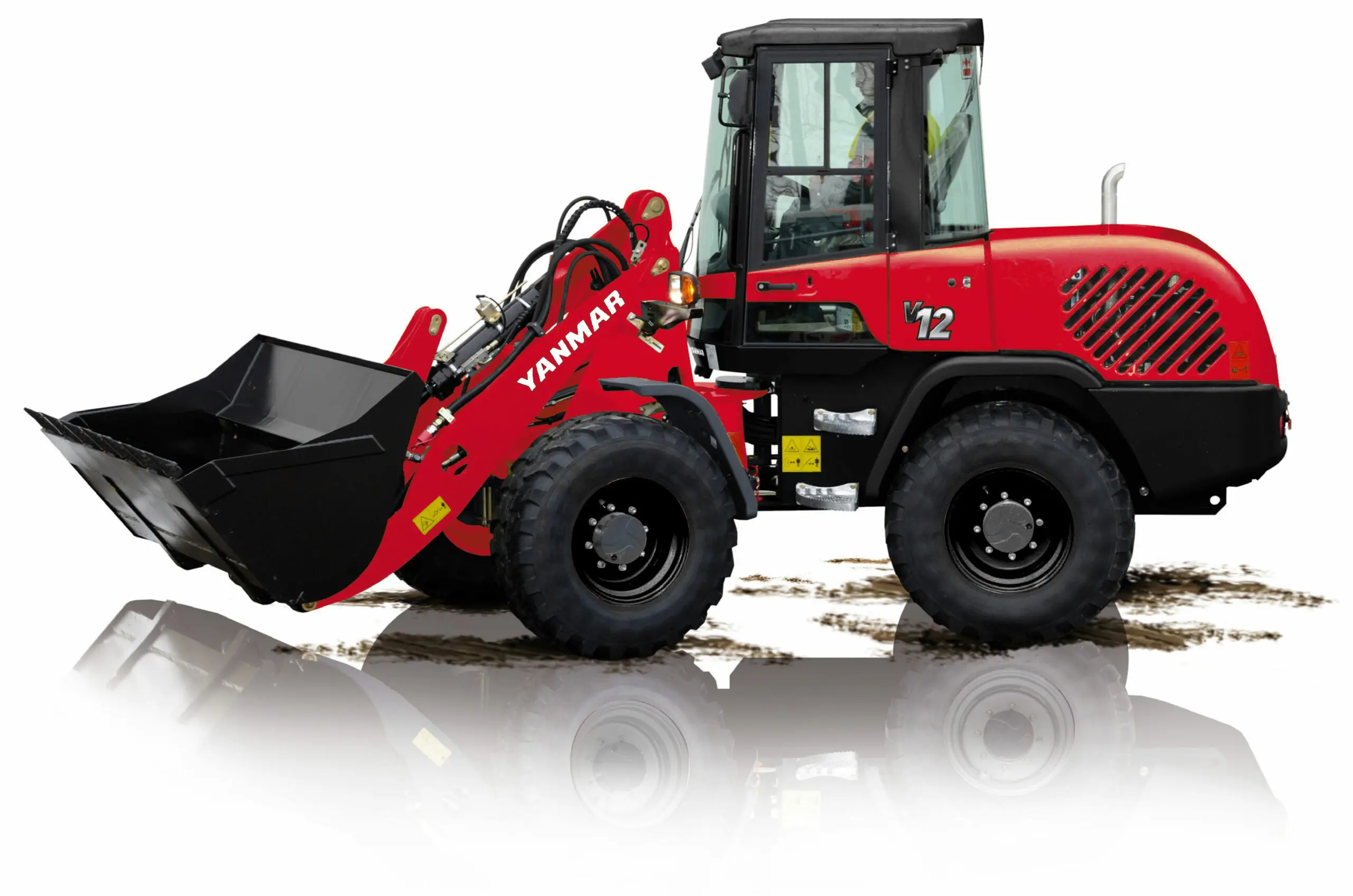

Ringing the bell at a full 100-horsepower, the V12 represents our biggest entry in the compact wheel loader category. Big on power but still light on its feet, an intelligently designed combination of fully automatic drive mode, auto-leveler bucket control and the smooth ride of an oscillating rear axle ensures you’ll load more material, more quickly and in more comfort. With a multitude of attachments available, and our legendary diesel performance that does more for less year after year—the Yanmar V12 is a serious vehicle for serious operators who value performance, efficiency, and a strong bottom line.
Put the all-out performance of 100-ponies to work and enjoy the Tier 4 Final certified, turbo-charged efficiency that keeps fuel usage in check and puts more money in your wallet.
Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.
Enjoy all day comfort in the hydraulic suspended seat and never miss a beat with the wide field of views afforded by the wrap-around cab windows found at the front and rear.
The YANMAR tradition of extended service interval and ease of maintenance ensures years of service and better return on your investment now and in the future.
Rear axle oscillation delivers a smooth ride over uneven terrain and keeps all four wheels on the ground, so you don’t lose traction or excess material from the bucket.
With 40-degrees of articulation in each direction, the single pin design provides greater stability and improved steering precision with less need for adjustments or maintenance.
| Operating Weight | |
|---|---|
| SAE J 1197 | 15,432 lbs |
| Engine Power | |
| Net power rating at 2,200 rpm (SAE J 1349) | 100 hp |
| Performance | |
| Bucket Capacity | 1.57–2.35 yd3 |
| Tipping Load, Straight | 11,023 lbs |
| Tipping Load, Articulated | 9,700 lbs |
| Draw bar | (L) 12,364.50 (H) 14,487.80 |
| Steering | |
| Total steering angle | 80 deg |
| Brakes | |
| Auxiliary brake | Articulated, 2 steering cylinders with final positioning damping on both sides, fully hydraulic through Load-Sensing priority valve |
| Tires | |
| Standard | 405/70 R20 Goodyear Powerload |
