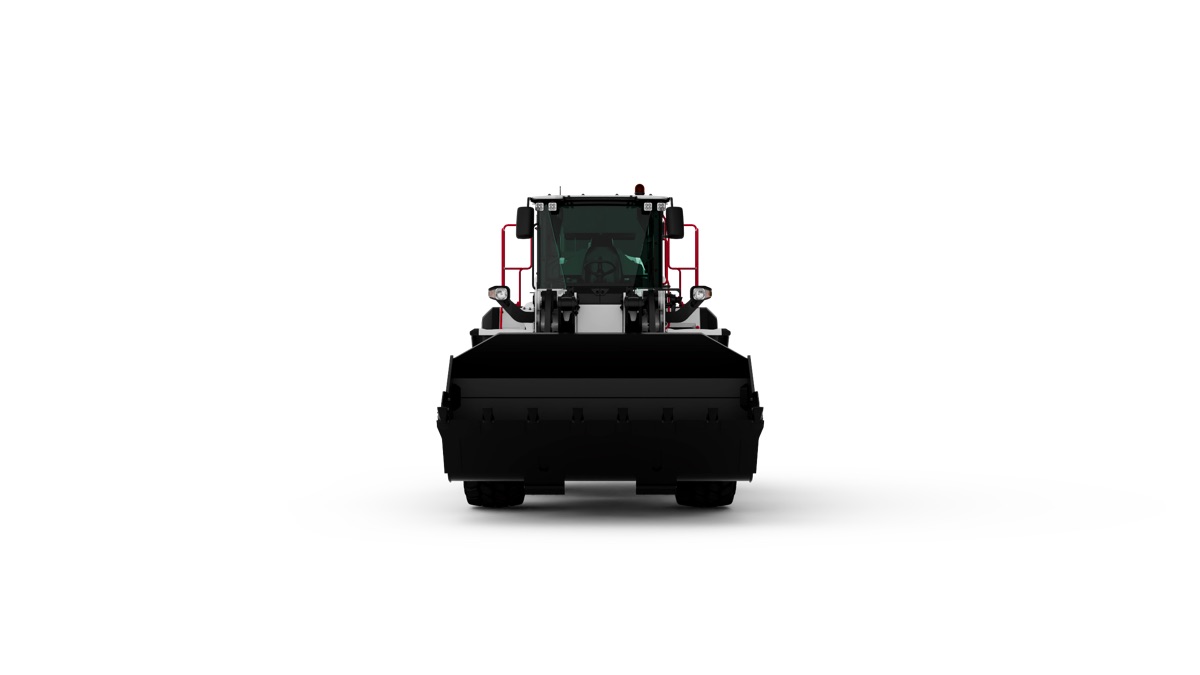

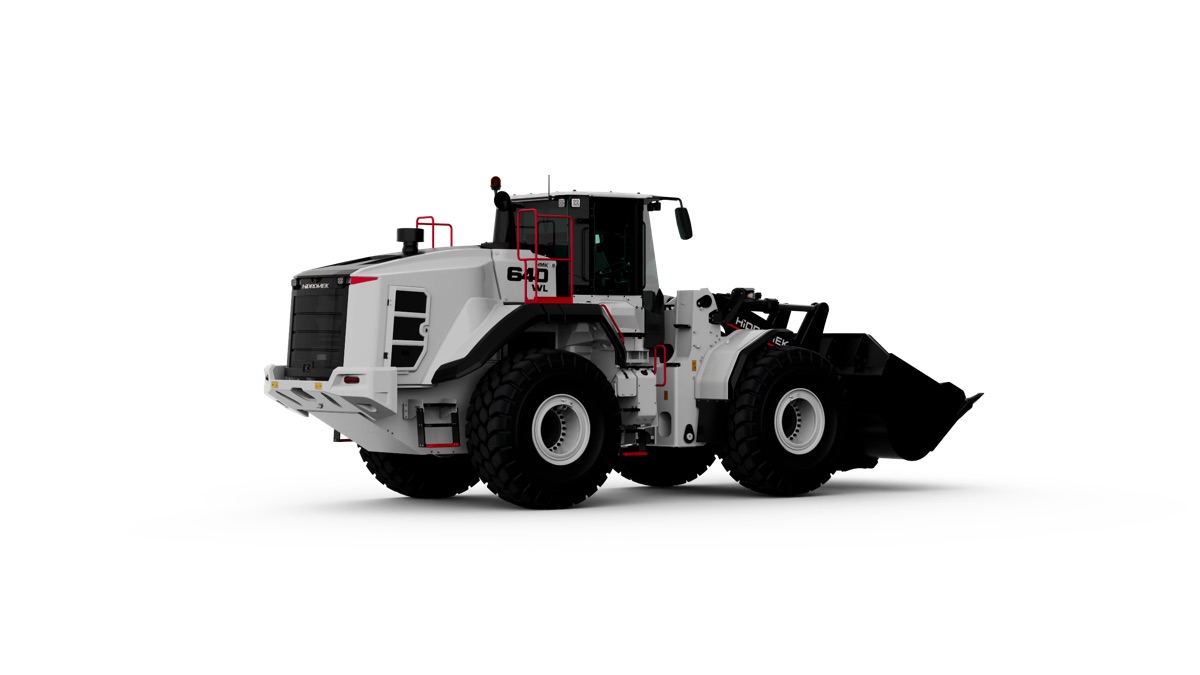

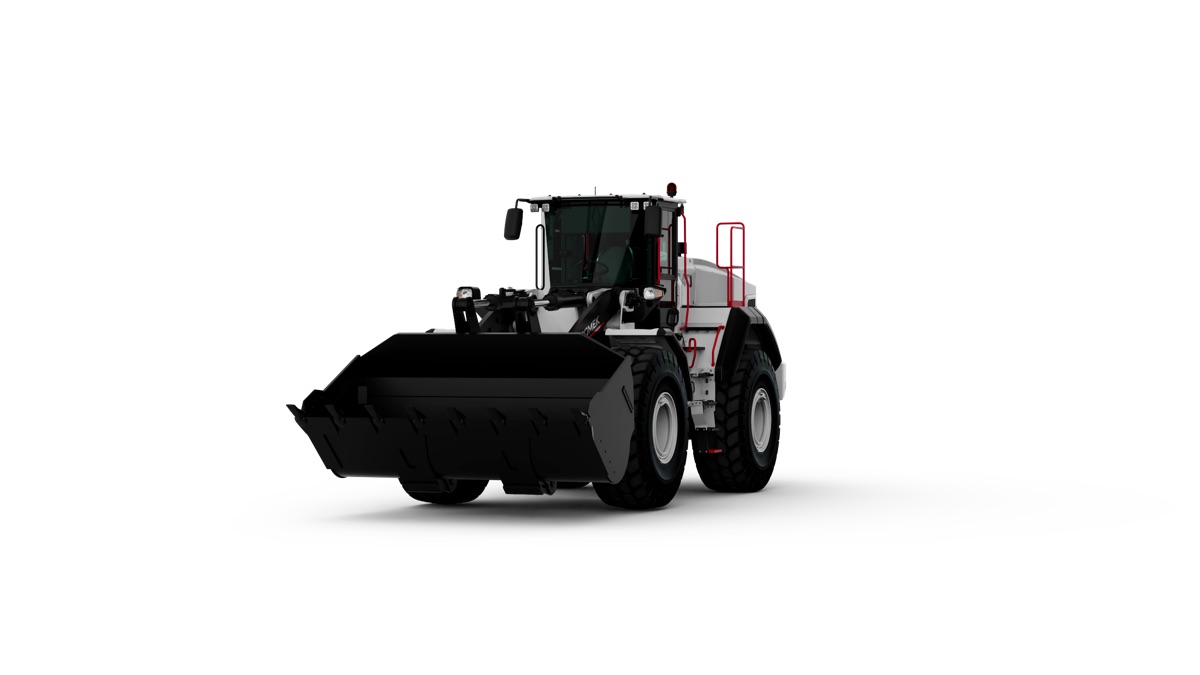

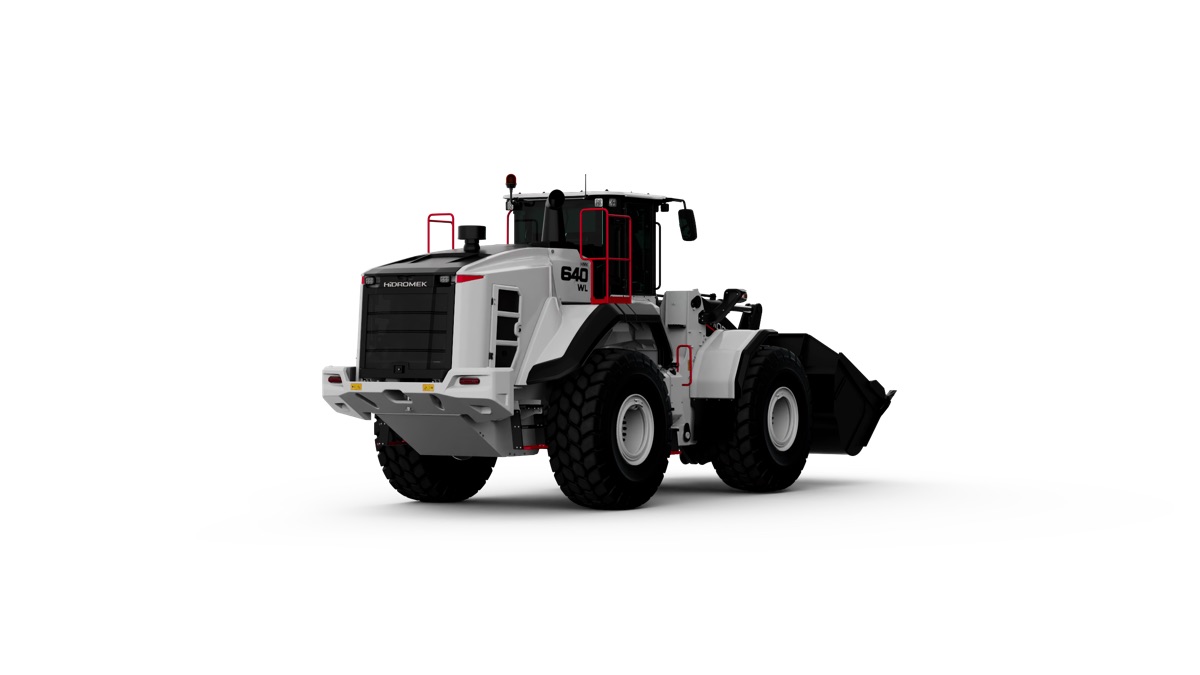

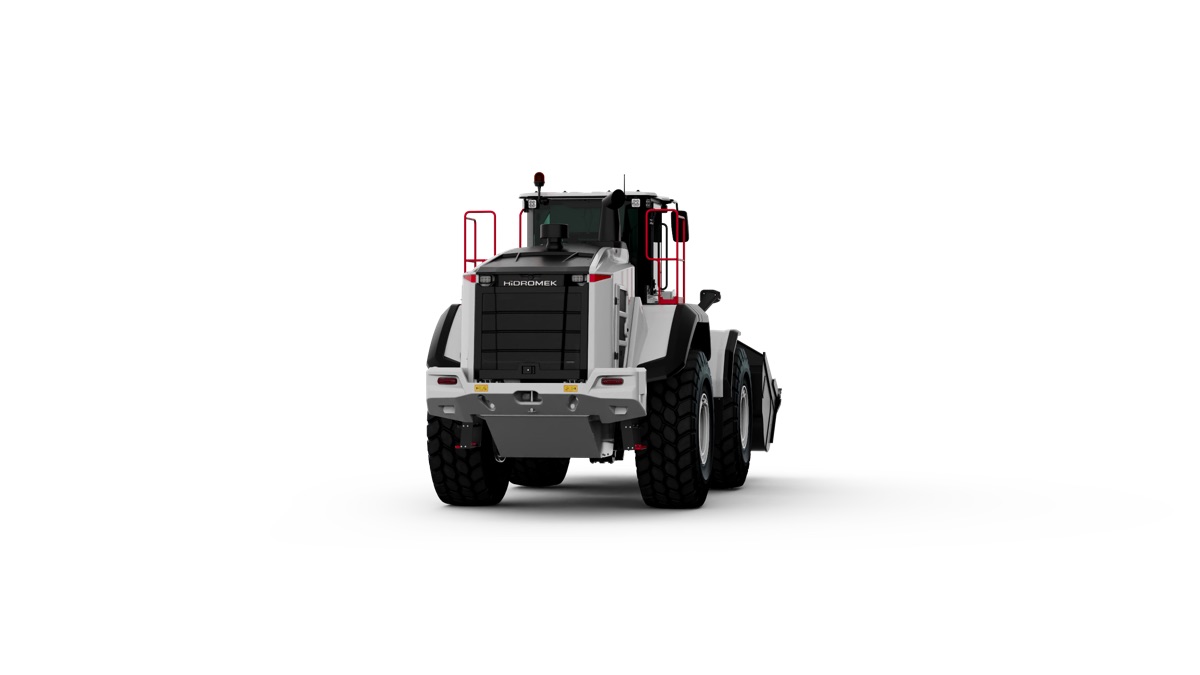

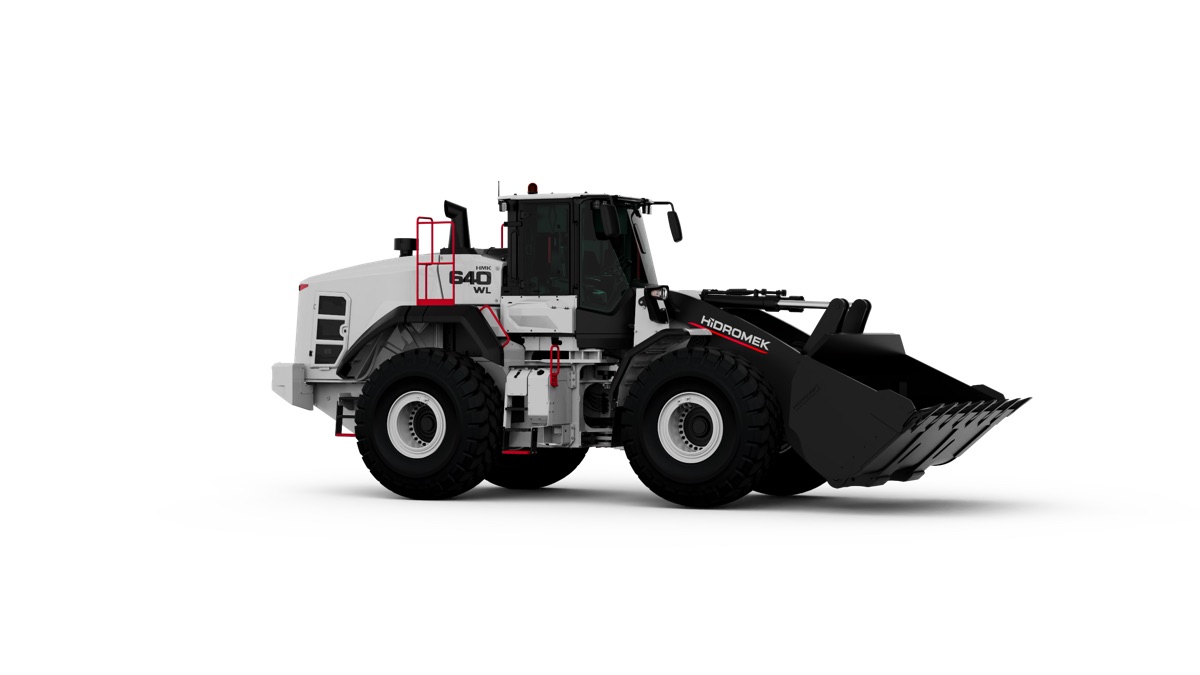

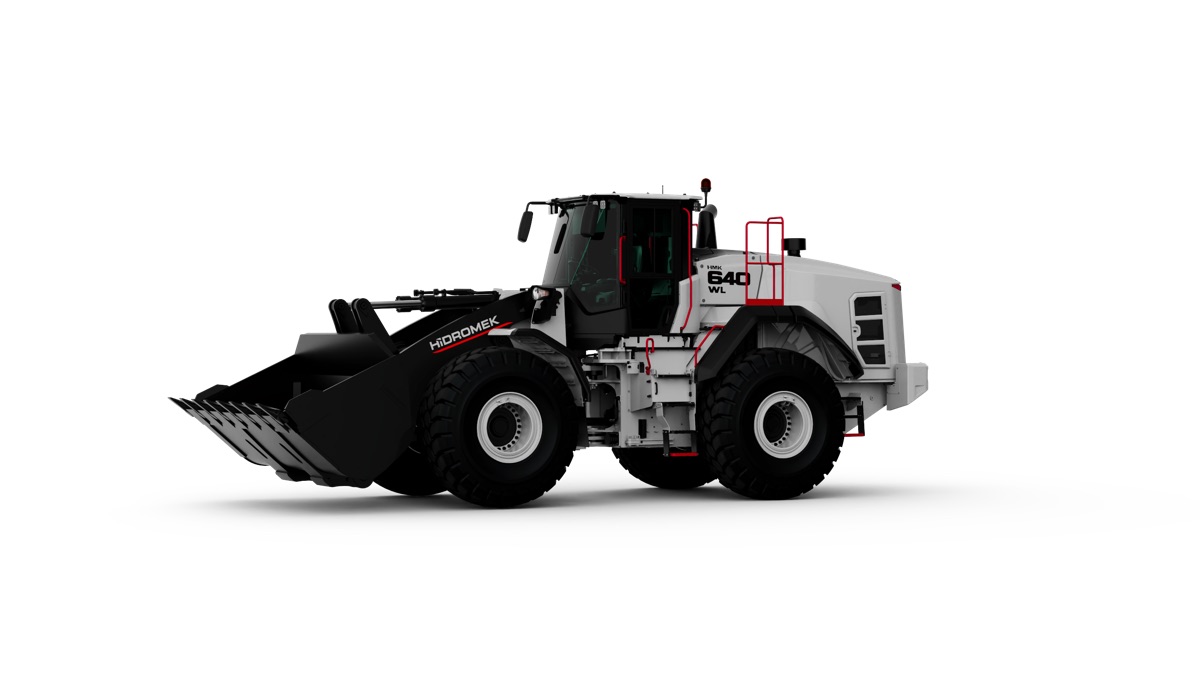

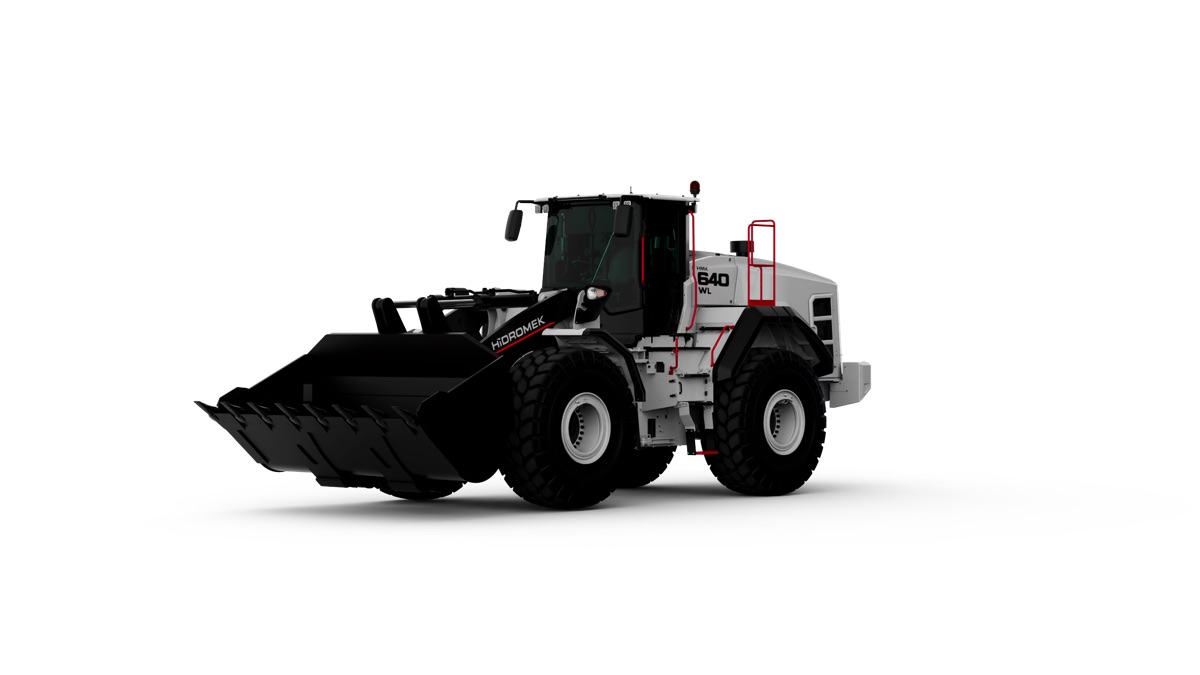

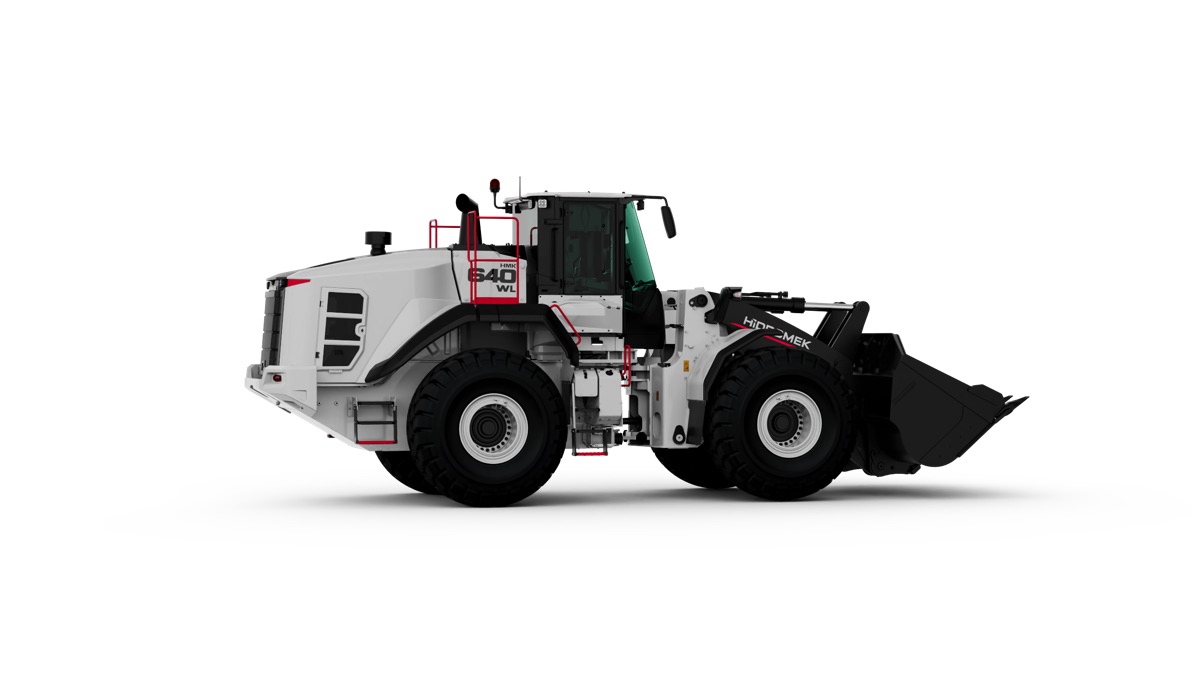

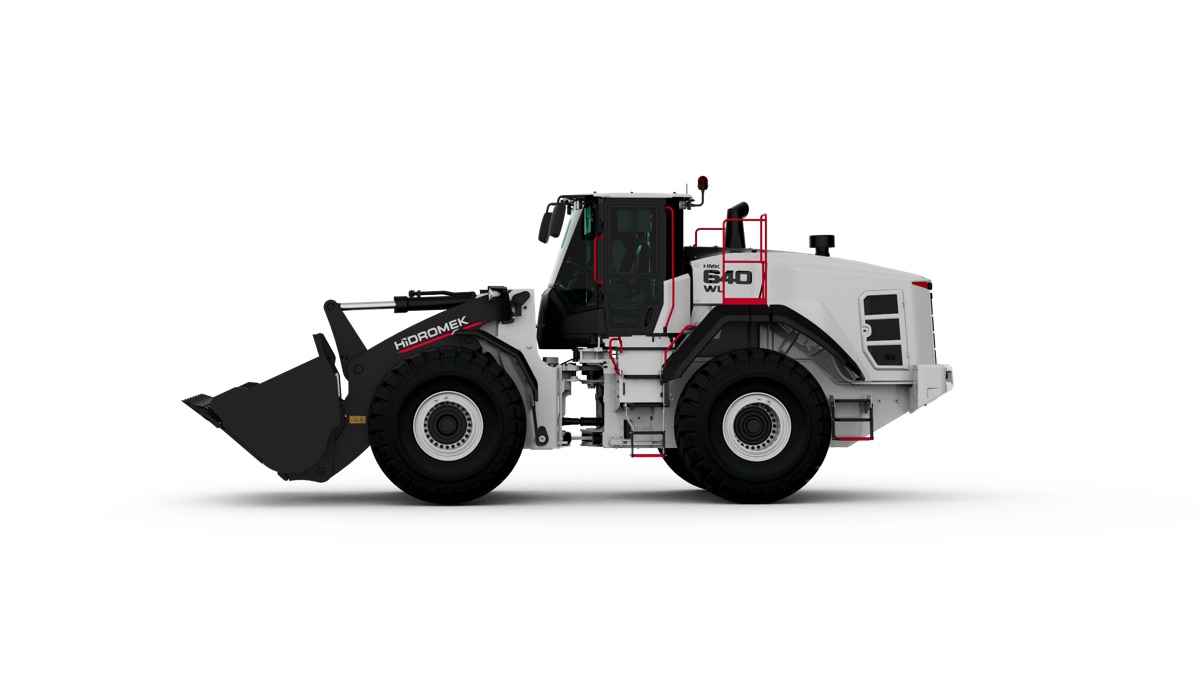

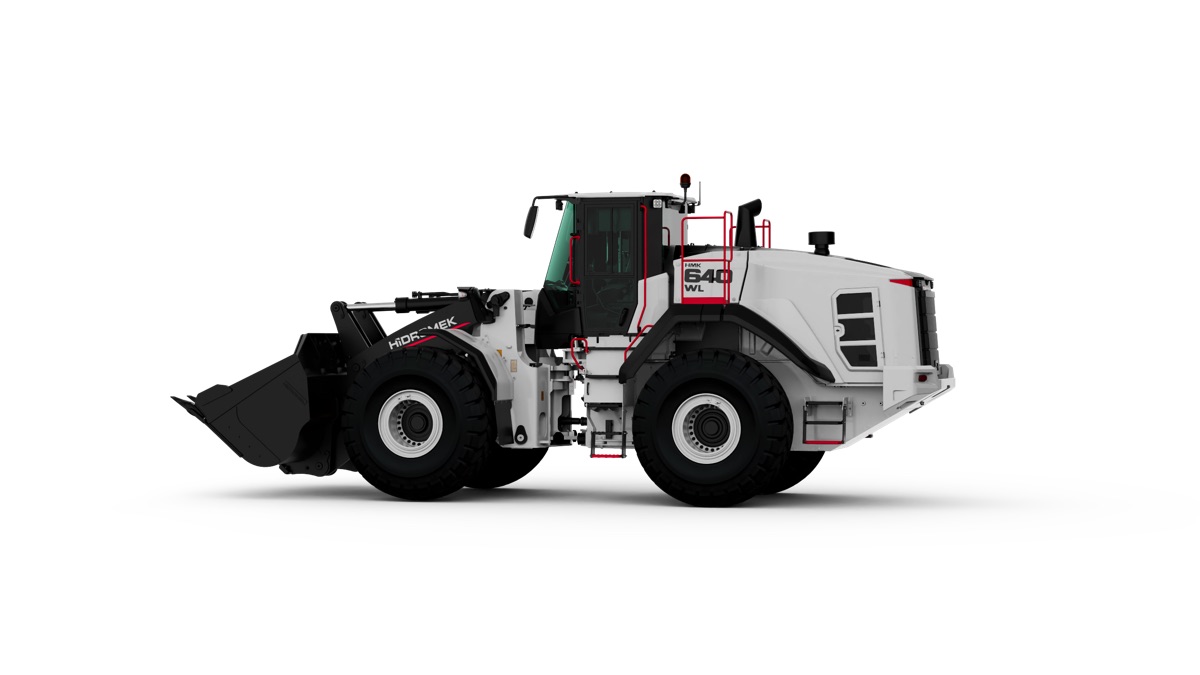

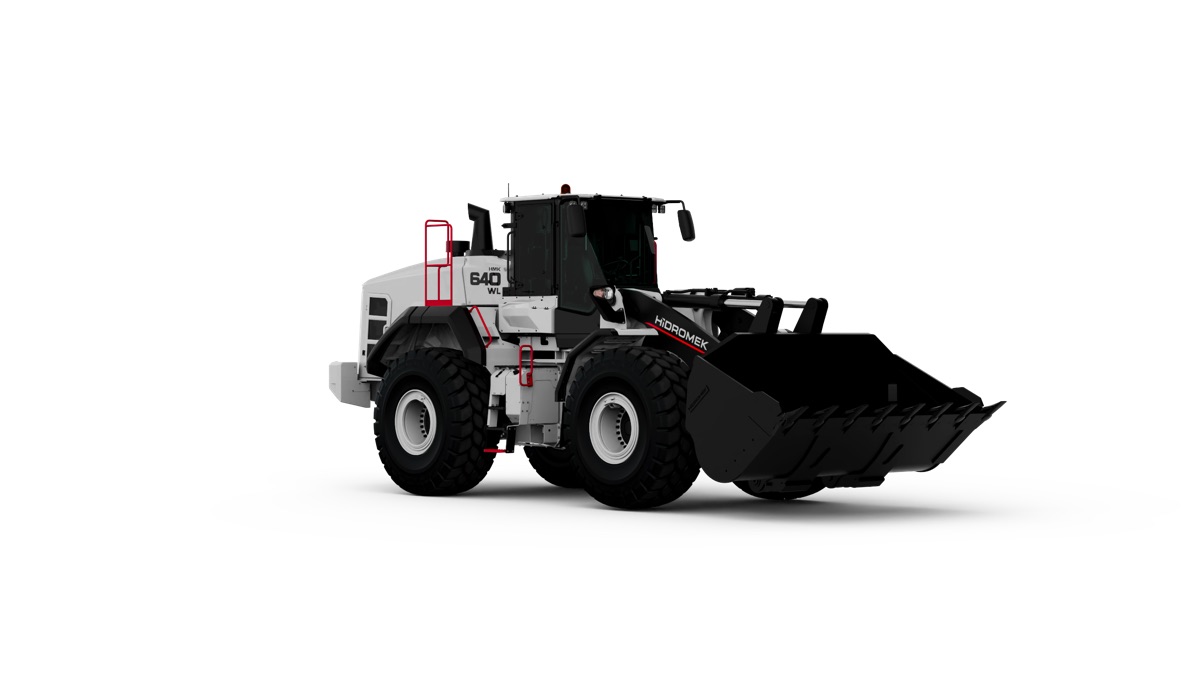

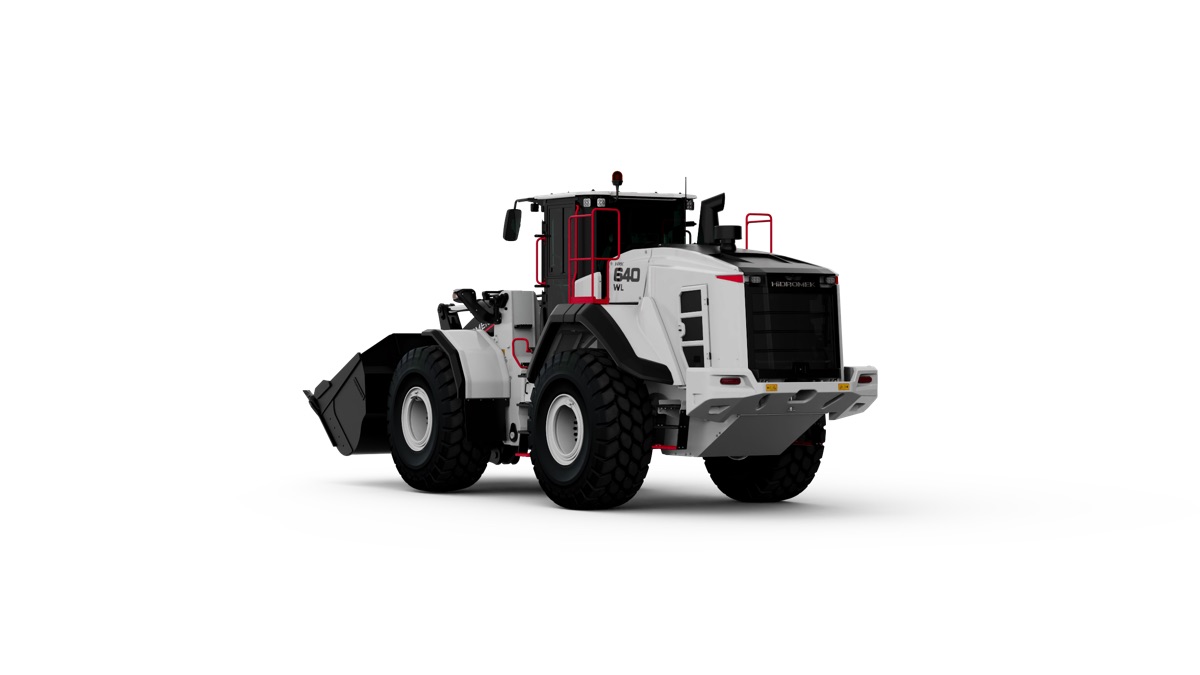

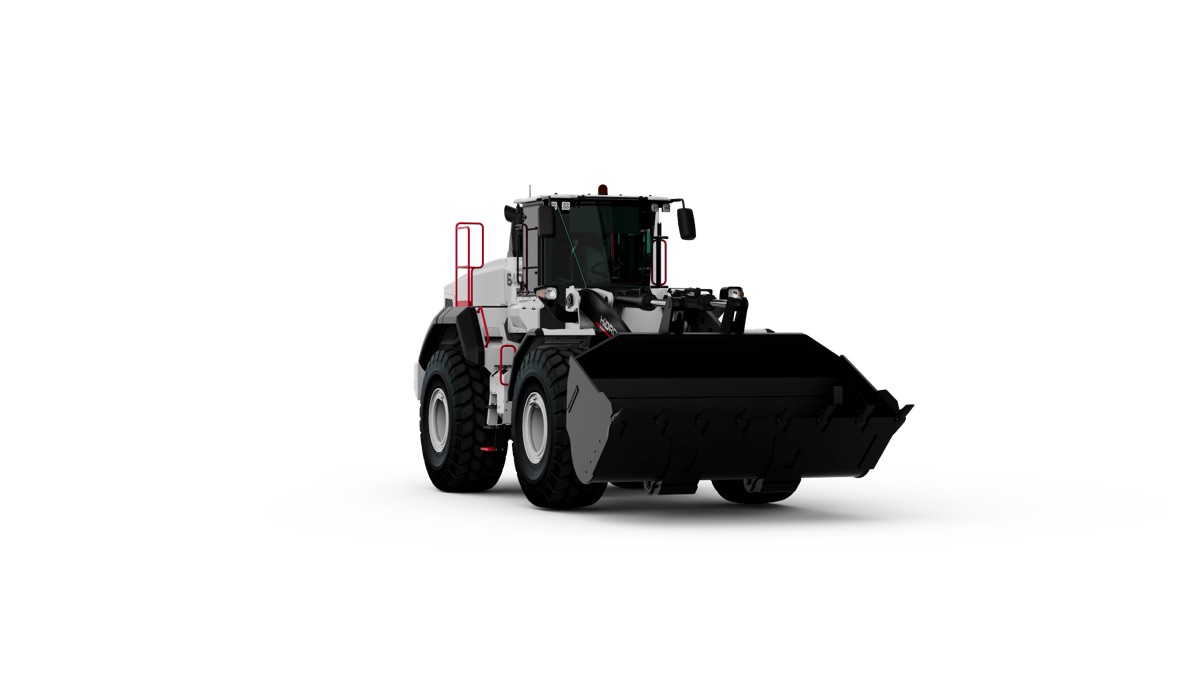

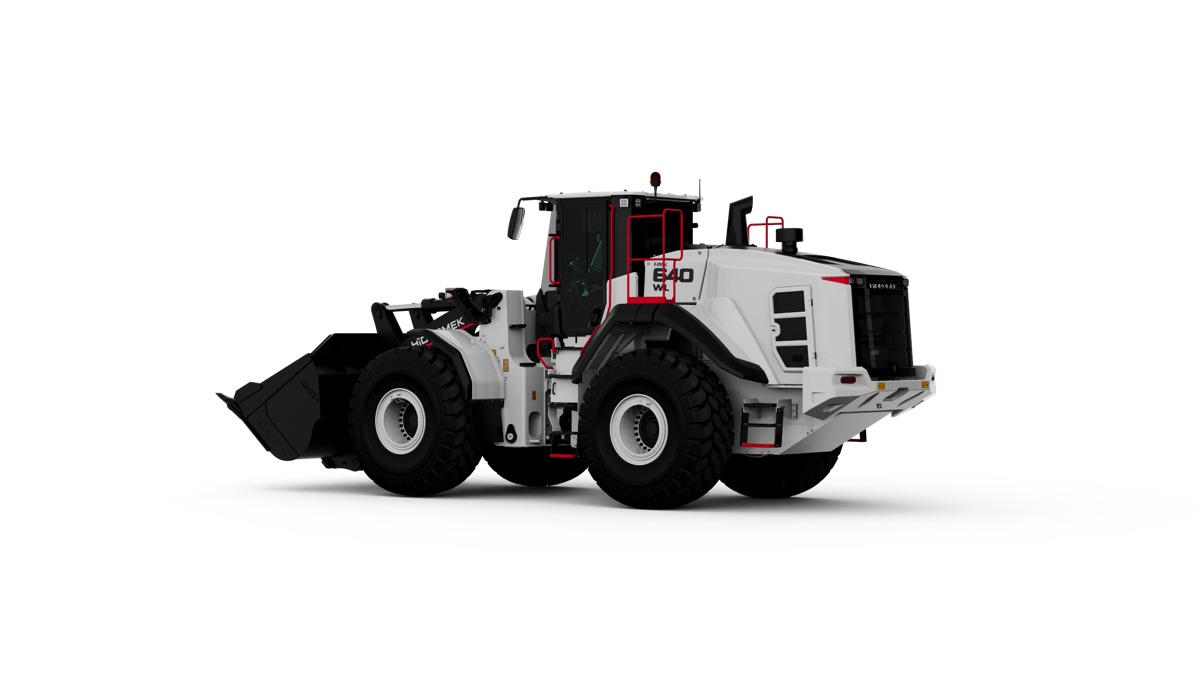

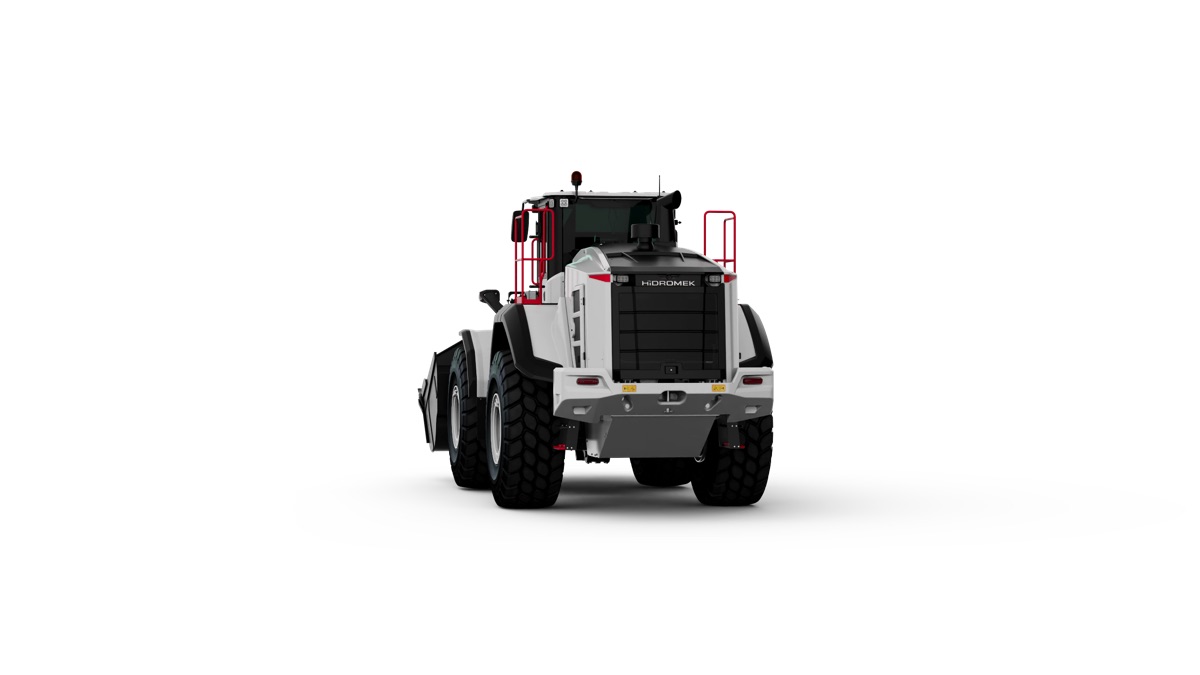

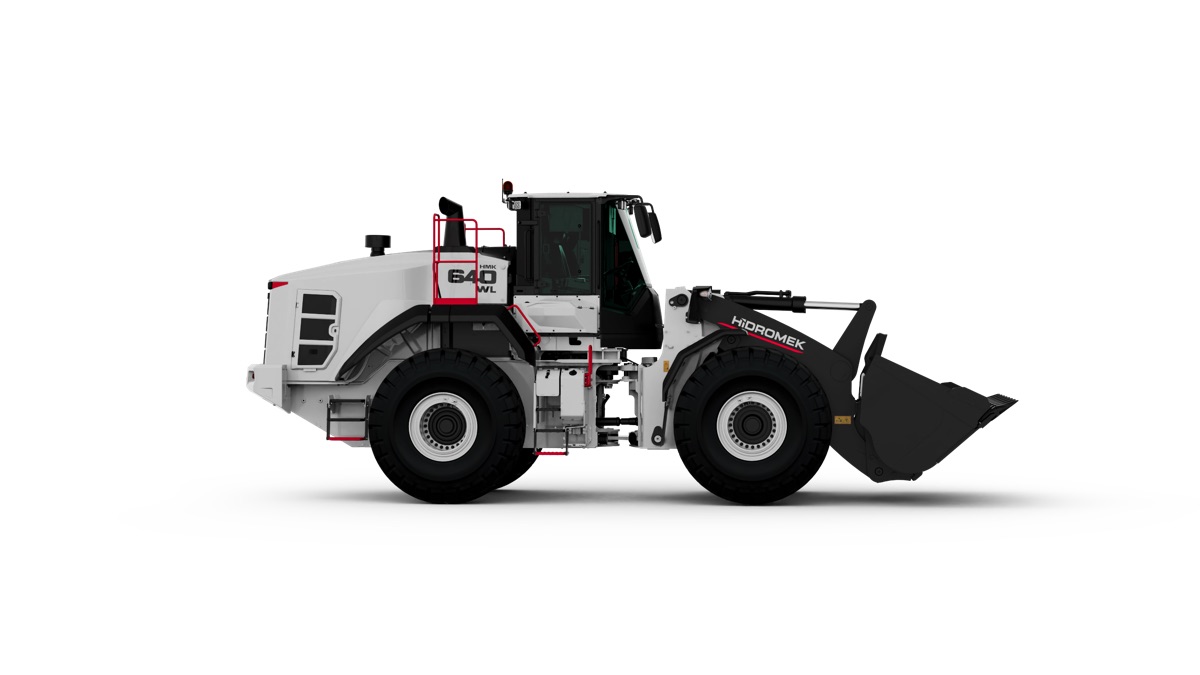

HMK 640 WL

Maximum Power

321 HP (240 kW) @1600 rpm

Bucket capacity

4,2 m3

Maximum breakout force

19.975 kgf

  • View Specs & Dimensions Brochure

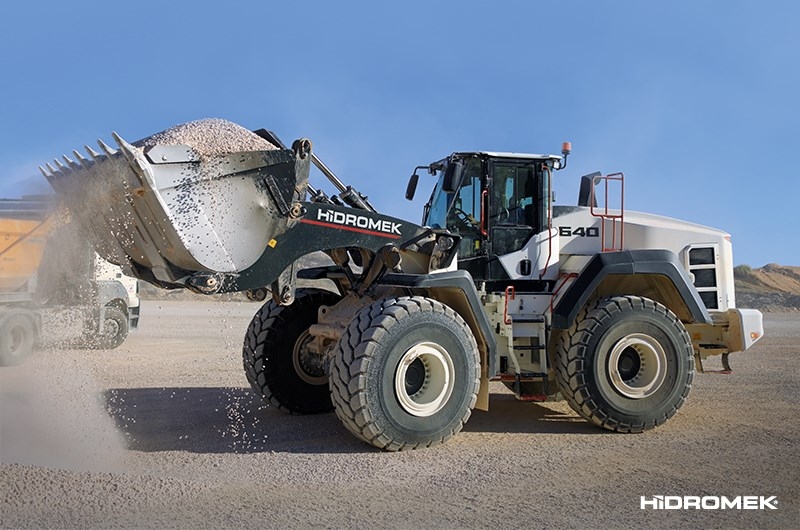

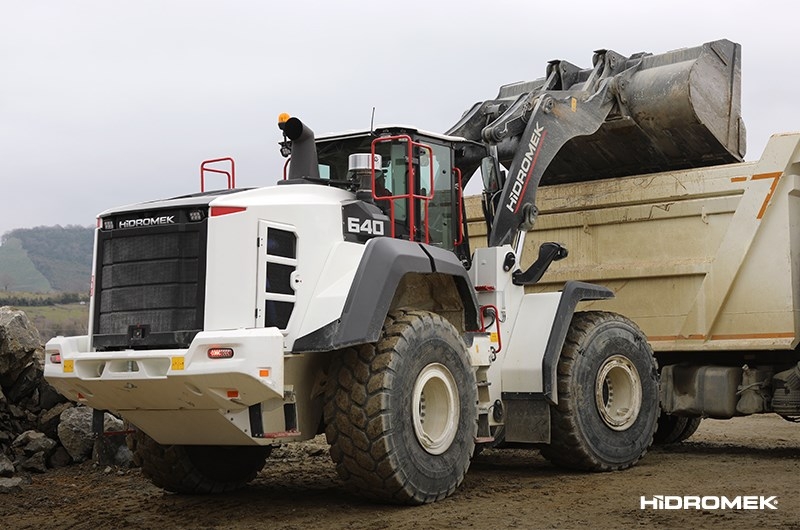

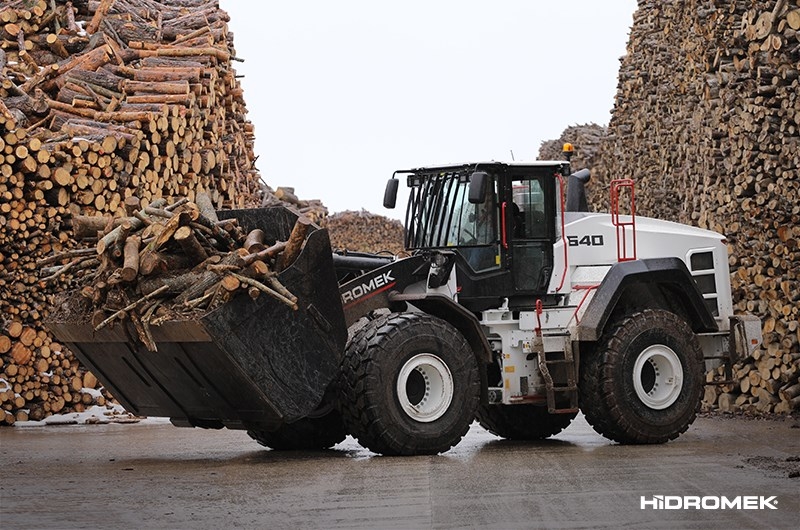

The HMK 640 WL is a heavy-duty wheel loader designed for high loading capacity, low fuel consumption, and fast cycle times. This machine is widely used in quarry operations, mining, gravel handling, and concrete plants. Its powerful Mercedes engine and strong structure make it ideal for tough working conditions.

Features

  • Powerful Mercedes engine with high torque
  • High loading capacity with low fuel consumption
  • Heavy-duty design for demanding environments
  • Excellent breakout force aur smooth control
  • Ergonomic ROPS/FOPS certified operator cabin
  • Easy maintenance with 35° tilting mechanism
  • Award-winning design (Reddot, German Design, Good Design, Automotive Brand Contest)
  • Suitable for quarry, mining aur industrial applications

Specifications

Engine

  • Brand / Model: Mercedes-Benz 6R1100
  • Type: Water cooled, turbocharged diesel engine
  • Maximum Power: 321 HP (240 kW) @1600 rpm
  • Maximum Torque: 1700 Nm @1300 rpm
  • Displacement: 10,700 cc
  • Cylinders: 6 (inline)
  • Bore x Stroke: 125 x 145 mm
  • Emission Class: Stage V (EU/EPA)

Transmission

  • Gears: 5 forward, 3 reverse

Driving Speed

  • 1st Gear: 6 km/h
  • 2nd Gear: 11 km/h
  • 3rd Gear: 18 km/h
  • 4th Gear: 25 km/h
  • 5th Gear: 37 km/h

Loader Performance

  • Bucket Capacity: 4.2 m³
  • Maximum Breakout Force: 19,975 kgf
  • Static Tipping Load: 19,269 kgf

Operating Weight

  • 26,300 kg
  • View Specs & Dimensions Brochure
