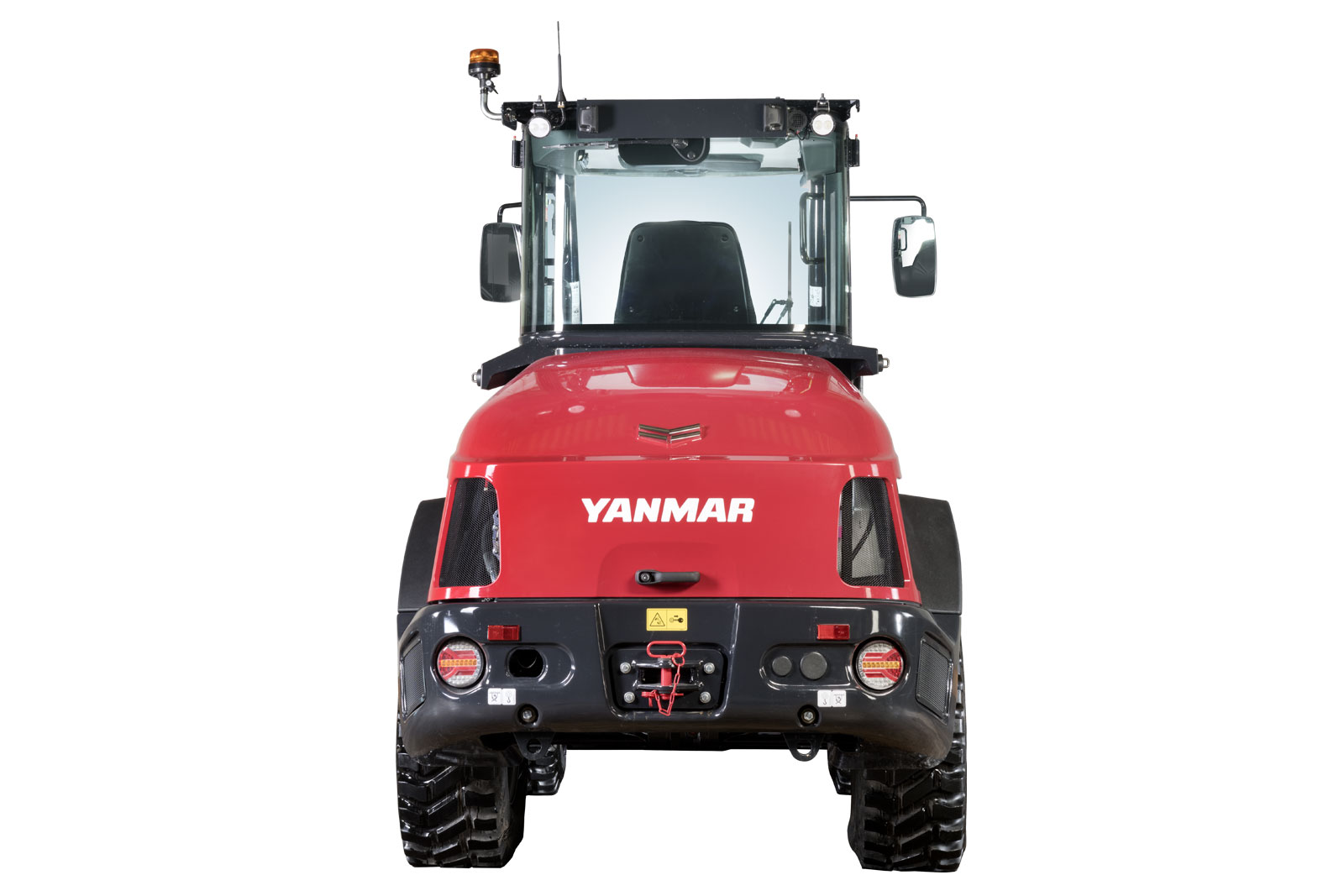

The 47.6-horsepower V7 maximizes mobility and efficiency for operators in landscaping, rental, municipalities and more. The wheel loader is easy to transport and move about the jobsite thanks to a premium power to weight ratio, a low operating weight, compact design and high travel speed. Excellent visibility from the cab promotes safety and productivity, and two-steel framed doors in the enclosed option improve operator access, airflow and communication. Plus, the ergonomic controls allow for intuitive operation. Backed by Yanmar reliability, the V7 allows you to take on job after job.
The 47.6-horsepower V7 maximizes mobility and efficiency for operators in landscaping, rental, municipalities and more. The wheel loader is easy to transport and move about the jobsite thanks to a premium power to weight ratio, a low operating weight, compact design and high travel speed. Excellent visibility from the cab promotes safety and productivity, and two-steel framed doors in the enclosed option improve operator access, airflow and communication. Plus, the ergonomic controls allow for intuitive operation. Backed by Yanmar reliability, the V7 allows you to take on job after job.

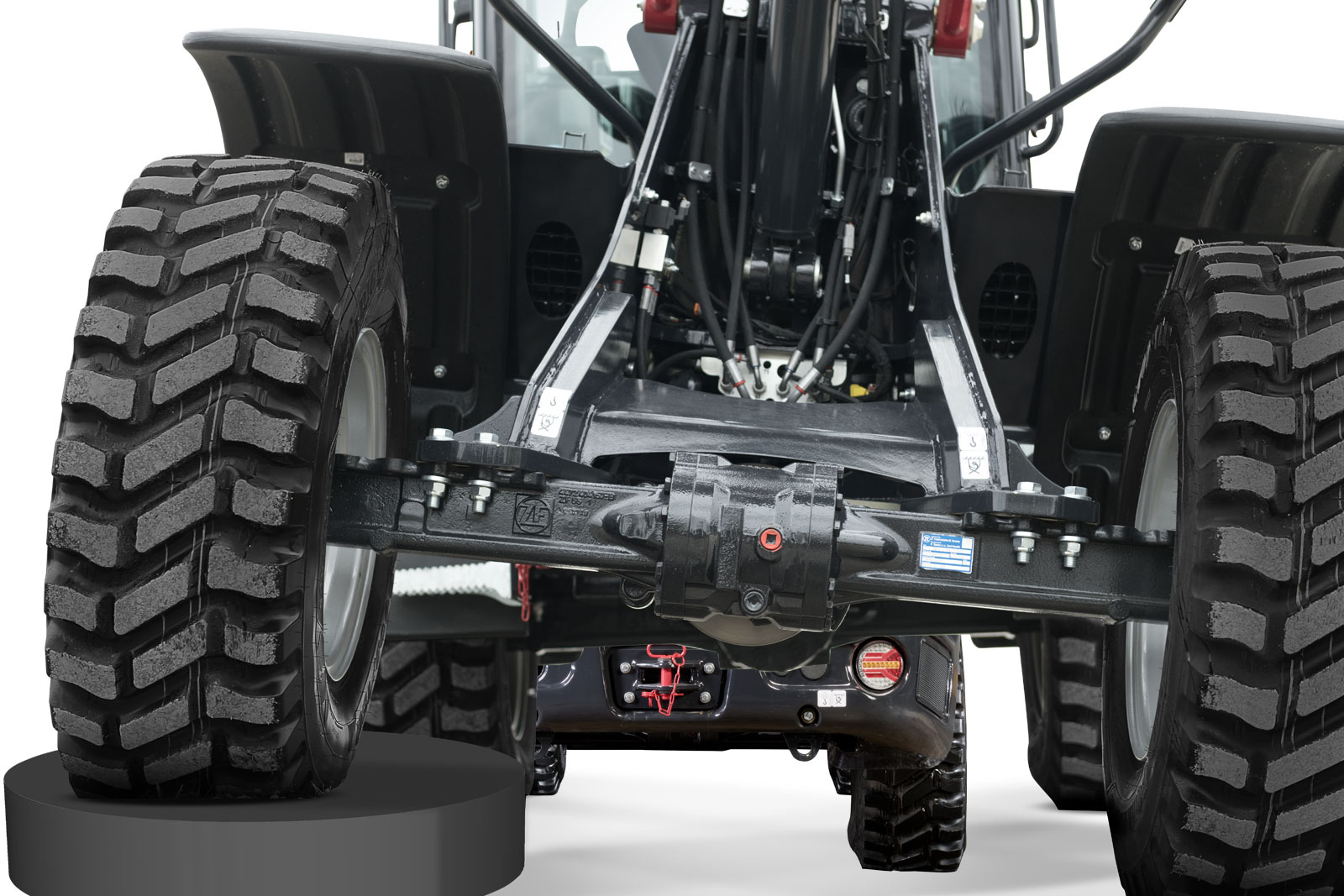

Easy to transport. Easy to use. Easy to maintain. The V7 gives you everything you’ve asked for. Packed with new features, the high-performing machine includes simple maintenance, powerful hydraulics, center oscillation, and P-Kinematics.
Easy to learn and easy to master, the ergonomic joystick controls offer smooth precision with a feel natural for any operator.

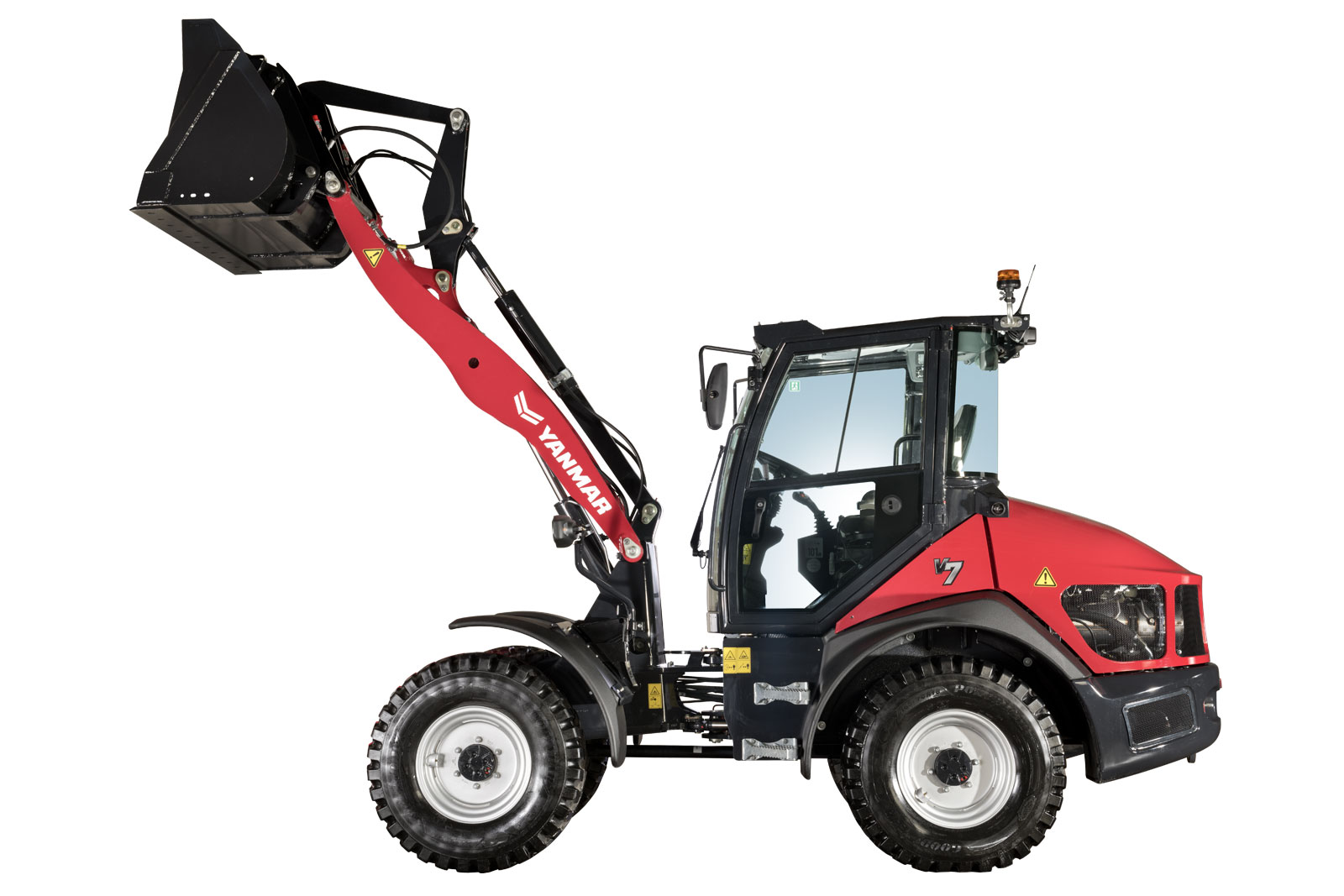

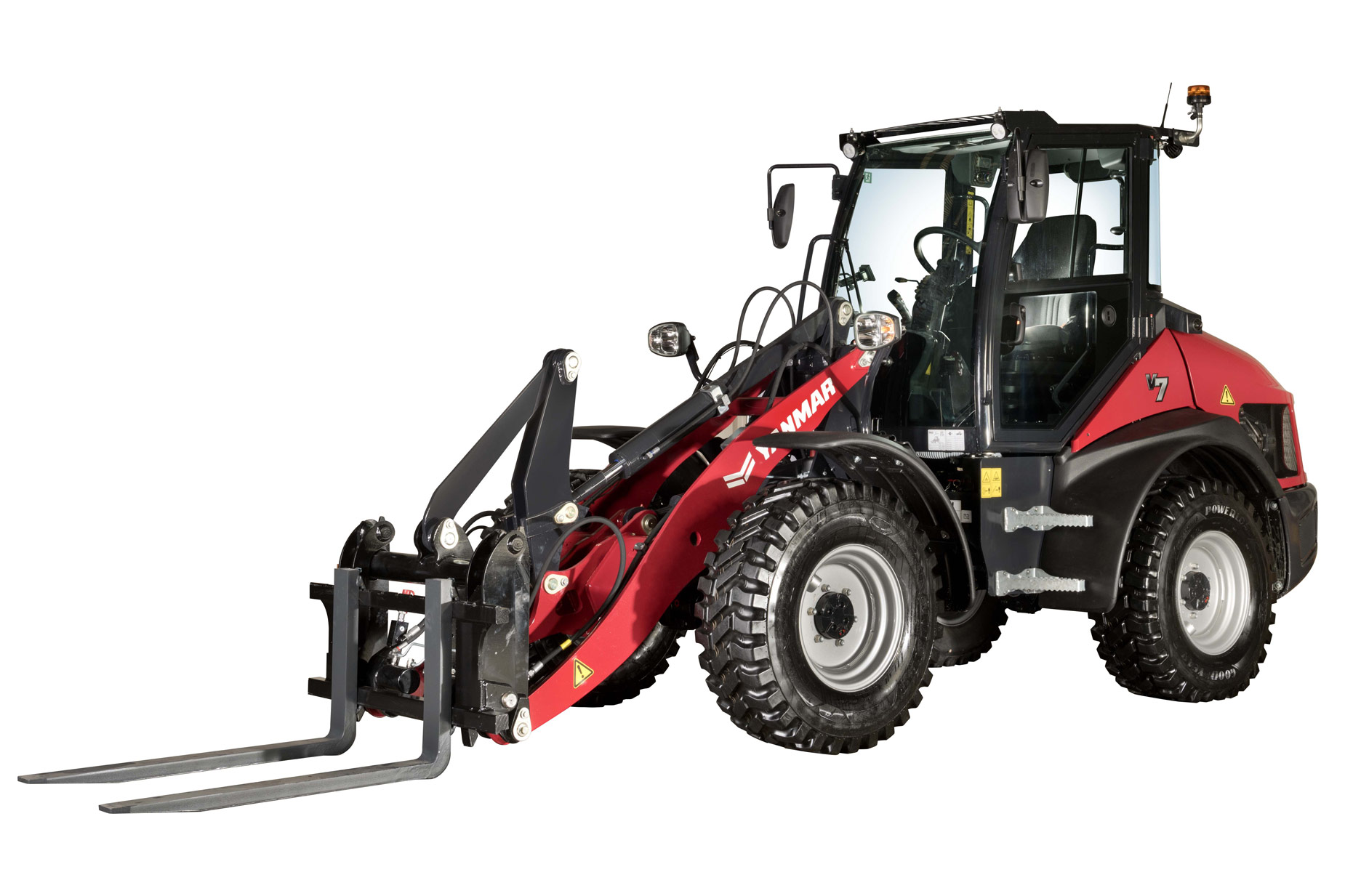

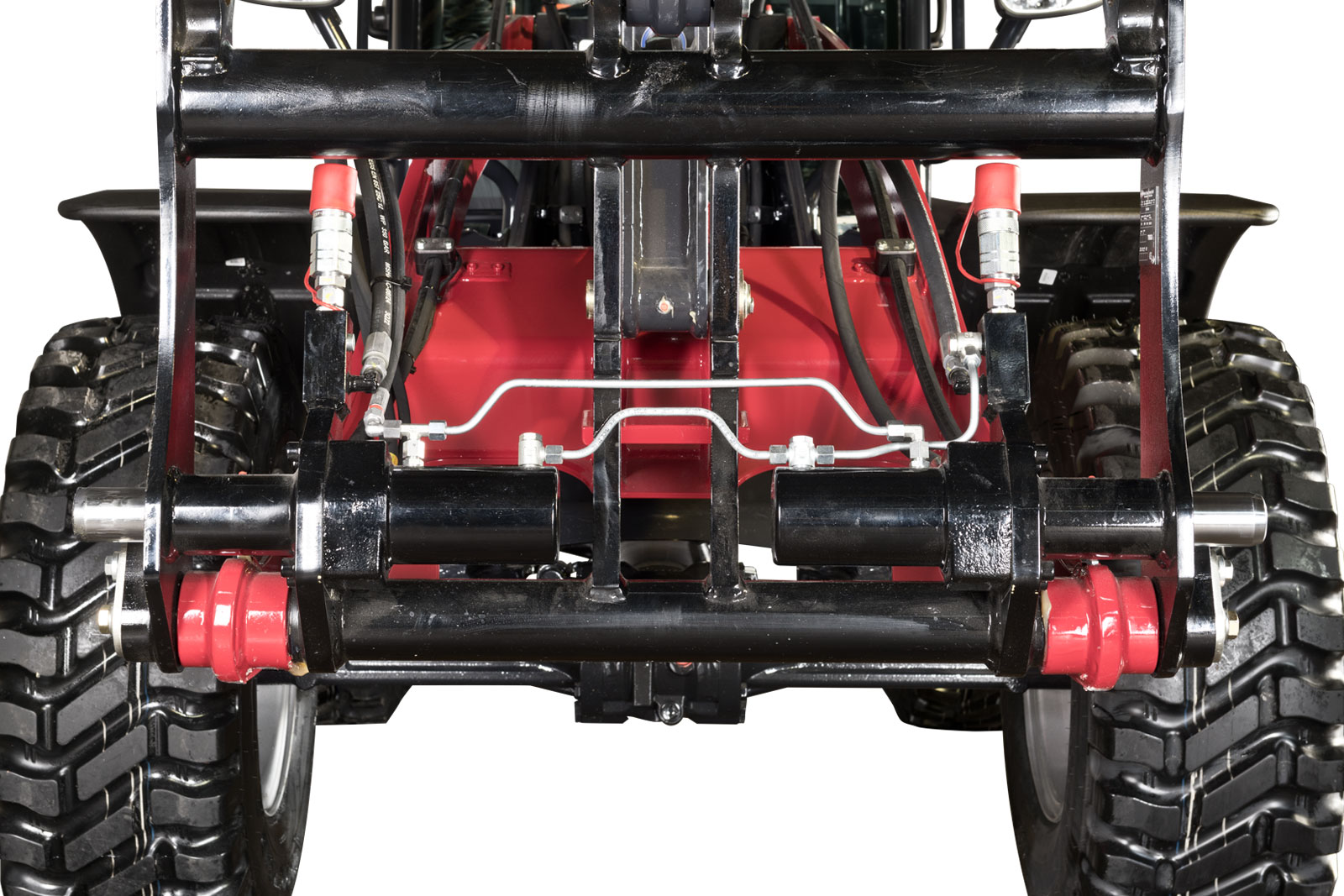

Achieve precise parallel lifting with P-Kinematics. Keep the material in the bucket or on forks parallel to the ground for optimal movement in all conditions.

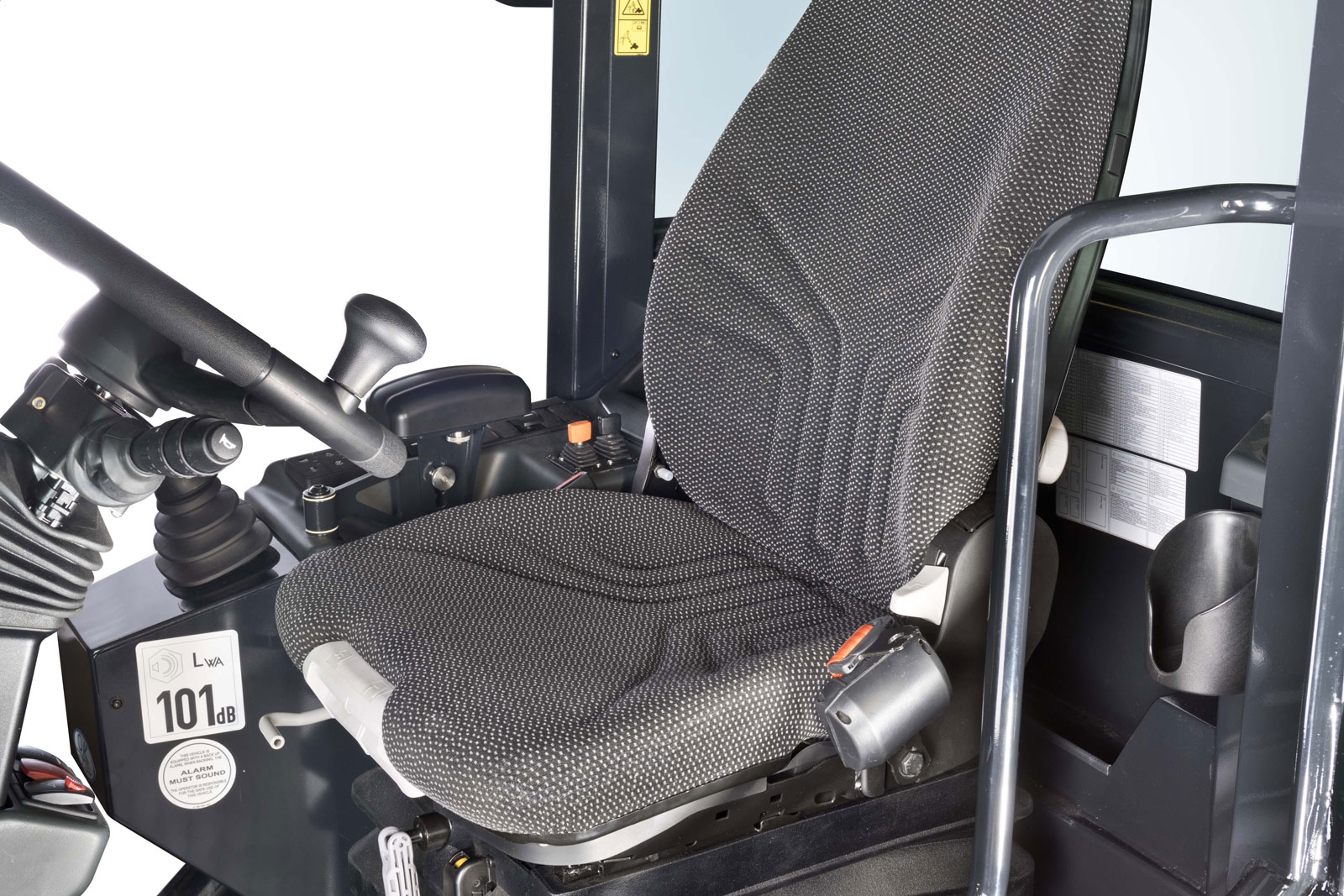

Long work days are easier in the comfortable V7 cab. The enclosed configuration includes a high-backed seat that is heated and features ergonomic armrests and mechanical suspension. The configuration also includes a standard front sun blind that helps with glare and a radio with Bluetooth for entertainment.

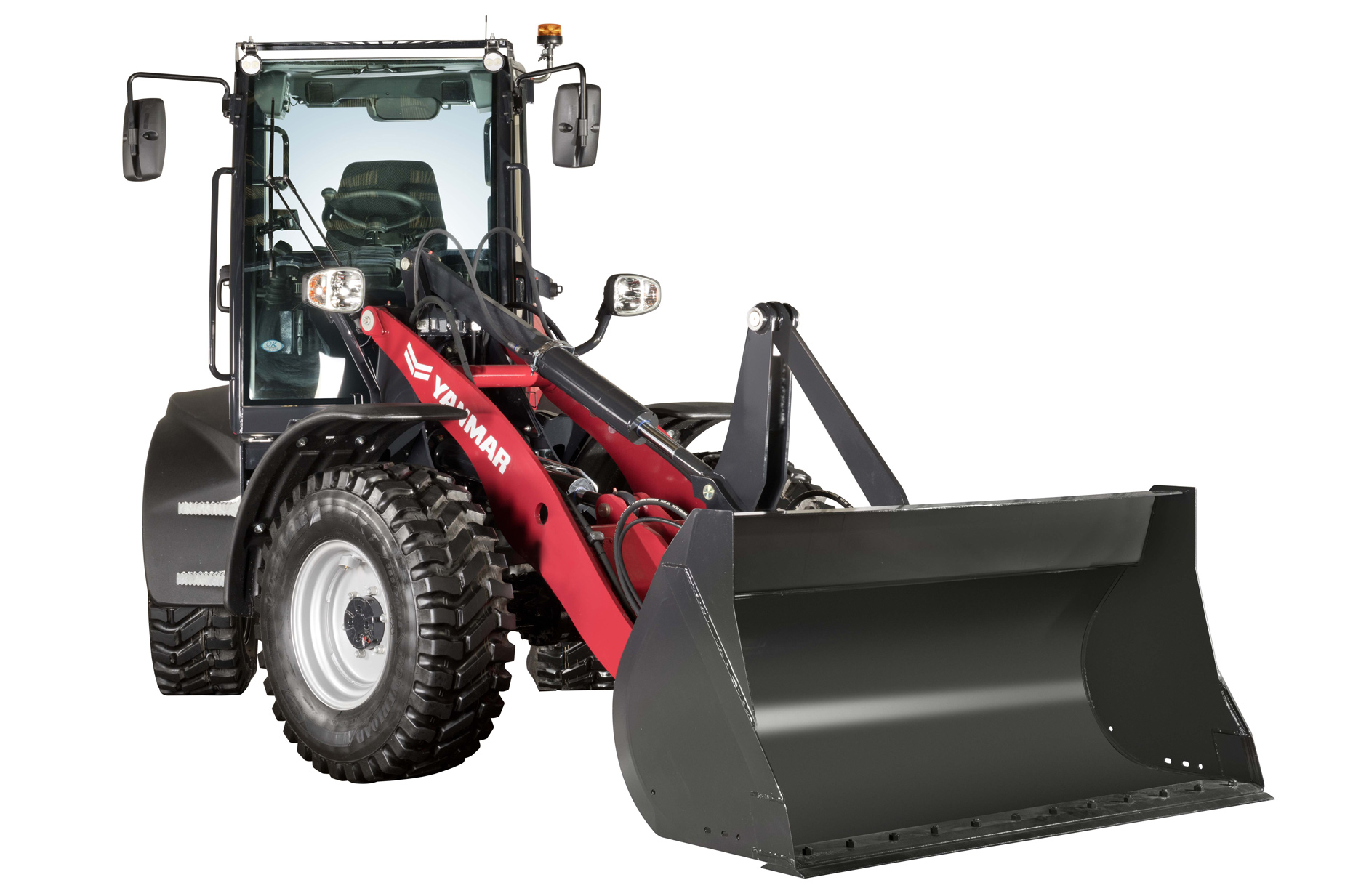

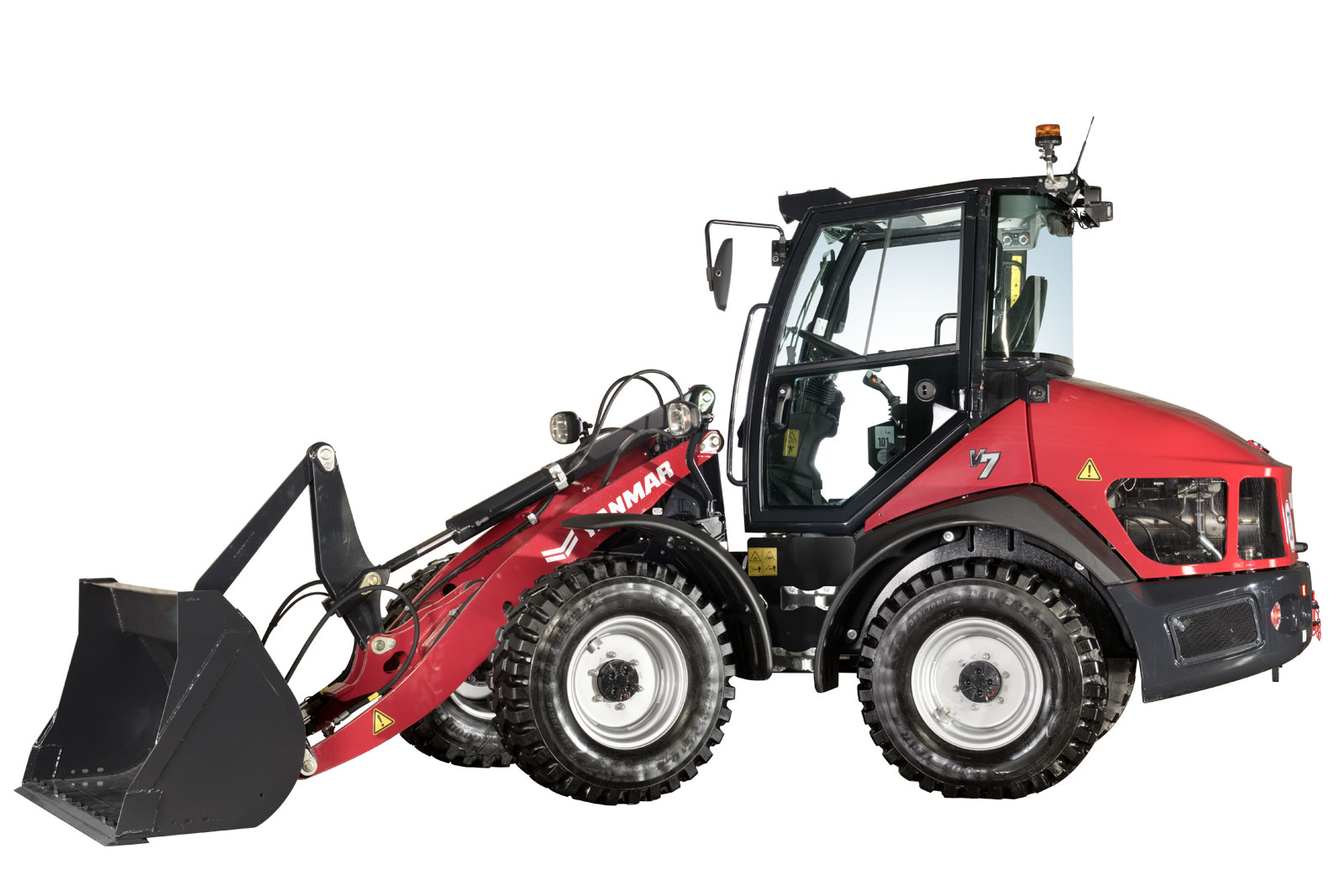

The V7 is easy to move around the jobsite or transport on a trailer thanks to its low operating weight, compact design and high travel speed.

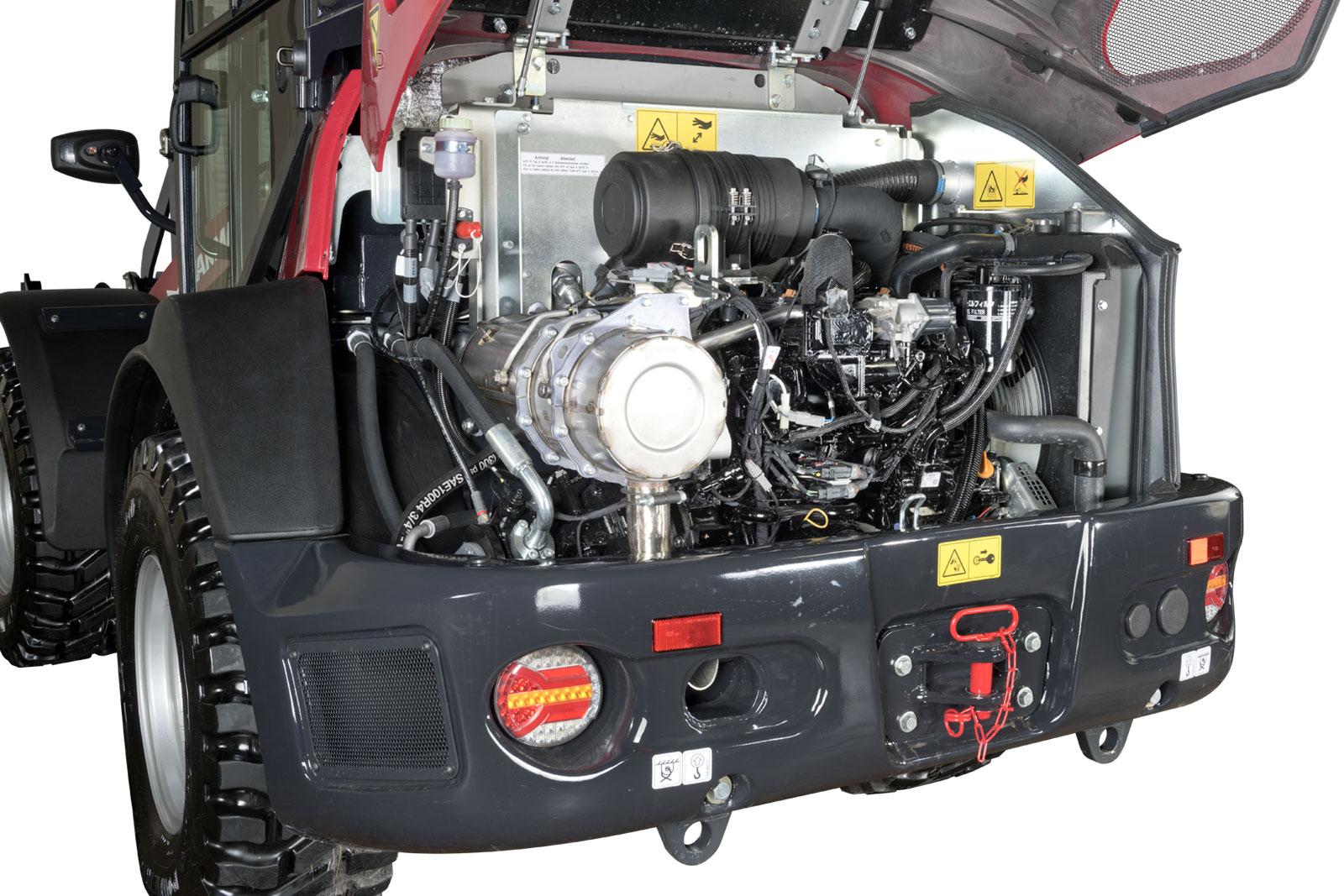

Make quick work of the biggest jobs with the four-cylinder 47.6-horsepower Tier 4 Final Yanmar diesel engine and a premium power-to-weight ratio.

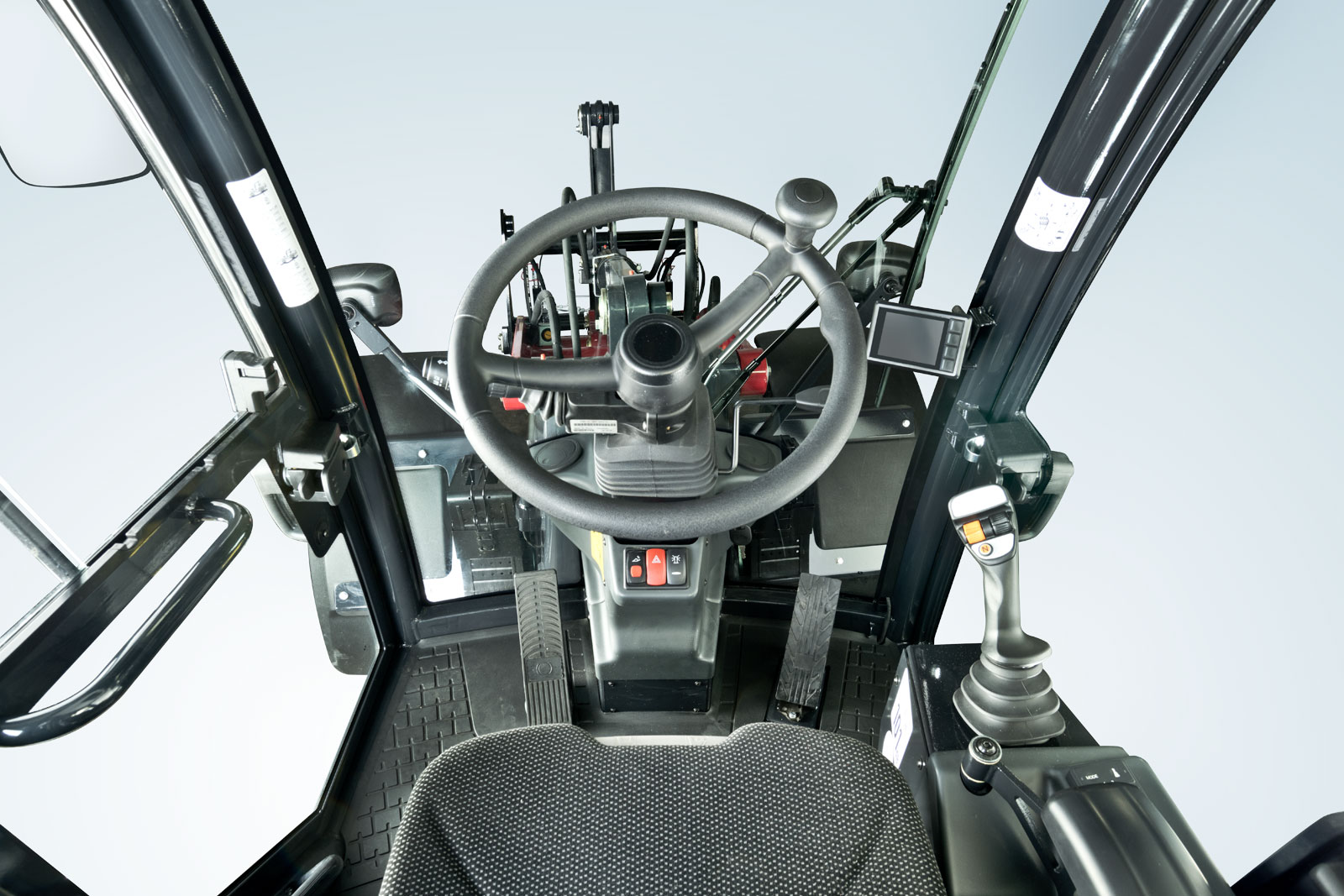

Excellent visibility from the cab promotes safety and productivity, and two steel framed doors in the enclosed option improve operator access, airflow and communication.
| Engine | |
|---|---|
| Model | Yanmar 4TNV86CT |
| Output | 47.6 HP / 2,400 rpm |
| Displacement | 127.6 in³ |
| Type | Water-cooled 4-cylinder diesel |
| Performance | |
| Standard Bucket Capacity | 0.92 yd³ |
| Operating Load | 2,778 lbs |
| Lifting Capacity at Low End | 7,981 lbs |
| Tipping Load – Straight | 6,636 lbs |
| Tipping Load, Articulated | 5,864 lbs |
| Breakout Force | 9,217 lbs |
| Dumping Clearance | 8’2″ |
| Traveling Speed – Standard | 12.4 mph |
| Traveling Speed – High | 18.6 mph |
| Oscillation Angle | ±10 deg |
| Turning Radius – Inside Tires | 6’7” |
| Min. Ground Clearance | 1’5″ |
| PTO | |
| Front Hyd. PTO | 3,626 PSI |
| Front Hyd. PTO | 16.6 GPM |
| Steering | |
| Articulate Angle | ±40 deg |
| Type | Fully hydraulic proportional articulated steering |
| Transmission | |
| Type | Hydrostatic |
| Drives | |
| Type | Automatic Drive |
| Wheels | |
| Type | 365/70 R18 EM Powerload – Goodyear |
| Brakes | |
| Type | Mechanically Actuated Disc Brake on Front Axle |
| Operating Weight | |
| Canopy | 9,370 lbs |
| Cabin | 9,370 lbs |
| Transport Dimensions | |
| L x W x H | 16’9” x 5’10” x 8’2” |
