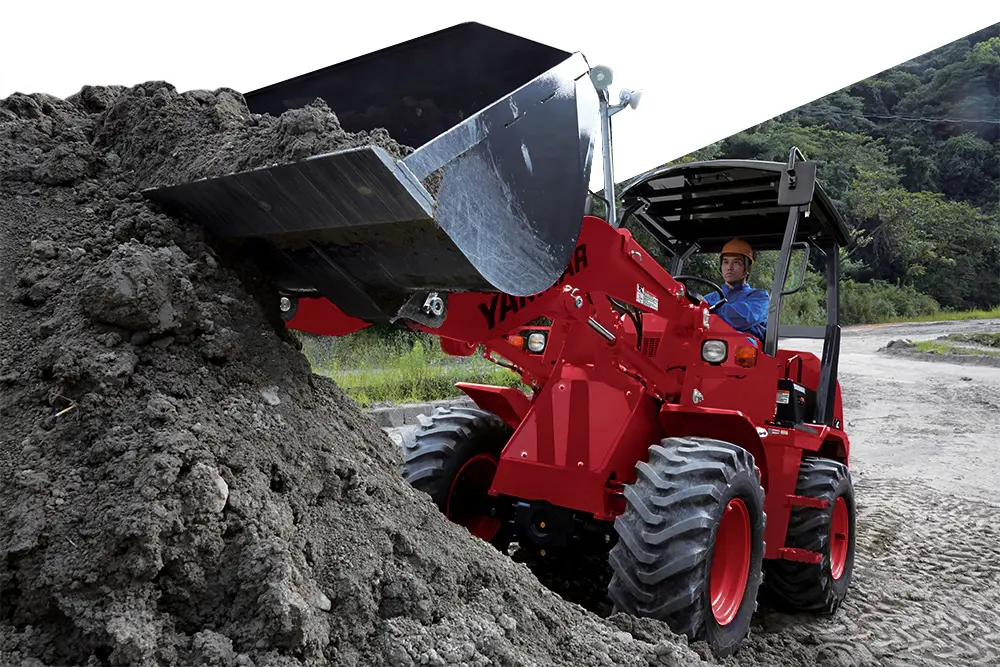

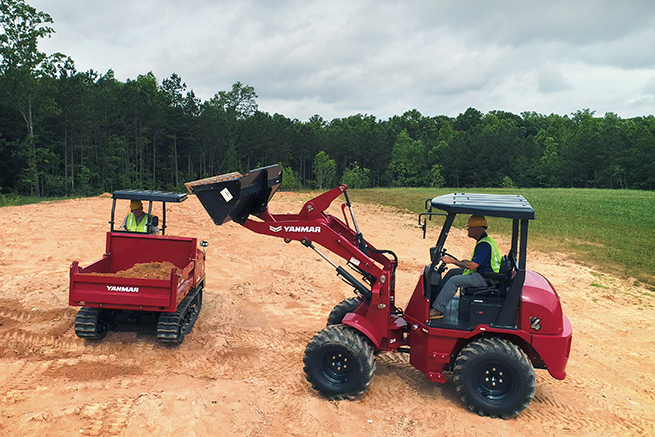

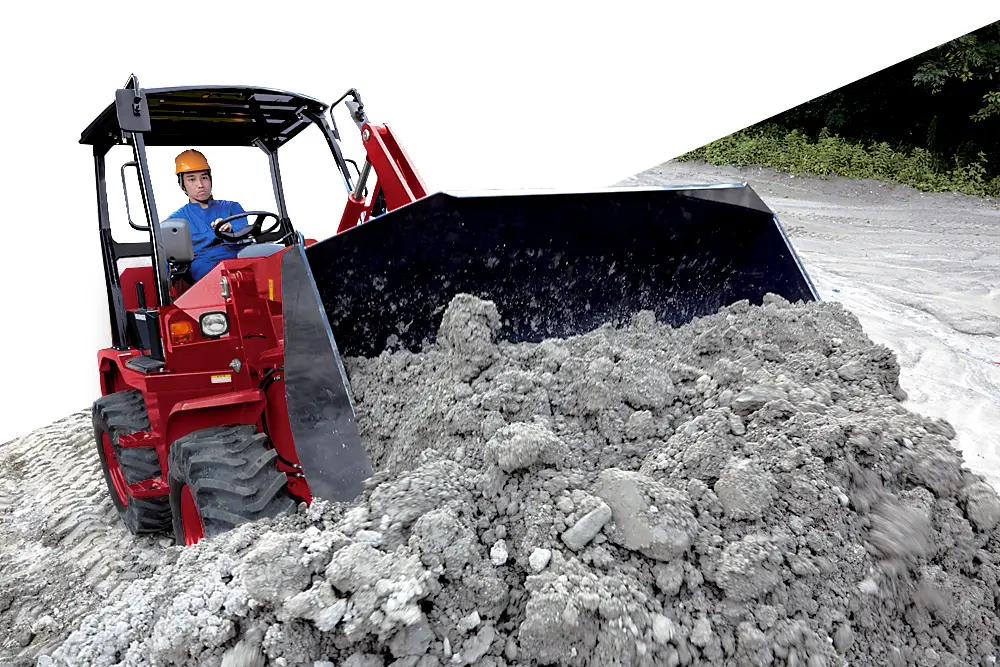

Our most compact articulating wheel loader might be small in size, but it’s big on capability. Whether you’re moving rocks, dirt, mulch, manure, salt, fertilizer, or any other material, our legendary Yanmar diesel performance makes quick work of any task. A fully automatic accelerator mode eliminates repetitive steps and rear axle oscillation allows you to cover uneven terrain with greater stability, resulting in less spill, even with a fully loaded bucket. Of course, the V4-7 allows for easy maintenance access, so you keep the load moving and your bottom line growing.
The four-cylinder Tier 4 Final Yanmar diesel makes quick work of the biggest jobs with a nearly unstoppable 39HP and the added fuel-efficiency of ECO mode.
Nothing is ever out of reach with the intuitive design of the operator’s station where you’ll find the loader joystick, two-speed selector and the controls for auto and fixed-speed modes.

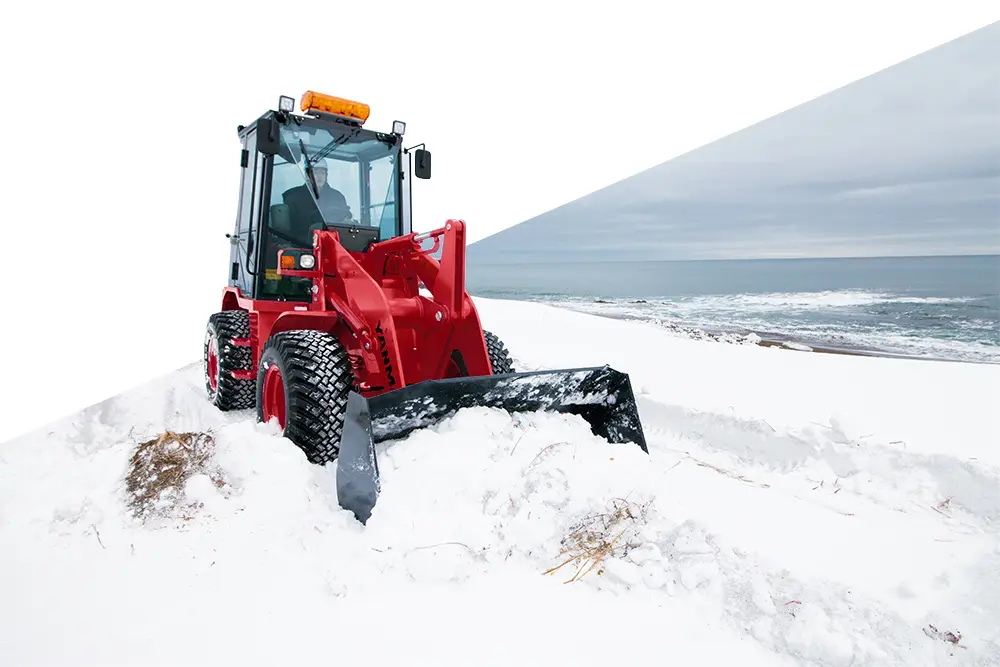

Keep operators safe with certified ROPS protection. And keep them comfortable no matter the season with optional cab enclosure with heat and air-conditioning.
A wide entrance makes for easy ingress and egress, and a reclining, full-suspension seat soaks up uneven terrain for comfort that never tires.
Power additional accessories with auxiliary hydraulic connections and set the perfect flow with standard adjustable proportional control.
Working smart and safe is the rule of every jobsite and a fixed travel speed mode employs additional safety when working in restricted areas.
| Engine | |
|---|---|
| Model | 4TNV88C-NKAH |
| Output | 39 HP / 2,500 rpm |
| Displacement | 133.6 in³ |
| Type | Water-cooled 4-cylinder diesel |
| Performance | |
| Standard Bucket Capacity | 0.65 yd³ |
| Operating Load | 2,535 lbs |
| Lifting Capacity at Low End | 7,451 lbs |
| Tipping Load – Straight | 6,070 lbs |
| Tipping Load, Articulated | 5,058 lbs |
| Breakout Force | 6,085 lbs |
| Dumping Clearance | 7’11” |
| Traveling Speed | 11.8 mph |
| Oscillation Angle | ±8 deg |
| Minimum Turning Radius | 12’6″ |
| Min. Ground Clearance | 1’3″ |
| PTO | |
| Front Hyd. PTO | 3,000 PSI |
| Front Hyd. PTO | 14.8 GPM |
| Steering | |
| Articulate Angle | 40.5 deg |
| Type | Center-Pivot Frame Articulation w/Full Hyd. Power |
| Transmission | |
| Type | Automatic Hydrostatic |
| Drives | |
| Type | 4-Wheel Drive |
| Brakes | |
| Type | Fully Enclosed, Mechanical, Wet, Multiple Disc |
| Operating Weight | |
| Canopy | 7,848 lbs |
| Cabin | 8,422 lbs |
| Transport Dimensions | |
| L x W x H | 14’6″ x 5’7″ x 8’5″ |
