Weight
10,802 lbs.
HorsePower
62 HP
Bucket Capacity
1.05-1.57 yd³

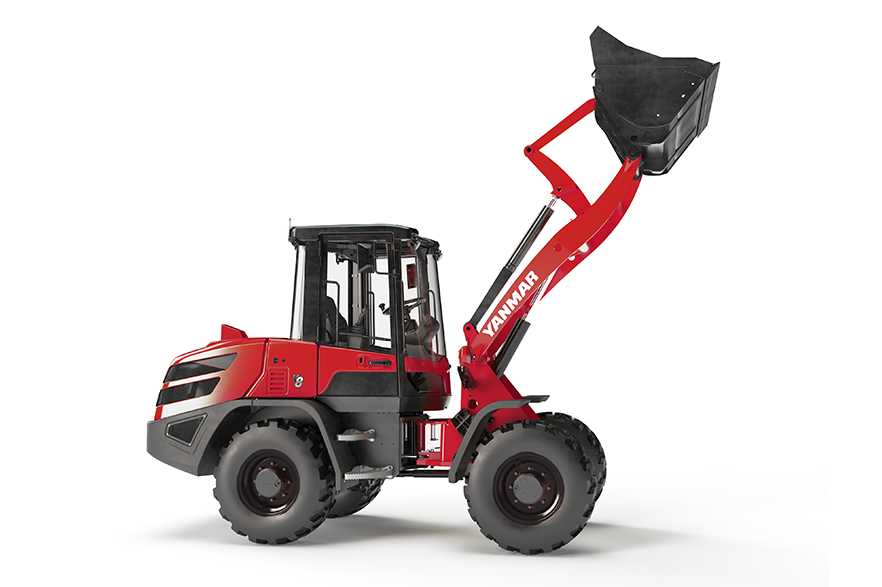

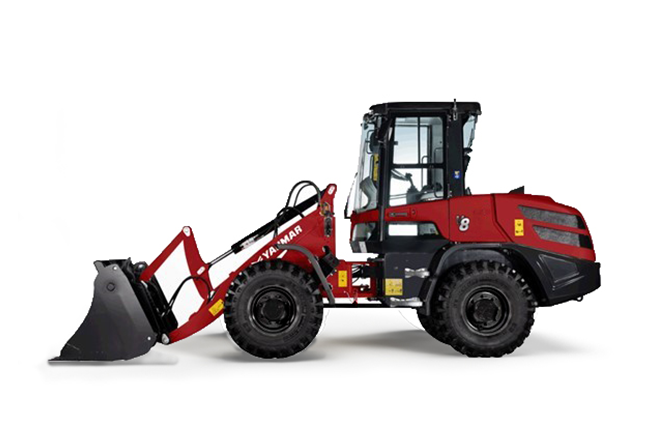

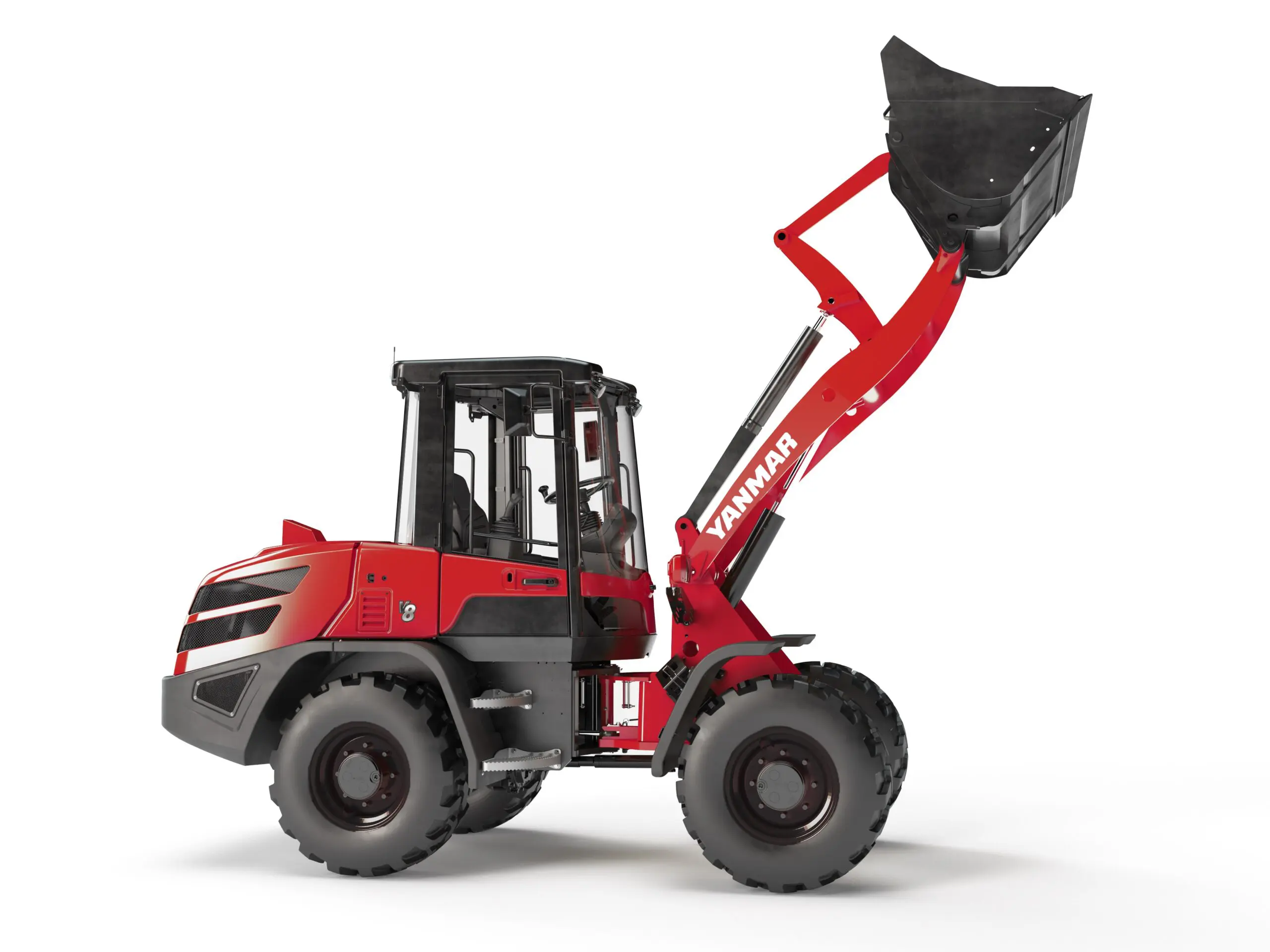

Step up to a new generation of compact wheel loader with the smooth hydrostatic drive and high-lifting capabilities of the Yanmar V8. You’ll find power at every turn thanks to the Tier 4 Final diesel engine and its stout 62-horsepower ensuring powerful hydraulics are always on tap to make quick work of materials. The intuitive and easy to learn pilot controls allows operators to quickly become both proficient and safe, thanks to the multi-function joystick design. Plus, you’ll find the same rugged dependability and ease of maintenance Yanmar is known for, ensuring you’ll knock out more jobs with less down time.
Easy to learn and easy to master, joystick pilot controls give you smooth precision with quick pattern change capabilities to adapt to different operators.
The intercooled four-cylinder diesel packs more than a punch. Tier 4 Final certification also means it’s quiet, clean, and incredibly fuel efficient.
Keep operators happy and safe with a ROPS certified and rubber isolated cab featuring a hydraulic suspended seat and integrated lumbar supports.
Choose and quickly swap from several available specialty buckets, grapples and fork attachments giving your wheel loader even greater jobsite versatility.
Power additional accessories with auxiliary hydraulic connections and set the perfect flow with standard adjustable proportional control.
Following in the Yanmar tradition, extended maintenance intervals and ease of serviceability is at the forefront of the V8’s modern design.
| Operating Weight | |
|---|---|
| SAE J 1197 | 10,802 lbs |
| Engine Power | |
| Net power rating at 2,200 rpm (SAE J 1349) | 62 hp |
| Performance | |
| Bucket Capacity | 1.05–1.57 yd³ |
| Tipping Load, Straight | 8,311 lbs |
| Tipping Load, Articulated | 7,341 lbs |
| Drawbar Pull | 9,441.98 lbs (L), 9,666.78 lbs (H) |
| Steering | |
| Total steering angle | 80° |
| Brakes | |
| Auxiliary brake | Service brake hydraulically actuated center-mounted disc brake, acting in all 4 wheels via 4-wheel drive |
| Tires | |
| Standard | 405/70 R18 Goodyear Powerload |
