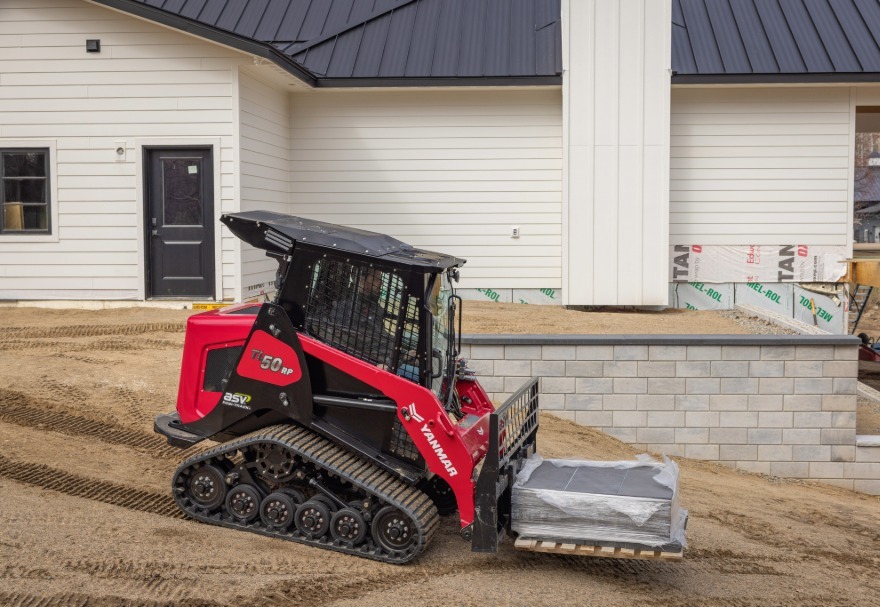

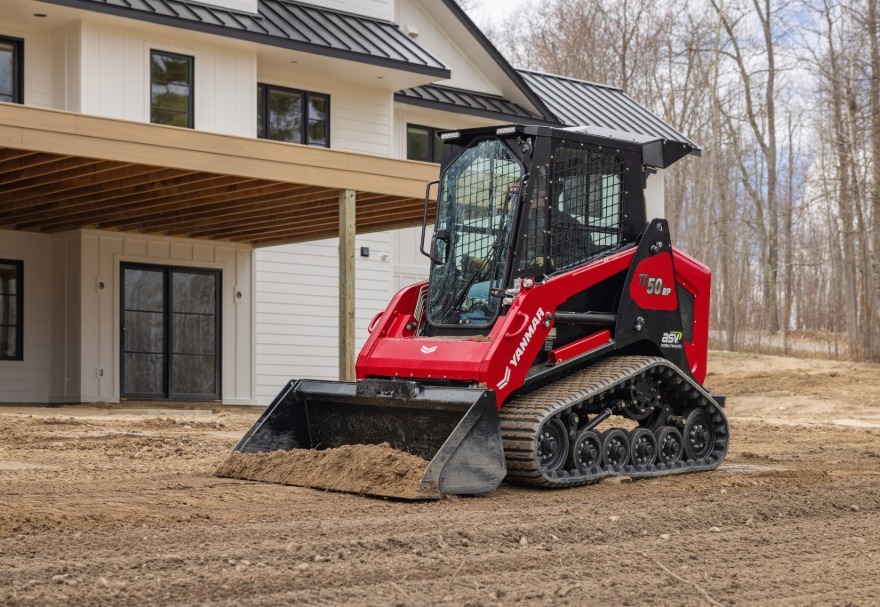

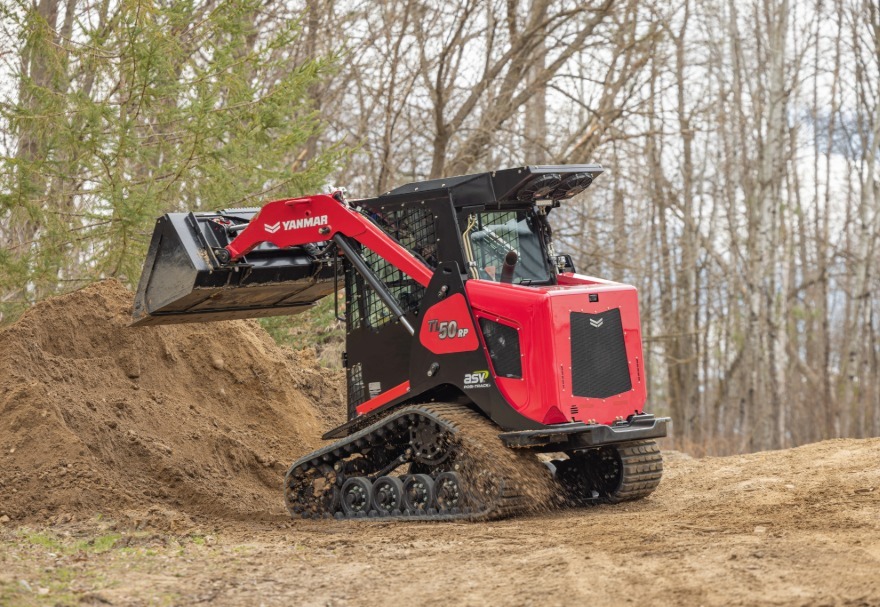

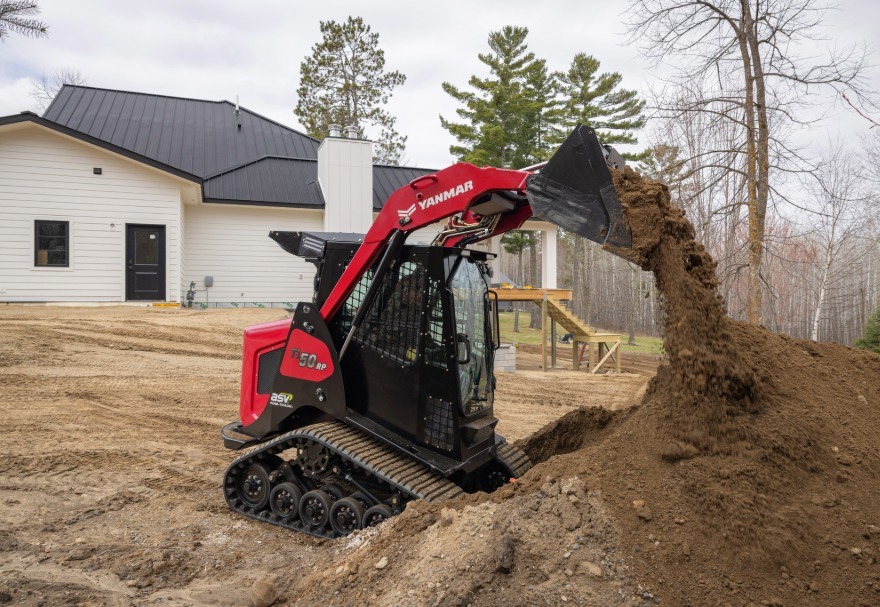

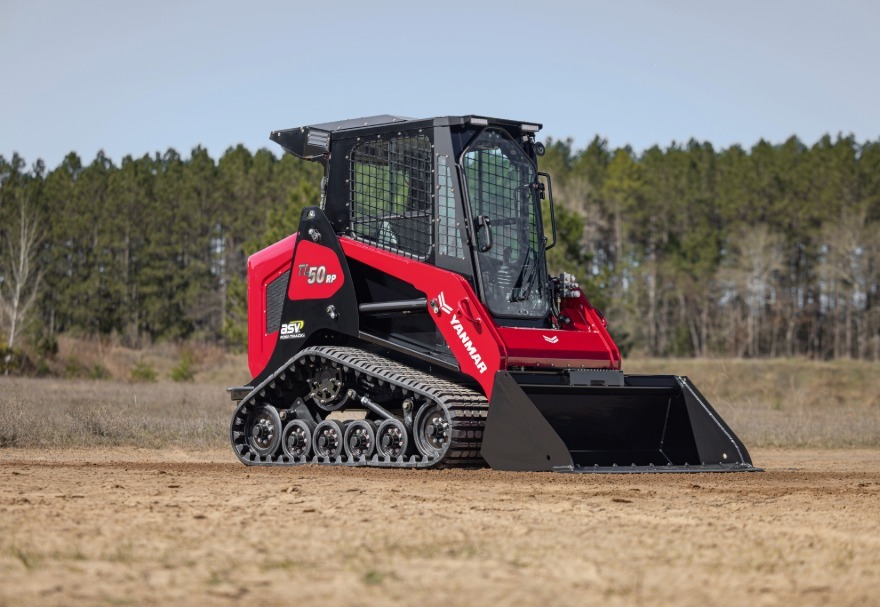

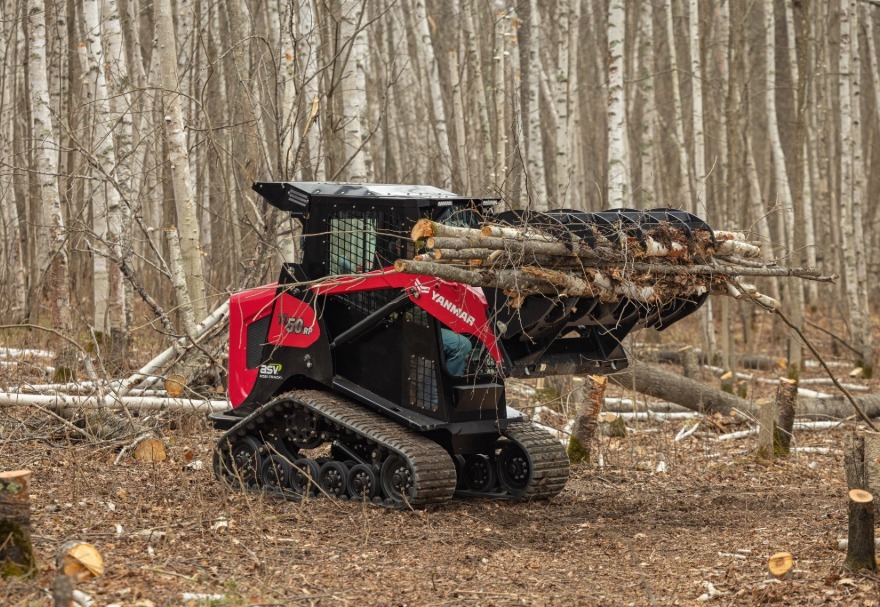

Yanmar TL50RP Compact Track Loader

Product Overview

The Yanmar TL50RP is a compact track loader built for powerful performance, increased lift capacity, and low ground impact in a maneuverable 58.5-inch platform. Designed for demanding applications that require more from a compact machine, the TL50RP delivers strength, traction, and jobsite agility without sacrificing control in tighter working environments. With ASV Posi-Track® fully suspended torsion-axle undercarriage technology, 15-inch tracks, 53.8 horsepower, and a 1,400 lb rated operating capacity, this compact track loader is well suited for construction, land management, snow removal, rental operations, and heavier material handling work.

Key Highlights

• Compact track loader built for powerful performance and low ground impact
• Maneuverable 58.5-inch platform
• ASV Posi-Track® fully suspended torsion-axle undercarriage
• 15-inch tracks for increased ground contact
• Operating weight, open ROPS: 5,205 lbs / 2,361 kg
• Operating weight, enclosed cab: 5,530 lbs / 2,508 kg
• Gross power rating: 53.8 hp / 40.1 kW
• Rated operating capacity: 1,400 lbs / 635 kg
• Operating capacity at 50% tipping weight: 2,000 lbs / 907 kg
• Tipping weight: 4,000 lbs / 1,814 kg
• Breakout force: 2,920 lbs / 1,324 kg
• Maximum travel speed: 7.1 mph / 11.4 kph
• Ground pressure at operating weight: 3.0 psi / 20.68 kPa
• Standard auxiliary hydraulic flow: 13.3 gpm / 50.4 lpm
• Available all-weather cab for year-round operation
• Optional hydraulic quick attach
• Rear-tilting hood for easier maintenance access
• 4.3-inch multi-functional color display
• Pilot-operated hydraulic joystick controls
• Standard engine block heater
• Universal standard skid steer quick attach coupler with manual latching pins

More Power With Low Ground Impact

The TL50RP is built for heavier workloads while maintaining a compact, maneuverable footprint. Its ASV Posi-Track® fully suspended torsion-axle undercarriage and 15-inch tracks help distribute machine weight across a larger ground contact area, keeping ground pressure low while supporting traction and stability across soft turf, delicate surfaces, uneven ground, and demanding terrain.

Built Around the Operator

The TL50RP is designed to keep operators comfortable, productive, and in control throughout the workday. An available all-weather cab provides protection from the elements for year-round use, while large windows help deliver clear sightlines in every direction. An optional hydraulic quick attach allows operators to switch between attachments quickly and efficiently without leaving the operator station.

Built to Perform and Easy to Maintain

The TL50RP is powered by a turbocharged Yanmar 3-cylinder diesel engine producing 53.8 horsepower and 103 ft-lb of peak torque. With a 1,400 lb rated operating capacity and 2,920 lb breakout force, it is built to handle heavier material confidently across construction, land management, snow removal, and rental applications. A rear-tilting hood provides access to major service points, helping simplify maintenance and reduce downtime.

Controls and Display

Pilot-operated hydraulic joysticks manage loader and drive functions independently. Auxiliary variable flow is controlled through the joystick rocker switch, while continuous flow can be managed through the console switch. A hand-operated rotary throttle gives the operator precise engine speed control, and the 4.3-inch multi-functional color display provides key machine data including engine RPM, coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, and more.

Operating Specifications

• Loader arms: Radial
• Operating weight, open ROPS: 5,205 lbs / 2,361 kg
• Operating weight, enclosed cab: 5,530 lbs / 2,508 kg
• Ground pressure at operating weight: 3.0 psi / 20.68 kPa
• Rated operating capacity, 35% of tipping weight: 1,400 lbs / 635 kg
• Operating capacity, 50% of tipping weight: 2,000 lbs / 907 kg
• Tipping weight: 4,000 lbs / 1,814 kg
• Maximum travel speed: 7.1 mph / 11.4 kph
• Breakout force: 2,920 lbs / 1,324 kg

Auxiliary Hydraulic System

• Standard auxiliary hydraulic flow: 13.3 gpm / 50.4 lpm
• Standard auxiliary hydraulic pressure: 3,000 psi / 20,684 kPa
• Controls: Variable flow via joystick rocker switch or continuous flow via console switch
• Couplers: Push-to-connect quick couplers mounted on manifold block with pressure relief valve
• Cooling system: High-efficiency oil cooler beside engine radiator, not stacked
• Quick-attach mounting plate: Universal standard skid steer quick attach coupler with manual latching pins

Engine

• Engine type: Diesel, 3-cylinder, turbocharged
• Engine model: Yanmar 3TNV86CHT
• Gross power rating: 53.8 hp / 40.1 kW
• Displacement: 95.7 cu in / 1.6 L
• Peak torque: 103 ft-lb / 139.7 Nm
• Cooling system: Engine-driven fan and coolant/antifreeze-filled radiator
• Intake air cleaner: Dual stage
• Emission controls: Meets all U.S. EPA Tier 4 Final standards
• Standard engine feature: Engine block heater

Undercarriage

• Track type: General purpose track with embedded co-polymer cords and all-purpose treads
• Track width: 15 in / 381 mm
• Length of track on ground: 57 in / 1,448 mm
• Ground contact area: 1,713 in² / 1.1 m²
• Drive system: Two hydrostatic direct-drive sprockets controlled by single joystick
• Undercarriage suspension: Two independent torsion axles per undercarriage
• Roller wheels: Twelve ultra-high molecular weight polyethylene and rubber wheels per track with metal-face sealed bearings

Service Capacity

• Fuel tank capacity: 13 gal / 49 L
• DEF capacity: N/A

Electrical System

• Nominal charge: 12 V
• Battery: 590 CCA
• Charging system: 80 amp alternator
• Outlets: One 12 V port inside operator station
• Wiring: Pre-wired for all factory-available accessories

Operator Station

• Cab options: Open ROPS Base, Open ROPS Premium, Cold Weather Cab Premium, and All Weather Cab Premium
• Seat: Vinyl seat with built-in operator presence switch on Base configuration; premium mechanical suspension seat with built-in operator presence switch on Premium configuration
• Restraints: Lap bar and 2-inch / 51 mm wide seat belt
• Loader control: Right-hand pilot hydraulic joystick controls loader lift, lower, tilt, and intermittent auxiliary hydraulic control
• Drive control: Left-hand pilot hydraulic joystick controls machine speed and direction
• Machine display: Multi-functional 4.3-inch color display with engine RPM, coolant temperature, oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, and more
• Engine speed control: Hand-operated rotary throttle
• ROPS: Meets ISO 3471
• FOPS: Meets ISO 3449
• Operator restraint anchorage: Meets ISO 6683 CAL OSHA 1596

Lighting and Standard Features

• Two fixed forward-facing LED lights
• One adjustable rear-facing LED light
• One interior light
• Two red LED tail lights
• Horn
• Backup alarm
• Rear window on Premium configuration
• Cup holder on Premium configuration
• Phone holder on Premium configuration
• Roof panel on Premium configuration
• Sound insulation on Premium configuration
• 8-pin attachment connector on Premium configuration

Optional Features

• Rear view camera
• Hydraulic quick attach
• Turf track with smooth treads
• Brush guard
• 1/4-inch polycarbonate front door

Best-Fit Applications

The TL50RP is well suited for compact equipment users who need more power, lift capacity, traction, and ground protection while still working in compact or sensitive areas. Common applications include:

• Construction
• Land management
• Snow removal
• Rental fleets
• Landscaping
• Site preparation
• Material handling
• Grading and leveling
• Loading and cleanup
• Soft turf or sensitive ground conditions
• Heavier compact loader applications
• Year-round operation with available cab options

Specification Note

Certain specifications are based on engineering calculations and are intended for comparison purposes only. Actual specifications may vary based on design, manufacturing, operating conditions, machine configuration, and other factors. Specifications and availability are subject to change without notice.
