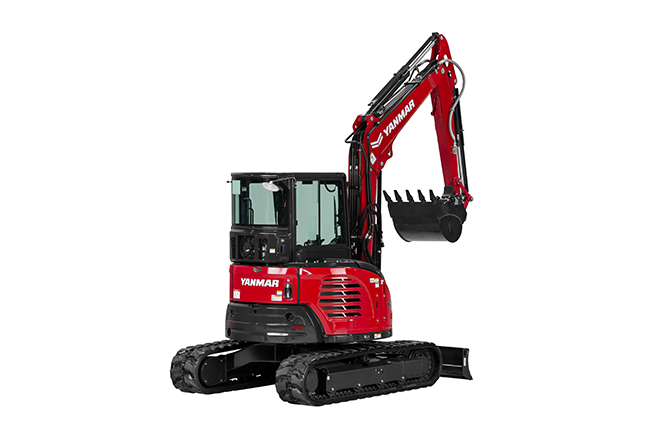

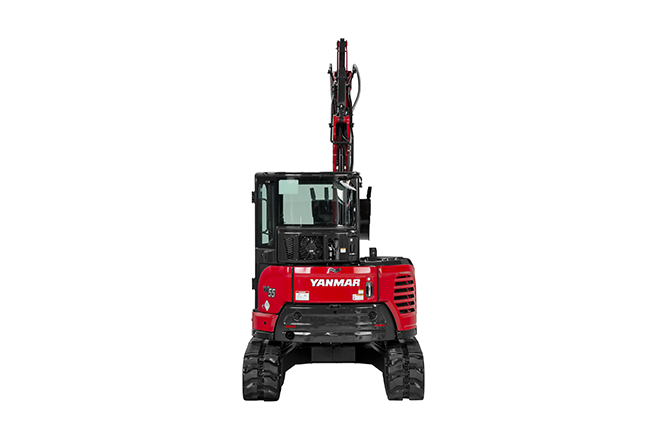

ViO55-6A

Weight

12,247 lbs.

HorsePower

47.6 HP

Maximum Digging Depth

13’6”

Boost your bottom line

Looking for more performance, low cost of ownership and the versatility and small space capability of true zero tail swing? Look no further than the Vi055-6A. We’ve packed the most wanted features and Yanmar innovations into this 5.5-ton class mini excavator including standard auto-shifting two-speed travel to efficiently move between dig areas. Providing all the performance you need is a turbo-charged Tier 4 Final Yanmar diesel engine resulting in more than 47HP at your fingertips. You can then add more capability with the optional 4-way blade and floating function. Add it all up and you have an excavator that can tackle the toughest tasks in places where larger, heavier, and less maneuverable excavators simply can’t go. Plus, with our legendary Yanmar ease of maintenance and rugged dependability, you can rest assured you’ll be able to work harder and longer for less.

Fits like a glove

The operator station of the Vi055-6A is designed for optimum intuitiveness and maximum comfort. The controls fall perfectly into place, the deep cushion seat provides all-day comfort, side bolsters keep you secure, and an informative LCD monitor makes it easy to keep tabs on engine and hydraulic details.

Features

Turbo-charged efficiency

With over 47-horsepower of boosted Yanmar diesel performance, the compact design of this four-cylinder makes quick work of big jobs while employing quiet and fuel-efficient Tier 4 Final technology.
True zero tail swing

Work in the tightest spaces with the assurance of zero tail swing performance. Never does any part of the cab or canopy extend beyond the track width.
SmartAssist Technology

Featuring advanced telematics, SmartAssist saves you time and money with real-time remote data analytics, geo-fencing, optimized preventive service scheduling and more.
Standard eco mode

Enjoy up to 9% improved fuel economy resulting in reduced costs and increased profitability with standard ECO mode.
Quick change attachments

Our patented hydraulic Quick Coupler system makes it easier and quicker than ever to swap buckets and other jobsite attachments.
Convenient hydraulics

Two available auxiliary circuits, standard proportional control, and PTO Selector Value allows you to set the perfect flow and choose single or double action.

Specifications

Engine
Model	YANMAR 4TNV86CT-PBV
Output	47.6 HP
Type	Water-cooled 4-cylinder diesel
Operating Weight
Rubber Track (Canopy)	11,850 lbs
Steel Track (Canopy)	11,916 lbs
Rubber Track (Cabin)	12,247 lbs
Steel Track (Cabin)	12,313 lbs
Performance
Max Digging Force, Bucket / Arm	7,464 / 5,058 lbs
Traveling Speed, High / Low	2.6 / 1.4 MPH
Swing Speed	10 RPM
Boom Swing Angle, (L / R)	68° / 68°
Ground Contact Pressure
Rubber Track (Canopy)	4.17 PSI
Steel Track (Canopy)	4.25 PSI
Rubber Track (Cabin)	4.40 PSI
Steel Track (Cabin)	4.47 PSI
Hydraulic System
Pump Capacity	12 + 12 + 9.7 + 2.8 GPM
Main Relief Set Pressure	3,553 x 3 + 566 PSI
Blade Dimensions
Width x Height	6´6˝ x 1´4˝
Fuel Tank
Capacity	17.4 Gals
